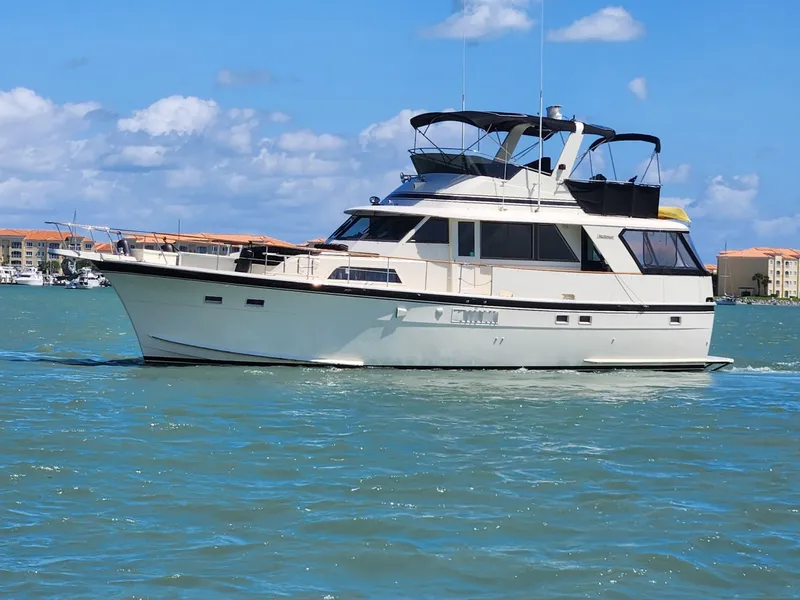

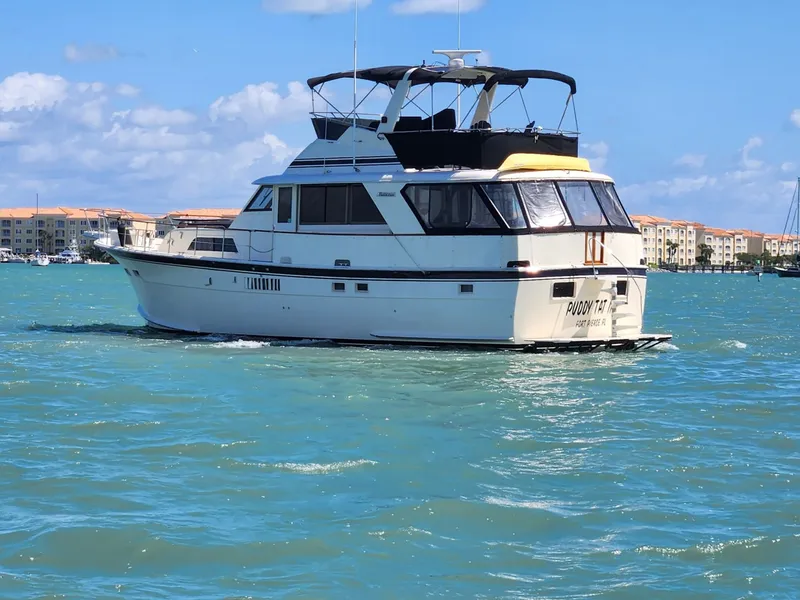

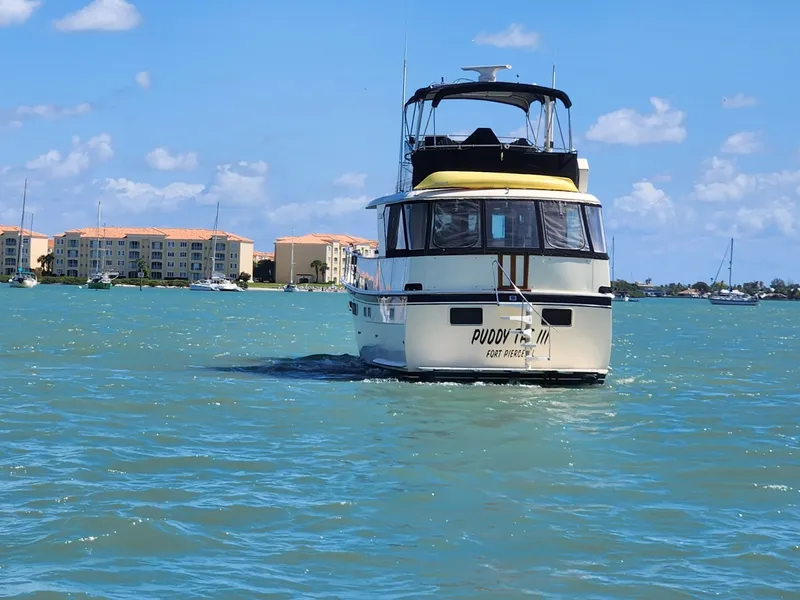

1978 Hatteras 53 Motor Yacht

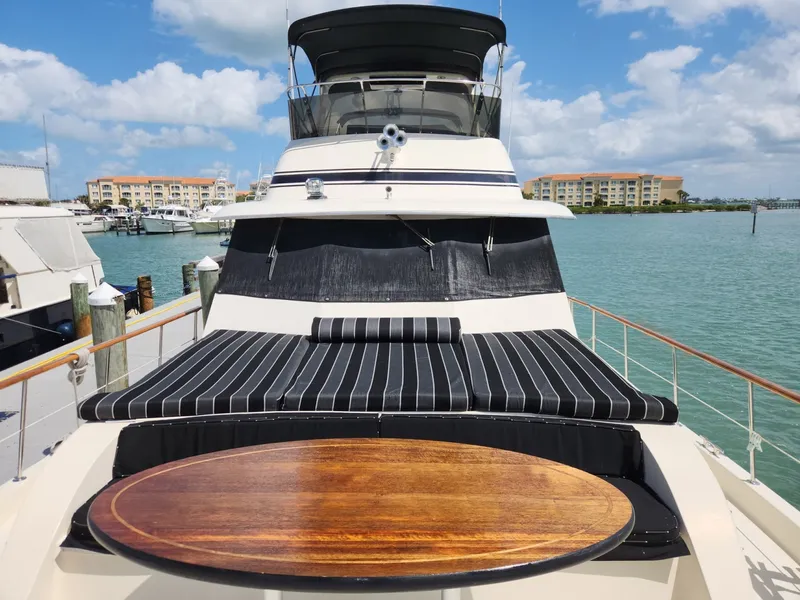

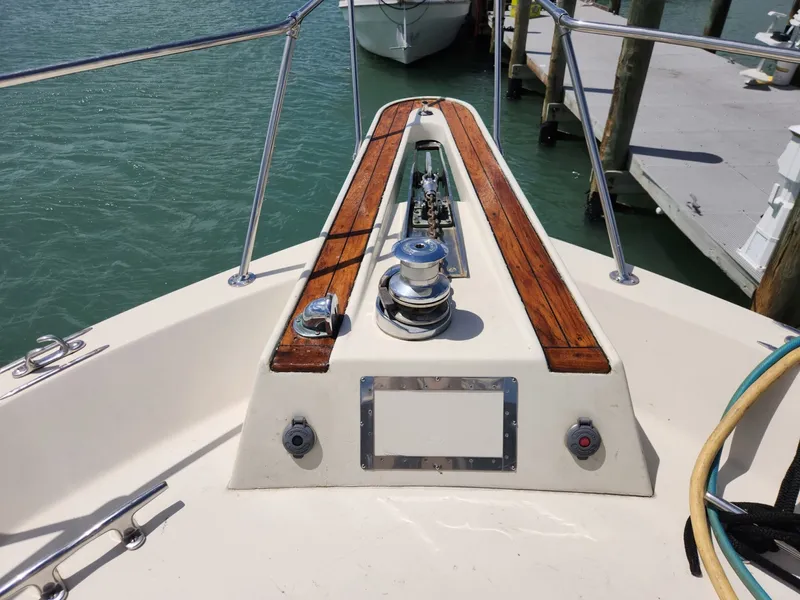

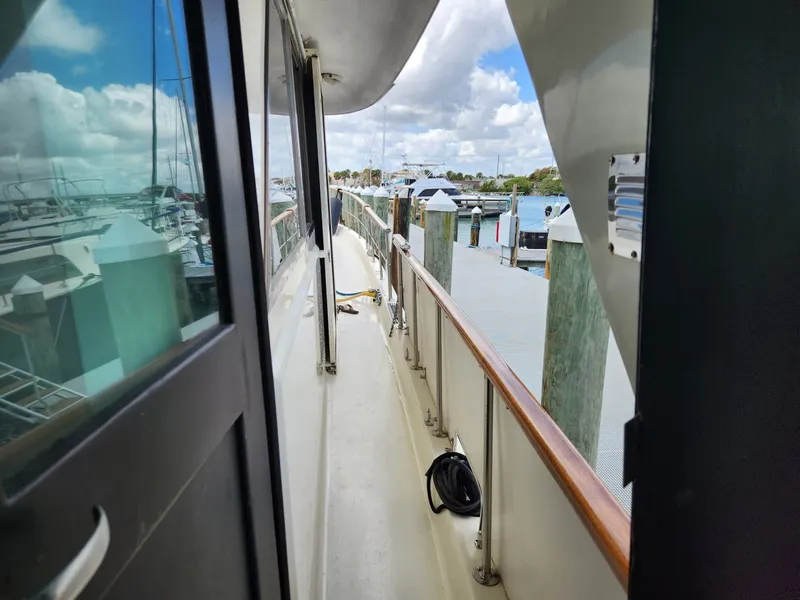

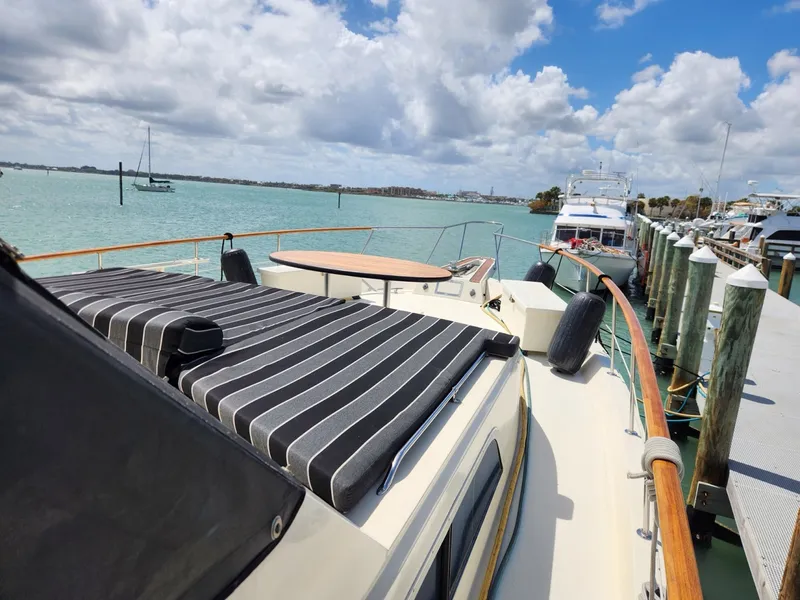

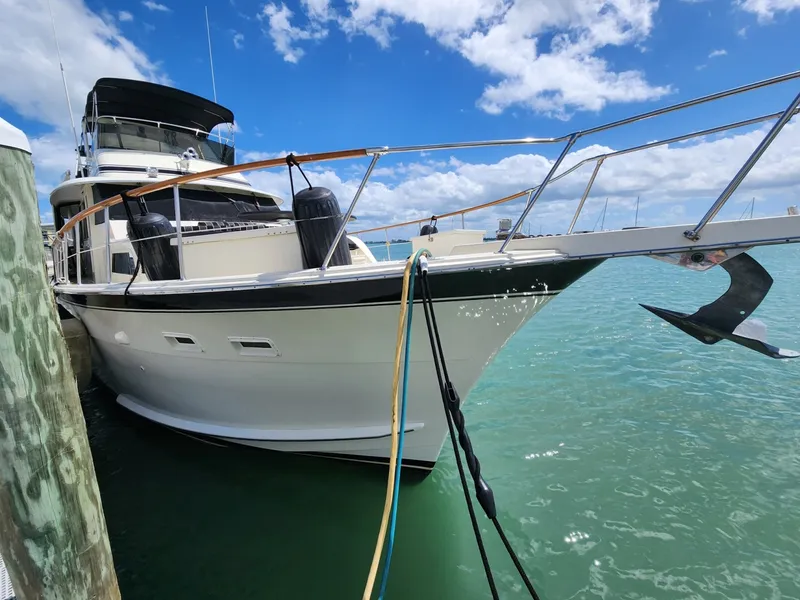

When you walk up from the starboard side you will have your ship service and water connections immediately to your right on the outboard side along with the waste pump out forward. The same hookup is also available on the port side. Walking forward to the bow you have two deck boxes, one starboard which contains the power cords & hoses, and the port deck box stores for all of the lines. Center is the bow pulpit which has a fresh water wash down connection located on the stbd side and center is a new Lofrans X3 1700W windlass with a new 66 lb (30 kg) Mantus M2 anchor. The windlass motor has recently been replaced and mounted directly below for easy access through the front panel. The bow bench, teak & holly table and sunpad are excellent for entertaining and enjoying the sunshine while underway. Moving aft is the three-step boarding ladder that’s mounted on the stanchions and just aft of the side door are the two fuel fill plates located on the bulwark.

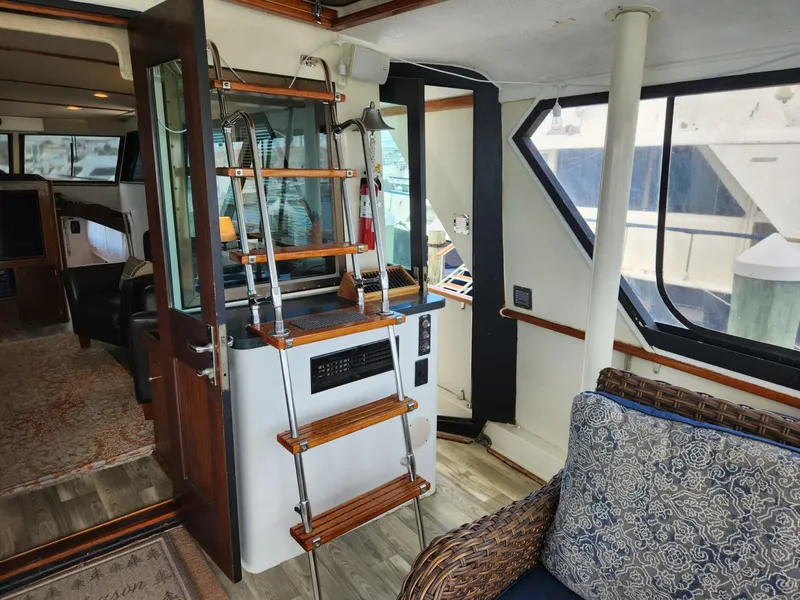

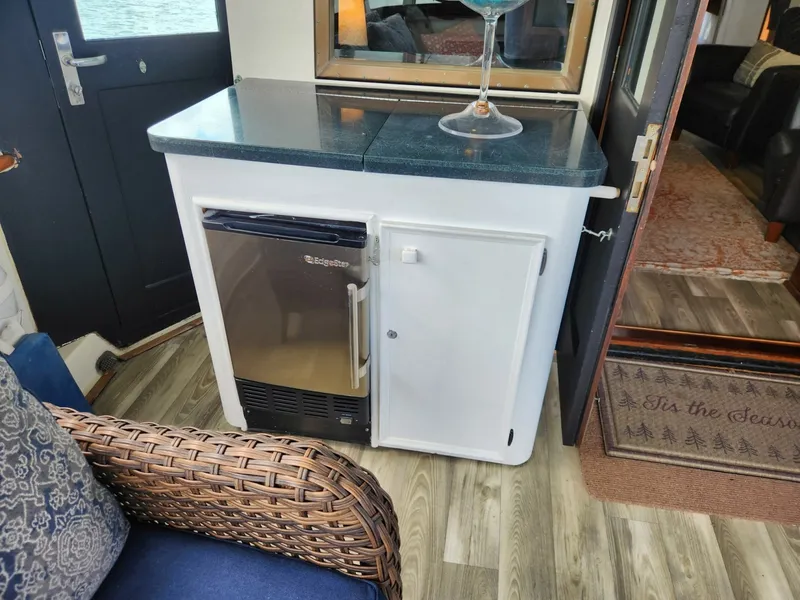

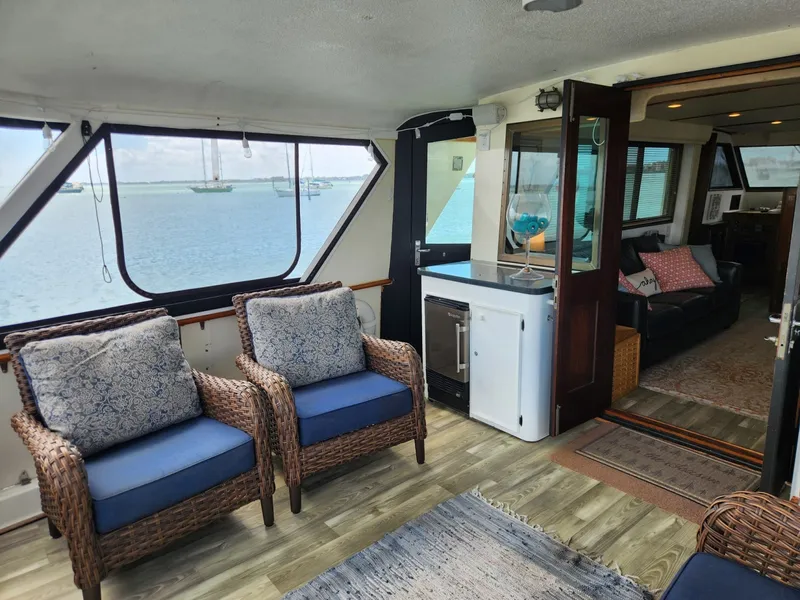

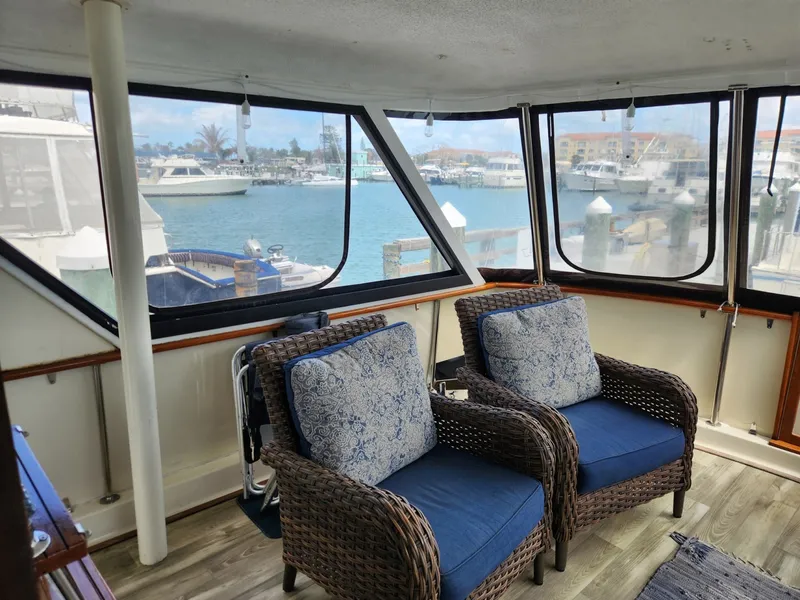

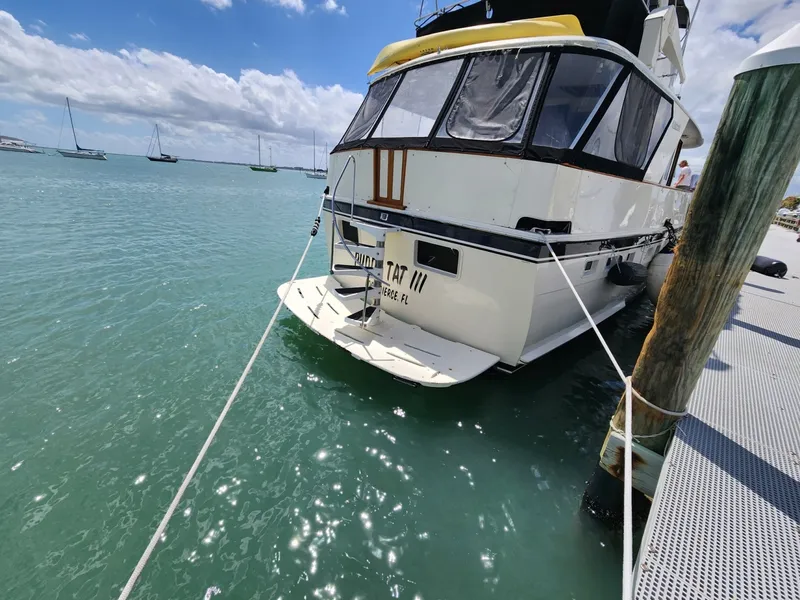

The large aft deck is the perfect location for enjoying sunset cocktails with family and friends. It has a full plexiglass enclosure with four U-shaped screens for fresh air, or roll-up the back panels and enjoy your backyard paradise! Alternatively, there is full 16k btu a/c independent unit for those hot summer days. There is a wet bar with a liquor cabinet below, along with an EdgeStar ice maker and a can crusher. The aft deck has four outdoor “comfy” wicker style chairs, two small round foldable tables in between, and a foldable dining table for those days with guests and of course music from the two speakers to complete a perfect day on the water. Access the swim platform through the half double doors that open up to a custom-made stainless-steel spiral staircase that leads you to the custom 4’ swim platform for added safety and comfort for those who love to anchor out or have pets that need to dinghy to shore. Heading up to the flybridge there is an additional storage cabinet that is located on the stbd side, beneath the ladder.

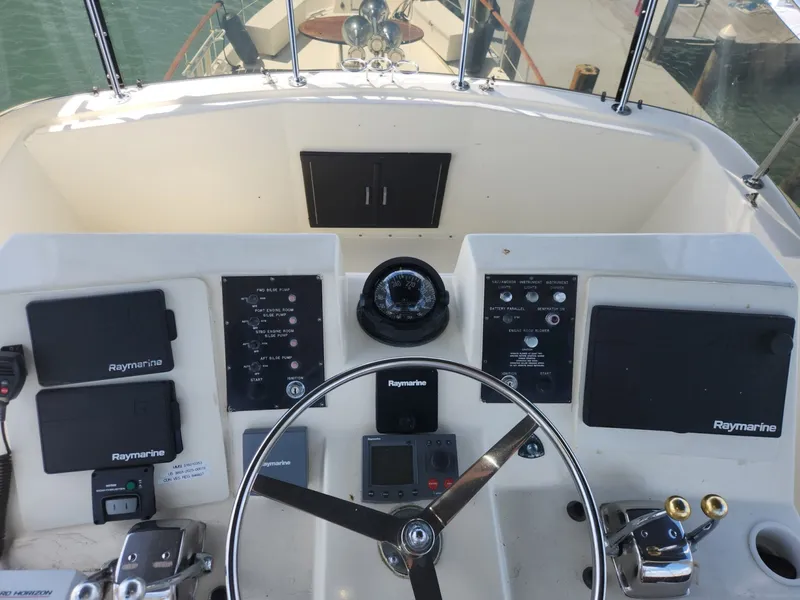

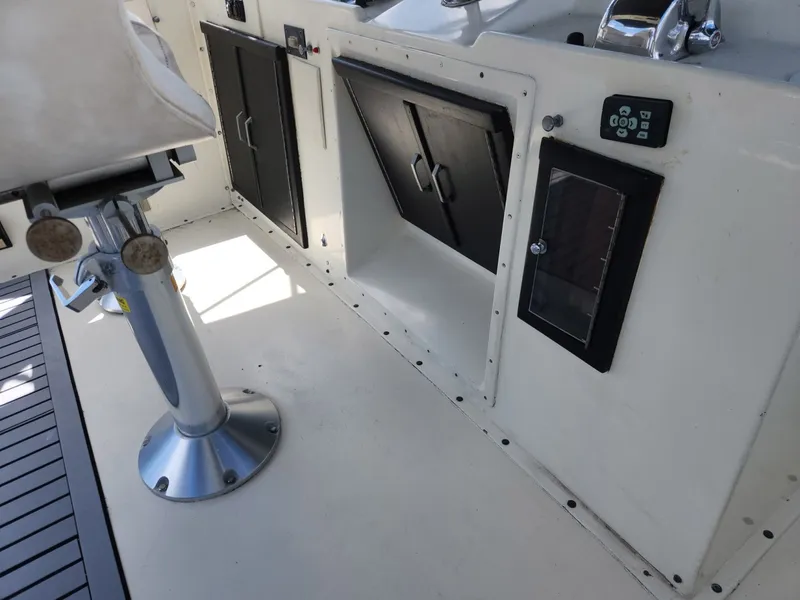

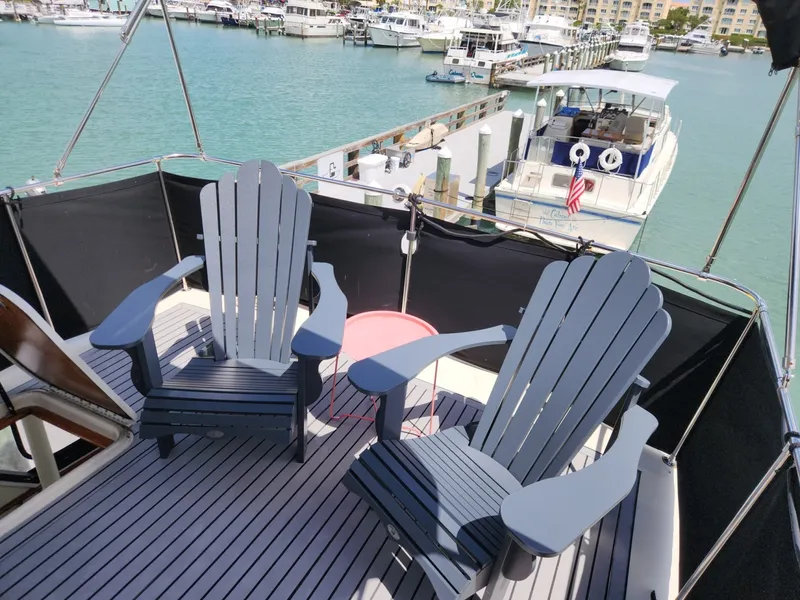

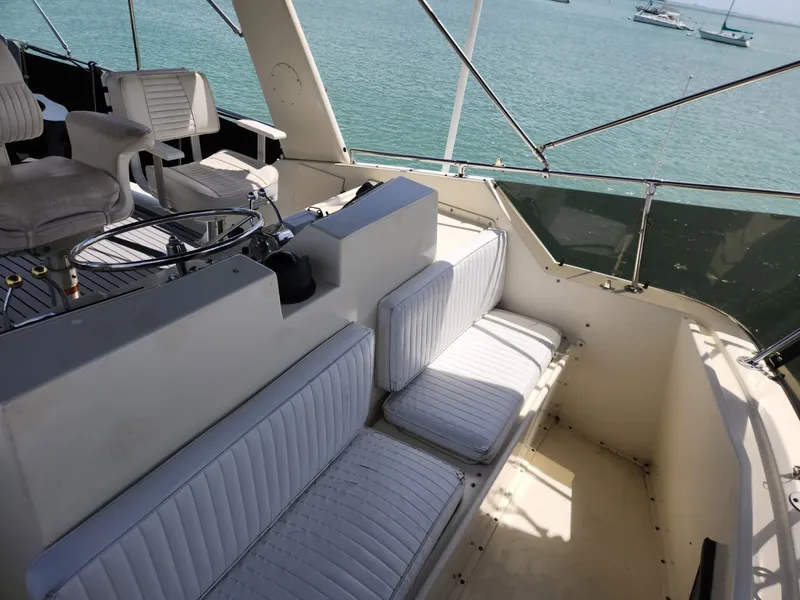

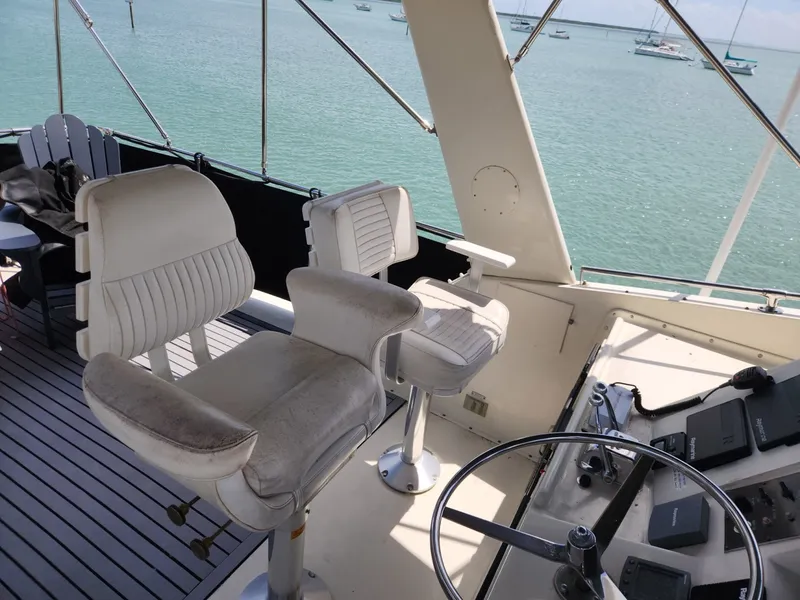

The flybridge has new EVA flooring in the aft seating area with two Adirondack chairs and table. Forward is the helm station that has duplicate electronics as the lower helm and two captains’ chairs. The helm station and both captains’ chairs have new custom Sunbrella covers. A long cushioned bench for seating several guests is directly in front of the helm. Two new Sunbrella biminis attach to the arch (for the main and aft areas). The Marquis davit is located stbd, and aft of the arch.

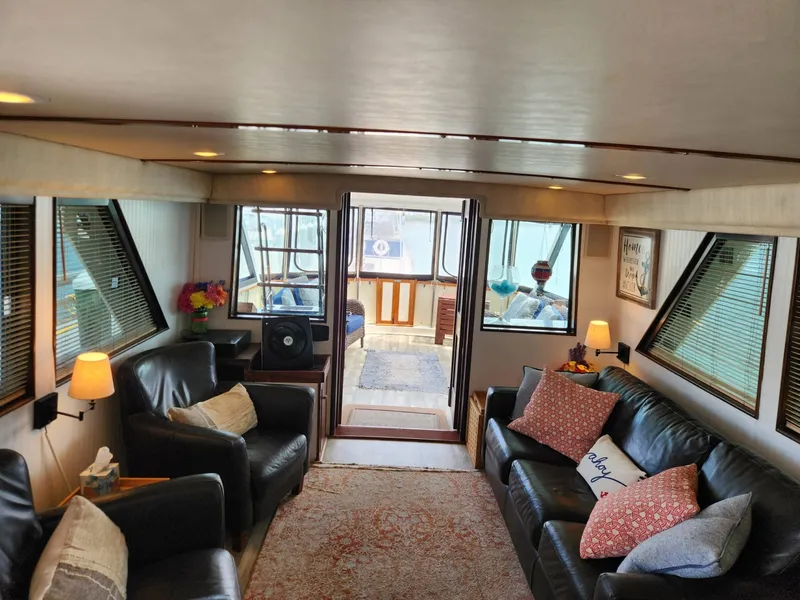

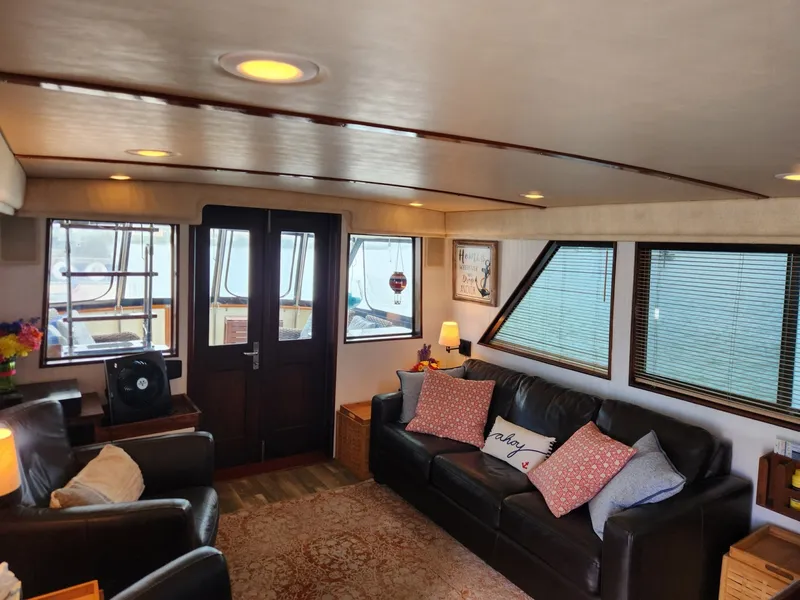

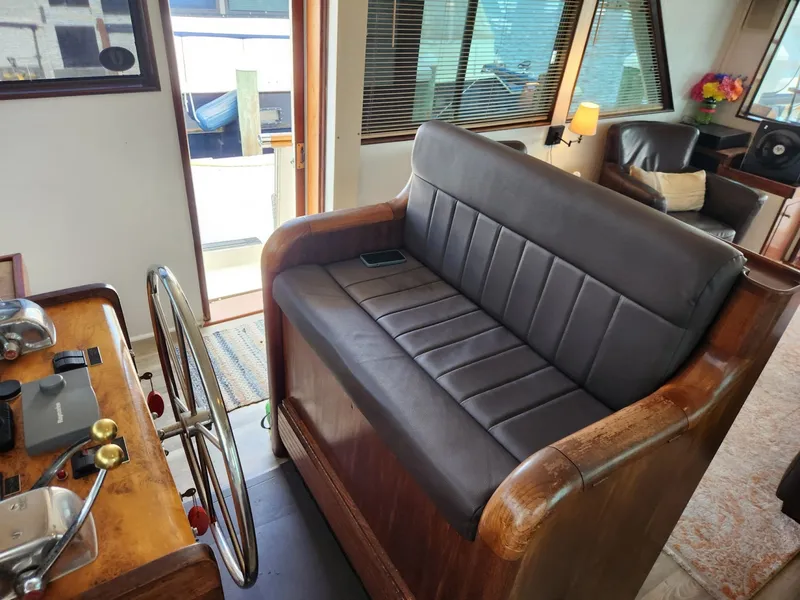

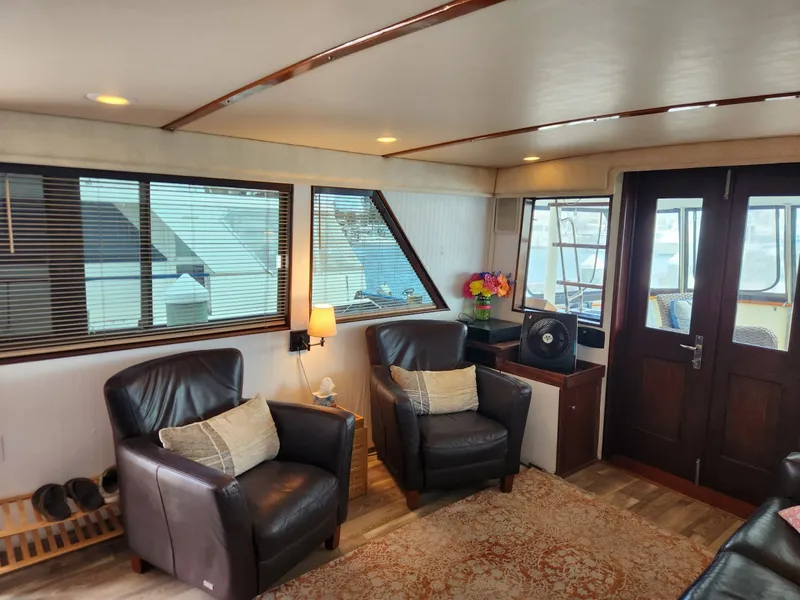

Continuing forward from the aft deck you’ll enter the spacious main salon area. The 360 degrees of panoramic views provide a great feeling of openness and excellent visibility. The aft stbd side cabinet houses the encased a/c unit with the stereo amplifier and speaker controls with a storage cabinet below. Forward are two leather bucket chairs with a table in between and a mounted swing arm reading lamp. Portside has a leather couch with end tables at each end, a mounted swing arm reading lamp in the aft corner and a storage shelf forward. Center is the Insignia flatscreen tv, dvd player, and speaker selector. The bottom left side is a wine cabinet, center provides a pull-out drawer, and shelving on the right side. The front side has bench seating for the captain and provides storage in both armrests. The helm station consists of all new Raymarine electronics. The portside contains the Marino spotlight remote, an Axiom 7” screen, 12v USB plugs, Vetus bow thruster controls and engines gauges. Center is the Axiom 16 “Master” MFD, and mounted below it is the autopilot. Stbd side includes gauges, another Axiom 7” screen, and Lofrans windlass remote. All mechanical gauge data is digitized and fed into the NEMA 2000 backbone that runs to the upper helm. Overhead includes the ICOM VHF radio and Naiad stabilizer control panel. The 32v DC panel is located outboard port side and next to it is the 110v and 220v panel. Above the circuit panel are the a/c controls, Magnum Inverter/ Charger monitor, Victron panels, and an 110v electrical outlet.

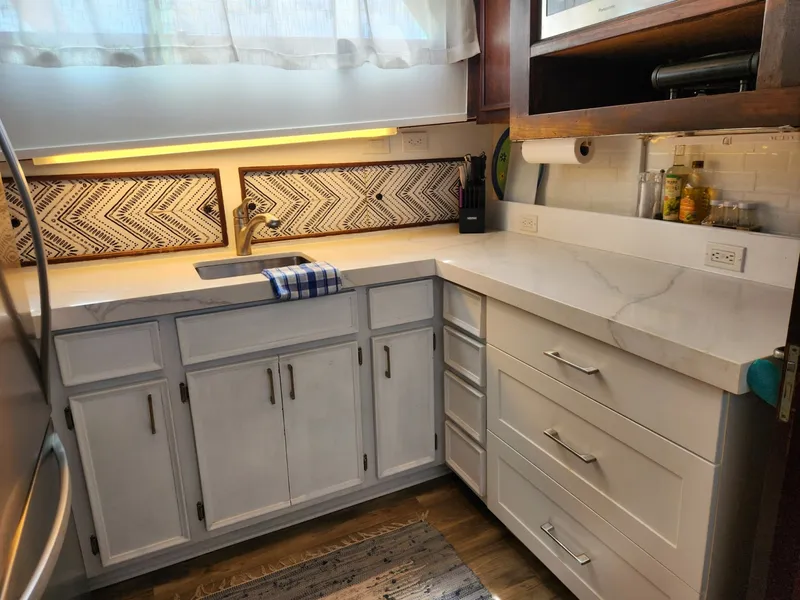

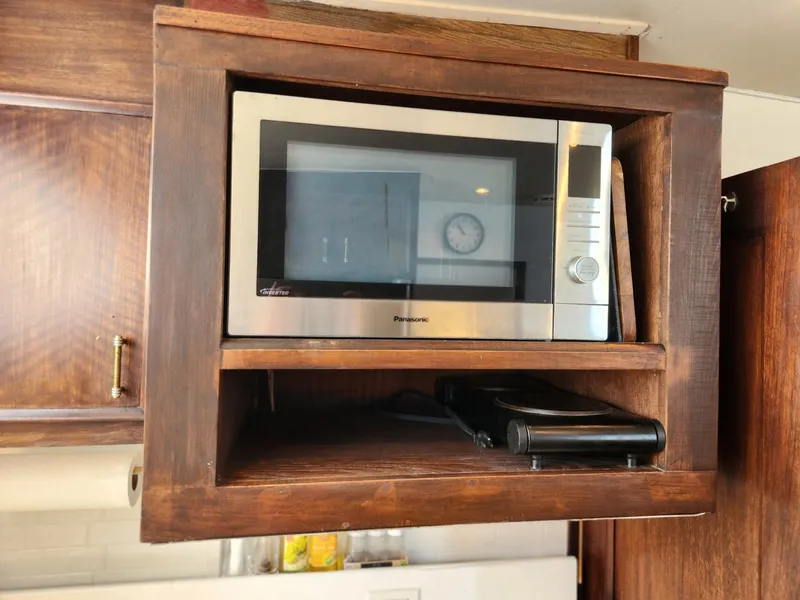

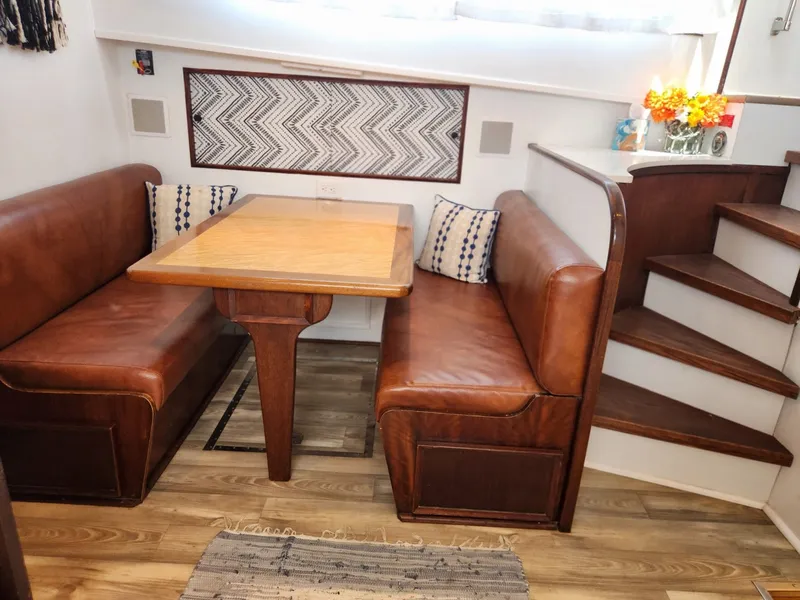

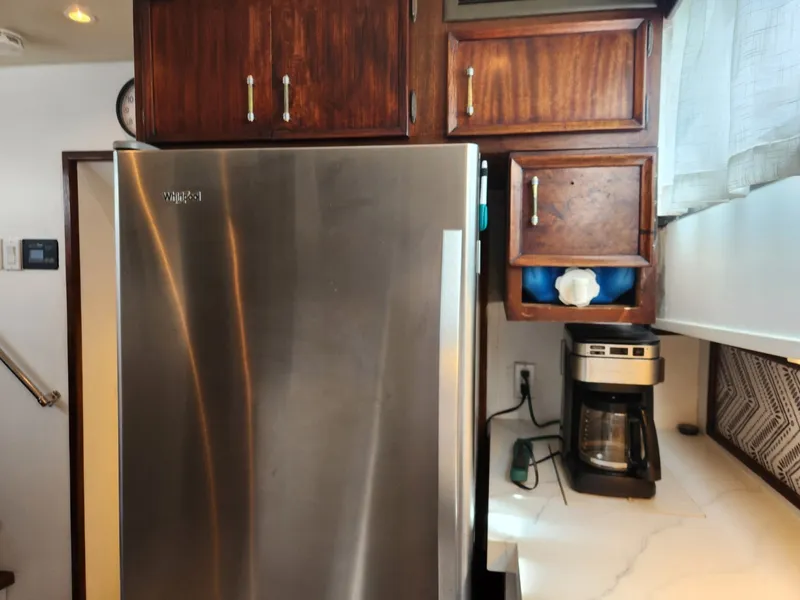

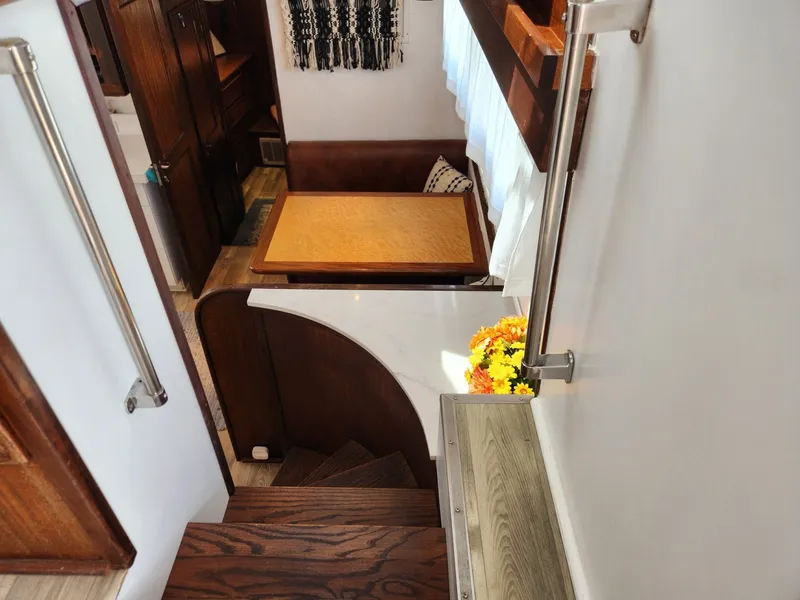

Down several steps on the stbd side and you will enter the galley and dinette area with slider cabinet space and drawers below the seating. Port side has the updated galley with the new L-shaped Corian countertop with a s/s sink and faucet. The overhead cabinet houses the Panasonic convection/ microwave/ air fryer, and Cuisinart two burner 110v countertop cooktop. Below are three large storage drawers for pots/pans and additional drawers and cabinet space for all your cooking essentials. Aft facing is the full-size Whirlpool refrigerator with bottom freezer drawer. The galley flooring has been updated with faux vinyl flooring. There is another independent a/c unit in the galley. The generator room is located under the galley floor which comprises a Cummins Onan 10kW 2x 32v engine battery banks, 24v windlass and bow thruster battery system, 24v AGM (Rolls Surette) house batteries, 3500W Magnum Inverter/ Charger and the Victron SmartSolar charge controller (MPPT 100/50).

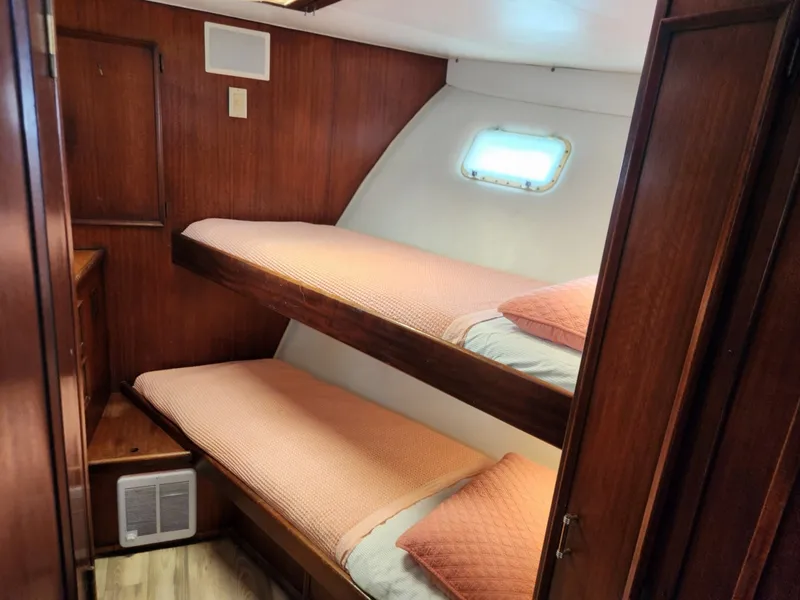

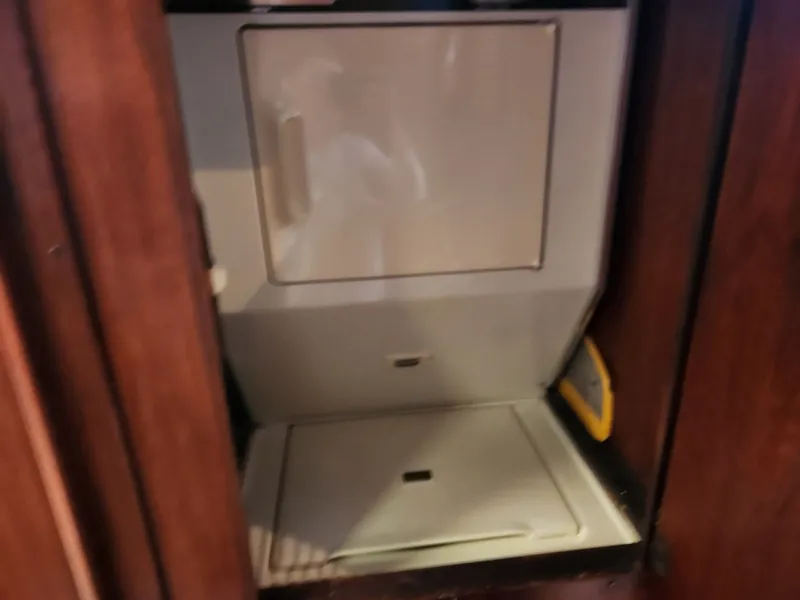

Forward of the galley is the v-berth with two bunks stbd side, each with reading lamps. Two speakers, two porthole windows and a large overhead hatch. Large counter space with two drawers and bottom cabinet. The windlass chain locker is forward and houses 300 ft of anchor rode (200 ft of 3/8 chain + 100 ft of twisted rope). Located aft is the head with a Galley Maid toilet, countertop with sink, cabinet space below and a shower stall. Directly across to the stbd side is the Frigidaire stacked washer/dryer and closet.

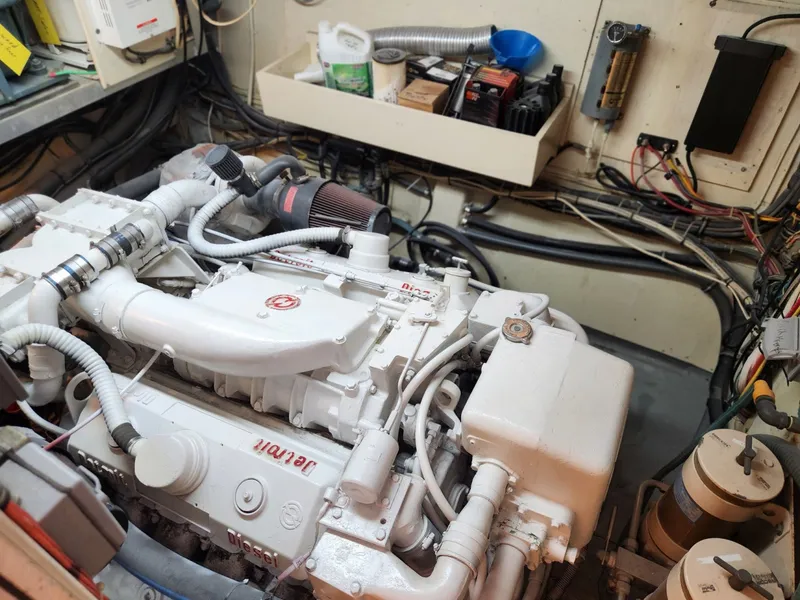

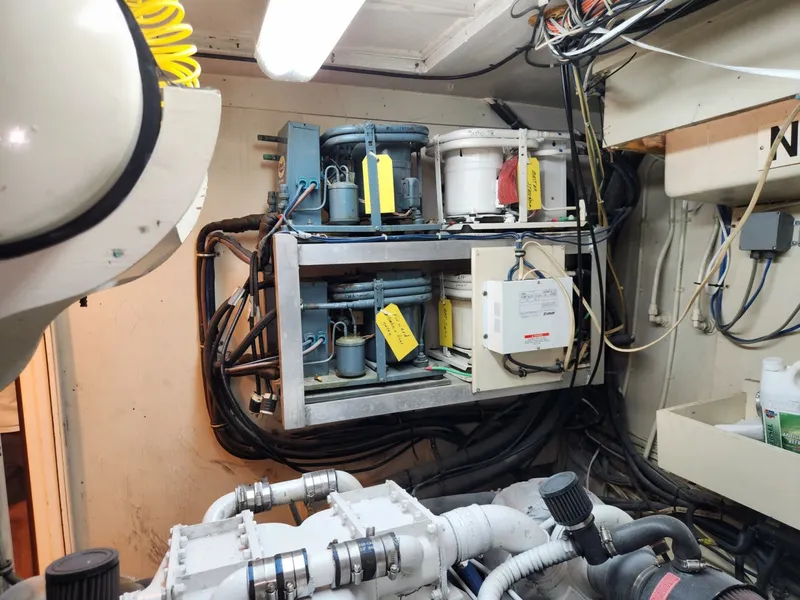

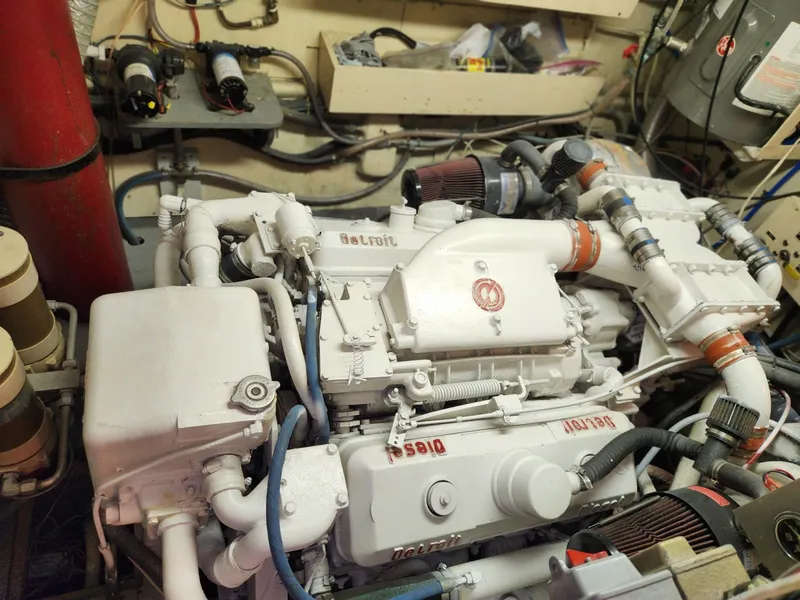

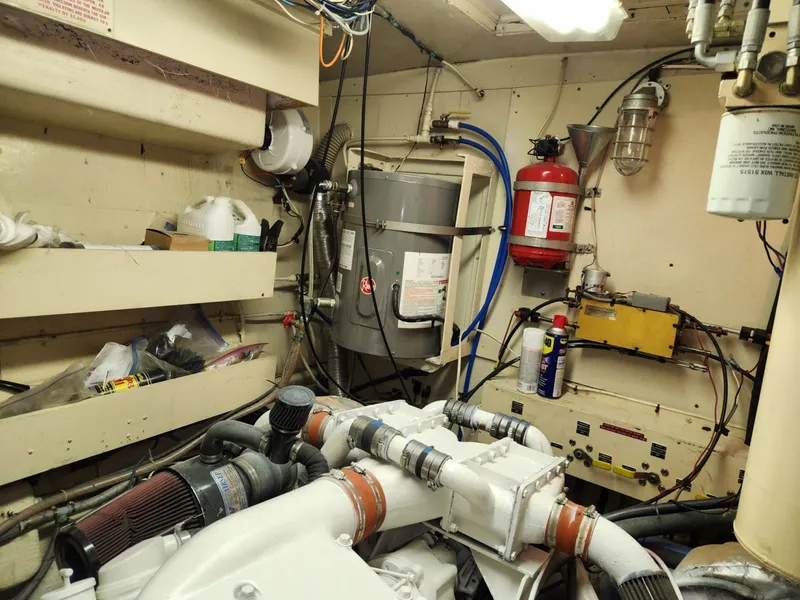

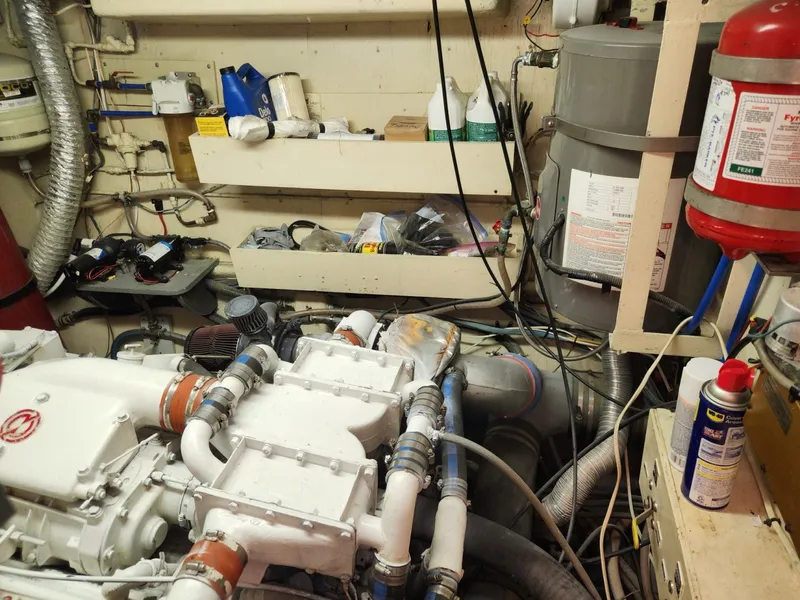

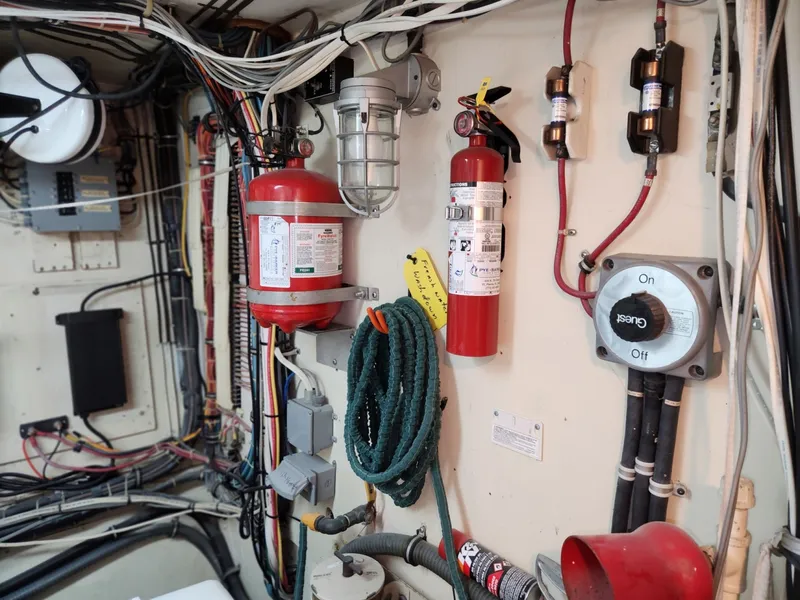

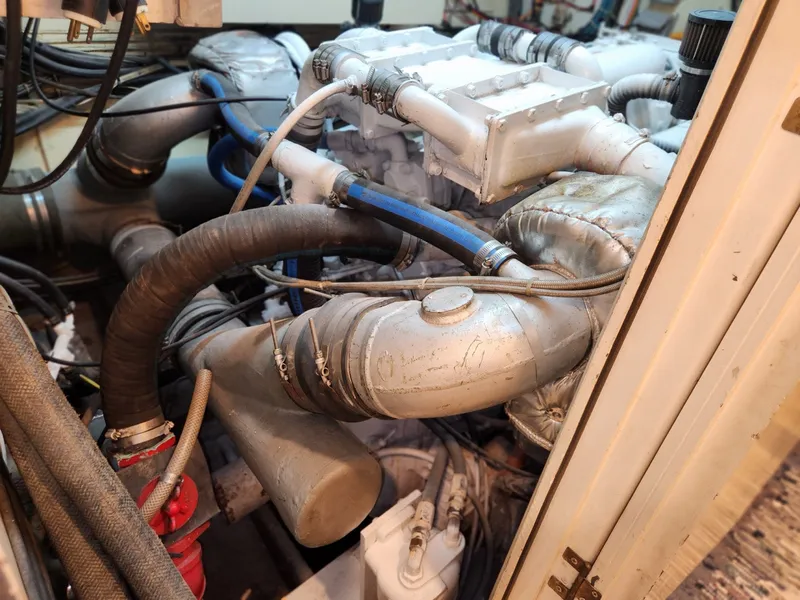

Moving aft of the galley are the two engine rooms. Port side includes the Detroit Diesel 8v71TI engine, Kidde carbon monoxide alarm, Kidde Mariner Fyre Watch suppression system, Sentry battery charger, four Cruisair reverse cycle a/c units. Starboard engine room has the Detroit Diesel 8v71TI engine, fire extinguisher, ProSafe FS60 FailSafe Galvanic Isolator, Groco pressure storage tank, Jabsco wash down, Pentair Shuffle Aqua King II, Rheem hot water heater, and Naiad stabilizer system.

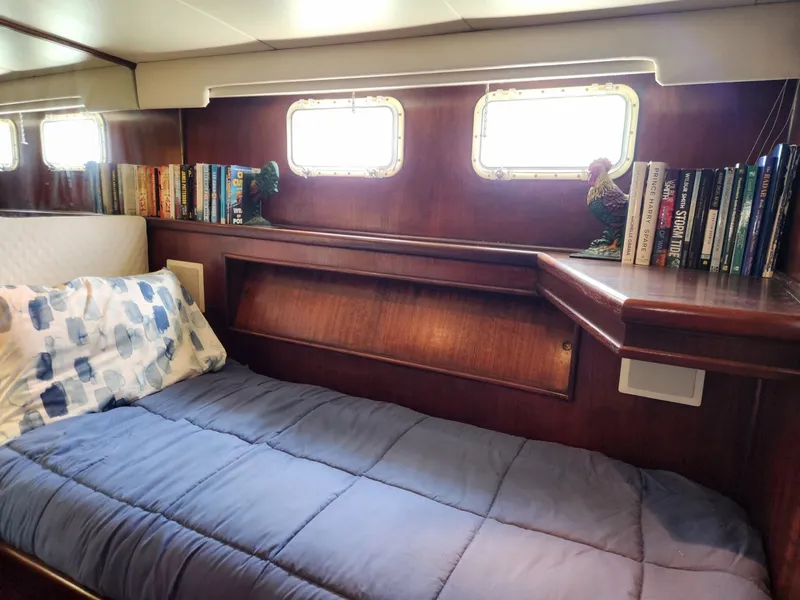

The midship port stateroom includes two twin berths with a nightstand in between with several drawers below. The outboard berth has a full-length shelf with a/c controller, speaker, slider cabinet for additional space, and four drawers below. A large hanging locker is located at the foot of the bed.

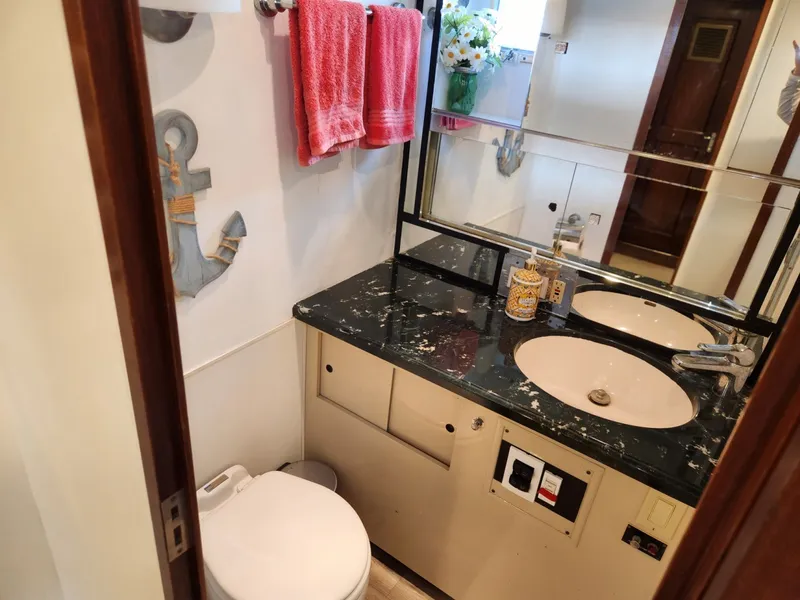

Across the hallway on the stbd side is the guest head that contains a Raritan Elegance vacuflush toilet with setting to draw sea or tank water, stone countertop with sink, ample storage above and below the countertop, and a shower stall.

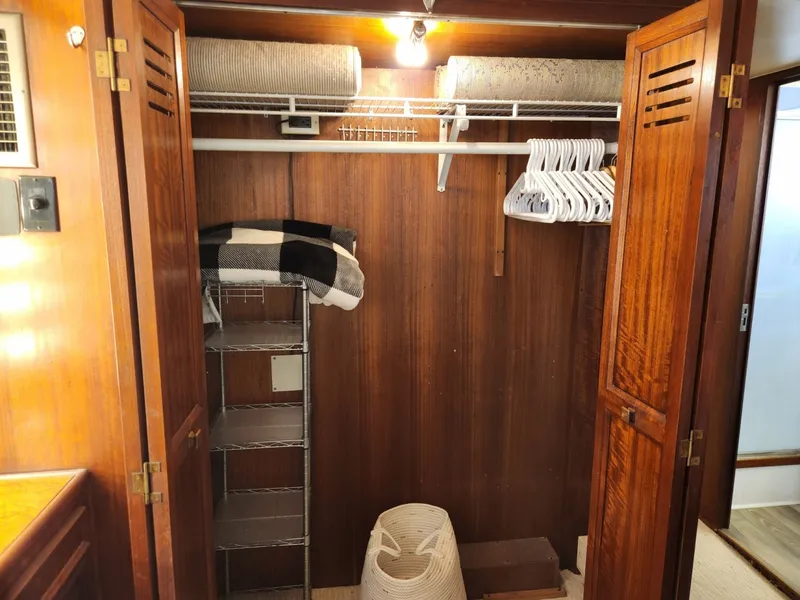

Further aft is the master stateroom with an ensuite head. The stateroom is comprised of a centerline queen berth, nightstand on both sides along with lamps. There is an abundant amount of dresser drawer space throughout the stateroom. A vanity is located portside and forward of that are the bi-fold doors that open up to a large closet.

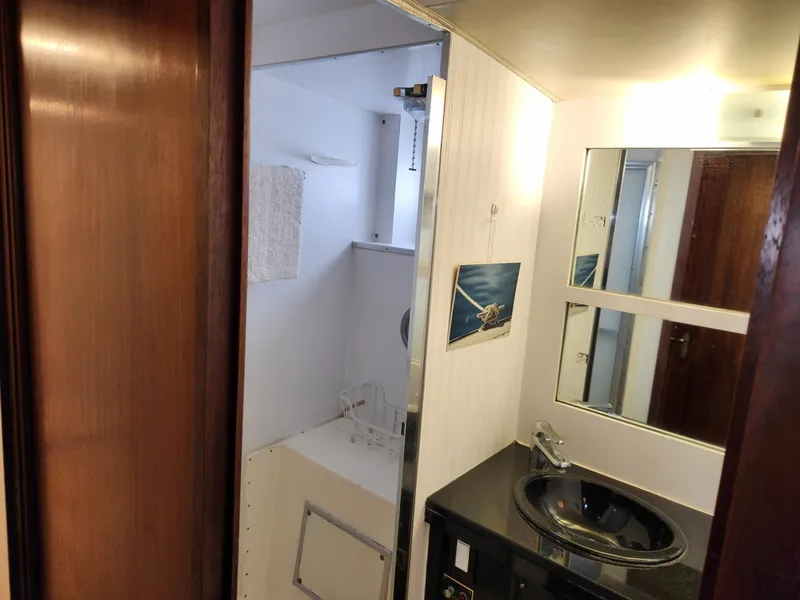

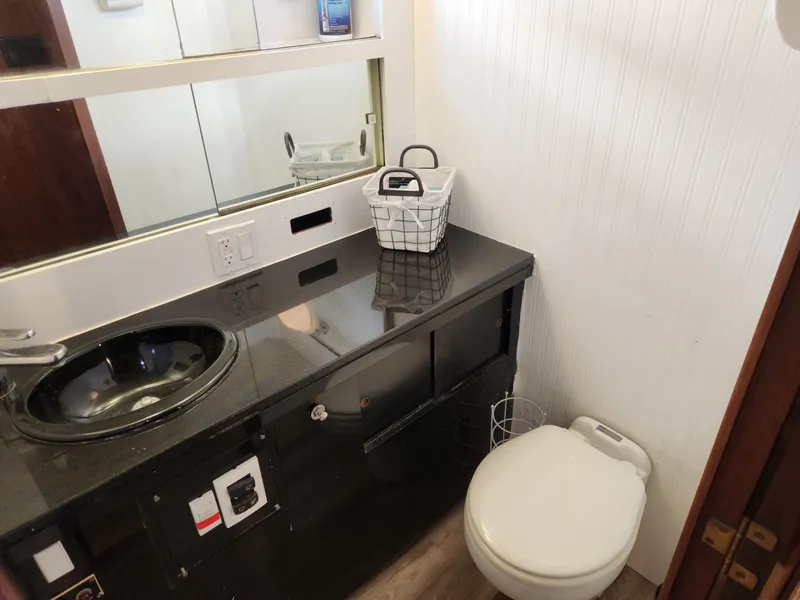

The ensuite head includes another Raritan Elegance vacuflush toilet, countertop with sink, mirrored cabinets above with additional storage below, and a shower stall.

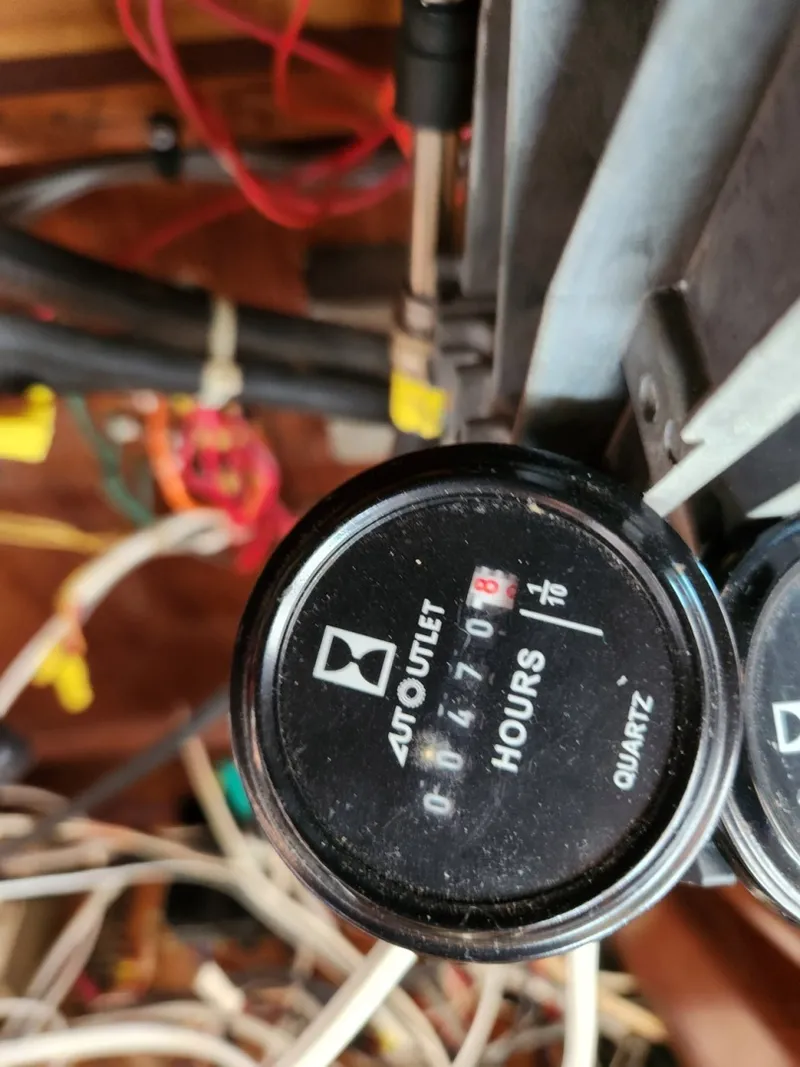

• Detroit Diesel 8V71TI (Twin Turbos) 425 HP with 3327/ 2627hours (Port/ Stbd)
• Chevron Delo 100 5w40 (low ash) used for past 9 years.
• 32v Alternators with Sentry 32vdc 50 amp 3 stage battery charger
• Spin on style oil and fuel filters/ Twin Racor Fuel filters on each engine (Vacuum)
• Two 32v Engine Battery banks (4x8v lead acid) (Port 2025/ Stbd 2025)
• Magnum 3500W Inverter/ Charger (2020)
• 24v House Battery system – 4 AGM VRLA 6v S6 Rolls Surrette (2020)
• 24v Windlass & Vetus Bow Thruster Battery System
• Victron Energy House Management System - Bluetooth and Helm Gauge (2020)
• New 2x170W SunPower Solar Panels w/ Victron MPPT 150/100 (2020)
• Engine Block Heaters
• (2) 4 blade Michigan 28/32 propellers with (2) spares
• Kidde fire suppression system
• Engine emergency shutdowns (lower helm)
• Two-way Engine Oil change pumps for each engine
• New freshwater pressure pump with accumulator (2021)
• New washdown pump with internal fresh water or sea water sourcing (2023)
• Dual element 4500 watt, 19 gallon water heater (2018) new elements each season.
• 3 independent A/C systems
• 4 Cruisair reverse cycle with new thru hull, strainer and pump (2022)
• Aft Deck 16k BTU
• Galley 11k BTU
• Hynautic hydraulic steering system – Upper and Lower helms
• Bennet trim tabs
• Two 120-240 50 amp Shore Power cords, 2x30 amp “Y” connector
• New (2023) Cummins Onan 10kW Generator with 130 hours (12-27-23)

Exterior

BOW:

• New (2023) Lofrans X3 1700W Windlass custom mounted with wireless remote control

Anchors:

• 30kg (66 lbs) Bruce anchor w/ Swivel
• 30kg (66 lbs) Mantus M2 anchor w/ Swivel
• Custom anchor chain bridal snubber

Rodes:

• Primary – New (2023) 200'- 3/8” chain and 100' rope rode
• Secondary – 2x 200' of lines for rear anchor or tie to shore
• Stbd deck box houses 2- 50' Marinco 50 amp, 2x 30 amp "Y" to 50 amp power cords and water hoses
• Port deck box stores all the lines
• New (2023) Marinco spotlight with wireless (lower helm) and wired (upper helm) controllers
• Front sunpad (10x7ft) and seat cushions (2000)
• Teak Dining Table and cover mounted on bow (seats six)

Flybridge:

• Flybridge Arch (22' air draft) is hinged and gets to 18' 6”
• Starlink – wired for Dish/ Router (hardware and service not included)
• New (2023) Flybridge Front Bimini (Sunbrella), Chair and Helm covers
• New (2023) Flybridge Rear Bimini (Sunbrella)
• New (2023) Upper EVA flooring and 2 Adirondak chairs
• Aft (starboard) MarQuip davit (1000 lbs)Aft Deck:
• Edgestar ice maker
• Under counter wetbar with sink and can crusher
• (4) Outdoor wicker chairs with small round tables
• Foldable teak table
• Plexiglass enclosure with (4) U-shaped screens
• 16k Btu a/c unit
• (2) Speakers

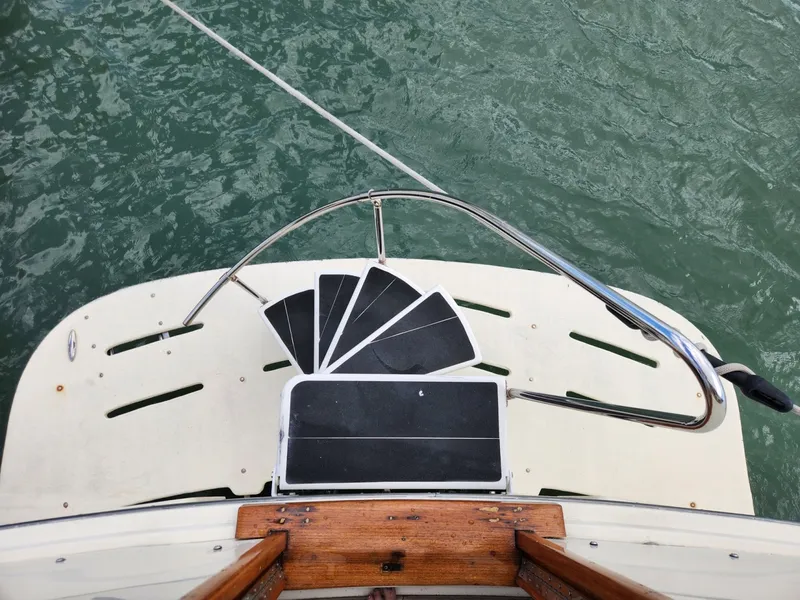

• New (2021) Swim platform – Coosa Board/ Glassed (bilateral 3 layers) - 4’ deep x 14’ wide with swim ladder
• New (2021) Stainless steel spiral staircase from Swim platform to Aft Deck
• Complete bottom job- sandblasted (4)-Interlux epoxy barriers, (3)-Interlux CMC anti-fouling (2020)
• (2022) Bottom painted with Interlux C5C

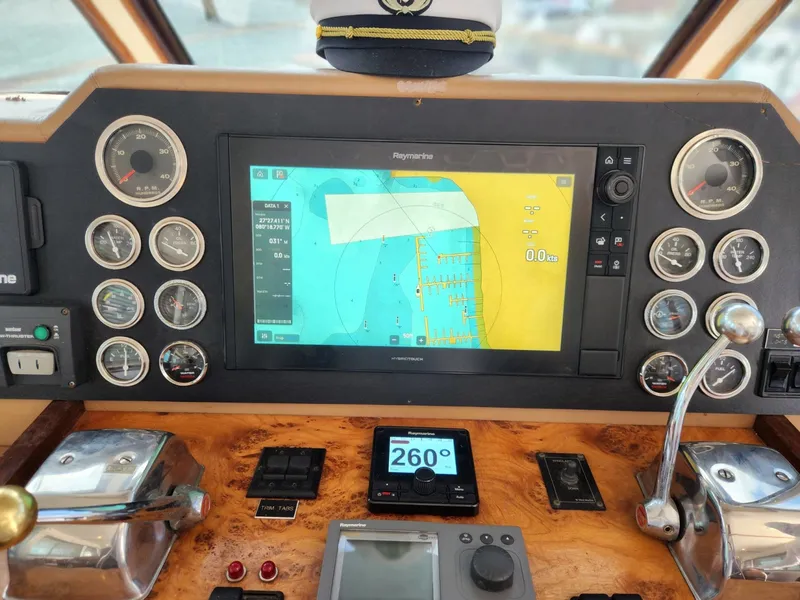

Helm Stations

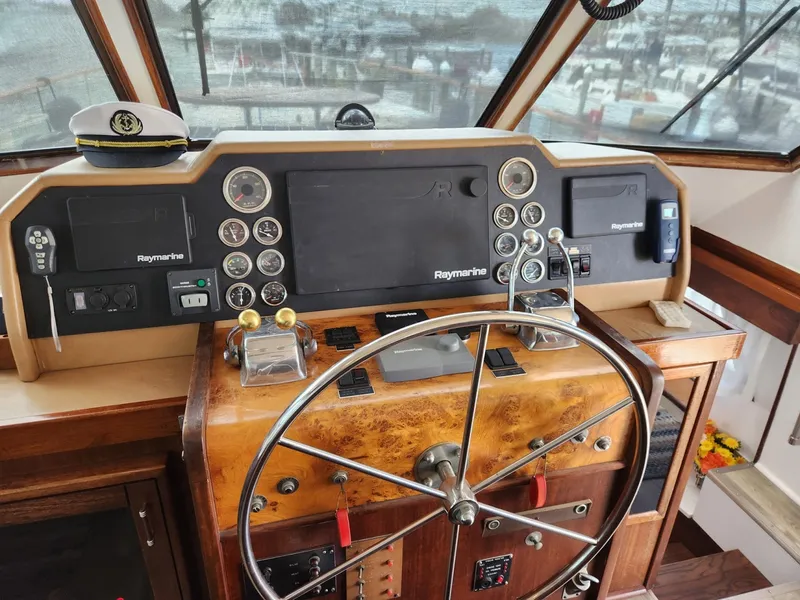

Lower Helm: Duplicate electronics on the flybridge

• Marinco Spotlight remote
• New (2023) Raymarine Axiom 7" Chartplotter MFD'S for camera, engine data, radar, etc located port & stbd
• USB plugs

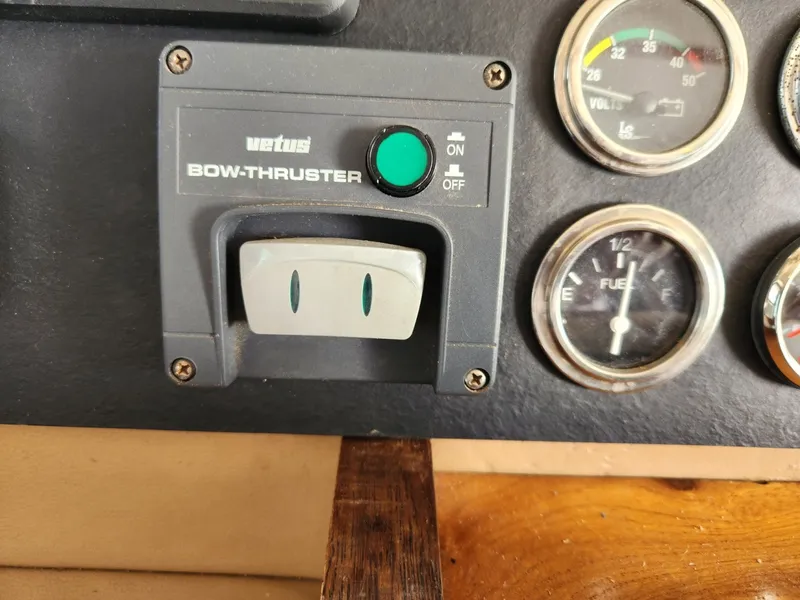

• Vetus bow thruster
• New (2023) Mechanical/ electrical gauges
• New (2023) Raymarine Axiom 16" (lower) & 12" (upper)-Chartplotter MFD's for camera, engine data, radar, etc.
• Lofrans windlass remote
• Trim tabs
• New (2023) Raymarine autopilot ACU and controllers
• New (2023) Raymarine cameras- forward augmented reality and rear view

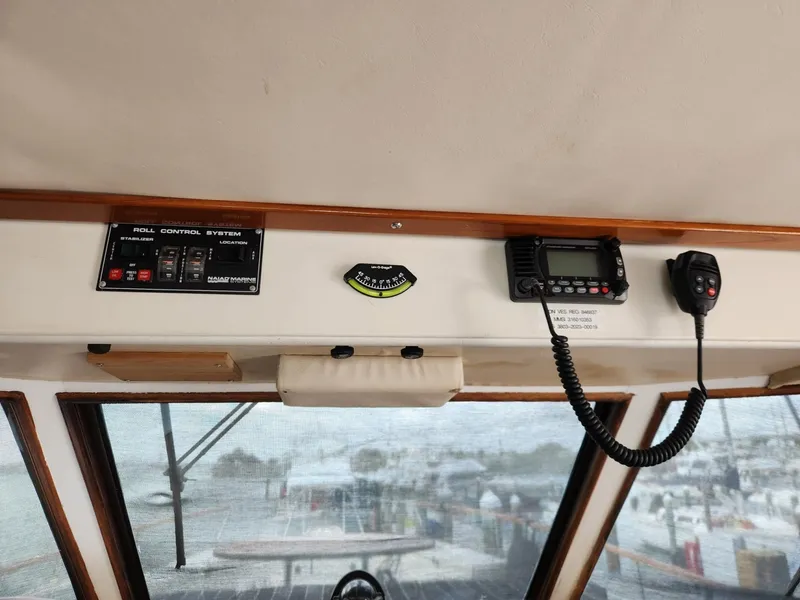

• Naiad Stabilizer controls
• New (2022) ICOM VHF radio (separate dedicated Shakespeare 15' antennas)
• Ritchie compass
• Accusense digitizer that distributes content to the NEMA 2000 backbone
• NEW (2023) AIS Class B send/receive with dedicated antenna
• NEW (2023) Raymarine radar- 3' cyclone array
• NEW (2022) Raymarine DST 810 thru hull (depth, speed, temperature)
• New (2023) Kalenberg air horn compressor system
• Accusense digitizer that distributes content over NEMA 2000 backbone

• New (2022) Corian countertops
• New (2022) Stainless steel sink and faucet
• New (2022) (3) storage drawers
• New (2022) Panasonic The Genius Microwave/ Convection Oven
• New (2023) Cuisinart Cusimax 2 burner stove top
• New (2021) Whirlpool Full size refrigerator with bottom freezer drawer
• Ample storage cabinets/ drawers throughout
• Galley settee with two drawers below and sliding doors above for additional storage

• The master and guest stateroom were carpeted with padding.(2022)
• The salon, aft deck, galley, and v-berth have faux wood vinyl flooring with area rugs throughout.(2022)
• Engine battery bank replaced 2025
• Bottom paint in 2024
• Whole boat top to bottom compounded and wax 2026
• Whole exterior revarnished 2025
• Engine and generator service 2026
• Port stateroom A/C replaced 2025
