2027 Hargrave E Series 40m
Price on request
Boat in Fort Lauderdale, FL 33315 US
Built in 2027
E Series 40m
2 Engines (Caterpillar, Caterpillar)
132 feet
Diesel
Other
Overview

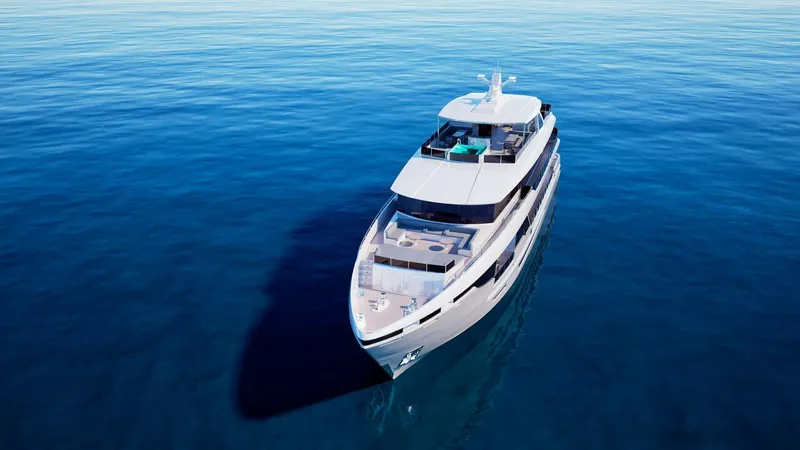

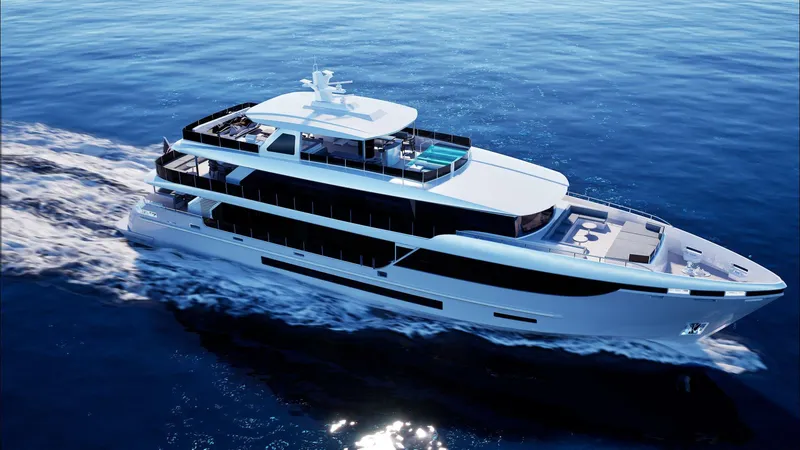

The new Hargrave 40M is the latest entry in our E-Series platform, An Owner-Driven, high-volume yacht designed for long-range cruising, real operational efficiency, and a fully custom lifestyle onboard. At 399 GT, she offers the interior footprint typically found on 140-ft yachts, made possible by advanced structural engineering and Hargrave's inside-out design approach.

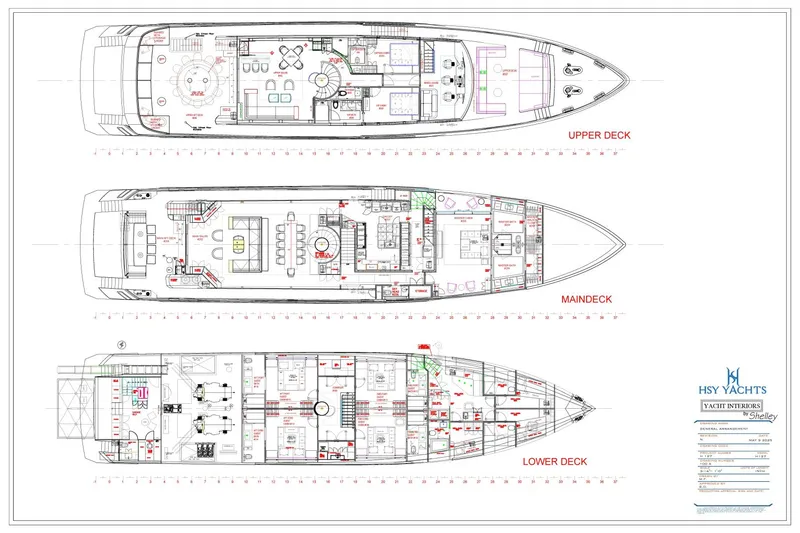

Six-Cabin Layout & Hand-Crafted Interior

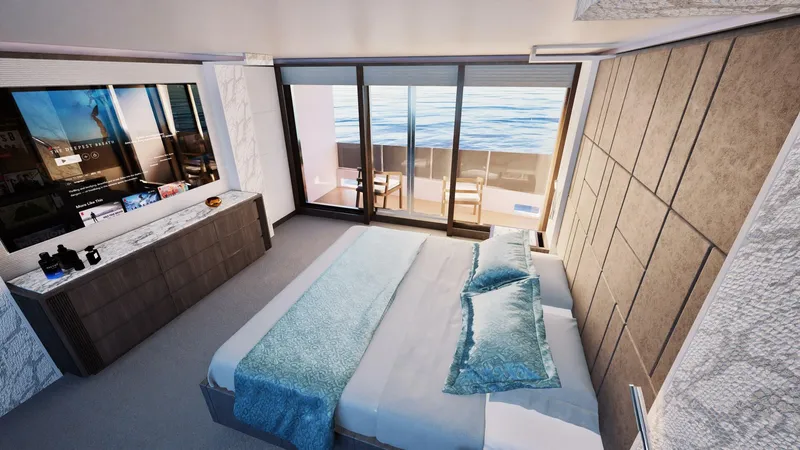

The yacht features six full cabins, including an expansive on-deck owner's suite and king beds in all guest cabins. All interiors are hand-crafted, not CNC machined, allowing for precise joinery, superior sound control, and a level of finish consistent with traditional large-yacht craftsmanship.

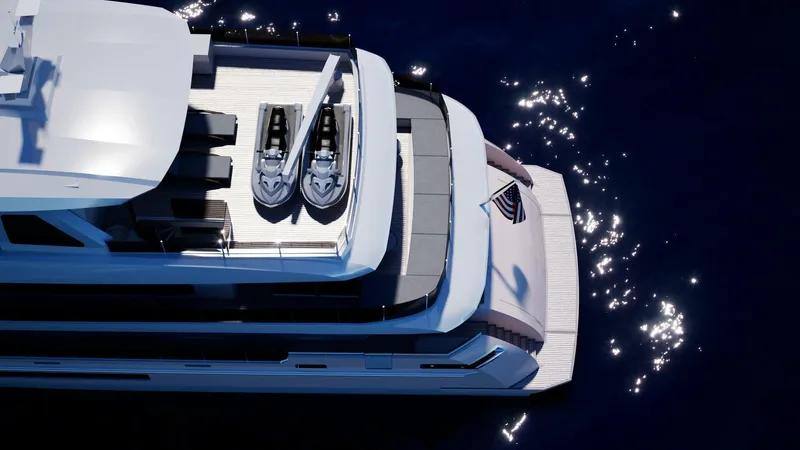

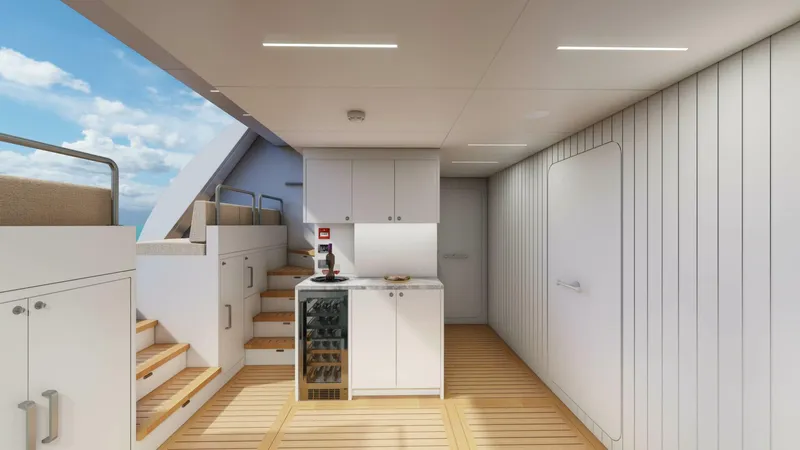

Beach Club & Entertainment Areas

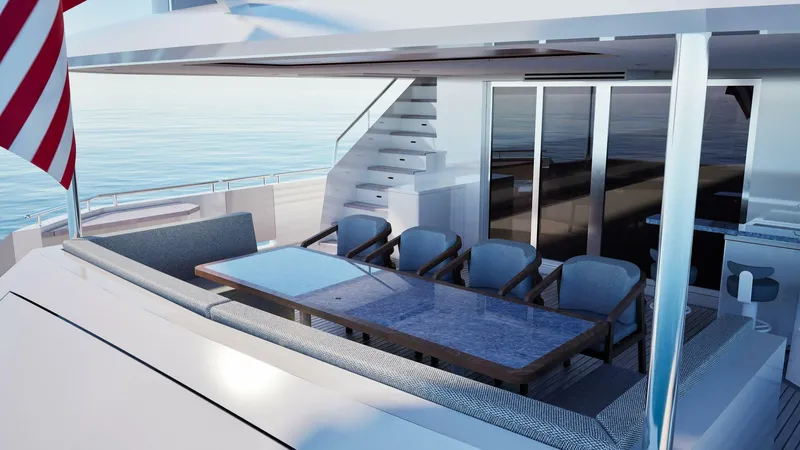

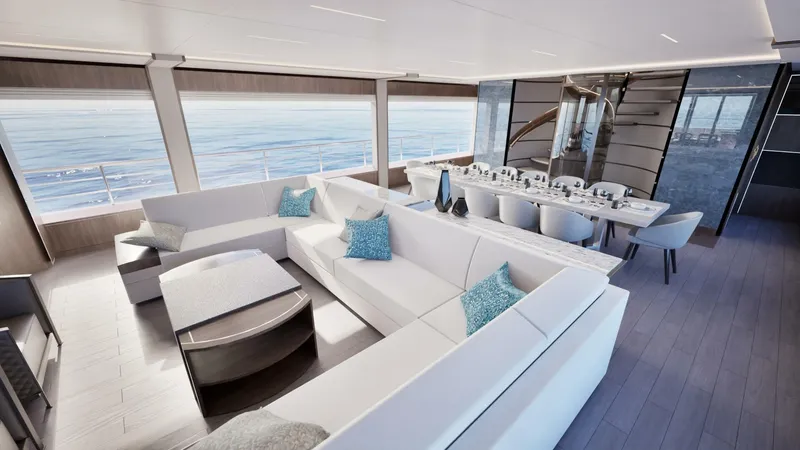

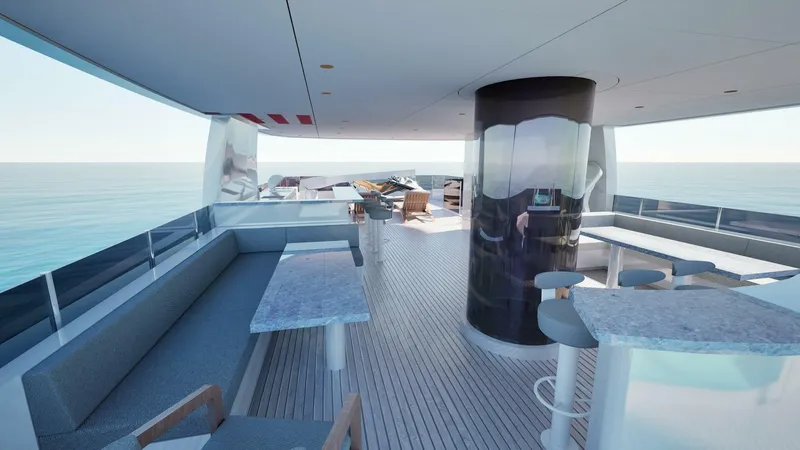

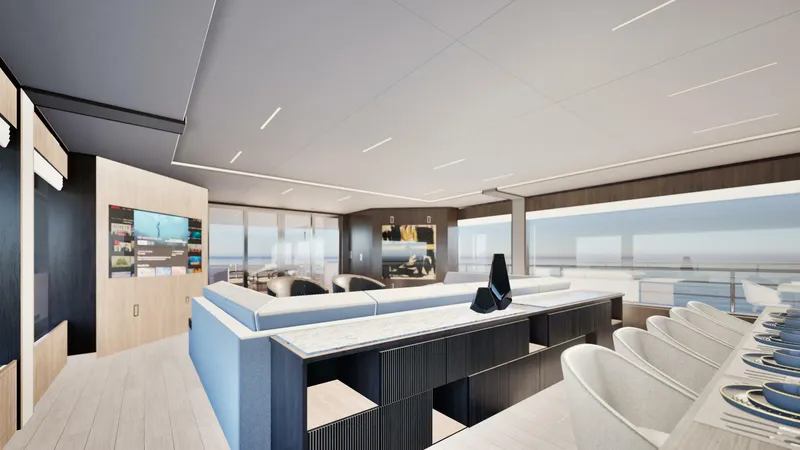

Designed for extended time onboard, the 40M includes a full beach club with proper headroom, multiple entertainment areas across all decks, large outdoor dining zones, and private relaxation spaces for guests.
E-Series Hull & Engineering Philosophy
The hull is built for a balance of shallow-water access, high stability, and long-range efficiency. Carbon-reinforced structure, Carbon fiber Stringers and Frames, tighter frame spacing, and a strengthened keel (Hargrave Signature) provide a rigid platform capable of safe operation in heavy seas. The yacht is engineered to meet classification standards that support unrestricted navigation.
Crew & Operational Logic
Crew areas are intentionally large, with proper flow, storage, and technical access to support real operations during extended cruising. Dedicated dayheads on all decks, a full-size galley, and clear service routes ensure smooth daily operation.
Long-Range Cruising & Ease of Maintenance
The E-Series design prioritizes autonomy and serviceability. System layouts, routing, and accessibility were developed to simplify maintenance and allow the yacht to operate efficiently in remote areas.
Mid-Construction Availability
With the yacht currently in the middle of construction, buyers have a rare opportunity to enter the project at the right moment, securing a brand-new Hargrave with the ability to finalize interior details and select finishing elements before delivery.
ELECTRIC SYSTEM
115 / 208 VAC 3P 60Hz Main Service
ASEA 75 kVA Shore Power Converter
24VDC Service and Engine Start System
Service Batteries: 2200 Ah ( 2x 100 A Charger )
Emergency Batteries: 880 Ah ( 1x 80 A Charger )
Radio Batteries: 260 Ah ( 1x 30 A Charger )
ME & Generator Batteries: (x2) 960 Ah ( 2x 40 A Charger )
Fire Puımp Batteries: 880 Ah ( 1x 80 A Charger )
BUILD / CONSTRUCTION
HULL / SUPERSTRUCTURE: CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH
OPEN DECK : HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
PAINT SYSTEM: AWLGRIP
MASTER EQUIPMENT LIST
Airhorn: Kahlenberg
Anchor winch and Capstans: (x2 )Maxwell VWC8000 Hyd. Windlass, VC4000 Capstans
Windscreen Wipers: (x4) Speich
Alarm & Monitoring system: Wago
Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 16mm Grade 3 Studlink Chain
Audio / Video: Crestron Ready
Batteries and chargers: Victron
ER Venilation:Delta T System
Bow thrusters:Sleipner SH1400 double prop Bow thruster
Stabilizer: (x4) Fins Sleipner SSPS96 Anchor Stabilizers
Fuel Water filters: Separ
HVAC:TECHNICOLD Chiller assembly (x3) 120,000 BTU
Steering System: Wills Ridley Electro Hydraulic Steering
Insulation: Unifrax B15 Engine room and B0 Galley insulation Rockwool Thermal cabin insulation
Pumps: HeadHunter and FEIT
Sewage treatment :Headhunter TW-HMX-6001LP
Toilet system: Headhunter White Royal Flush Bravo

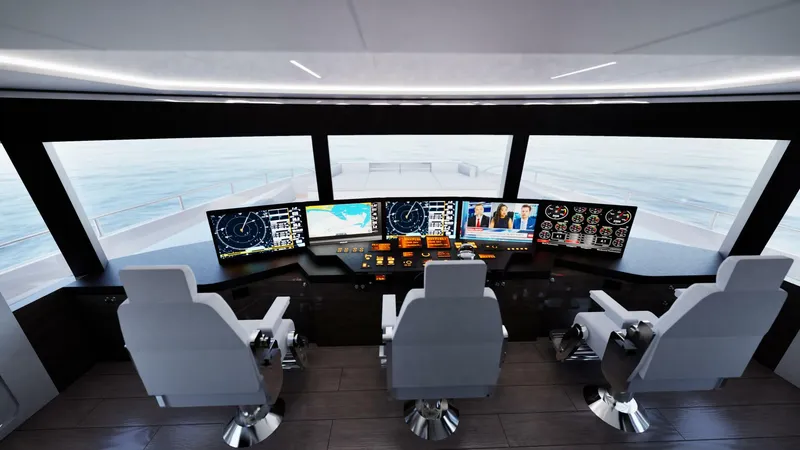

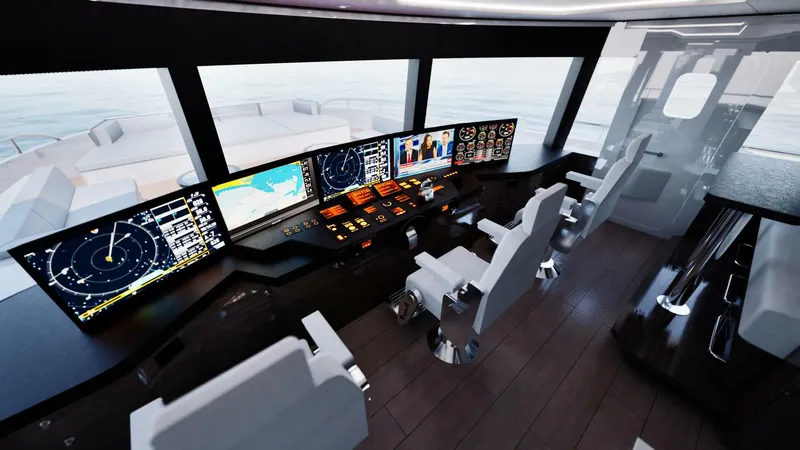

Navigation and communication equipment:
GARMIN & FURUNO:
(x5) Surveillance Cameras & FLIR N232 Thermal Camera
(x5) 32” Pilot House Touchscreen
(x2) Garmin 215 VHF Radio
Garmin Fantom 54 Radar / Furuno 6” Radar
Furuno NV700 Autopilot
Furuno Navtex, AIS and NavNet
(x2) Starlink Antenna
DECK EQUIPMENT
SWIM LADDER: 316L Stainles Steel
CRANE: SW 900 kg (2000lbs) Telescobic Hydraulic Deck Crane
PASARELLA:19ft Hydraulic Gangway
HANDRAILS: 316L S.Steel
PANTOGRAPH DOORS: (x4) Pantograph Door
SLIDING DOORS: Electric Operated main and upper saloon doors
BALCONY: Sliding Balcony door
ELEVATOR: PVE Vacuum elevator Lower Deck to Sundeck
WATERTIGHT DOORS AND DECK HATCHES: Watertight Deck Hatches and Engine room WT Fire Doors
AFT BEACH SHELL DOOR:Hydraulic Actuator Operated Carbon Reiforced Composite Watertight Door
SAFETY EQUIPMENT
LIFE RAFTS: Viking 2 x 12 Persons
FIRE PROTECTION: Fireboy FM200 Engine Room Fixed Fire Extinguishing System
FIRE & GENERAL ALARM SYSTEM: HAES Conventional Fire Detection System
APPLIANCES
COOKTOP:
36" VIKING COOKTOP (Galley)
WASHER &DRYER:
(x3) SPEED QUEEN COMMERCIAL STACK WASHER/DRYER Crewmess(2) / Guest Foyer(1)
REFIGERATOR:
Subzero 36" Classic Refrıgerator-Internal Dıspenser (Galley)
Subzero 36" Classic Freezer (Galley)
Subzero 30" CLASSIC WINE STORAGE (Galley Pantry)
(x4)Subzero 30" Designer Over-and-Under
WINE COOLER:
(x4)Zephr 24" French Door Dual Zone Wine Cooler
Guest Foyer(1) / Crewmess(1) / Sundeck(1) / UD Salon(1)
(x2) Zephr 15″ Single Zone Wine Cooler
Beach-club (1) / MD aft(1)
MICROWAVE OVEN
GE 2.1 cu. ft. Over-the-Range Sensor Microwave Oven (Galley)
GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)
GRILL
Fire Magic Deluxe Gourmet Drop In Grill (Sundeck)
DISHWASHER
(x2)Fisher&Paykel Series 7 Contemporary Tall Double (Galley)
GARBAGE DISPOSAL
(x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)
RANGE HOOD
VIKING 5 SERIES CHIMNEY WALL HOODS – 18” HIGH (Galley)
OVEN
30" HESTAN DOUBLE WALL OVEN (Galley)
ICE MAKER
(x3) 15" HOSHIZAKI ICEMAKER
MD Aft(1) / UD Salon(1) / Sundeck(1)
30’’ HOSHIZAKI ICEMAKER KM301BAJ (Beachclub)
Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin
