The Hanse Easy Sailing Concept is legendary. We invented the integrated self-tacking jib and brought all the lines to the helm. This means you can sail your yacht on your own. Reefing, tacking and setting sail can all be performed from the helm without any effort. The deck is free of lines and fittings, giving you uncompromising comfort and space while you are at sea or relaxing in the harbour.

Lengths
LOA 15.97 m   52' 5"
Hull length 15.25 m   50' 0"
LWL 14.50 m   47' 7"
Beam 4.91 m   16' 1"

Draft
Shallow keel 1.98 m   6' 6"
L-keel, medium 2.43 m.  8' 0"

Displacement
Shallow keel approx. 16.94 t 37,346 lbs
L-keel, medium approx. 16.54 t 36,464 lbs

Ballast
Shallow keel approx. 4.76 t 10,494 lbs
L-keel, medium approx. 4.36 t 9,612 lbs

Engine Diesel
Standard approx. 80 PS 80 hp
Option approx. 110 PS 110 hp

Tankage
Fuel tank approx. 200 l 53 gal
Fresh water approx. 450 l 119 gal

CE Certifcate A - 12

Mast length above WL approx. 23.55 m   77' 3''

Sail Area
Upwind sail area approx. 125.50 mÇ   1,350 sq ft
Downwind sail area approx. 272.00 mÇ   2,927 sq ft

Main Sail
Standard approx. 66.00 mÇ   710 sq ft
Furling approx. 66.00 mÇ   710 sq ft

Jib approx. 53.00 mÇ   570 sq ft
Genoa approx. 59.50 mÇ.  640 sq ft
Reacher approx. 94.00 mÇ   1,011 sq ft
Gennaker approx. 206.00 mÇ   2,217 sq ft

STANDARDS - SEE UPGRADES / FACTORY OPTIONS FOR ADDED EQUIP

HULL
- 8 hull windows (4 each side)
- GRP hull, isophthalic gelcoat, color: Signal White (similar RAL
  9003), 1st layer vinyl ester resin and balsa sandwich laminate
- Waterline, isophthalic gelcoat, color: Dark Grey (similar RAL 7043)

KEEL
- L-keel, cast iron, draft: 2.43 m
- GRP rudder with sea-water resistant aluminum shaft and
  selfaligning bearings

LAYOUT & INTERIOR
- A1: Saillocker

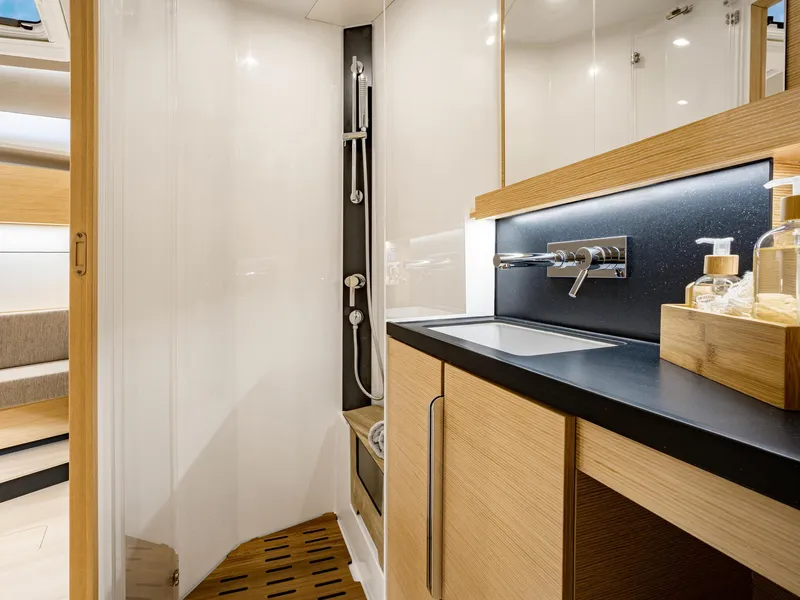

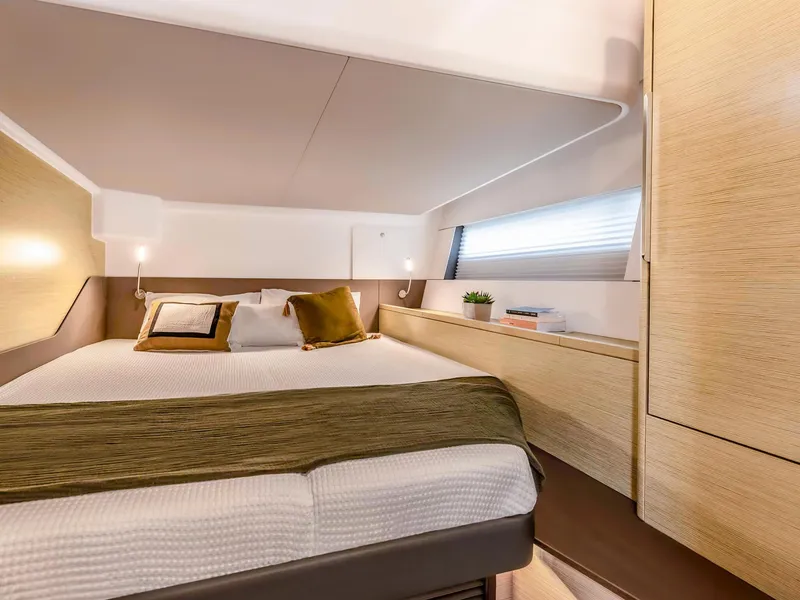

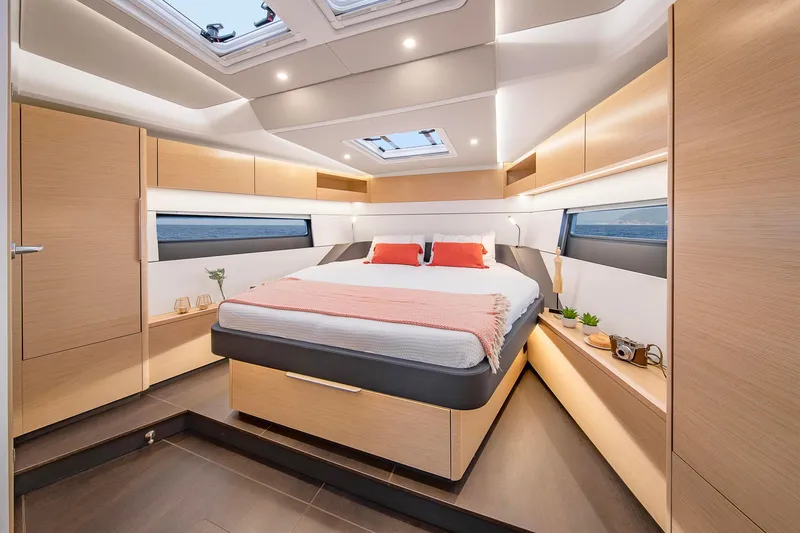

- B1: Master cabin with island double berth, 2 lockers, seating area
  and ensuite head with separate shower stall (only with A1 layout)

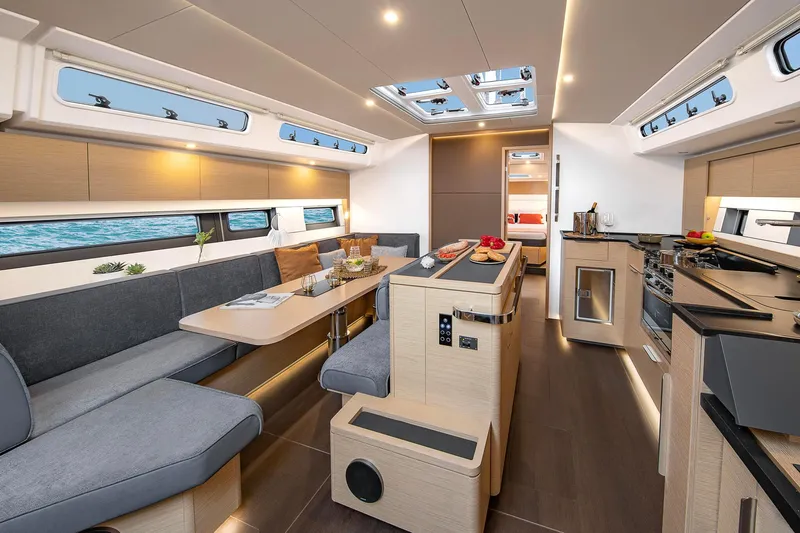

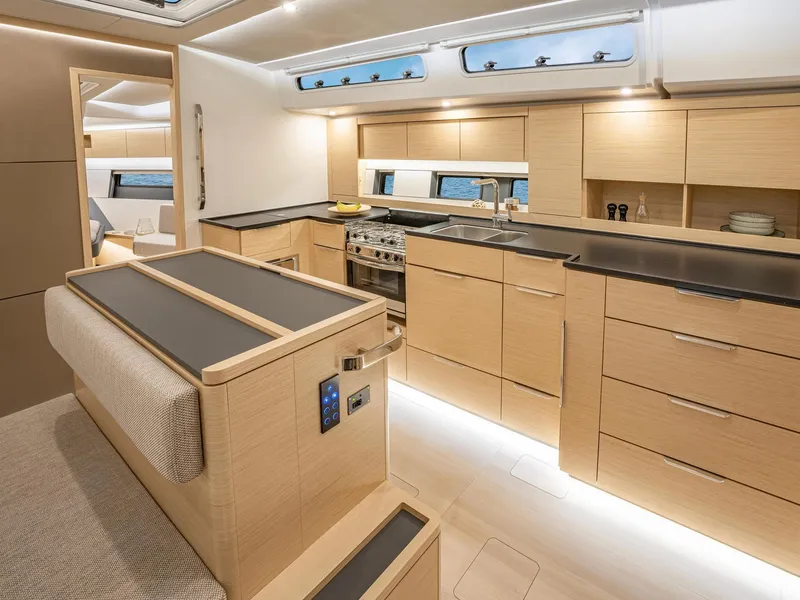

- C1: Saloon with full functional large L-galley on stb (only with E1 or
  E2 layout)

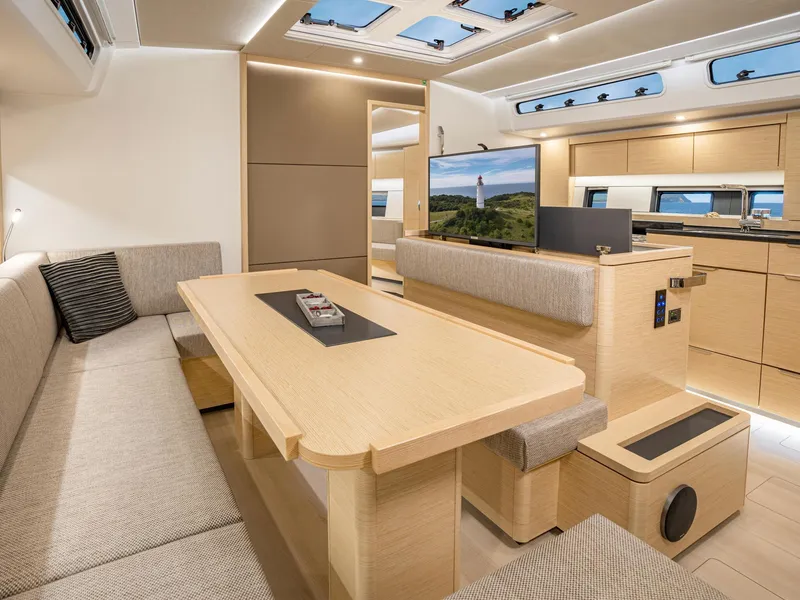

- D1: Spacious saloon with large dining area with bar, library and head
  on port
- E1: 2 aft cabins with double berth, storage space and storage room
  on stb (only with C1 or C2 layout)

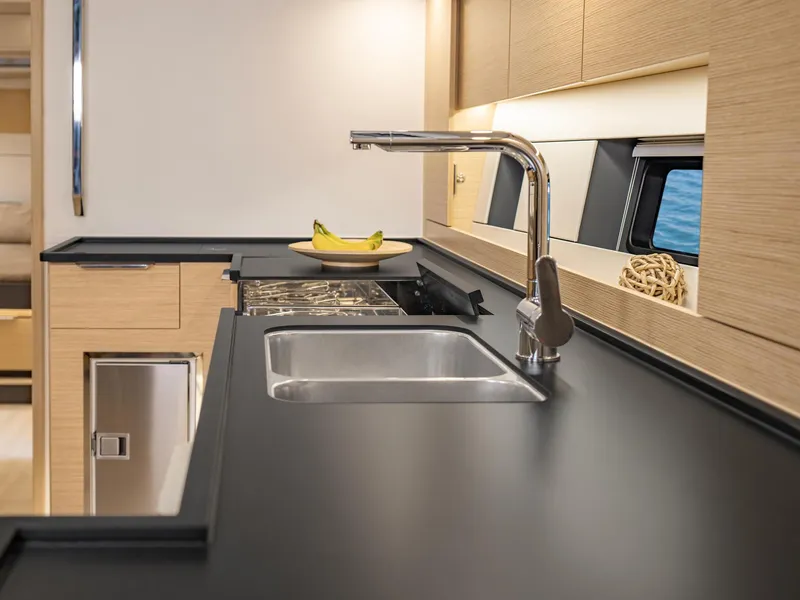

- 3-burner gas stove with oven, waste bin, 12 V fridge approx. 135 l,
  double stainless steel sink with mixing tab
- Interior furniture in high quality marine plywood, Satin Varnish
- Hanse companionway closing system with lock
- Saloon table, fixed
- Worktop in galley and heads - Black Quartz

WOOD (FURNITURE, FLOORBOARD)
- Furniture - Mahogany Style, Satin Varnish
- Galley cupboard fronts in wood color
- Floorboard - Acacia

UPHOLSTERY
- Mattrasses for all berths
- Upholstery - Monte Carlo, color: Cream

DECK & OUTSIDE EQUIPMENT
- GRP deck with antislip surface, isophthalic gelcoat, color: Signal
  White (similar RAL 9003), 1st layer vinyl ester resin with balsa sandwich core.

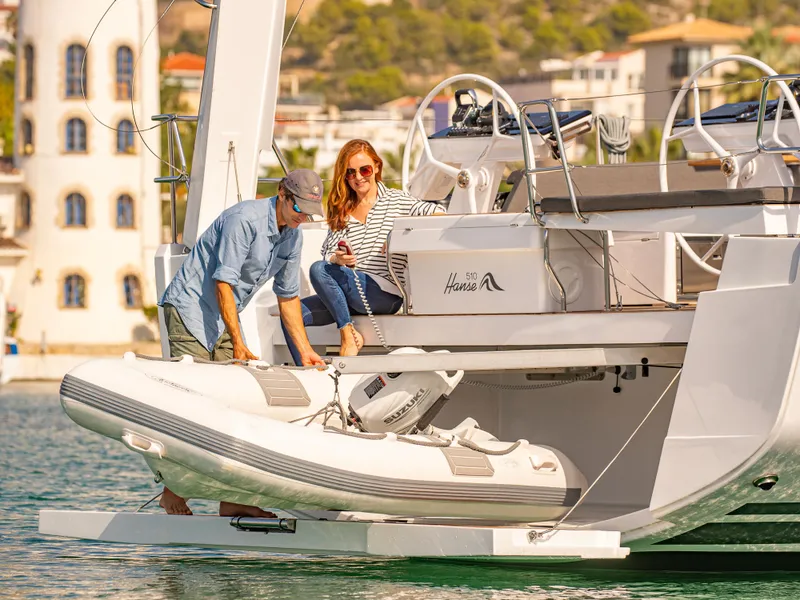

  2 cockpit lockers, 1 space for life raft, dinghy garage, stowage for running
  rigging at helm position and in the steps from the cockpit to side deck,
  anchor locker at bow.
- Synthetic teak on cockpit bottom (color selection)
- Synthetic teak on cockpit benches (color selection)
- Synthetic teak on bathing platform (color selection)

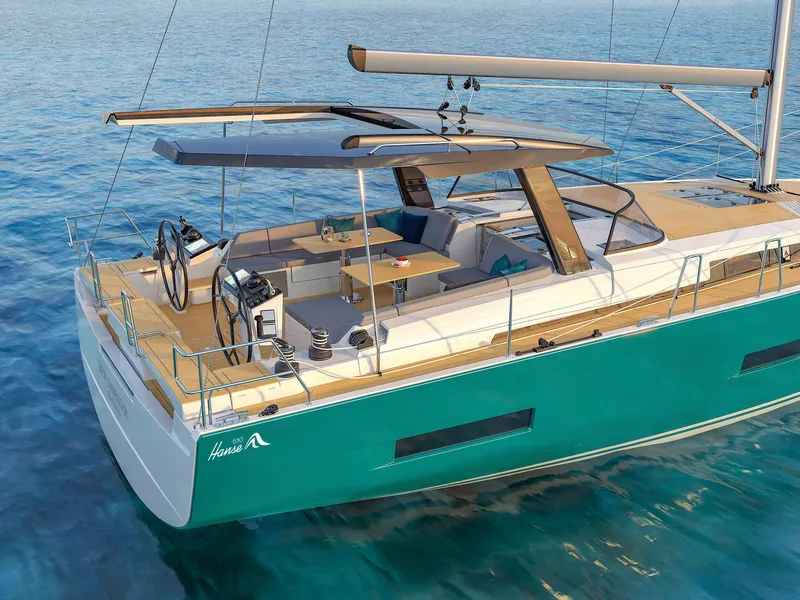

- Twin wheel steering system with emergency tiller
- 2 stainless steel steering wheels with leather cover

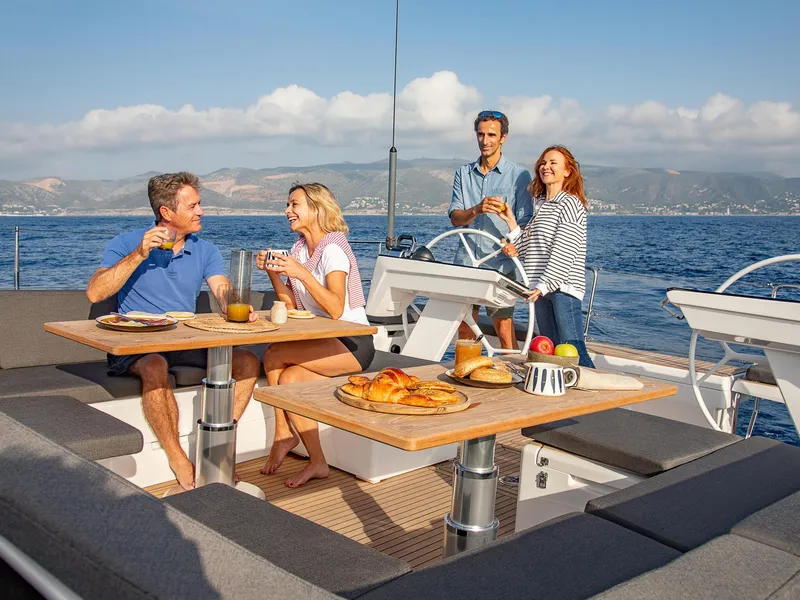

- Cockpit table, stainless steel with teak tops, on starboard
- Cockpit table, stainless steel with teak tops, on ps
- Pulpit and pushpit, stainless steel
- Railing, including stanchions and stainless steel wire
- Covered halyards and control lines lead to cockpit helm position, organizers
  and jammers, 4 mooring cleats, handrails on coach roof
- 2 LEWMAR 50 ST EVO manual halyard winches

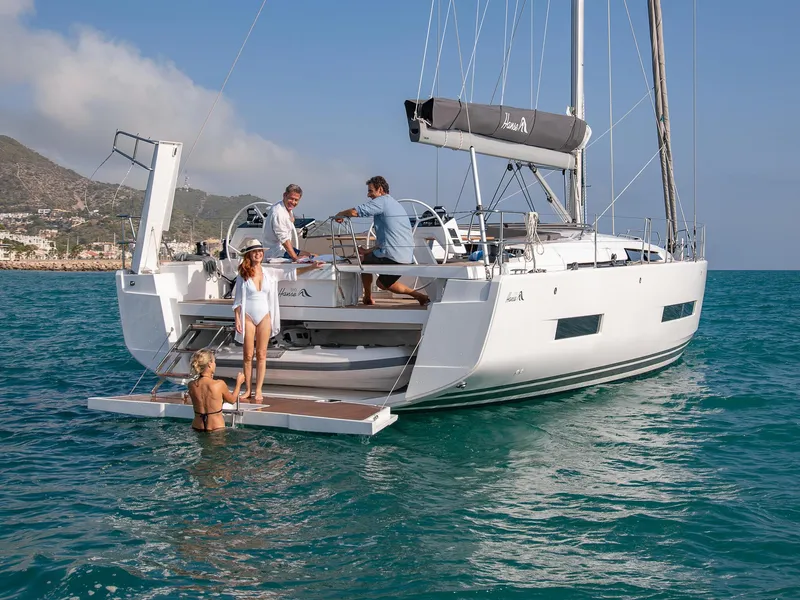

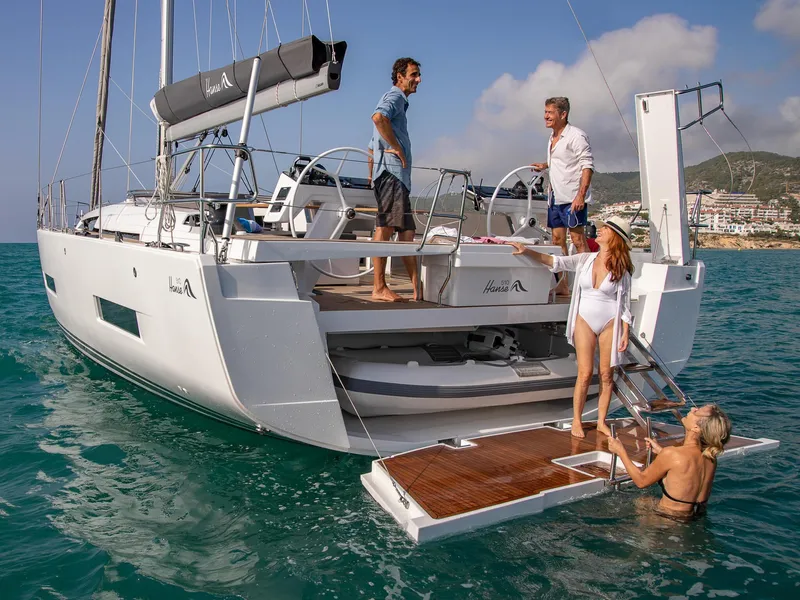

- Bathing platform, manual fold-out with swimming ladder
- Composite bowsprit with integrated anchor and forestay fitting, gennaker eye
- Self tacking jib system
- German Style Mainsheet system with controls lead to both helm positions
- 8 large and 6 small deck hatches - openable, anchor locker hatch
- 4 large coach roof side windows - openable, 4 portlights in coach roof

RIG & SAILS

- Rig, anodized aluminium tappered, deck stepped, with boom vang, standing and running rigging
  and 2 reefs
- Backstay tensioner, manual block and tackle
- Manual jib furler
- ELVSTRØM Dacron sails - full battened, main and jib with leach battens
- Dyneema halyards for main and jib

NAVIGATION & INSTRUMENTS
- Illuminated magnetic compass at each helm
- Navigation lights - LED

PROPULSION
- Fuel tank, approx. 200 l  53 us gal
- Engine (Diesel Yanmar, approx. 80 hp) - saildrive, 3-blade fix propeller

EQUIPMENT

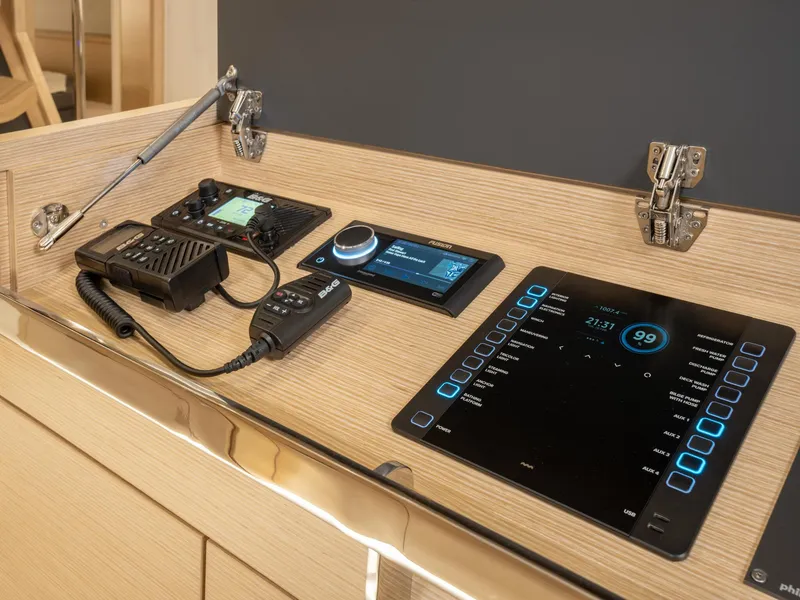

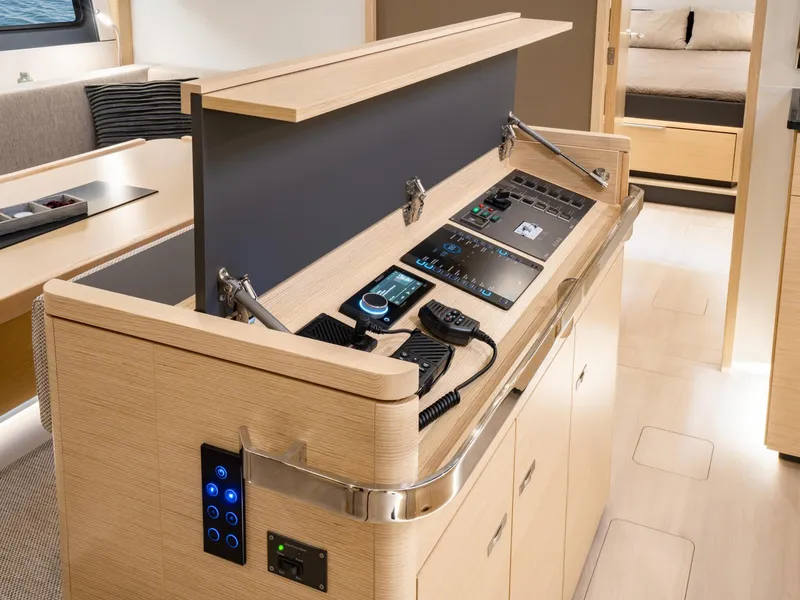

- 12 V and 230 V electric system with main panels and 230 V shore power
  and sockets in cabins and heads
- Battery set, capacity: 1x 90 Ah  start+ 2x 160 Ah AGM House
- Country Version: EU / AUS
- Battery charger 50 A
- Manual toilet with sea water flush - cabin layout B1, B2 or B3
- Manual toilet with sea water flush - cabin layout D1 or D2
- LPG gas system, stowage locker in cockpit  for 1 gas bottle
- Black water system (appr. 85 l  22.5 us gal  each bathroom) with deck extraction
  and seacock for head, electric and manual bilge pump
- Fresh water tank, appr. 450 l  119 us gal
- Fresh water system with electric pump and 40 l 10.5 us gal hot water, heated also
  by main engine

CERTIFICATIONS
- CE Certificate Catagory. A-12 Persons, B-4 Persons, C-18 Persons

THIS SLOT HAS NOT BEEN SPEC'D AT THIS TIME, MANY OPTIONS EXIST CALL FOR OPTIONS LIST
