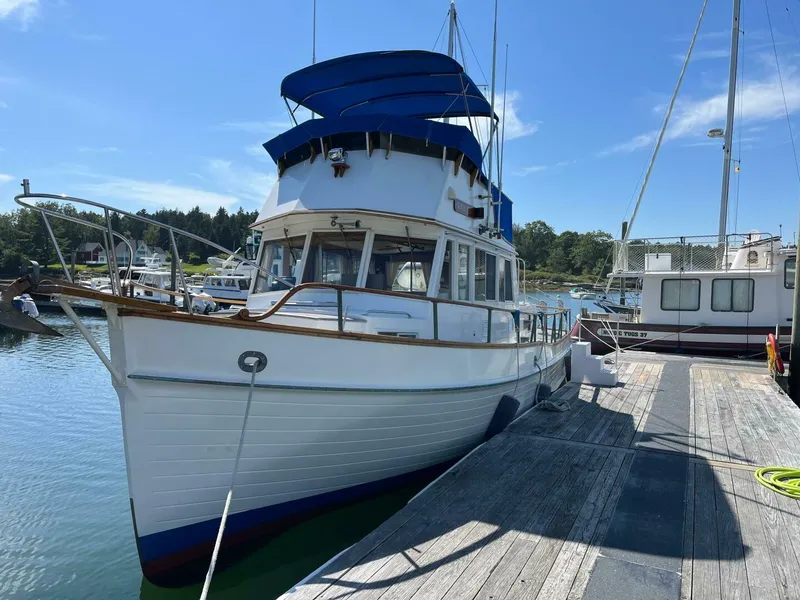

1984 Grand Banks Trawler

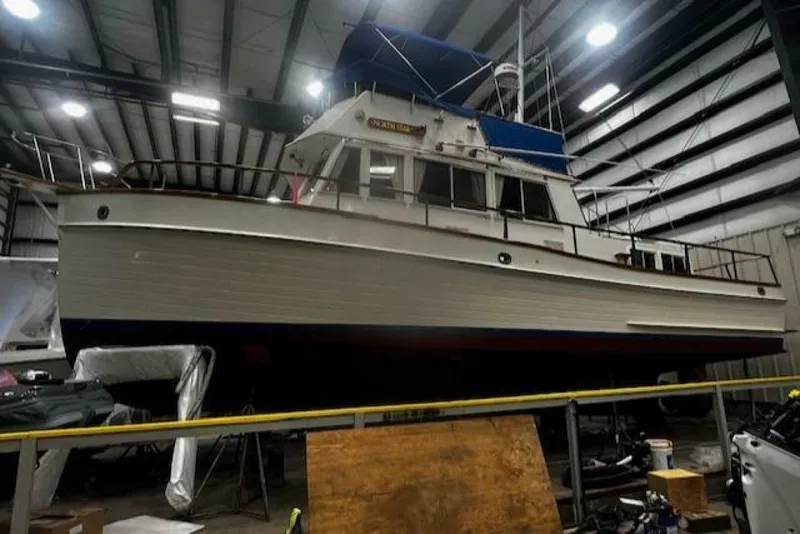

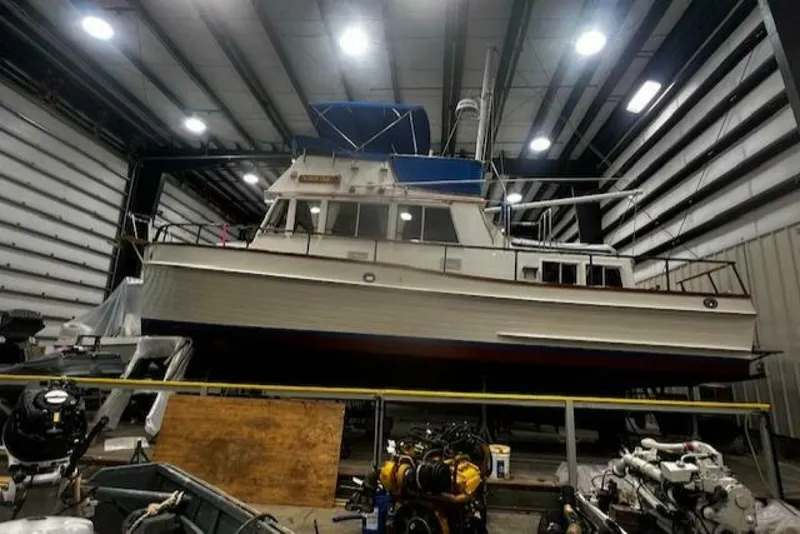

HULL & DECK:

• Hand laid solid fiberglass hull.
• Hull Awlgripped Oyster white hull, looks immaculate, blue boottop, red bottom.
• Mast and boom Awlgripped Oyster White, 2012.
• Window frames Awlgripped Oyster White, 2009.
• All varnish and brightwork kept up and in beautiful condition, 2024.
• Electric winch on boom for raising and lowering the tender.
• Teak swim platform with stainless boarding ladder.

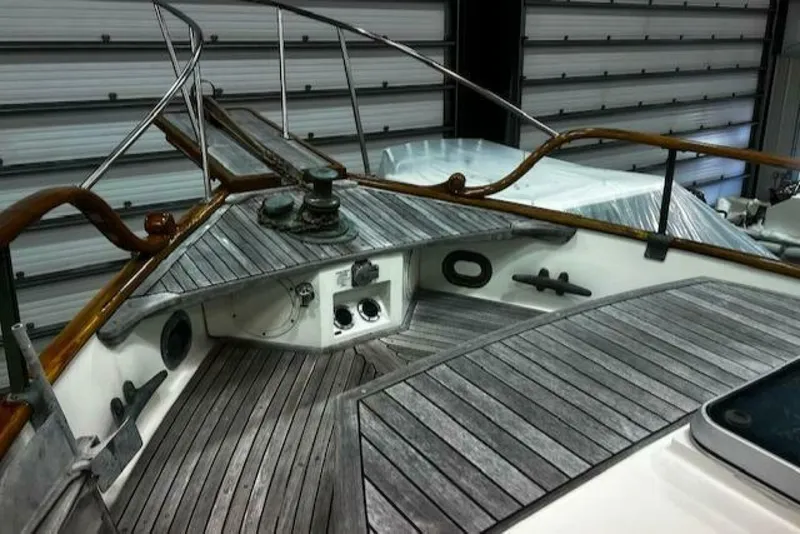

• Bronze Ideal anchor windlass with controls at both helms and foredeck.
• Bronze stanchions and fittings, etc; S/S bow rail.

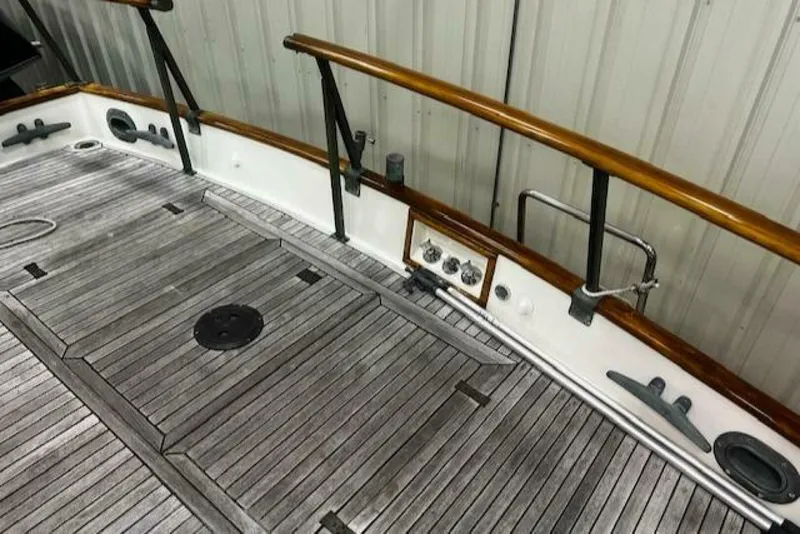

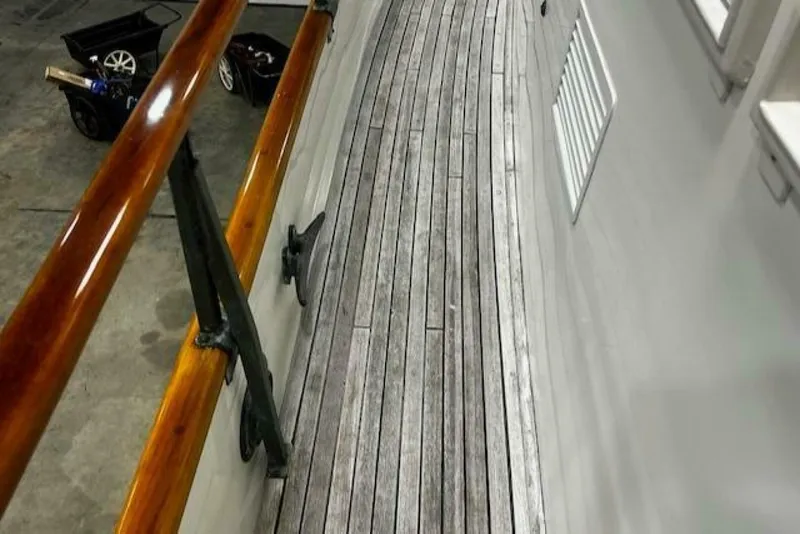

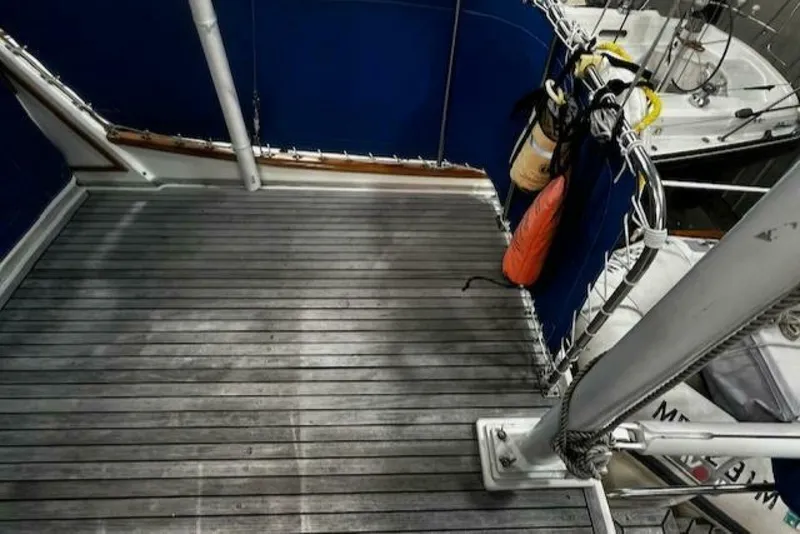

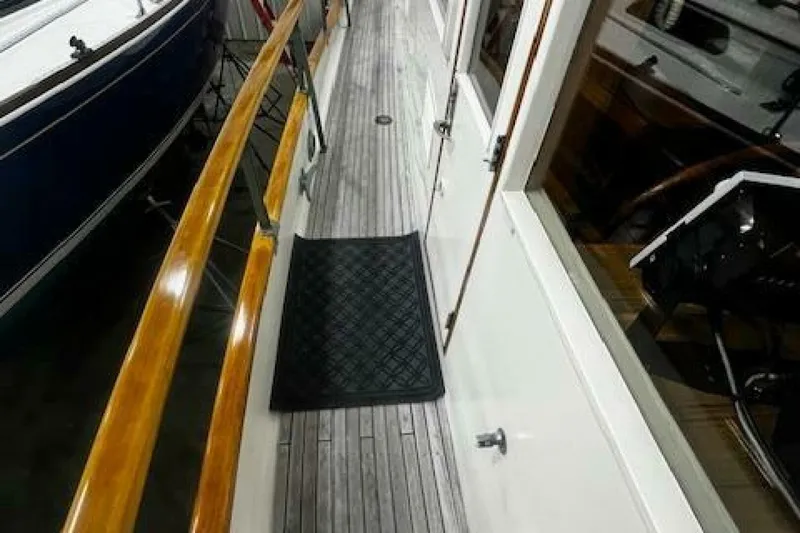

• Teak decks in very good condition.
• Teak hand and toe rails.
• New window tracks.
• Line cutter on prop shaft.
• Custom stainless guard for plexiglass wind screen on flybridge.

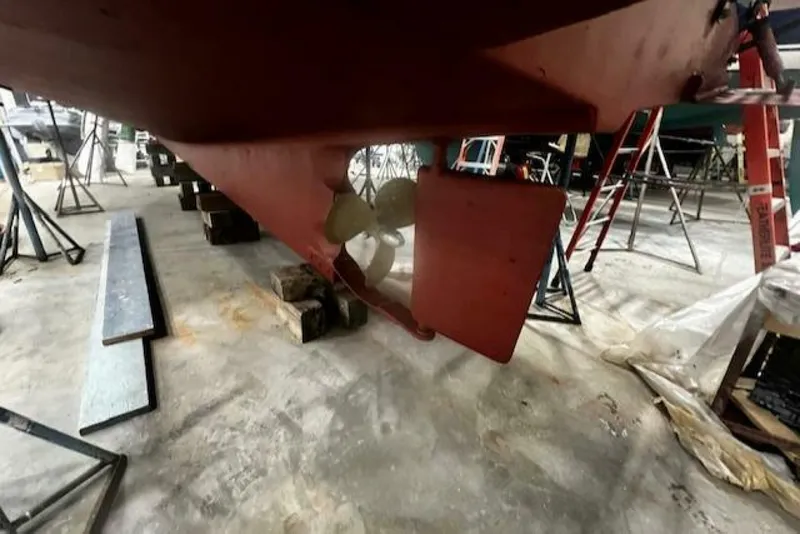

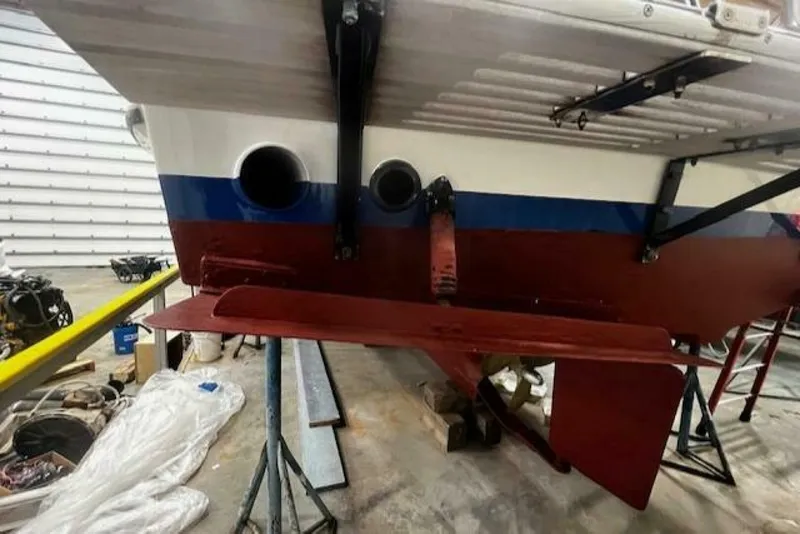

• Hull is hard-chined, deep vee configuration with full keel; protected prop via skeg and fiberglass rudder.

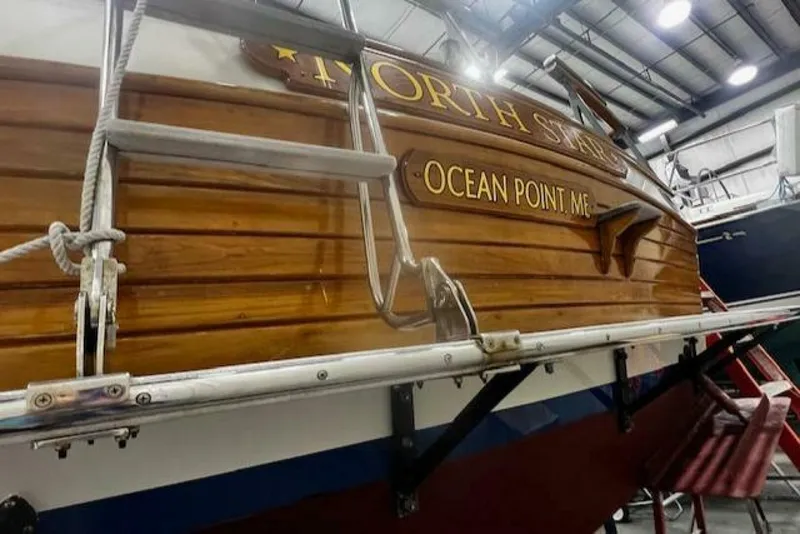

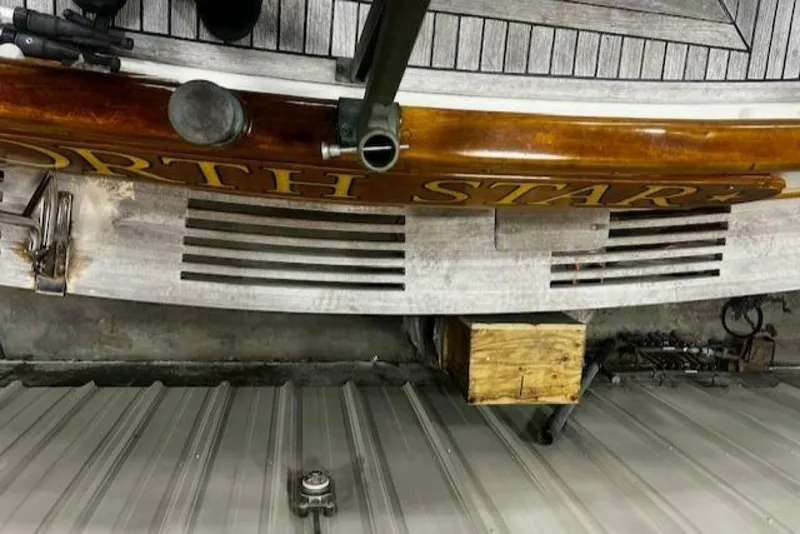

• Moulded fiberglass superstructure. Exterior teak trim in excellent condition with varnish finish, varnish finished teak transom; teak swim platform; recently refurbished with new fasteners.
• One fiberglass cabin top hatch.
• Hull is protected with bronze band on quarter guard rails and full length rubrails.
• Refinished window frames with Awlgrip white paint with no window leaks.
• New teak swim platform.

TANKAGE:

Fuel: 400 gallons in two painted white mild steel tanks.

Water: 170 gallons in 2 aluminum tanks.

Holding: 30 gallons in fiberglass tank with macerator pump and Y-valve.

ENGINE & MECHANICAL:

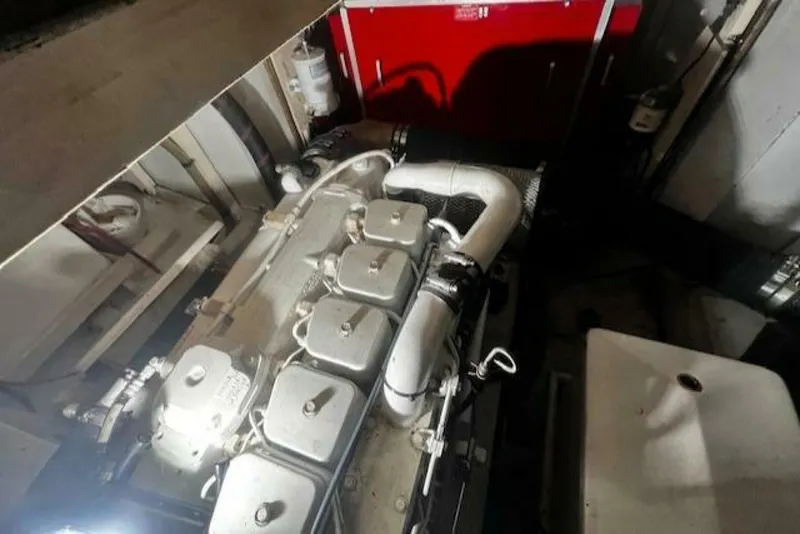

• 2019 Single Cummins 6BT5.9, 210 hp diesel, 6 cylinder, FWC; serial# 62251156; under 455 engine hours.
• Cruising speed: 7.5 knots @ 2100 RPM; Maximum speed: 9.0 knots @ 2600 RPM.

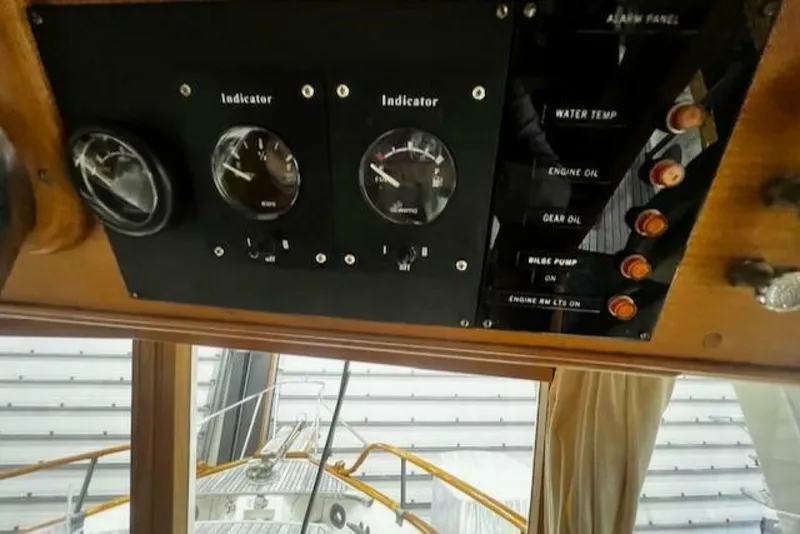

• 2019 new transmission; new engine instrument clusters (volts/oil/temp/fuel filter alarm – flybridge and lower helm; new shift and throttle cables (flybridge and lower helm); new PSS dripless shaft seal, new transmission flexible coupler (Vetus Bullflex Velvet); all new flexible hoses (engine to fresh water, fuel, raw water inlet to main engine, host on lube oil change pump)
• New Racor 900 MA primary fuel/water filter equipped with heat shield and vacuum gauge.

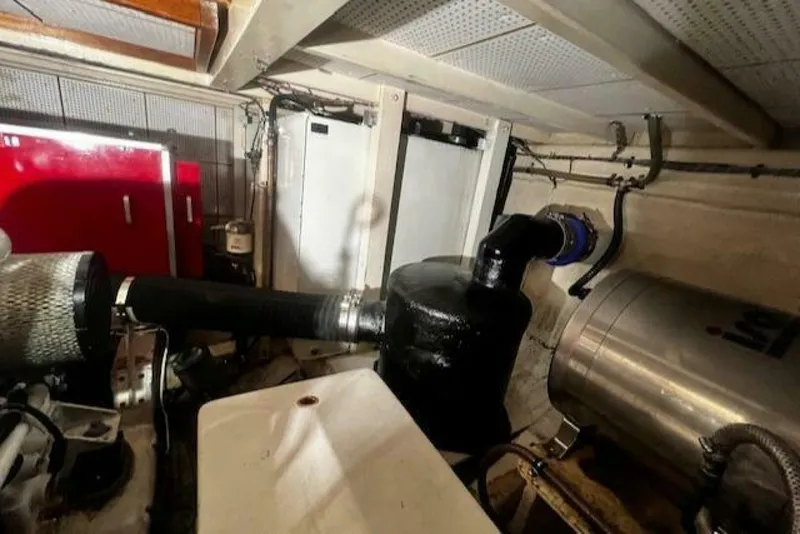

• New exhaust system with enlarged transom port.
• Reverso 12V oil changer.
• New Bronze raw water sea strainer.

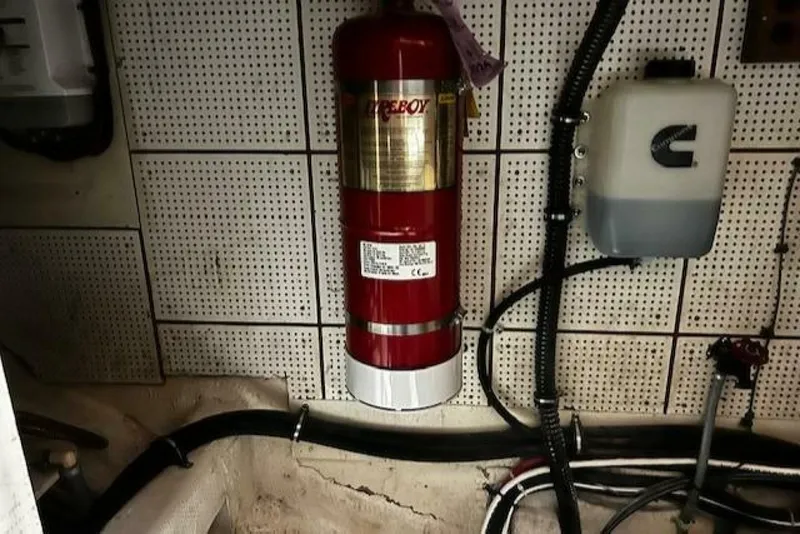

• New Fireboy automatic system.

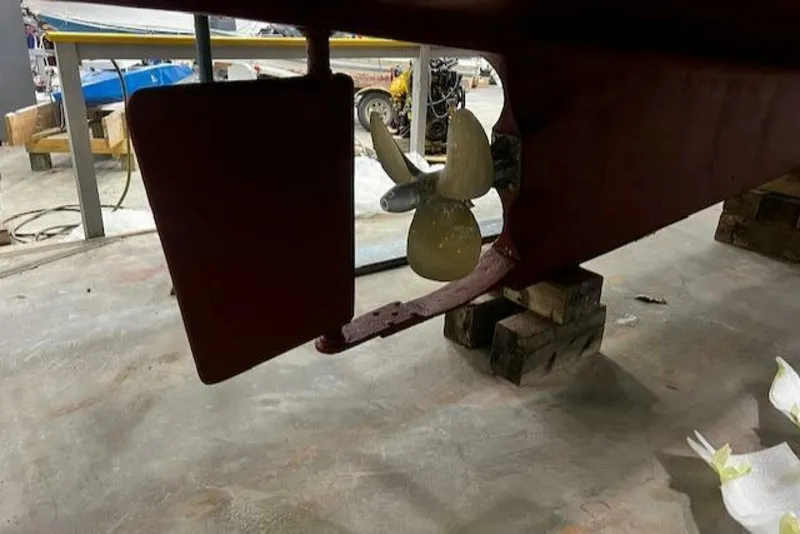

• 2” S/S shaft; 3 bladed bronze Hytorq 26LH 20 prop.
• Morse mechanical shift & throttle controls
• Steering by chain and cable with dual helms.

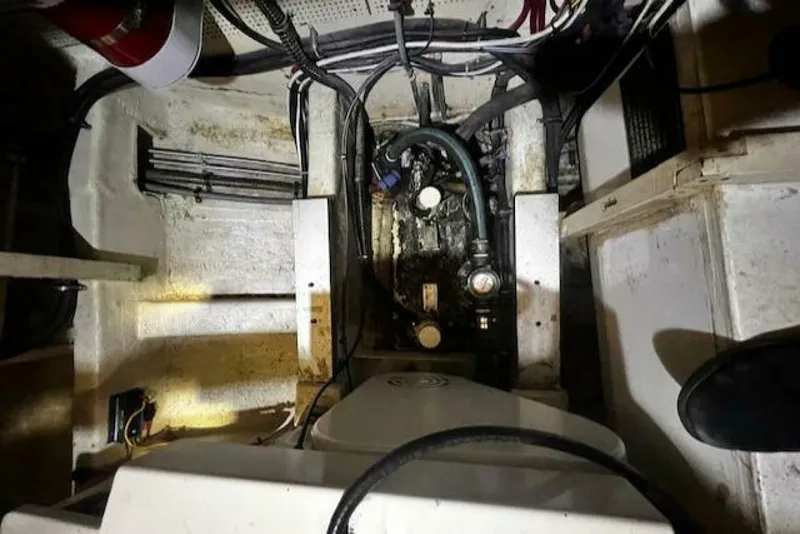

• Painted white engine room bilges for a very clean appearance.

ELECTRICAL:

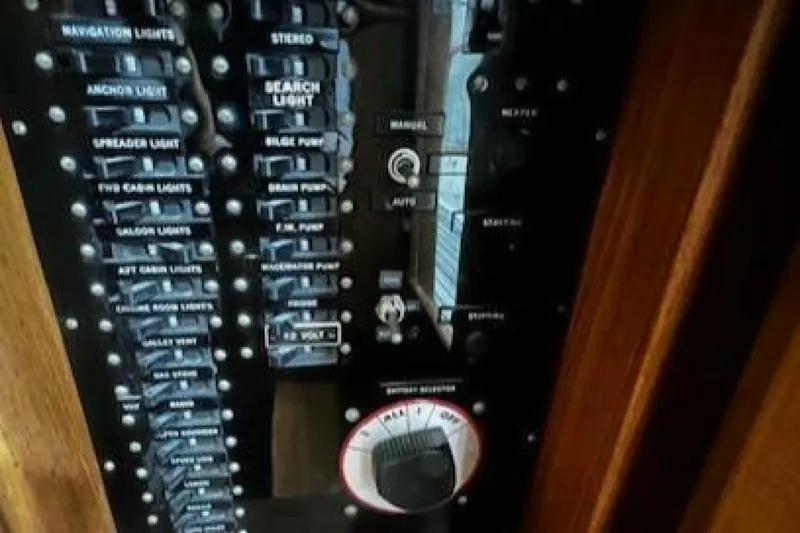

• 12V DC & 110V AC electrical systems with AC-DC circuit breakers.

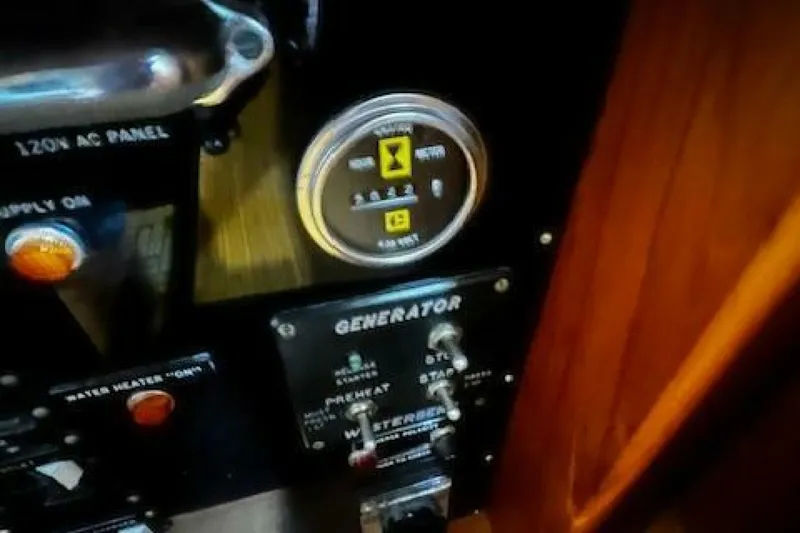

• Westerbeke 4kw generator in sound box with separate battery; generator completely rebuilt 2012; 2022 generator hours.
• New 2 AGM 8D house batteries.
• 2024 Smart battery charger.
• One 30 amp 110V outlet with shore power cord.
• Volt and ammeters on AC-DC panels.
• Three position Perko and Blue Seas selector master battery switch.
• Jabsco water pressure pump and accumulator tank.
• Two electric Rule bilge pumps.

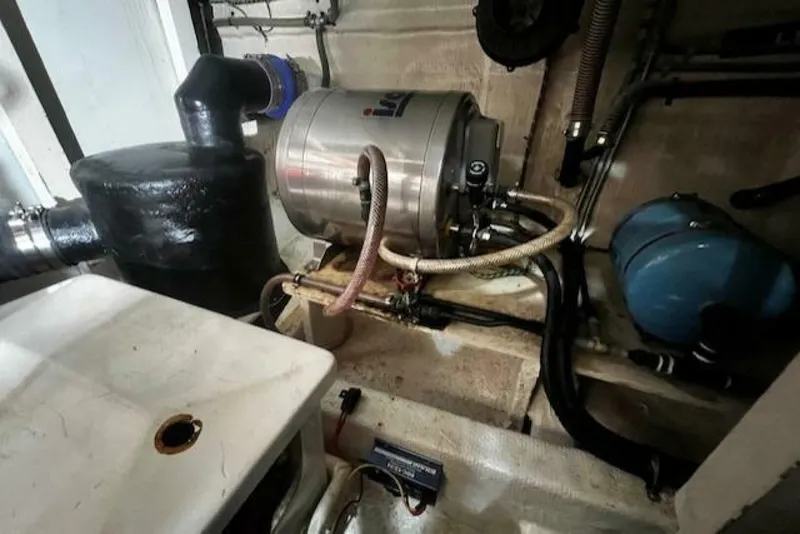

• New 6 gallon S/S Isotherm hot water heater.
• Voltage readouts at lower helm.
• Level indicators for fuel, water and waste at lower helm.

ACCOMMODATIONS:

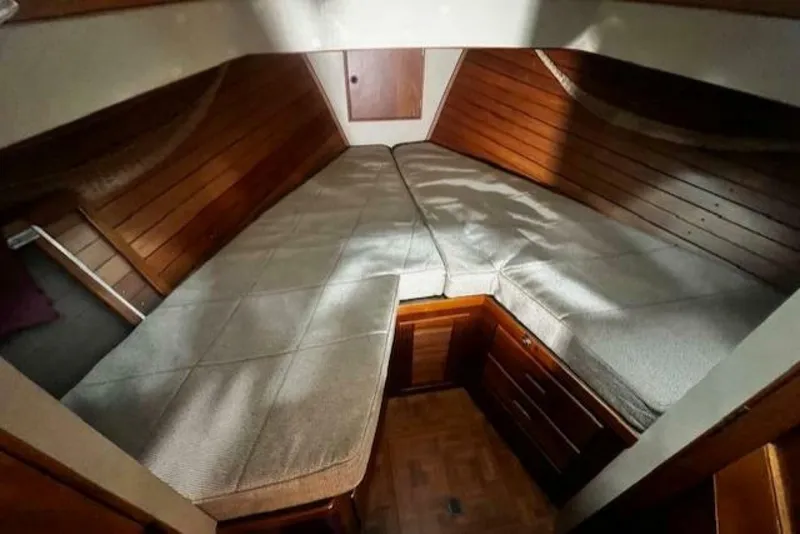

Forward Cabin:

• Vee berth with drawer and locker storage underneath.
• Large hanging locker.
• Teak parquet sole.
• Large overhead Lewmar hatch with screen.
• Fixed window with curtains.
• Sliding window with screen and drapes (window tracks replaced 2009).
• 12V LED brass reading lamps.
• 12V overhead lighting.
• 110V outlet.

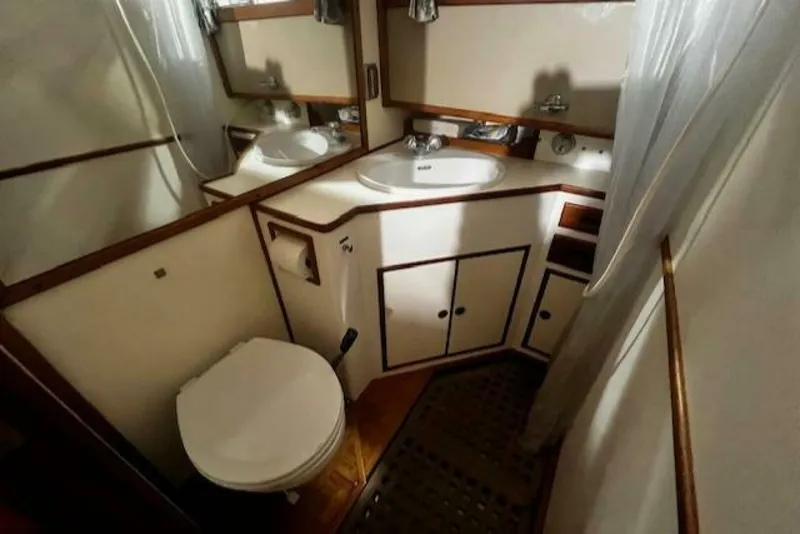

Forward Head:

• Washbasin with hot and cold pressure fresh water.
• Groco manual flush toilet, new 2000.
• All head hoses from toilet to holding tank replaced 2010.
• Shower wand with hot and cold pressure fresh water.
• Shower curtain rod overhead.
• Teak grating with shower sump under.
• Sliding window with screen and drapes (window tracks replaced 2009).
• Mirror.
• Large amount of storage.
• 110V outlets.

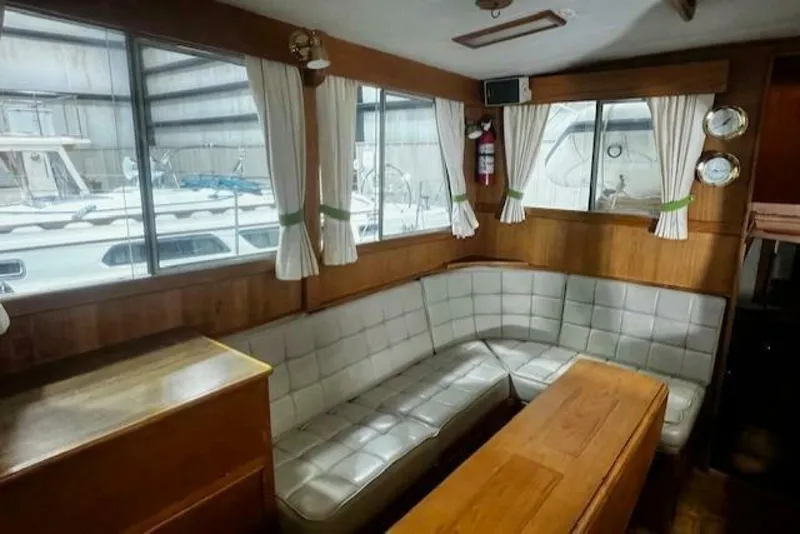

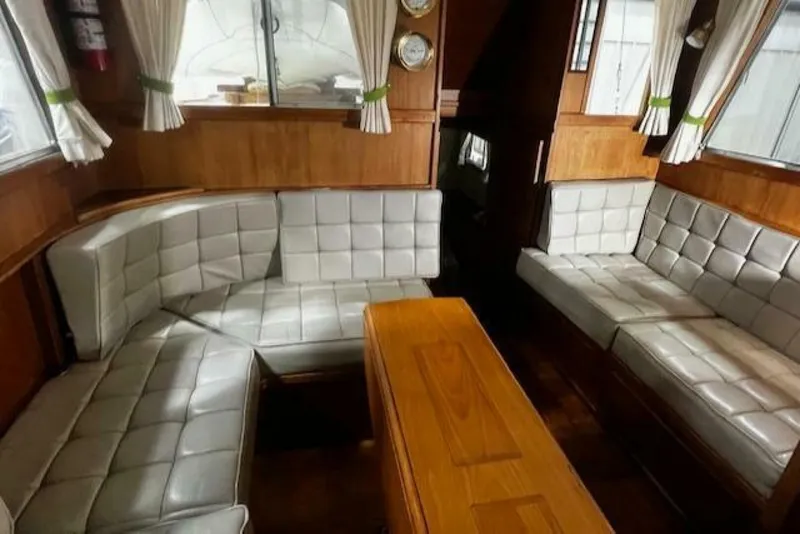

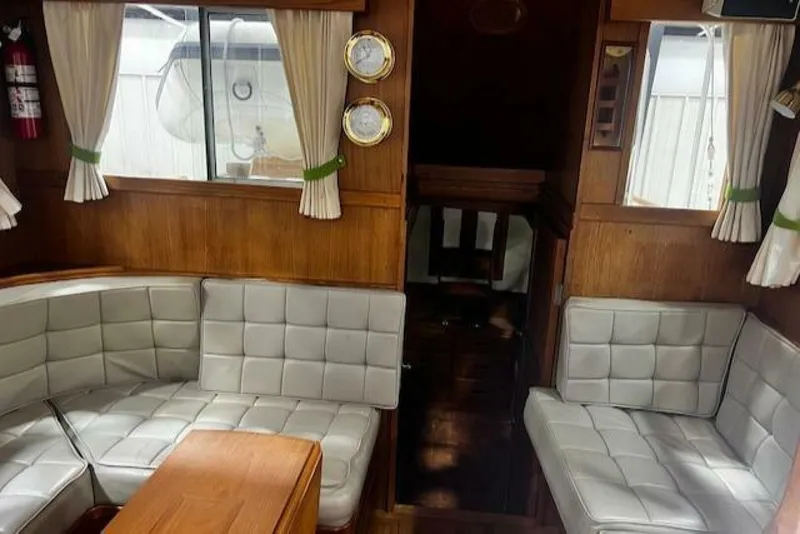

Salon:

• Large teak dropleaf table with storage inside and wine rack below.
• L-shaped white ultra leather seating to starboard with storage under.
• Ultra leather settee to port (also doubles as a berth) with storage under.
• Teak parquet sole.
• 5 large sliding glass windows with screens and drapes (window tracks replaced 2023).
• Forward opening window.
• 12V overhead lighting.
• 12V LED brass reading lamps.
• 2-110V outlets.
• 12V outlet.
• Small teak bookshelf.
• Bar and cabinet storage area to starboard.
• Smoke and C02 detector.

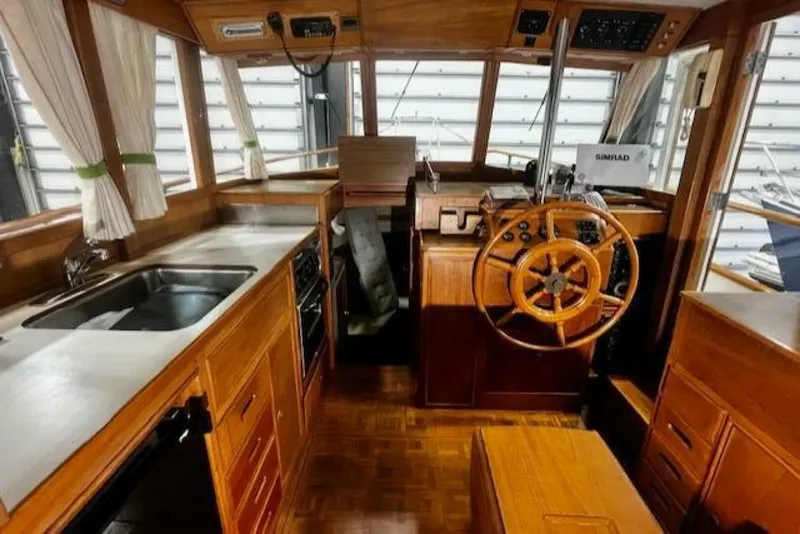

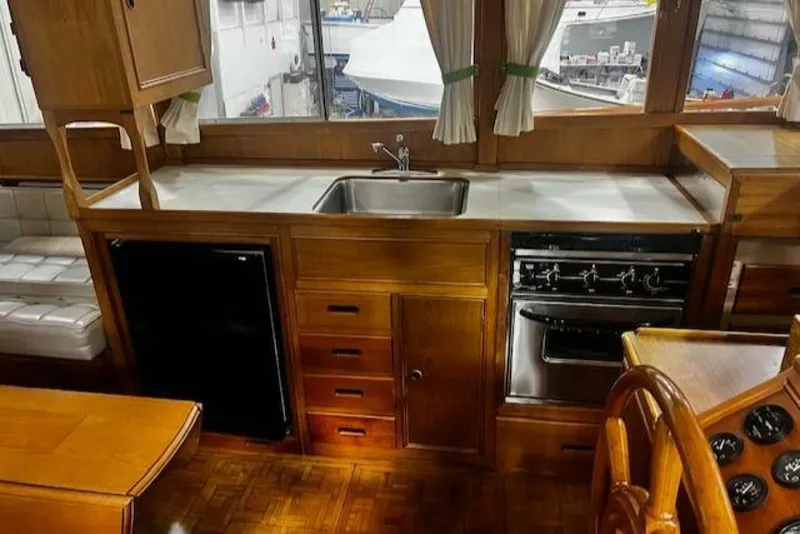

Galley:

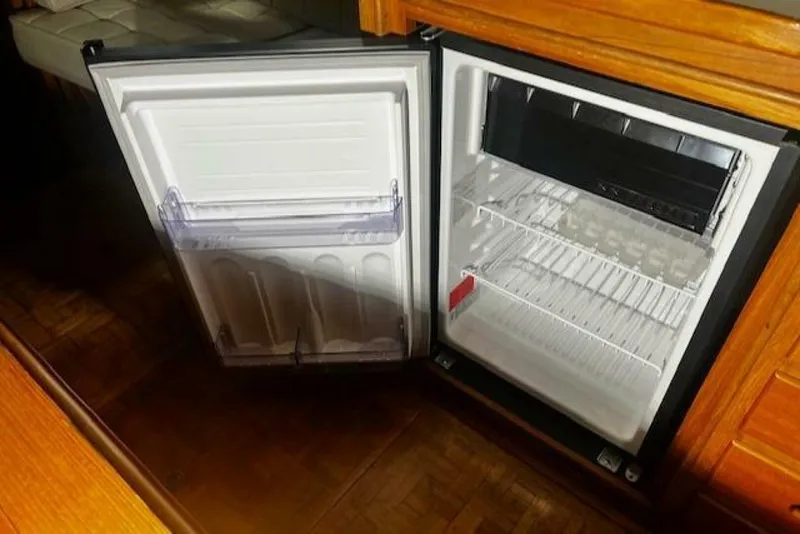

• New 2013 Norcold 110V/12V fridge with freezer.
• Large stainless sink with counter top cover and cutting board.

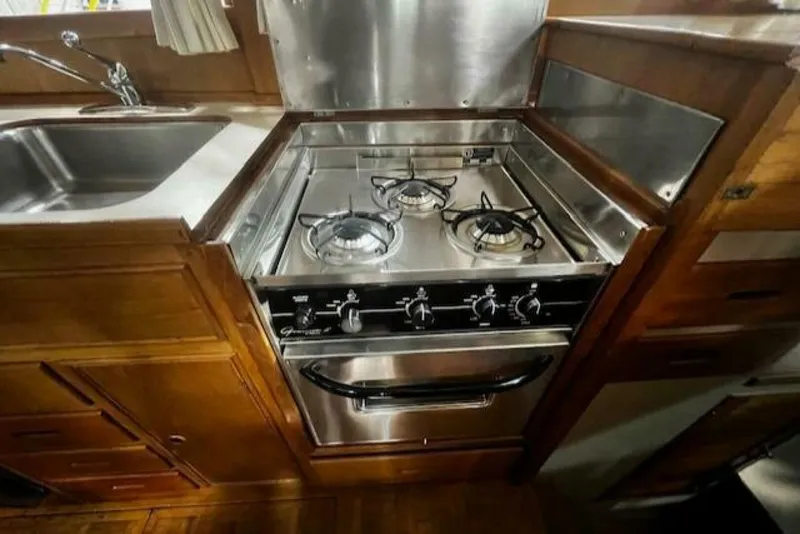

• New 2013 Princess Gourmet II stainless 3 burner propane stove with oven.
• LPG gas control.
• Excellent drawer and cabinet storage.
• Ventilation fan for stove.

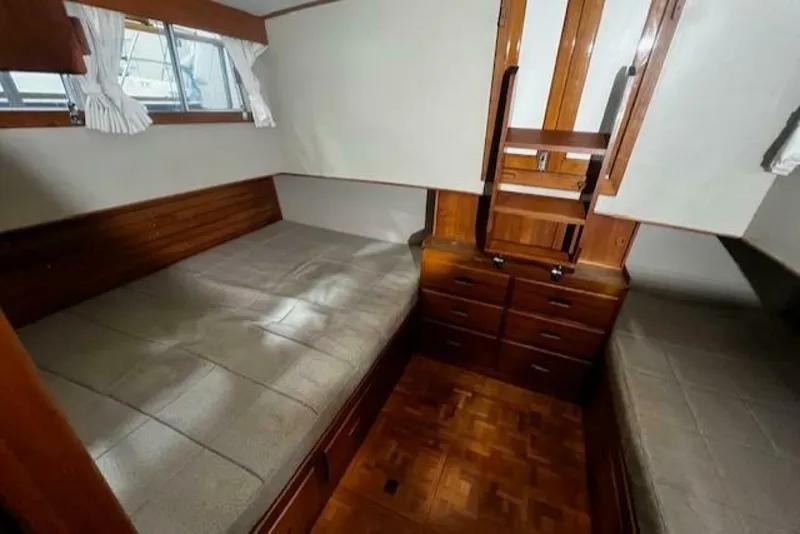

Aft cabin:

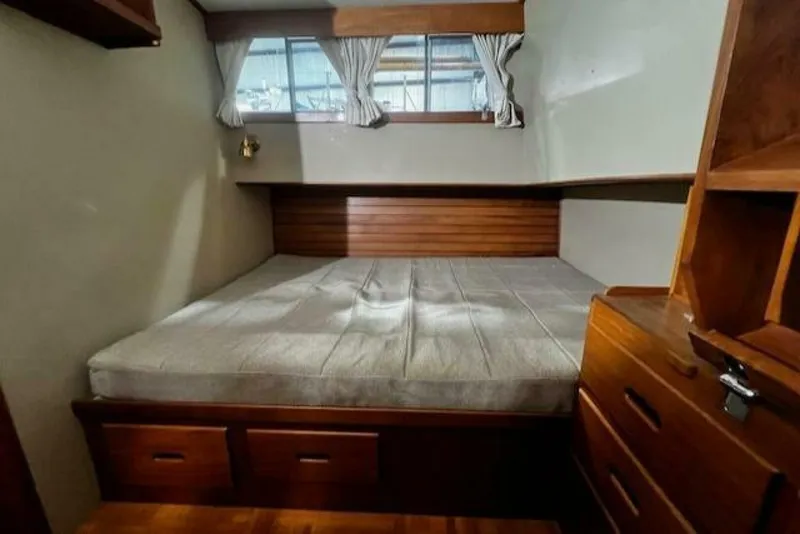

• Queen berth to starboard with drawer storage under.

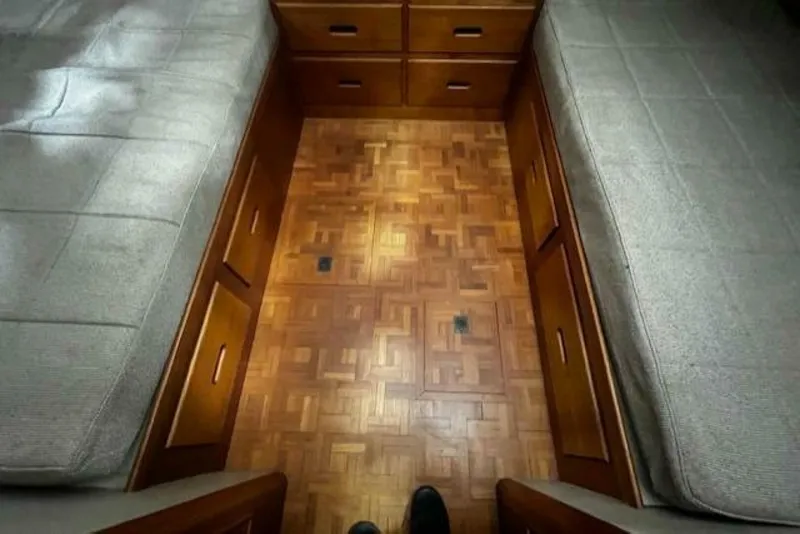

• Single berth to port with drawer storage under.
• Large hanging locker.
• Teak parquet sole.
• Teak chest of drawers on aft bulkhead.
• Aft companionway door/hatch with folding stairs and screens.
• 4 sliding glass windows with screens and curtains, window tracks replaced 2024.
• 2-12V LED brass reading lamps.
• 2-12V DC plugs.
• 12V overhead lighting.
• 110V outlet.

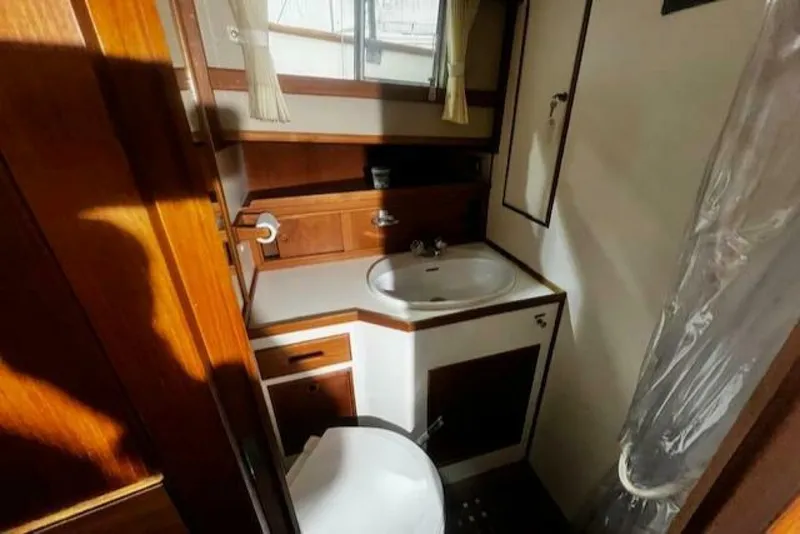

Aft Head:

• Groco manual flush toilet.
• All head hoses from toilet to holding tank replaced 2010.
• Washbasin with hot and cold pressure fresh water.
• Mirror.
• Teak grating with shower sump under.
• 1 sliding window with screen and curtains (window tracks replaced 2024).
• Large amount of storage.
• 110V outlets.

ELECTRONICS:

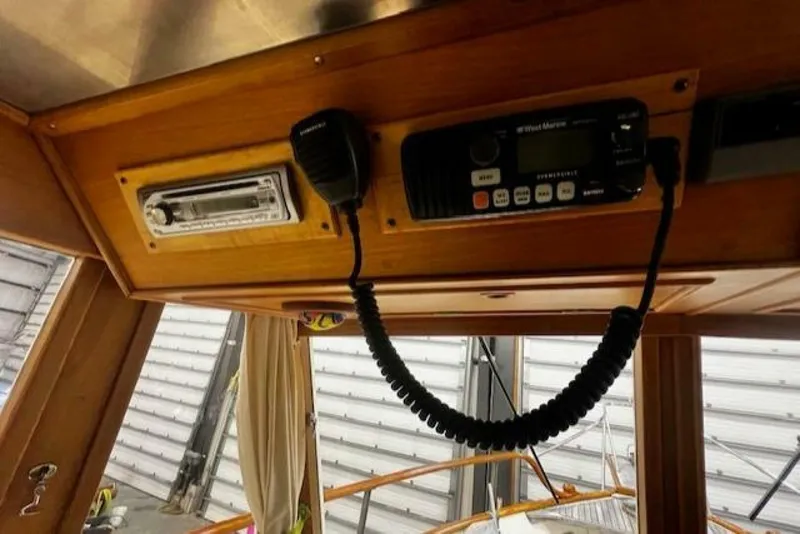

• Sony CDX-M10 CD/MP3/WMA player, new 2010, with speakers.
• West Marine VHF 600 dsc radio, new 2010, with AIS.

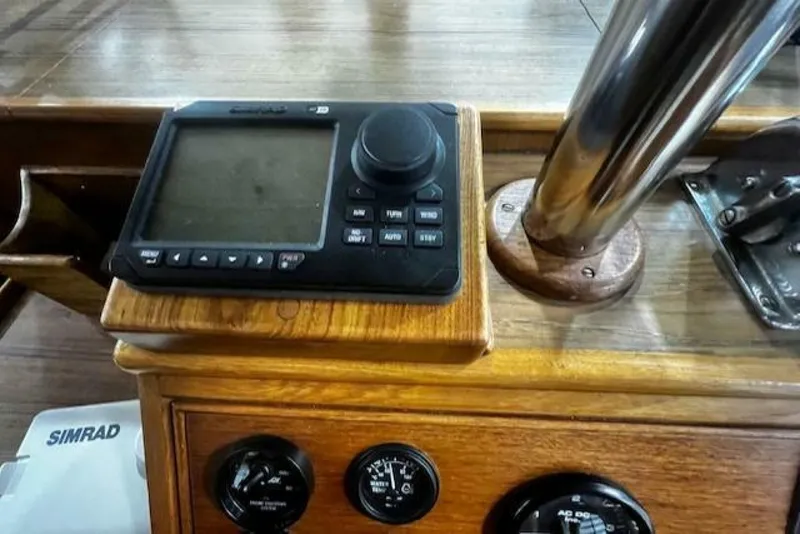

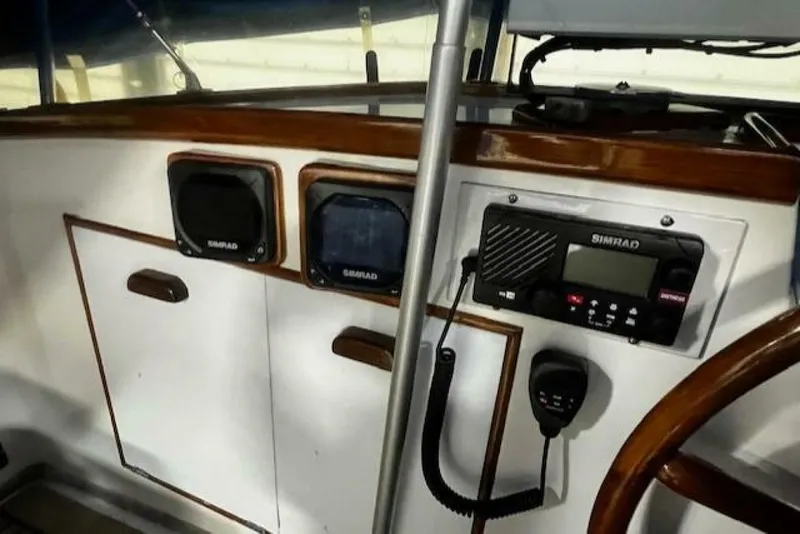

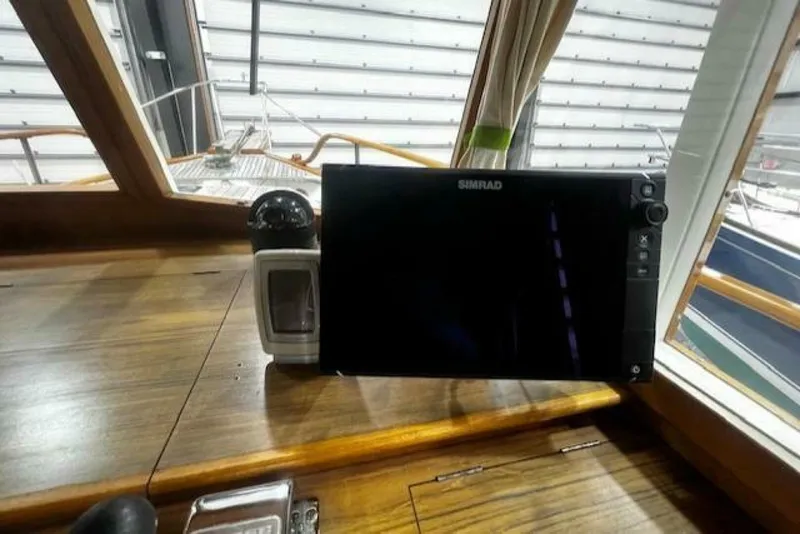

• 2015 Simrad Radar-GPS-AIS, autopilot and VHF radio, at flybridge and lower helm.
• 2 Ritchie Constellation compasses.
• New Stryker halogen spotlight with remote control.
• Newmar phone-com (intercom between upper and lower helm).
• 2 digital displays at upper helm for windspeed/direction, speed, navigation, etc.
• Trim tab controls.
• Ventilation fan at lower helm.

GROUND TACKLE:

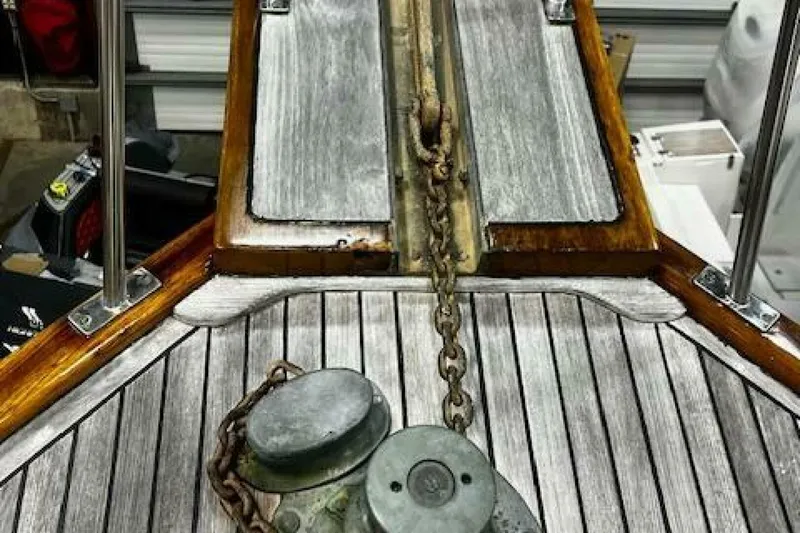

• Ideal electric dual action windlass with separate breaker switch.

• Saltwater washdown.

• 35 lb CQR Plow anchor with 125' chain/200' line; Danforth anchor; Claw anchor with 25' chain.

EQUIPMENT:

• Staysail riding sail.
• S/S bow rail; heavy duty bronze deck hardware.
• Rule bilge pumps and manual bilge pump.
• LED anchor light; incandescent navigation lights.

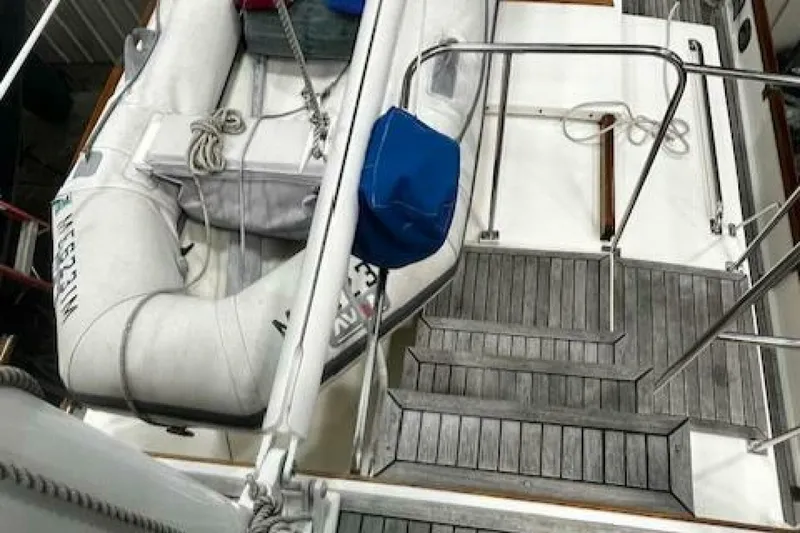

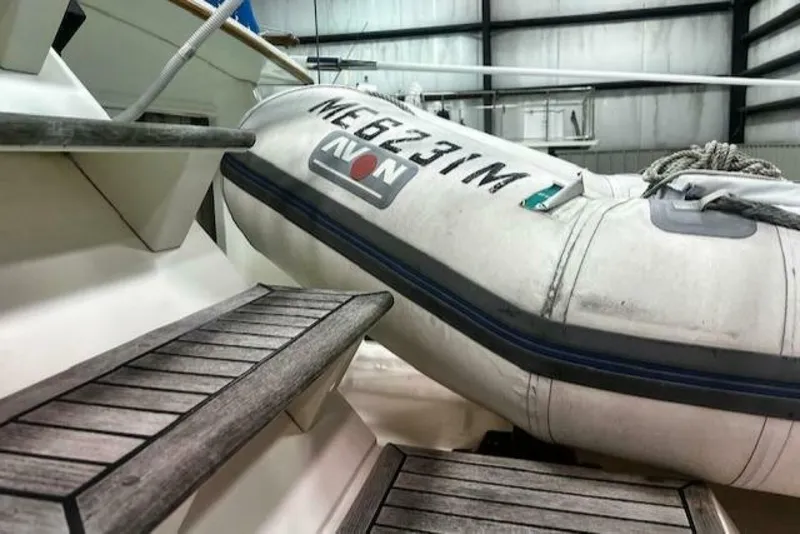

• 1998 Avon 2.5 RIB inflatable with cover and oars.

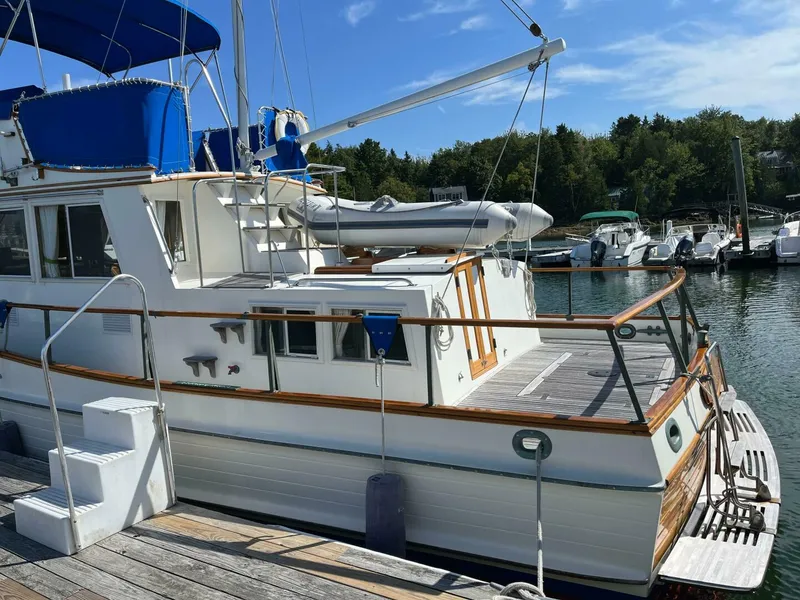

• Hinged aluminum mast and boom with LED spreader lights & 12V winch to hoist tender.
• One LPG tank, with new regulator and shut-off at tank.
• Radar reflector; emergency tiller.
• Brass Weems & Plath tide clock and barometer.
• Three windshield wipers.

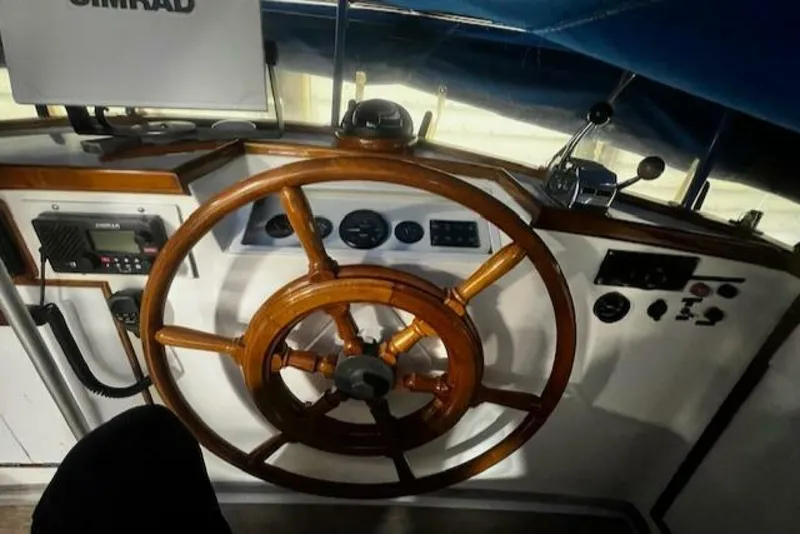

• Custom 6 spoke with outer rim ships wheel.
• Horn; boathook; life jackets; fenders-5 with fleece covers; docklines; water hose; life ring and flares.
• Miscellaneous spare parts.
• Digital weather station in salon.
• Saltwater anchor wash.
• Cockpit shower.
• Large lazarette.
• Mast spreader lights.
• Flybridge cushions.
• Royal blue Bimini on flybridge.
• Royal blue Flybridge privacy curtains.
• Royal blue flybridge cover.
• Ensign and teak staff and teak bow staff.
• Some screens.
• Towing bridle.
• Full set of equipment manuals.
• 4 dry chemical fire extinguishers.
• Teak hand and toerails.
• 2003 10' RIB Avon inflatable; 2020 Yamaha short shaft 6 hp outboard (available at extra cost)..
