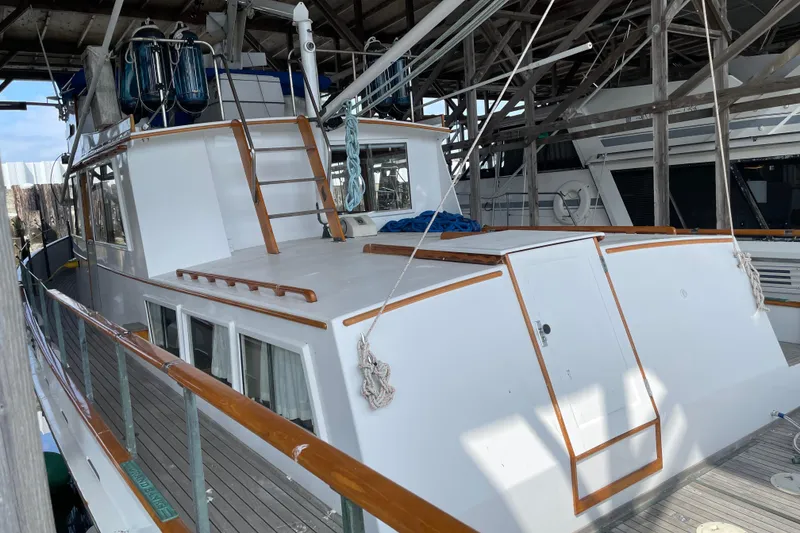

1964 Grand Banks 42 Classic

$85,000

Used

Boat in Anacortes, WA 98221 US

builtBuilt in 1964
Year the boat was built
model

42 Classic

Boat model
engine

1 Engine (John Deere)

Engine type and count
length

42 feet

Overall boat length
fuel

Diesel

Fuel type
material

Wooden

Hull material
Nominal Length
42ft
Length Overall
44ft
Length on Deck
41.83ft
Beam
13.58ft
Drive Up Draft
4.17ft
Dry Weight
34000lb
Windlass
electric-windlass
Hull Material
wood
Hull Shape
semi-displacement
Engine 1
Engine Make
John Deere
Engine Model
6068T
Total Power
139hp
Engine Hours
4868
Engine Type
inboard
Fuel Type
diesel
Drive Type
direct
Propeller Type
4-blade
Propeller Material
bronze

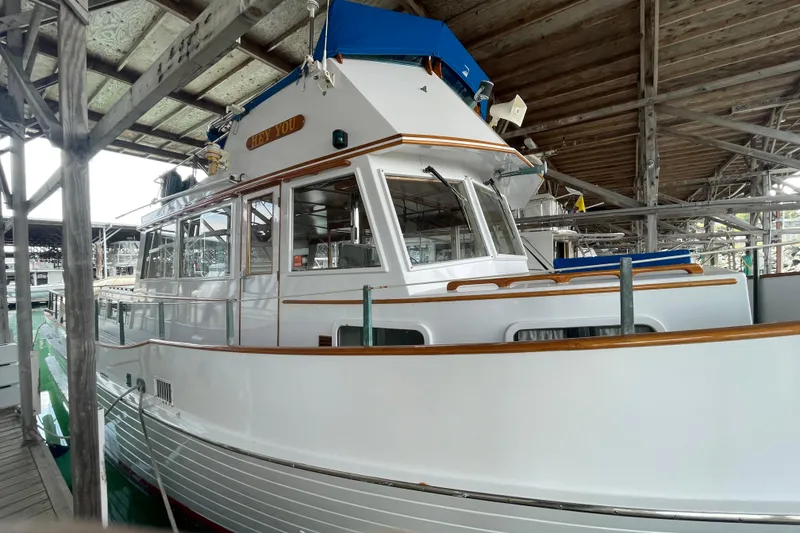

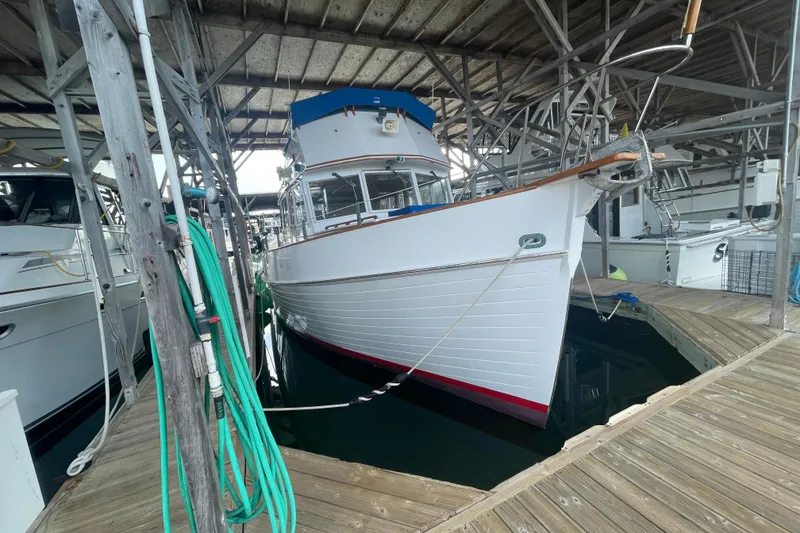

1964 Grand Banks Classic 42 Flybridge Trawler

SPECIFICATIONS:

  • LOA - 44'
  • LOD - 41' 10"
  • Beam - 13' 7"
  • Draft - 4' 2"
  • Weight - 34,000lbs.
  • Gross Tons - 15
  • Net Tons - 12

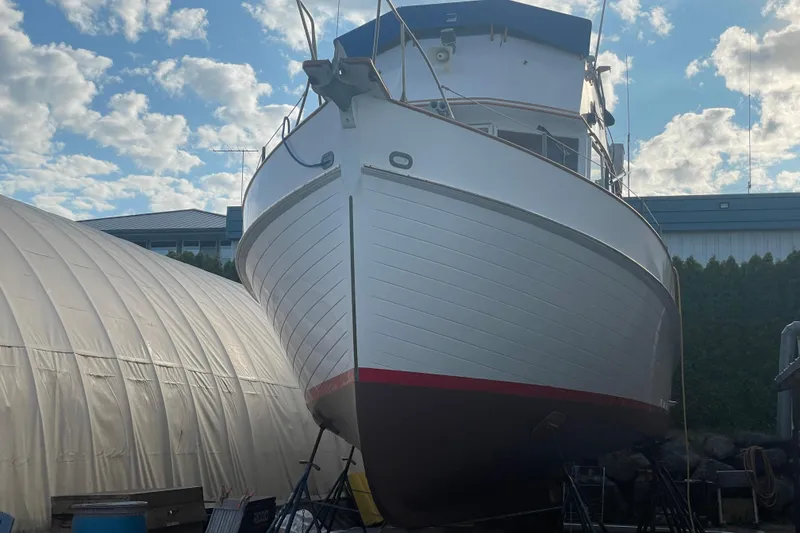

  • Bottom & Hull Construction - Philippine Mahogany Planked Wood Hull
  •                                               Hull Rub Rail - Stainless Steel
  • Transom - Conventional Flat Transom
  •                  Attached Extended Swim Platform beyond Factory Swim Platform Length
  • Keel - Tapered Fiberglass Stabilizing Keel
  • Main Deck - Marine Plywood with Teak Overlay
  •                     Bulwarks - Teak Cap
  •                     Cabin Entrance Doors - Teak Port & Starboard Side Cabin Doors.
  • Cockpit & Aft Deck - Teak Deck/Grate Overlay on Cockpit Sole with Multiple
  •                                   Hatches to Access Lazaret & Water Tank & Fuel Tanks.

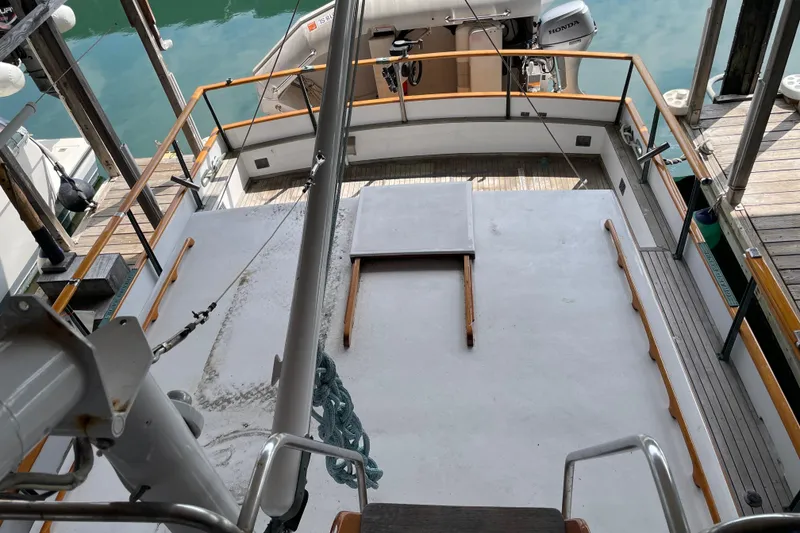

  • Flybridge -Wood Flybridge Structure
  •                  Wheel Steering Helm with Full Instrumentation
  •                  Seating - (2) Bench Seats

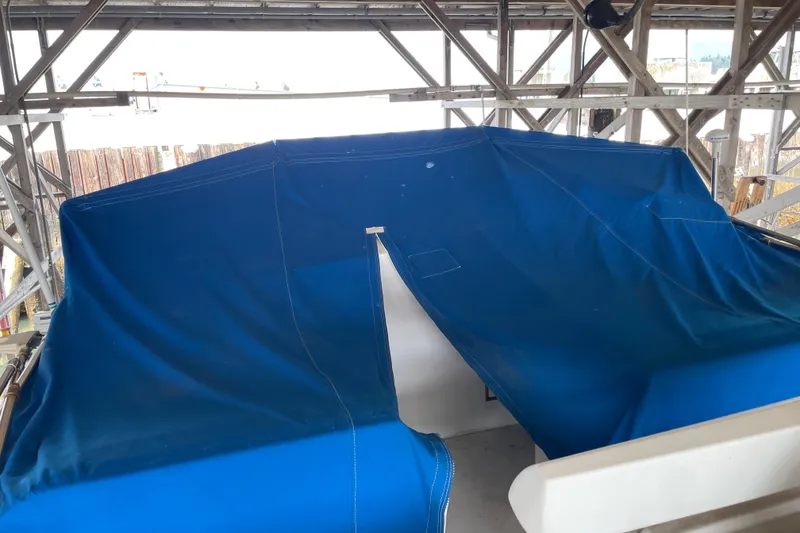

  •                  Canvas Bimini Top & Flybridge Cover
  •                  Wind Deflector - Plastic Spray Shield
  •                  Sole - Painted Marine Plywood with Painted Non-Skid
  •                  Accessed by Stairs from Aft Trunk Cabin Deck

TANKAGE:

  • FUEL - 400 Gallons in 3 Black Iron Tanks
  •              2 Tanks Located Port & Starboard in the Engine Room
  •              3rd Tank Between Water Tanks in the Lazaret
  • WATER - 240 Gallons in 2 Stainless Steel Tanks Located Under Cockpit Sole

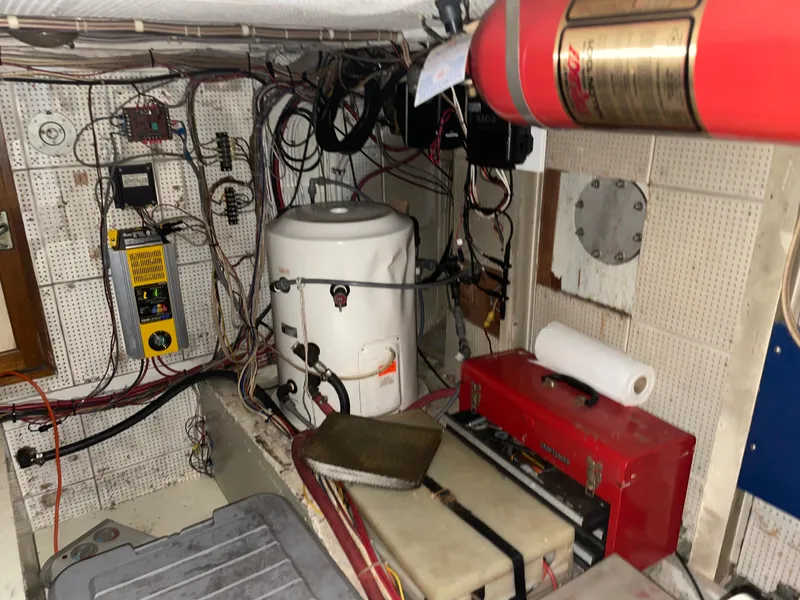

  • HOT WATER - 17 Gallons  110Volt with Engine-Heat Exchanger Coil
  •                          Located in Engine Room
  • WASTE - 1 Tank in Master Stateroom Locker with Deck Pumpout
  • PROPANE - (2) Tanks

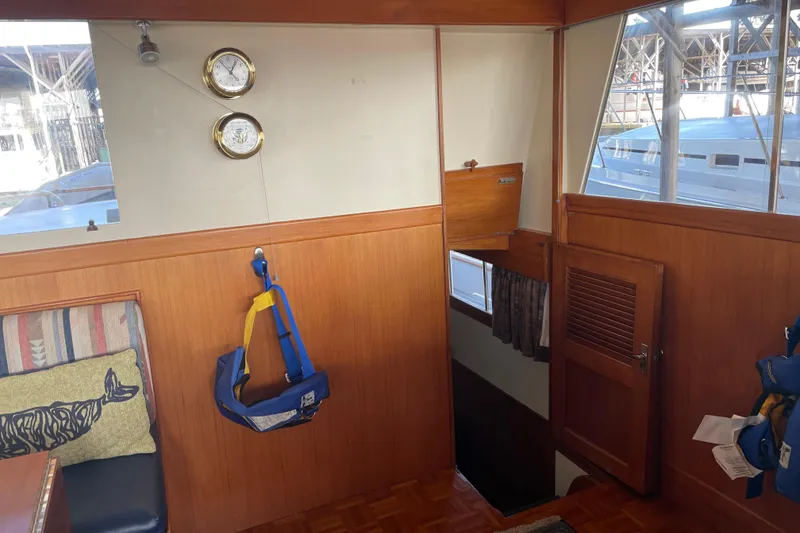

INTERIOR:

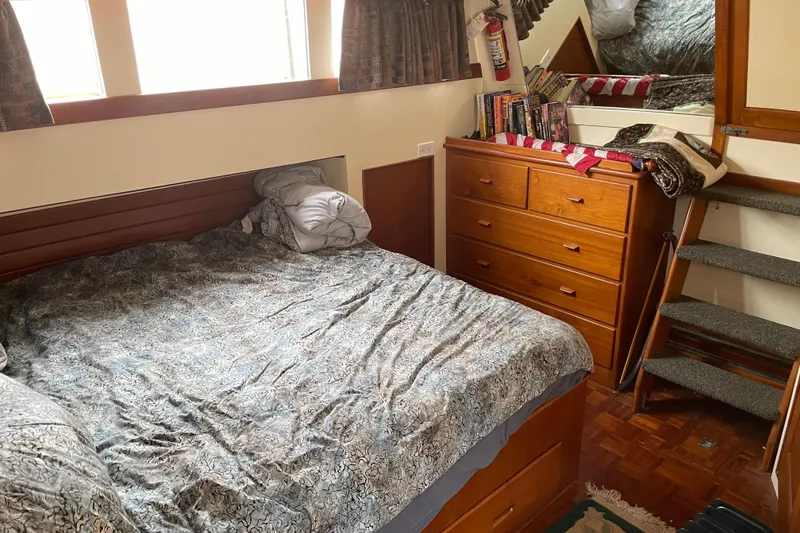

  • Sleeps 4 - (2) in Aft/Master Stateroom - Custom Offset Double Bed
  •                                                                Storage Drawers Under Bed
  •                  (2) in Forward V-Berth

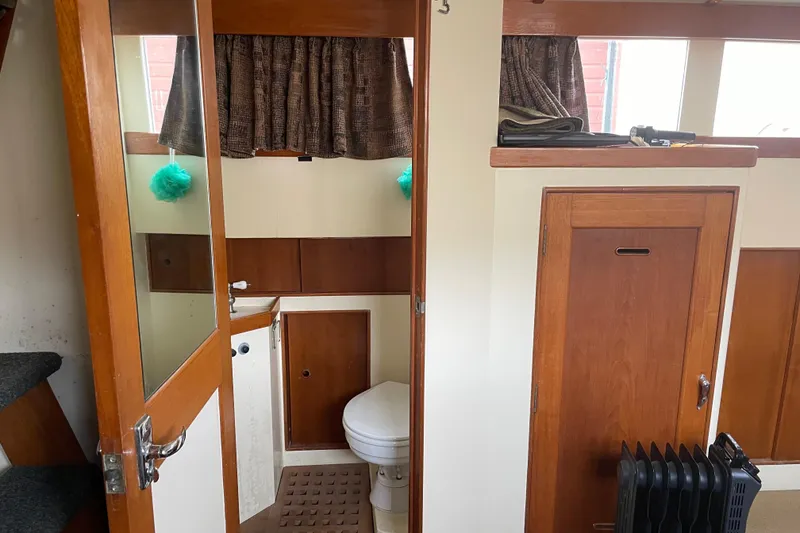

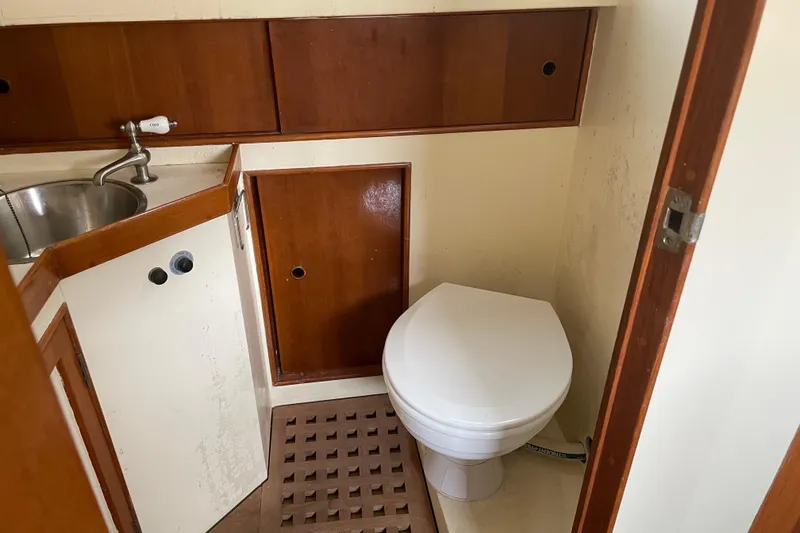

  • Private Enclosed Heads (2) - (1) On -Suite Head in Aft/Master Stateroom
  •                                                (1) Forward Guest/Day head
  •                                                 Dometic Sealand Electric Flush Toilets

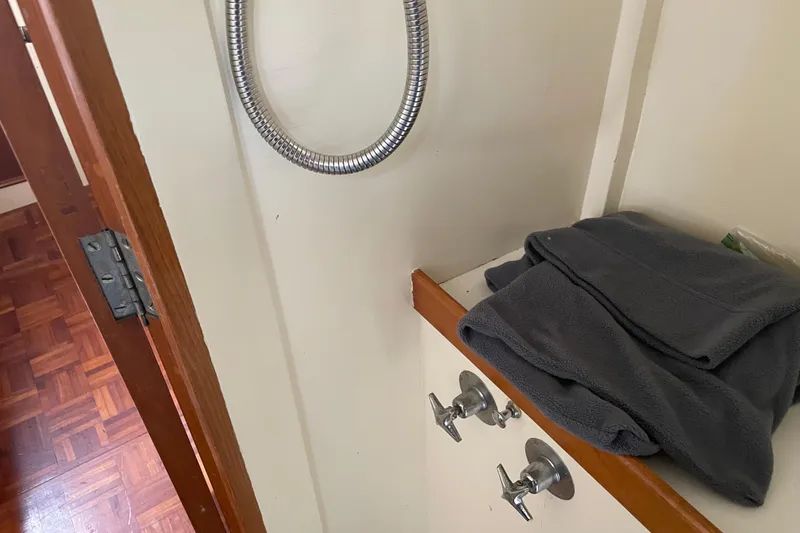

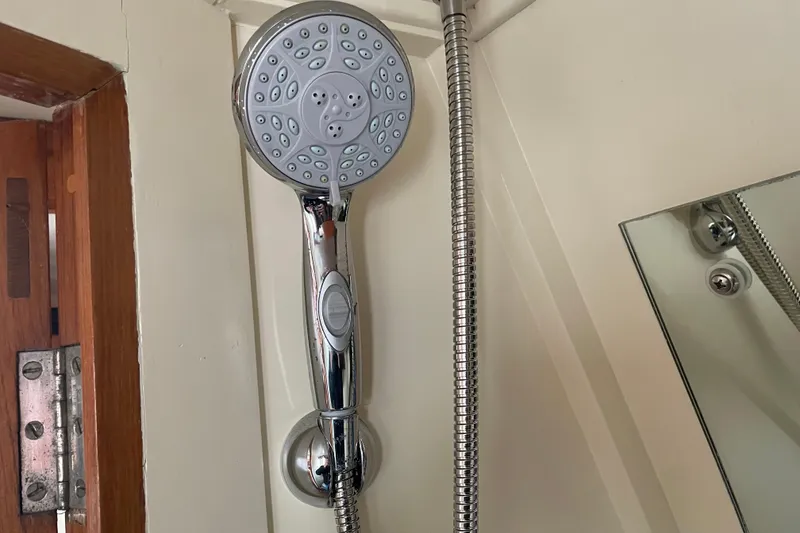

  •                                                 Head Areas Double as Shower with Pull-Out Wand
  •                                                 Includes Stainless Steel Sinks
  • Hot & Cold Pressure Water System

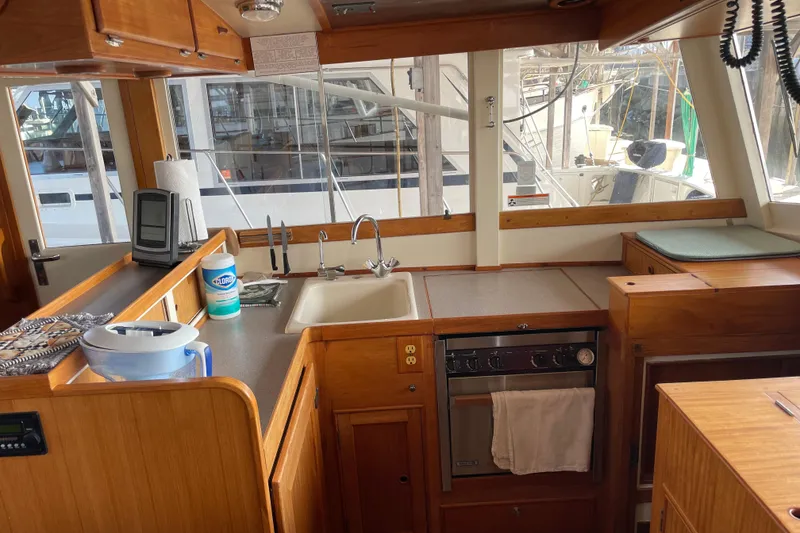

  • Sink - Single Ceramic
  • Stove - Force 10 3-Burner Propane Cooktop/Oven
  • Refrigeration - Upright Refrigerator with Adler Barbour Compressor System
  •                        12Volt DC or 110Volt AC
  • Trash Compactor - Broan Compactor
  • Icemaker - Uline

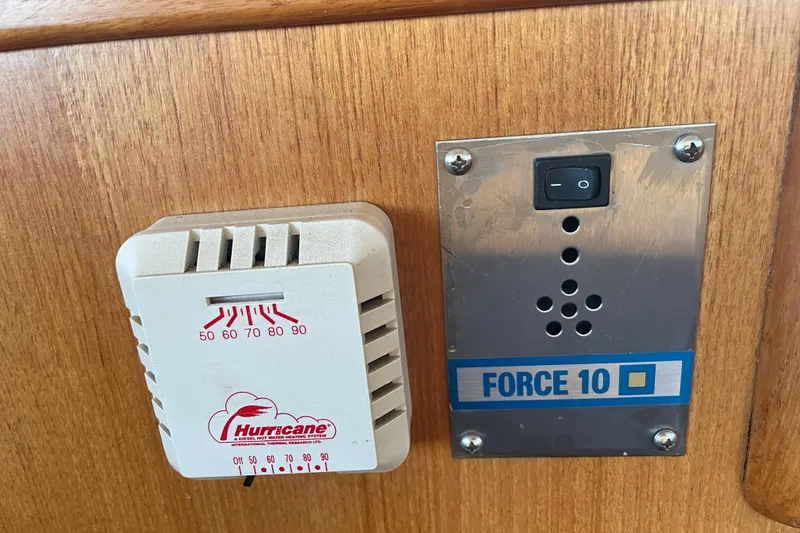

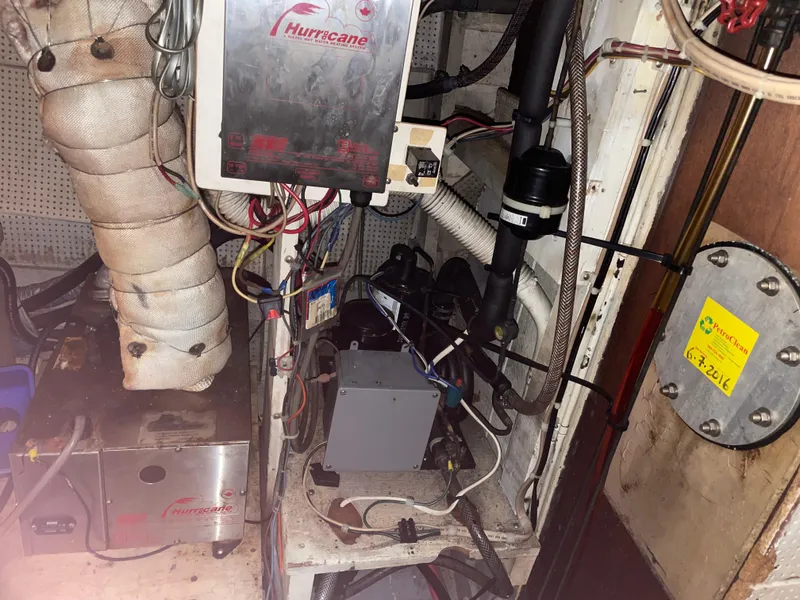

  • Cabin Heat - Hurricane Hydronic - Combination Hot Water from Diesel-Fired Boiler
  •                                                         to Various Fan-Forced Radiators (powers up - won't heat)

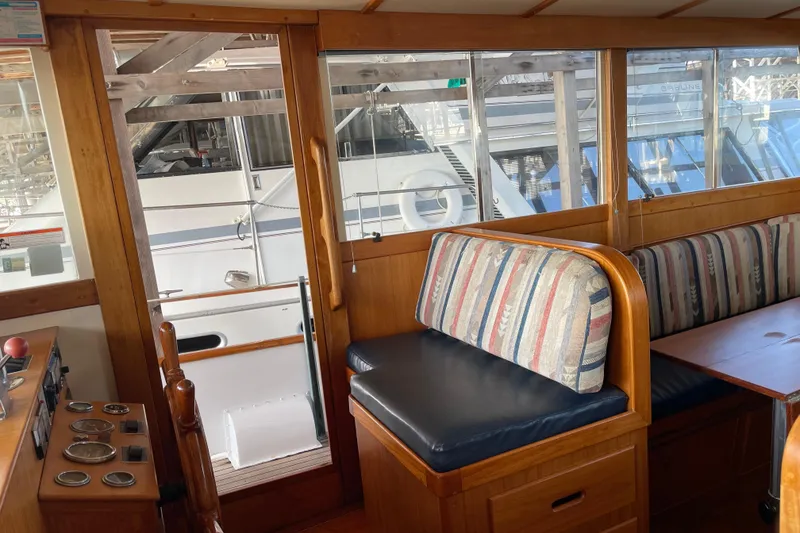

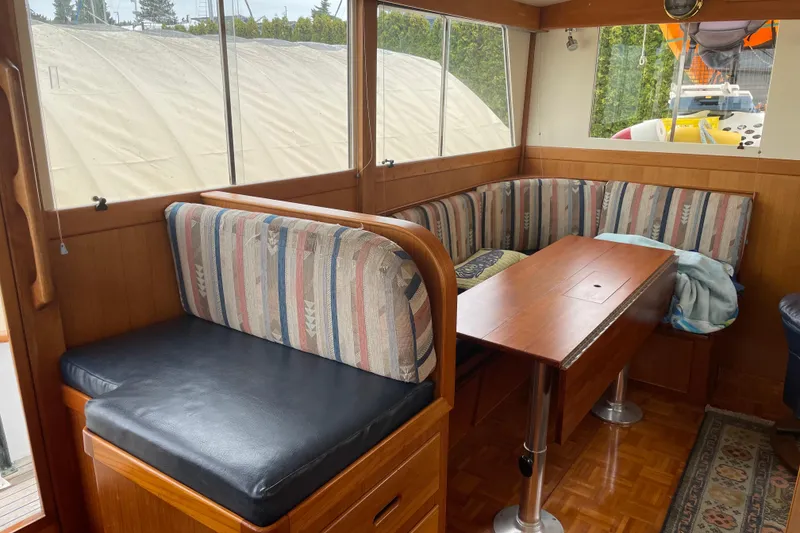

  • Dining Table - Custom Wood
  • Dining Table Seating - 'L' Shaped Seating Around Dinette Table
  • Cabin Steps - Teak Cabin Entrance Steps
  • Sole - Teak Parquet

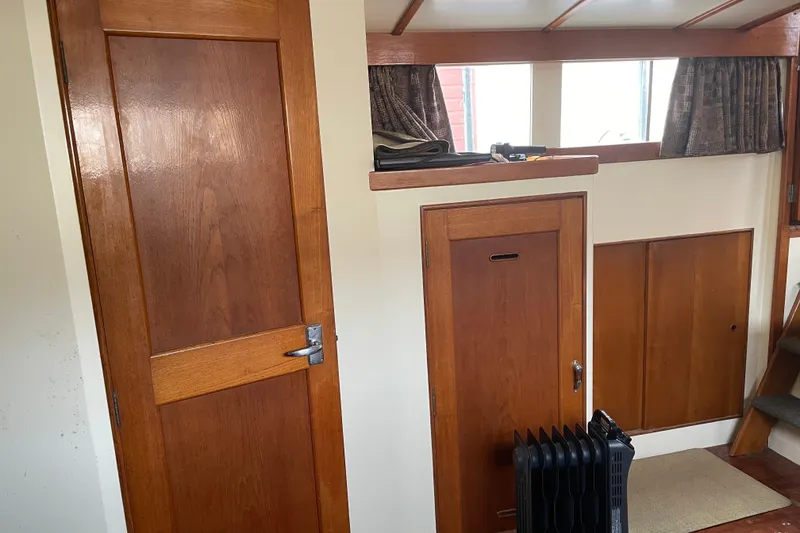

  • Bulkheads/Trim - Teak Bulkheads with Teak Trim Panels
  • Framing Trim - Teak Trim Around all Doors & Counter Tops
  • Headliner - Vented Vinyl
  • Engine Access - Lift Out Sole Panels

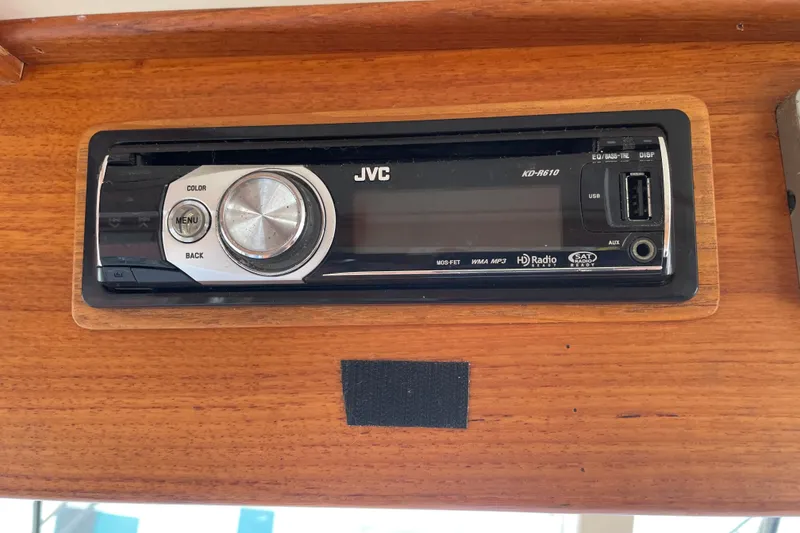

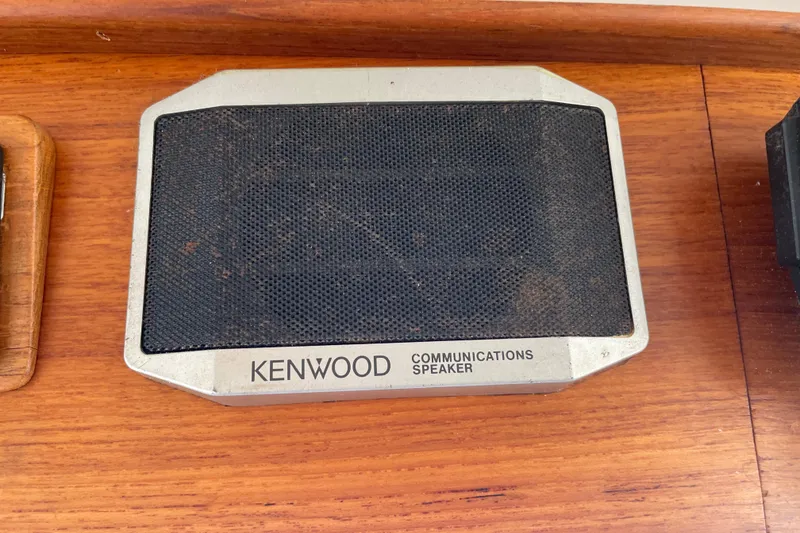

  • Stereo - JVC KD-R610 AM/FM with CD Player
  •               5.25" Speakers Throughout the Vessel

MECHANICAL & ELECTRICAL:

  • Engine - Single John Deere 6068T 6-Cylinder, 139hp, In-Line,
  •               Fresh-Water Cooled, Turbo After-Cooled Diesel Engine

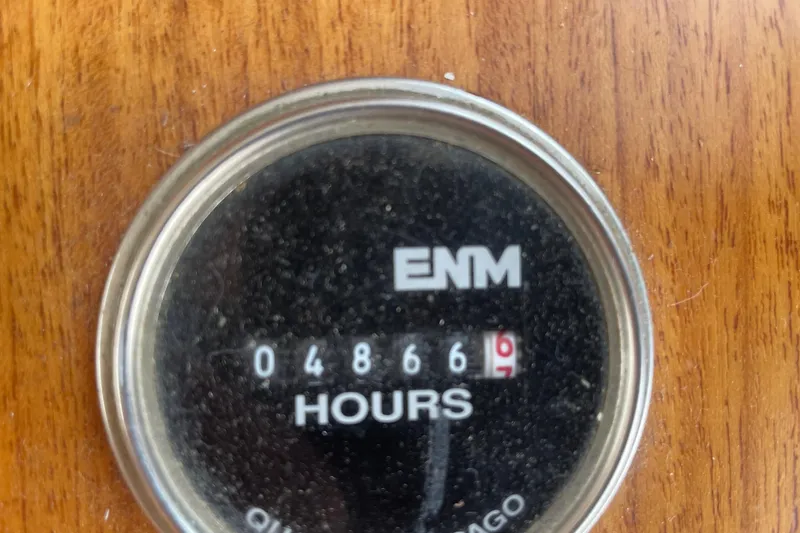

  • Engine Hours - 4868 Hours

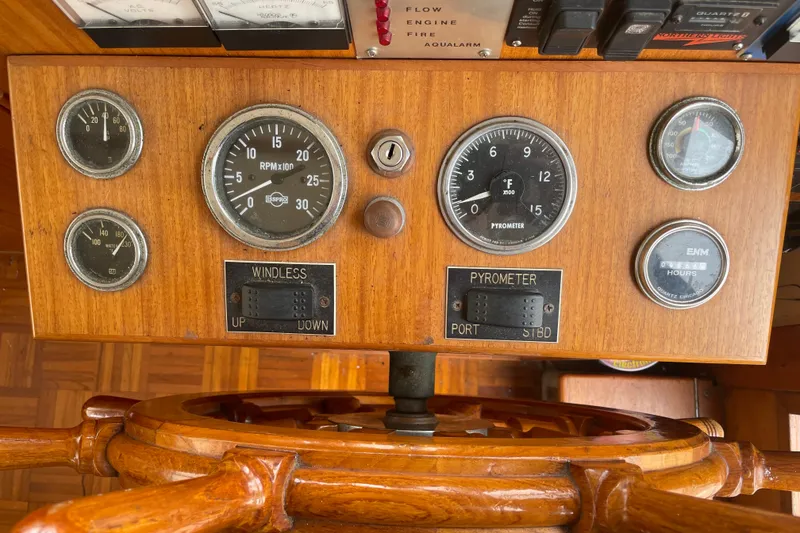

  • Engine Instruments - All OEM (Original Equipment Manufacturer)

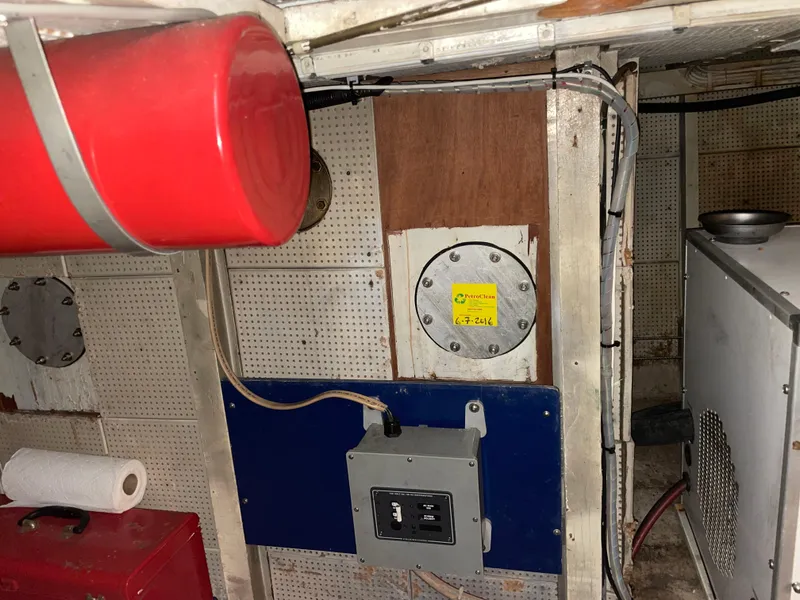

  • Engine Room Blower & Natural Ventilation
  • Steering System - Wheel Steering Mechanical Cale Type with Radial Disc Drive at Rudder Head
  • Engine Throttle & Shifter - Morse Separate Levers for Shifter & Throttle

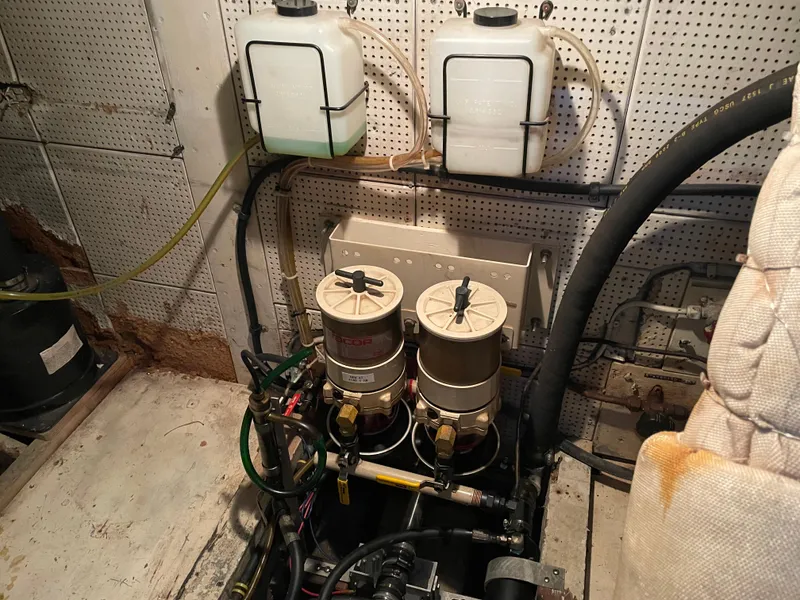

  • Engine Fuel Filters - Primary - Packer/Racor Cartridge Type
  •                                  Secondary on Engine
  • Engine Propellers - (2) 4-Blade Bronze - 28 x 28
  • Engine Shaft - 1-3/4" Stainless Steel
  • Engine Rudder - Stainless Steel Skeg Hung with Rudder Shoe
  • Transmission - Catapillar 3N1514 Reversing Marine Transmission
  • Thru Hull Fittings - Sea Valves - Bronze Seacock Ball Valves
  •                                                    Location - Engine Raw Water Intake
  •                                                    Generator Raw Water Intake
  •                                                    Head Raw Water Flush Intake
  •                                                    Waste Holding Tank Discharge
  •                               Sea Strainers - Installed for Engine Raw Water

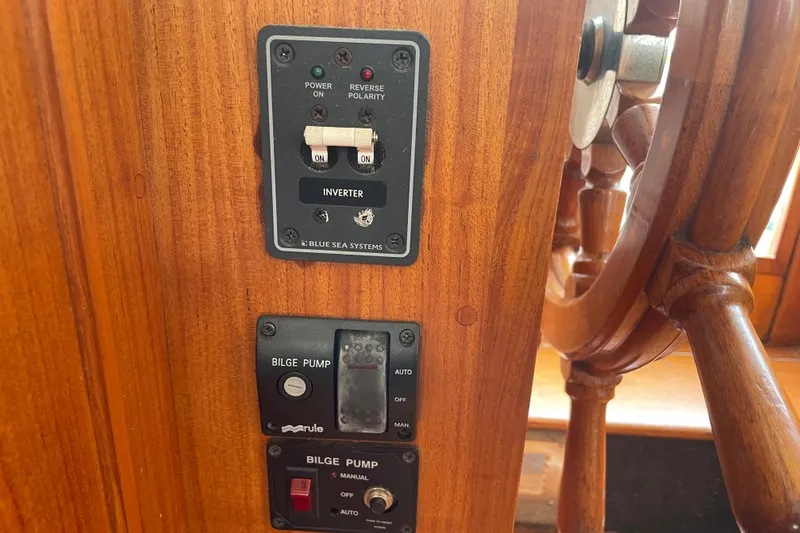

  • Bilge Pumps - (2) Bige Pump Auto/Manual Switches
  •                              High Water Alarm

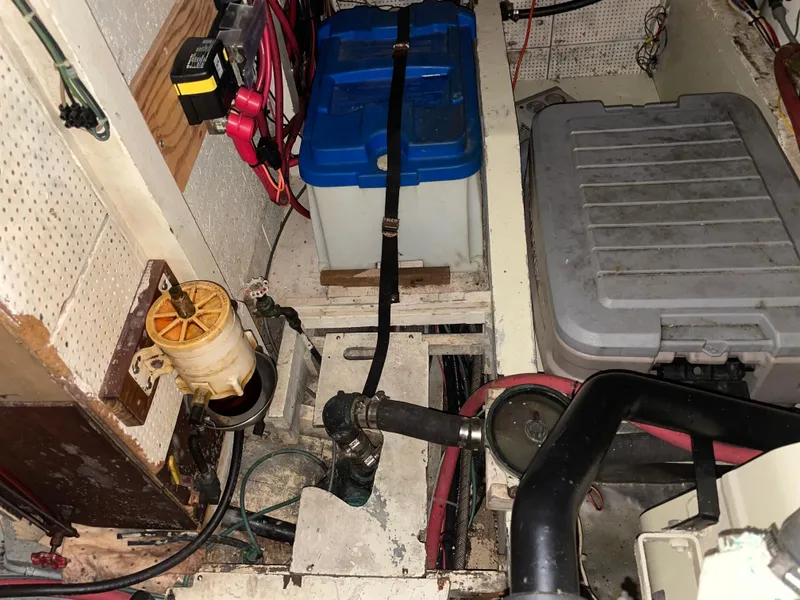

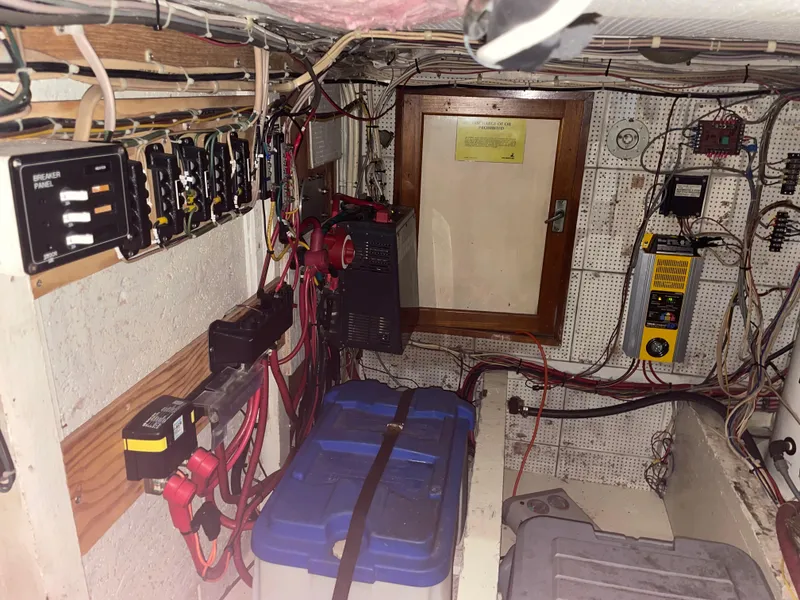

  • Batteries - Start - (1) 12Volt 8D Lead Acid Battery

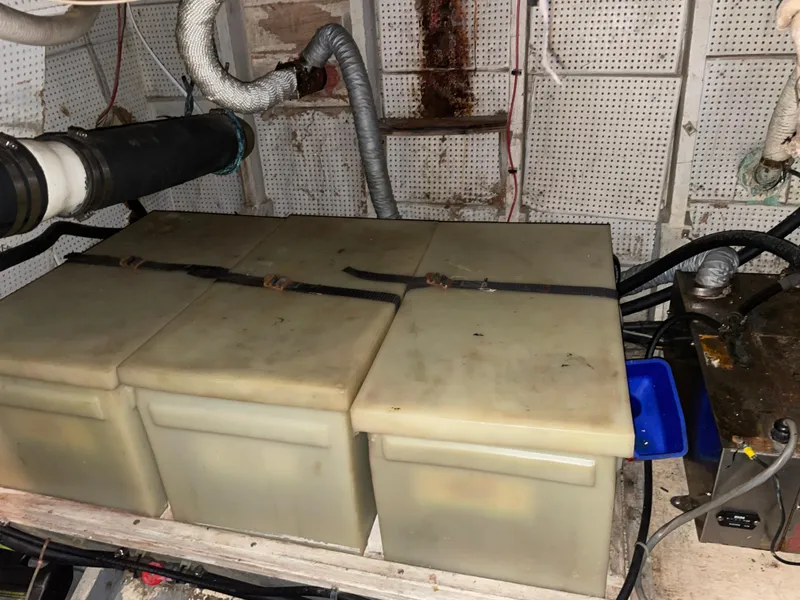

  •                  House - (6) Golf Cart 6-Volt Batteries
  •                  Generator - (1) 12Volt 4D
  •                  Battery Selector Switch - (2) Rotary Switches

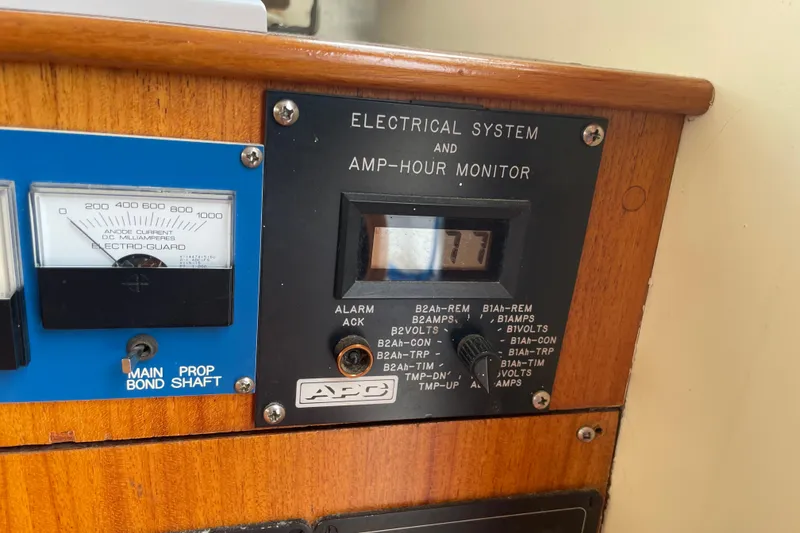

  • Battery Monitor - APC Battery Monitor
  • Battery Charging Systems - Engine Alternator
  •                                              Invertor Charger
  •                                              True-Charge 40

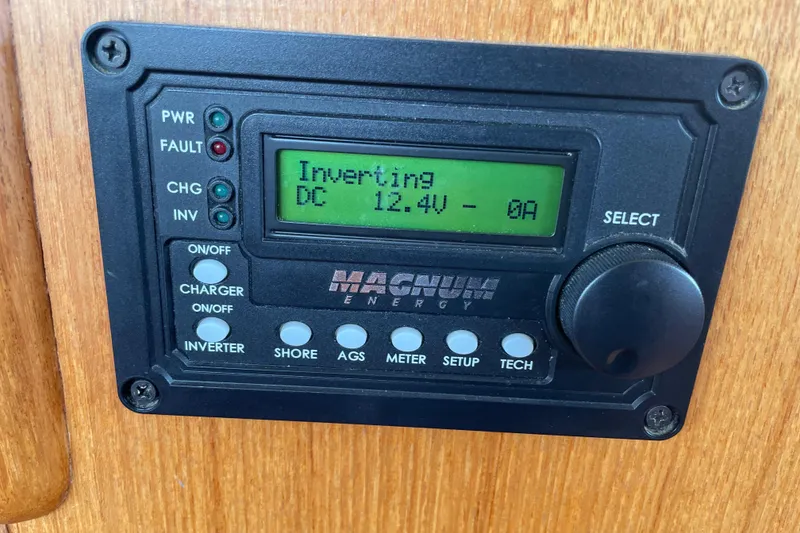

  • Inverter / Charger - Magnum Energy "MagnnaSine" 3100 Watt
  •                                Modified Sine Wave Inverter

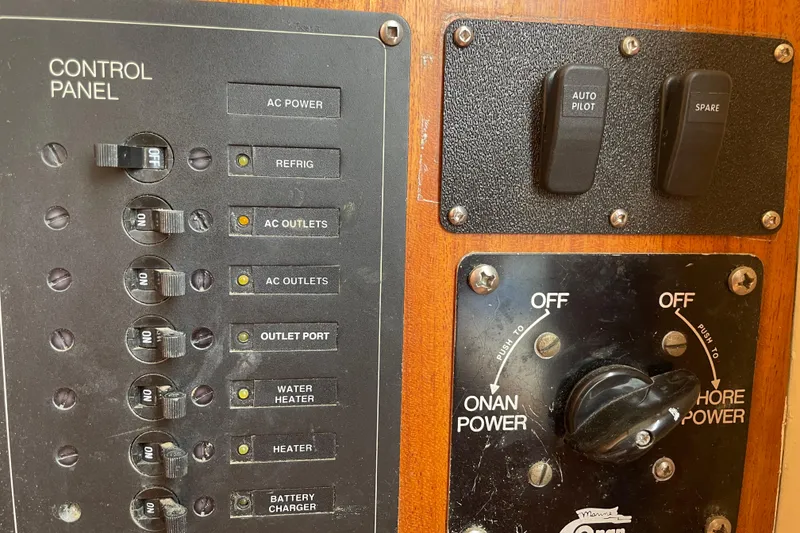

  • Shore Power - 50Amp - Marinco One Shore Power Cord
  • Shore Breaker - Separate Shore Power Breaker at the Shore Power Inlet
  •                            since it is over 10' from Power Distribution Panel
  • Galvanic Isolator - Electro Guard

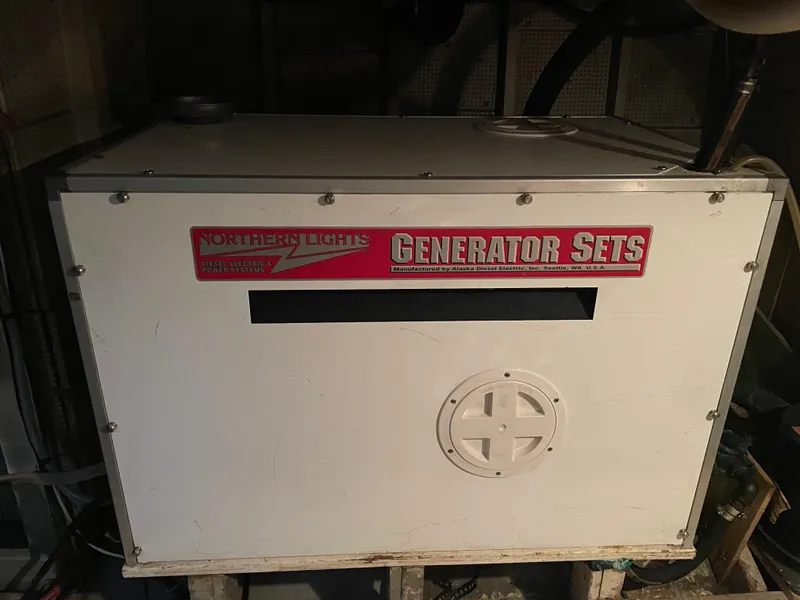

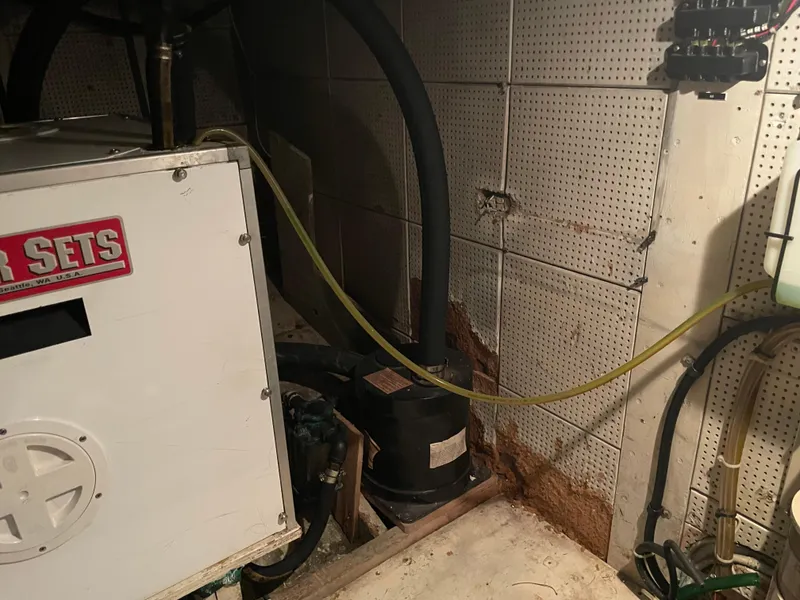

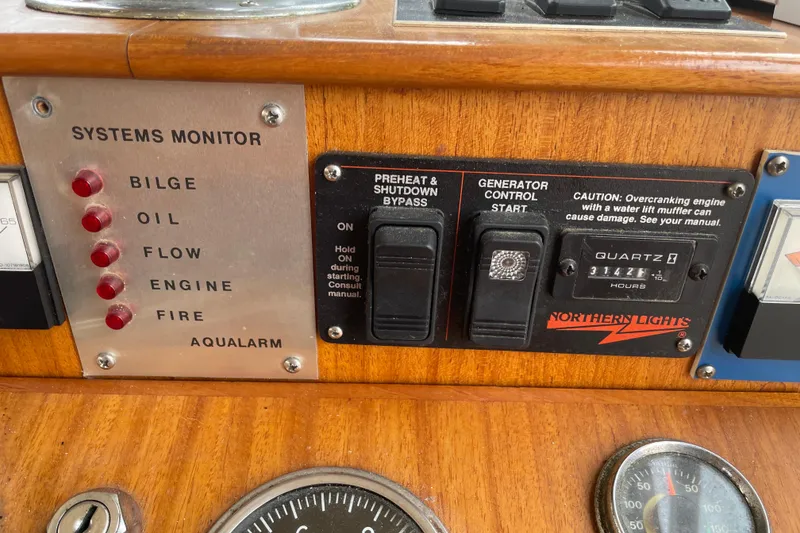

  • Generator - 5kW Northern Lights Freshwater-Cooled Diesel Powered
  •                    with Insulated Sound Box
  • Generator Hours - 3144 Hours

NAVIGATION & COMMUNICATION:

  • Flybridge Helm - Compass - Azimuth 1000 Digital

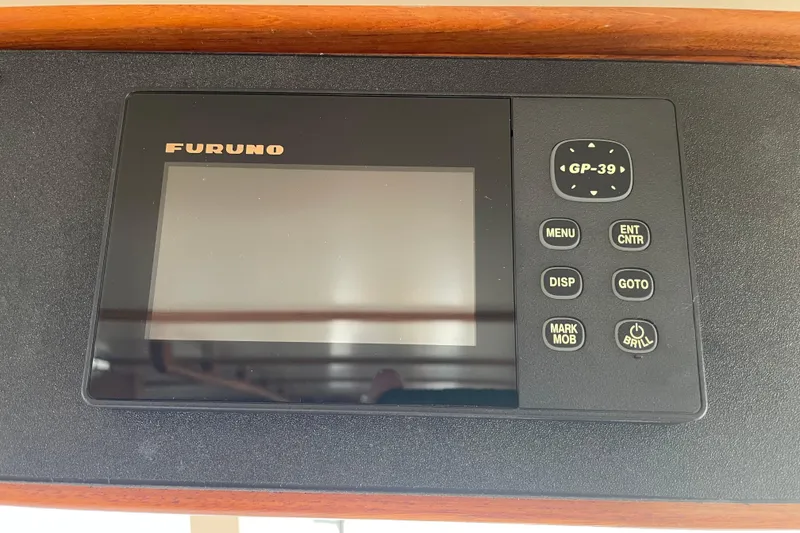

  •                            GPS - Furuno GP-39
  •                            Chart Plotter - Furuno

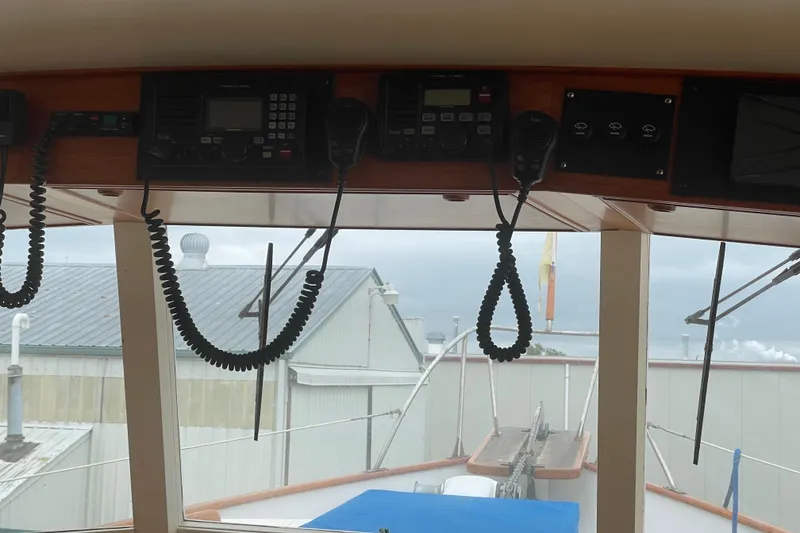

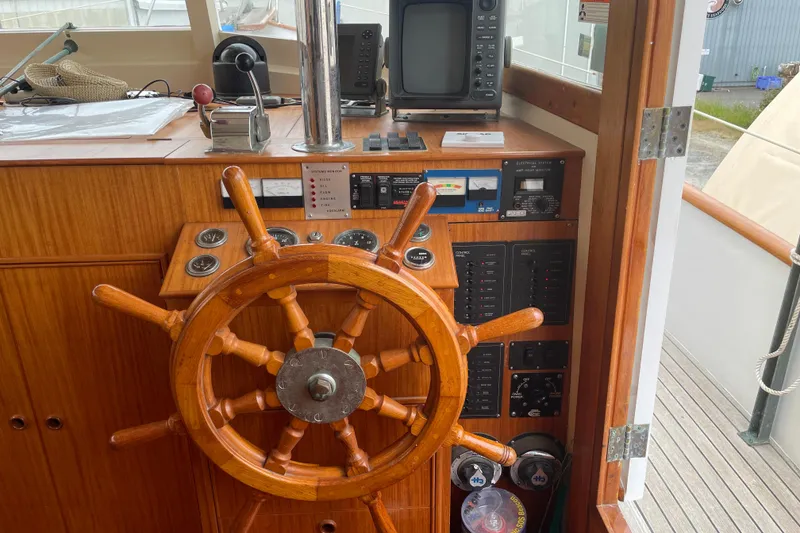

  • Lower Helm - Compass - Kelvin White Express 4"

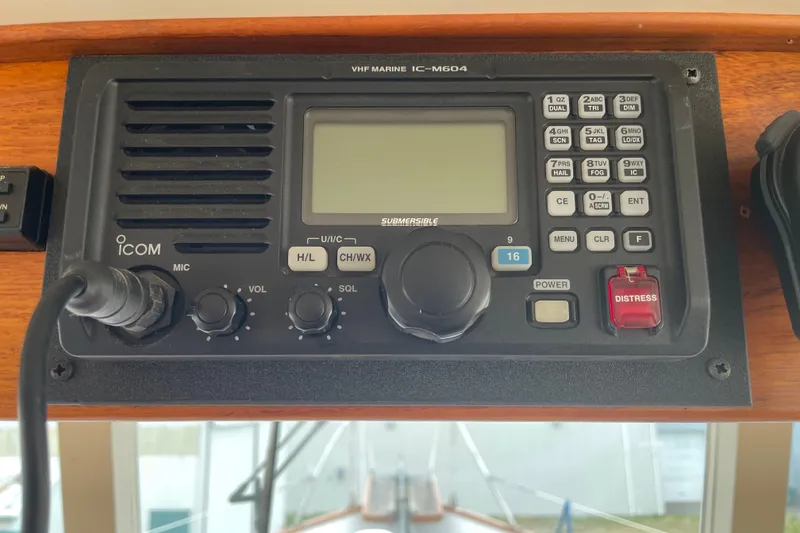

  •                       VHF - ICOM IC M-604 with Hailer

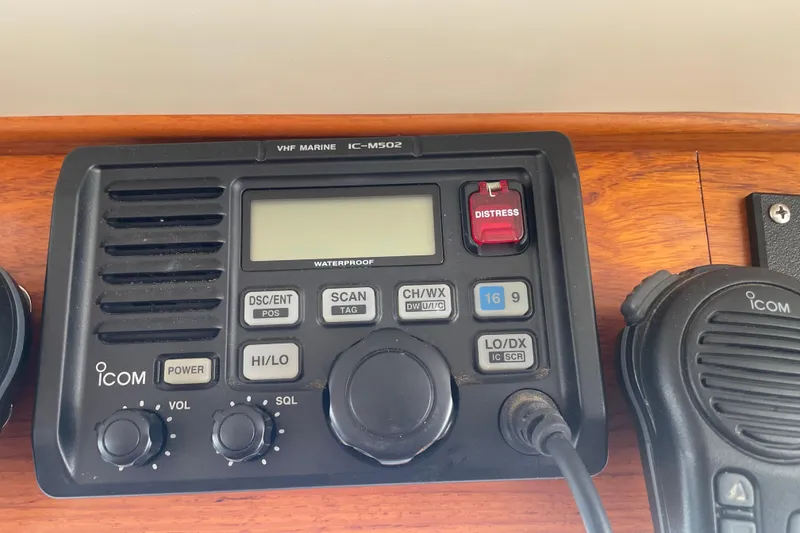

  •                       VHF - ICOM IC M-502

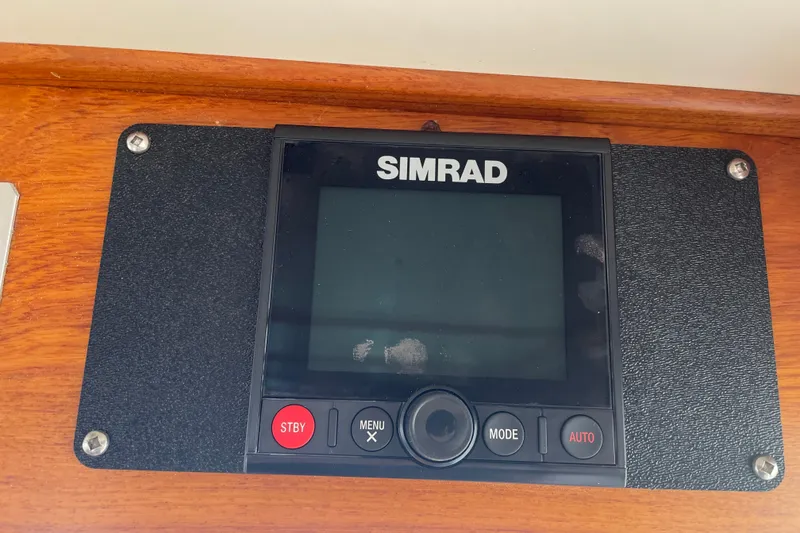

  •                       Auto Pilot - Simrad
  •                       Rudder Indicator - Included on Simrad Auto Pilot Display

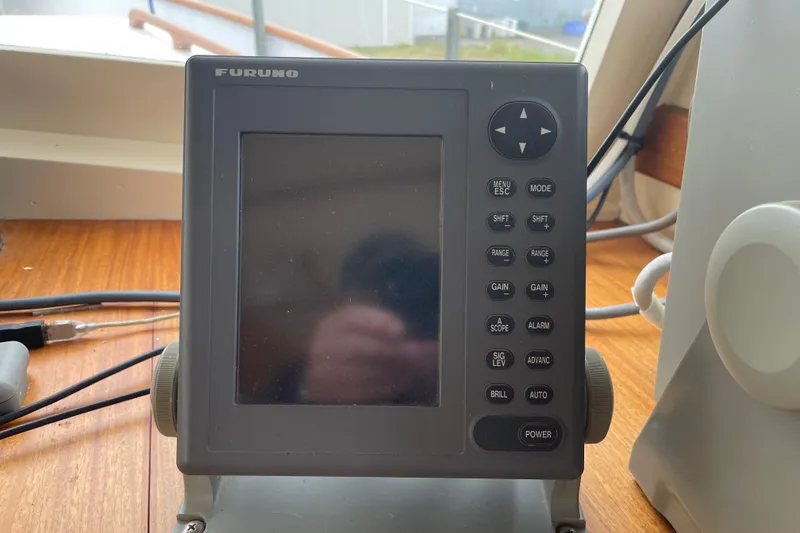

  •                       Depth Sounder - Furuno LCD

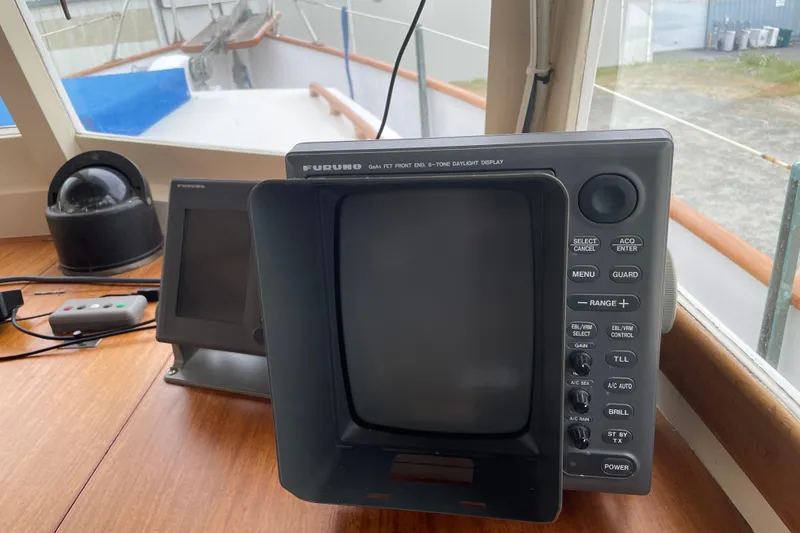

  •                       Radar - Furuno Raster CRT Screen & Open Array Scanner
  •                       GPS - Furuno GP-39

GROUND TACKLE:

  • Anchor Platform - Teak Bow Sprit with Stainless Steel Anchor Roller
  • Anchor Locker - Below Deck Accessed from V-Berth
  •                           Line/Chain Run Thru Deck Pipe
  • Windlass - Maxwell HWO 1200 12Volt DC Electric
  •                   Helm Controlled Switch for Raising & Lowering
  •                   UP Deck Foot Control
  • Anchor - Bruce 20KG Claw Type

SAFTEY:

  • Navigation Lights
  • Horns - (2) Under Flybridge Brow
  • Hand Held Air Horn
  • Whistle
  • First Aid Kit

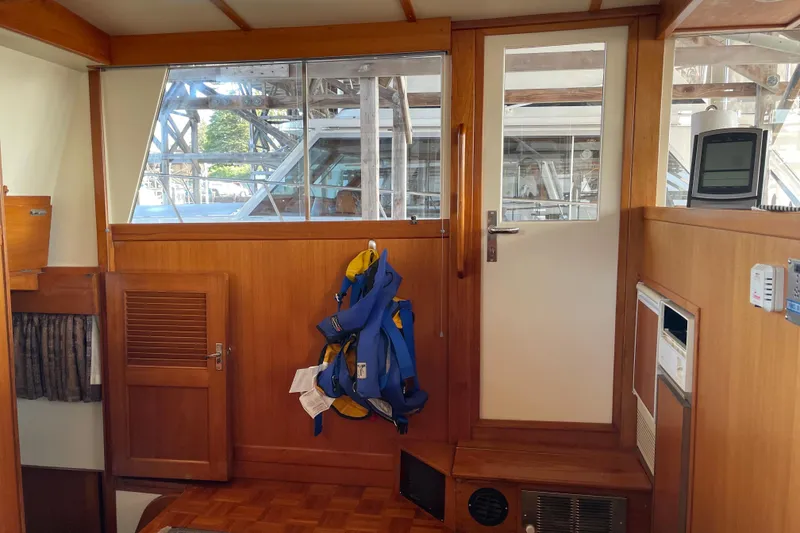

  • Life Jackets - (5) USCG Type II
  • Lifesling2 Rescue System Device
  • Visual Signals - Electronic SOS Signal
  •                           12 Ga Aerial Red Hand Held
  •                            Hand Held Smoke Signals
  •                            Orange Distress Signal Flag

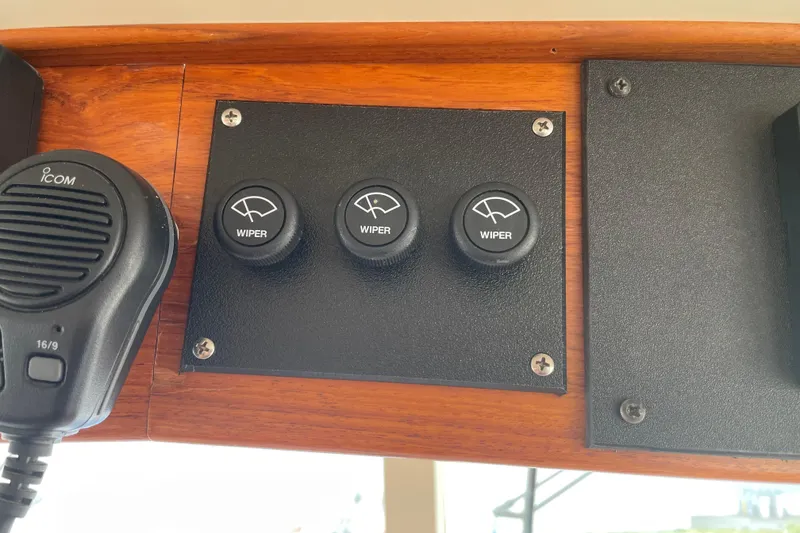

  • Windshield Wipers - (3)
  • GFCI - Provided in Galley & Heads
  • Swim Platform - Teak
  • Boarding Ladder - Stainless Steel Mounted on Swim Platform
  • Bow Pulpit Rail - Stainless Steel
  • Stanchions/ Side Rail - Bronze
  • Stanchions Life Lines - Single Lines Vinyl Covered
  • Boarding Gates - Port & Starboard Side Boarding Gates with Full Triangulation of Stanchions
  • Escape Hatches - Fore Trunk Cabin & Aft Trunk Cabin
  • Cleats/Fairleads - Bronze Horn Cleats
  • Stern Railing - Bronze Stanchions with Teak Cap

MISCELLANEOUS:

  • Bottom Paint - NEW June 2025
  • Zincs -  NEW June 2025

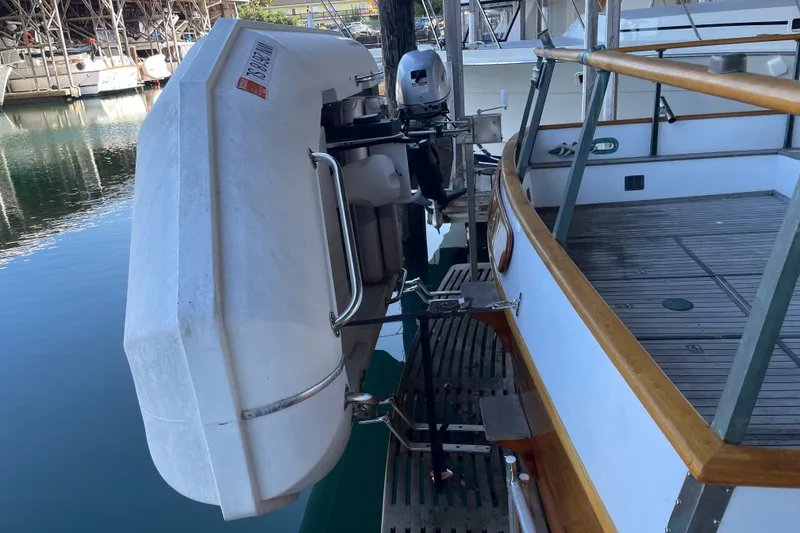

  • Tender - 2017 Bullfrog 10' - Aluminum Bottom Roto Molded Pontoons (RIB Style)

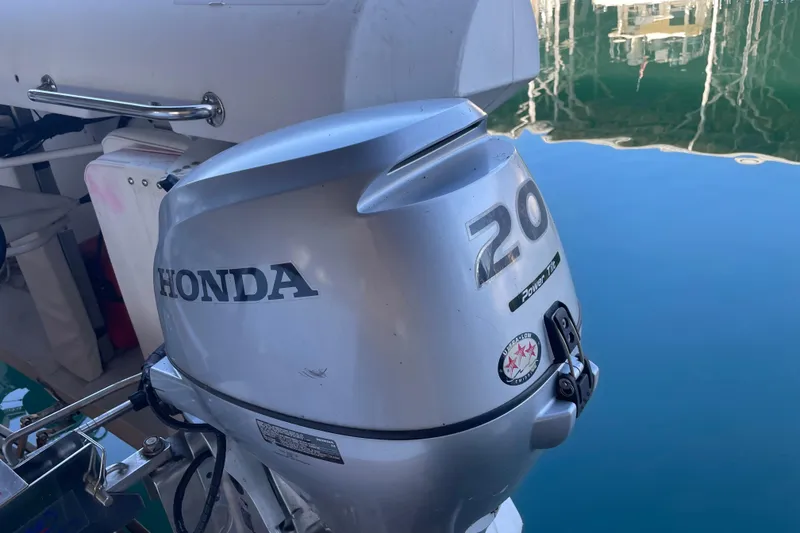

  • Outboard - Honda 20hp

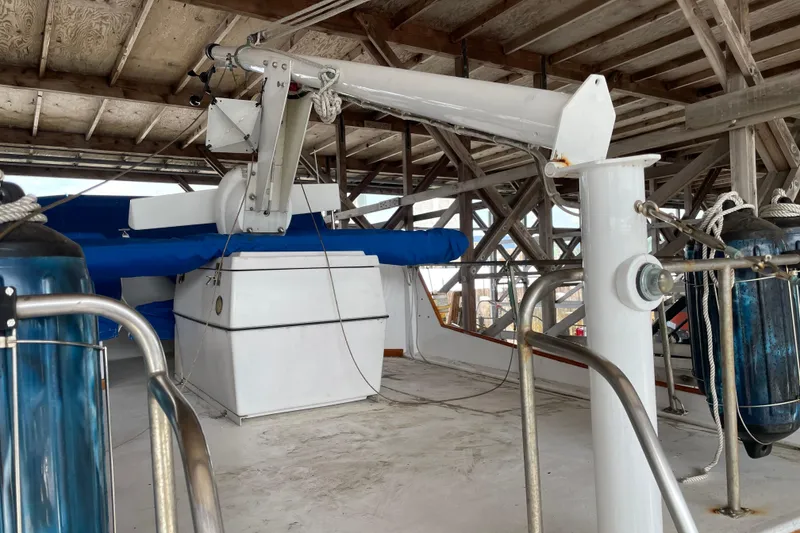

  • Davit System - Seawise Manual Davit
  • Radar Arch - Wood Radar Mast
