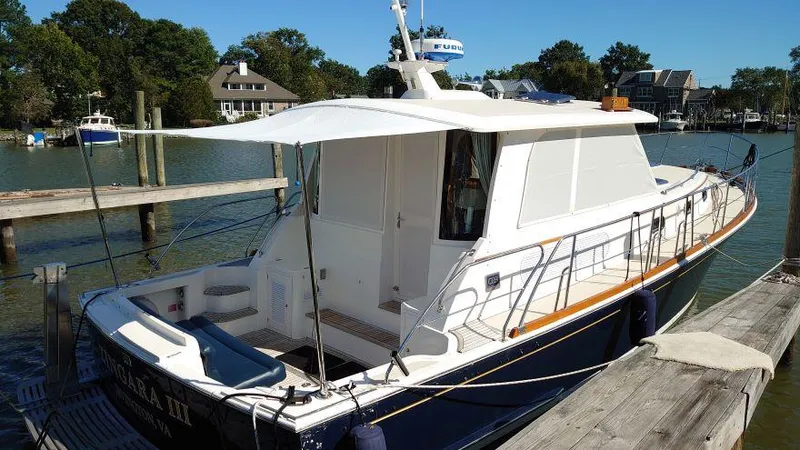

2006 Grand Banks 39 Eastbay SX
$415,000
Boat in Trappe, MD 21673 US
Built in 2006
39 Eastbay SX
2 Engines (Caterpillar, Caterpillar)
39 feet
Diesel
Fiberglass/Reinforced
The Eastbay 39 SX is one of the second-generation Eastbay boats designed by Raymond Hunt and Associates for Grand Banks and maintains similarities to the first-generation 38 and 43.
In 2005, Rob Livingston, the GB CEO did a smart thing by sending his then VP of Sales, Neil McCurdy, to visit the Hunt Design group and pursue what had been learned by GB and their Dealers from the design, construction, and distribution of nearly 300 of these earlier first generation entry-level models. The results are revealed in terms of consumer preferences and on display in the EB 39 SX. Clearly, much was learned from these boat owners and the customer-based purchase orders for the production and sale of a hundred and forty Eastbay 49s and 54s. Many of these results and the ensuing discussions amongst the network and with Hunt are also incorporated and on display in the Eastbay 39. Consequently, this nicely thought out "Tealaweigh" shows well in the Helm deck and lower arrangement layout in terms beyond the traditional bed, galley, and shower as it is a better boat for seating, climate control, sun protection, cabin security, and lighting as well as window design for lower maintenance going forward. This process was extended to the control systems, the electrical panel, and the main circuitry layout as access is improved and the panel is more conveniently located. The enhanced electrical circuit designs benefited from enhanced industry trends and make future service more simplified and less costly. Tealaweigh has several special features that set her apart from other EB 39s on the market today: Electronic engine controls by Twin Disc, CAT maintenance including 1000-hour service by Shore Power, Inc., an entertainment center, electric heaters, new air conditioning units (2016), cockpit sunshade, hydraulic dinghy davit system, dual 30 Amp shore power system, two sets of window covers, new Victron system (2021), additional Lifeline house battery, additional Galley cabinets and hardware, Flag Blue Awlgrip on the hull (2021), swim ladder under the swim platform, and recent prop scans (2021). Spring 2023 upgrades: fresh Awlcare on hull and superstructure, 2 coats of exterior varnish, Micron CSC bottom paint, engine service, and fresh Prop Speed.

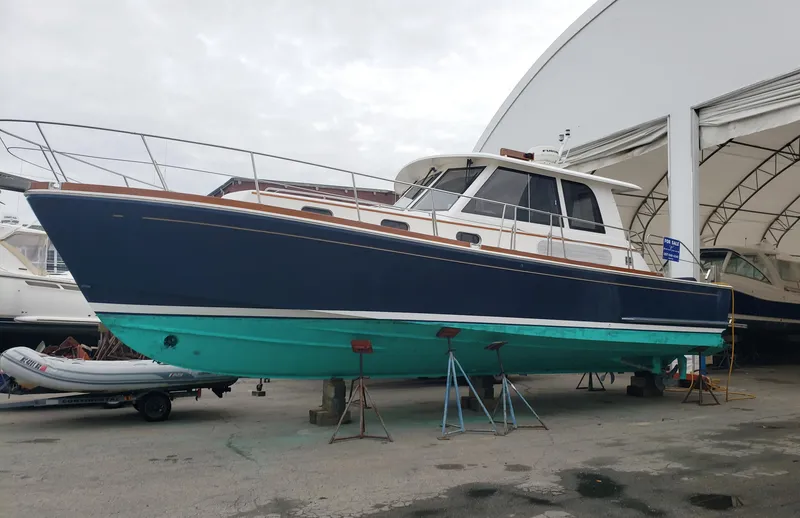

Tealaweigh is currently in heated storage and can be launched with one day's notice.
Reflections on Eastbay 39/007
Second Generation Eastbay Concepts
The 2006 Eastbay 39 #007 taught us about the many design improvements developed by Hunt Designs and Grand Banks for this latest generation Eastbay.

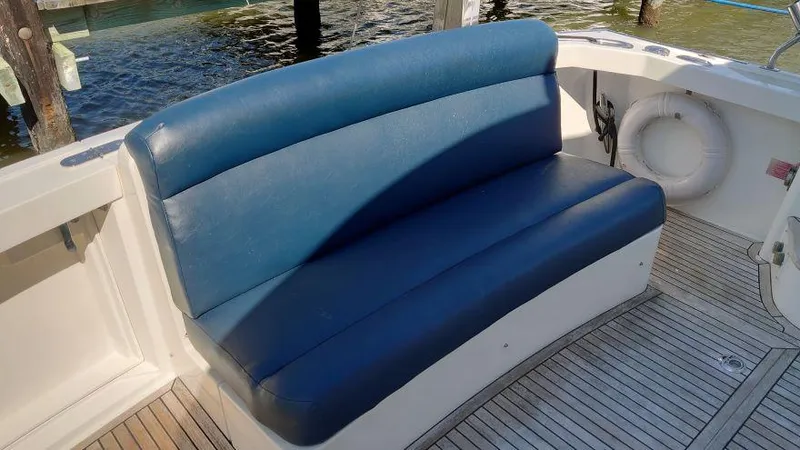

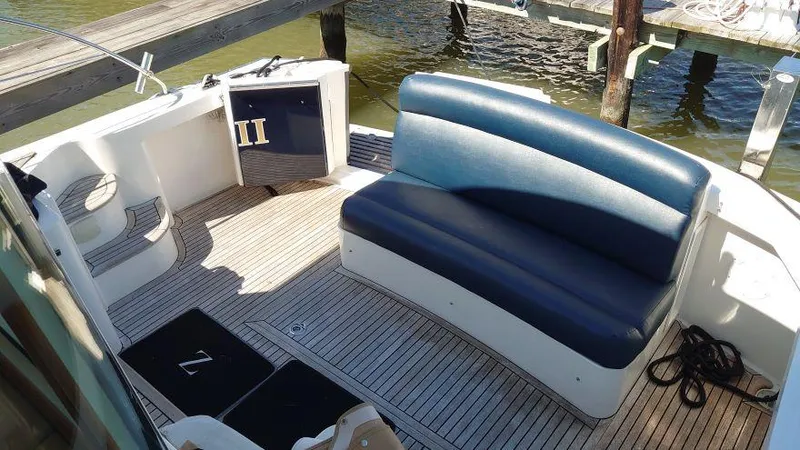

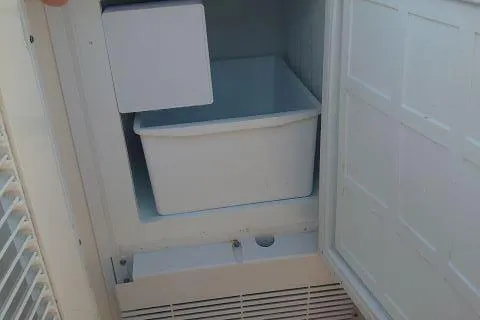

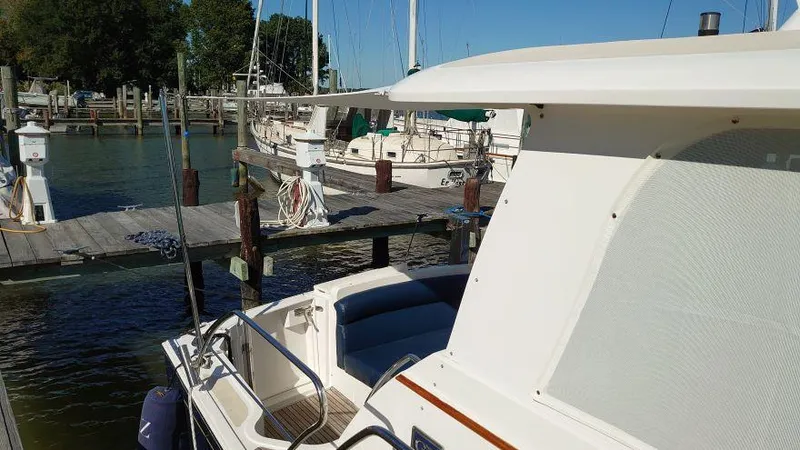

The cockpit has been improved with great visibility aft from the helm station with no obstructions. This is the first Eastbay model to address cockpit seating with a forward-facing picnic seat. Other additions to the cockpit include an ice maker and bar in a molded-in cabinet. The interior and cockpit décor blend to provide the same family area décor and function. The large lazarette locker with a hydraulic lifting hatch is well-designed for storage and access to the steering gear.

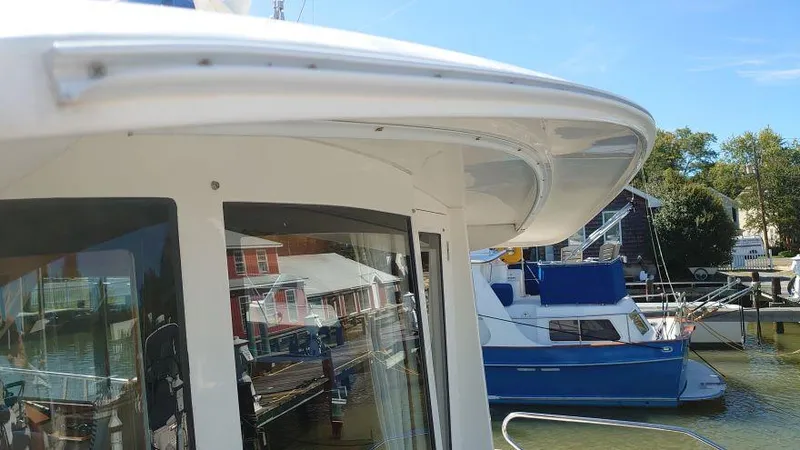

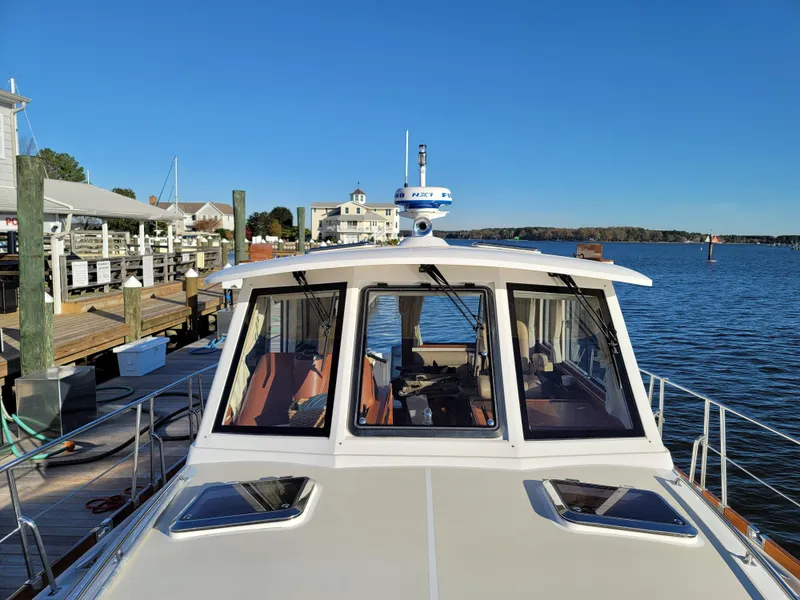

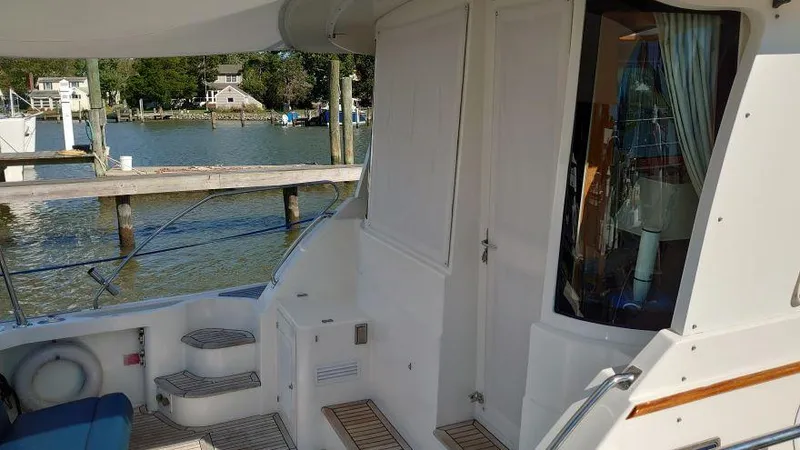

The superstructure has been modernized with a curved solid aft enclosure with a solid door between the cockpit and helm deck. The windows in the door and enclosure ensure good visibility aft from the helm station. This heavy duty fiberglass door allows for improved temperature and sound control on the helm deck. The hardtop includes more generous overhangs for improved sun protection for the Helm Deck.

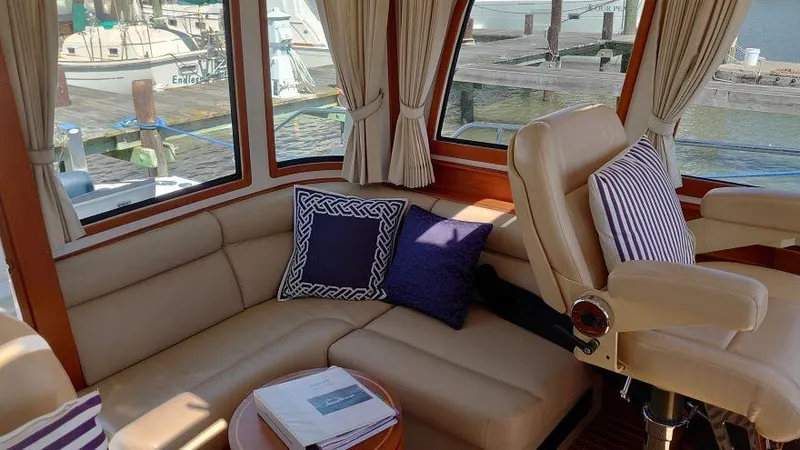

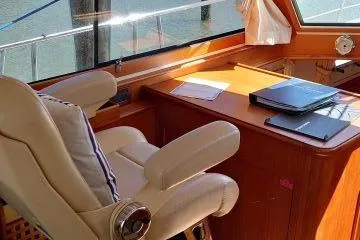

The Helm Deck has two Stidd chairs, with a chart table at the navigator's seat. The addition of an entertainment center with a lifting TV increases the appeal of the upper salon. The center section of the windshield opens electrically. The windows are “frameless” for reduced maintenance, and the tinted safety glass on all windows improves temperature control and reduces the UV rays affect on the interior finishes and upholstery of the Helm Deck. The side windows slide open easily, and the center window opens electrically which makes for great ventilation on the Helm Deck.

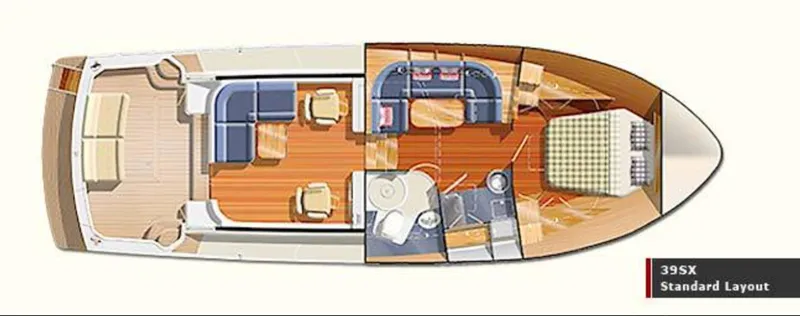

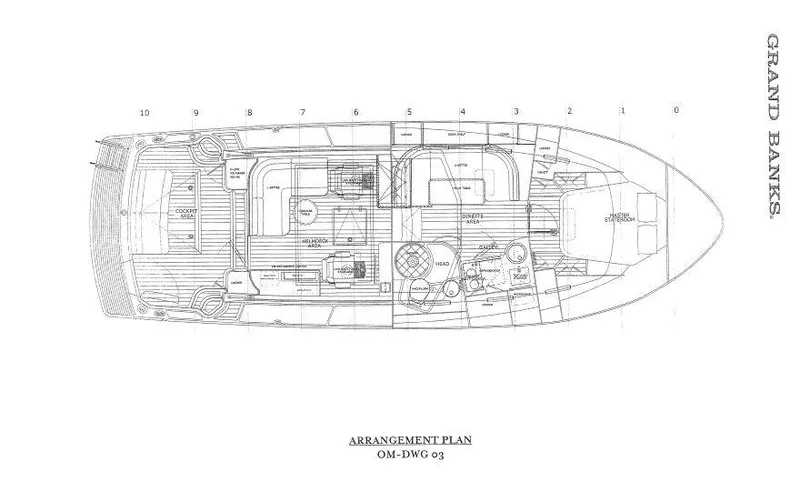

Down below the Salon has been opened up to a large split level area by the redesigning of the galley.

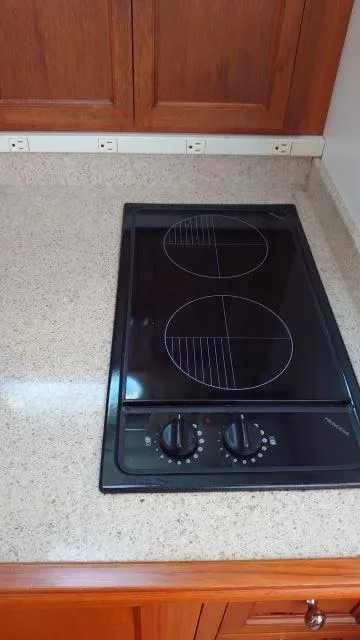

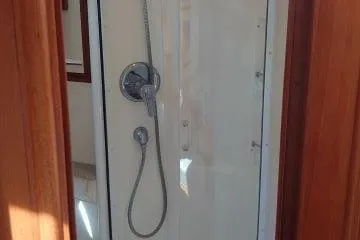

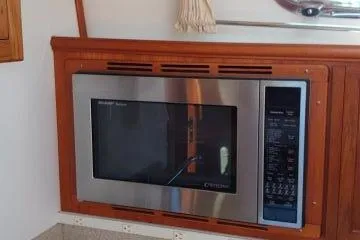

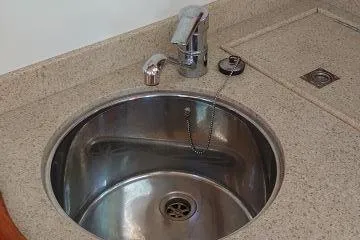

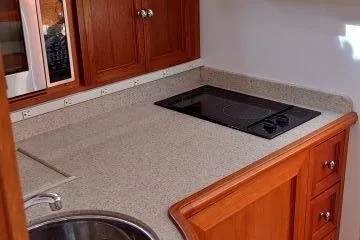

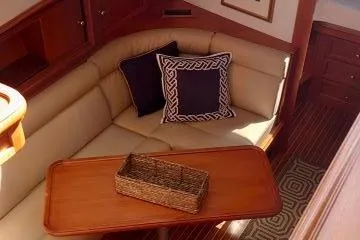

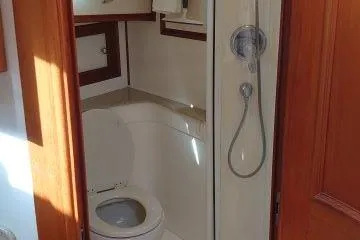

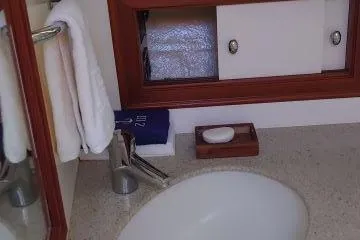

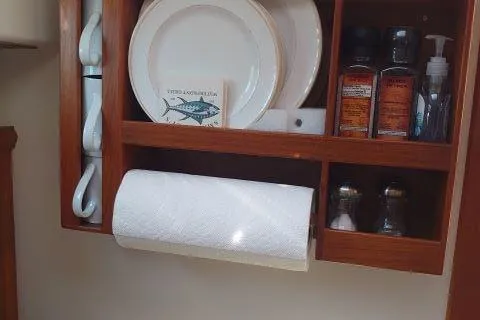

The “U” shaped galley to port has been replaced by a straight galley to starboard. The new galley design is simplified for short range cruising with a microwave/convection oven and a cook top. The refrigeration is state of the art. The larger salon has a seven foot long “L” settee and pedestal table to port which makes into a generous double berth. This new design creates more living space below and more privacy from people on the dock and adjacent boats. The head and shower are larger with improved access, and a contemporary design. The lighting throughout has been drastically improved with recessed LED fixtures.

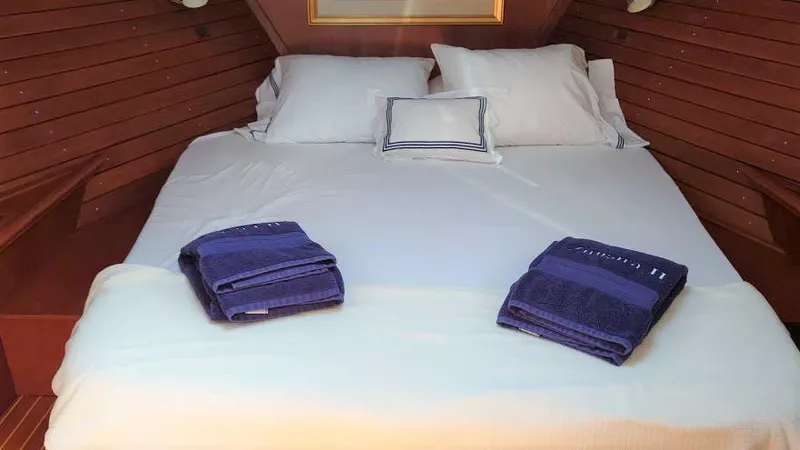

The Owner's Stateroom has an island bed layout where the bed itself is larger than any of the first generation Eastbays whether a 38, 40, 43, 49, or 54! This new layout does not sacrifice any storage or the traditional Eastbay styling of the Owner's Stateroom.

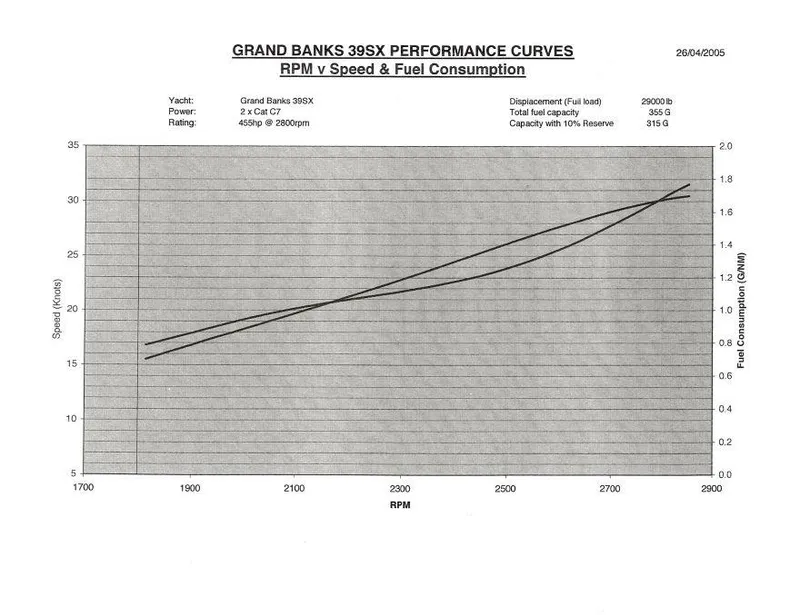

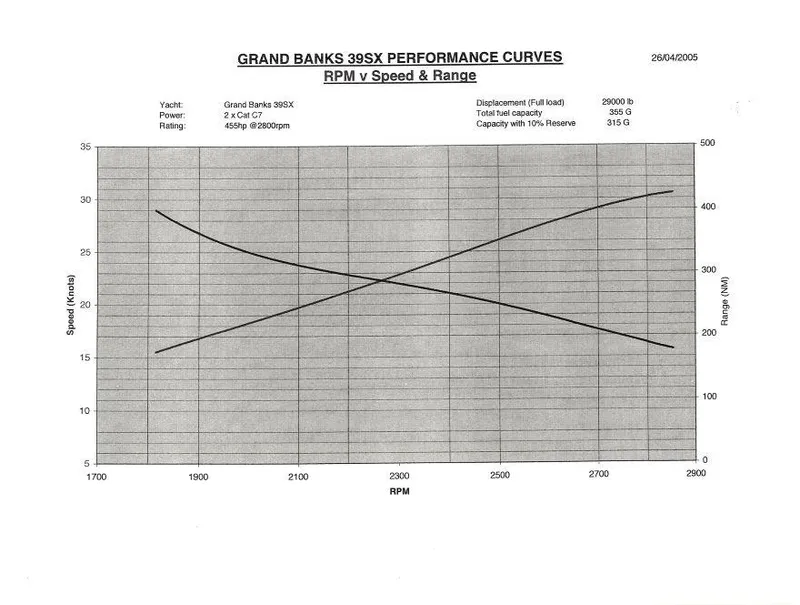

As to performance, the draft has been reduced to 3' 4” from 3' 11” with no loss of the solid ride and seakeeping ability the Eastbay boats are known for. This boat runs up to 8.5 knots without the stern digging in, and begins planing at 9.3-9.5 knots. She rises gently with nose down provided by a gentle touch to the trim tab controls. Lower decibels at cruising speeds are due to the insulation characteristics of the fiberglass Helm Deck door. Five bladed propellers are now standard equipment.
Construction techniques have been improved with the use of newer composite technologies. The hull is laminated with Hydrex resin and closed-cell foam coring above the waterline. The bottom is still solid fiberglass. The electrical system has been improved with a better layout and access.
Originally commissioned for the higher latitudes of Canada, Tealaweigh was outfitted with additional electric cabin heaters that run off the inverter and no air conditioning. She was then recommissioned on the East Coast of the US by a new owner in 2016 who wanted the best features for cruising warmer latitudes.
2016 UPGRADES:
(2) new 16,000 BTU Dometic (reverse cycle) air conditioning units

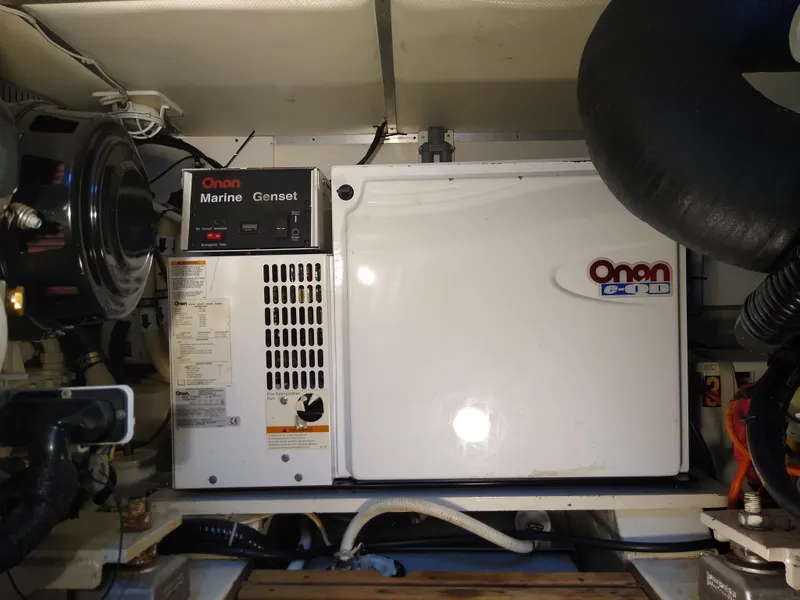

Generator
Window Covers
SPECIAL FEATURES
Electronic Engine Controls by Twin disc
CAT 1000-hour service by Caterpillar
Entertainment Center
Electric cabin heaters
Hydraulic dinghy davit and stowage system
Dual 30-Amp shore power service
(2) sets of window covers
Victron system
Additional house battery
Additional Galley cabinets and outlets
Swim ladder mounted under the swim platform
Wide transom door
Recommended After-Cooler service - 2021
Computank fuel/water tank monitoring system service - 2021
Aft-facing exterior camera - 2021
(2) 4D AGM engine start batteries - 2019
(2) 8D AGM house/inverter batteries - 2019
New A/C condensate pump - 2020
Victron Multiplus II 12/3000 Inverter/Charger - 2021
Garmin and Furuno electronics suite - 2020
Flag Blue Awlgrip on topsides, white boot stripe and gold cove stripe - 2021
Maxwell RC8 low profile electronic anchor windlass - 2021
Texilene side covers - 2020
Side curtains - 2020
(2) Windshield covers - 2020
Cockpit Awning Fabric - 2021
All upholstery was redone (except Stidd seats) - 2019

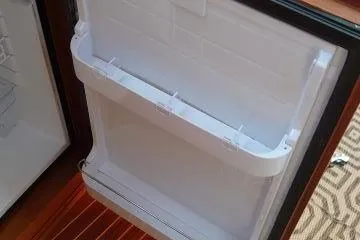

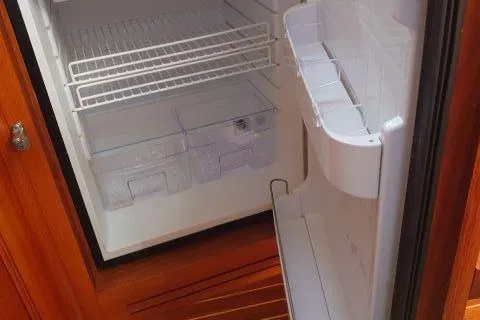

Vertifrigo refrigeration - 2014
Avon RIB 310 with 6hp outboard - 2022
This Eastbay 39 features the upgraded twin Caterpillar C-7 ACERT 455 diesels in lieu of the standard, turning five-bladed propellers on 2" shafts through Twin Disc 2:1 gears.
- Recommended after-cooler servicing completed on both engines December 2021
- Computank fuel/water tank monitoring Serviced 2021
- Aft-facing exterior camera New 2021
- (2) 16,000 BTU Dometic air conditioning units (heat and cool) 2016
- Twin Disc single-lever electronic engine controls
- Racor fuel filters

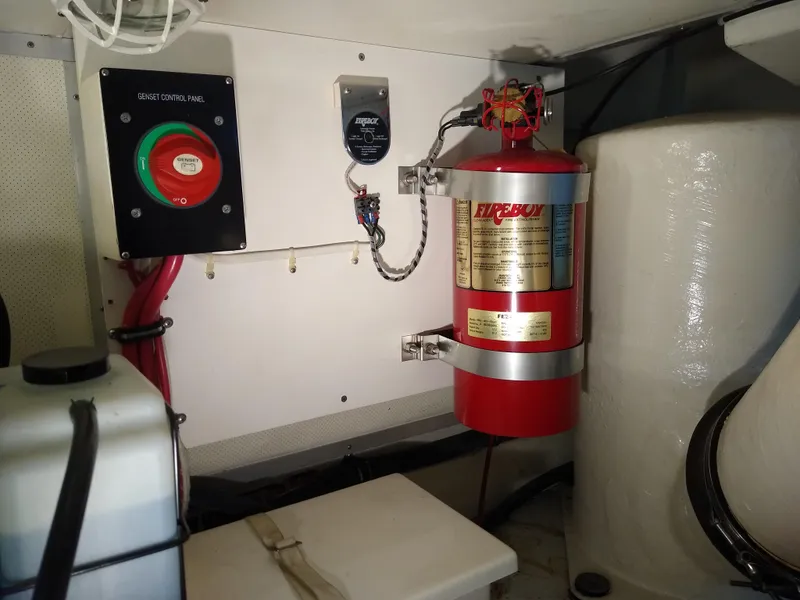

- Fireboy engine compartment fire compression
- Evolution shaft line cutters
- Oil change system
- 12-volt engine room lighting
- 110-Volt engine room lighting
- Tank-watch holding tank monitoring
- 3 Rule 200-GPH electric bilge pumps
- 1 manual bilge pump

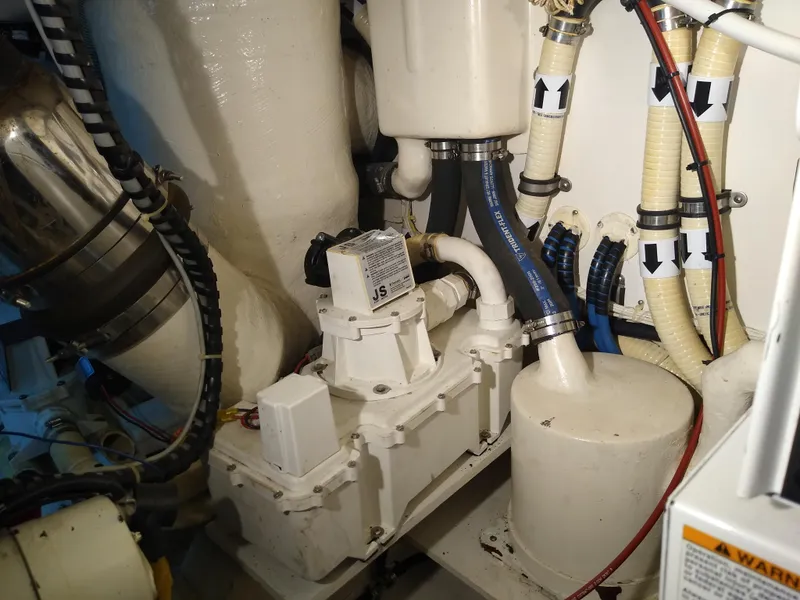

- Macerator pump

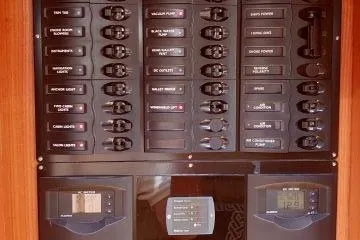

Wired for both 12 Volt DC and 110 Volt AC service.
12 Volt DC:
- Distribution panel with breakers
- Digital volt and amp meters
- (2) 140 amp alternators
- 2 4-D AGM engine start batteries NEW 2019
- 2 8-D AGM house/inverter batteries NEW 2019
- 1 2-D AGM generator start battery
- 12-volt domestic lighting throughout and 12-volt navigation lights
- A/C Condensate Sump Pump New 2020
- Victron Multiplus II 12/3000 Inverter / Charger NEW 2021
110 Volt AC:
- Distribution panel with breakers
- Digital Volt Amp meters
- 2 each 30-amp 75’ shore power cords
- Outlets
- 11-gallon water heater (also engine supplied)

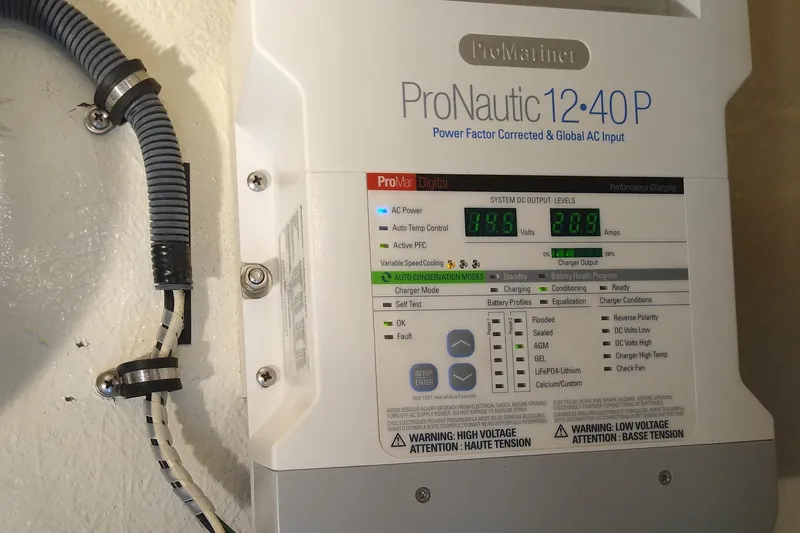

- 80-amp battery charger

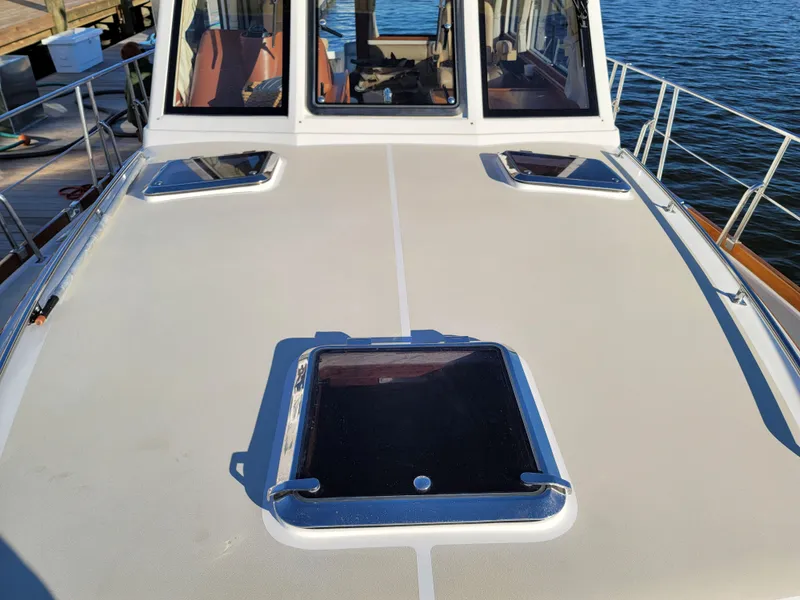

Fiberglass hull built with Hydrex resin in the exterior laminates with closed-cell foam coring in the hull and solid fiberglass bottom. Foam-cored fiberglass decks and house with "Moon Dust" Awlgrip nonskid, where appropriate, on white gelcoat.
- Topsides painted Awlcraft flag blue NEW 2021

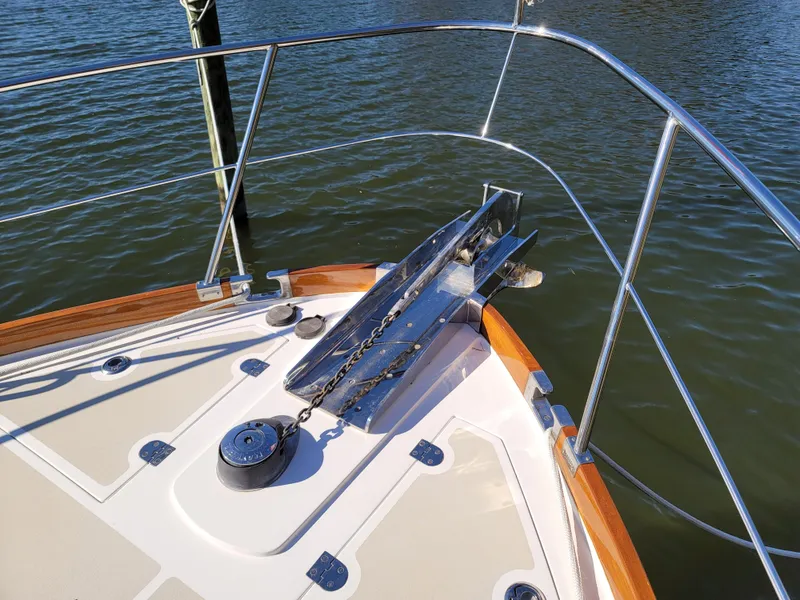

- Maxwell RC8 low profile electric anchor windlass NEW 2021
- Saltwater wash-down forward
- 66-lb Lewmar stainless steel anchor with approximately 175' of chain
- Transom door
- Teak cockpit decking set in epoxy, no fastenings
- H&C cockpit shower
- Teak swim platform
- U-Line drop-down swim ladder stows under the swim platform

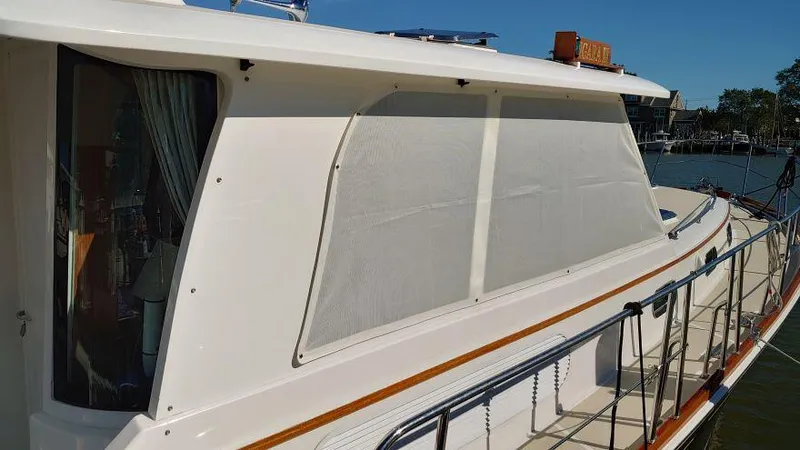

- Textilene windshield and side covers in white Side Covers New in 2020
- Seawise dinghy lift system

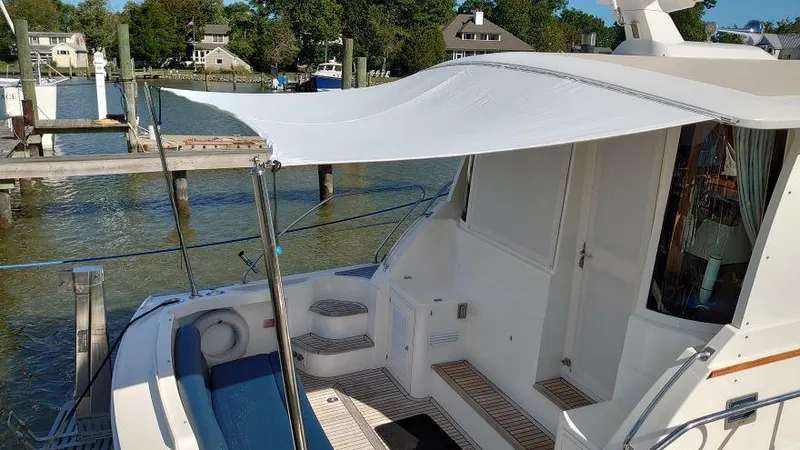

- Cockpit sun-shade in high-tech "Performance Textiles" New 2021
- Full mooring/winter cockpit cover in Sunbrella blue
- Side curtains and windshield cover in Sunbrella “Toast” as well as a
translucent set in Sunbrella white - 4 fenders and 6 braided dock lines
- 6 Type II life jackets
- Flare kit
- 3 fire extinguishers
- Varnished teak ensign and burgee staffs

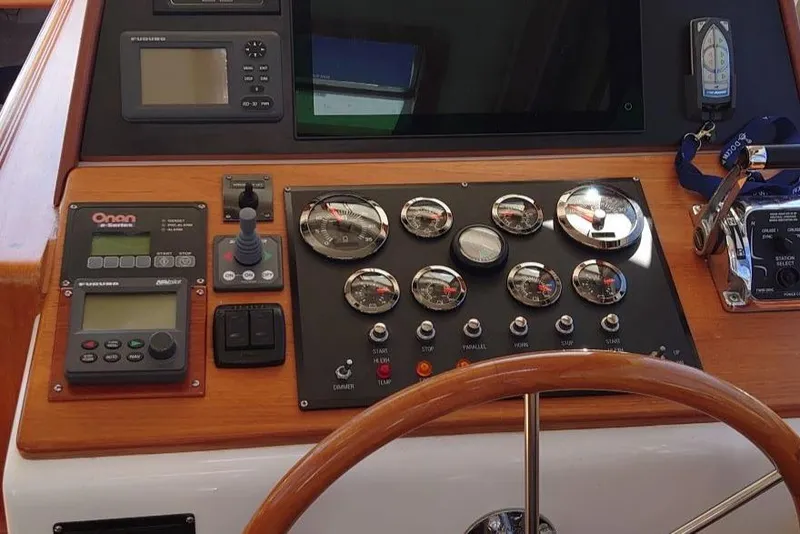

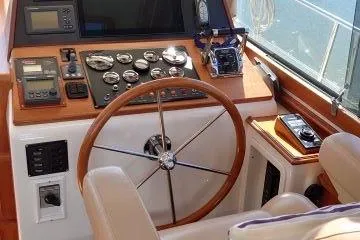

Equipped for coastal cruising with all electronics located at the helm station, starboard side.
- Furuno NavNet TZ Touch 2 15.6 inch NEW 2020
- Furuno transducer NEW 2020
- Furuno Remote Control NEW 2020
- Furuno SD Card Reader NEW 2020

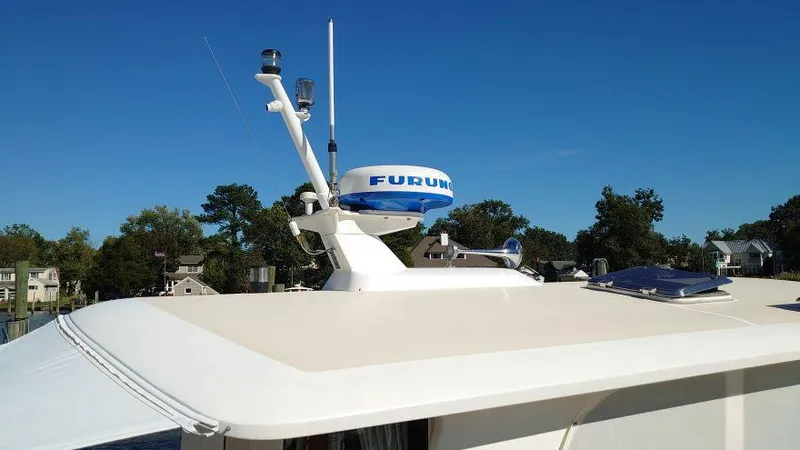

- Furuno DRS4D-NXT Solid-State Doppler Radar NEW 2020
- Vesper XB 8000 AIS Transponder NEW 2020
- NMEA 2000 Backbone NEW 2020
- Garmin GC 12 rear looking Camera with separate display NEW 2020
- Garmin 9” MFD NEW 2021
- Furuno NavPilot 511 autopilot
- Furuno RD30 with Depth Finder and Speed indicator
- Ritchie 5" magnetic compass
- Kahlenburg dual trumpet air horn
- 3 double pantograph windshield wipers with wash down and intermittent
controls - Trim tab controls
- Sidepower bow thruster
- Windlass controls
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
