• LOA: 22’ 4” with no engine
• Beam: 9’ 2”
• Inside Beam: 5’ 7”
• Cabin Ceiling Height: 6’ 7”
• Head Ceiling Height: 4’ 11”
• Weight: 3450 lbs with no engine
• Capacity: 7 Passengers
• Max HP: 300 HP
• Tube Diameter: 16” Bow / 20” Stern
• Air Chambers: 7 (Independent)
• Fuel Tank: 80 Gallons
• Fresh Water Capacity: 21 Gallons
• Tube Material: Orca (Hypalon)

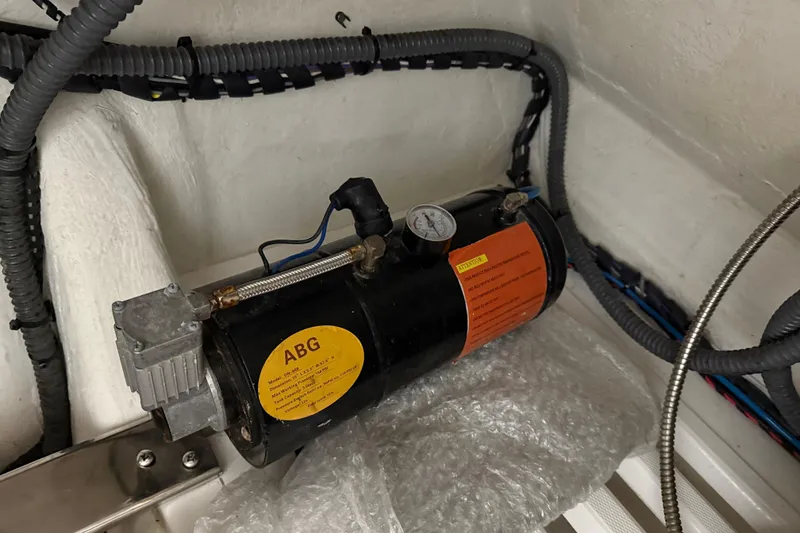

• ABS two stage 5 liter air pump
• Hypalon repair kit
• Drain plug with safety lanyard
• 3 Stainless Steel cup holders
• 1,100 GPH/500 GPH automatic bilge pumps
• 1 freshwater pump
• 1 recessed mount illuminated compass
• Waterproof switch panel

• Cone shaped tubes (17” at bow and 20” at stern)
• 7 Independent Air Chambers
• Orca (Hypalon) Material with 5 layers
• 2 Vulcanized rubber profiles that act as fenders and spray deflectors
• Tube air valves are imported from Italy and built with injected Nylon, nitrile rubber washers and o-rings, and a stainless steel spring and screw cap

• Deep ‘V’ hull made of laminated fiberglass polyester resin and reinforced with biaxial woven roving
• Hull thickness is ¼” in the hull and ½” in the keel
• Longitudinal and transverse fiberglass stringers are laminated with triaxial fabric

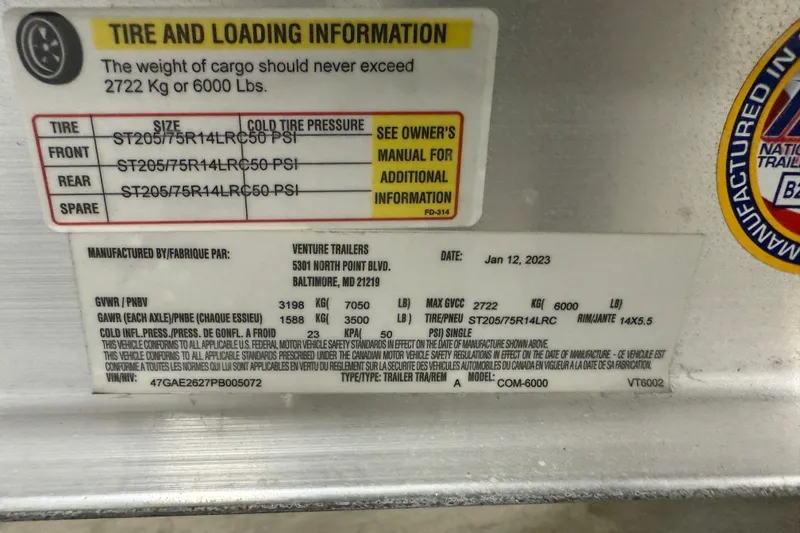

• Tow ring in the bow and 2 transom tie-down rings are present to secure boat to trailer

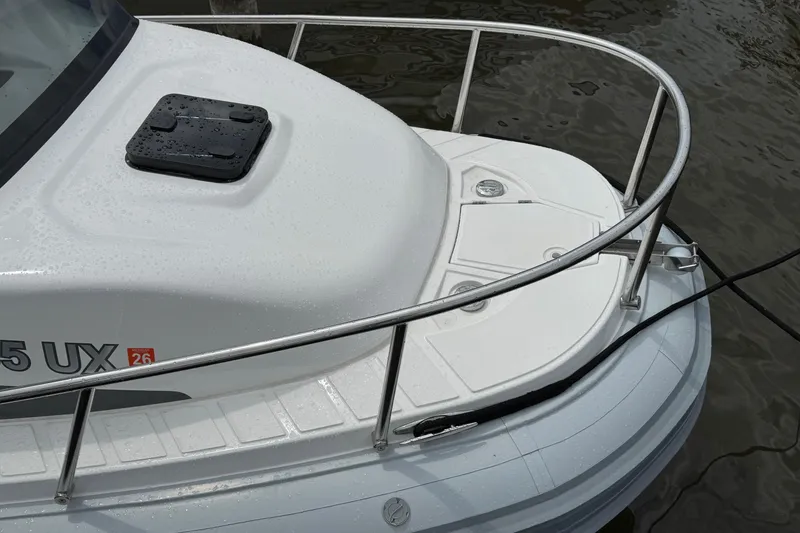

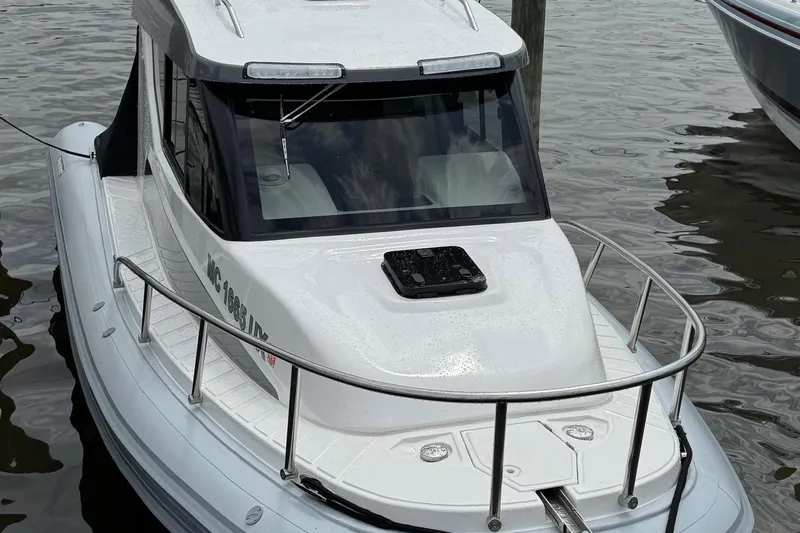

• Bow rails on both sides of forward portion of cockpit with (6) 8” cleats (3 per side)
• Fuel fill and freshwater fill located on bow and equipped with draining systems
• 84 Gallon fuel tank with 2 baffles located under cabin floor

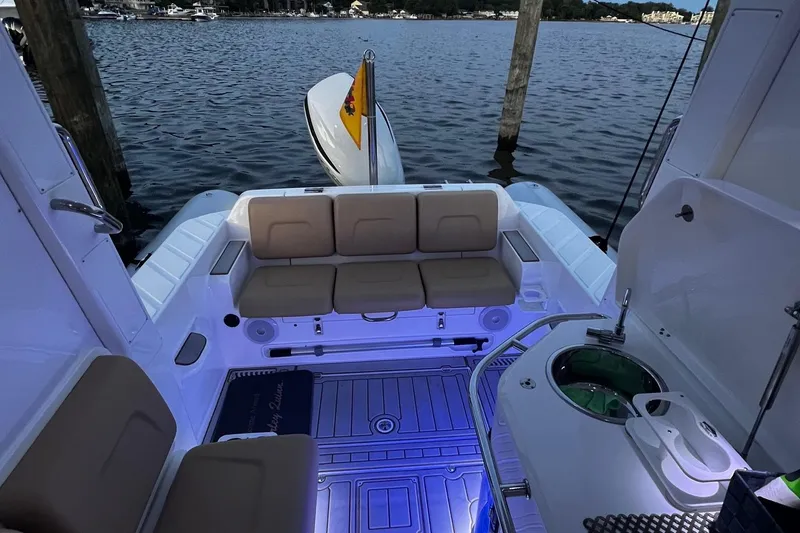

• Swim platform with telescopic boarding ladder, fresh water 10 ft shower wand, and 2 lifting rings

• Cockpit is laminated with gelcoat and has a non-skid surface
• Portlight for ventilation in cabin ceiling with stainless steel handrails on both sides
• Anchor locker with waterproof lights and accommodates a 15lbs anchor and 330ft of line
• 8” Cleat inside the anchor locker and a dedicated stainless steel mooring ring
• 8mm thick glass windshield with windshield wipers

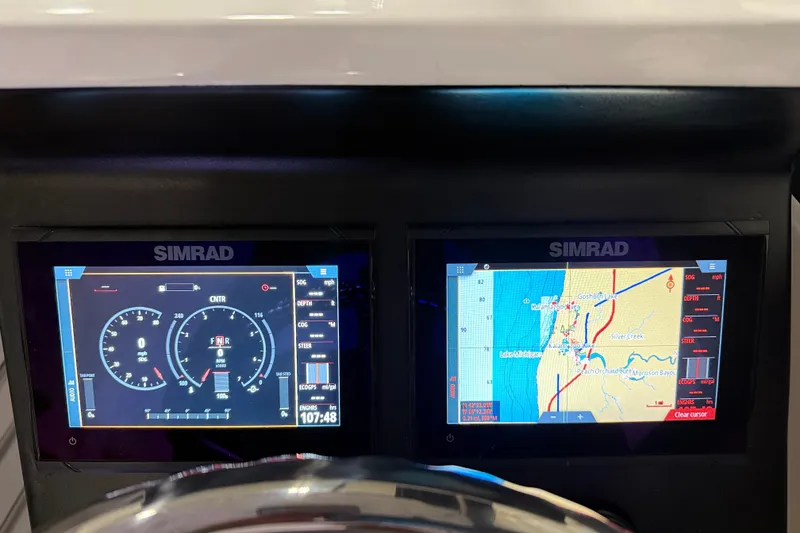

• Spacious dash space for instrumentation
• Access door to the head
• Double ABS fan offers vertical and horizontal adjustments

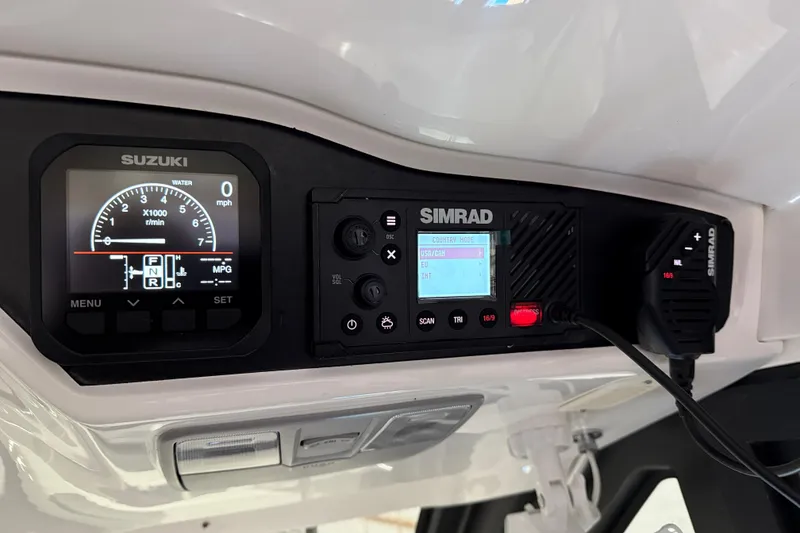

• Overhead console incorporates digital clock and thermometer, sunglass compartment, and space for VHF radio

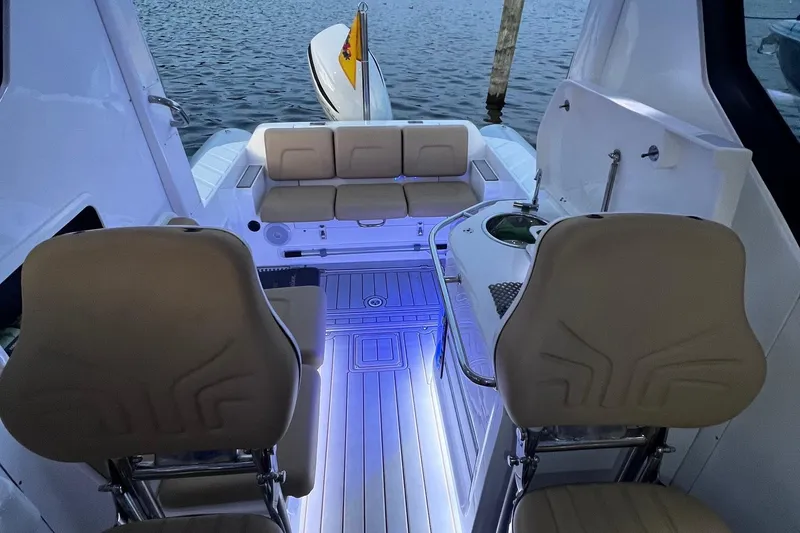

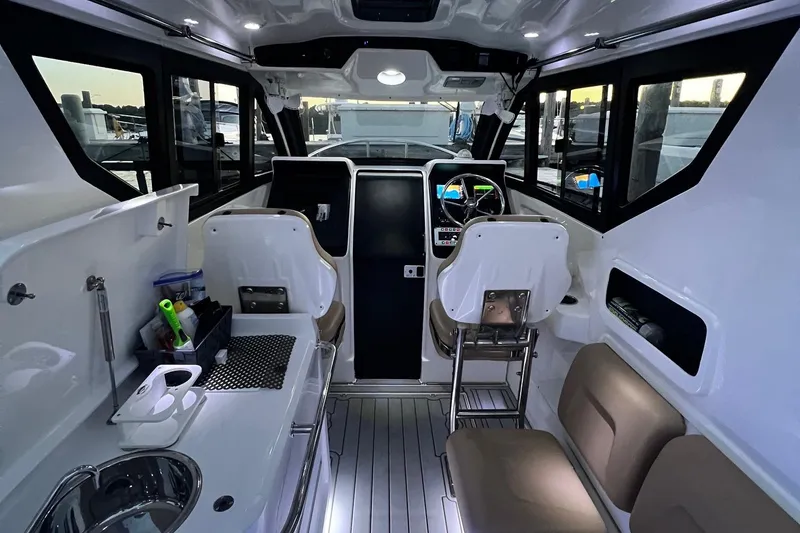

• Captain and companion seats are built with stainless steel structure and a seamless design offering perfect ergonomics while sitting or standing up

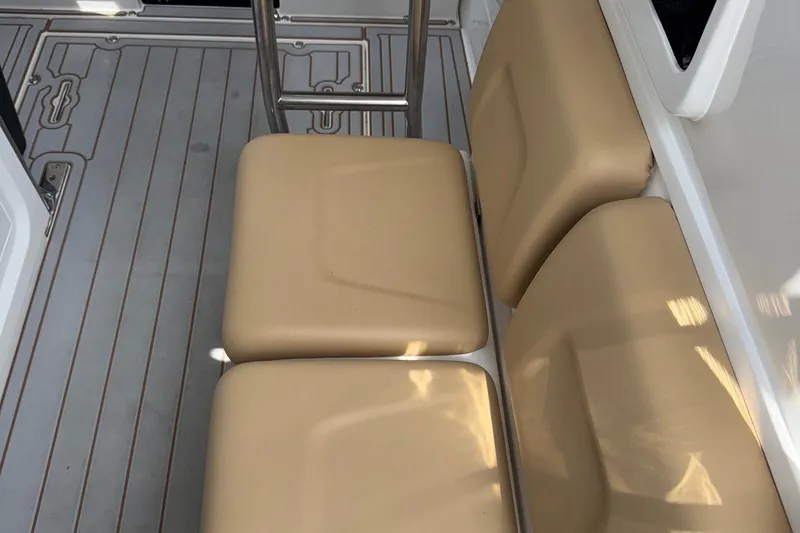

• Sofa situated behind the captain seat accommodates 2 people

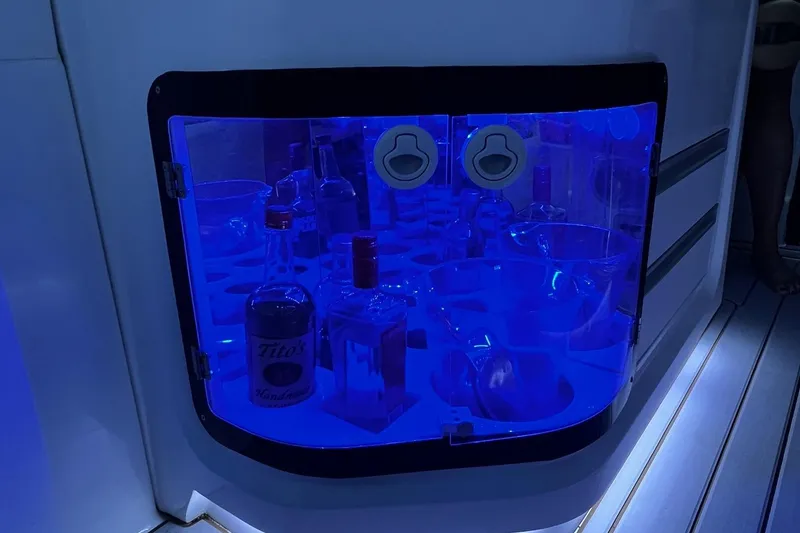

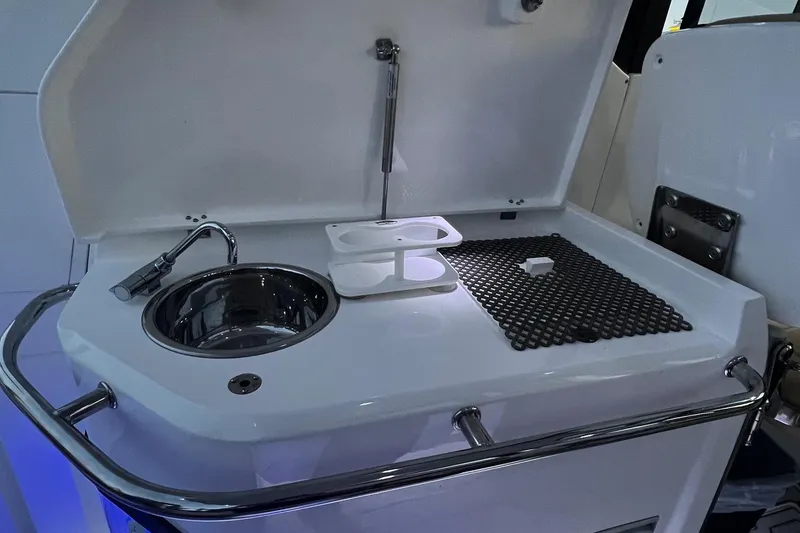

• Behind companion seat there is a sink with faucet, cutting board, bottle/snack storage, ice bucket, large cooler, and 2 storage drawers
• Head is equipped mirror, sink, electric toilet with macerator, toilet paper holder, trash bin, safety grab handle, electric exhaust fan, shower wand, 4 light fixtures
• Vertical 21 gallon freshwater tank located behind the front bulkhead of the head

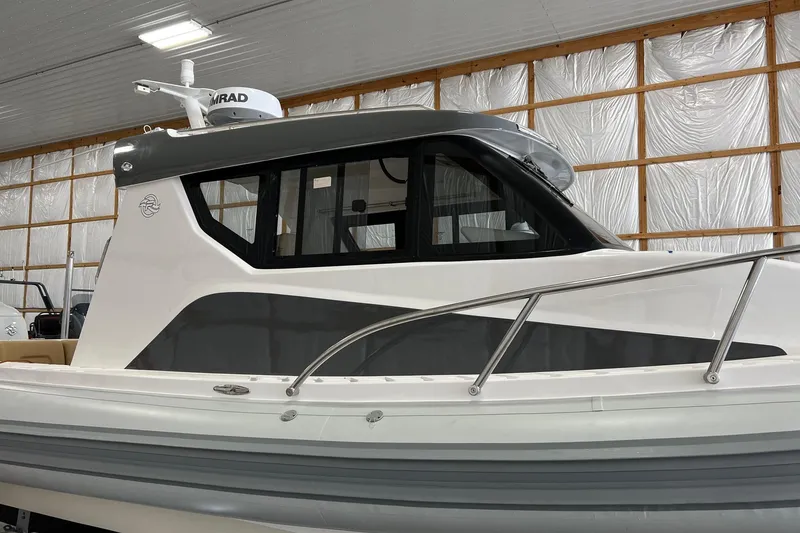

• Sliding windows on both sides of cabin
• Swim platform with telescopic boarding ladder, fresh water shower wand, and 2 lifting rings

Call Brandon Ricci 616-405-1715 for additional details.  Coral Gables Yachts is excited to offer this unique model to the Great Lakes.  This boat is currently in Holland, MI. Please call to discuss this exciting opportunity.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
