2016 Dix Harvey dh550Sold
$695,000
We will let you know when another 2016 Dix Harvey dh550 is available in Salinas,
Boat in Salinas 00751 PR
Built in 2016
dh550
2 Engines (2x Volvo)
55 feet
Diesel
Wooden
This is a must see vessel for anybody contemplating the purchase of a large, performance cruising catamaran!
A truly impressive boat, the DH550 is an innovative design - reflecting the best of current trends in multihull thinking. The product of the collaboration of two world class designer/builder/ yachtsmen - this is a state-of-the-art design, combining efficient hull shapes, a practical, efficient deck/rig layout, and a well designed interior (large, open, practical and useable). The result? A boat with the ability to make fast passages - with a rig which is easily handled by a short-handed crew - and an interior that is remarkably comfortable. In short - a fine blend of looks, performance and live ability.
A truly impressive boat, the DH550 is an innovative design - reflecting the best of current trends in multihull thinking. The product of the collaboration of two world class designer/builder/ yachtsmen - this is a state-of-the-art design, combining efficient hull shapes, a practical, efficient deck/rig layout, and a well designed interior (large, open, practical and useable). The result? A boat with the ability to make fast passages - with a rig which is easily handled by a short-handed crew - and an interior that is remarkably comfortable. In short - a fine blend of looks, performance and live ability.
Nominal Length
55ft
Length Overall
54.92ft
Beam
28.5ft
Max Bridge Clearance
86ft
Max Draft
3.58ft
Drive Up Draft
3.25ft
Displacement
34000lb
Dry Weight
28000lb
Cruising Speed
8kn
Max Speed
10kn
Range
695nmi
Cabins
3
Heads
2
Fresh Water Tanks
245gal
Fuel Tanks
160gal
Hull Material
wood
Hull Shape
catamaran
Engine 1
Engine Make
Volvo
Engine Model
D2-55
Total Power
55hp
Engine Hours
800
Engine Type
inboard
Fuel Type
diesel
Engine Year
2016
Drive Type
sail
Engine 2
Engine Make
Volvo
Engine Model
D2-55
Total Power
55hp
Engine Hours
800
Engine Type
inboard
Fuel Type
diesel
DESIGN AND CONSTRUCTION
The DH 550 utilizes a powerful, easily handled rig, with a shoal draft keel and high bridgedeck clearance, to produce a boat designed for passage making.
Modern, wood/epoxy construction is utilized, to achieve superior stiffness, strength and impact resistance. Top quality Okoume plywood, and epoxy saturation is used in the hulls, with Western Red Cedar used in the stringers. Brazilian Mahogany is used in structural areas, because of its superior hardness and strength. There is also reinforcing fiberglass and Epoxy used in structural areas to beef up the high stress areas - resulting in a remarkably stiff and strong vessel.
Modern, wood/epoxy construction is utilized, to achieve superior stiffness, strength and impact resistance. Top quality Okoume plywood, and epoxy saturation is used in the hulls, with Western Red Cedar used in the stringers. Brazilian Mahogany is used in structural areas, because of its superior hardness and strength. There is also reinforcing fiberglass and Epoxy used in structural areas to beef up the high stress areas - resulting in a remarkably stiff and strong vessel.
RIG
- Aluminum Mast by Sparcraft 22m high. (2016)
- Standing rigging, stainless steel Dyeform wire. (2016)
- Boom, Aluminum - with haystacks and lazy jacks. (2016)
- Running rigging (2016).

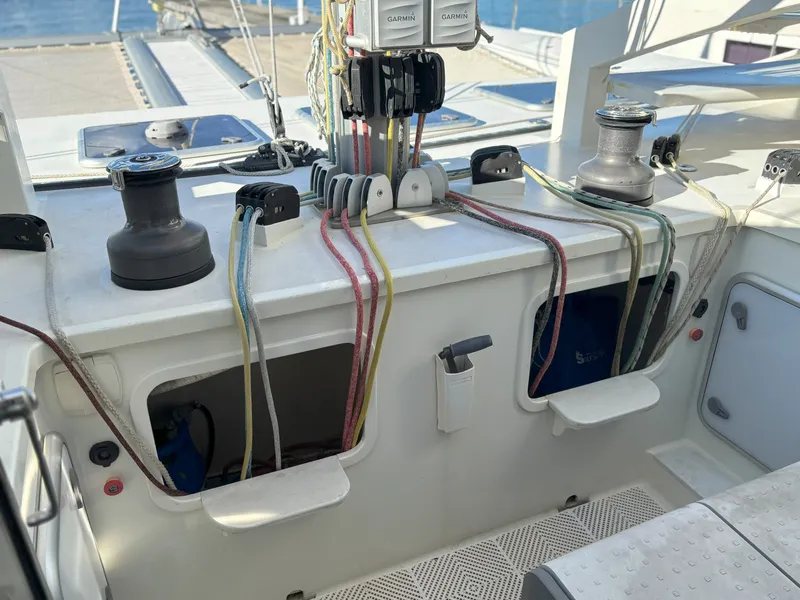

- Rope-clutches for all halyards, furling, sheets and reefing lines
- Internal halyards (Spectra) led to forward cockpit
- Custom Carbon fiber chainplates for shrouds
- Two (2) Lewmar 60, two speed electric winches

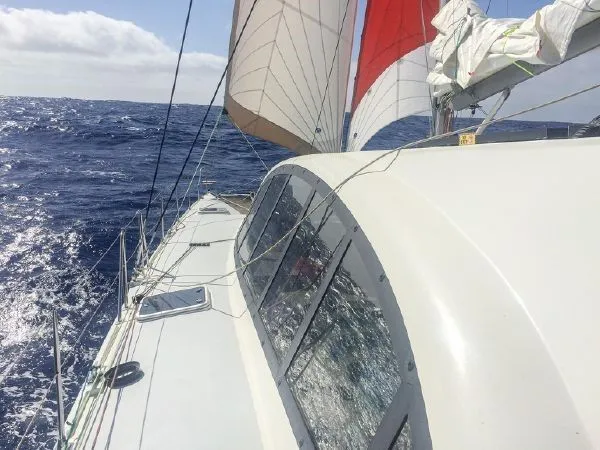

SAILS
- NORTH SAILS Mainsail (2016).
- NORTH furling self tending Jib w/ PROFURL furling (2016).
- NORTH SAILS Asym Gennaker (2016).
- NORTH SAILS Trinquette/Storm jib (2016).
ENGINES AND TANKAGE

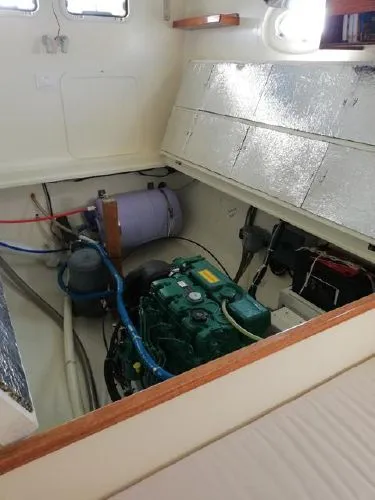

- Two (2) Volvo diesel D2-55 inboard engines, 55hp each. (Approx 800 hours)
- Saildrives
- Two (2) 3 blade folding propellers
- Two (2) 12v DC alternators
- Fuel capacity: 165 gal
- Water Capacity: 245 gal
MECHANICAL
- Hot/Cold Fresh Water systems - one in each hull, with its own pressure pump. Each hull has a hot water system heated either with the motors running or with 220 Volts when connected to shore power, or when running the generator.

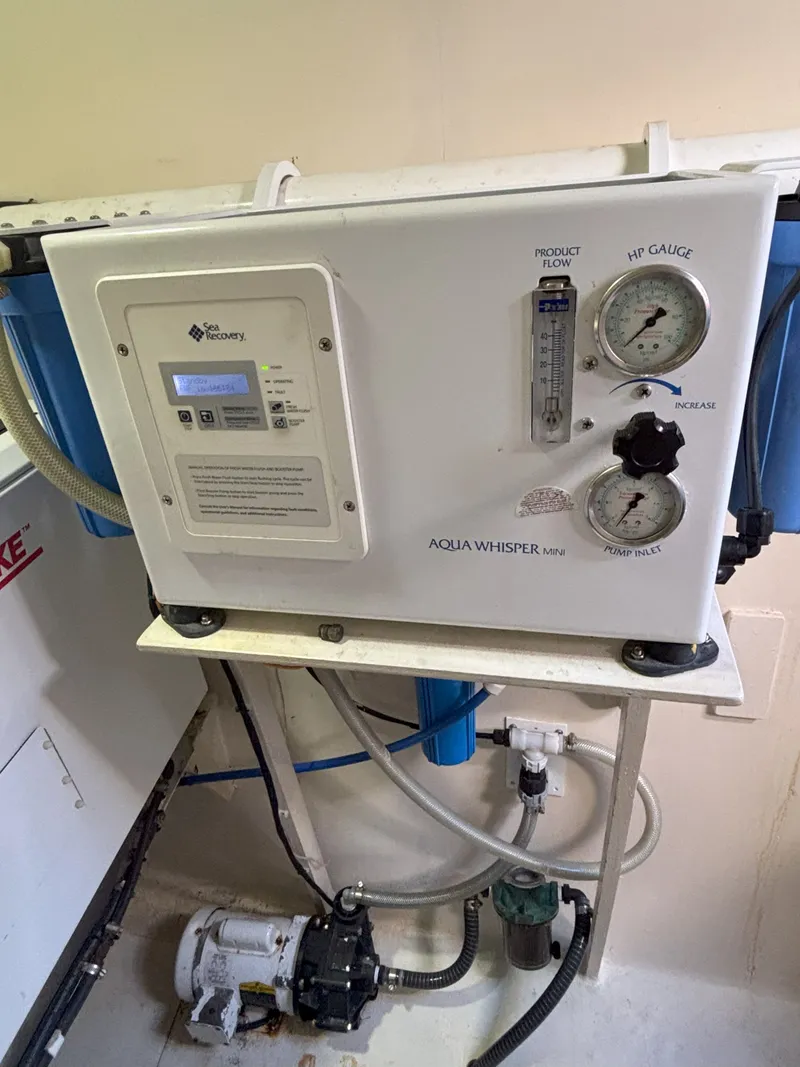

- SEA RECOVERY Watermaker - 30gal/hr

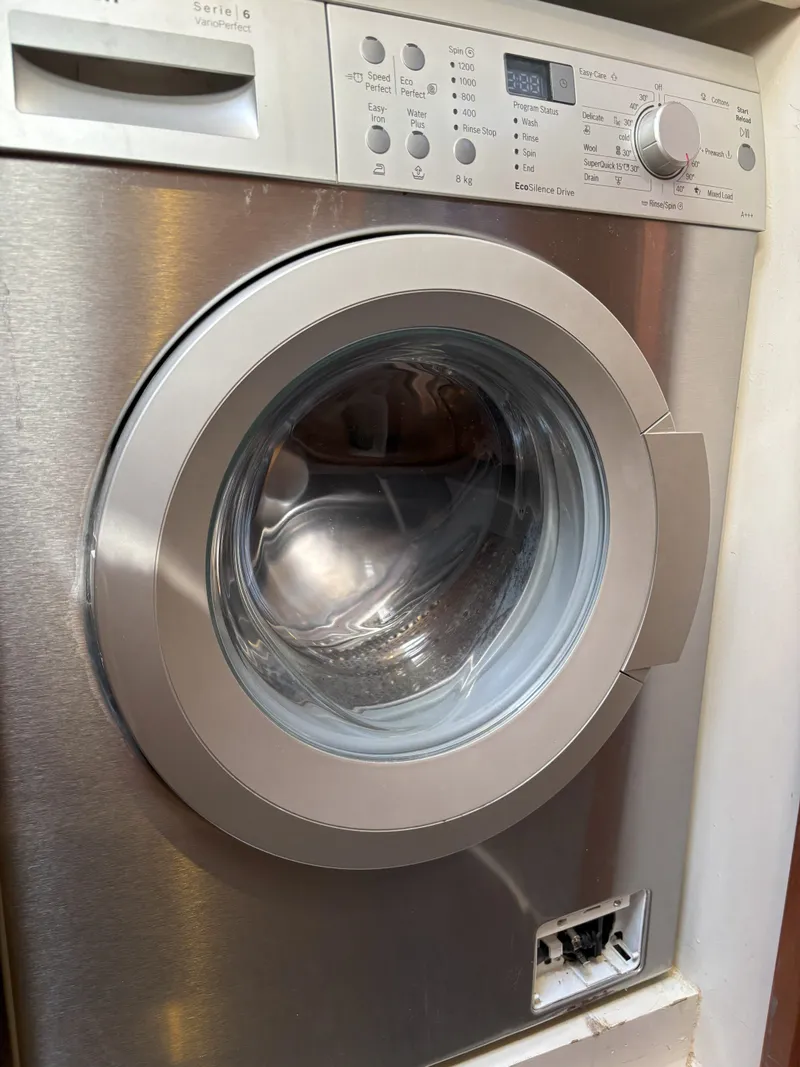

- BOSCH Washer and Dryer (Separate units -6kg/8kg)
- CRUISAIR Air Conditioning, 4 units throughout - 75K BTU.

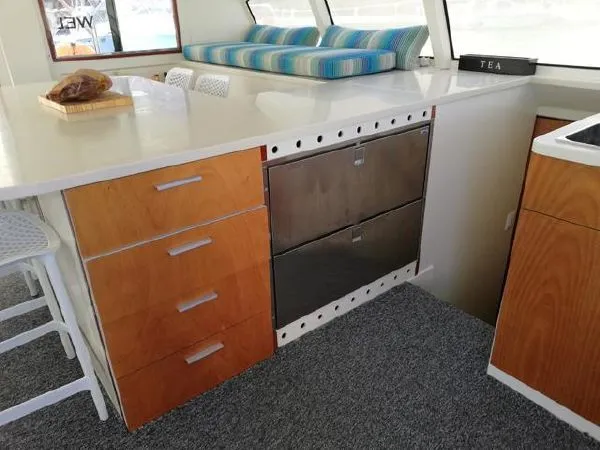

- ISOTHERM Refrigerator and Freezer, plus Drinks Refrigerator

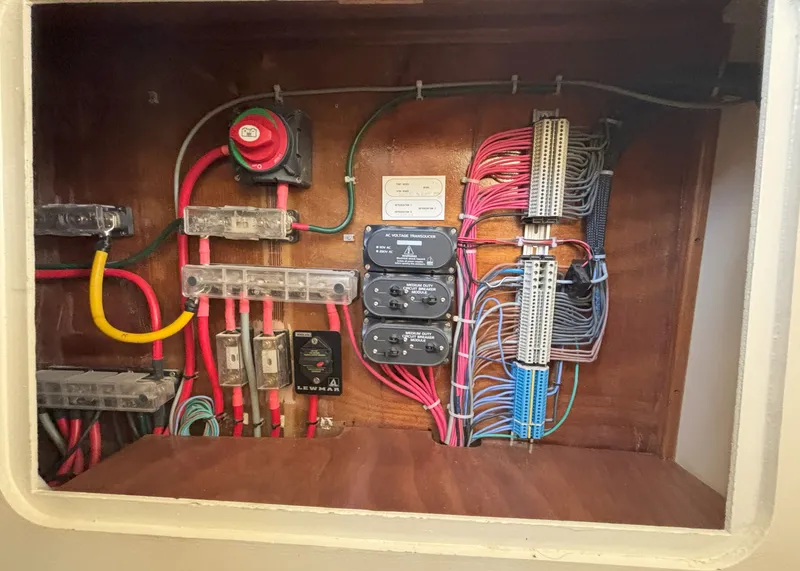

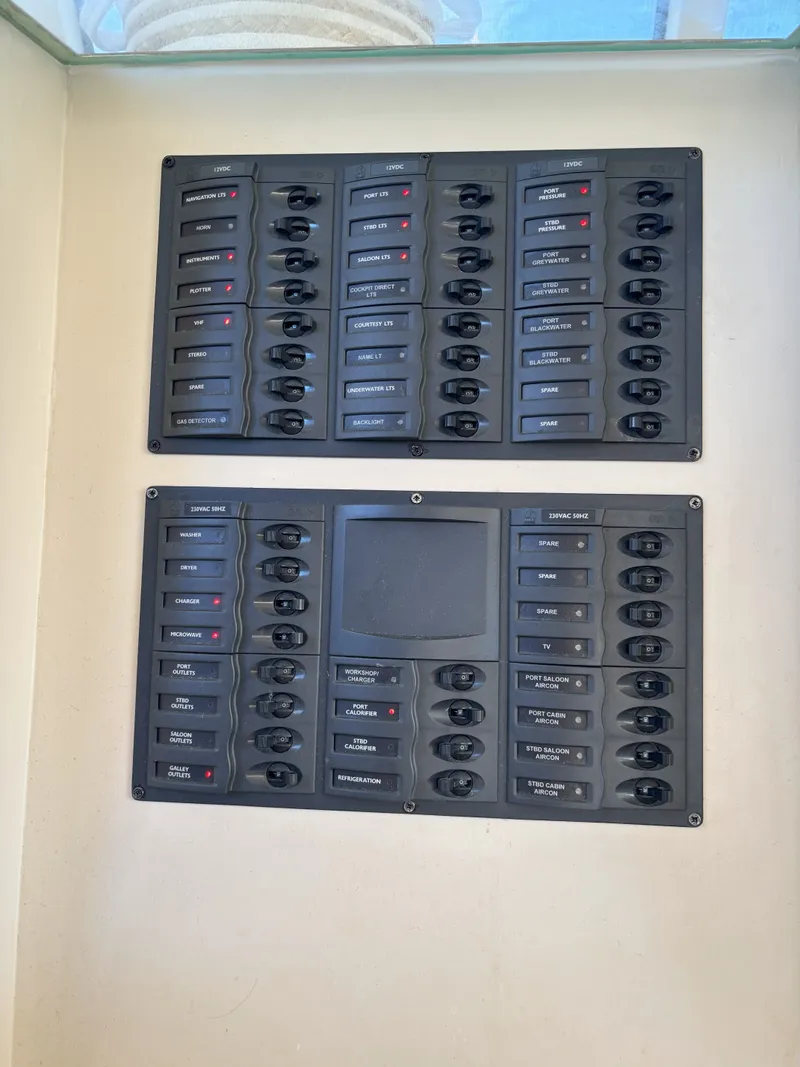

ELECTRICAL
- House Voltage - 12V DC

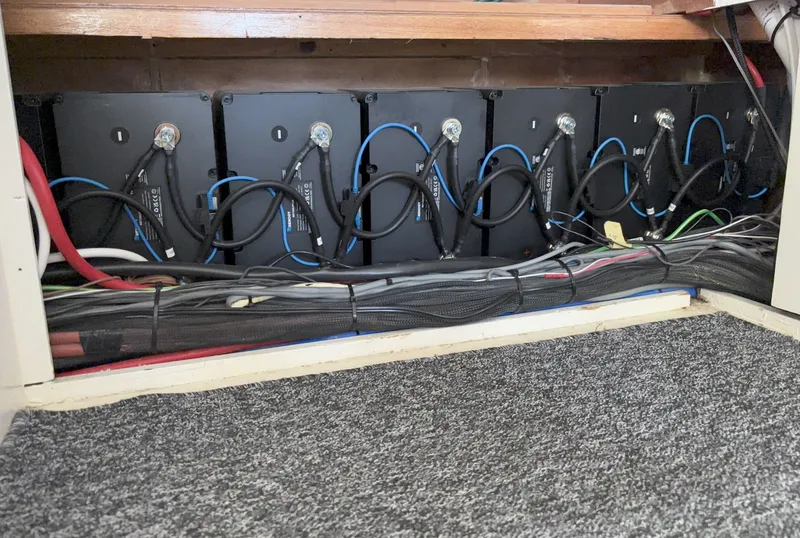

- House Batteries (Lithium) - 800Ah (2023)
- 2 x 12v Engine Batteries (Wet) - 100Ah (2023)
- Shore Power - 220V/50Hz (two legs @ 30Amps each)
- Generator - WESTERBEKE 9.4Kva 2016 (Approx. 3000 hours)

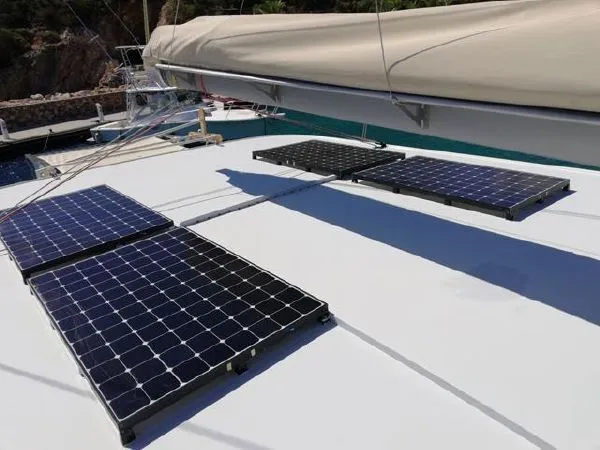

- 4 x Solar Panels - E20 Blue Solar 327W 61CV
- Battery Charger (Victron Centaur - 100Amp)
- 2000 Watt Inverter (Victron Phoenix - 220V/50HZ) added 2021
- LED lighting throughout
ELECTRONICS

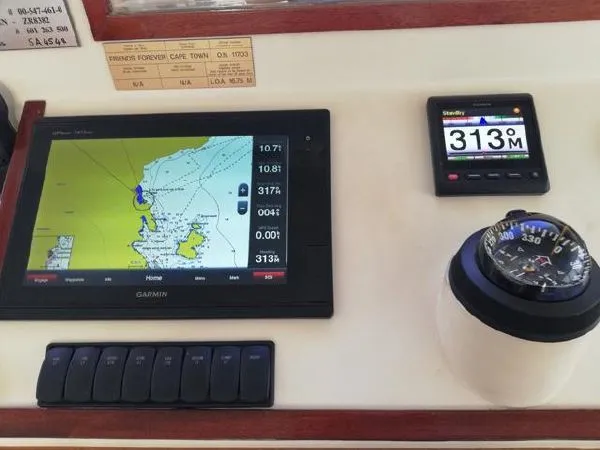

- GARMIN Navigation System
- GARMIN GPS/plotter with AIS
- GARMIN log, speedo
- GARMIN depth, wind speed and direction

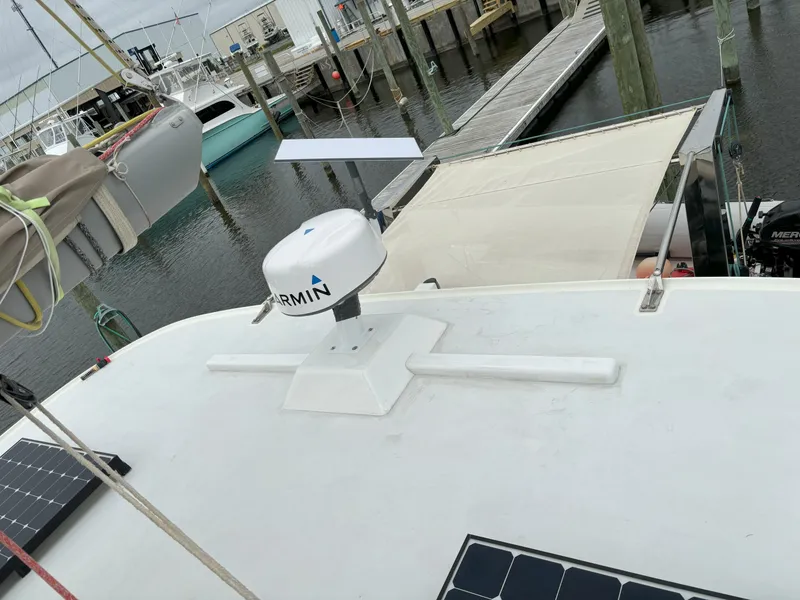

- GARMIN Radar - 40 mile (new 2023)
- LEWMAR autopilot with handheld
- TV/CD/DVD/Radio SAMSUNG/FUSION system
- STARLINK SYSTEMS (2) for redundancy (Gen 1 and Gen 3)
DECK EQUIPMENT
- LEWMAR electric windlass.
- 35kg LEWMAR Delta stainless main anchor. 100m stainless anchor chain.
- 20kg galvanised kedge anchor with 15m anchor chain and 100m warp.
- Warps and fenders.
- Hot and cold deck shower.
- Dinghy Davits.
SAFETY EQUIPMENT

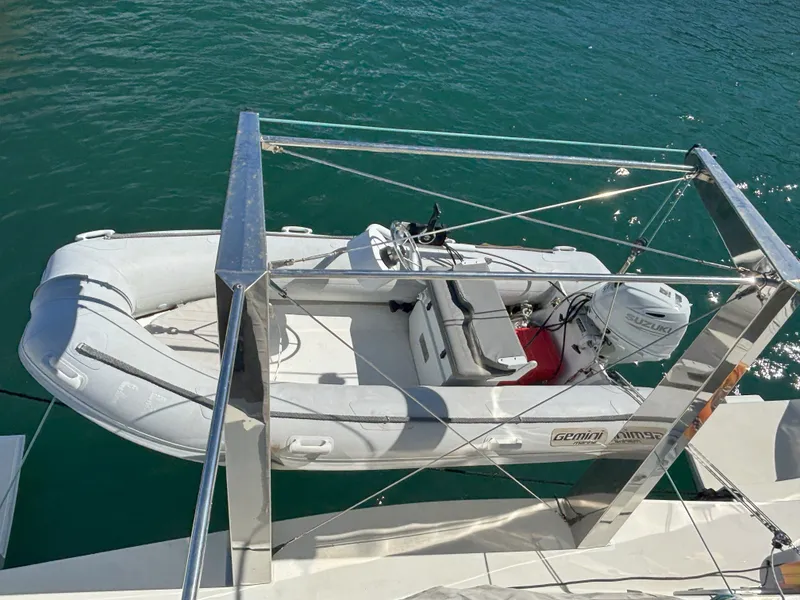

- 13'Gemini RIB (2017) - Wheel Steering, Console/Seat, Suzuki 4 stroke 25HP - all added (2024)
- 8 man VIKING life raft
- Foghorn
- 12 x life jackets (2016)
- Lifebuoys (2016)
- Dan buoy (2016)
- Floating light (2016)
- Floating line (2016)
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
