2004 Custom Pilot
$700,000
Boat in Brunswick, GA 31520 US
Built in 2004
Pilot
2 Engines (2x Lugger)
50.8 feet
Diesel
Aluminum

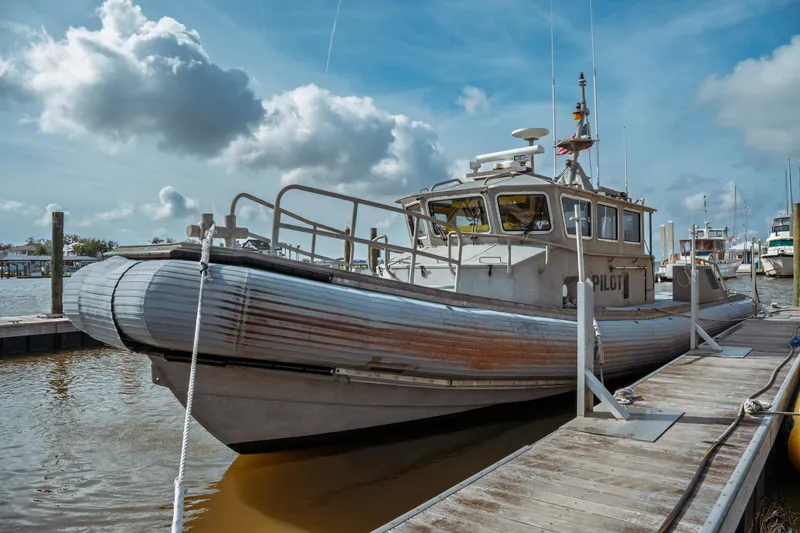

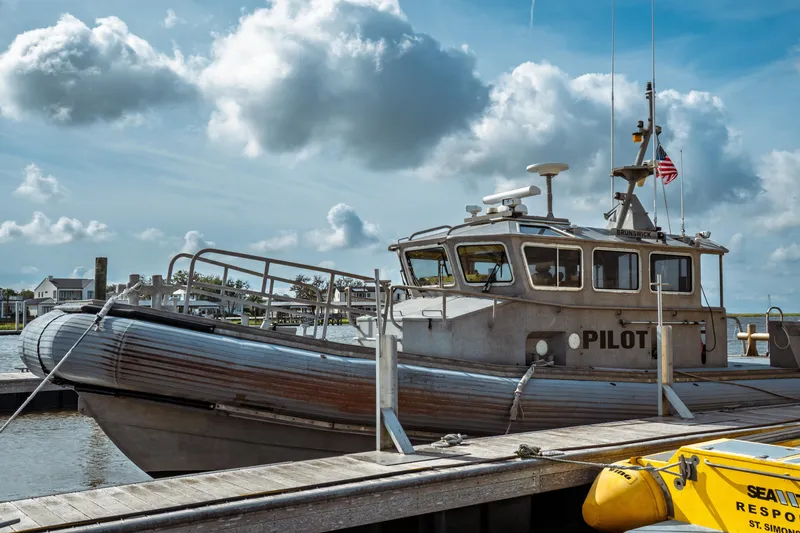

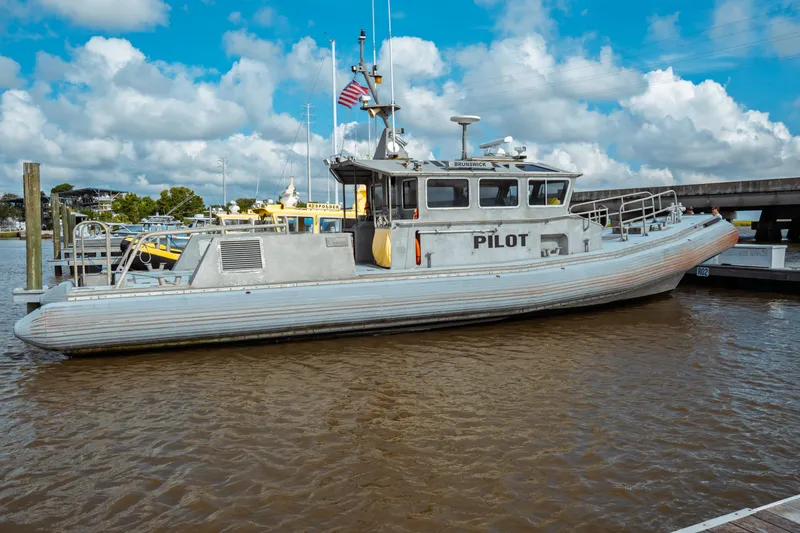

Kvichak Marine Industries Pilot

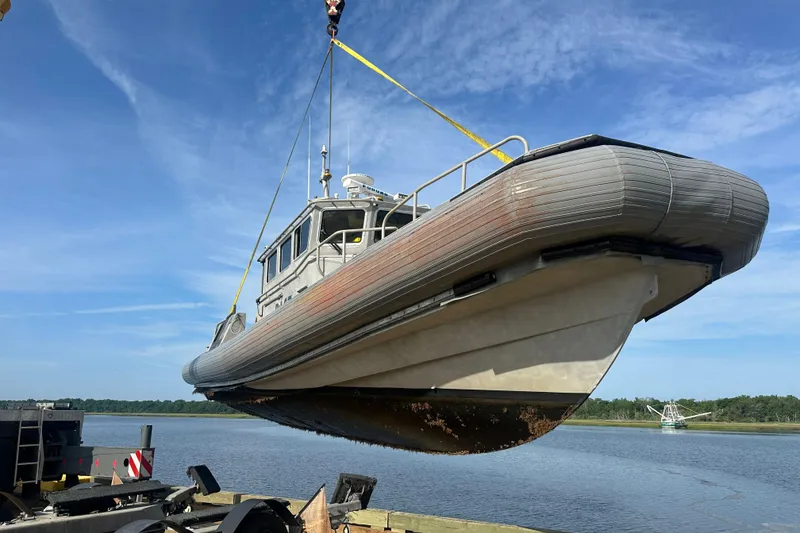

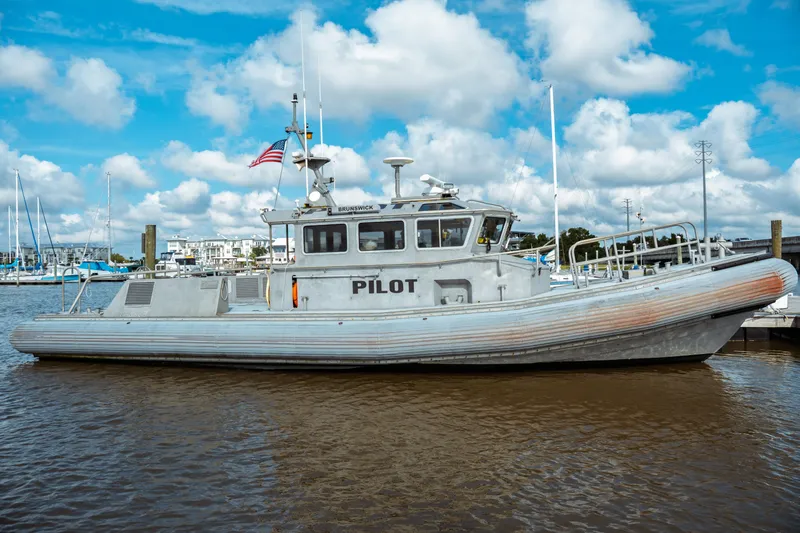

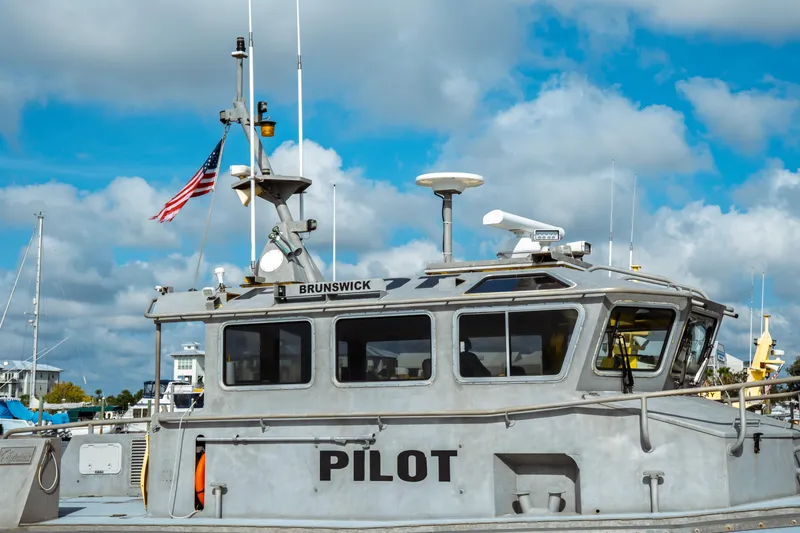

This commercial Kvichak Pilot Boat was custom ordered and built to very precise specifications to allow for fast, long distance, all-weather transfer of crew alongside in the most challenging of Atlantic sea conditions and climate. Her design characteristics at sea are as reassuring as the ability to ease of maintenance of the vessel ashore. The ability to crane lift using the single point lift system, retrieve at local boat ramps, and transport over the road via trailer will add versatility to her new owner.
The systems aboard have benefited from professionally executed, proactive maintenance throughout their lives, with a diligently documented service history available.
The sum of these traits render continued use as a pilot vessel immediately possible in a wide range of scenarios and, due to her performance, versatile and construction, this Kvichak could, with minimal adaptation be used as a platform in many other marine businesses.
KEY FEATURES INCLUDE:
- Kvichak built design - Kvichak were one of the most successful aluminum boat builders in US history, specializing in commercial vessels.
- Shallow draft with jets allows the vessel to work in water less than 5ft in depth.

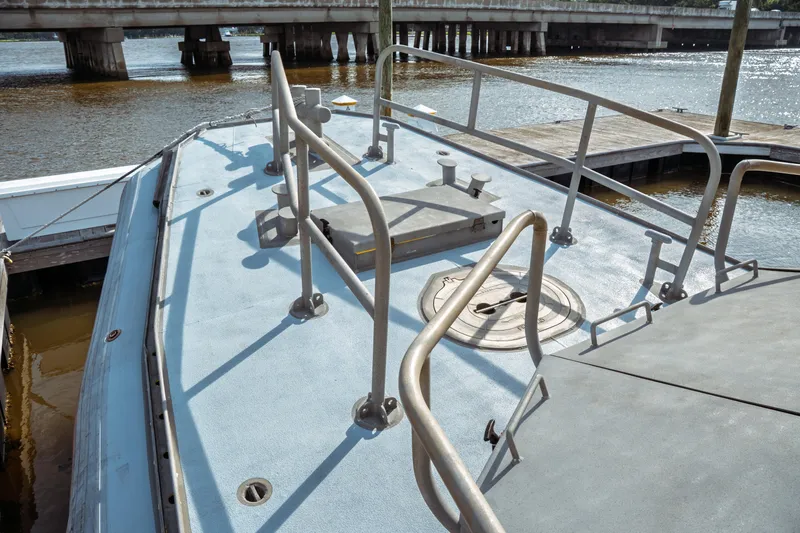

- Large back deck providing a stable research platform

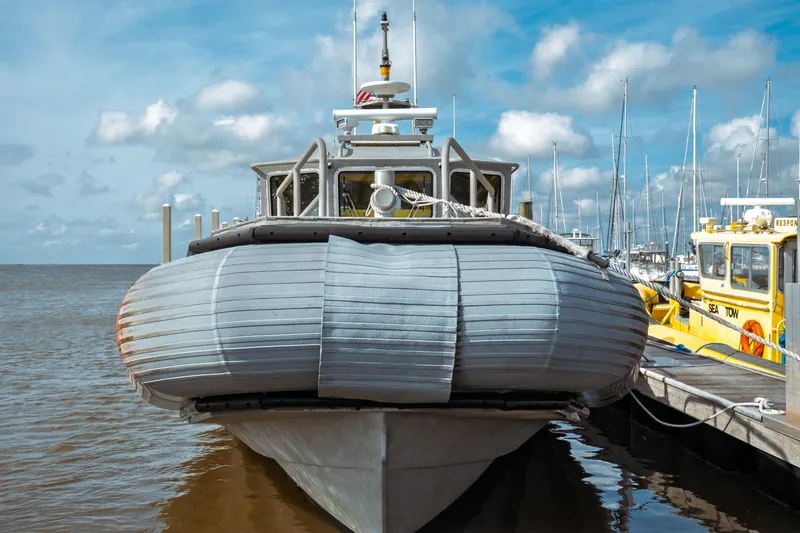

- Air sponson fendering helps dampen the rolling of the vessel in rougher weather
- Cruising speed of vessel is 30kts
The vessel is constructed of 5083-H116 marine grade aluminum plate and 6000 series aluminum extrusions in accordance with the best commercial marine practice.
The aluminum hull structural design is in accordance with the rules of Det Norske Veritas as Patrol Craft operating in Service Area R2 but is not classed. The vessel’s hull meets or exceeds DNV global strength requirements.

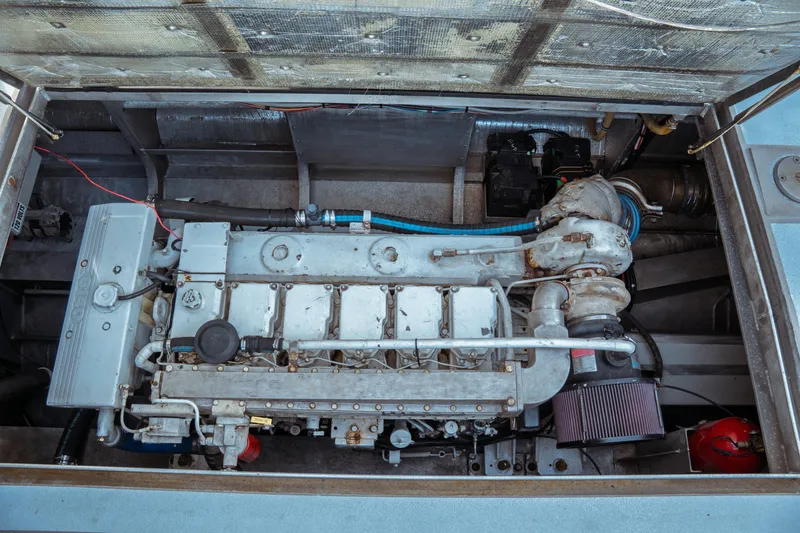

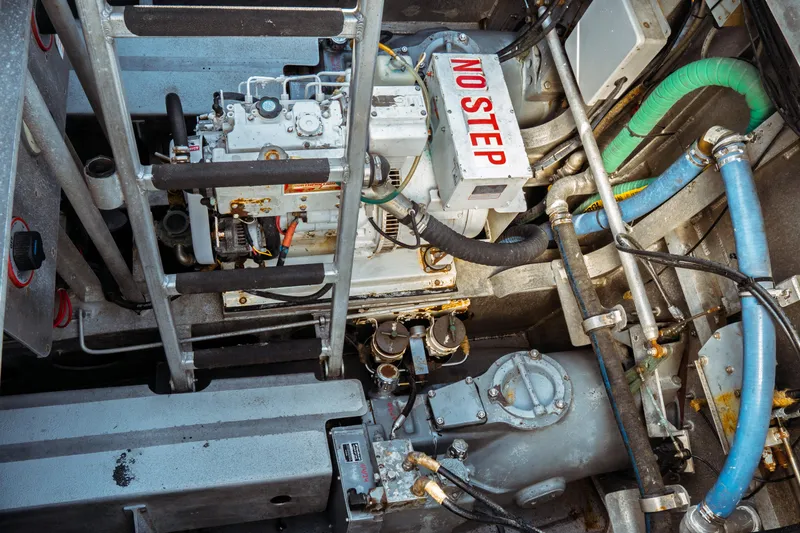

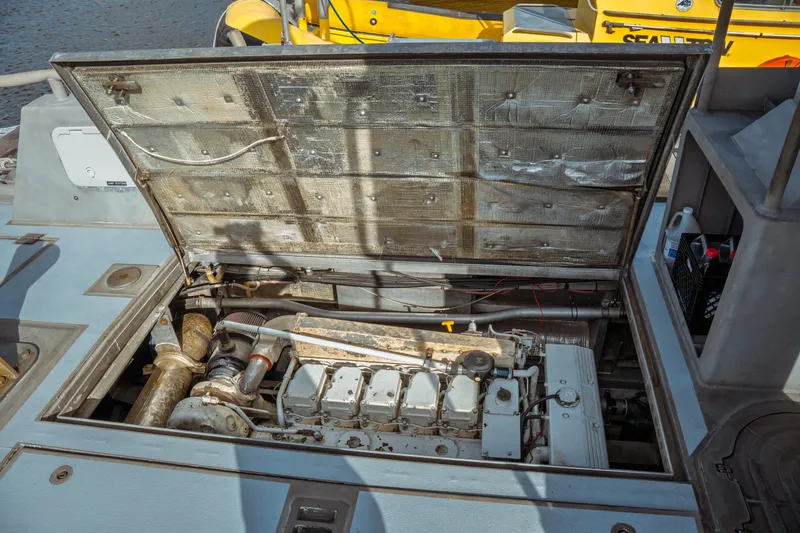

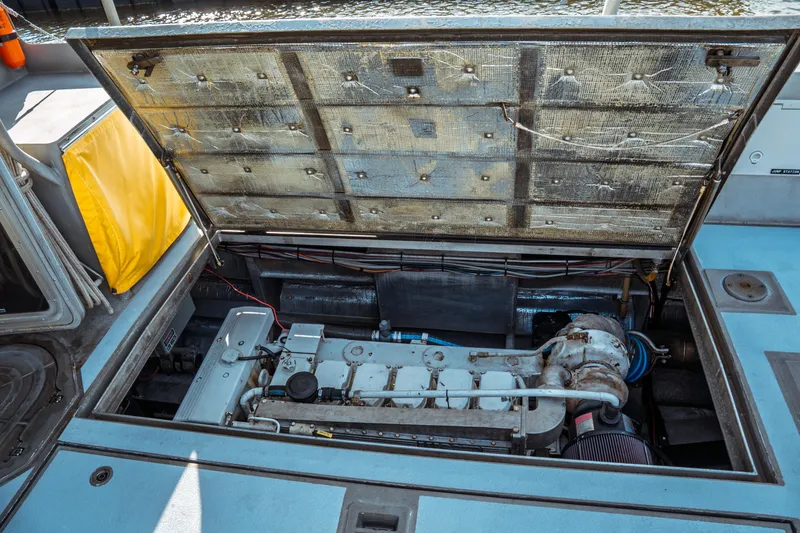

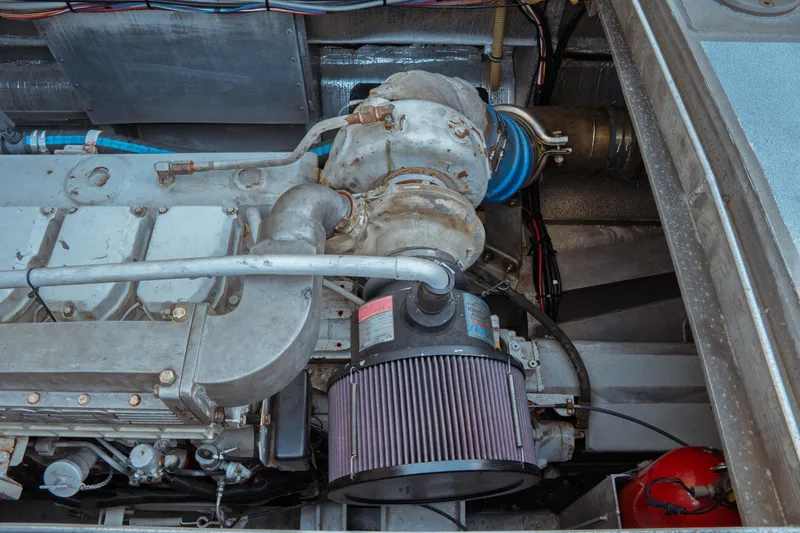

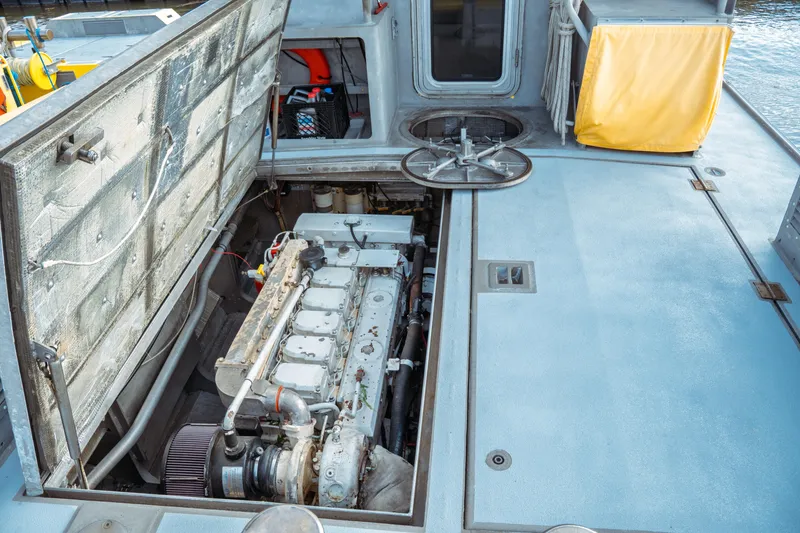

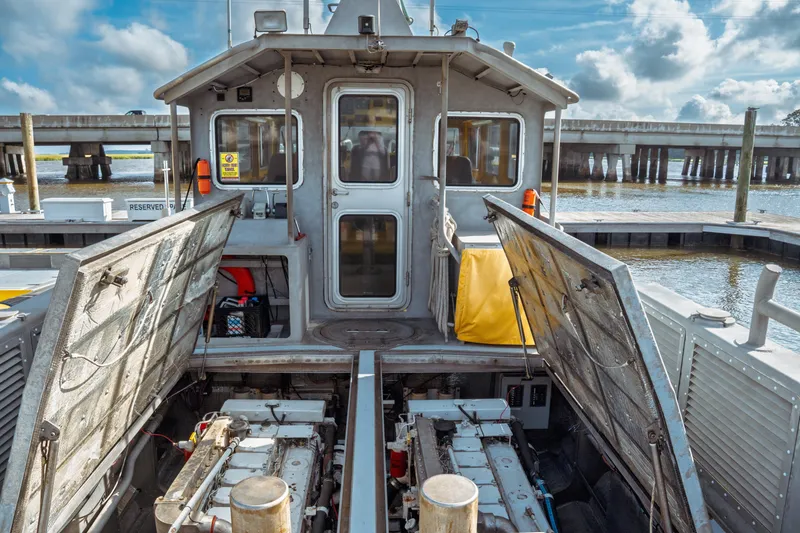

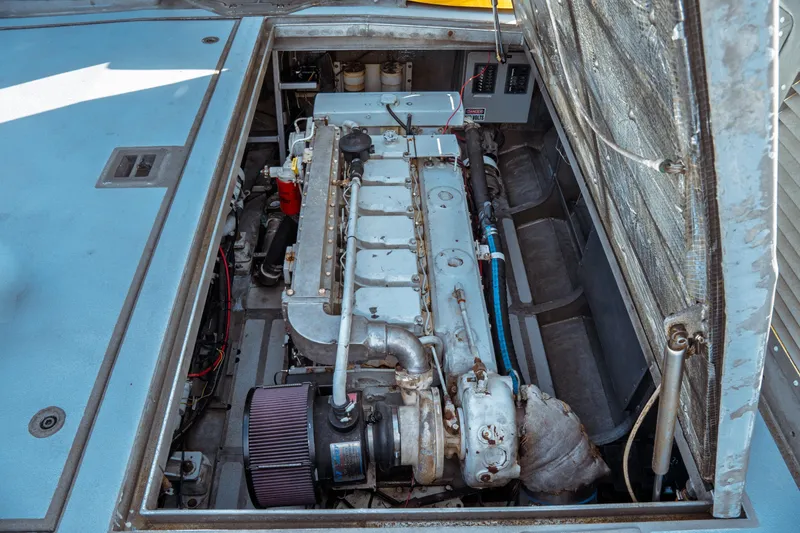

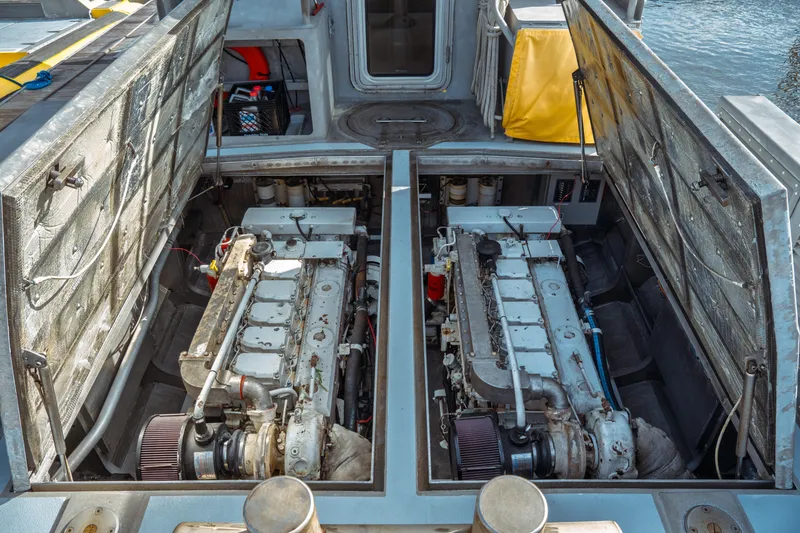

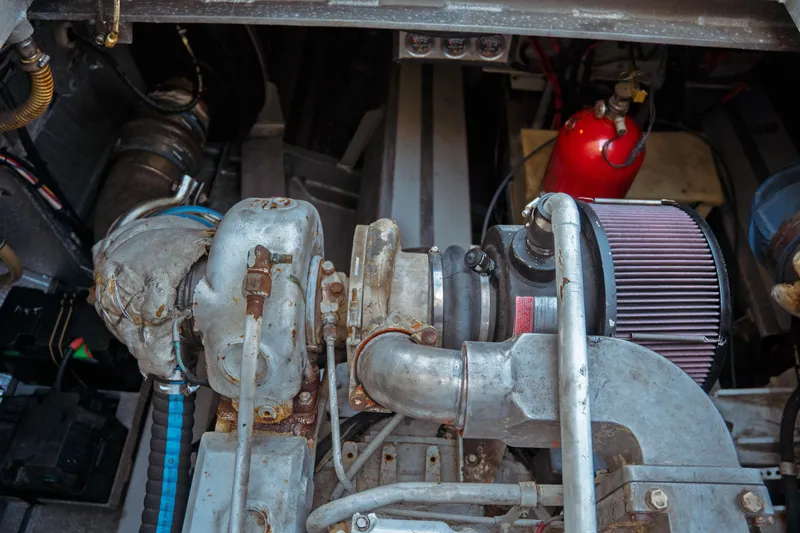

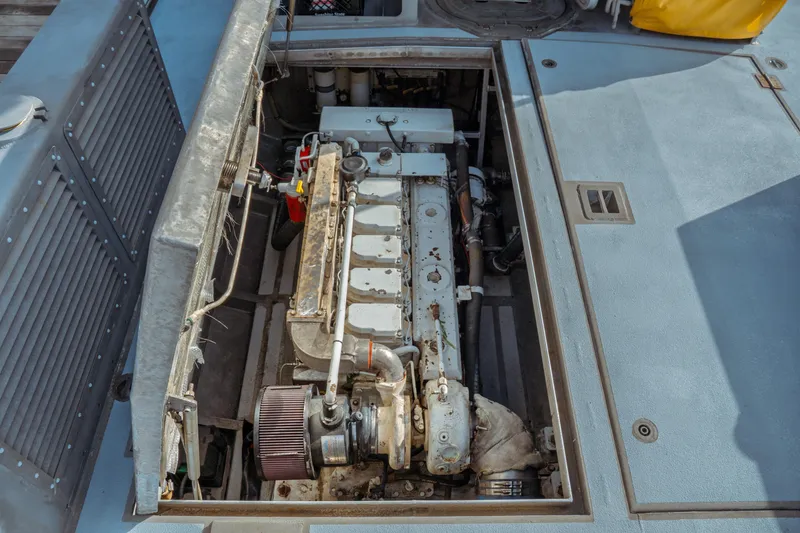

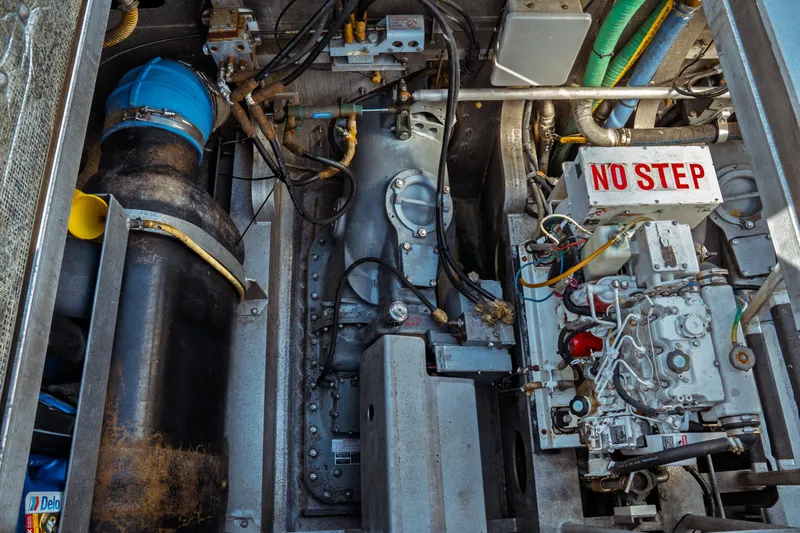

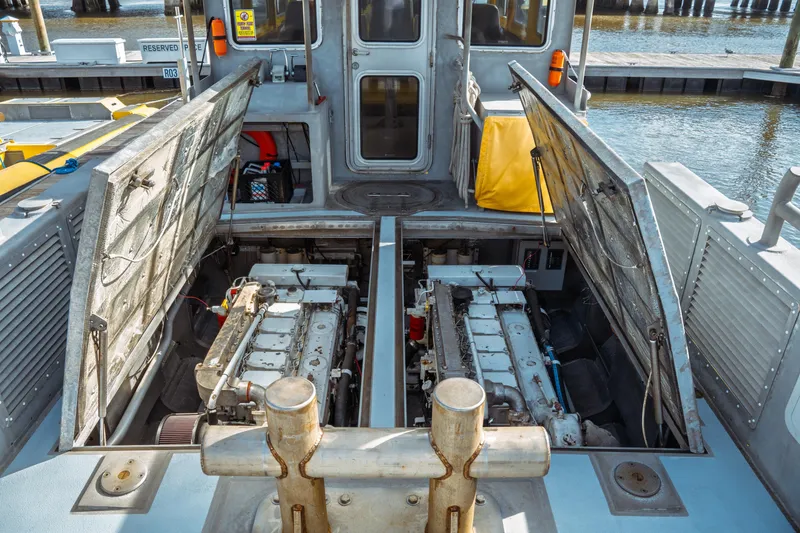

Main Engines: Lugger L6140AL2, 600 BHP @ 2100 RPM
Current Main Engine hours 20,882
Serial Number Port 1401-2587, STBD 1401-2588

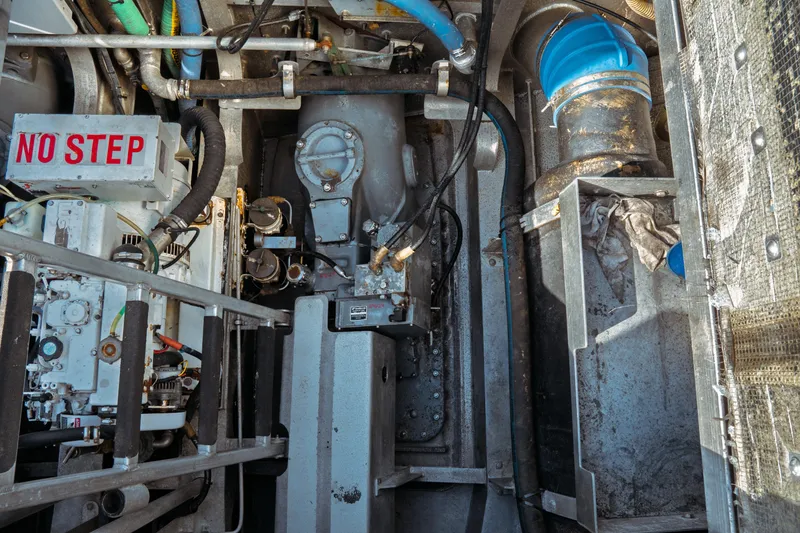

Transmission: Twin Disc MG5114SC, 1.01:1 reduction ratio
Serial Number Port HJH002, STBD MG5114

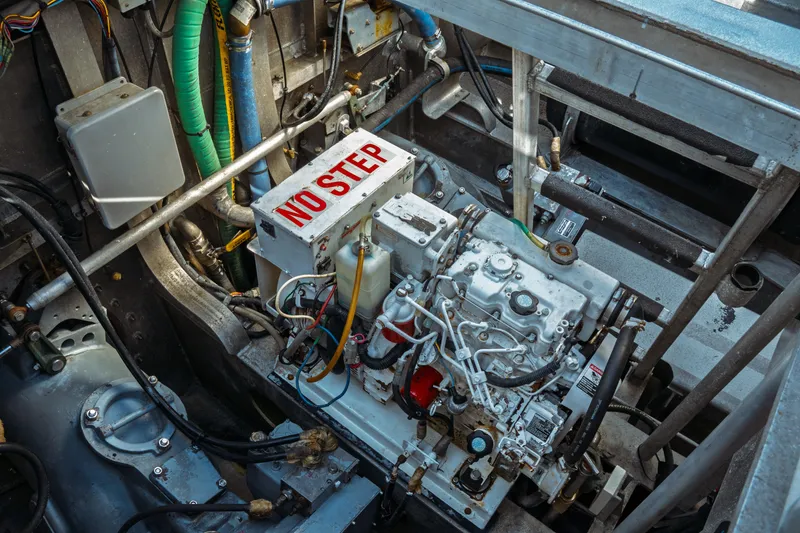

GenSet: 9 kw Northern Lights, Model M773LW3
Serial Number S773L-D-8602-TD, Hours 5,877
Propulsion: Hamilton Jet 362, hydraulic bucket and steering
Impeller, Hamilton stainless steel
Jet Bearing Serial Number Port 6272, STBD 6873

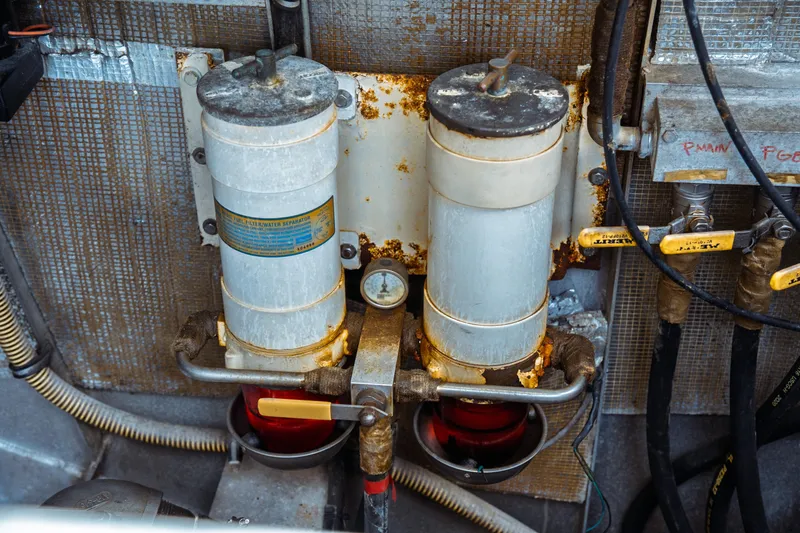

Fuel Capacity, useable 500US gal.
WING Inflatable Tubes. Manually activated inflation system comprised of low voltage pump and distribution system.
HVAC – 24,000 BT integrated unit, 220VAC, Seawater cooled, reverse cycle, marine grade.
Cabin Heaters – Q-mark 1500 watt 120VAC heater (shore power or generator source)
Defrost – 12VDC, 3” in-line blower/heater.
Pumps: 4 each Rule, 2000 GPH each, 12VDC, in each hull space
Back-up pump: 1 Rule, 4000 GPH each, 12VDC, in each engine room.
AIRD Bilge System

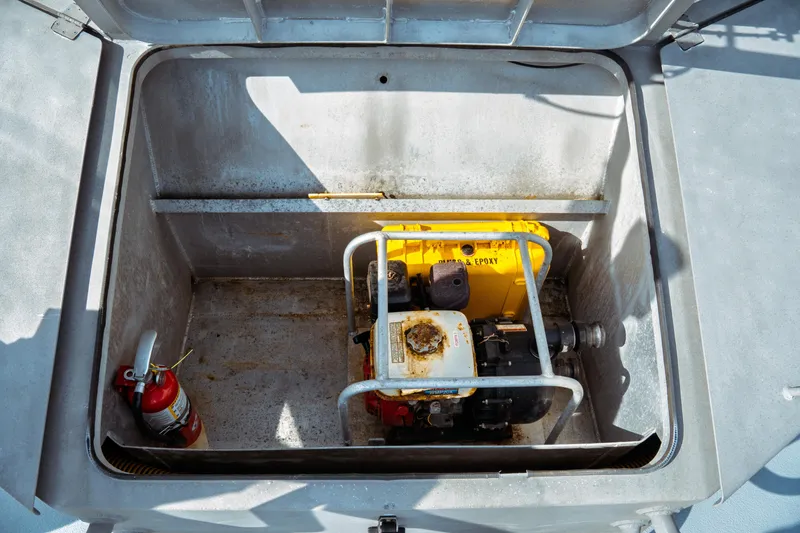

One Sea-Fire HFC-227ea fire-extinguishing system in machinery space. Portable fire extinguishers in cabin and forward hatch.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
