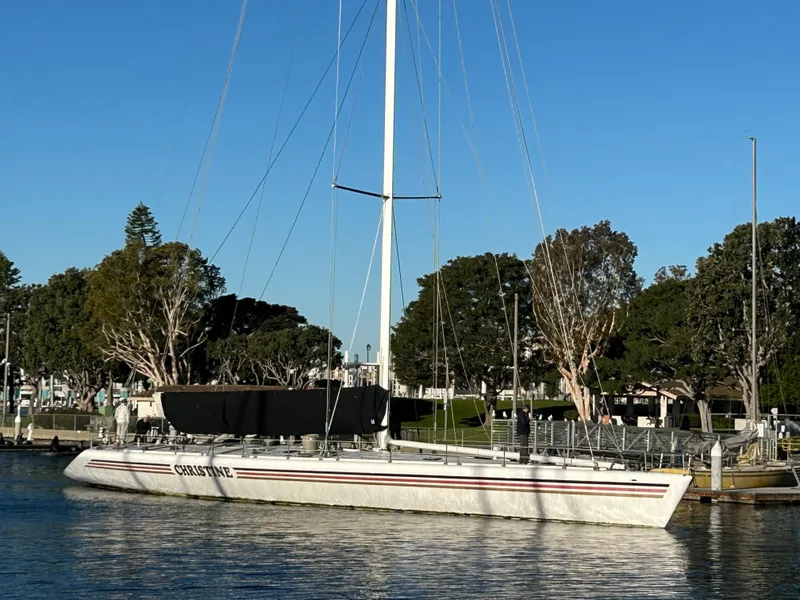

1996 Custom 100' Sailing YachtSold

Experience the thrill and excitement of sailing one of the Westcoast's mega yachts. There are multiple cabins and space to sleep sixteen guests. The galley is quite extensive. It includes a microwave, trash compactor, full oven, garbage disposal, a full size refrigerator and a separate freezer for extended cruises, as well as, (most important), the coffee maker.

Most onboard systems are computerized, as well as the state of the art navigation systems. For listening and viewing pleasure,  a Bose Surround-Sound entertainment center.

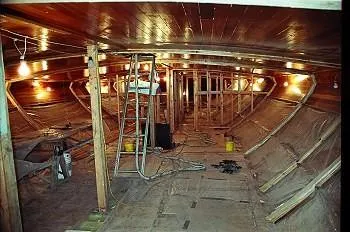

• Fabricado a partir de laminados de cedro de 1/8 de pulgada de grosor.
• Cada capa está pegada con epoxi a 90 grados entre sí y envuelta para incluir la cubierta, creando en esencia una estructura que es una hoja de contrachapado continua y sin costuras.
• Las áreas estratégicas de alta carga cerca del mamparo del mástil y la quilla están reforzadas con fibra de kevlar entre los laminados.
• Hay 10 capas de chapa además del molde de lengüeta y ranura de 5/16 de pulgada de grosor que es visible en todo el interior, incluyendo la proa y la popa extremas.
• El molde interior está saturado de epoxi y barnizado con poliuretano lineal en toda la embarcación.
• Todos los mamparos están rellenos de espuma, revestidos de contrachapado y terminados con chapa de cedro de lengüeta y ranura recubierta de epoxi barnizado.

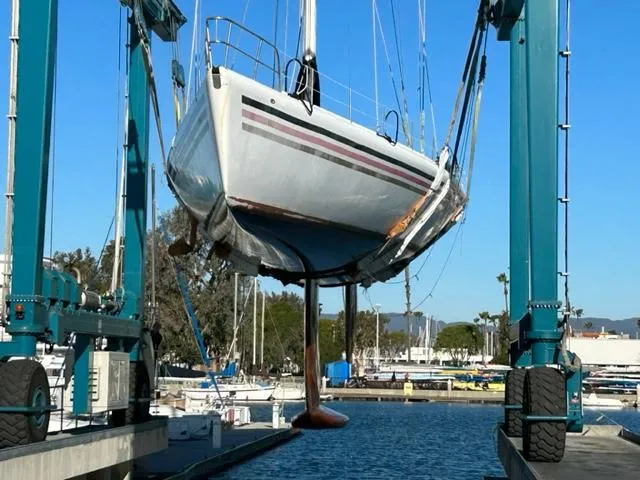

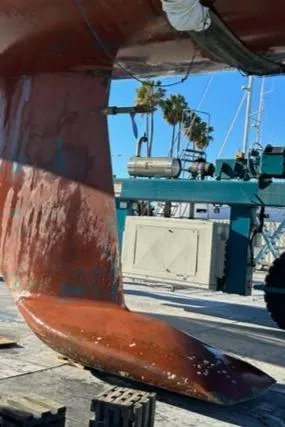

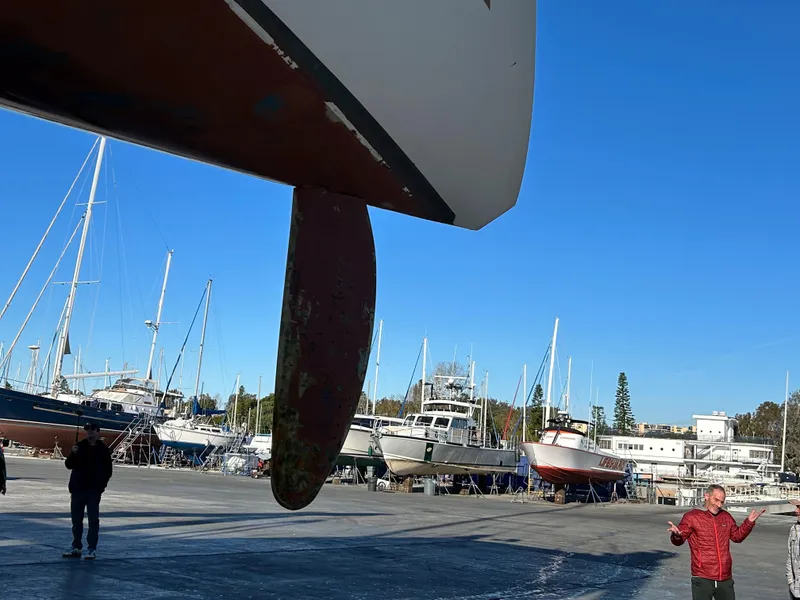

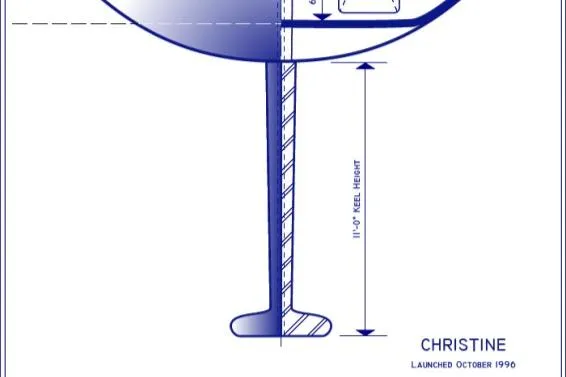

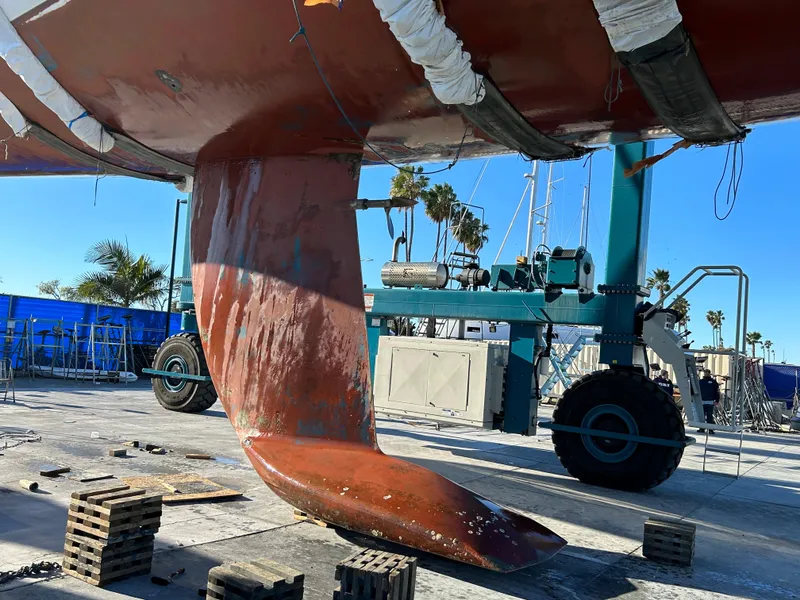

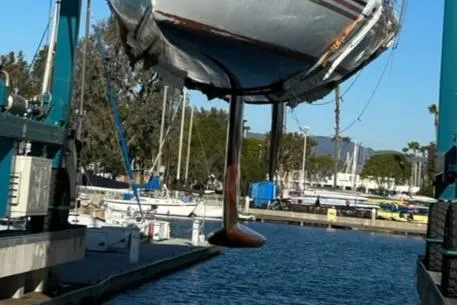

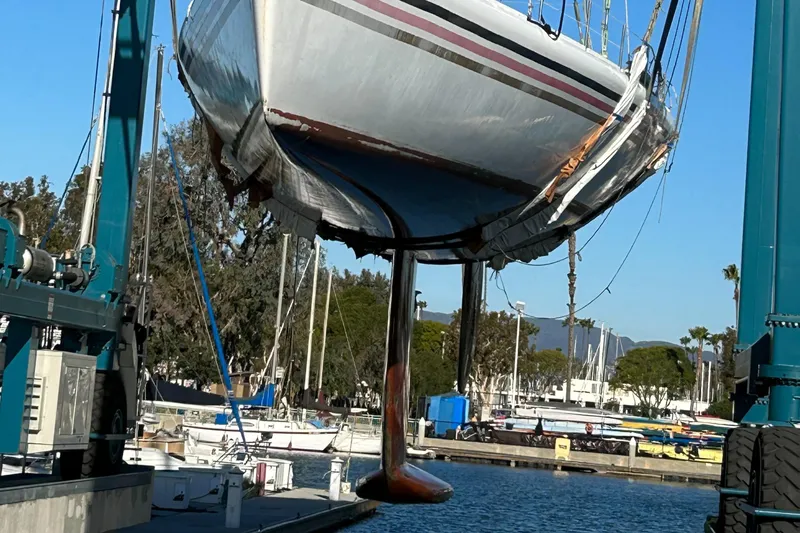

• La quilla fue fabricada en forma de una chaqueta de acero fijada sobre una estructura interna soldada que mide 11 pies de altura. La parte inferior fue vertida en caliente con 30,000 libras de plomo, y la porción superior del foil de la quilla sirve como un tanque de combustible que contiene 200 galones de diésel.


• El suelo de la cabina está construido a partir de vigas de roble encoladas y laminadas. Paneles individuales de contrachapado de 1/2” de pulgada encajan entre ellos y se pueden quitar fácilmente para acceder instantáneamente a todas las ubicaciones en la sentina.


• El pie del mástil termina en la ducha delantera. Cualquier lluvia o agua verde que penetre en la estructura a través de las ranuras de la driza o poleas de la extrusión se expulsa a través del sumidero de la ducha.

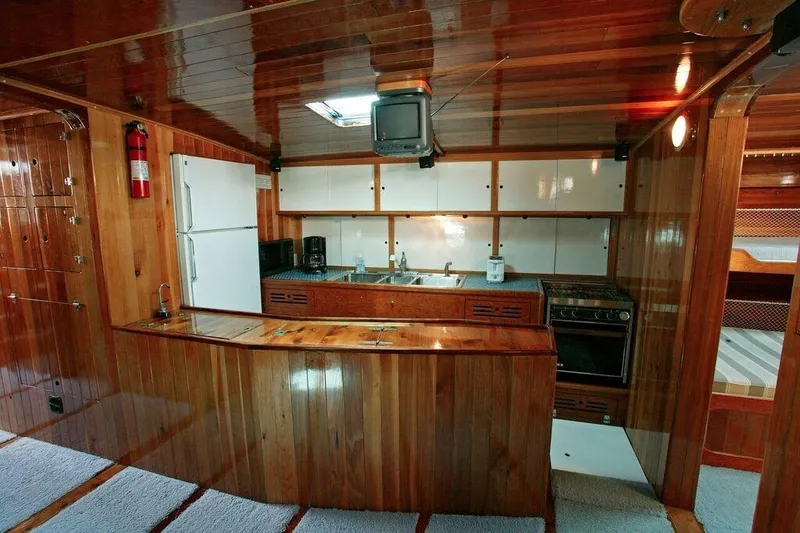

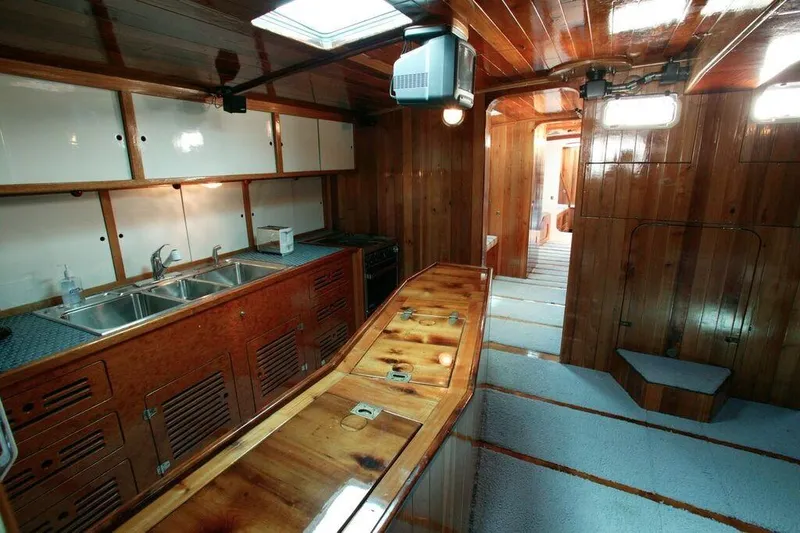

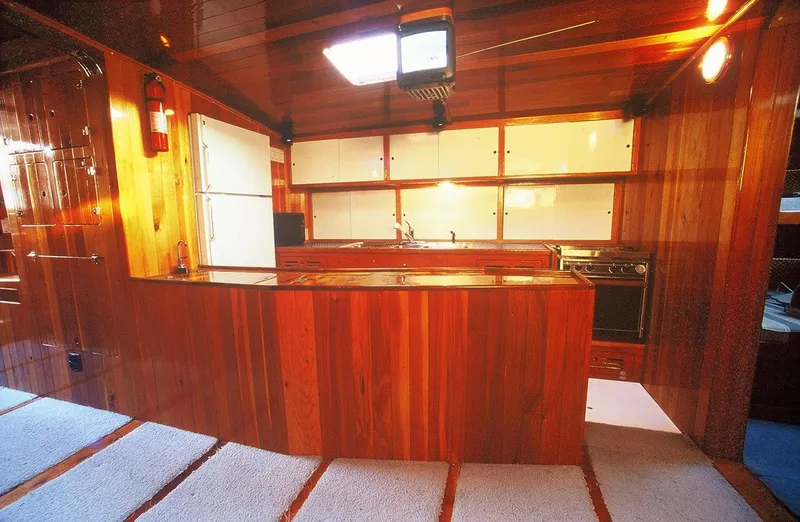

• Galley is flanked by a horizontal freezer.
• Besides assuring fresh food, it is strategically located to keep the chef in the cooking area, when rough seas or heeling could command otherwise.
• The upright fridge and freezer is made by GE.


• Microwave
• Coffee Maker

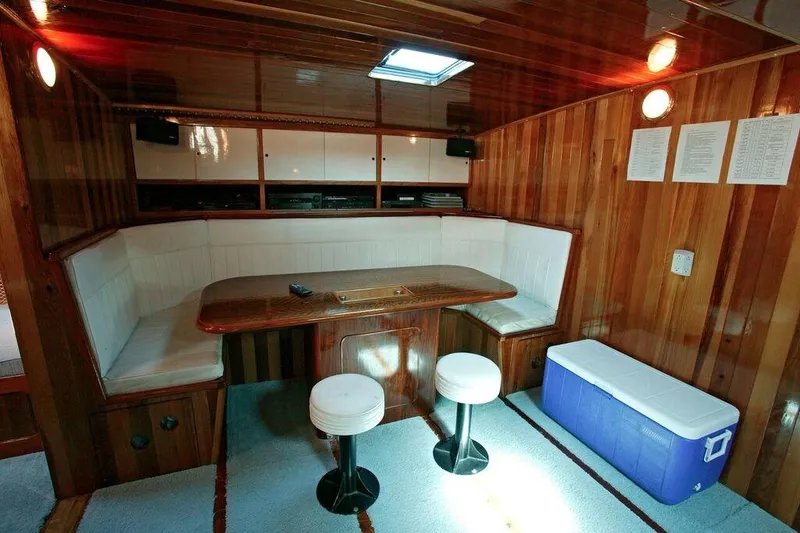

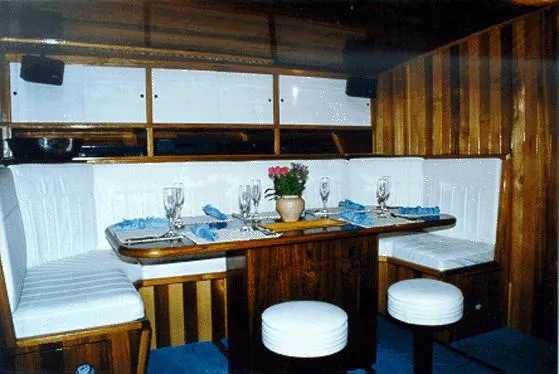

• Dinette and Sette w Seating for 10
• Double Sink
• Three Burner Stove and oven
• Lots of Counter Space and Storage

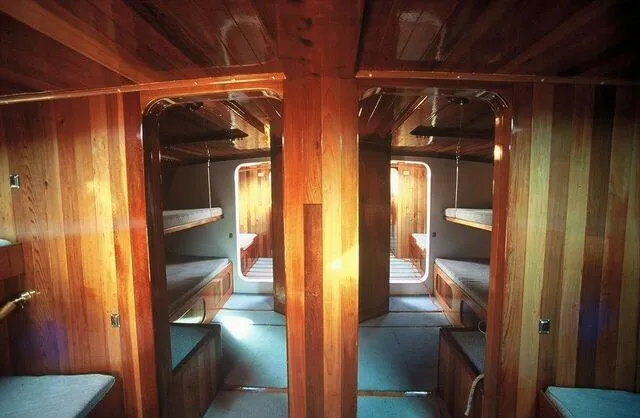

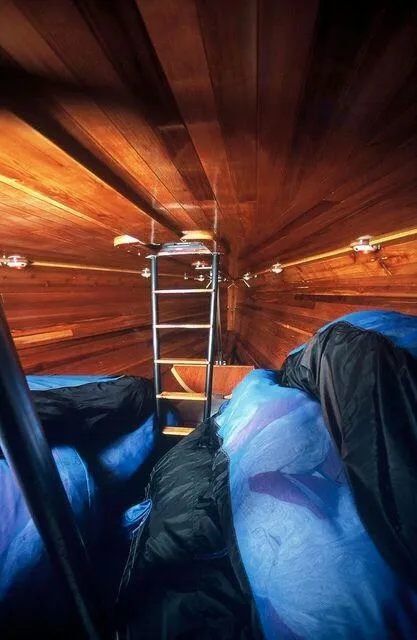

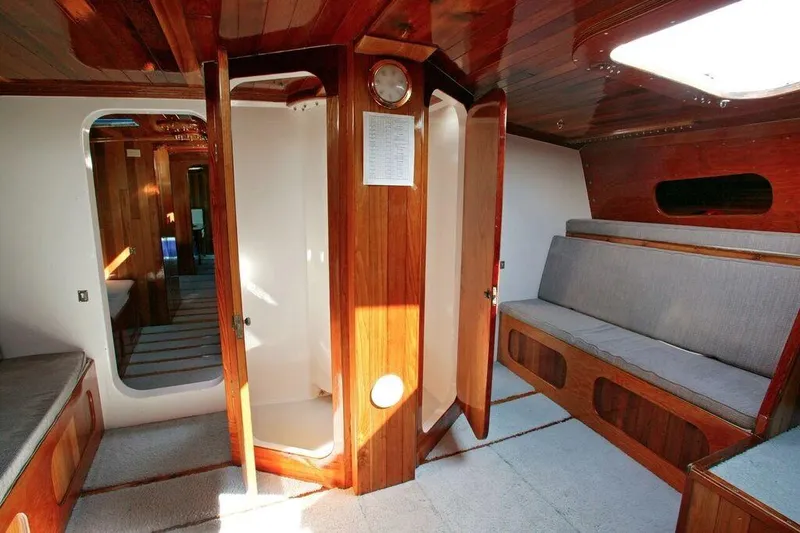

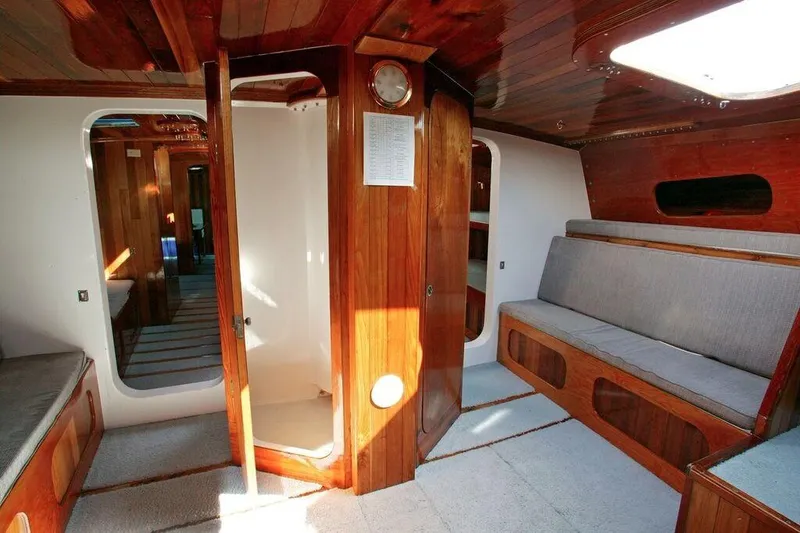

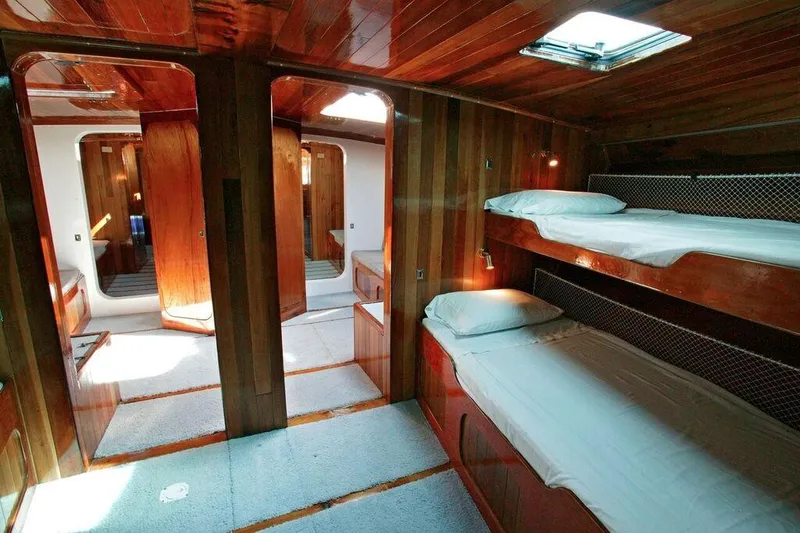

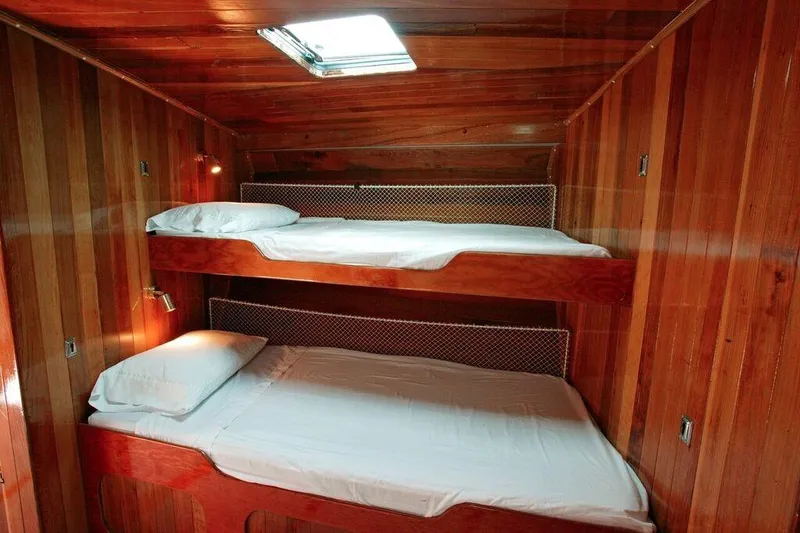

• Below decks are 18 beds.

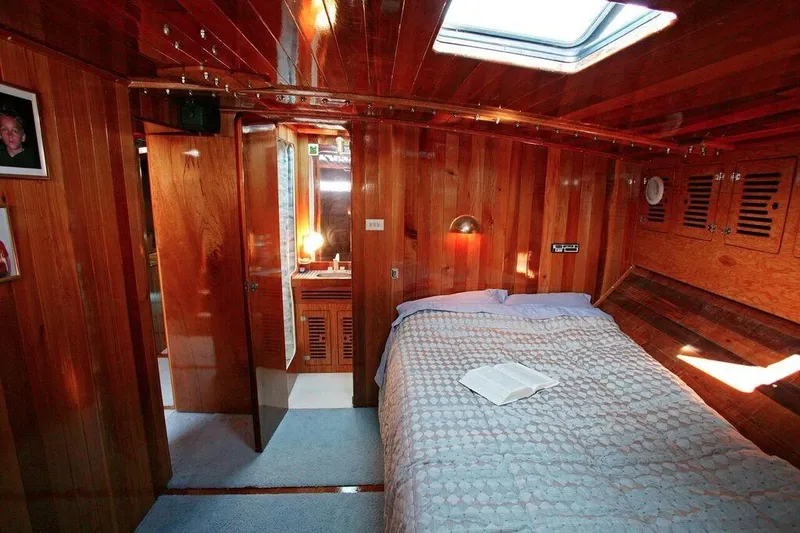

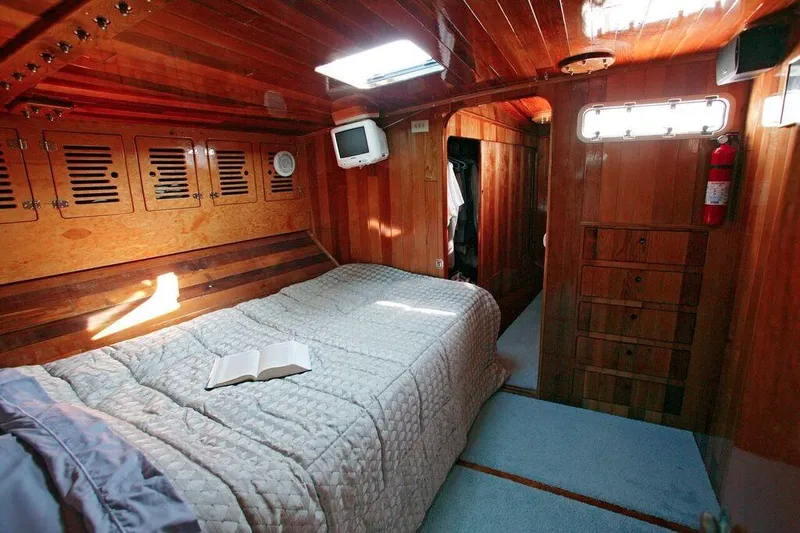

• In addition, there is an owner’s cabin with a large hanging locker, oversize queen bed, bathroom, shower, lots of storage, TV, CD player and surround sound.

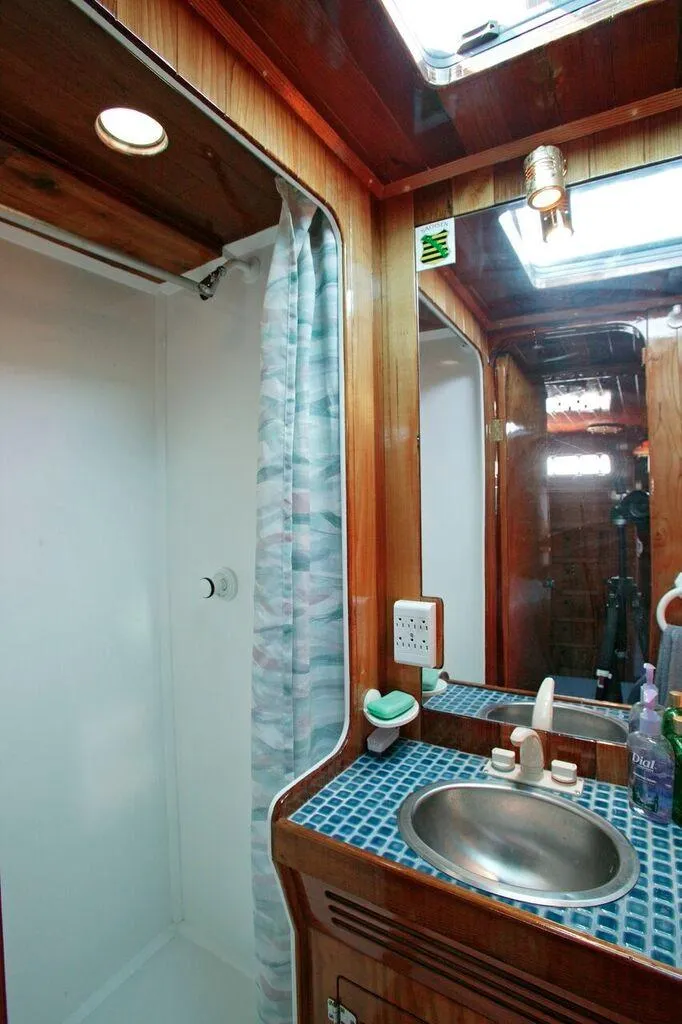

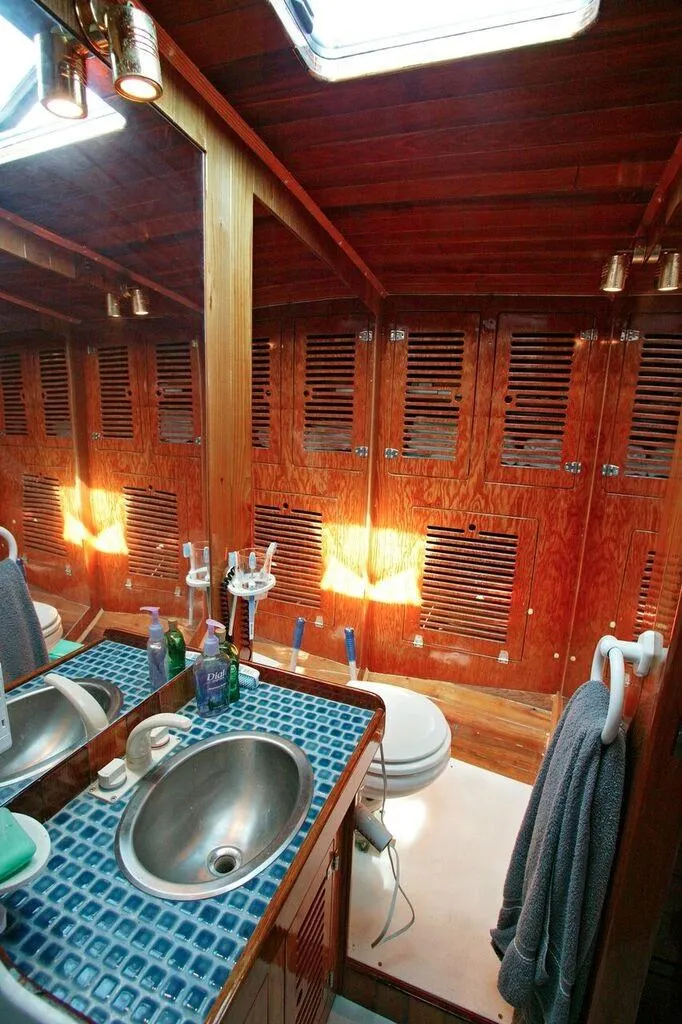

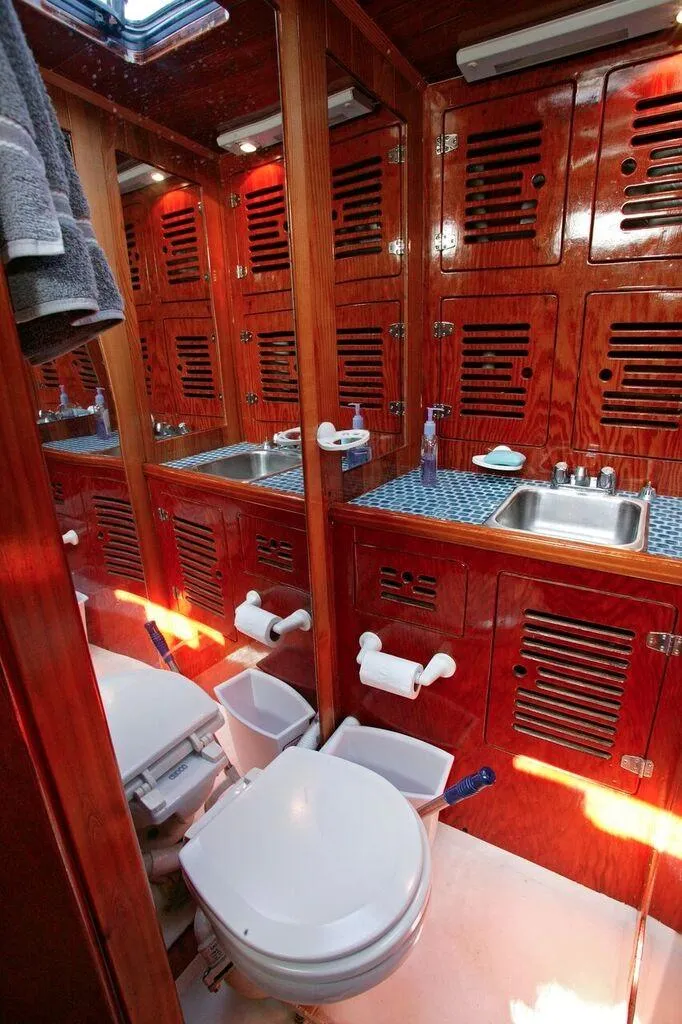

• There are 2 additional bathrooms and a large shower.
• Lots of storage space throughout the vessel.

• Potable water is stored in 4 separate tanks, located under port and starboard bunks.
• "Village Marine Tech" water maker
• Hot Water Heater

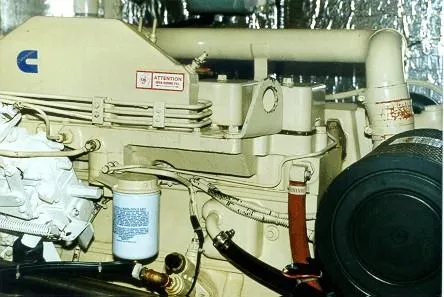

• A 250 HP Turbo charged Cummings Diesel Engine with a Borg Warner Transmission provides propulsion under power.
• The transmission’s output shaft connects to a Morse chain drive unit that terminates 3 ft below into the keel. From that point, a 2" shaft drives a Martec folding propeller.
• The shaft is short and roller bearing supported on each end for vibration-free operation.
• The bearings and chain are lubricated via an oil sump, in the keel and don’t require any maintenance.
• Without any sails, just powered by the engine, the yacht cruises 10 kts at 2300 rpm using 7 gal. of fuel per hour, or 5 gal. per hour at 8 kts.

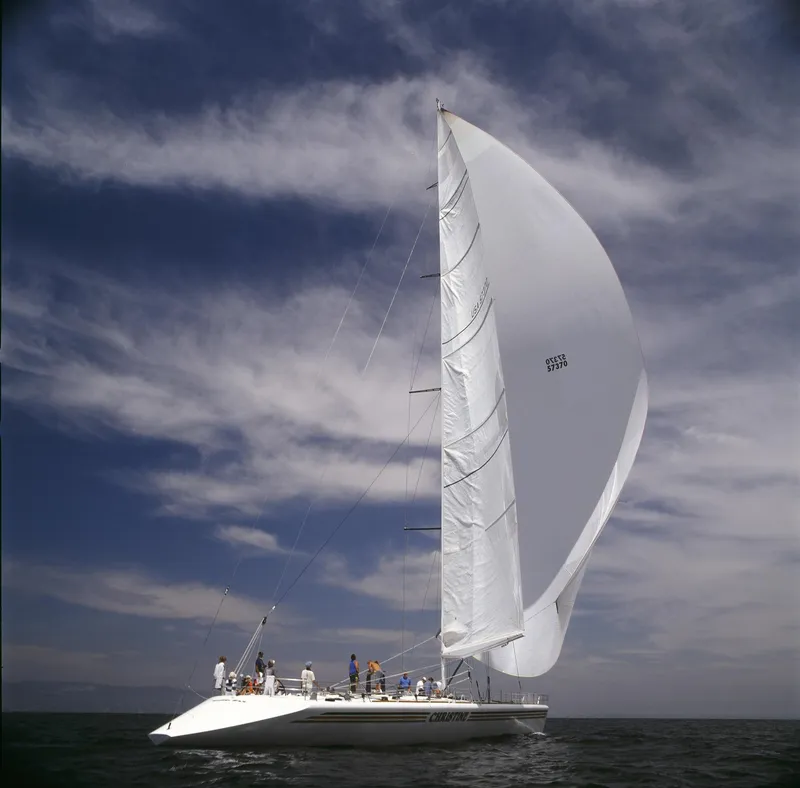

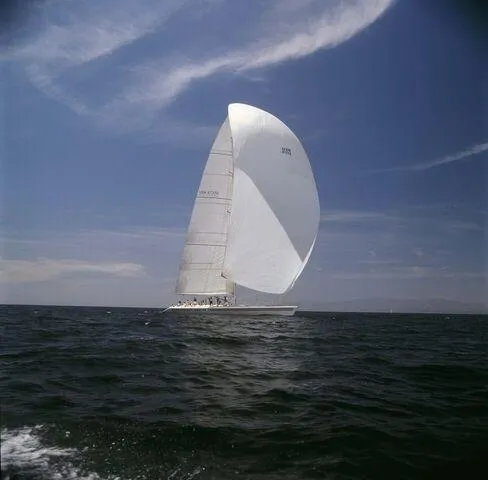

• Sailing down-wind without any help from the engine, "Christine" has sailed faster than 26kts.
• There are 4 additional fuel tanks located beneath the bunks for a total of 700 gal. fuel capacity.

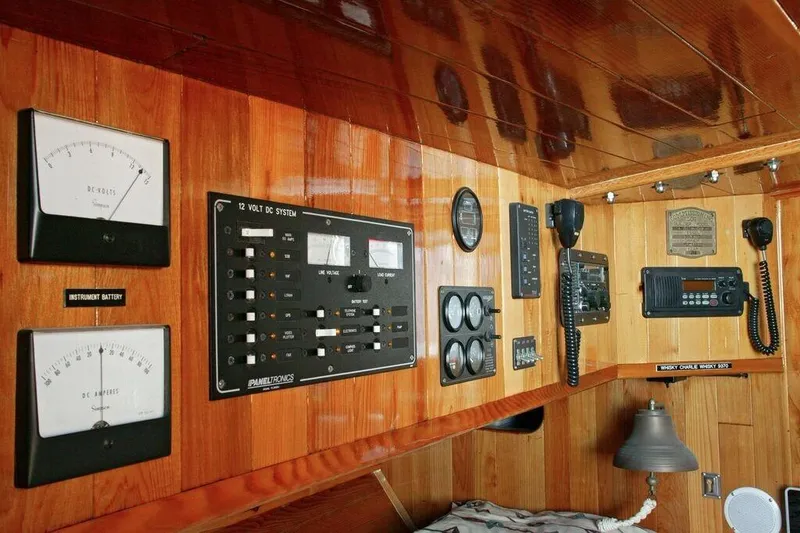

• 3 separate banks of deep cycle batteries.
• One battery bank provides the engine and generator starting power
• Second furnishes isolated power supply for the computer and instruments.
• Third bank services the remaining components and fixtures for the vessel.
• A 5000 watt Northern Lights diesel generator services the 110 volt needs

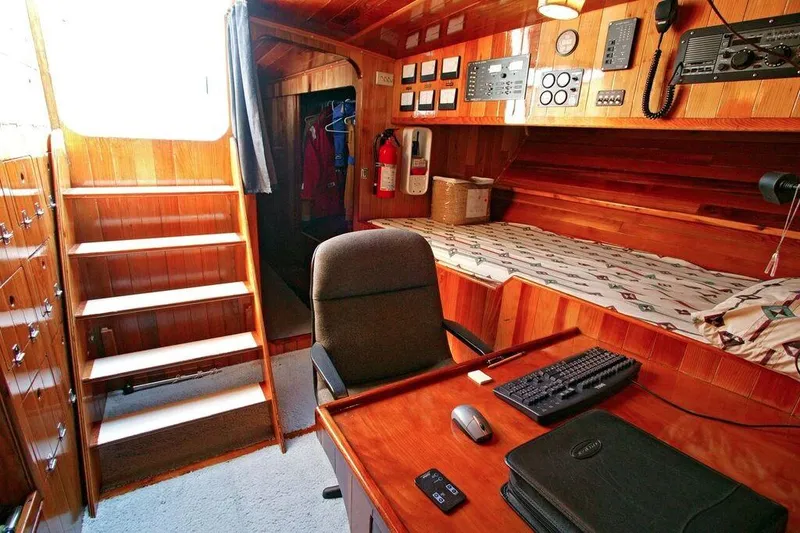

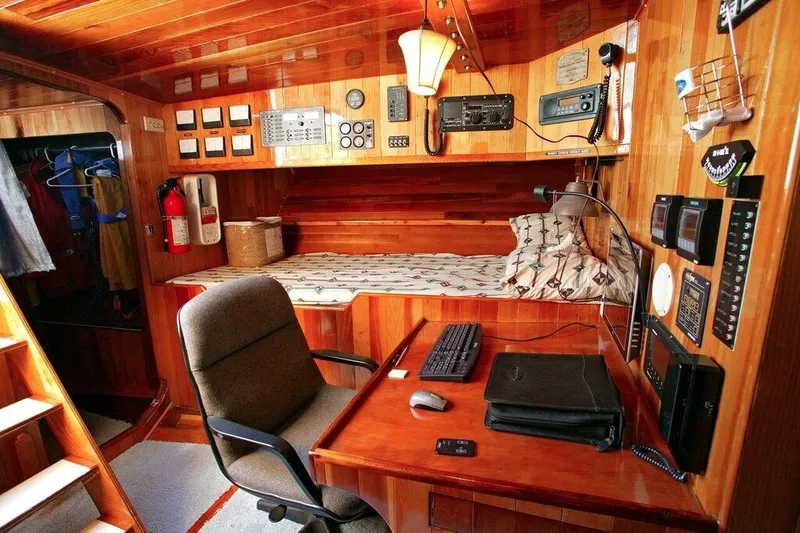

• E Marine Offshore Electronics Package that is hardwired to a Swiss GPS computer, as well as to the
• Vessels computer is used for the electronic chart system. The computer is high speed Dell unit with a 17" flat NEC high resolution monitor.
• All electronics “talk” to each other via NMEA 0183.
