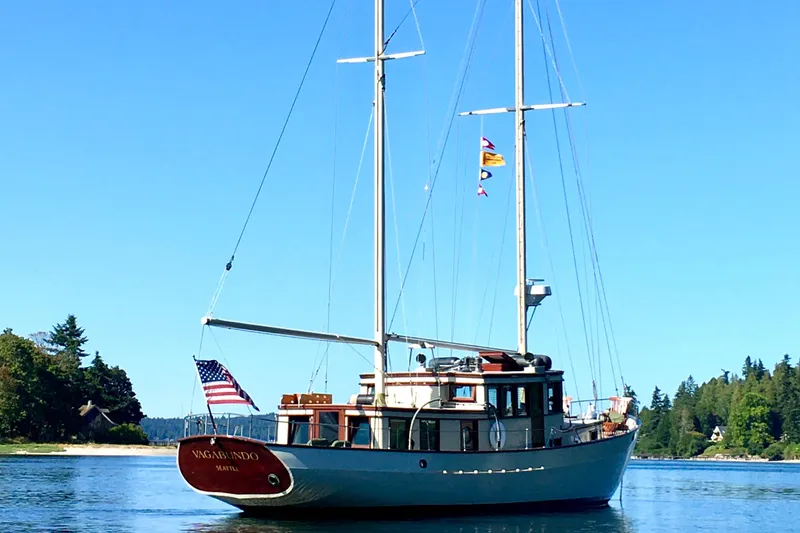

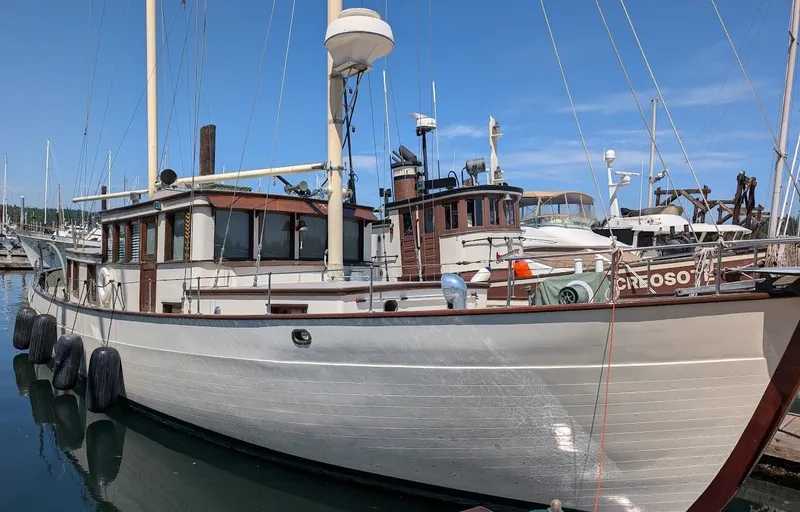

Designed by Walton Hubbard and Frederick Brewer, Vagabundo was constructed by the South Coast Boat Building Company in Newport Beach California for her first owner, Louis Cass, who frequently sailed to Catalina Island and Mexico with his family.

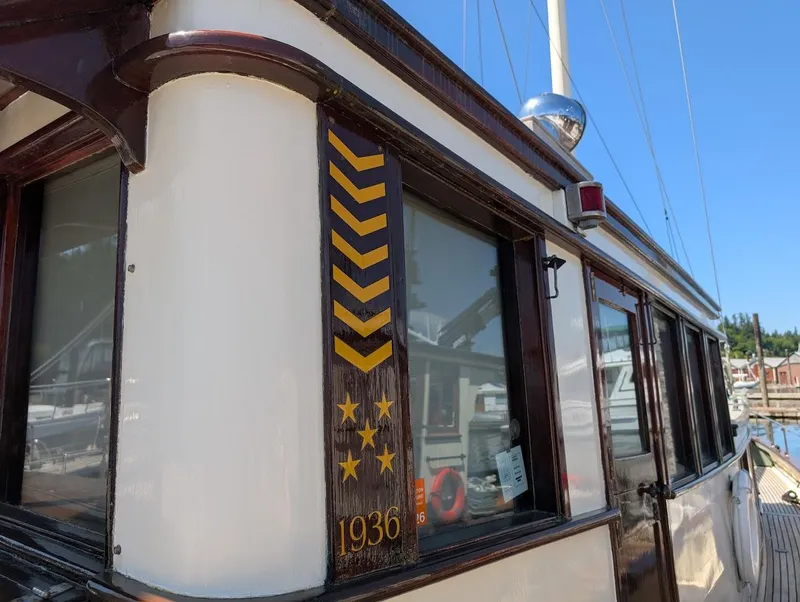

She also served in the United States Coast Guard for surveillance during World War II and proudly displays seven chevrons on her wheelhouse, as authorized by the Secretary of the Navy, to recognize her service.

With traditional lines and a spacious, functional layout, Vagabundo has undergone significant modernization and restoration to fully immerse its new owners in undeniable classic style, rather than an interpretation or replica.

Freshly repainted inside and out with complementary Polyurethane colors in 2022, Vagabundo displays a stunning surface finish quality that must be witnessed in person to appreciate the level of detail and care deserving of such a unique vessel.

ACCOMODATIONS

• Forward V-berth with two bunks and storage

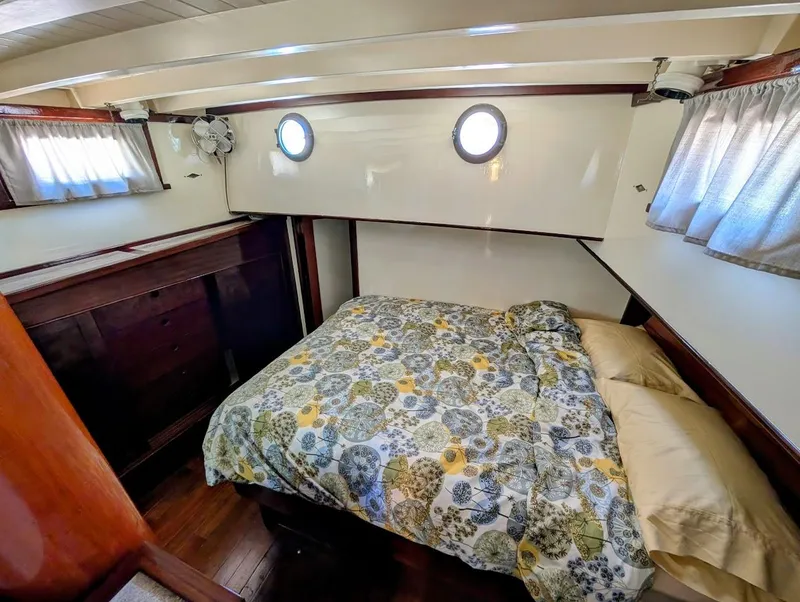

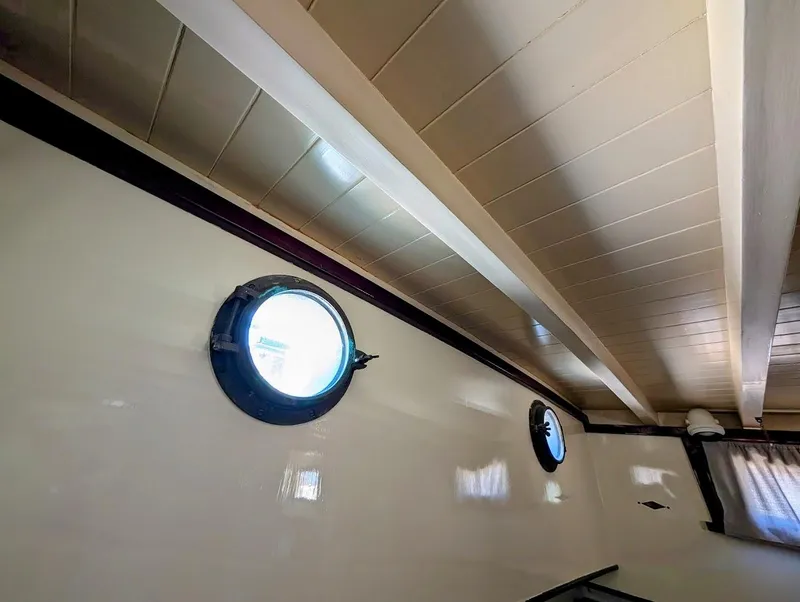

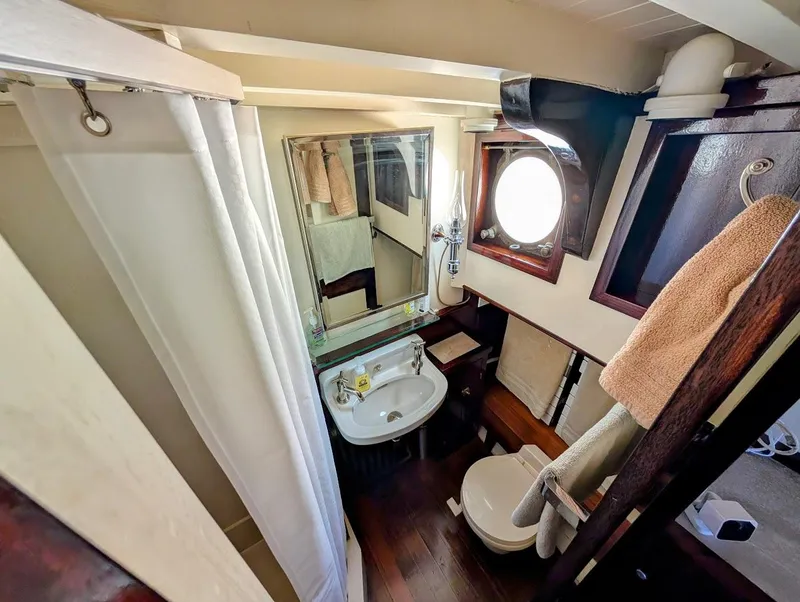

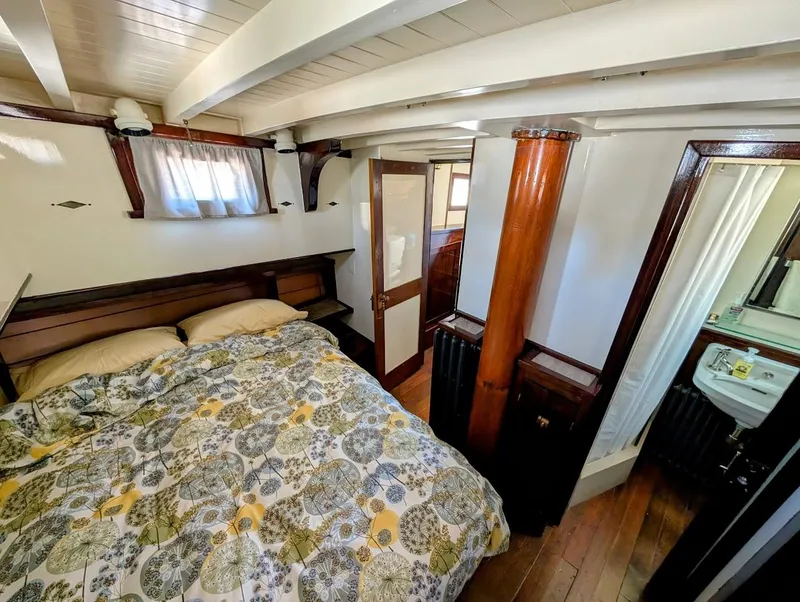

• Forward stateroom includes full-size bed with ensuite head, a stand-up shower and vintage sink. Multiple portholes admit light and fresh air, with radiators providing heat. In-floor heating is provided under the bed, bedside and adjacent to the head.

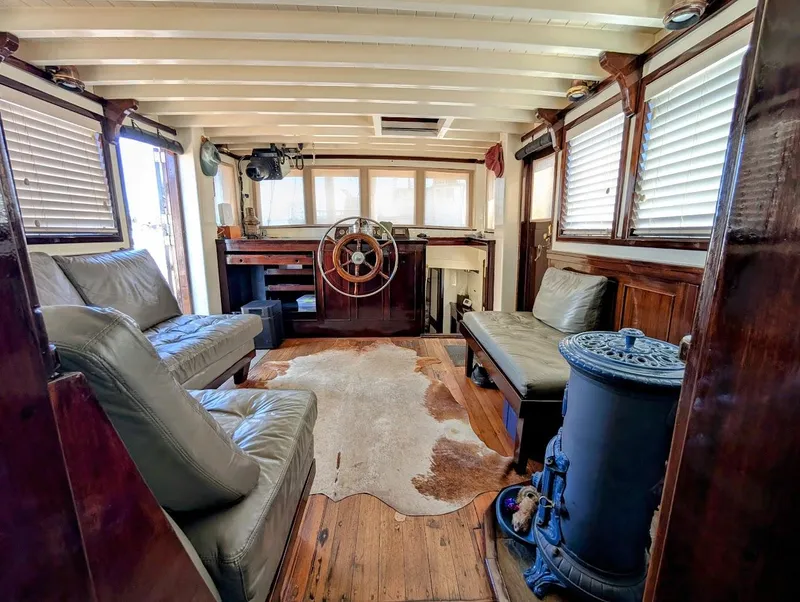

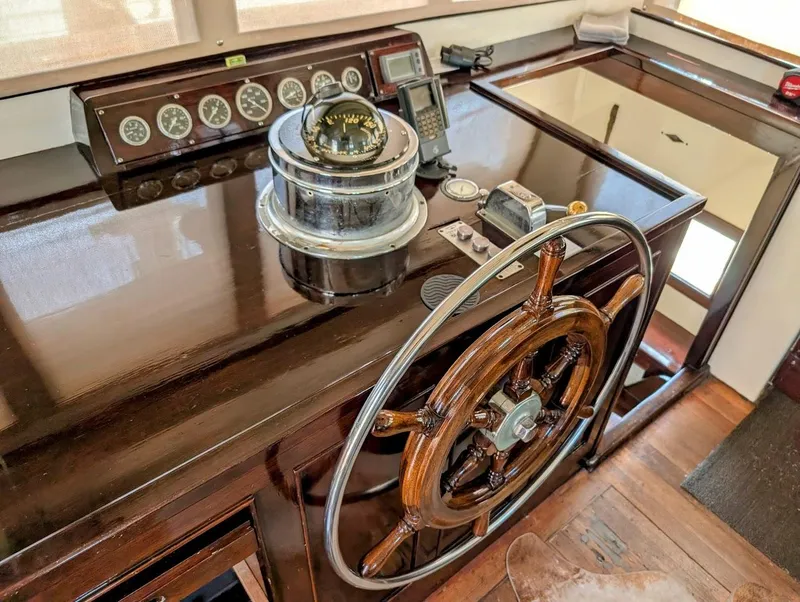

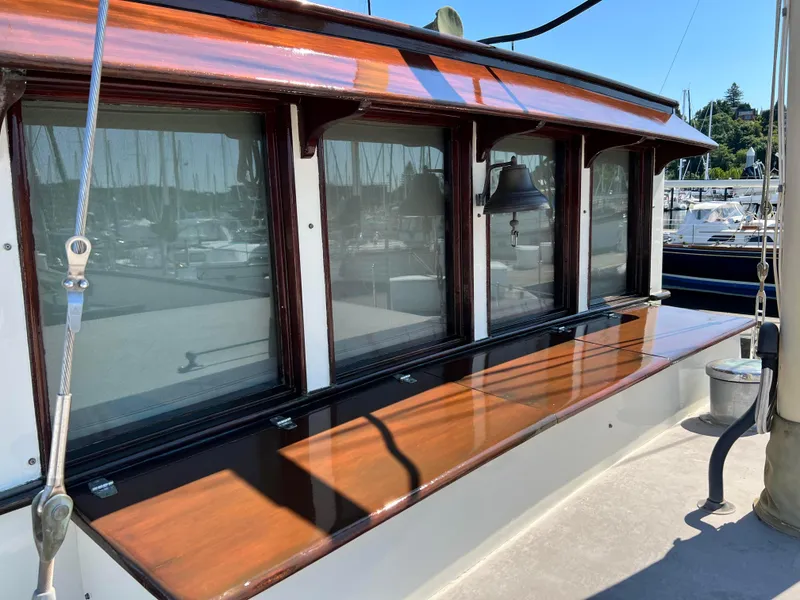

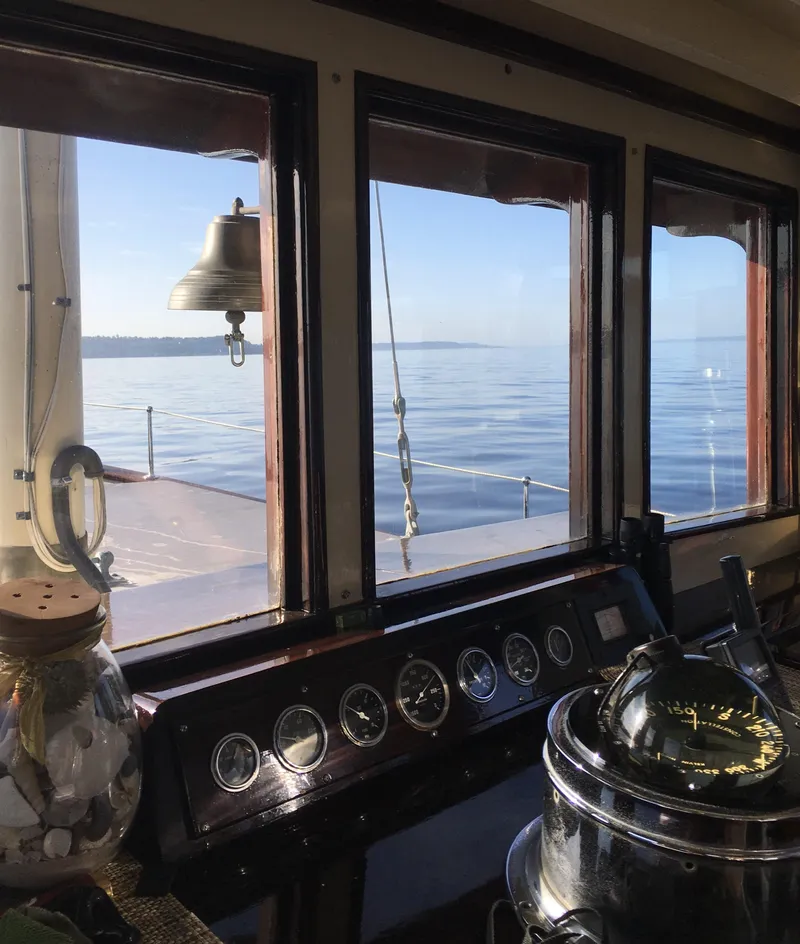

• Wheelhouse is accessed by full-size Dutch doors. Large windows offer panoramic views all around. Centerline helm has a large chart table. Leather settee and leather bench seating are port and starboard. Radiators and in-floor heating warm up the wheelhouse.

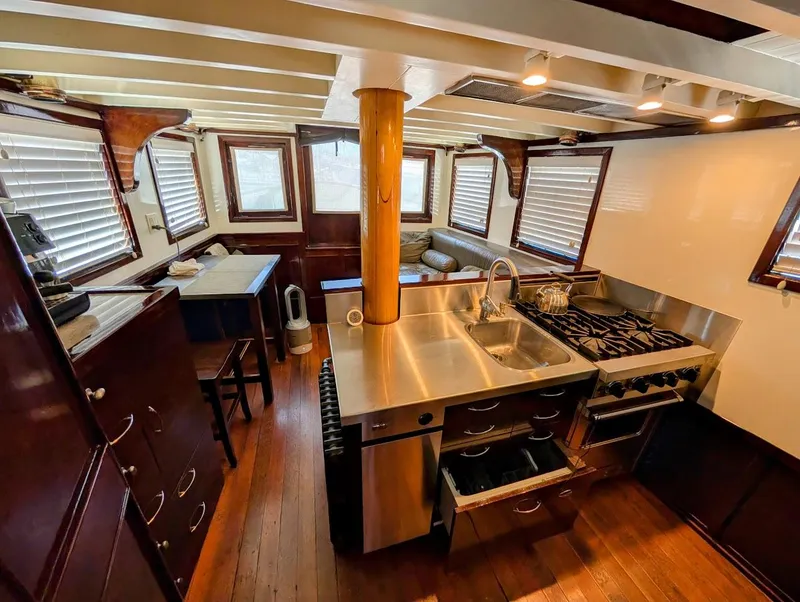

• Spacious galley is port side behind the wheelhouse with a full complement of appliances including a dishwasher, freezer, refrigerator and trash compactor. Custom cabinetry with 21 high-capacity drawers for storage and three upper sliding glass doors with eight shelves. Radiators and in-floor heating keeps the galley comfortable. A large hatch is centrally located overhead.
• Guest head is starboard side behind the wheelhouse, with a large porthole

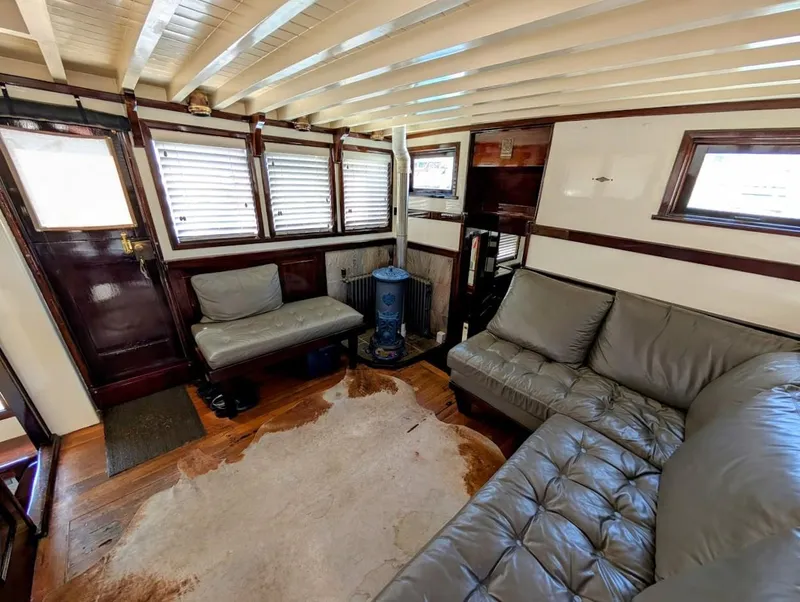

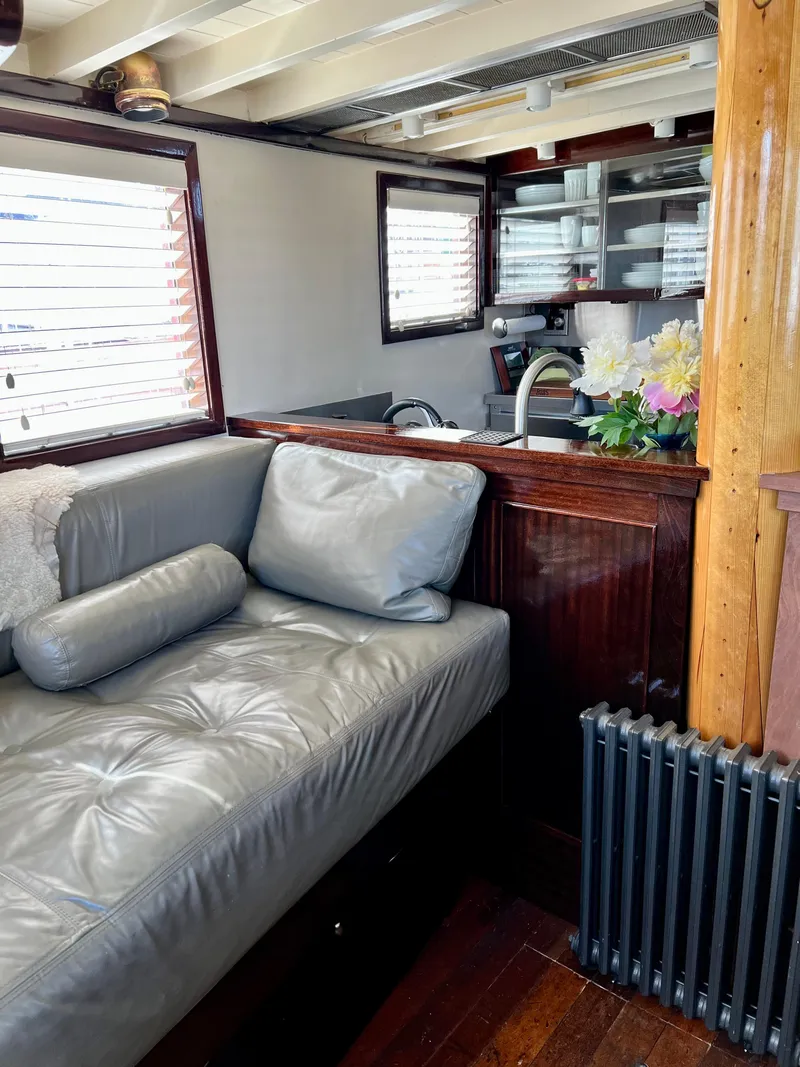

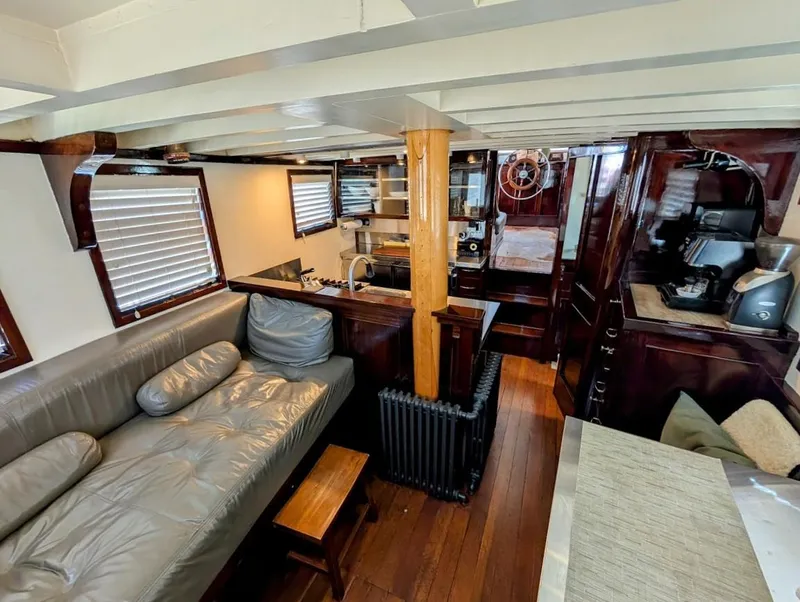

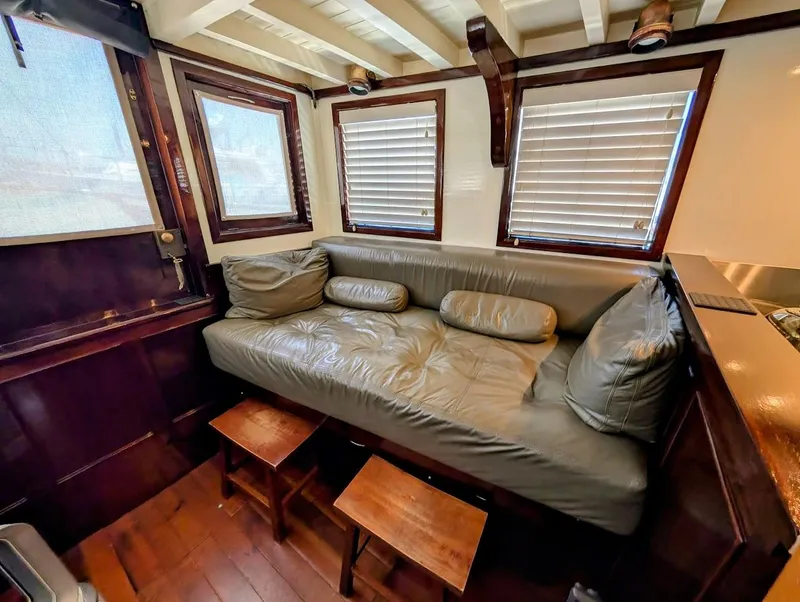

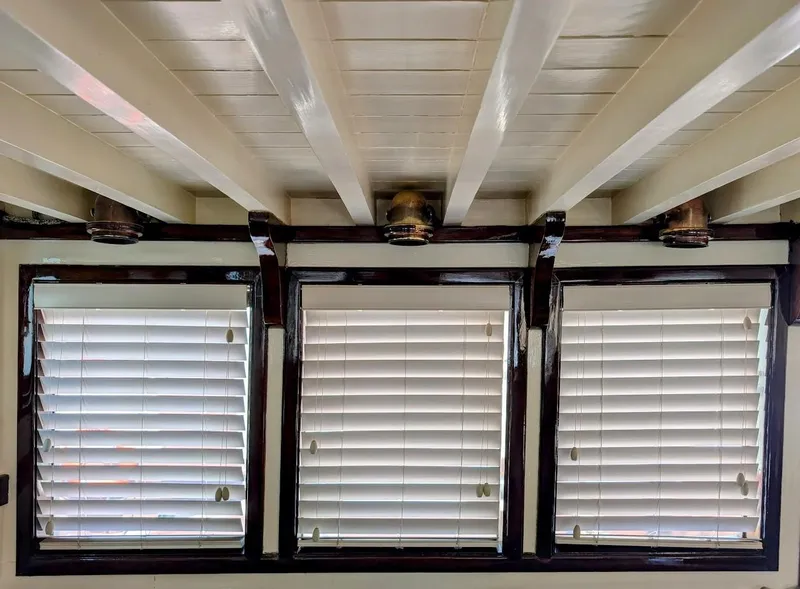

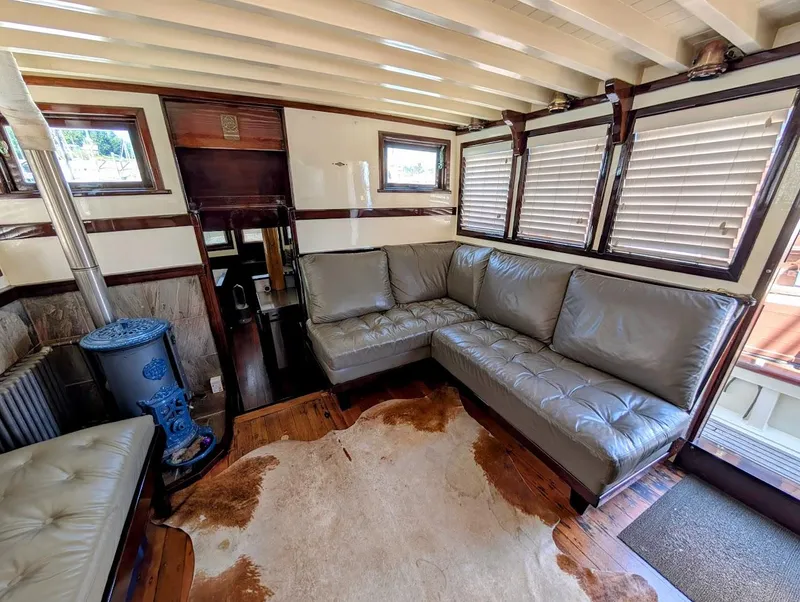

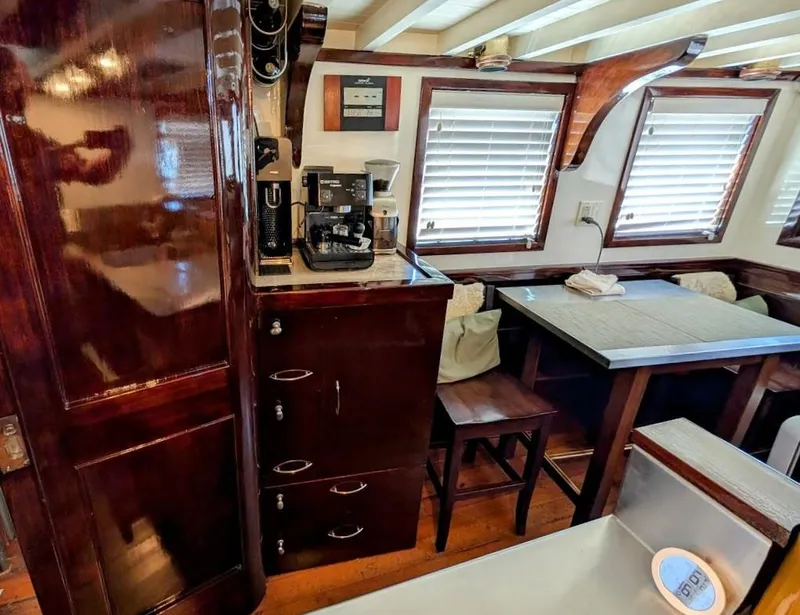

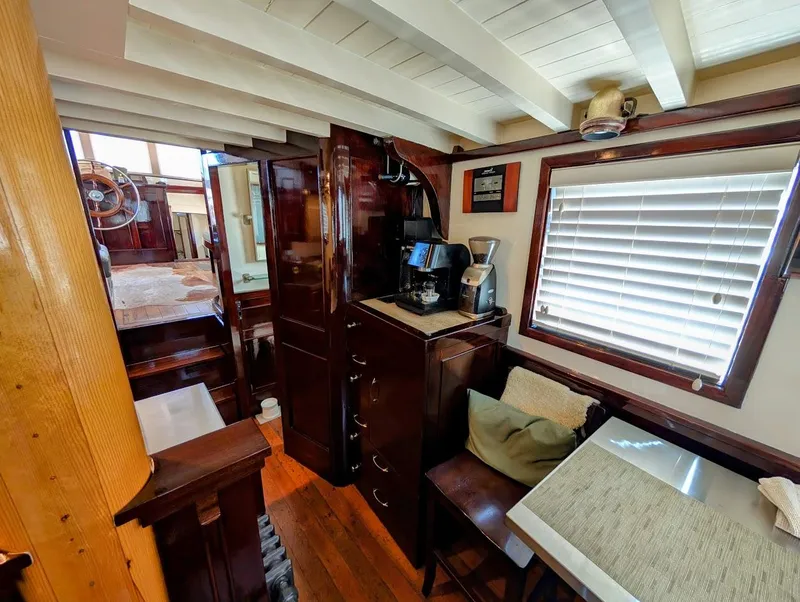

• Aft salon has another leather settee, which breaks down into a double berth portside with table and chairs starboard. Eight windows allow viewers to take in scenery and fresh air. Radiators are strategically placed throughout.
• Main living areas offer 6'4" of headroom.

MEASUREMENTS

• LOA: 59'
• Beam: 15'6"
• Draft: 7'6"

HULL AND DECKS

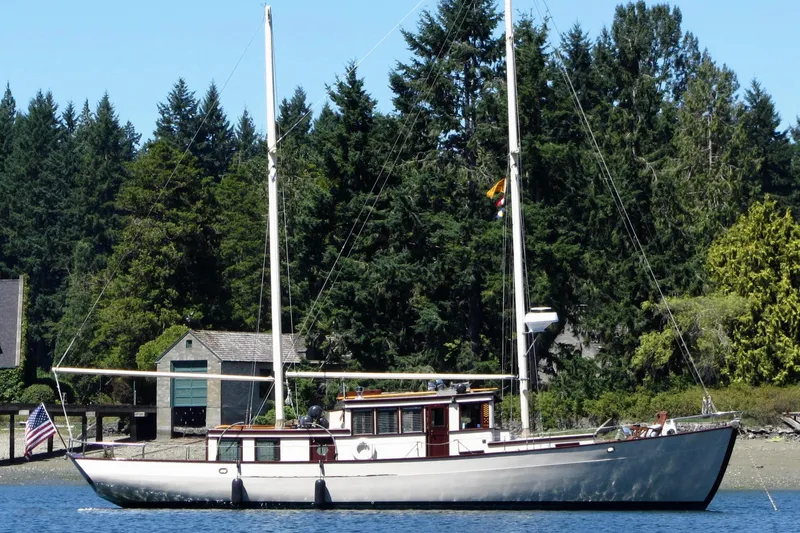

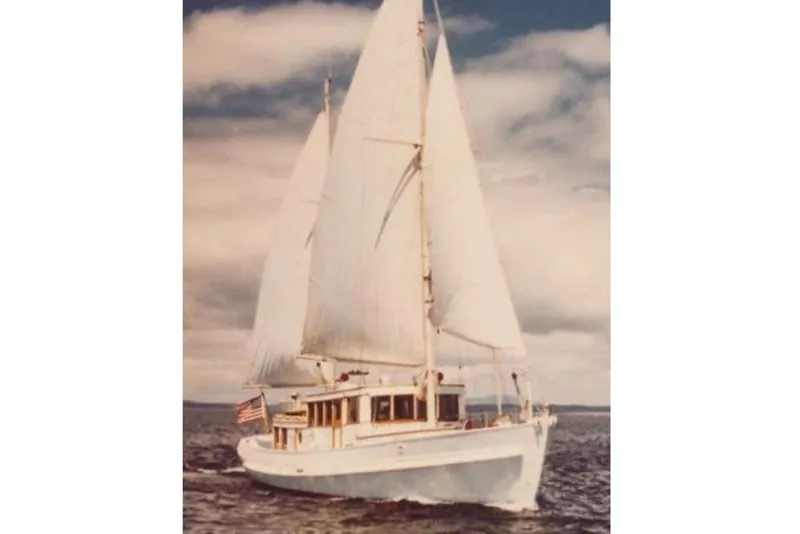

• Ketch rigged with spruce masts

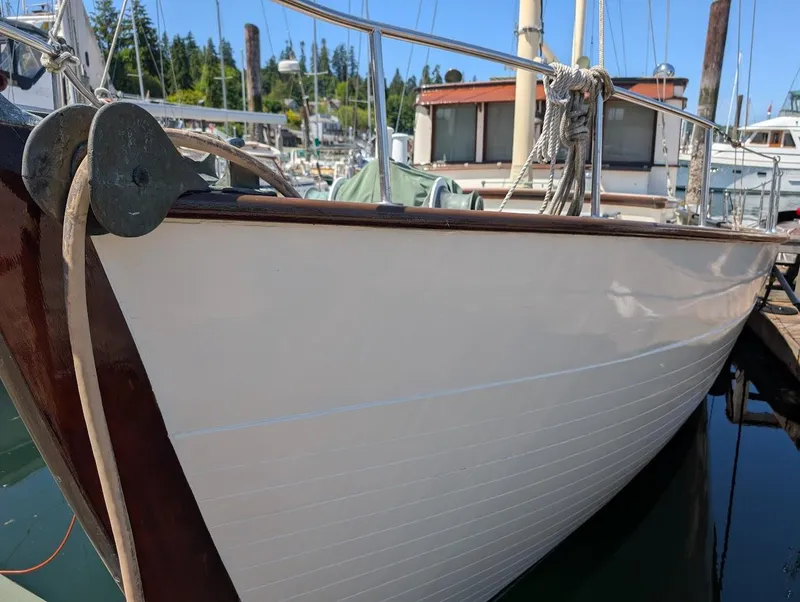

• Hull: Mahogany on Oak
• Decks: Teak over Fir

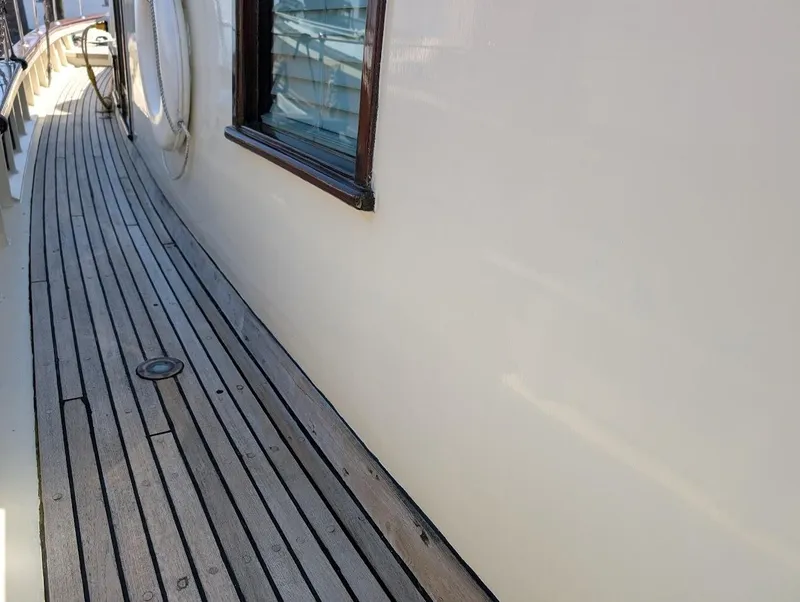

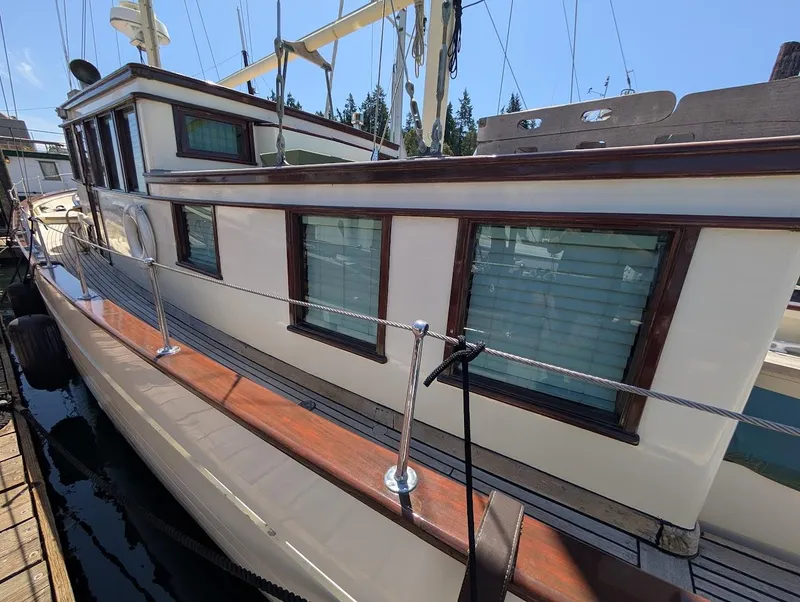

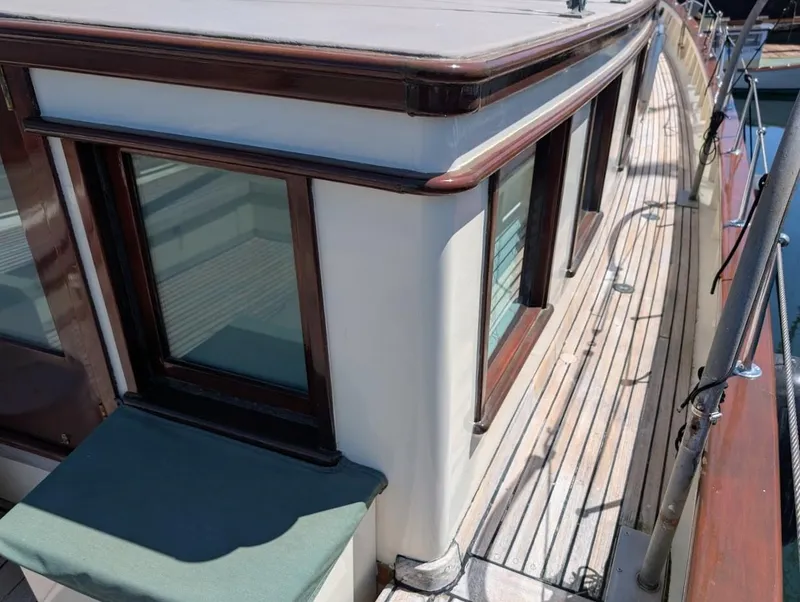

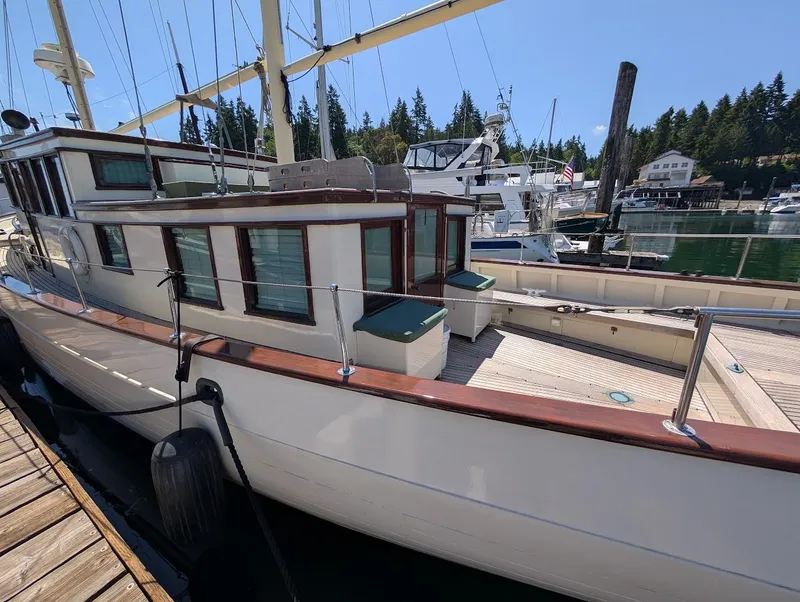

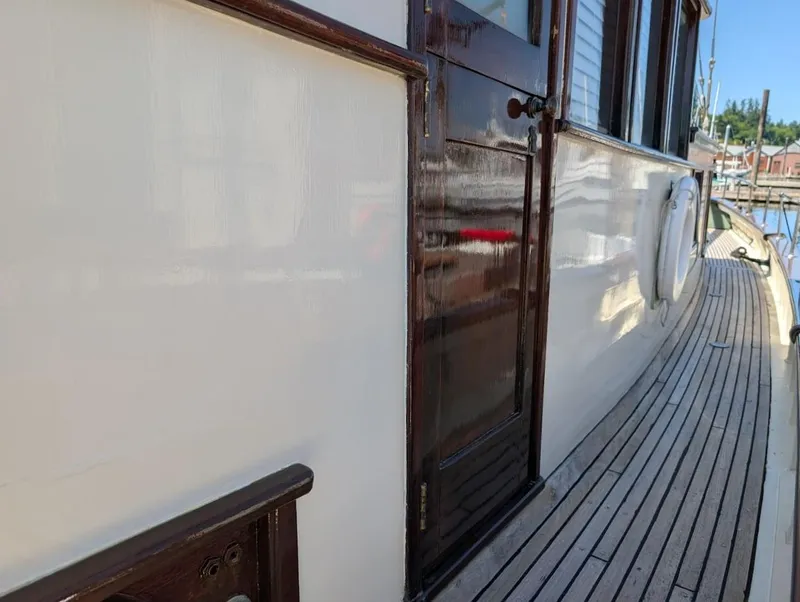

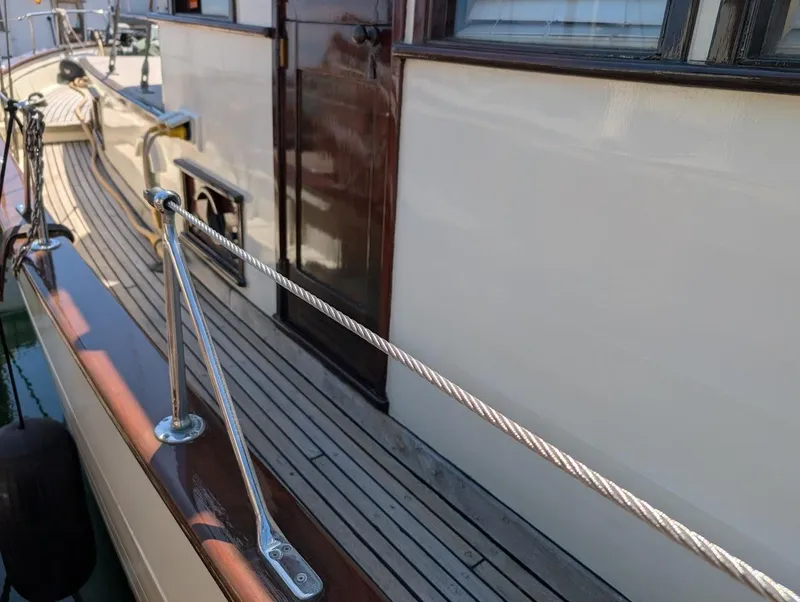

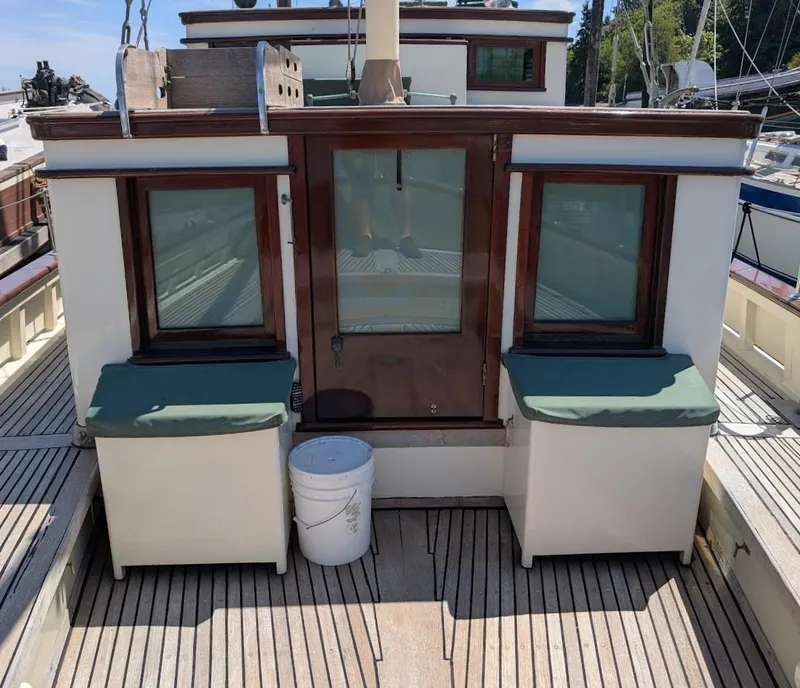

• Wide decking port and starboard of pilot house affords ease of movement forward and aft

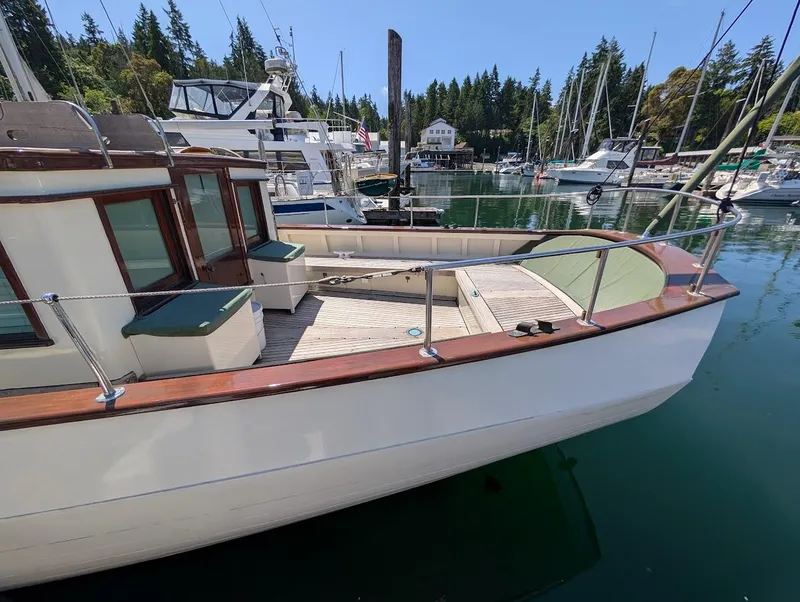

• Aft deck has plenty of seating, with storage for equipment and a chest refrigerator. Aft cabin roof has another locker for propane bottles.
• Forward of the wheelhouse are auxiliary lockers for deck lines and tackle.
• Recently rebuilt the transom and bulwarks.

PROPULSION AND MACHINERY

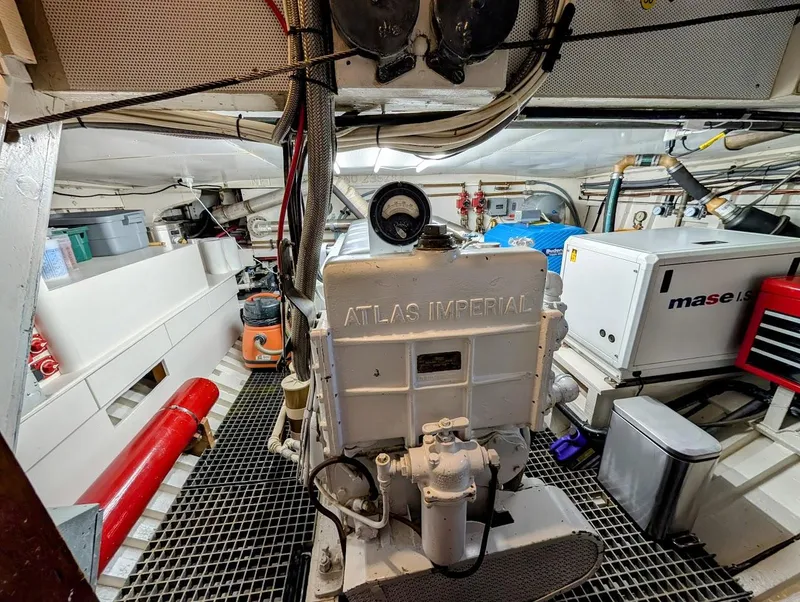

• Main engine: Atlas Imperial 135hp 6EH253 inline 6 cyl Diesel
• Transmission: Snow-Nabstedt 3766-3 with Wabco air clutch
• Generator: Mase IS 7,600watt, Yanmar 3TNE74c-EMG engine (March 2002)
• Buderus boiler G115-21 and Riello 40F3 burner provide hot water to cast iron radiators and in-floor heating in cabin areas

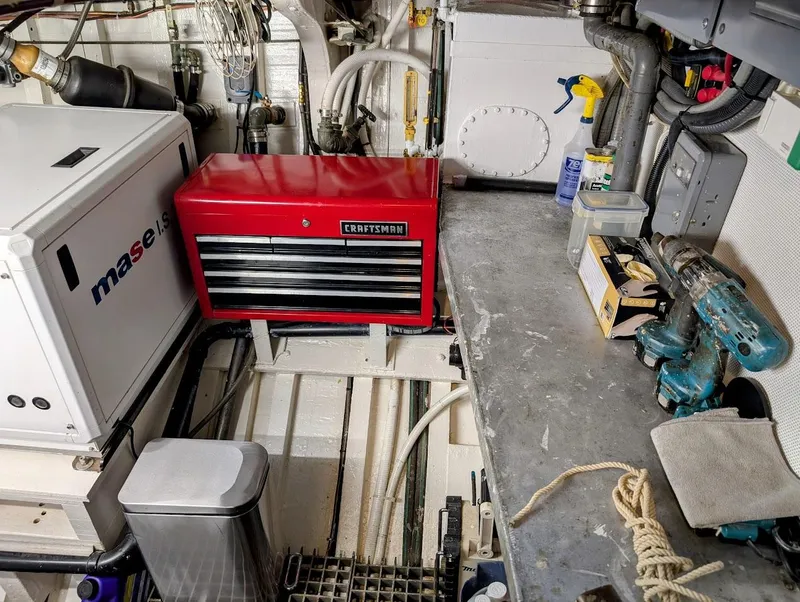

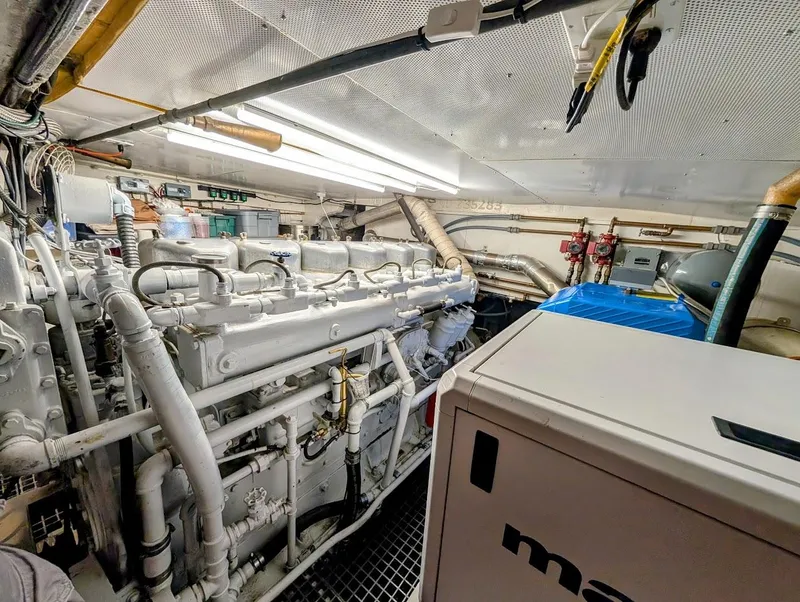

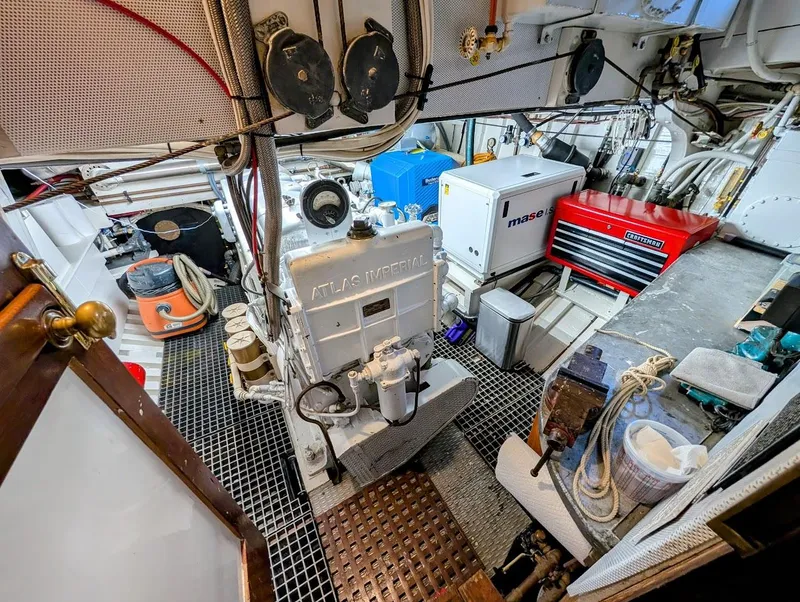

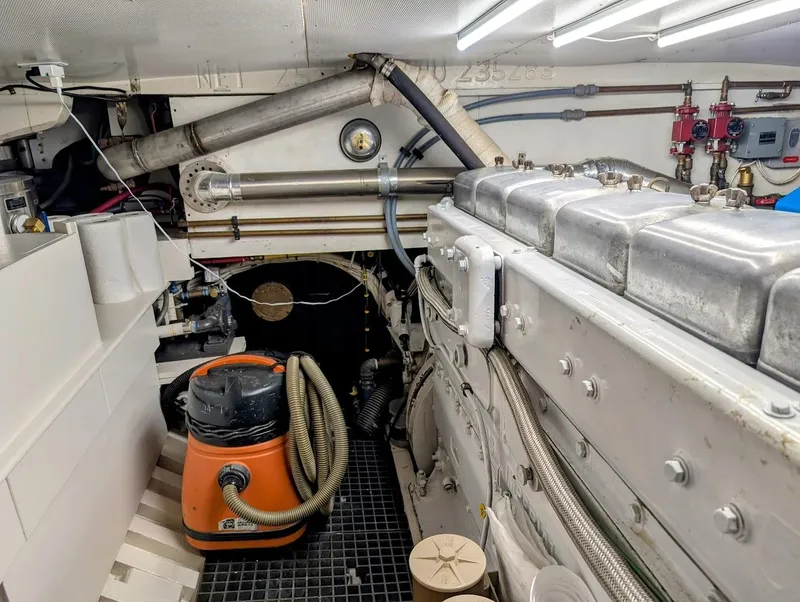

• Engine room is well lit, with walkway grating for complete access to mechanicals, is power ventilated and includes standing headroom up to 6'4" at the workbench
• Outboard of the walkways is the fuel management system, fuel polishing system, and fire suppression.
• Generator, boiler, air compressor, water heater, inverter, house battery bank and control panels for AC/DC systems are arranged to allow full access to the engine.

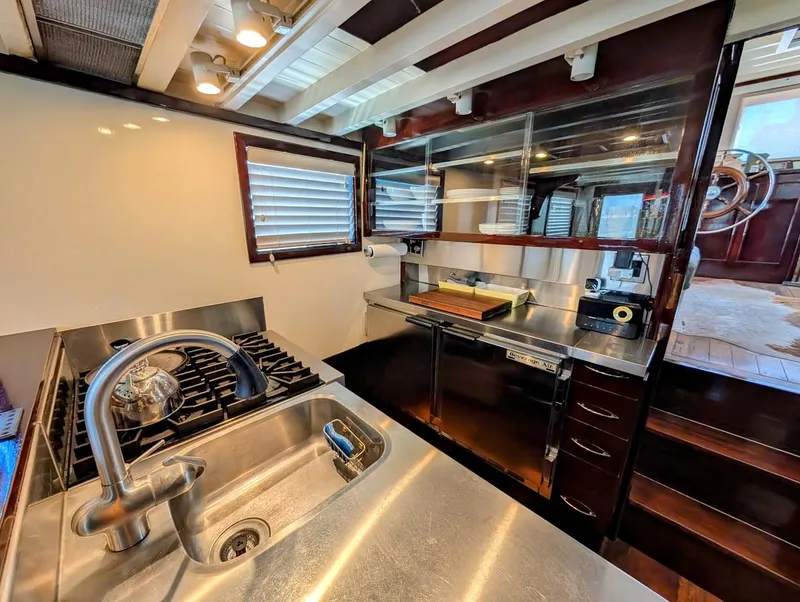

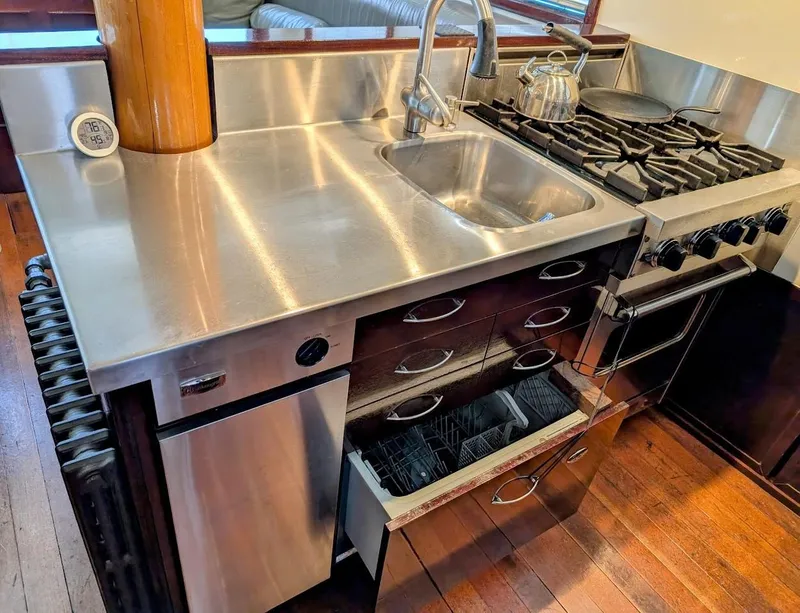

GALLEY

• Stainless counters and sink with Ladylux faucet
• Stainless Viking propane range with vent hood
• Beverage Air 11cu ft refrigerator
• Nova Kool freezer

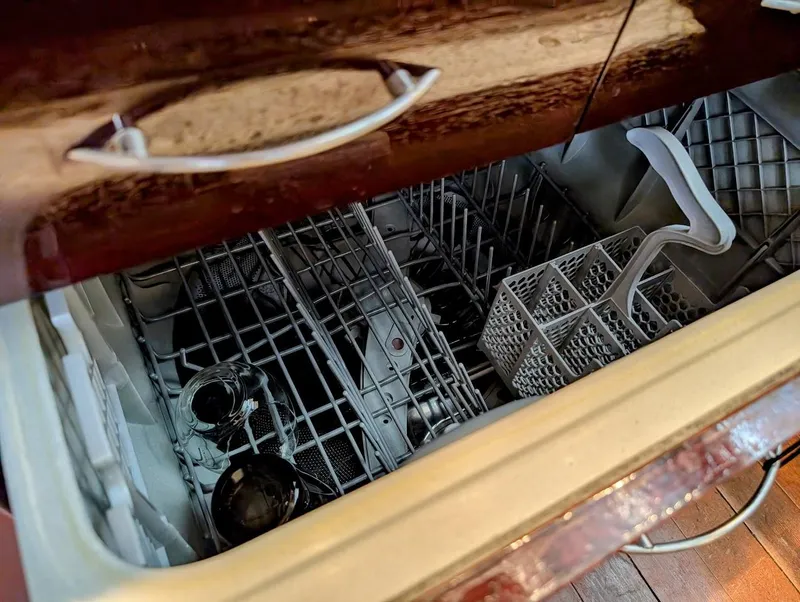

• Fisher&Paykel drawer dishwasher
• General Electric trash compactor

NAVIGATION

• Garmin GPS 75
• Garmin GPS receiver
• RayMarine ST40 depth and knot meter

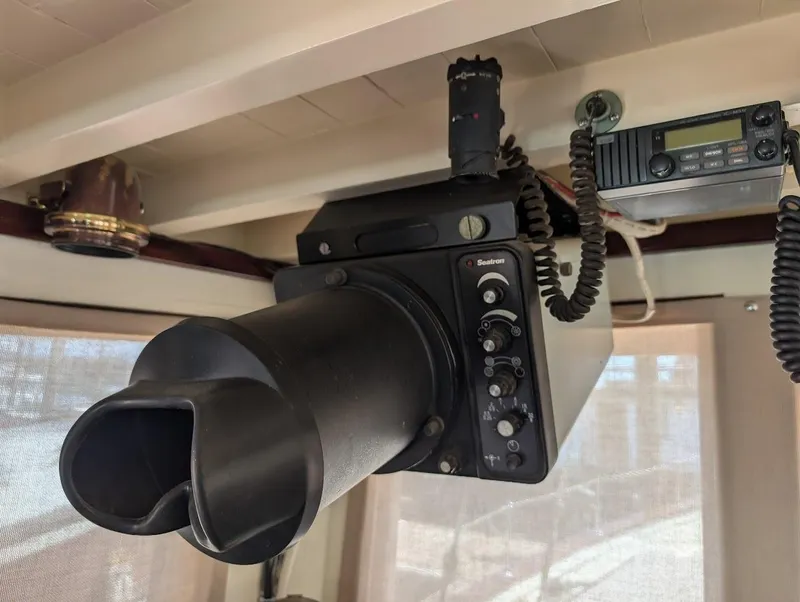

• Seatron 32 nm radar
• iCOM IC-M56 VHF

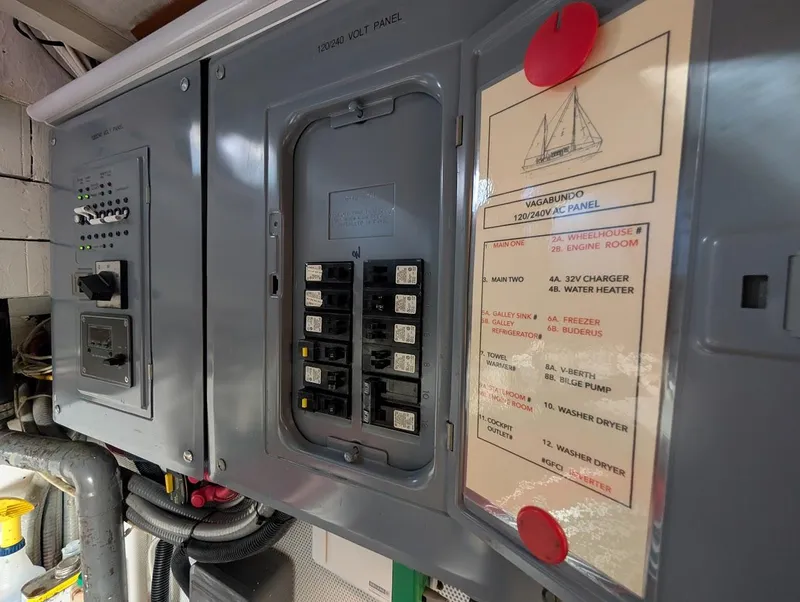

ELECTRICAL

• Cranking: 1ea 12v group 27 (June 2022) with Mase charger/alternator and ProMariner charger

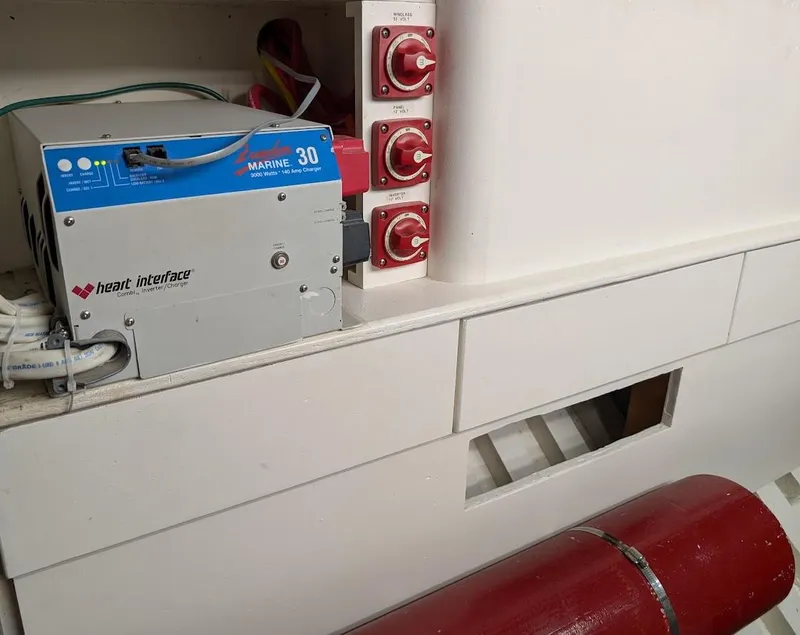

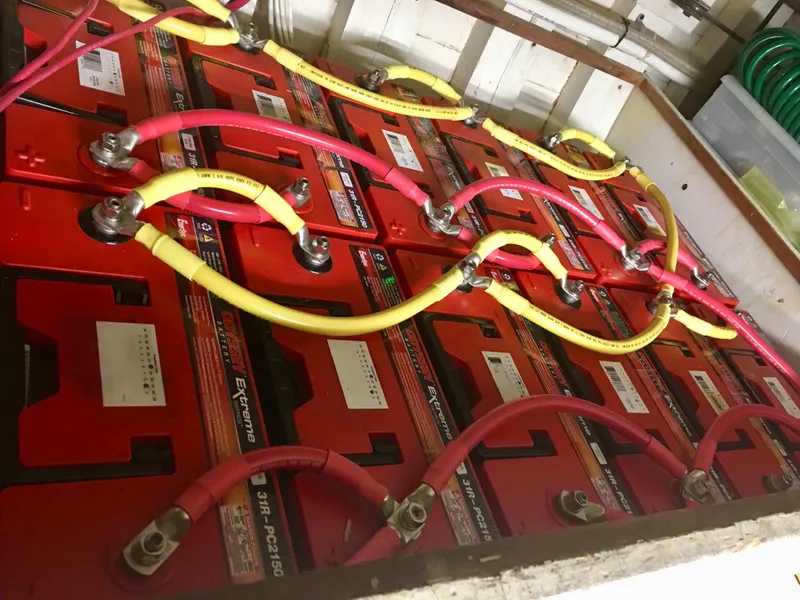

• House bank: 12ea 12v Odyssey AGM (July 2019) with Heart interface and 3000w Freedom Inverter
• Windlass bank: 4ea 8v Interstate (April 2020) with 32v Lewco charger and battery trickle charger
• 50a (1ea) 220v shore power cord 50'
• 30a (2ea) 120v shore power cord 50'
• 50a to 30a shore power pigtail

SANITATION

• Dometic (2ea) Vacuflush toilets
• Type 3 sanitation tank

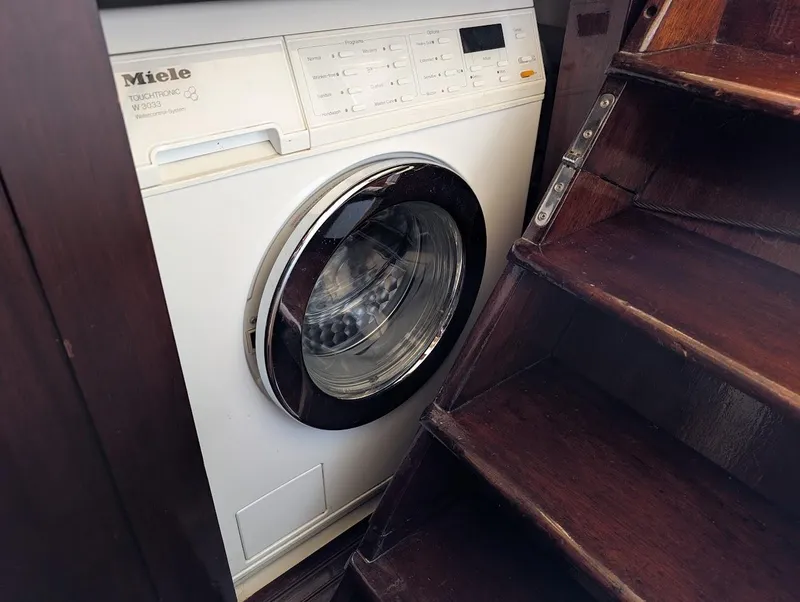

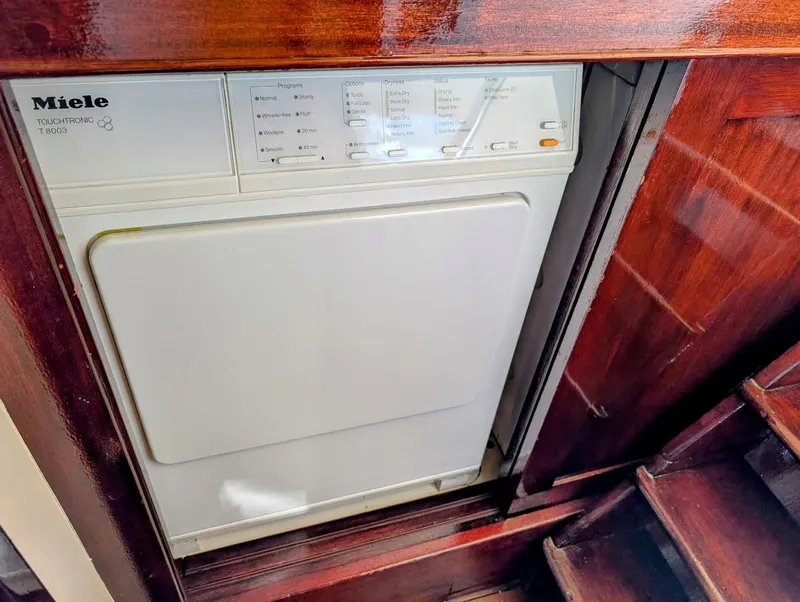

• Miele washer and dryer
• Dankoof Flowlight 12v water pump

TANKS

• Fuel: 1000 gallons total usable stored in four black iron tanks
• Water: 200 gallons total stored in two stainless steel tanks
• Black: 40 gallons total in Type 3 tank
• Propane: 5 gallons total in two steel tanks

AUXILLIARY AND SAFETY

• Super Blast marine horn
• Leslie Tyfon air horn
• Weems & Plath distress signal
• 8" brass bell forward of pilot house
• 2.5lb (2ea) Halon fire suppression
• 2.5lb (3ea) Dry chemical fire suppression
• 5lb (2ea) CO2 fire extinguishers
• 50lb (1ea) CO2 fire suppression in engine room
• Rule 2000 (2ea) bilge pumps
• Rule 2000 (1ea) auxillary bilge pump with high water alarm
• Jabsco (1ea) 44 GPM pump 1.5hp
• Emergency tiller

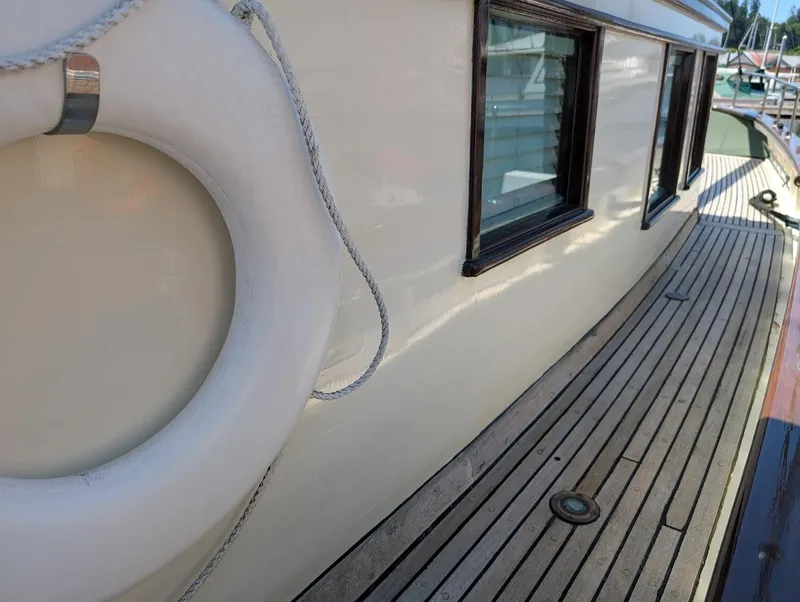

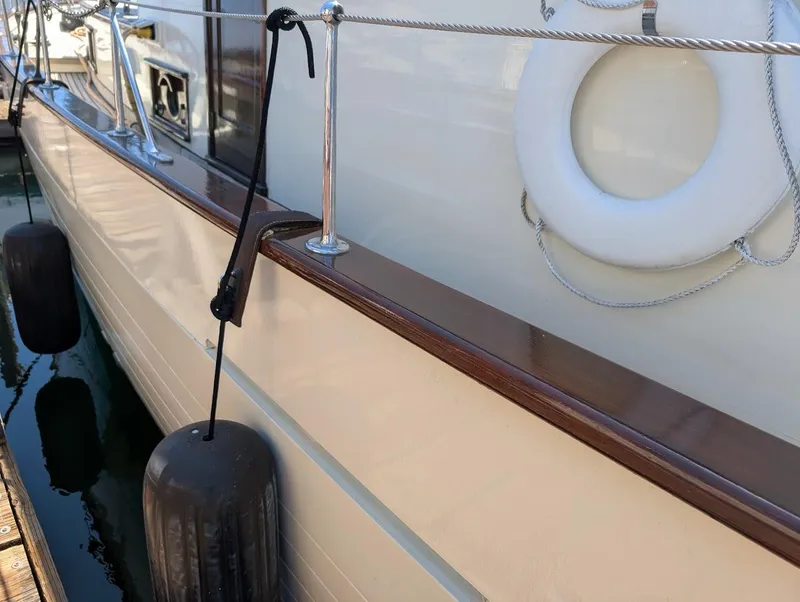

• Lifebuoy (2ea) type IV
• Type 1 PFD (2ea)
• Smoke detectors (3ea)
• Boarding ladder

GROUND TACKLE

• Danforth 75lb anchors (2ea)

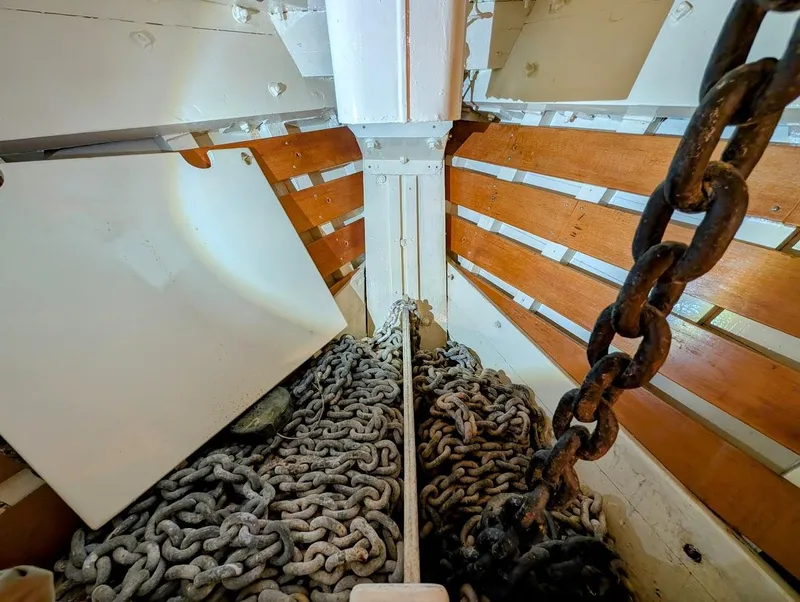

• 500' of galvanized chain (5/8")
• Spare anchor with 150' nylon rode (3/4")
• Windlass: Lee Bennett 32v dual chain gypsies and drums
• 50' (2ea) lock lines
• Dock lines and fenders

RECENT WORK

• June 2022 - Installed new (1) group 27 Dyno; Mase starting battery

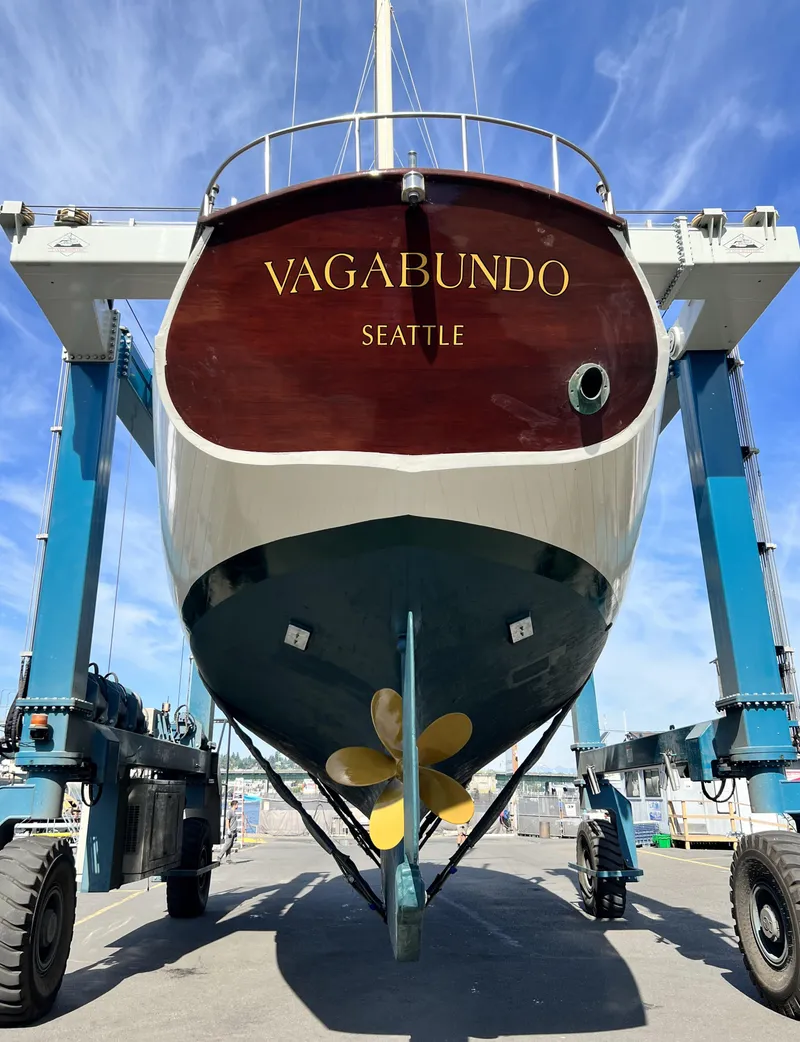

• June 2022 - Painted below waterline with Trinidad bottom paint
• June 2022 - Painted hull and boot stripe with EZPoxy
• June 2022 - Replaced plate zincs on hull and rudder shoe
• June 2022 - Applied Propspeed coating to the propellor
• February 2022 - Installed new air compressor lines and valves
• February 2022 - Installed vintage air regulator for the air horn
• January 2022 - Installed new Torrid water heater, PEX fresh water lines and valves
• 2021-2022 - Renovated and modernized the Master stateroom, Master head and V-Berth
• August 2021 - Installed new 40 gallon holding tank and sanitation lines
• July 2021 - Installed new (2) Rule 2000 automatic bilge pumps
• April 2021 - Rebuilt the Miele washing machine
• January 2021 - Installed new fuel lines and valves
• January 2021 - Rebuilt Vacu-flush pumps and installed a new vacuum canister
• December 2020 - Installed new shower sump pump
• December 2020 - Installed new fuel polishing system
• November 2020 - Inspected fuel tanks
• November 2022 - Forward fuel tanks cleaned and lined by West Coast Tank

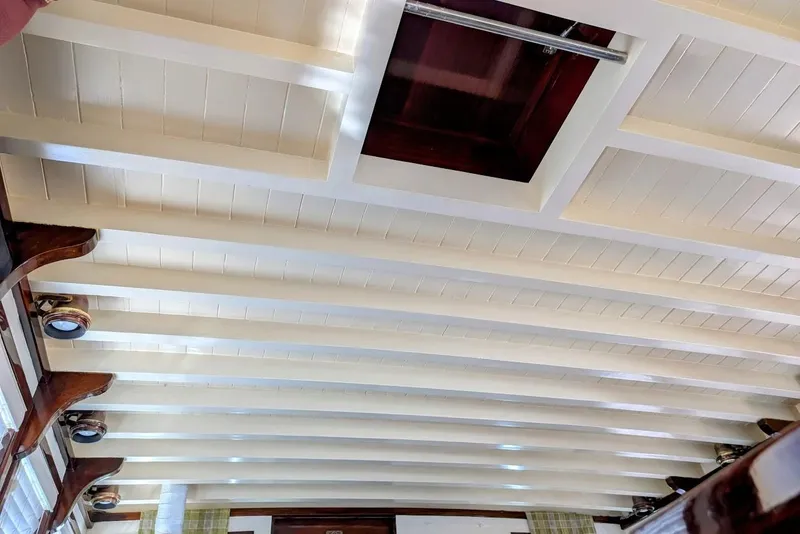

• October 2020 - Built and installed custom galley hatch
• July 2020 - Installed new wash-down pump and hoses
• April 2020 - Installed (4) 8v GC8 Interstate batteries (32v system)
• August 2019 - Built and installed new teak top on forward dorade box
• August 2019 - Built and installed new hatch on wheelhouse
• July 2019 - Installed new (12) 12v battery bank AGM and balanced system
• July 2019 - Installed new dry-sump lube oil lines

MOORAGE

• Transferable slip at Bainbridge Island Marina (details available upon request)

EXCLUSIONS

• Personal tools (located in plastic totes above battery bank)
