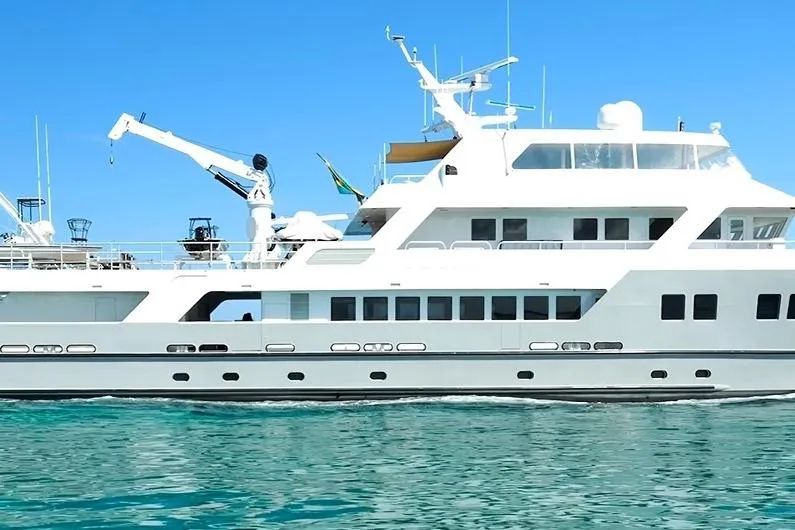

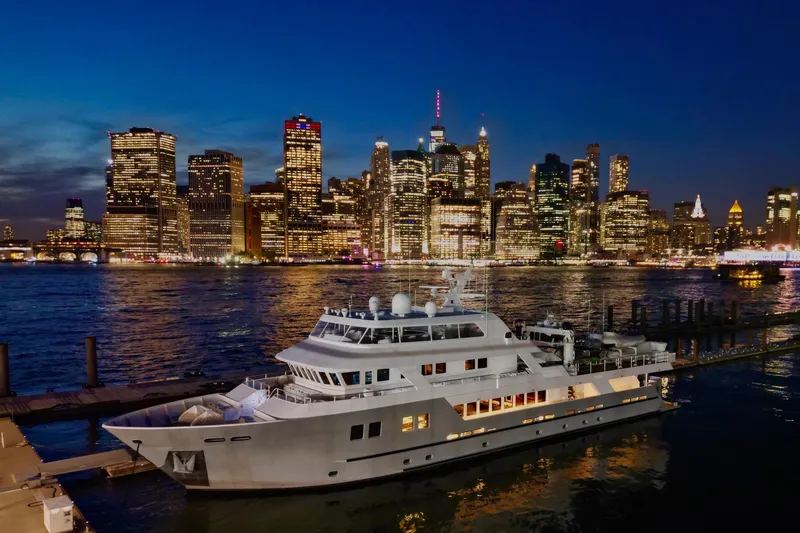

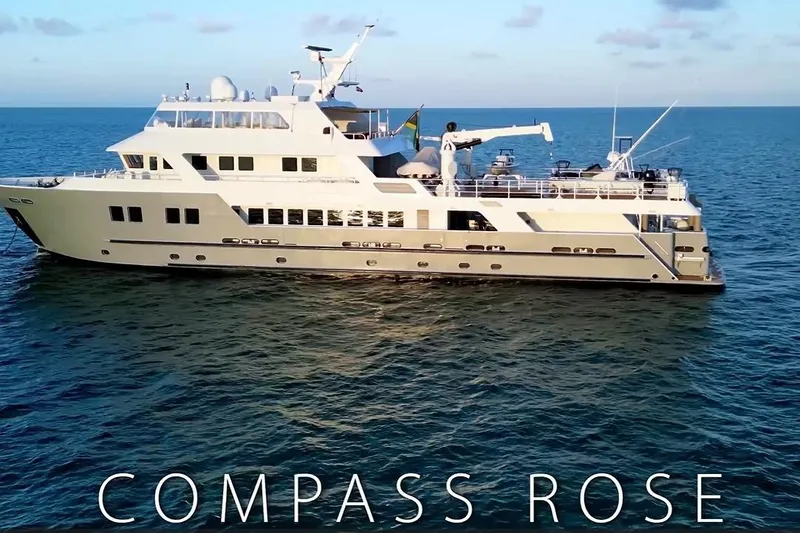

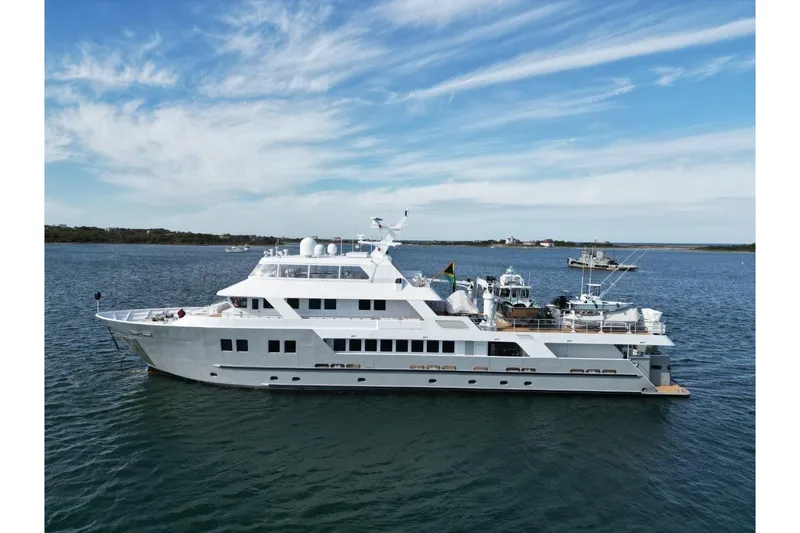

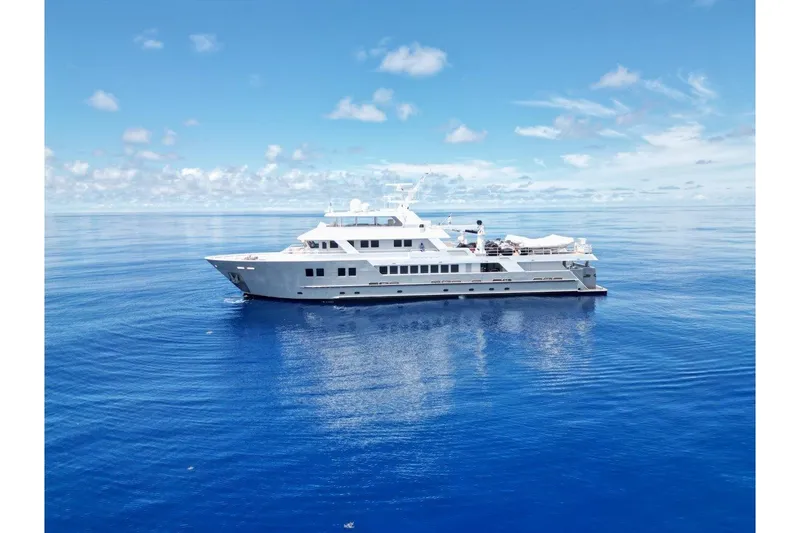

2011 CG Boat Works Explorer

• Builder: C & G Boatworks
• LOA: 161 ft (49.23m)
• Beam: 36 ft
• Draft Min/Max: 6'.6 / 7'.6
• Year: 2011
• Refit: 2015

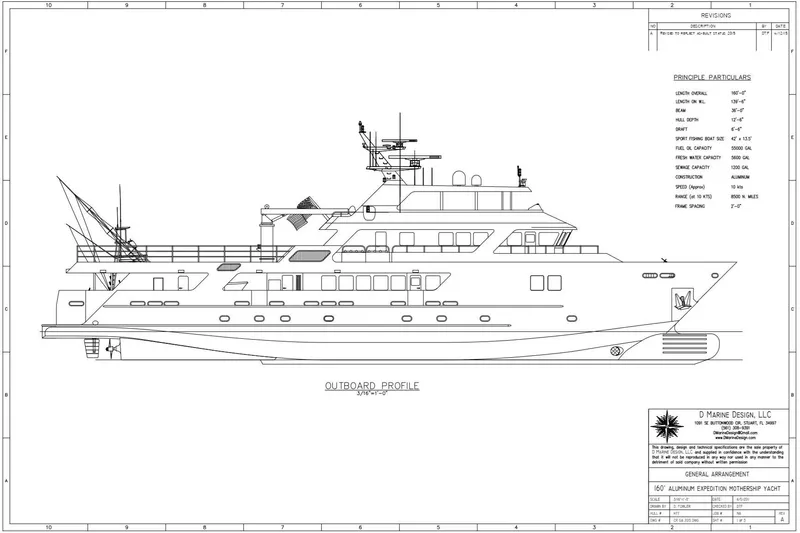

• Naval Architecture: D. Marine
• Interior Design: D. Marine
• Hull Material: Aluminum
• Superstructure: Aluminum
• Gross Tonnage: 621 GT
• Decks: 4
• Flag: Jamaica
• Fuel Capacity: 51,720 gallons
• Water Capacity: 6,000 gallons
• Range: 9,000+ nautical miles at 10 knots
• Cruising Speed: 12 knots
• Maximum Speed: 15 knots

• 9,000+ NM range at 10 knots
• Aluminum hull & superstructure
• 5-stateroom layout for 10 guests
• Crew accommodations for up to 10 in 5 cabins
• Twin Caterpillar 3508B engines (1,050 HP each)
• Extensive tender and toy inventory
• 2015 refit
• 621 GT of interior volume

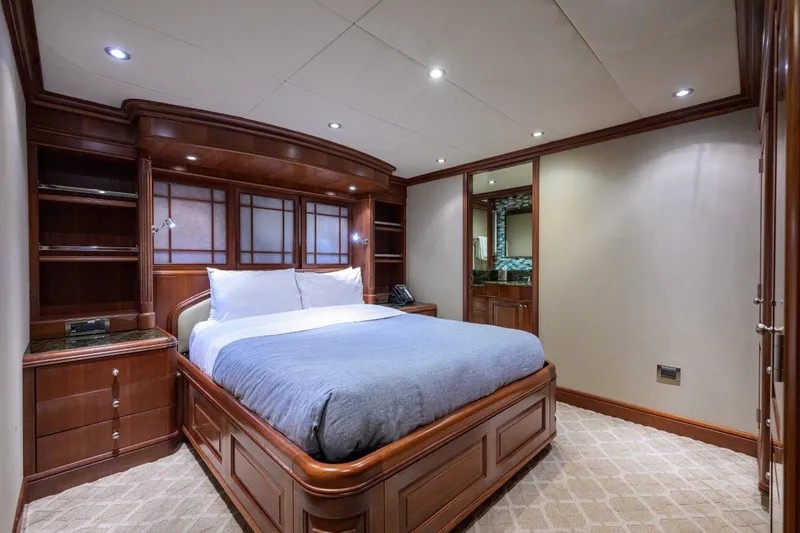

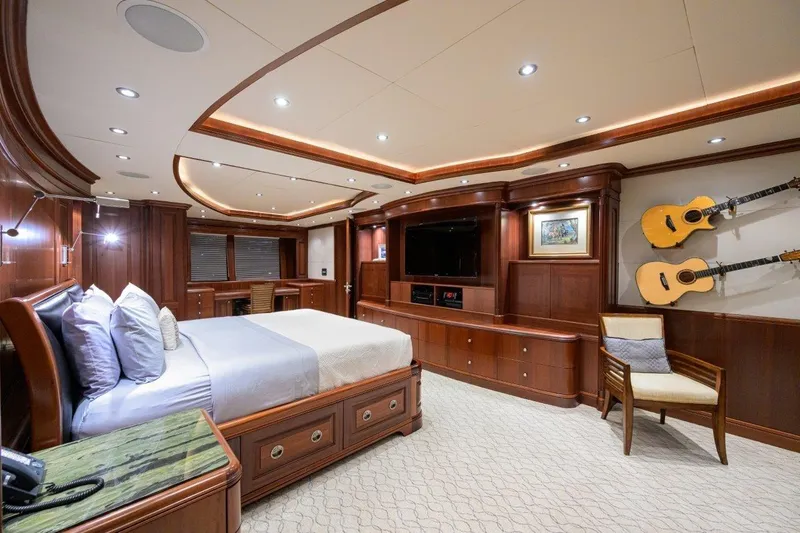

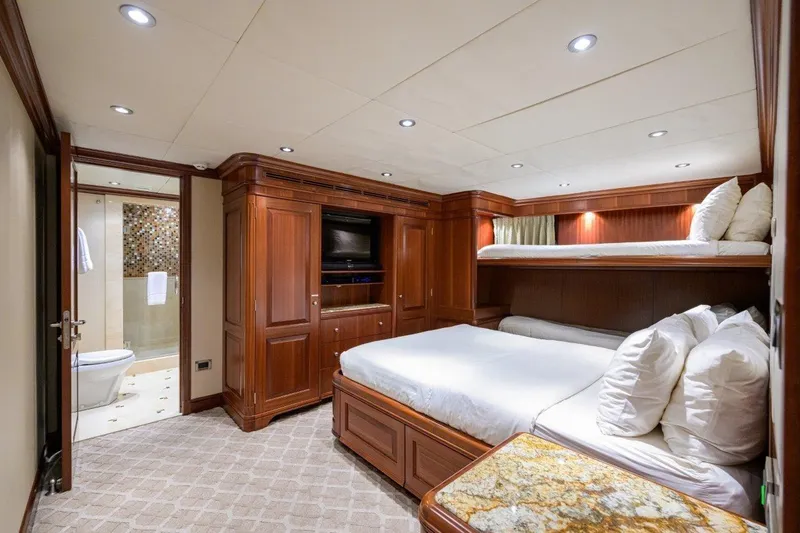

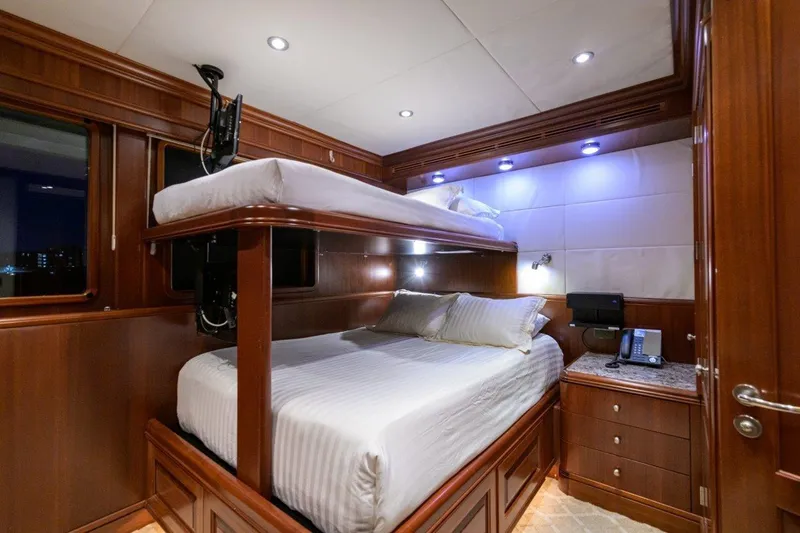

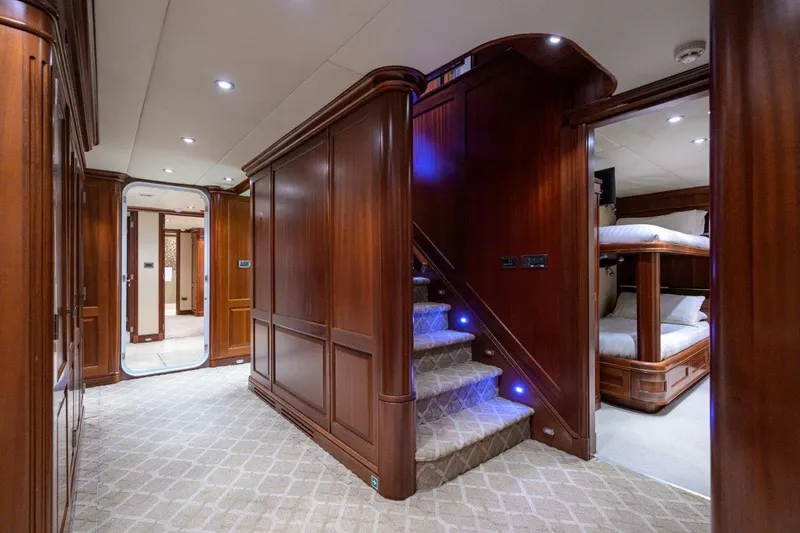

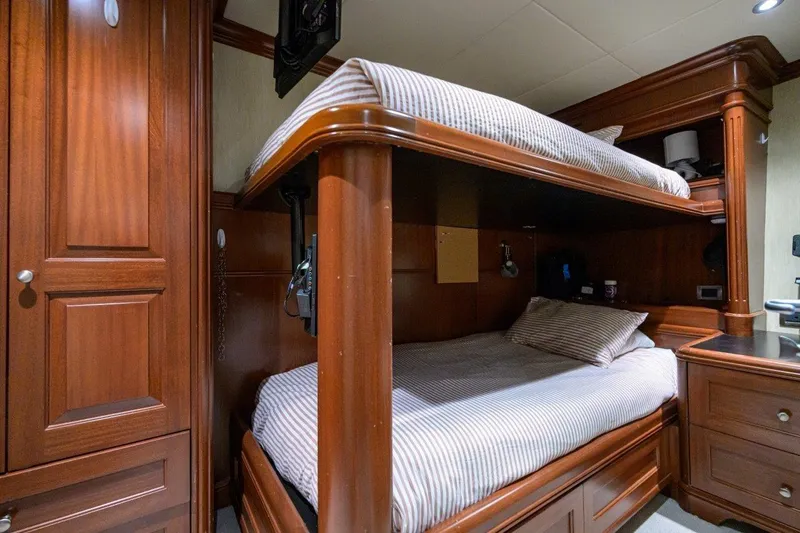

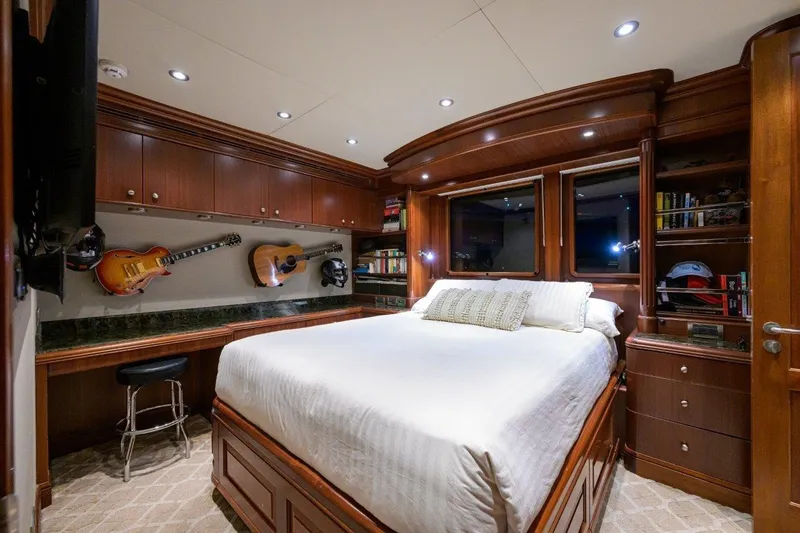

COMPASS ROSE accommodates up to 10 guests in five staterooms, comprising:

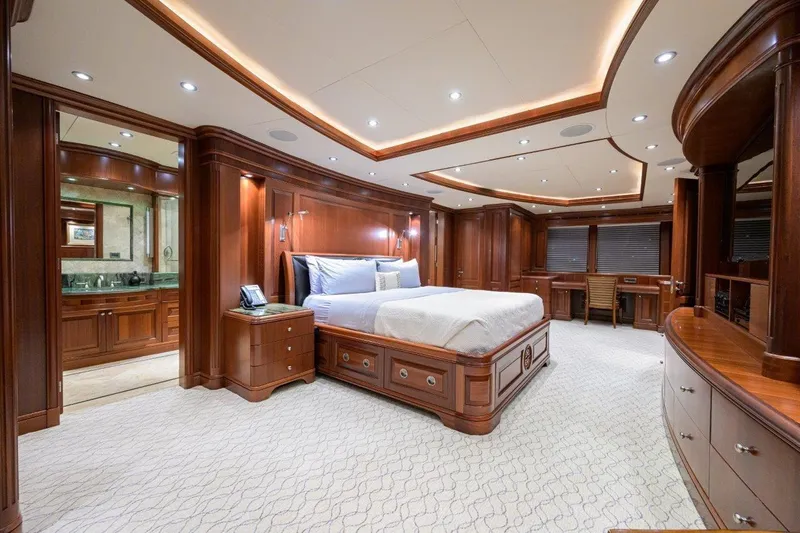

• 1 King Stateroom
• 3 Queen Staterooms

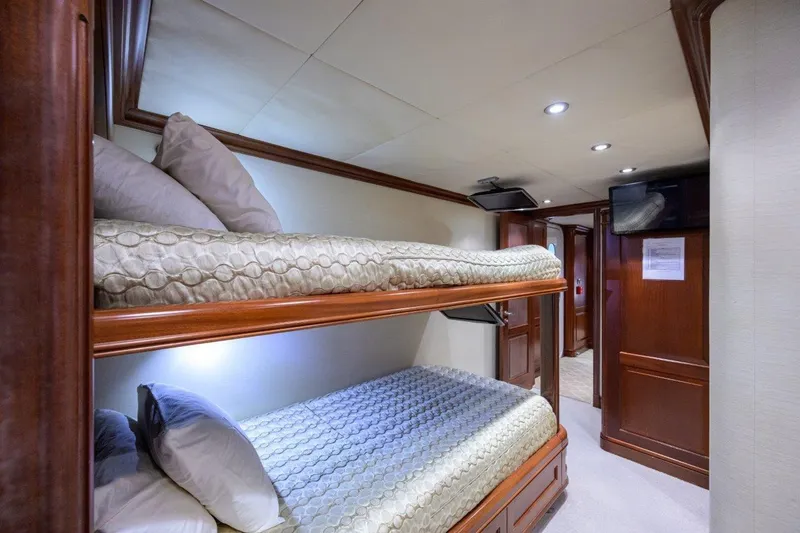

• 1 Double Twin stateroom

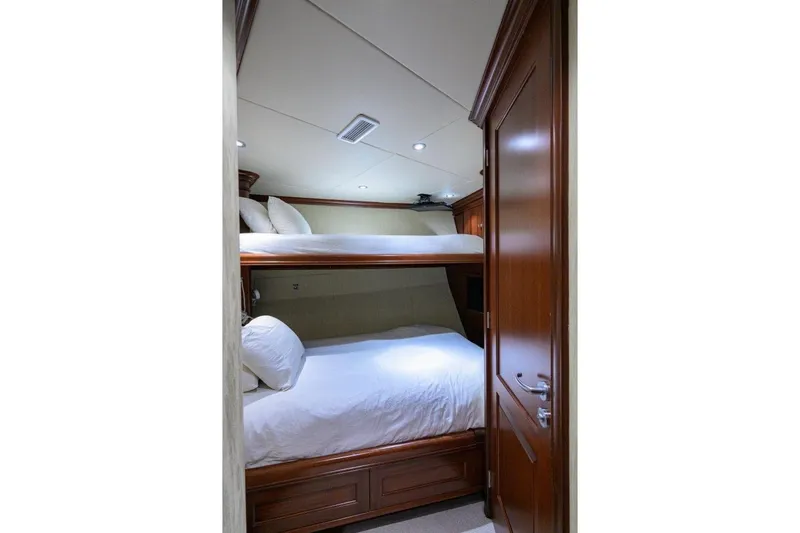

Crew accommodations support up to 10 crew in five staterooms.

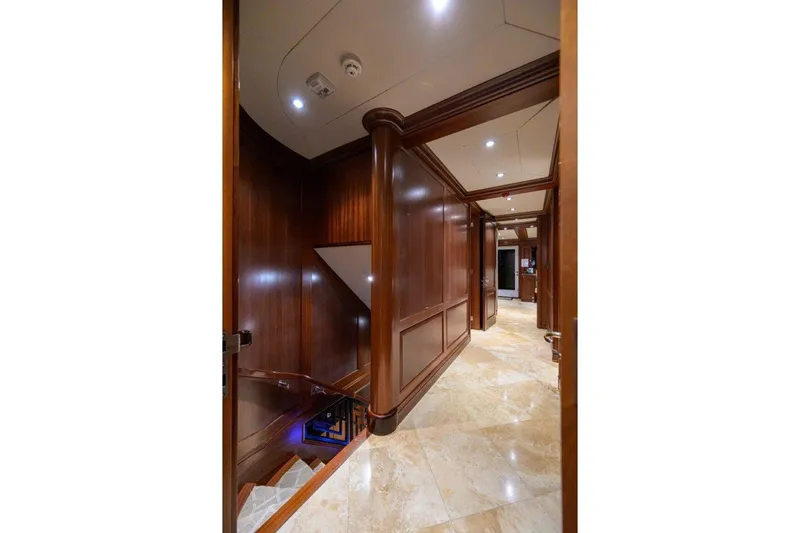

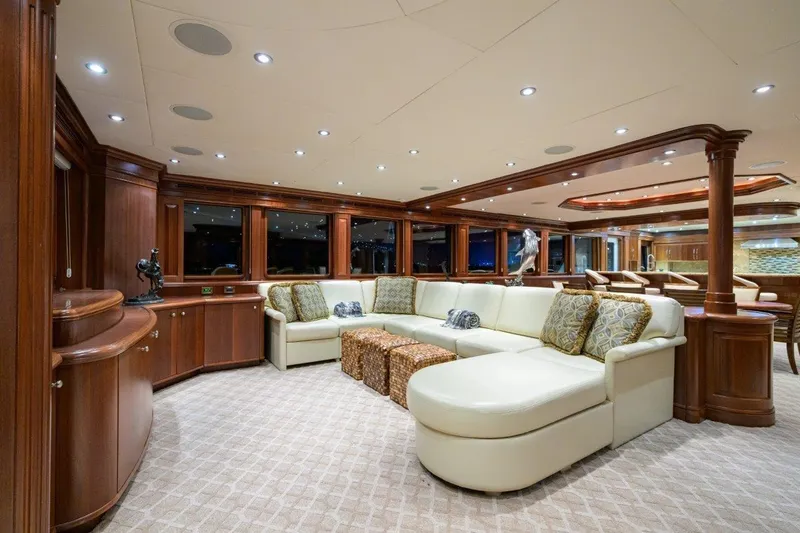

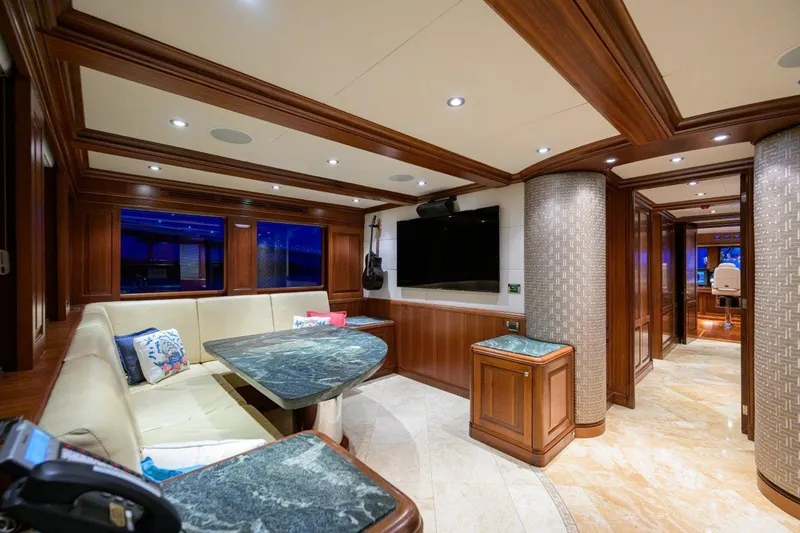

Her generous beam provides substantial interior volume throughout, delivering comfortable living spaces suited for extended cruising.

Her substantial fuel capacity and efficient cruising profile make her capable of true bluewater passage.

• Twin Caterpillar 3508B Rated Main Engines (1,050 HP each, 783 kW @ 1600 RPM)
• ZF 4650 Gearboxes (Direct Drive)
• The Configuration of the Fuel Tanks Act as a Double Hull
• ABT-TRAC Hydraulic Bow Thruster
• Day Tanks Configured to Provide Gravity Feed to Engines and Generators, Ensuring Fuel Prime Cannot Be Lost
• Four Independent Sea Chests, 2 Cross Connected for Redundancy (1 Each for Main Engines)
• 35 HP Electric-Hydraulic Pump for Use on the Hard or Hydraulic PTO Failure
• Hull Bottom Configured with Shaft Skegs to Minimize Potential Damage to Shafts or Propellers
• Soft Patches in Decks Allow Crane Access to Engine Room

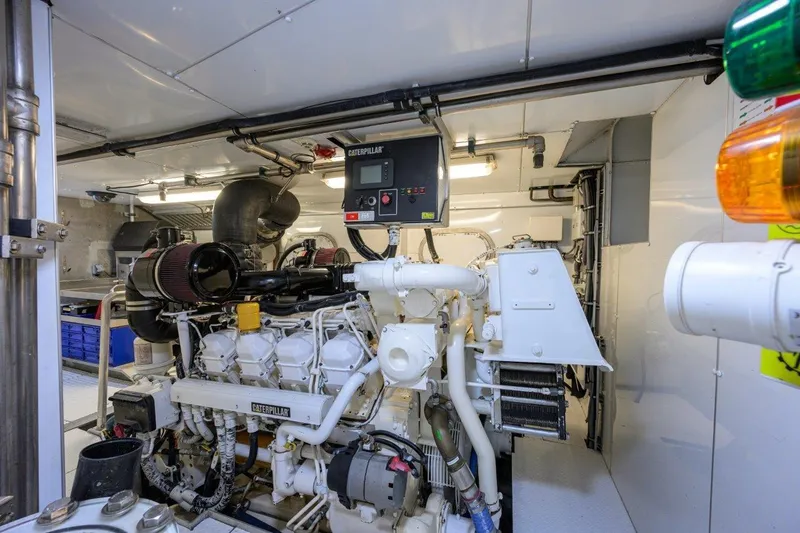

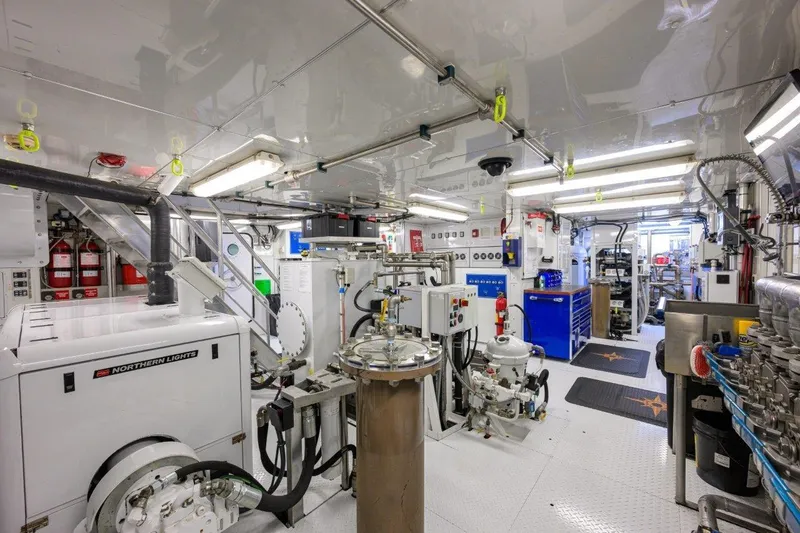

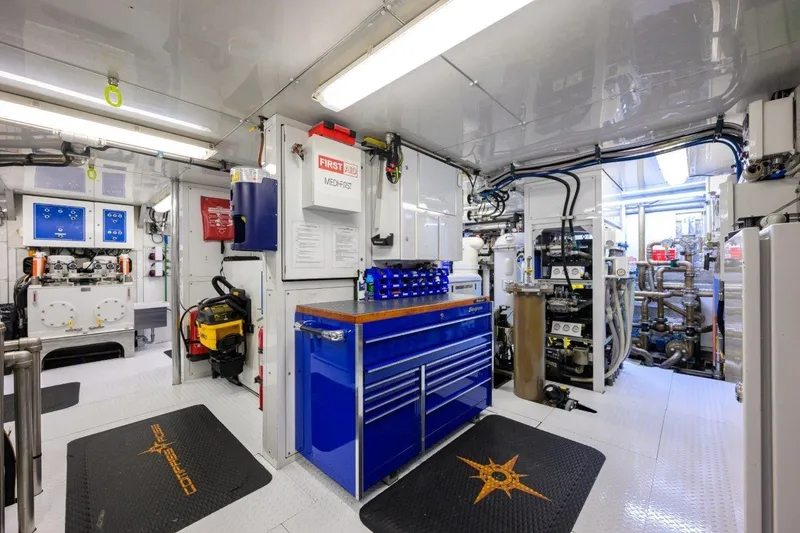

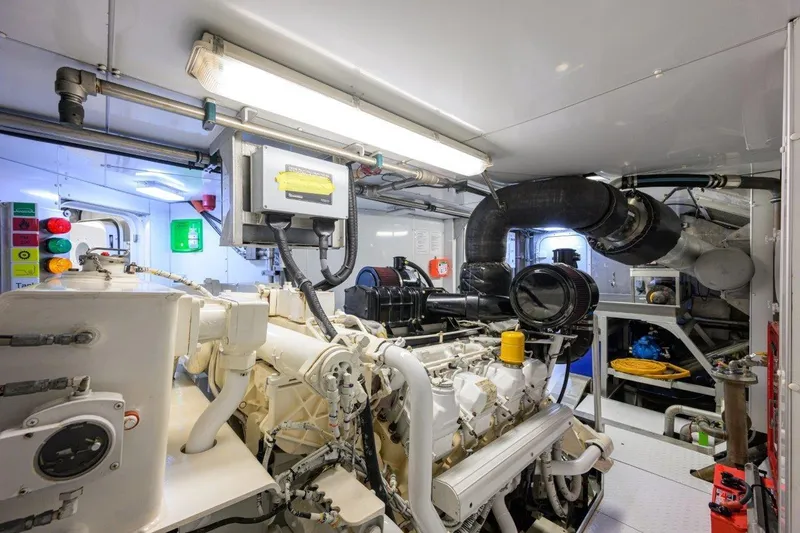

Main Engines

• Port CAT 3508B – 9,318 hrs. (TEO @ 8,300 hrs.)
• Starboard CAT 3508B – 9,339 hrs. (TEO @ 8,320 hrs.)

Generators

• Port Northern Lights M1066T – 17,043 hrs. (TEO @ 16,500 hrs.)
• Starboard Northern Lights M1066T – 14,849 hrs. (TEO @ 14,250 hrs.)
• Aft CAT C4.4 DITA – 18,040 hrs. (CEO due in 1,960 hrs.)

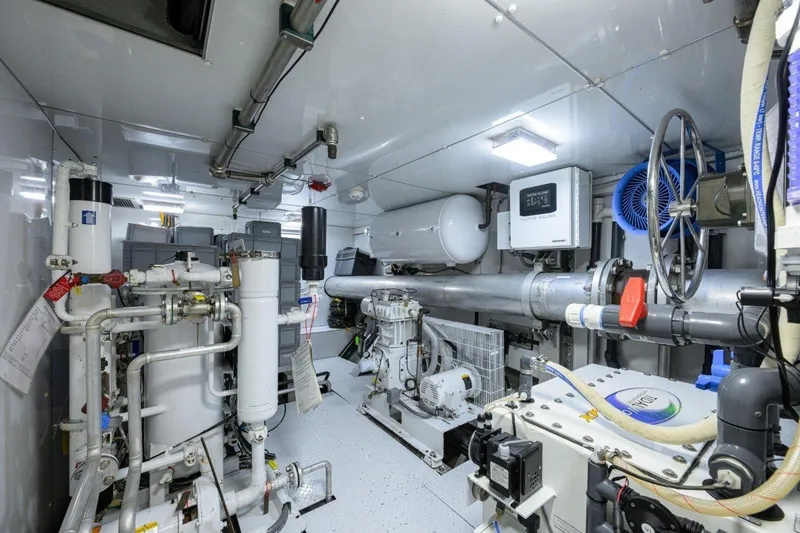

Auxiliary Systems

• Fuel Purifier (Alfa Laval MAB 104B) – 11,164 hrs.
• Watermakers (WMQ4500 Units) – 1,333 hrs. / 1,331 hrs.
• Steering Pumps – 1,028 hrs. / 1,034 hrs.

Chilled Water Plants

• Stage 1 – 2,300 hrs. (Under warranty until January 2027)
• Stage 2 – 2,110 hrs. (Under warranty until January 2027)

• Three 100 kW Three Phase Diesel Generators (1 x Caterpillar 99kW, 2 x Northern Lights M1066T 99kW)
• Emergency Battery System with Military-Grade Power Reserves
• Atlas Shore Power (208V, 60Hz)
• Six 100 Amp Shore Power Cords with Glendinning Cable Deployment (Port, Starboard, and Bow – 75 ft Each)
• Guest Boat 30 and 50 Amp Electrical and Water Hookups, Port and Starboard
• All Electrical Junction Boxes are Watertight J-Boxes
• High Grade Electrical Wire Used Throughout

• Two Watermakers (Approximately 4,500–4,650 Gallons Per Day Each)
• Oversized Freshwater, Grey Water, and Blackwater Tanks
• Hydro-Pac Water Pressure Regulation System Delivering Constant Water Pressure Regardless of Demand
• Hot Water Loop Instantly Delivering Hot Water to Faucets and Showers
• All Raw Water Plumbing in Copper-Nickel Piping
• Oily Water Separator with Storage Tank

• Alfa Laval MAB 104B Fuel Centrifuge (Cleans Fuel Impurities)

• Clean Oil and Dirty Oil Tanks for Four Full System Oil Changes

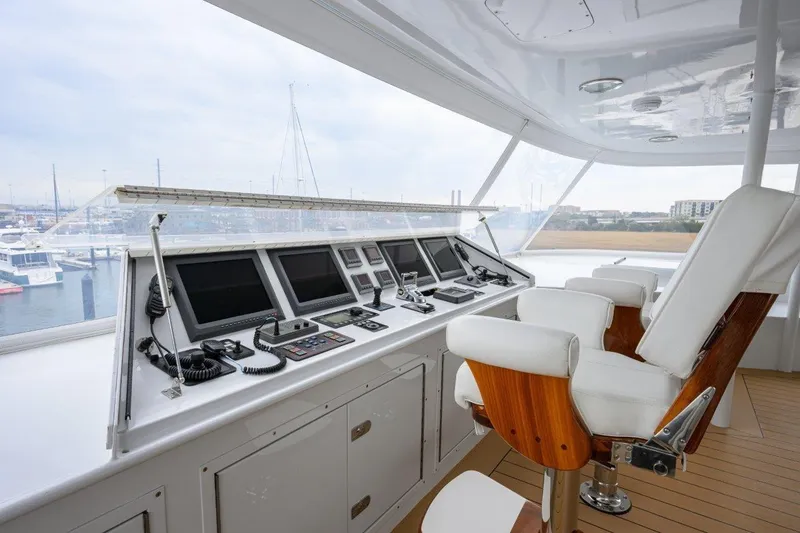

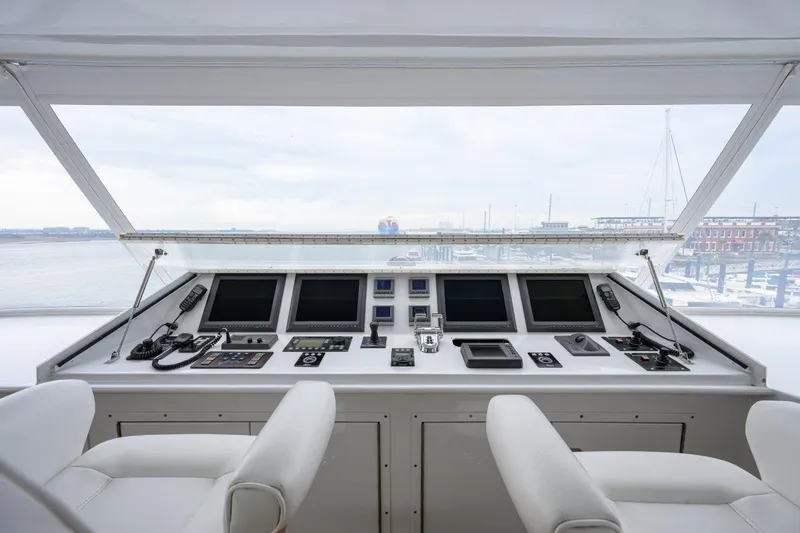

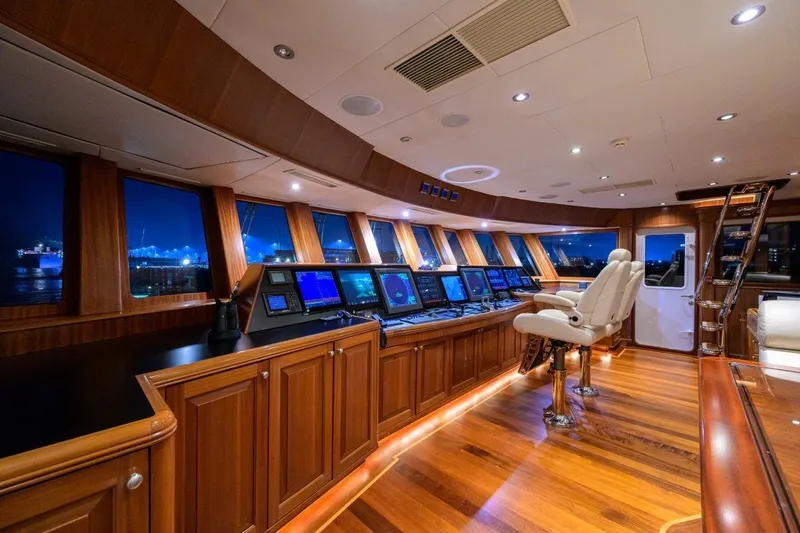

Well-equipped for offshore and long-distance navigation, including:

• Furuno S-Band & X-Band Radars
• Furuno GPS Units
• TimeZero Plotting Software
• Sperry 4000 Autopilot
• Sperry Gyrocompass
• Garmin Wind & Speed Indicators
• FLIR Night Vision
• KVH Satellite System
• Furuno SSB & VHF Radios
• Panasonic Intercom System
• Panasonic Telephone System
• Starlink Maritime / High Speed Antenna
• Port and Starboard Floodlight System with S.O.S. Signaling

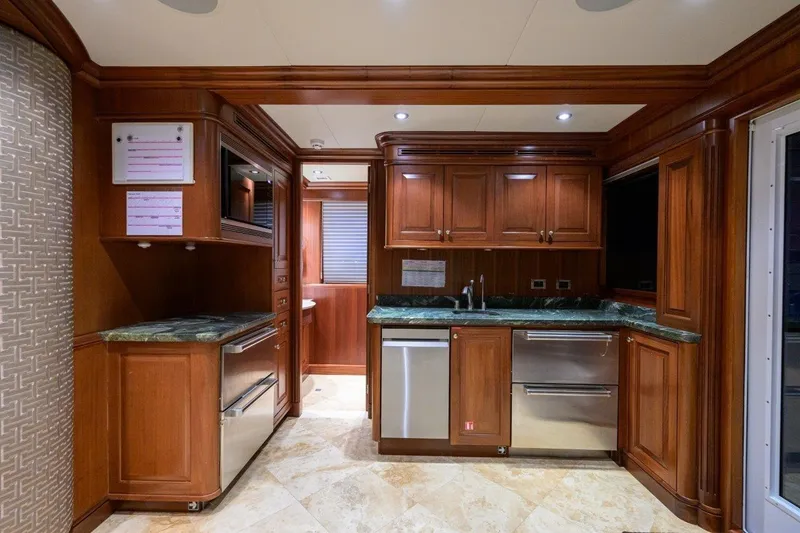

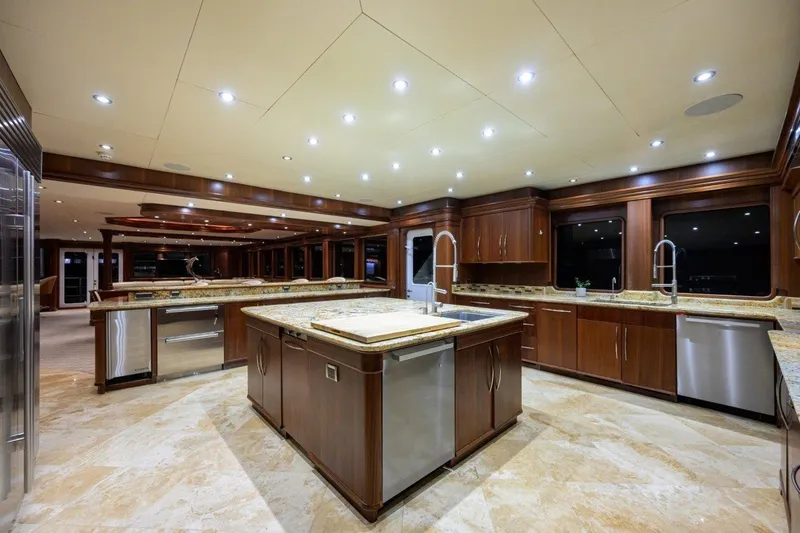

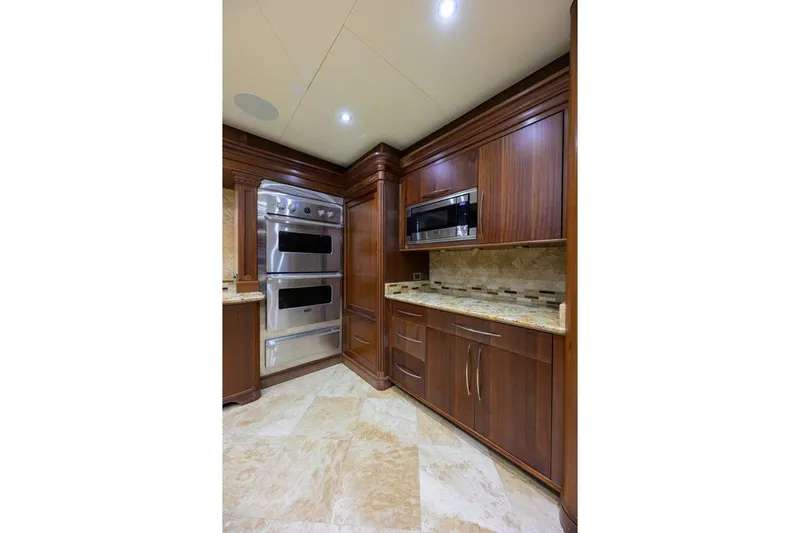

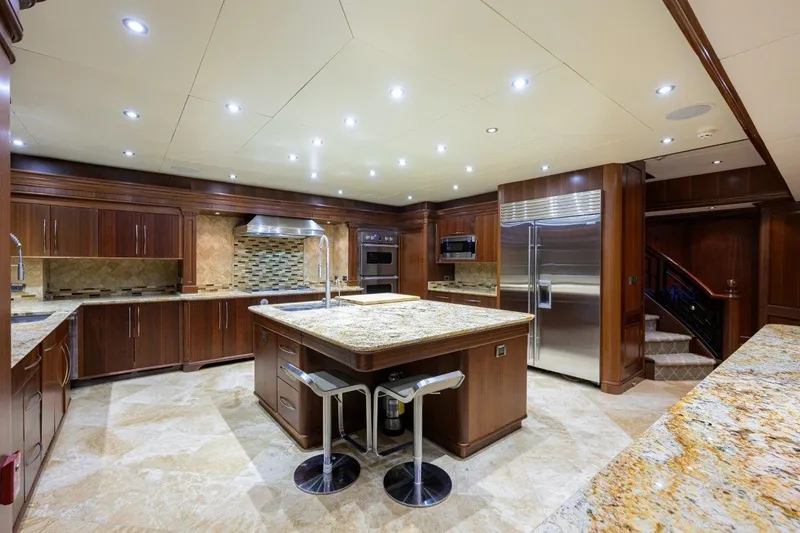

The yacht is fitted with premium residential-grade equipment:

• Viking Range & Double Oven
• Sub-Zero Refrigeration & Freezer Unit
• Miele Dishwasher
• Hoshizaki Icemaker
• Wine Storage
• Refrigeration Systems with Additional Air and Fan Condensing

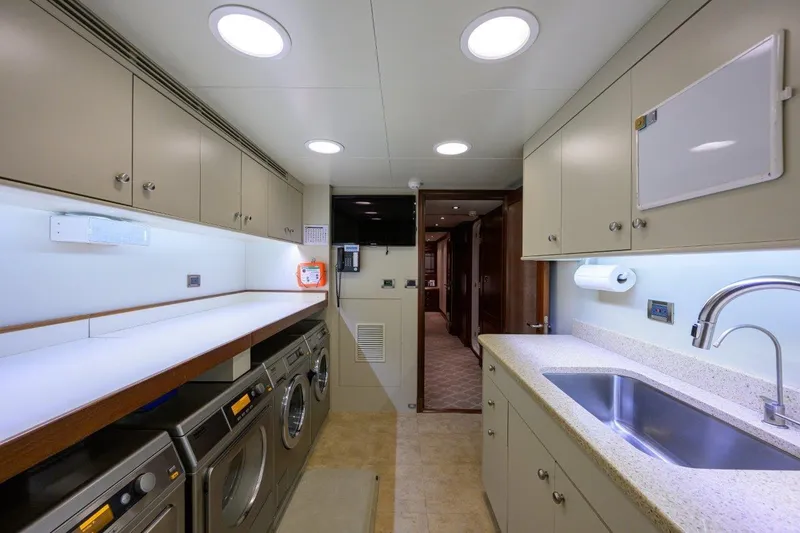

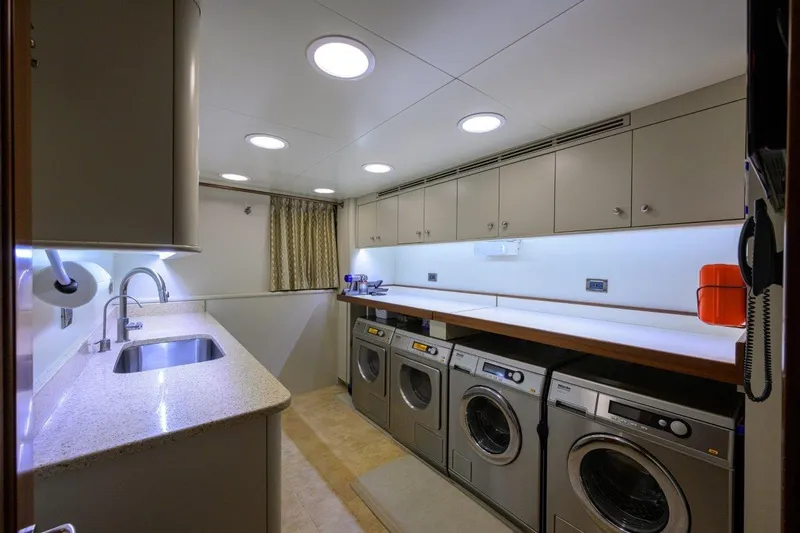

Laundry includes:

• 2 x Miele Washers
• 2 x Miele Dryers

• Supplemental Deck Drains Located Inside Bench Storage

• Spare Propeller Storage Located Inside Elevator for Compass Rose and De La Rosa Propellers

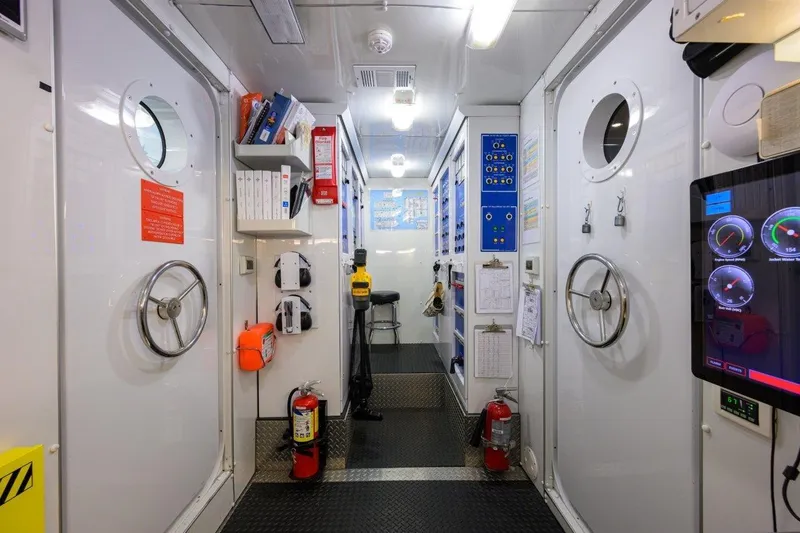

• Consilium Fire Detection System
• Sea-Fire FM200 Multi-Point Remote Release
• 4 x 25-Man Viking Life Rafts
• CCTV Monitoring (Engine Room & Exterior)
• Two Complete Firefighting Turnout Suits
• Firefighting System Designed so that at least two fire hoses can reach every location onboard
• Seawater Firefighting Station (Electric & Diesel Pumps)
• Complete Set of Survival Suits
• Multiple portable extinguishers throughout

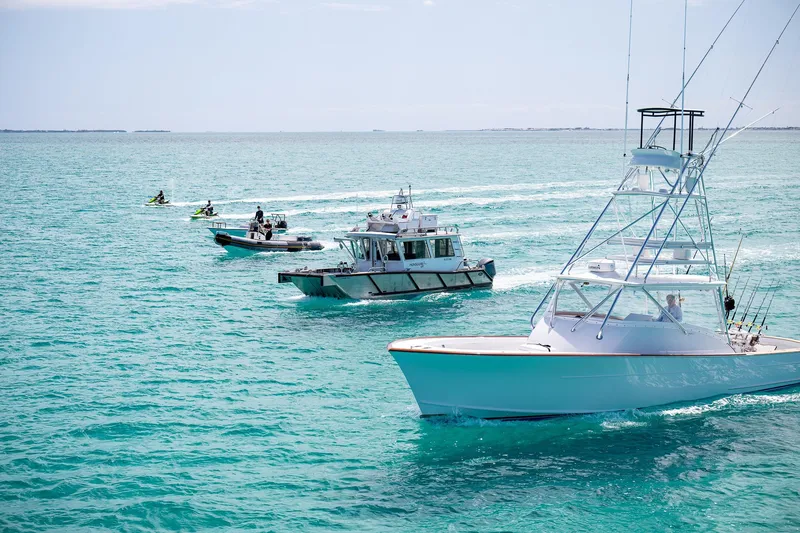

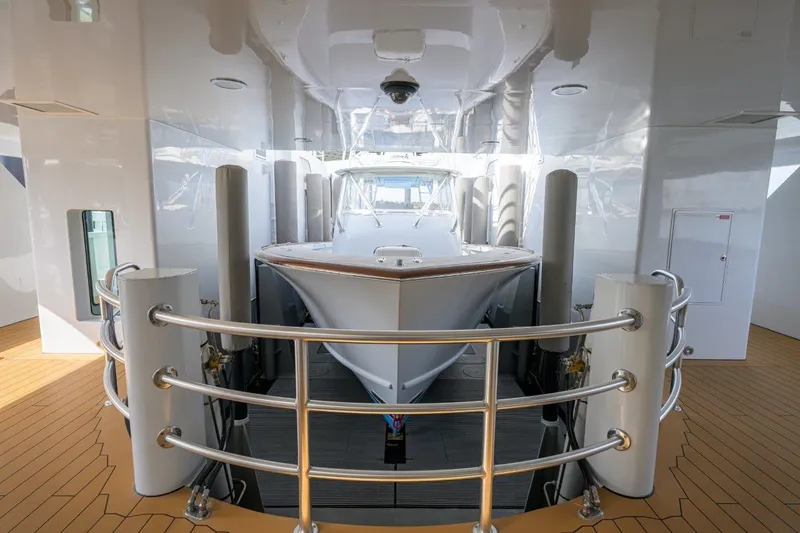

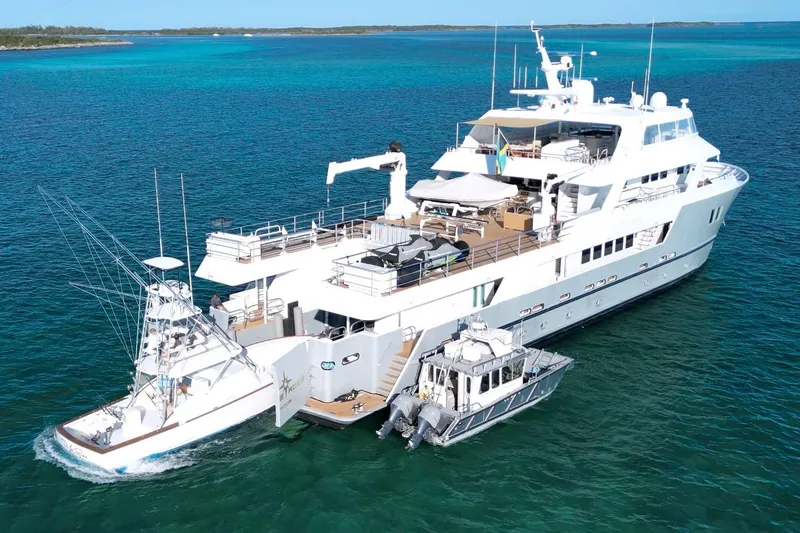

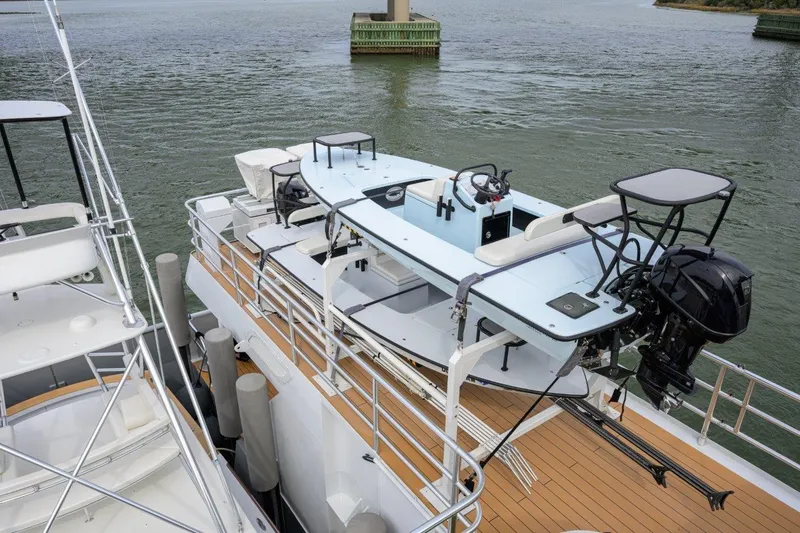

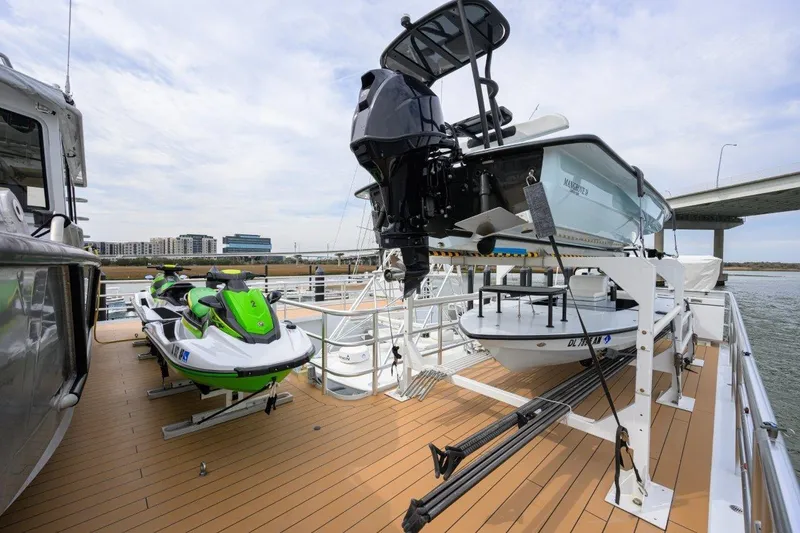

A substantial inventory supporting fishing, diving, and remote exploration activities:

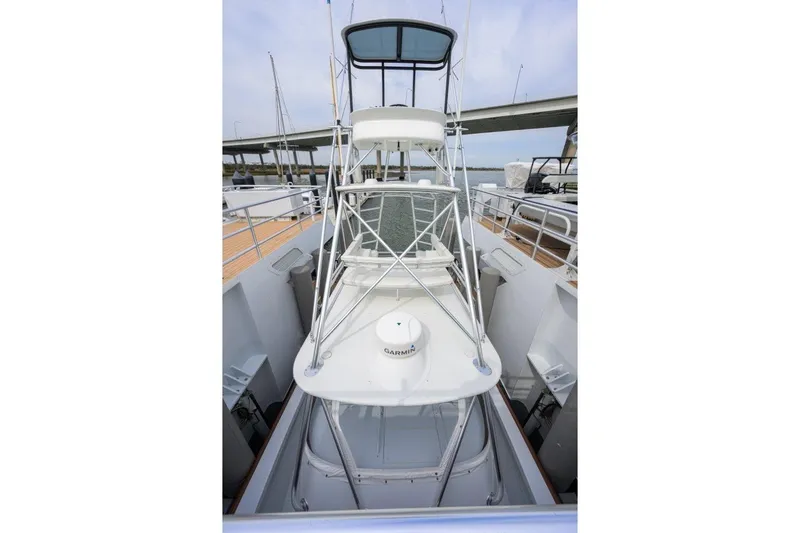

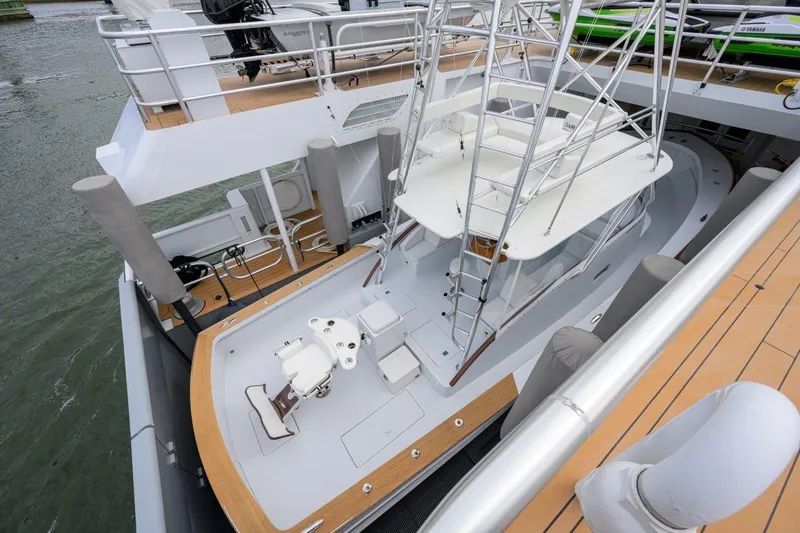

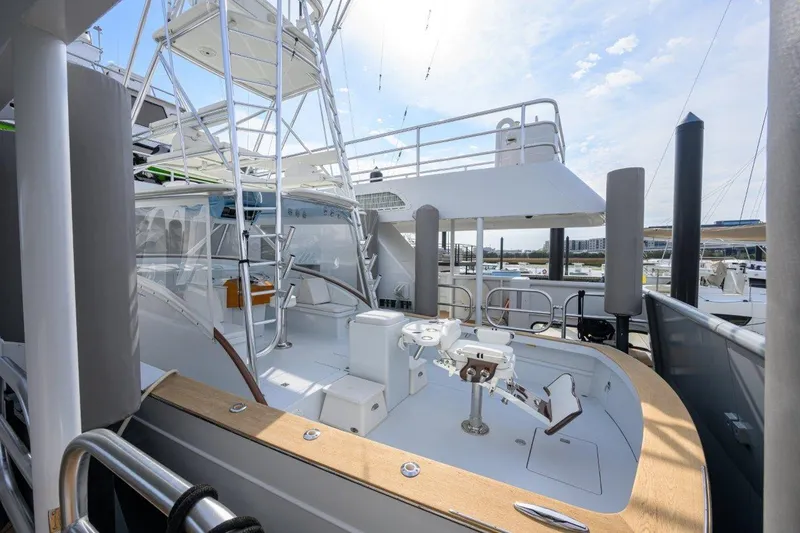

• 42’ Gamefisherman Walkaround ("De La Rosa", the Main Tender) - Twin CAT C9 (575 HP each) | ZF Gears | 350 gal fuel | Lewmar bow thruster | Generator (Kubota 8kW) | AC cabin/bridge | Live wells & tuna tubes | 833 / 834 hrs. (Feb 2026)  Full technical specifications available upon request.

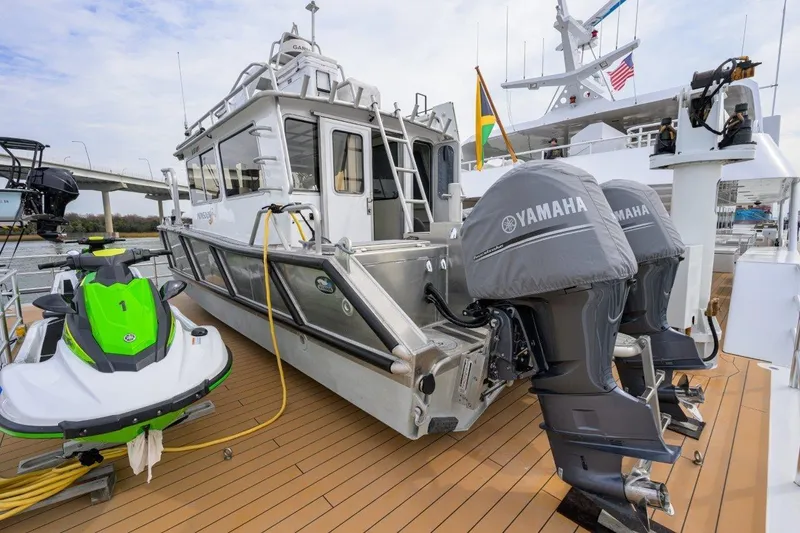

• 30’ Munson Pack Cat Landing Craft - 166 / 163 hrs. (Feb 2026)

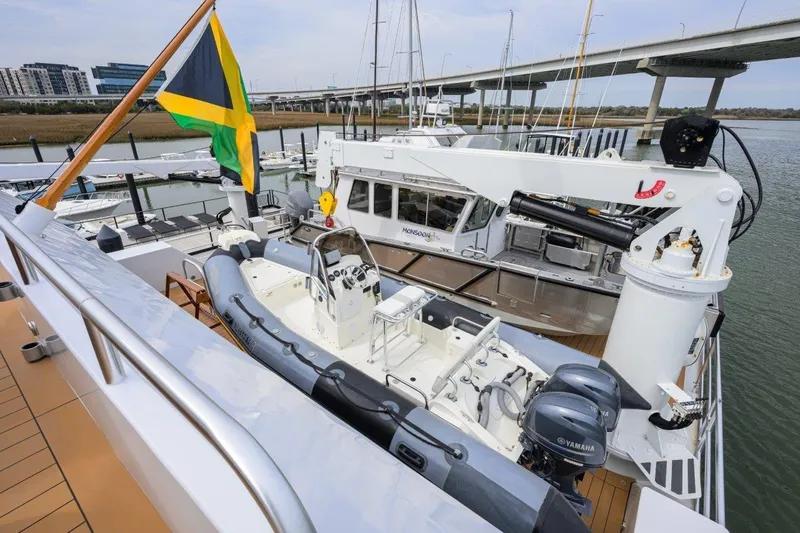

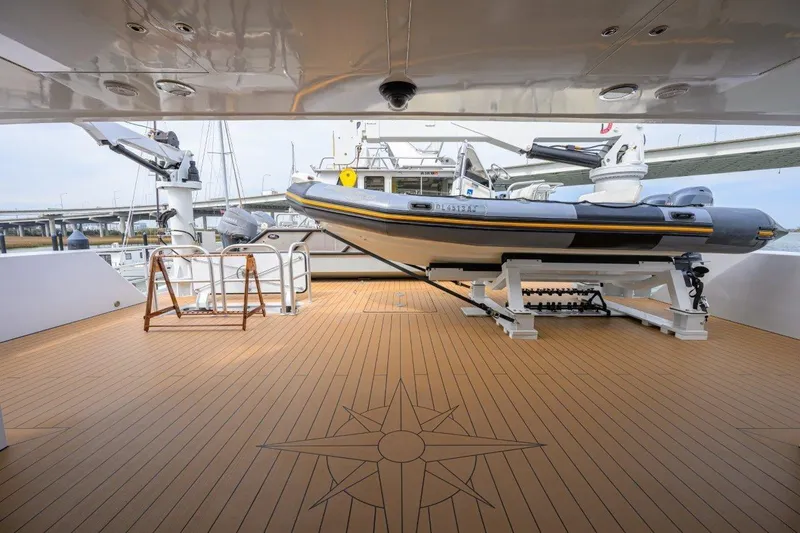

• 21’ Zodiac RIB - 289 / 288 Hrs. (Feb 2026)
• 2 x 18’ Chittum skiffs
• 10’ Achilles inflatable

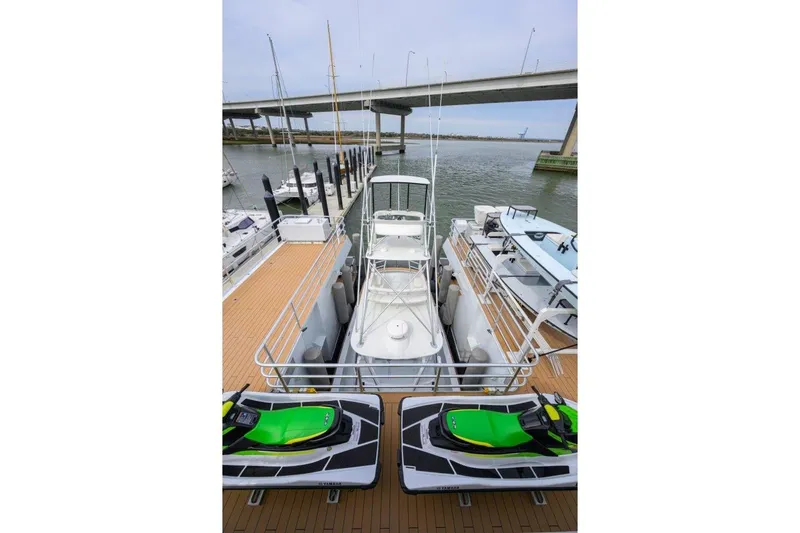

• 2 x 2020 Sea-Doo EX Sport - 32 / 33 hrs.
• 2 x inflatable paddleboards

- ADDITIONAL PHOTOS AVAILABLE UPON REQUEST -

COMPASS ROSE represents a compelling opportunity in the 45–50m expedition segment. With 9,000+ nautical mile range, aluminum construction, and 621 GT of volume, she offers true long-range capability rarely found in this size bracket. Her extensive tender inventory—including a 42’ Gamefisherman and 30’ Munson landing craft—positions her uniquely for serious exploration, fishing operations, or remote cruising programs.

The yacht benefits from a 2015 refit and has been professionally maintained. Twin Caterpillar 3508B main engines provide reliable, proven performance, and her mechanical spaces are well laid out for service access. Accommodations for 10 guests and 10 crew allow for either private family use or high-capacity operational deployment.

She is an ideal candidate for an owner seeking global capability without stepping into the 60m+ category. Inspection strongly encouraged for buyers considering expedition-style platforms, support yachts, or long-range private cruising programs.
