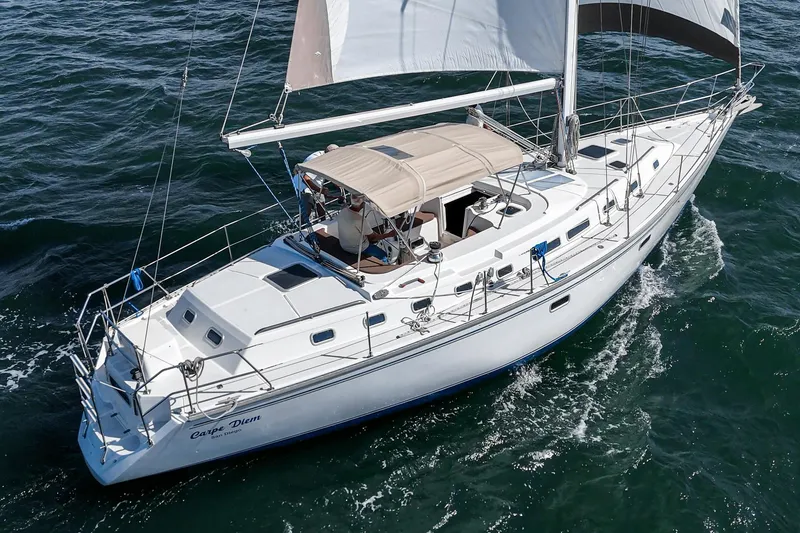

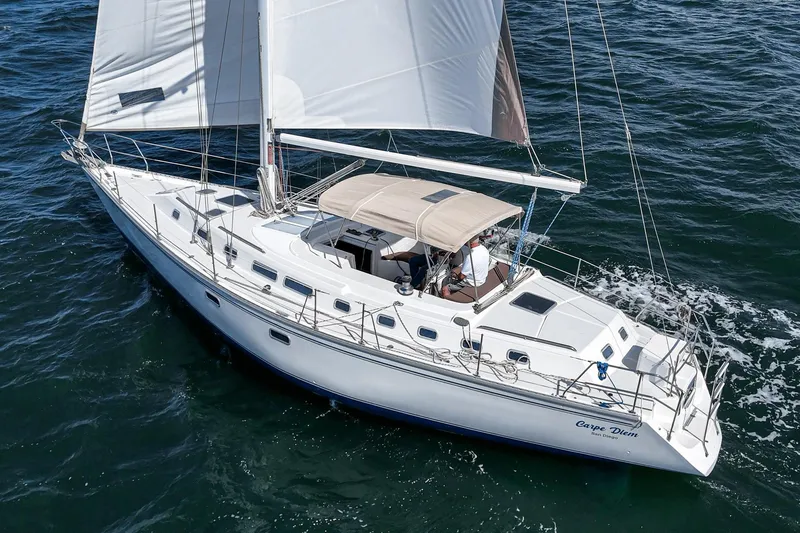

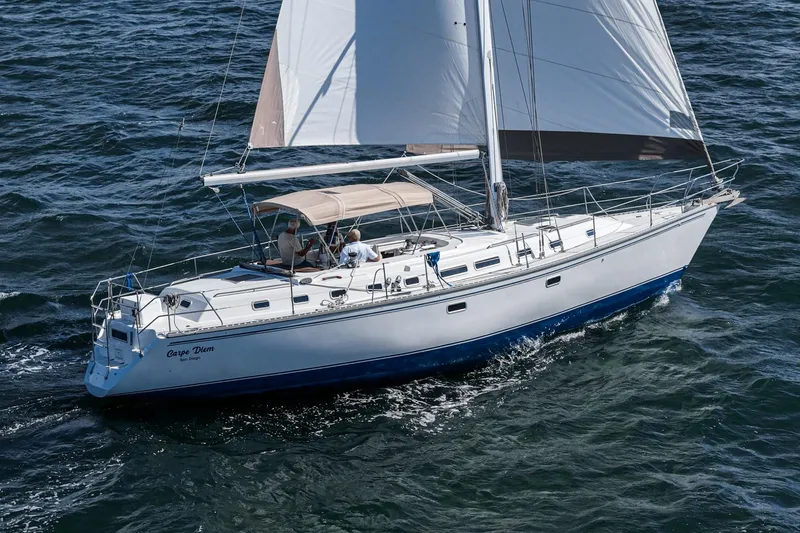

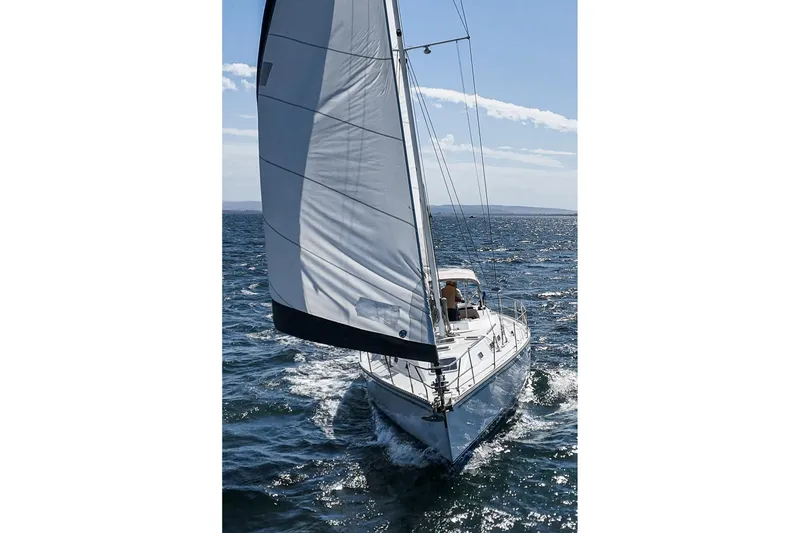

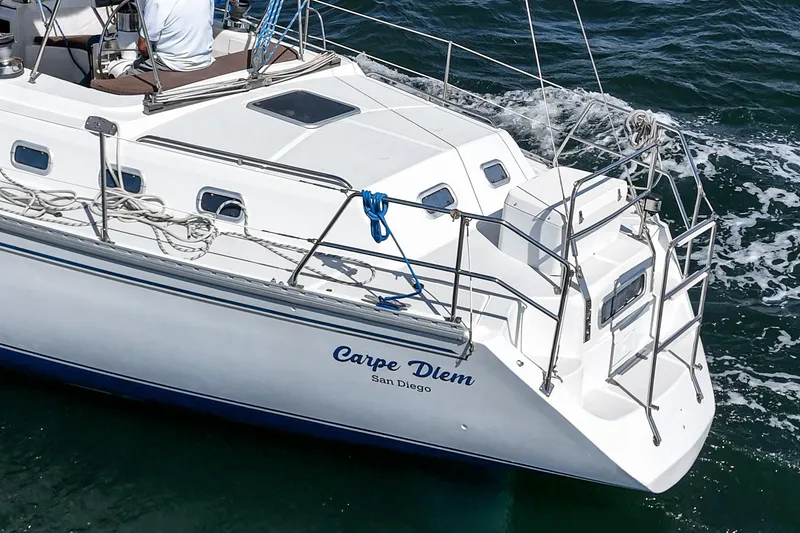

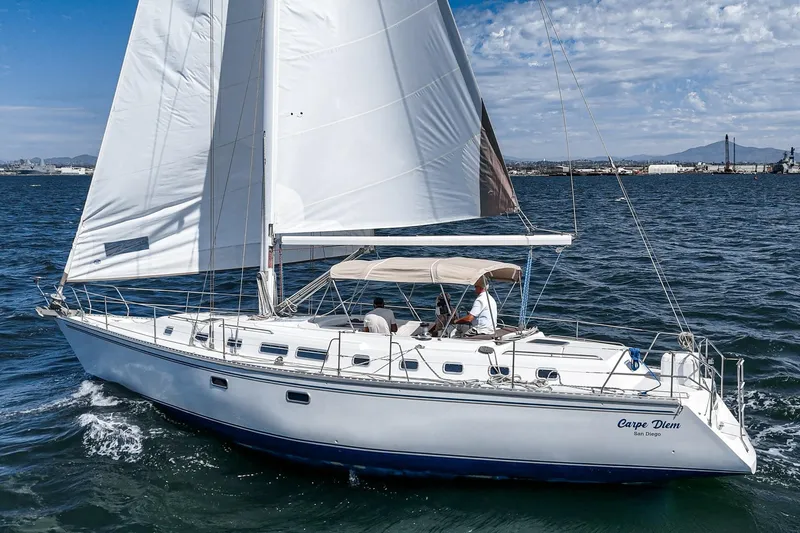

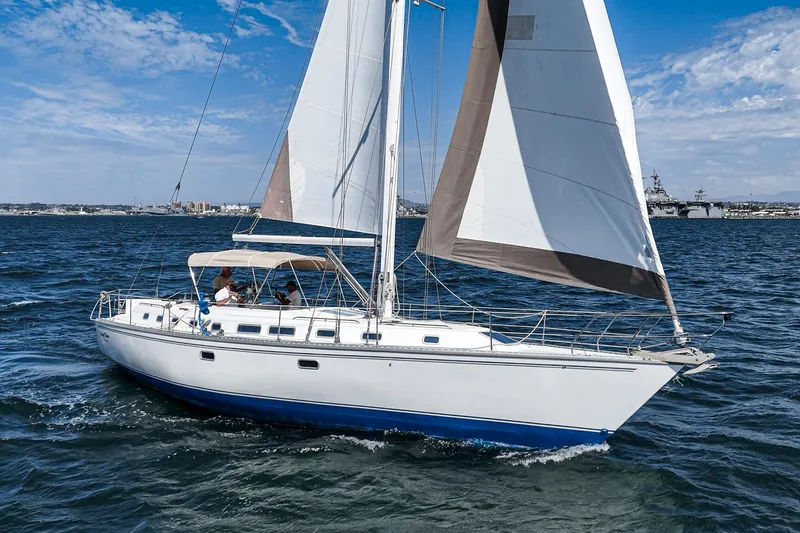

PRESENTATION Carpe Diem , in San Diego1992 Morgan Catalina 45 Center CockpitOverview

The 1992 Morgan Catalina 45 is a proven bluewater cruising yacht combining the legendary durability of the Morgan design with the refined production quality of Catalina Yachts. Designed for comfortable liveaboard and extended passagemaking, this center cockpit cruiser offers excellent interior volume, strong sailing performance, and dependable systems.

Well-suited for coastal cruising or offshore passages, the Morgan Catalina 45 remains one of the most sought-after center cockpit cruisers in her class.

Vessel Highlights

• LOA: 45 ft

• Beam: approx. 13' 10"

• Draft: approx. 5' 6"

• Displacement: approx. 23,500 lbs

• Hull: Solid fiberglass

• Rig: Masthead sloop

• Builder: Catalina Yachts (Morgan Division)

• Designer: Nelson/Marek

✅ Spacious center cockpit layout
✅ True aft owner’s stateroom
✅ Proven offshore hull design
✅ Excellent liveaboard potential
✅ Wide side decks for safe passage forward

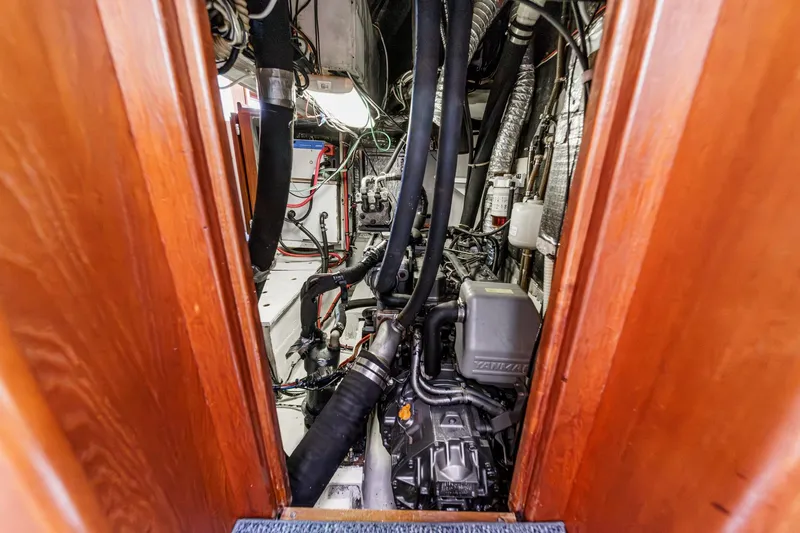

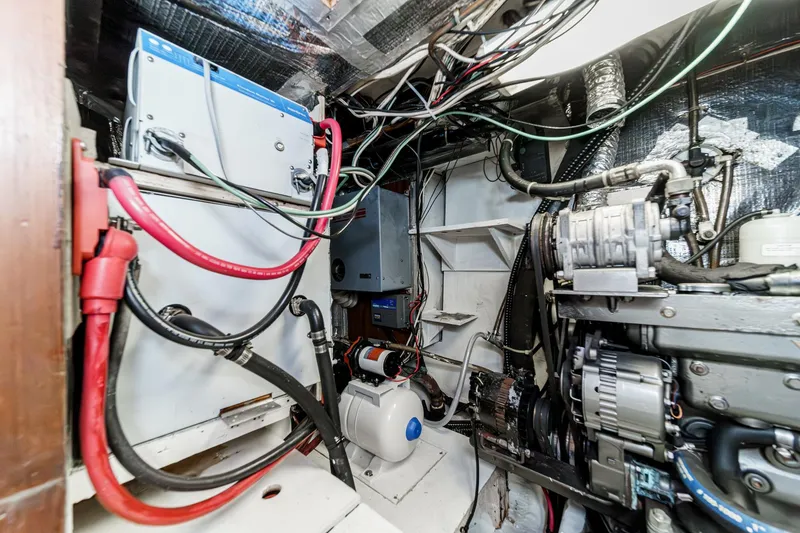

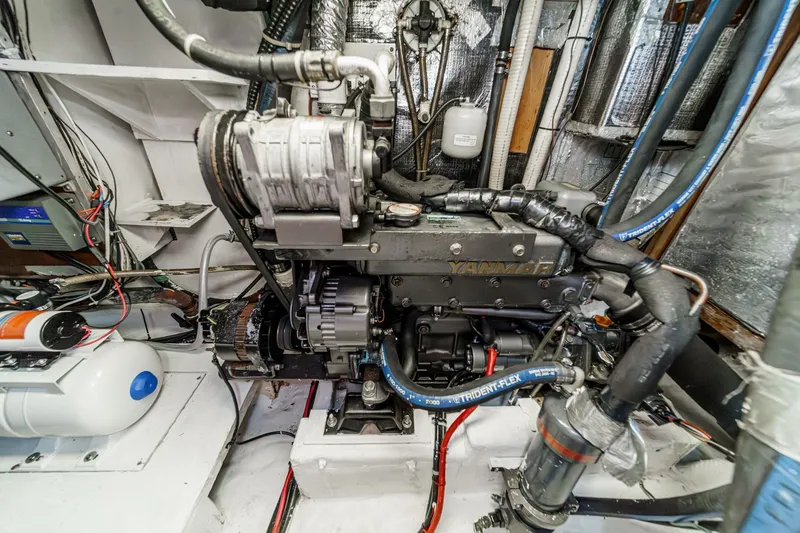

⚙️ Engine & Mechanical

Engine: Yanmar Diesel (commonly 4JH series)
Horsepower: approx. 50 HP
Drive: Direct drive shaft

Performance (approx.):

• Cruise speed: 6.5–7 knots

• Fuel consumption: ~0.8–1.0 GPH

Mechanical Features:

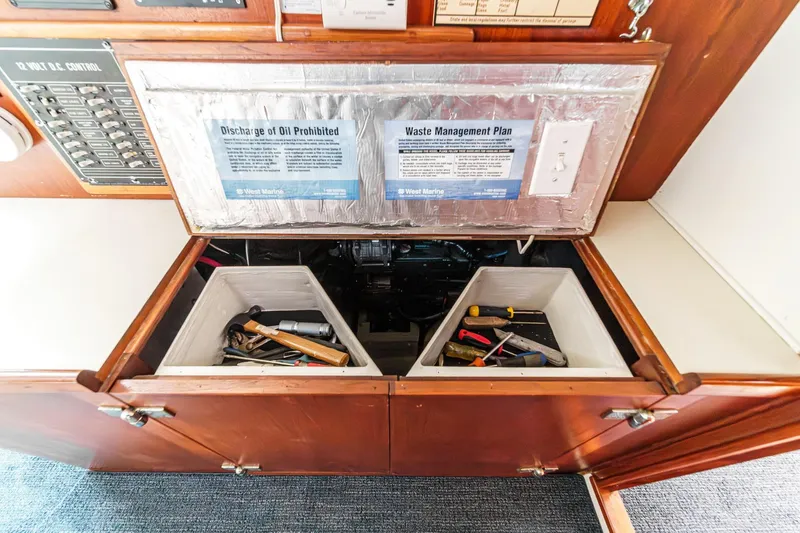

• Engine room access panels

• Racor fuel filtration

• Raw water cooling system

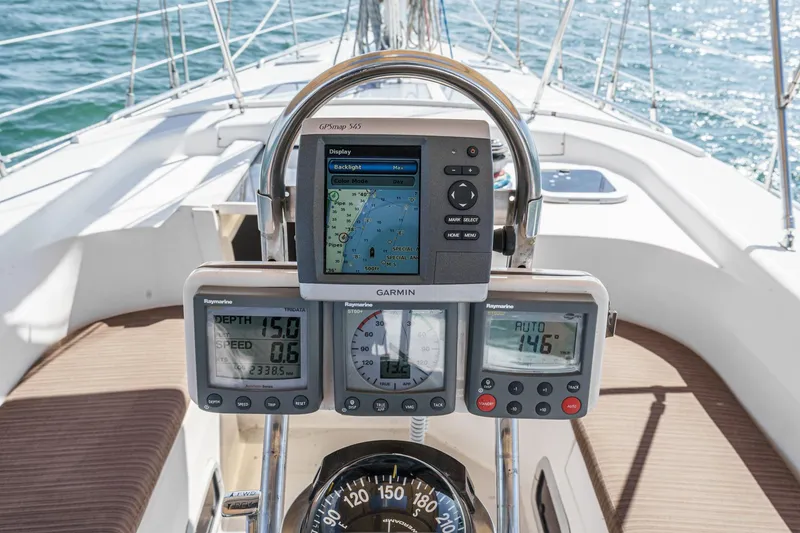

• Engine gauges at helm

Known for reliability and economical operation.

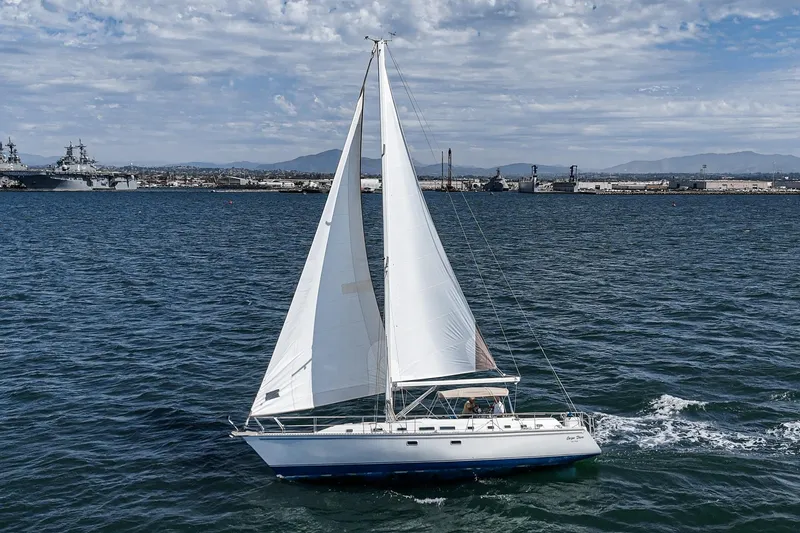

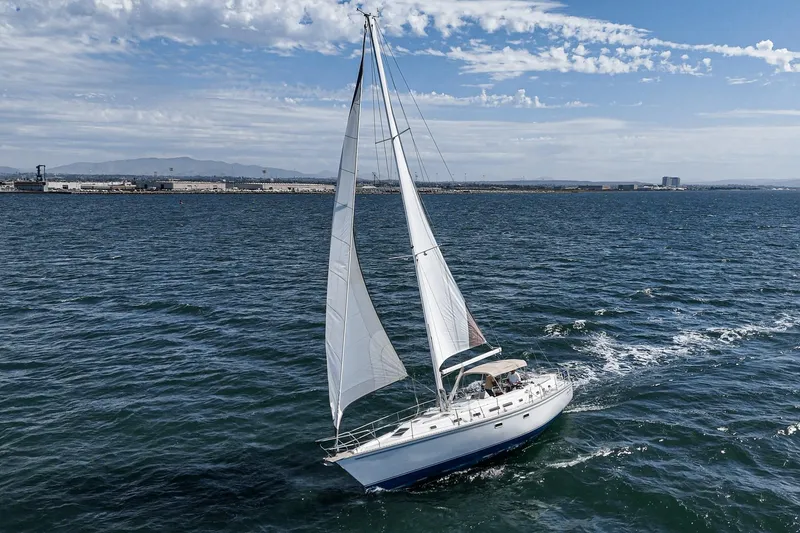

⛵ Sailing Features

• Masthead sloop rig

• Aluminum spars

• Roller furling headsail

• Fully battened mainsail (typical configuration)

• Self-tailing primary winches

• Deck-stepped mast

• Stainless steel standing rigging

Handling:
The Morgan Catalina 45 is recognized for being forgiving, stable, and easy to manage short-handed.

Interior & AccommodationsLayout

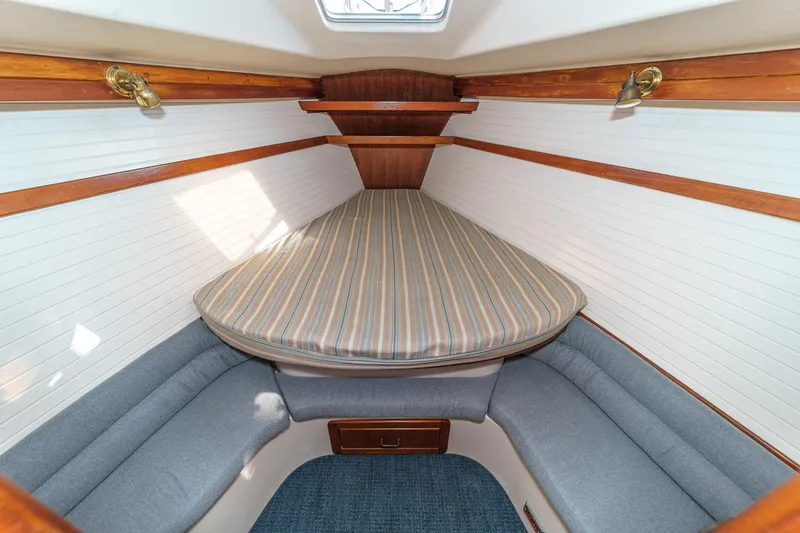

• Forward guest stateroom

• Large main salon

• U-shaped galley

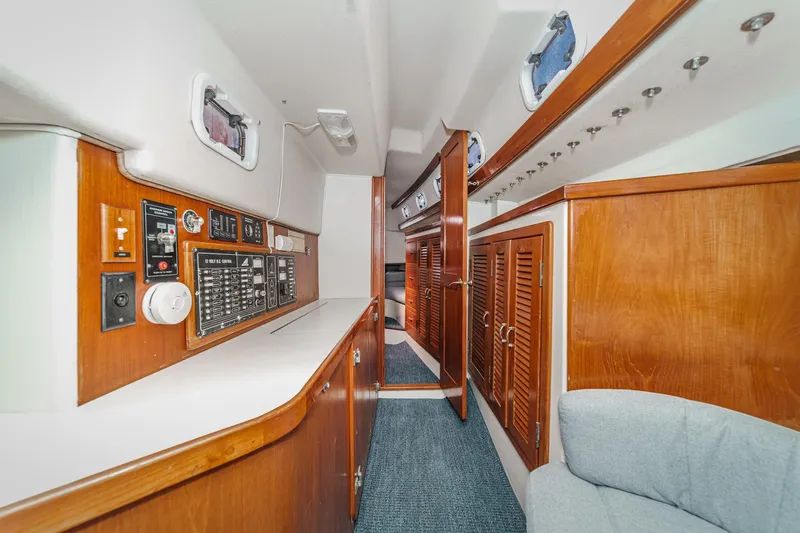

• Navigation station

• Private aft owner’s stateroom

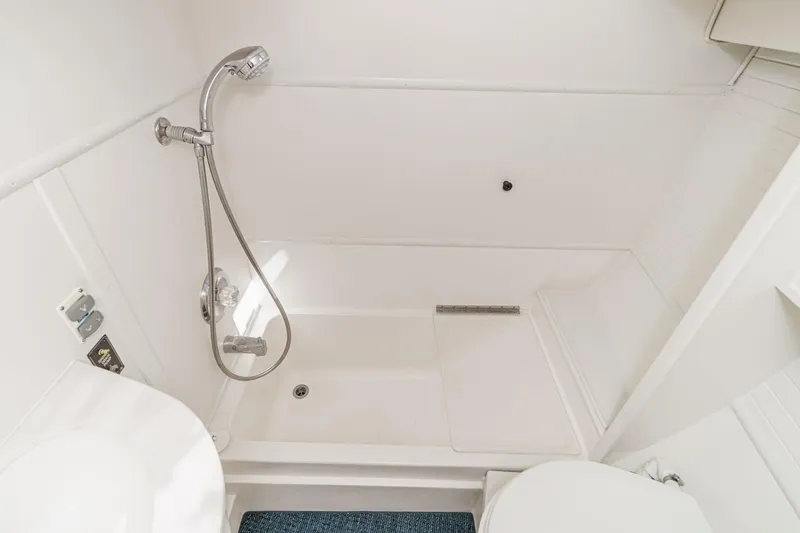

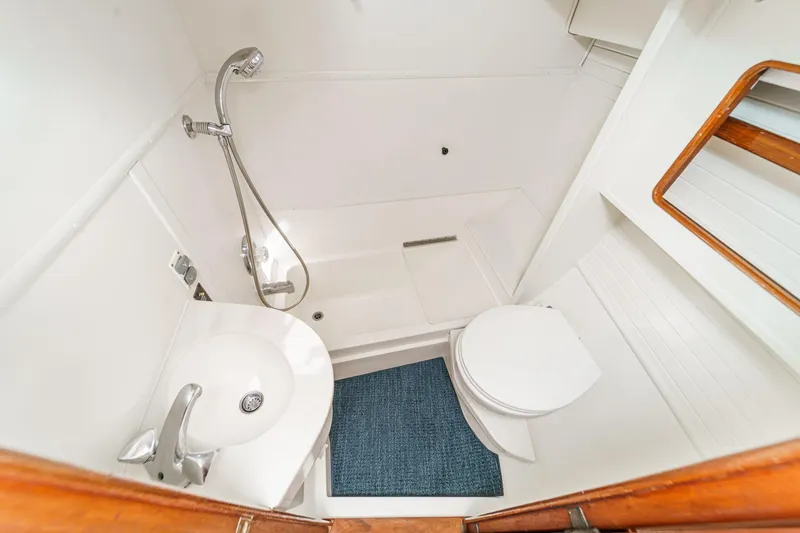

• Two heads with showers (typical)

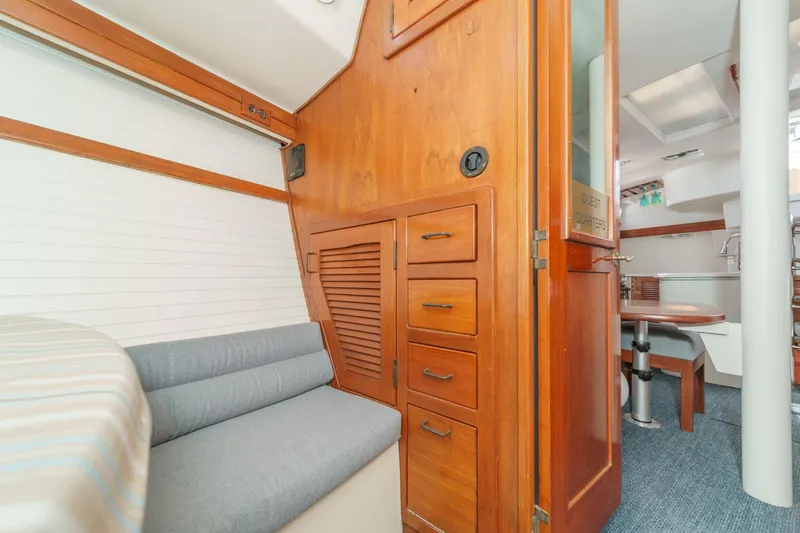

Comfort Features

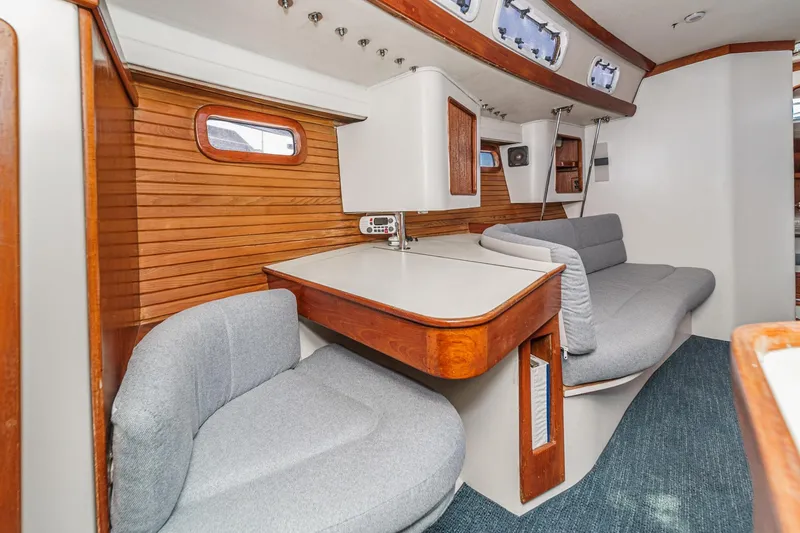

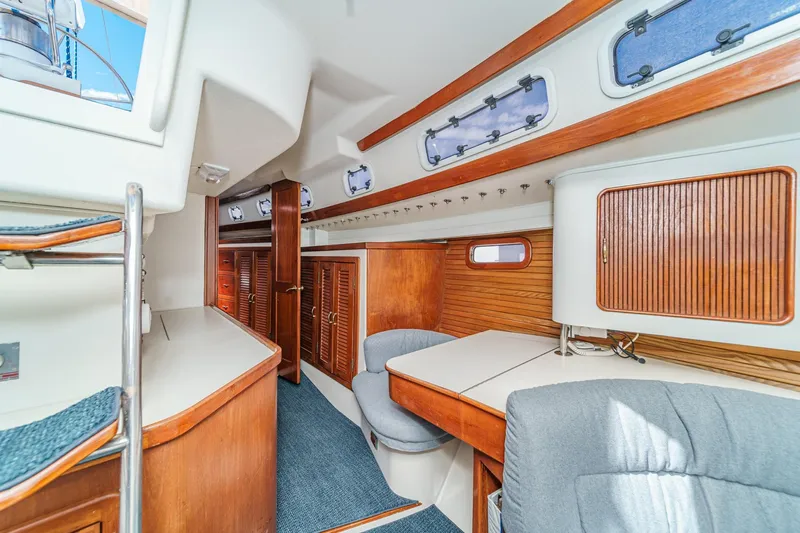

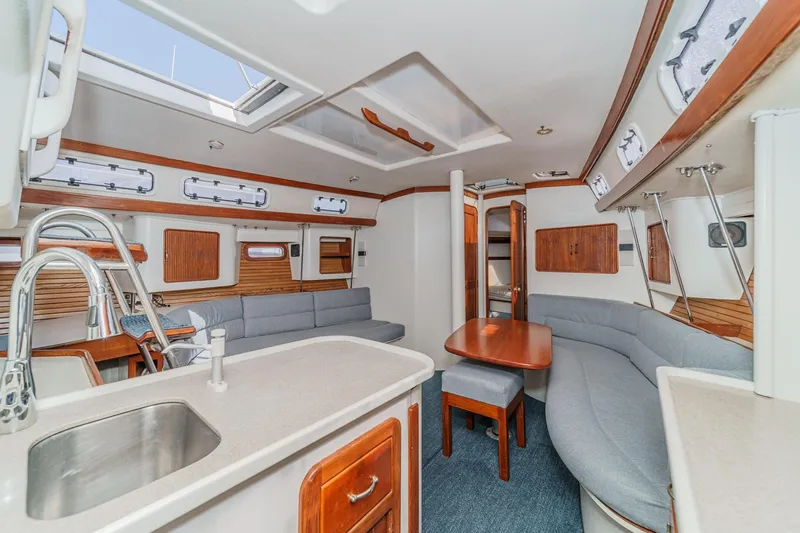

Salon

• Teak interior joinery

• Convertible dinette

• Excellent natural light

• Generous headroom (~6'4")

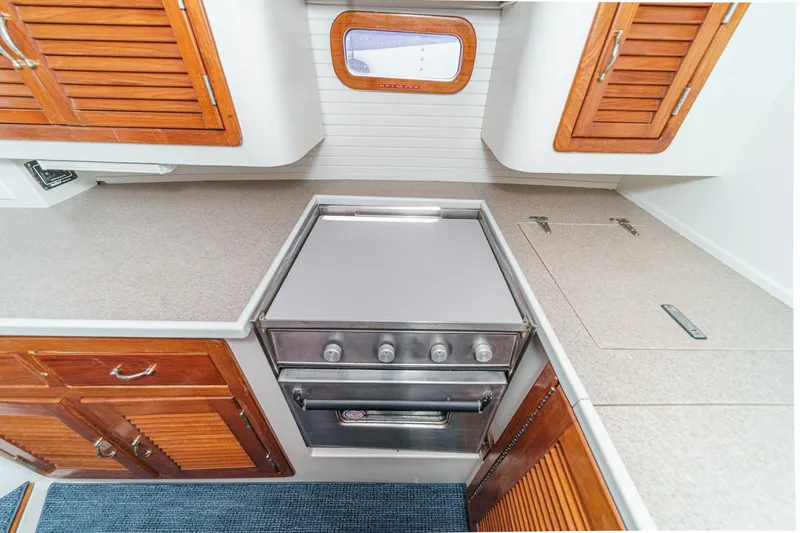

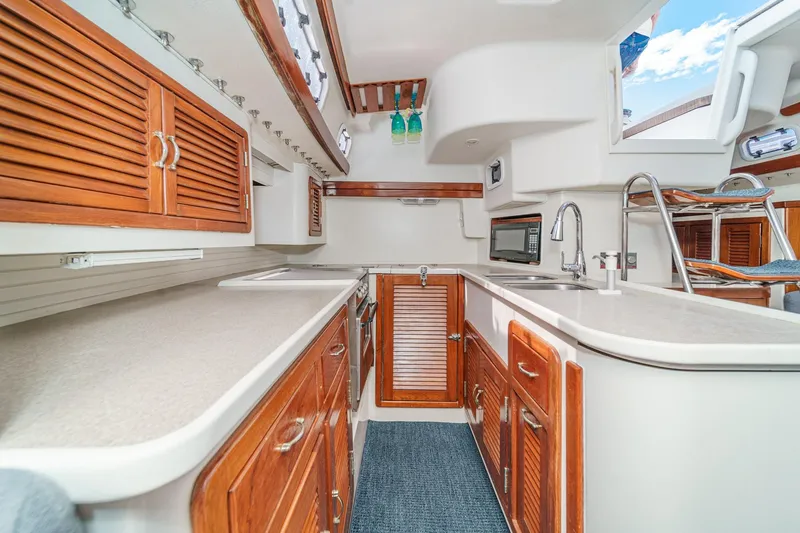

Galley

• Refrigeration

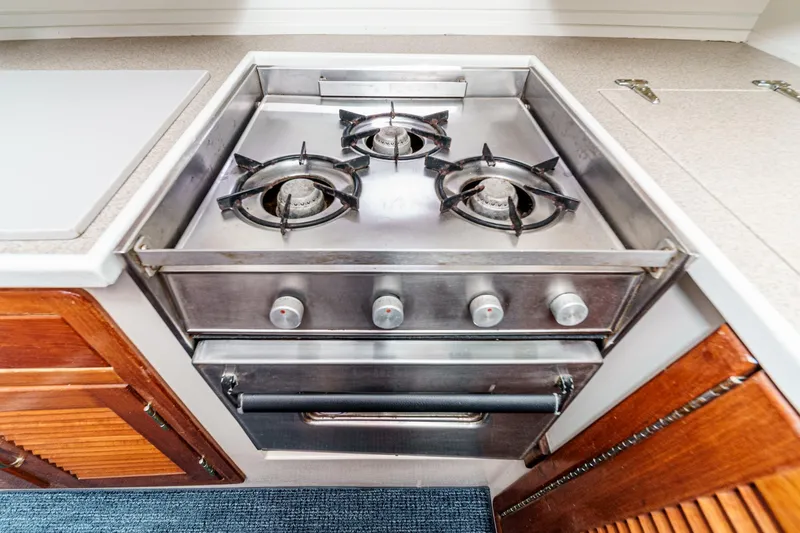

• Propane stove/oven

• Double stainless sink

• Ample storage

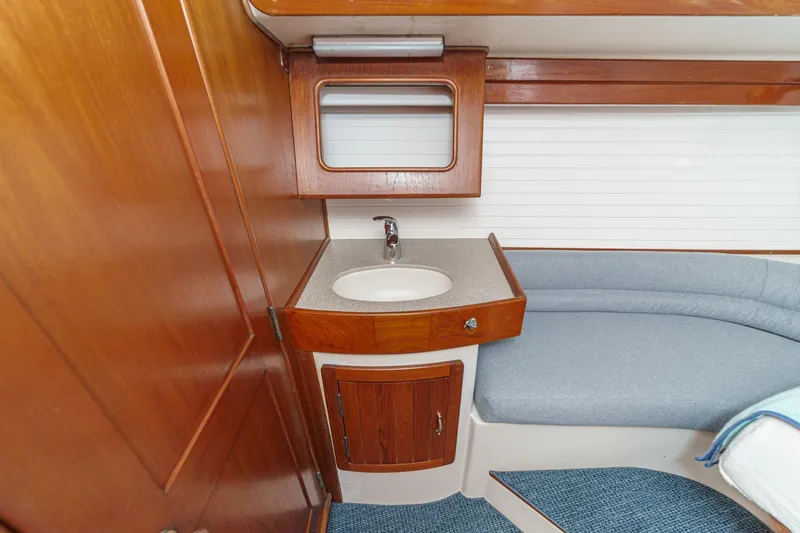

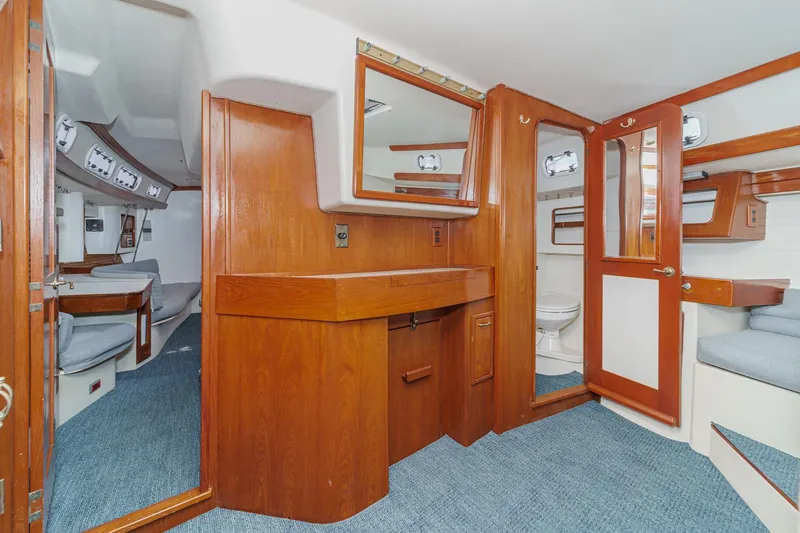

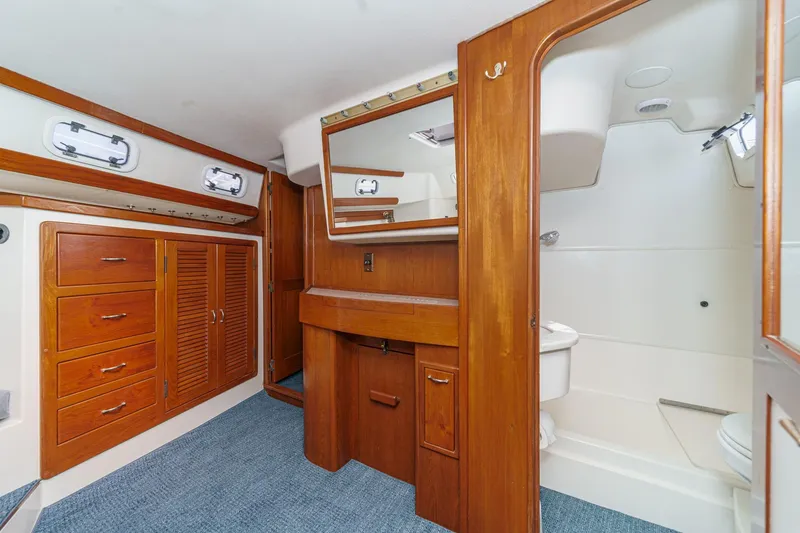

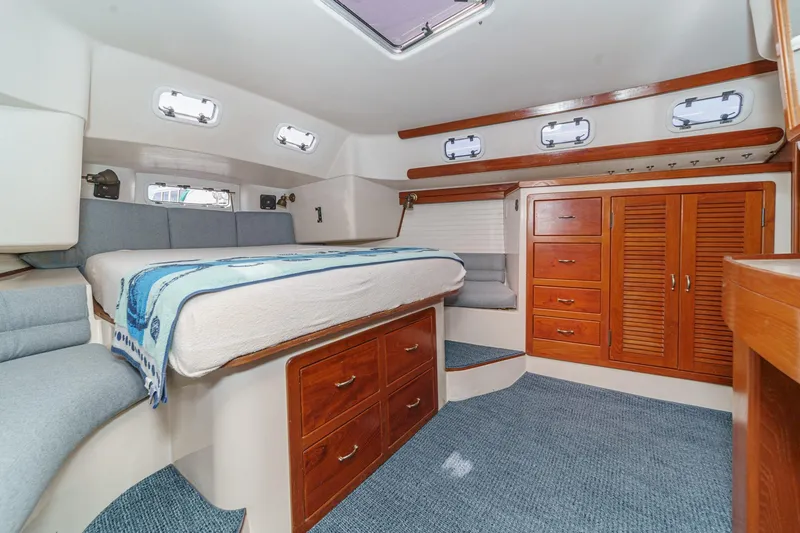

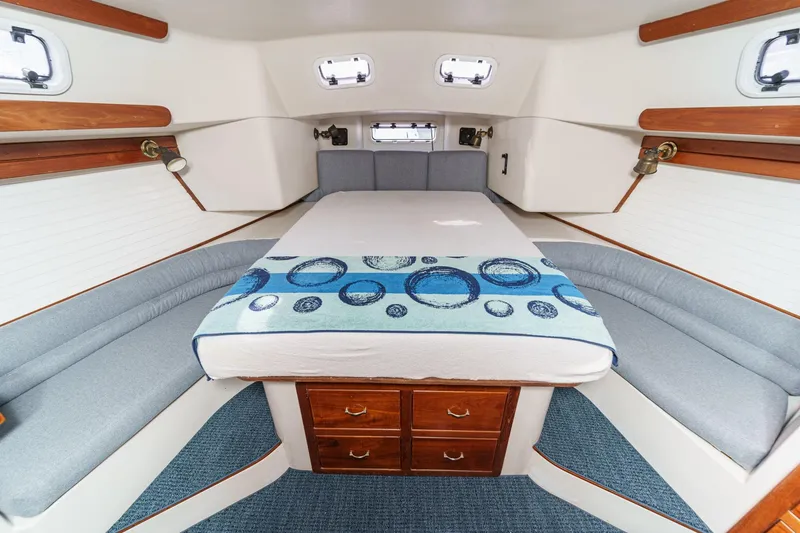

Owner’s Stateroom (Aft)

• Island or centerline berth (varies)

• Hanging lockers

• Private head access

• Outstanding liveaboard comfort

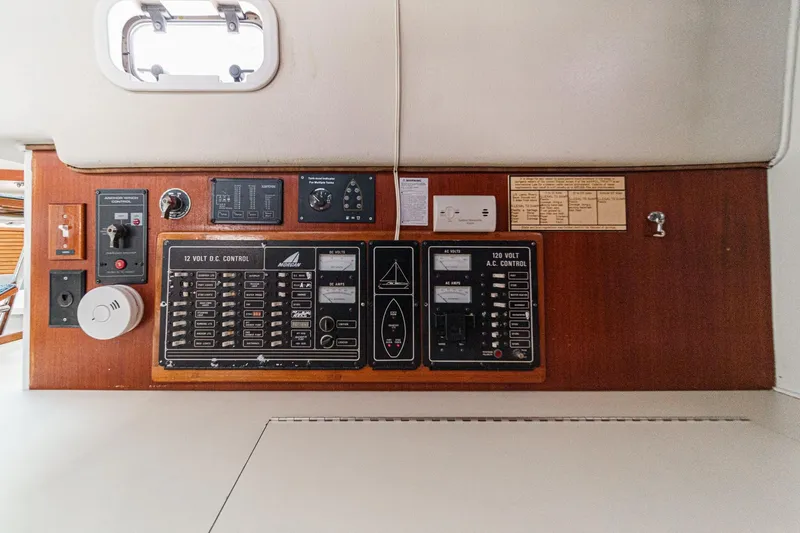

Electrical & Systems

• 12V DC system

• Shore power 110V

• Battery banks for house and start

• Battery charger

• Pressure water system

• Hot water heater

• Marine sanitation system

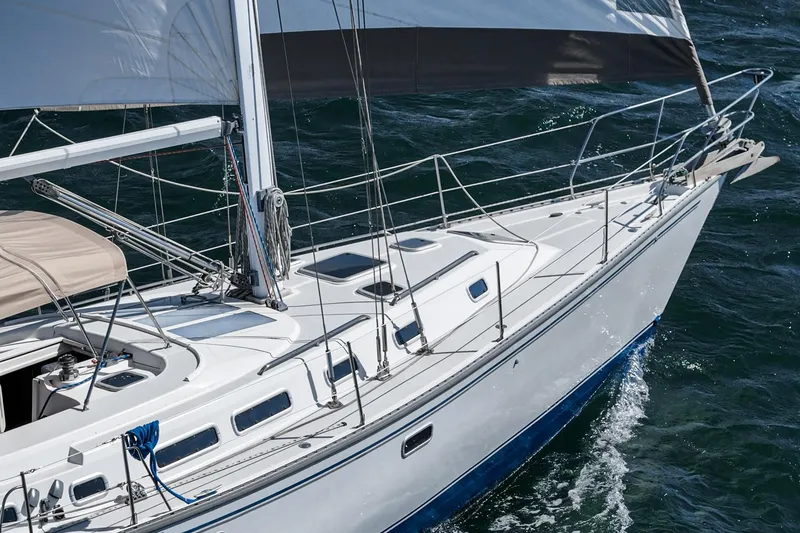

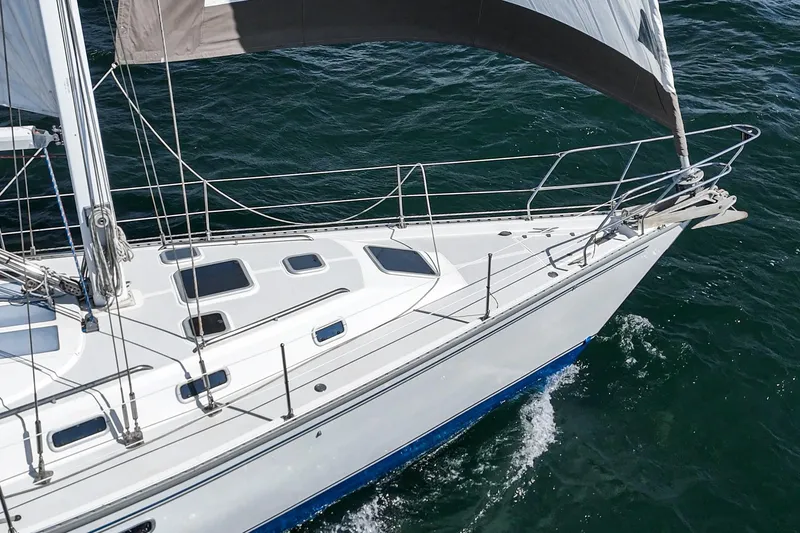

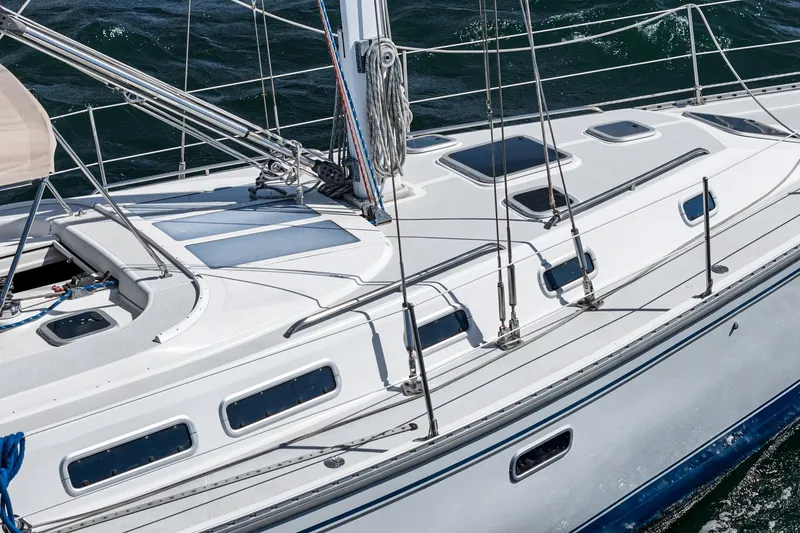

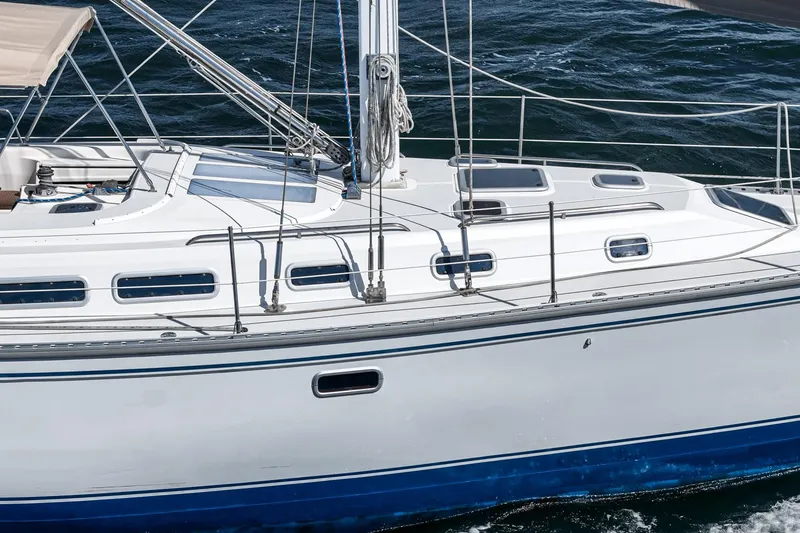

Deck & Hull Features

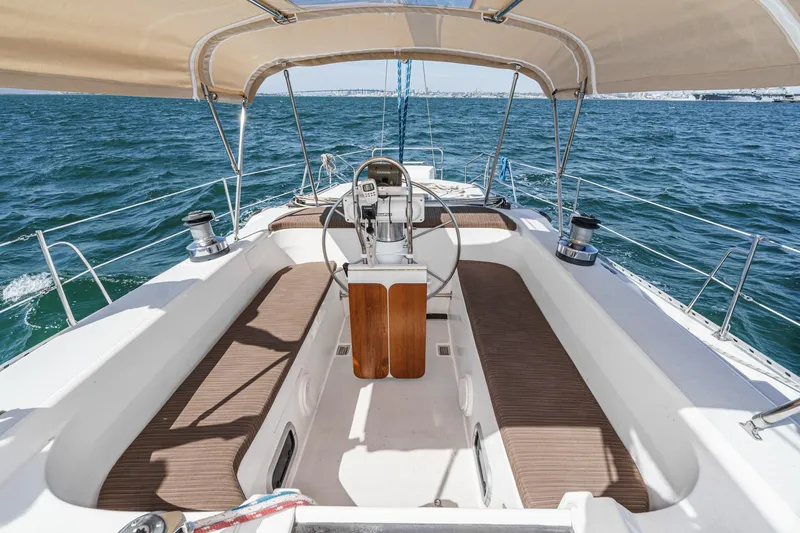

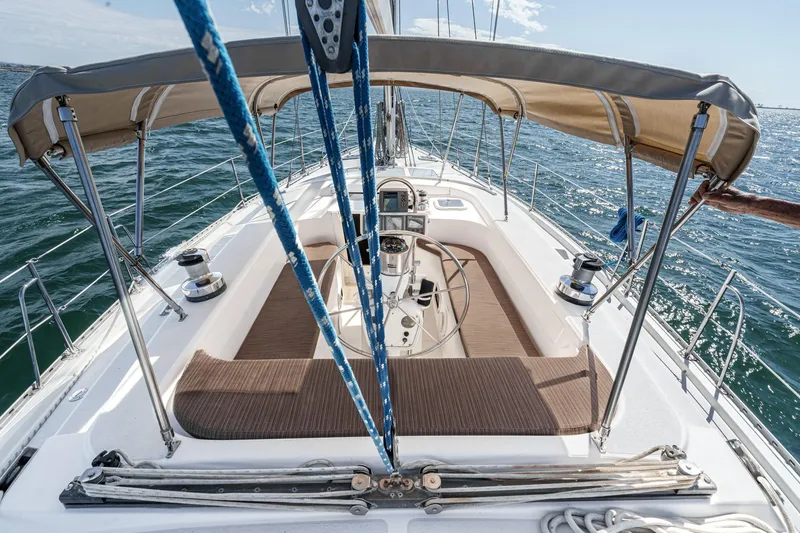

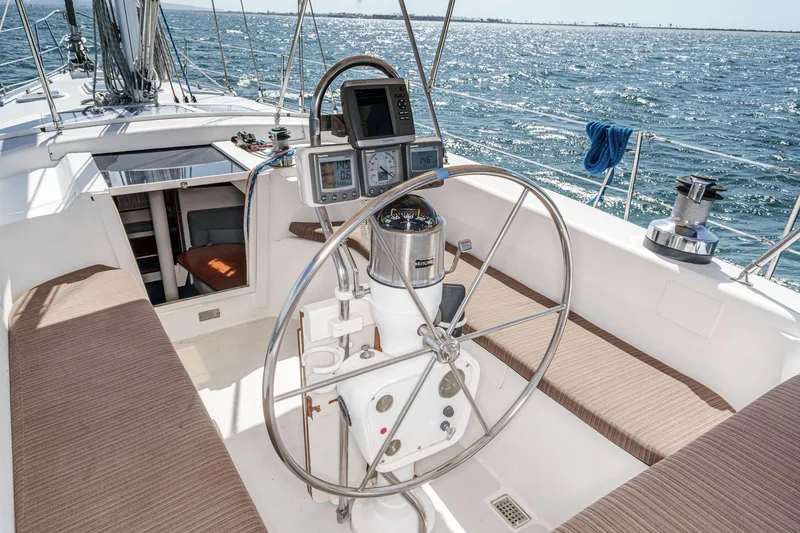

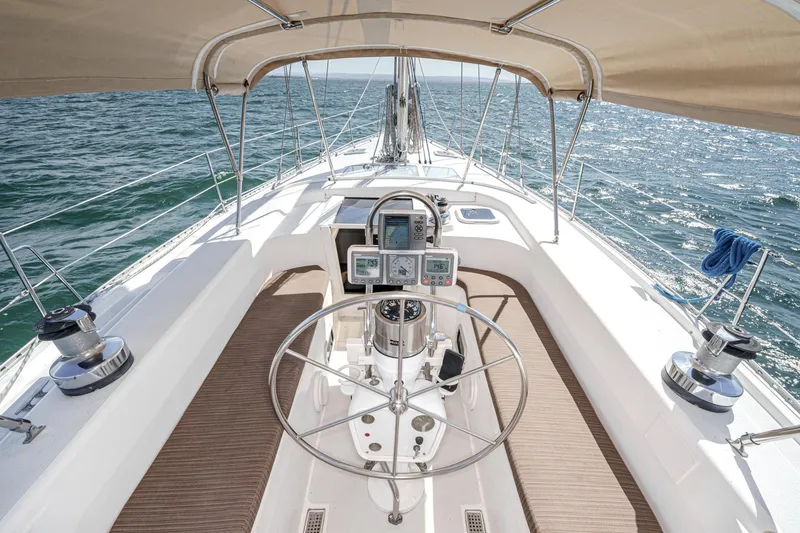

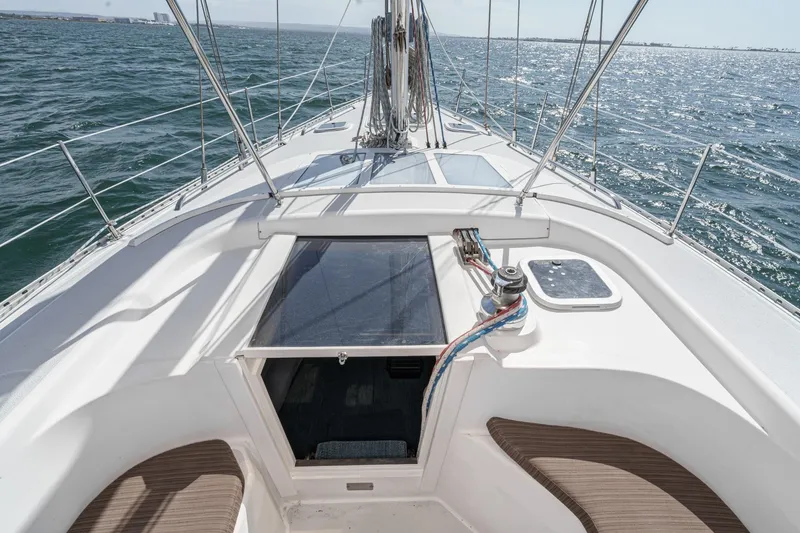

• Center cockpit with good visibility

• Wide side decks

• Stainless steel lifelines

• Anchor roller with windlass (common)

• Large cockpit lockers

• Swim ladder

• Bow pulpit & stern rail

Hull Construction:
Solid fiberglass below the waterline with robust structural grid — one of the reasons these boats remain highly regarded for offshore work.

Why the Morgan Catalina 45?

✔ Excellent liveaboard platform
✔ Proven cruising pedigree
✔ Comfortable center cockpit layout
✔ Strong resale demand
✔ Efficient diesel operation
✔ Manageable for couples

This model continues to be popular among serious cruisers looking for a capable, comfortable 45-footer without the price of newer yachts.

Specifications International:

• Designer: Nelson-Marek
• Length Overall (LOA): 44 feet (13.41 meters)
• Length at Waterline (LWL): 35.33 feet (10.77 meters)
• Beam: 13.5 feet (4.11 meters)
• Draft: 5 feet (1.52 meters)
• Displacement: 23,500 pounds (10,659 kilograms)
• Ballast: 8,200 pounds (3,719 kilograms)
• Sail Area: 797 square feet (74.04 square meters)
• Hull Type: Fin keel with rudder on skeg
• Rigging Type: Masthead fuerling sloop

Engine:

The Catalina Morgan 44 is equipped with a Yanmar diesel engine, known for its reliability and efficiency.

Sail Information:

The masthead sloop rig features a double-spreader, deck-stepped mast with forward and aft lower shrouds. The mainsheet traveler is conveniently located just aft of the cockpit. The sail area-to-displacement (SA/D) ratio is 15.6, indicating a balance between performance and ease of handling.

Performance:

The design of the Catalina Morgan 44 allows for comfortable cruising with respectable performance. The displacement-to-length (D/L) ratio is 237.9, suggesting a moderate displacement vessel suitable for extended cruising. The hull speed is calculated at approximately 7.96 knots.

Additional Features:

• Fuel Capacity: 35 gallon
• Water Capacity: Information around 170 gallon total.
• Interior Layout: The center cockpit design provides a spacious aft cabin, a sizable galley along the starboard side, and a comfortable main salon. The forward cabin includes a V-berth with a dressing area and storage.    The Catalina Morgan 44 is recognized for its robust construction, thoughtful design, and suitability for both coastal and offshore cruising. Its spacious interior and reliable Yanmar engine make it a popular choice among sailing enthusiasts.

The 1992 Morgan Catalina 45, designed by Nelson Marek and built by Catalina Yachts, is a 45.25-foot masthead sloop. It features a beam of 13.75 feet and a draft of 5.33 feet.

The sail area totals 816 square feet, contributing to a sail area-to-displacement ratio of approximately 15.3. This ratio indicates the vessel is moderately powered, suitable for coastal cruising.

The displacement is around 25,000 pounds, with ballast accounting for 8,300 pounds, resulting in a ballast-to-displacement ratio of 33.2%. This suggests reasonable stability and stiffness under sail.

With a waterline length of 37.83 feet, the theoretical hull speed is approximately 8.24 knots.

Overall, the Morgan Catalina 45 from 1992 is recognized for its sturdy construction and balanced sailing characteristics, making it a reliable choice for both coastal and extended cruising.

The  1992 Morgan Catalina 45 has a total sail area of approximately  816 square feet. This typically breaks down into:

• Mainsail: Around 350-370 sq ft
• Genoa (135% headsail): About 450-470 sq ft

The 1992 Morgan Catalina 45 is typically equipped with a Yanmar 4JH2E diesel engine. This engine is a four-cylinder, naturally aspirated model with a displacement of 2.19 liters (131 cubic inches). It operates at a rated speed of 3,000 rpm, producing approximately 50 horsepower.

Overall, the Yanmar 4JH2E is known for its reliability and efficiency, making it a suitable choice for the Morgan Catalina 45.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
