• Raymarine E90W Hybrid Touch color display
• Raymarine P-70 autopilot linear drive
• Raymarine EV1 GPS
• Raymarine Ray Star RS130 GPS
• Raymarine ST60 windvane
• Raymarine I-70 multi display
• Raymarine digital 18" radome antennae
• Ritchie 5" Powerdamp compass
• Raymarine RAY 55 VHF radio
• Raymarine RAY 218 VHF radio
• Kenwood CAR MPL Player SWM-8800
• Bose Speakers

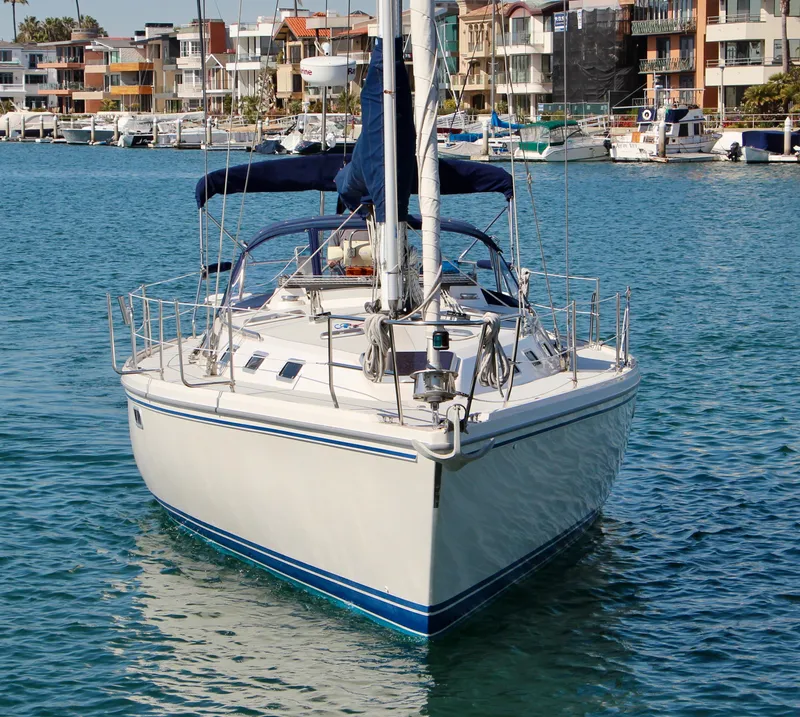

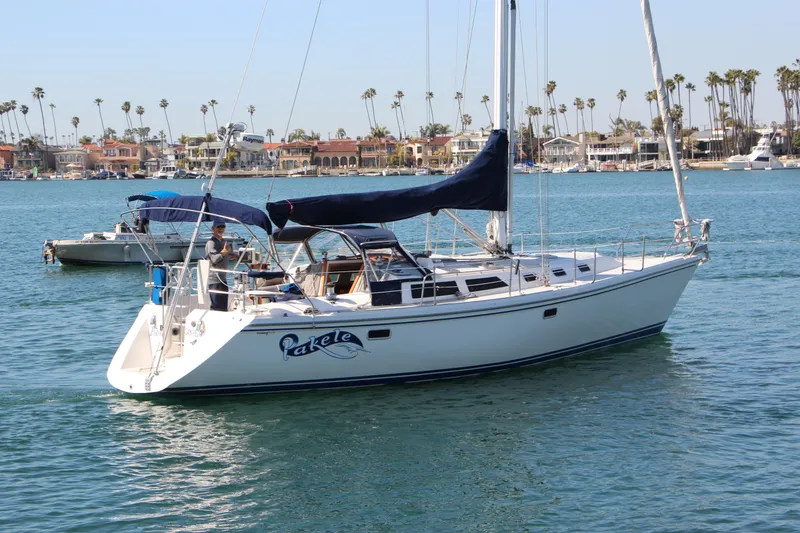

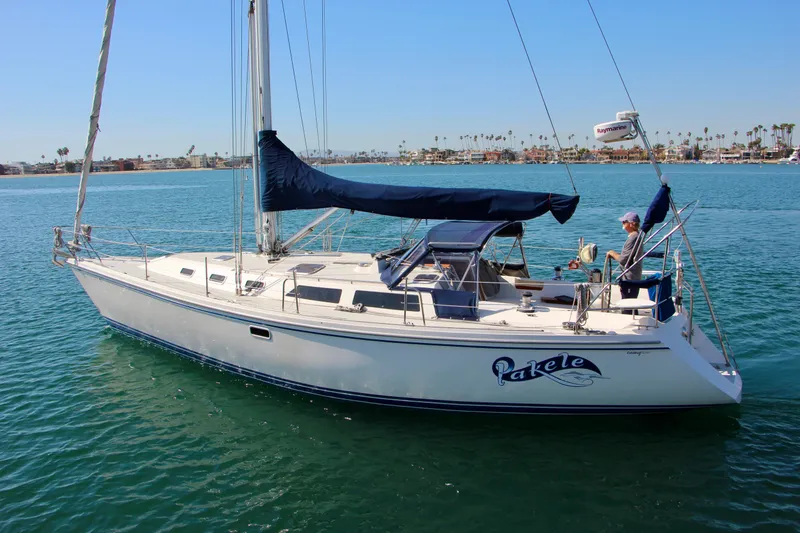

The Catalina 42 is the logical result of Americas most experienced sailboat builder continuing to listen carefully to the needs and desires of experienced sailors.

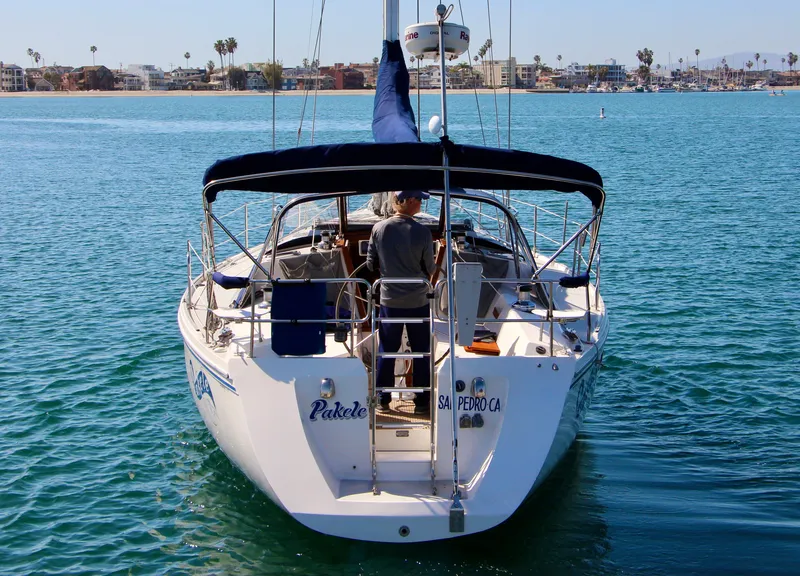

All sailors desire speed undersell, easy motion and easily driven with a fine entry, firm midship sections, and smooth run aft terminating in a modified reverse transom with an uncommonly spacious and functional boarding platform.

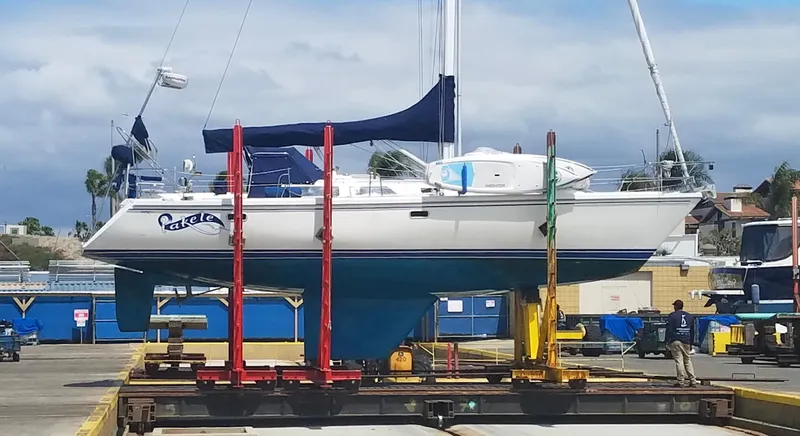

A long horizontal skeg runs aft between the fin keel and the rudder for sure tracking. The rudder large and balanced, ensuring control in all conditions.

An important consideration for many cruising sailors is the ability to realize the boat's performance potential under sail with a short-handed crew.

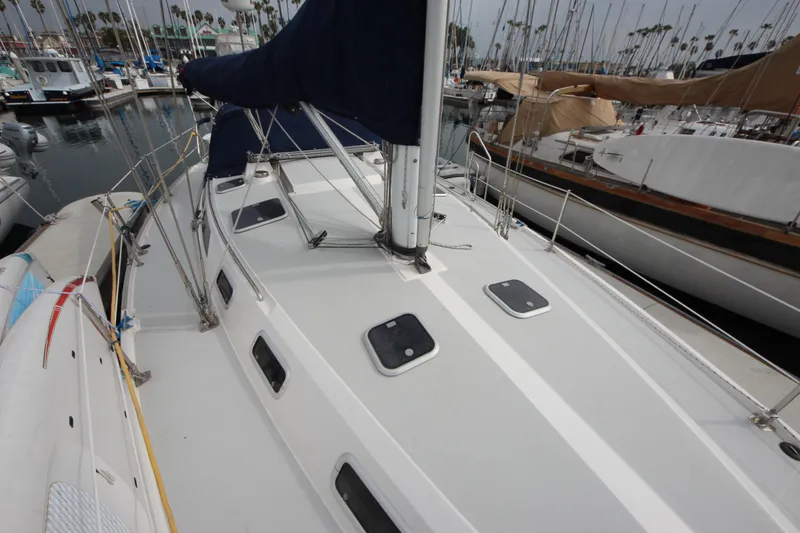

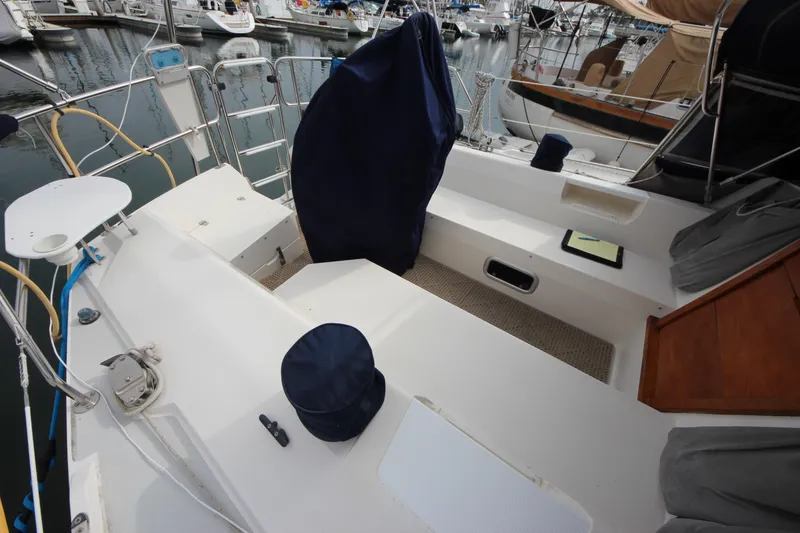

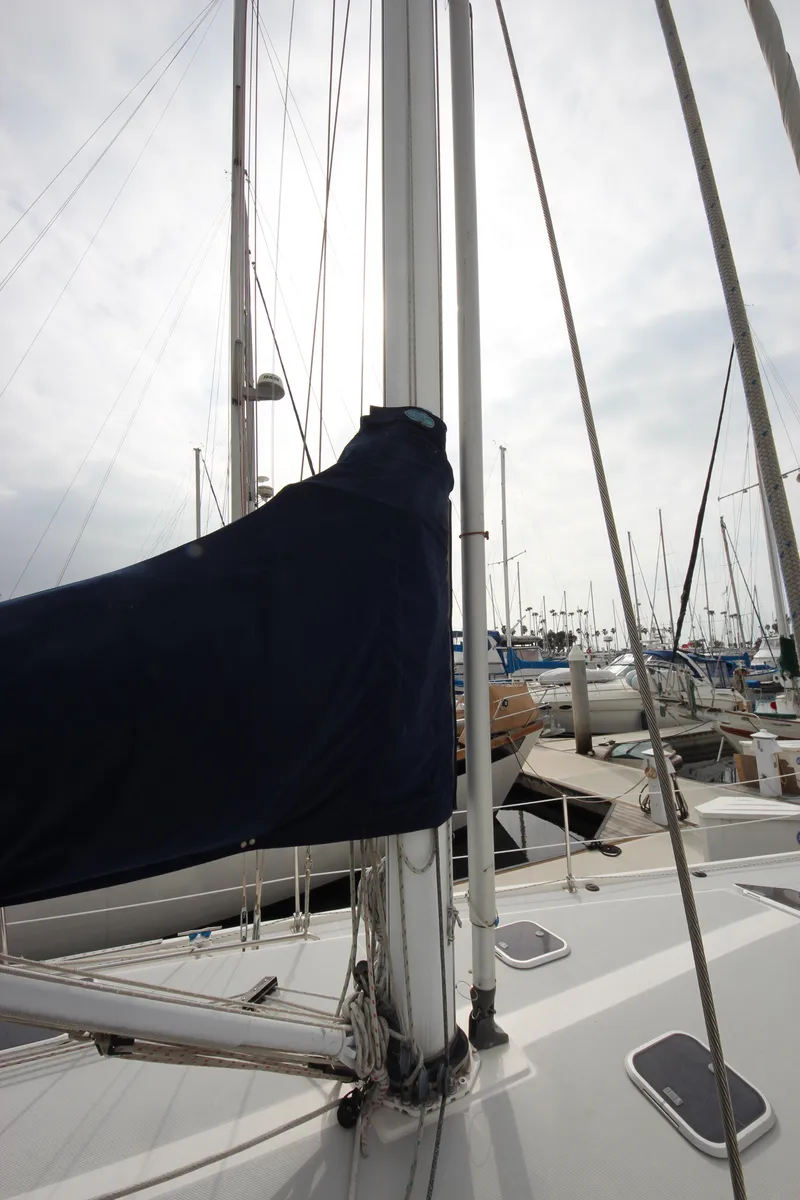

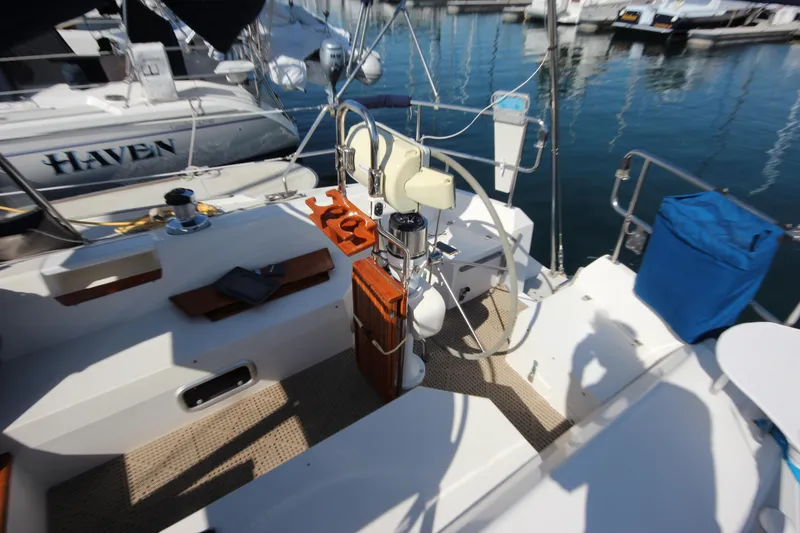

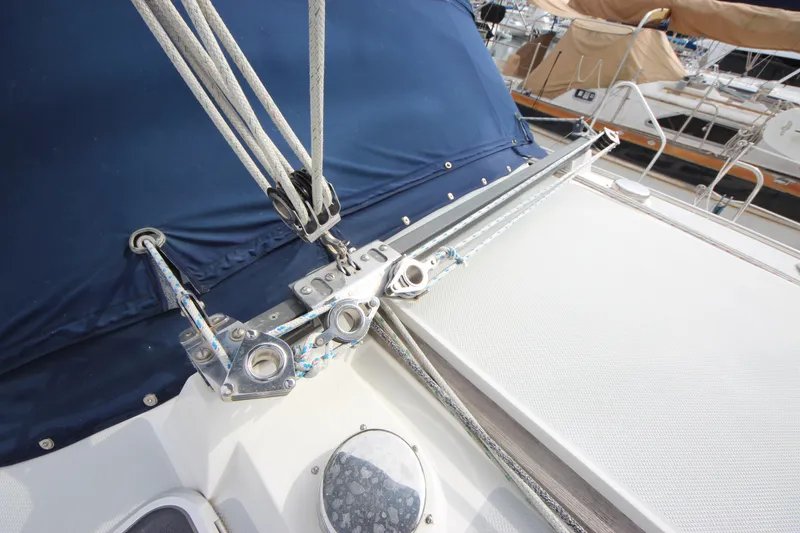

The Catalina 42 deck was designed with short-handed sailing in mind. All the halyards, the mainsheet and the single line main reefing controls are led to the cockpit and placed to be operated from under the dodger when necessary.

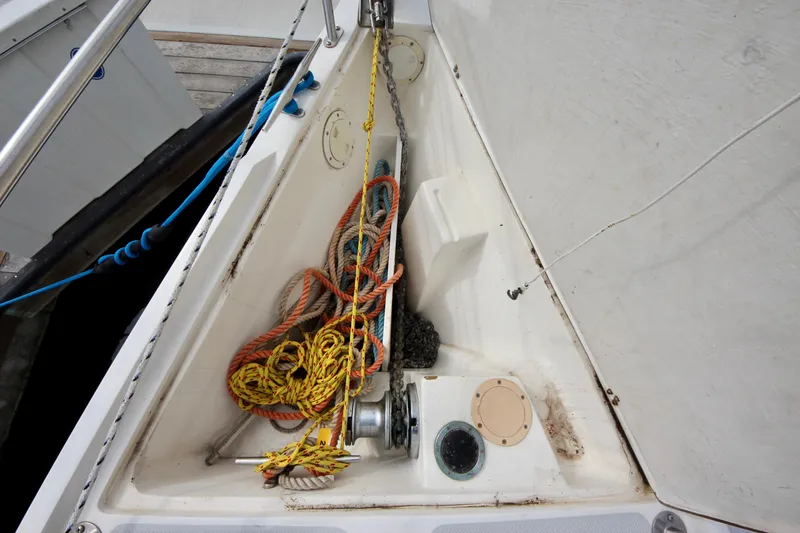

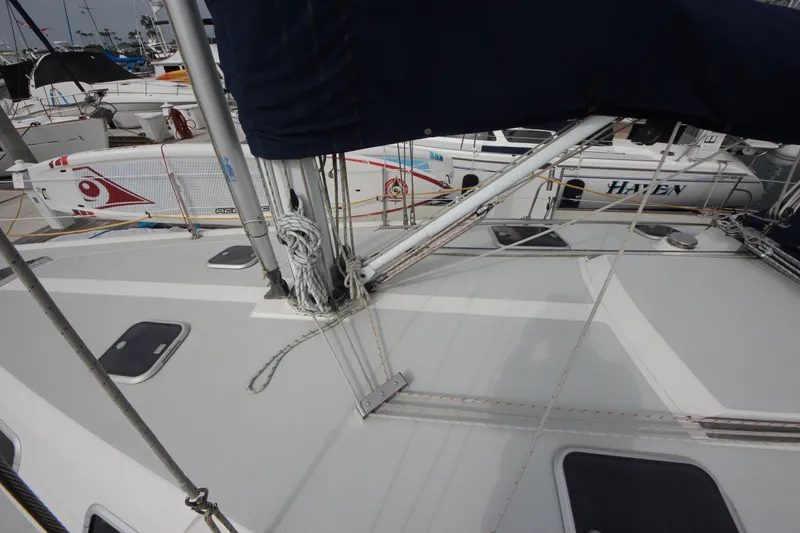

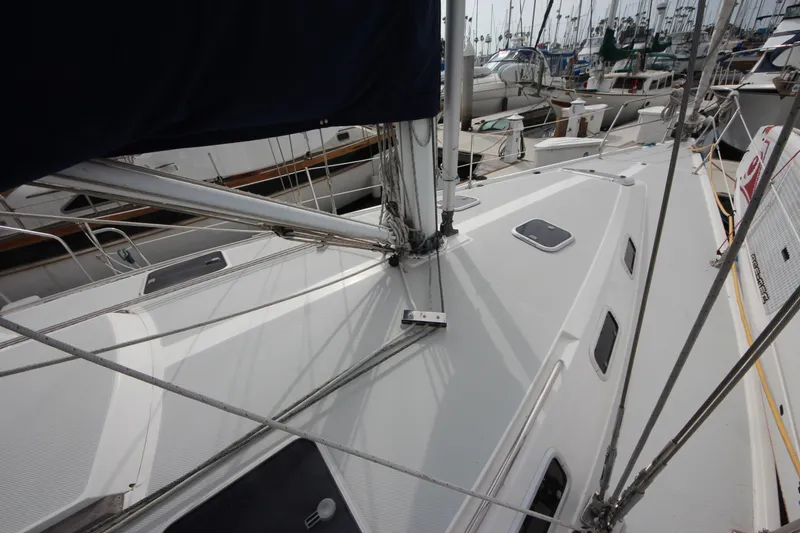

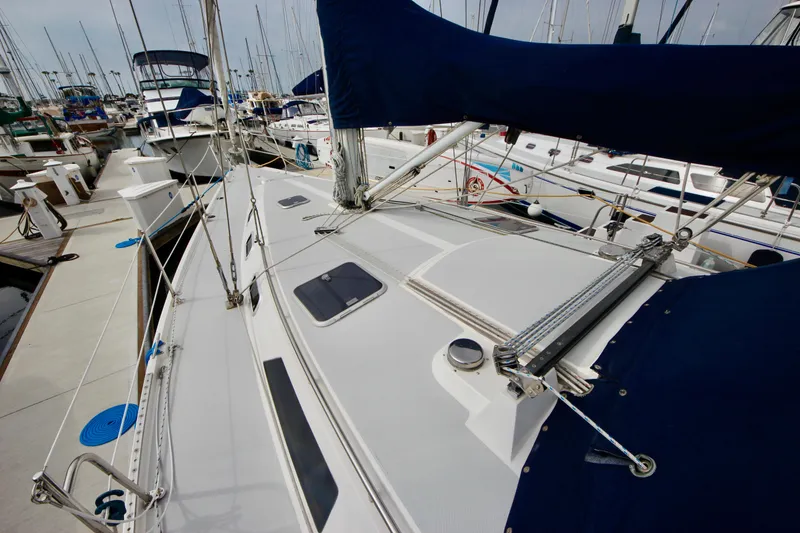

The wide weather decks and inboard shroud base make passage forward easy and secure. The below deck electric windlass and bow roller simplify anchor handling.

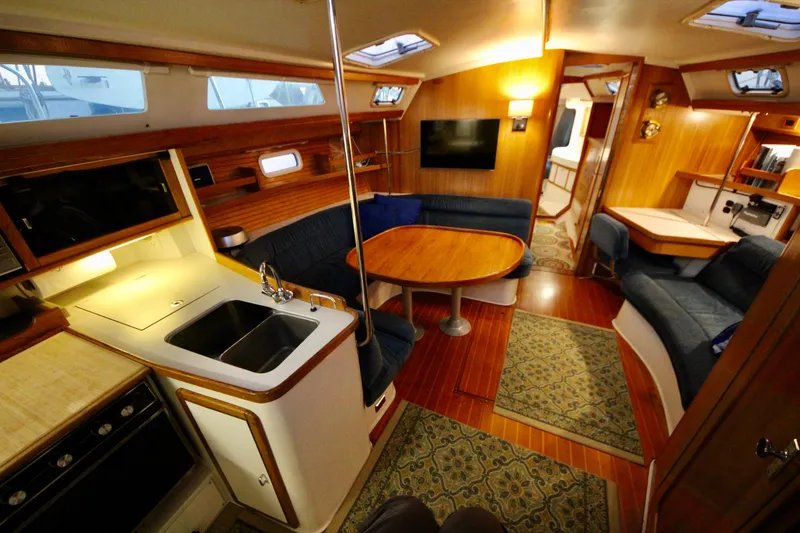

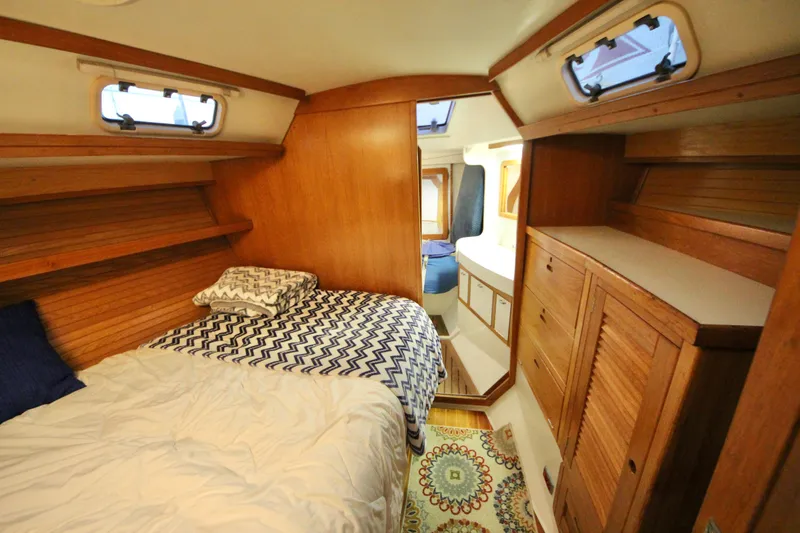

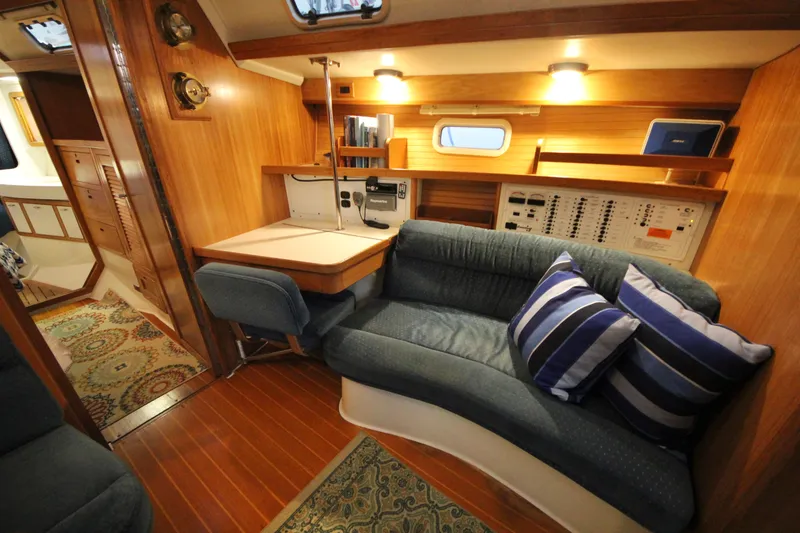

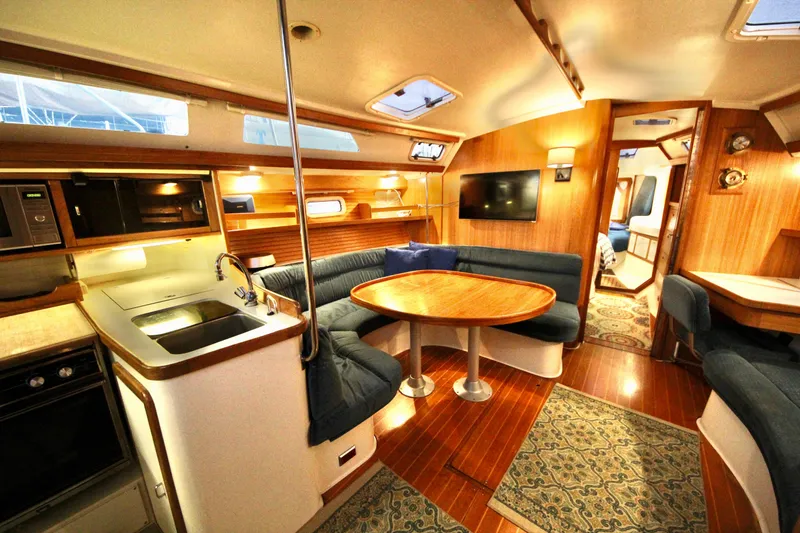

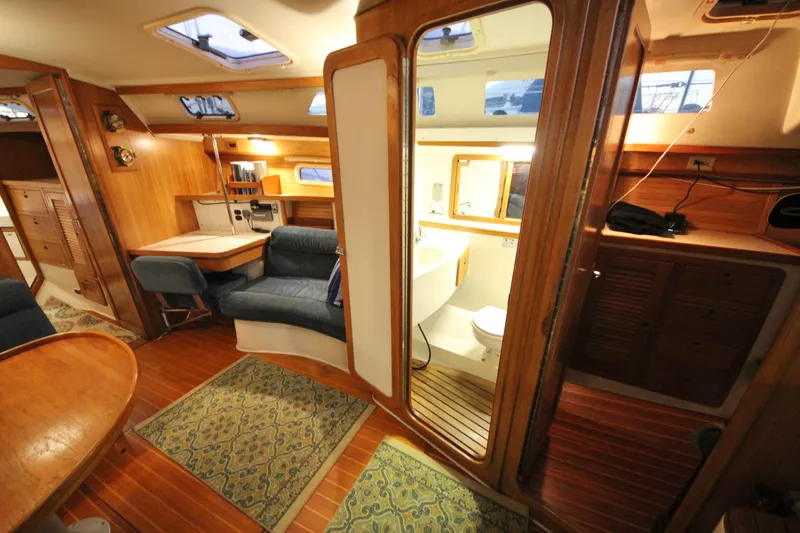

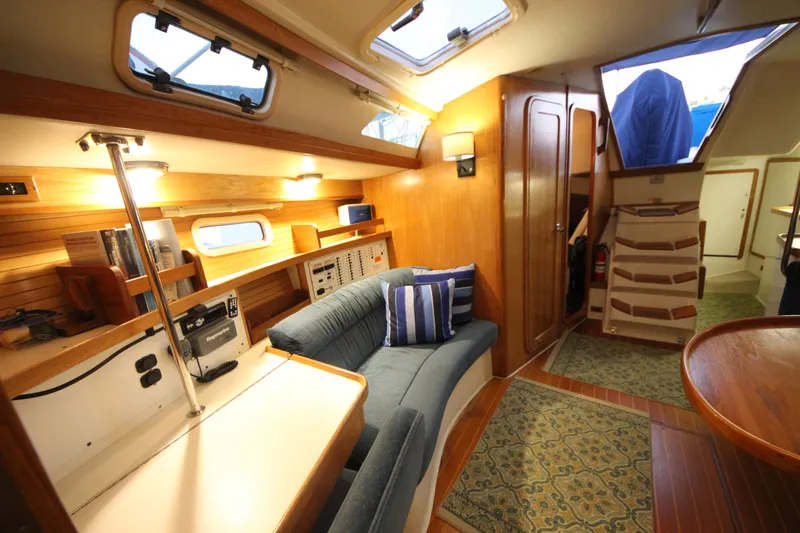

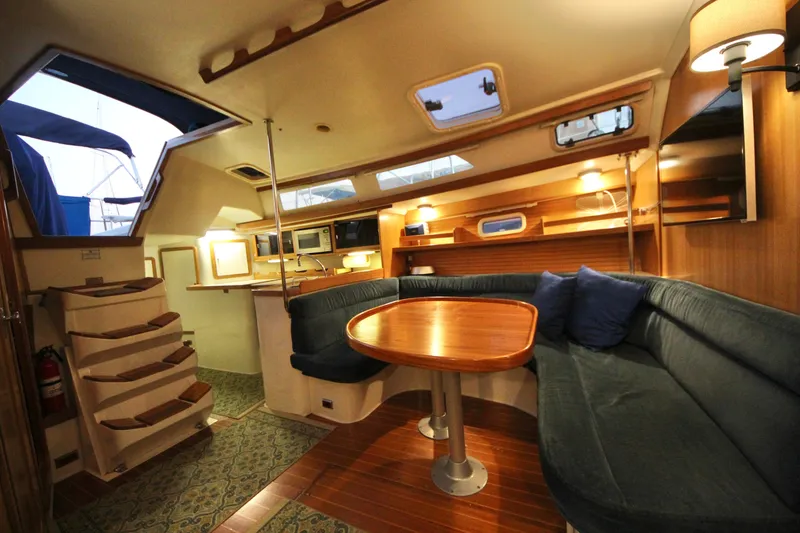

The two stateroom layout was carefully planned to accommodate your sailing lifestyle. Finished with a varnished teak joinery interior ash hull side paneling and excellent light and ventilation from Lewmar opening hatches and ports.

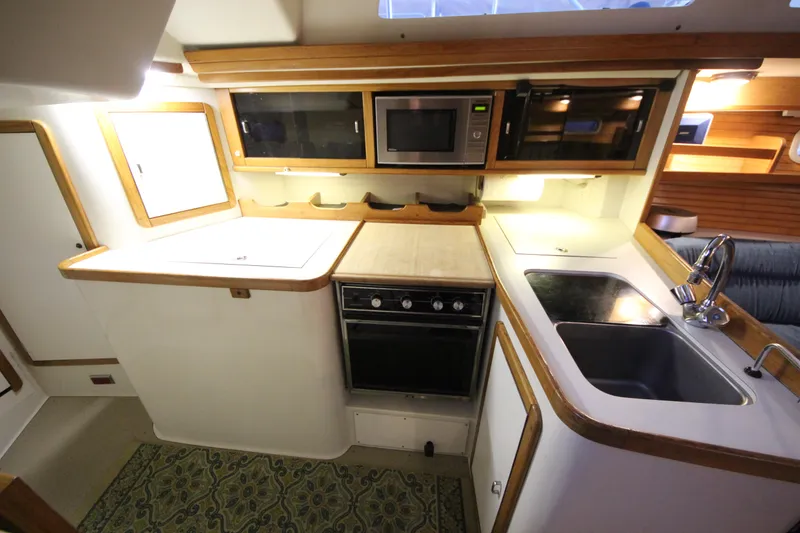

• Panasonic Stainless Steel microwave NN-SD372S
• Adler Barbour Refrigeration serviced 2020
• Princess 3 burner propane stove and oven
• Seaward 11 gal hot water heater
• Vizio 32" televison

• Promariner 2500 watt true charger/ inverter
• (3) 8D heavy duty deep cycle batteries 2023
• 30 amp 110volt shore power receptacle and cord
• AC/DC electrical distribution panel

• Maxwell 800 electric windlass
• Schaefer 3000 roller furling
• Aeroluff reefing system

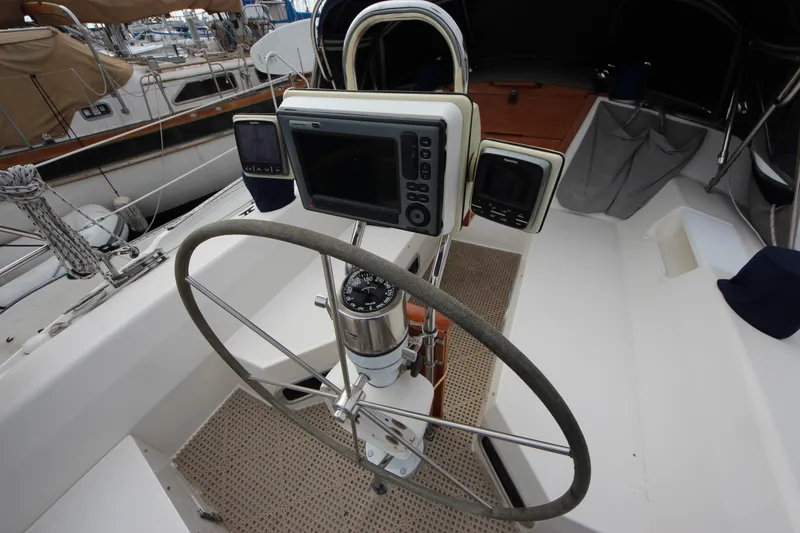

• Edson pedestal steering system
• Isovang boom vang

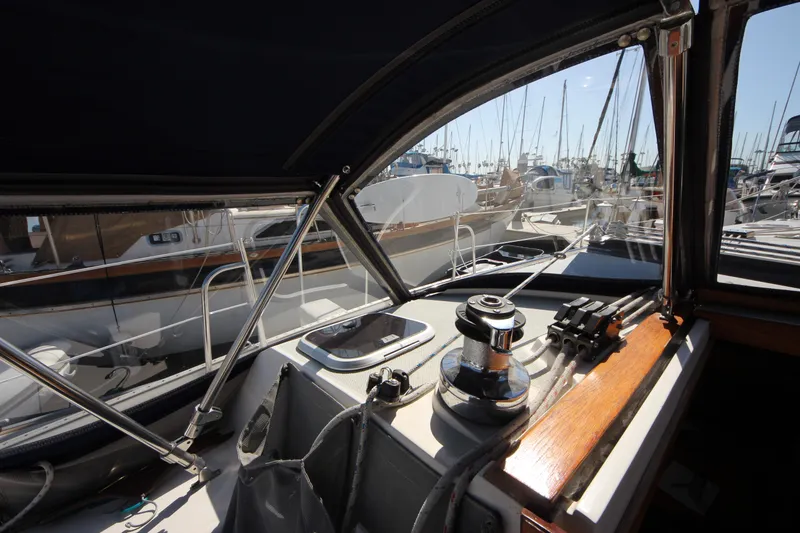

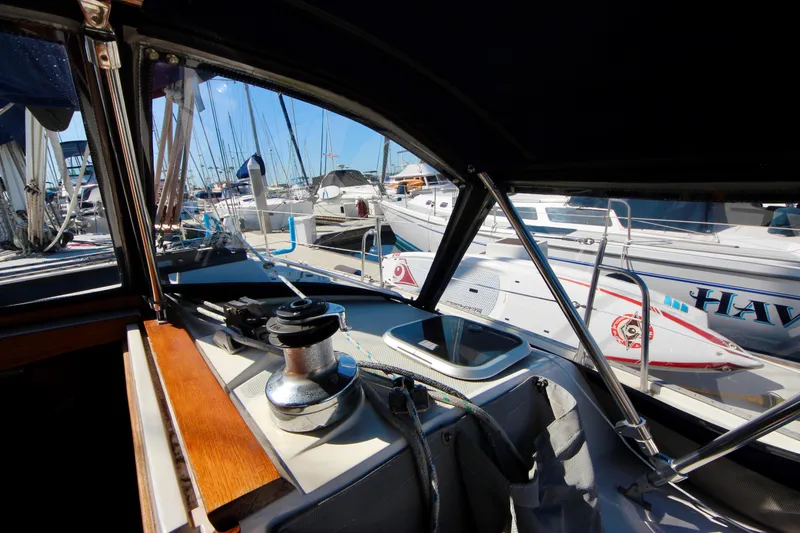

• (2) Primary Lewmar 52' two speed self tailing winches
• (2) Secondary Lewmar 40' self-tailing winches

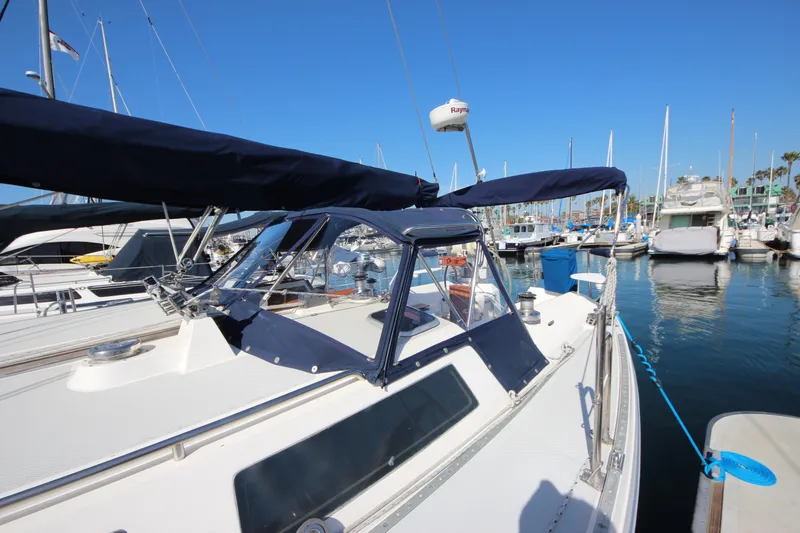

• Navy Sunbrella dodger new windows (2020)
• Navy Sunbrella cockpit bimini (2020)
• 140% Spinnaker
• 135% Genoa head sail
• All riggings and lifelines serviced or replaced 2015
• New cockpit cushions
• Edson outboard motor mount

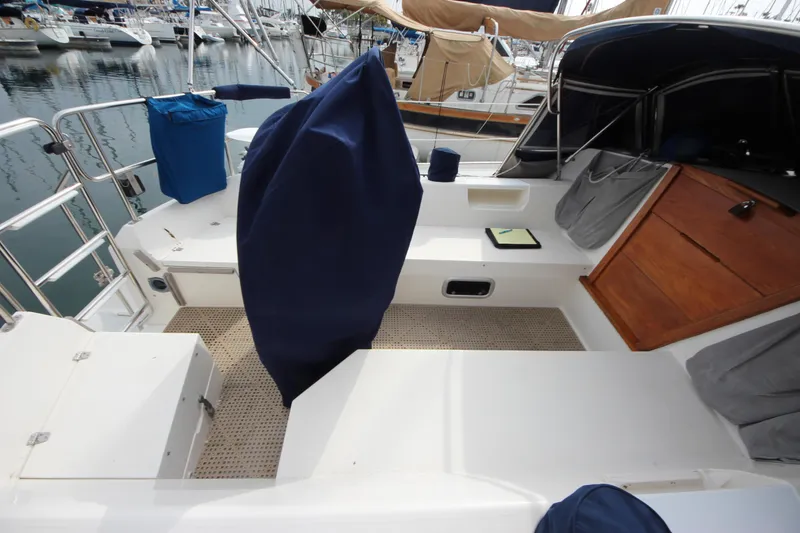

• Custom aft rail cockpit seating

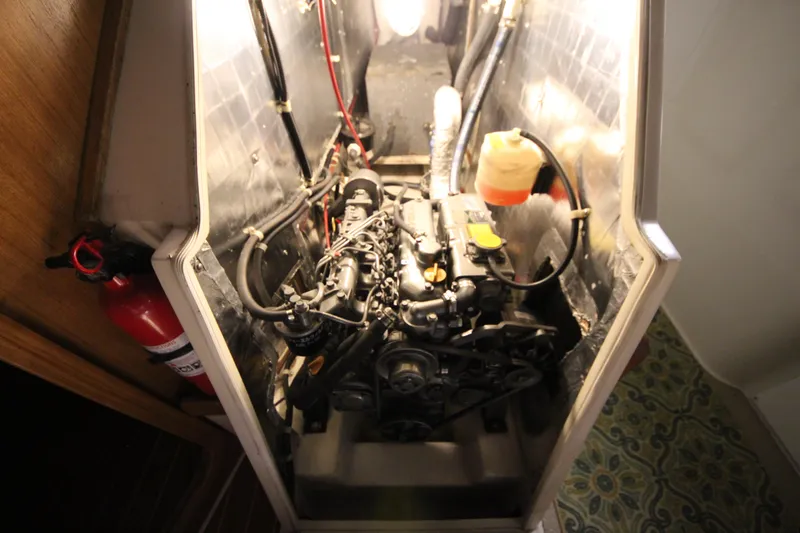

• 46 hp Yanmar 4JH2E 4 cycle four cylinder diesel engine with 2231 hours
• KM3A Kanzaki transmission
• 1 1/4" stainless steel propeller shaft
• PSS dripless shaft seal
• Maxprop 3 blade feathering propeller
• Par 36800 Series water pump

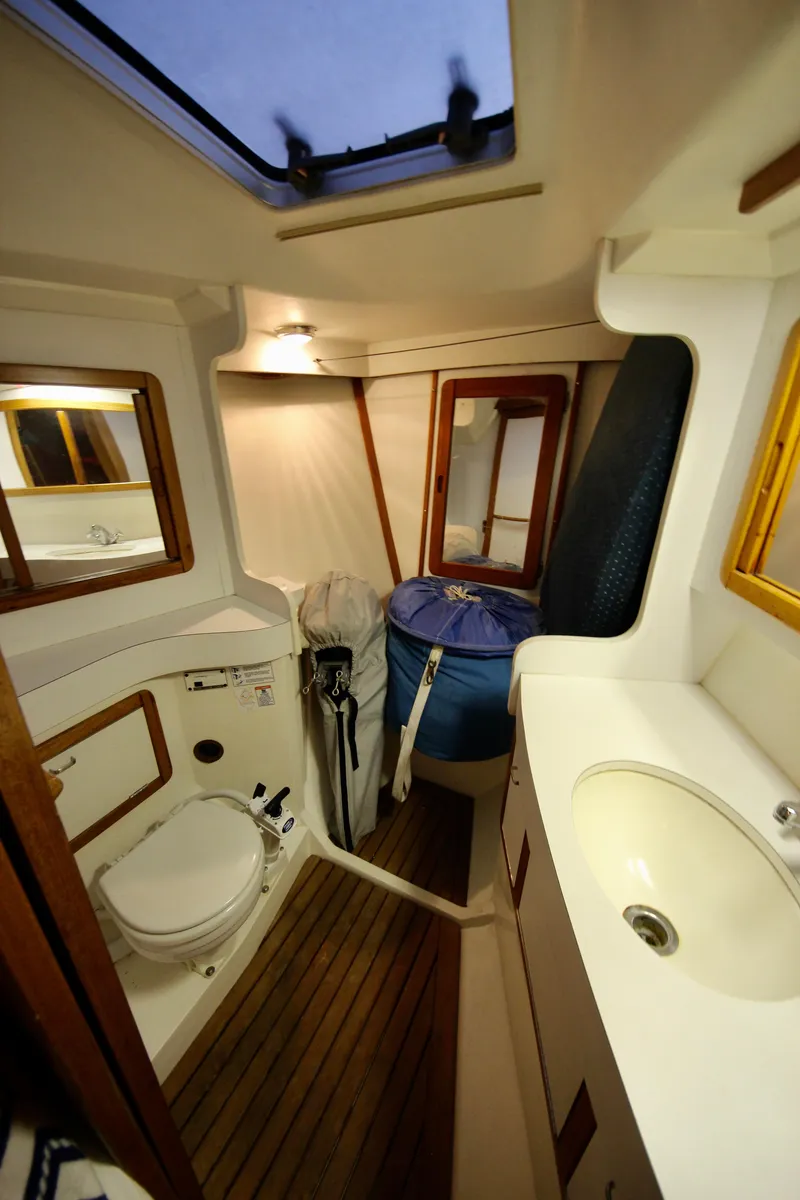

• (2) Jabsco Twist Lock manual toilet
• Jabsco macerator pump

The hull is solid fiberglass. ABS- approved lamination schedule consists of skin coats of 2-ounce mat and 7.5 -ounce cloth. From the centerline to 6" above the molded bootstrap are eight alternating layers of mat and roving in weights ranging from 1.5 to 21.7 ounces, all of which are overlapped 6". Additional support on the centerline is provided by a 50" wide strip of 24-ounce Promat running the length of the hull.

Above the waterline are 11 overlapping layers of mat, roving and Coremat in 1.5- to 21.7 ounce weights.

The hull thickness at the keel is 1-3/8" to 1-1/2", 5/8" to 3/4" at the turn of the bilge, and 1/2" to 9/16" at the sheer.

The deck lay-up schedule is similar to the hull, though it is cored with a combination of 1/2" marine plywood (where deck hardware is installed) and 3/4" end grain balsa.

Hull rigidity is provided by a fiberglass pan bonded to the hull at the sheer by 1/2" thick, four ply marine plywood glassed between the hull and liner, which is C clamped in place until cured. The pan also incorporates the cabin sole and berth foundations. Frank Butler was one of the early proponents of pans, credits this development with dramatically reducing construction costs.

The hull-deck joint is an external flange bonded with fiberglass-reinforced polyester, then through bolted 8" centers with 1/4" stainless steel fasteners. The seam is covered by an aluminum rubric attached on 3" centers that is covered with a vinyl insert (tan or grey depending on vintage).
