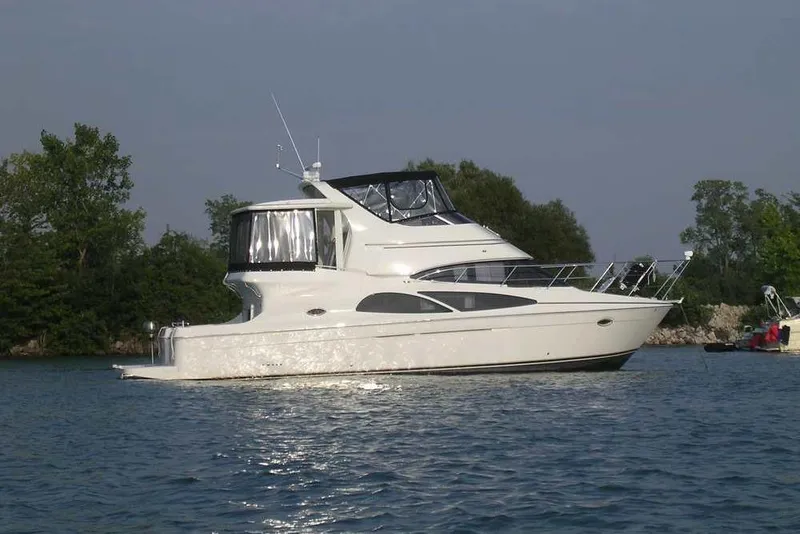

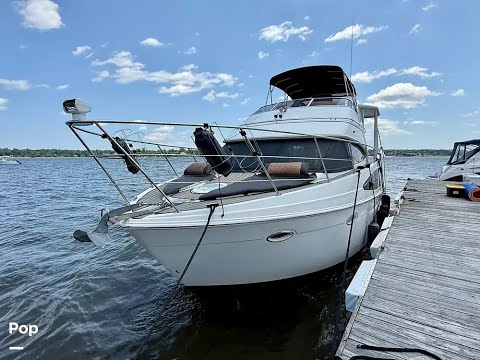

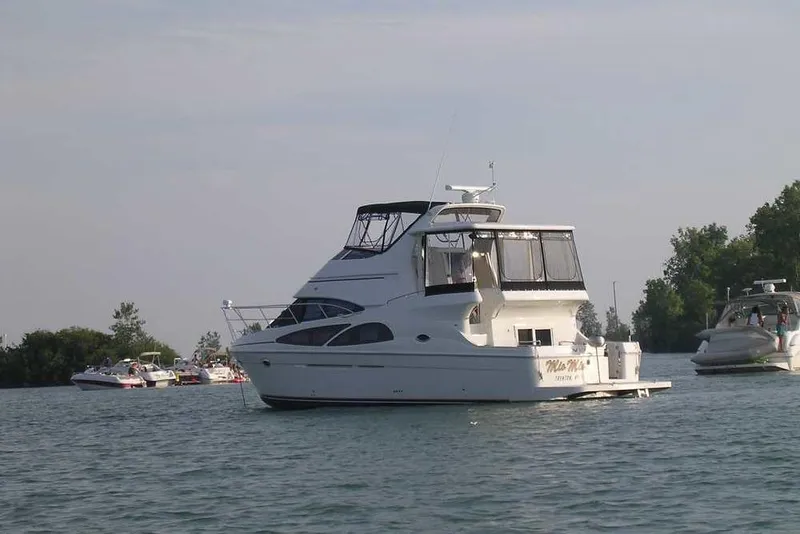

2006 Carver Yachts 41 Cockpit Motor Yacht

Power & Mechanical

Engine Oil Change System
Fresh Water Washdown
Spare Props
Spare Parts

Electronics & Navigation

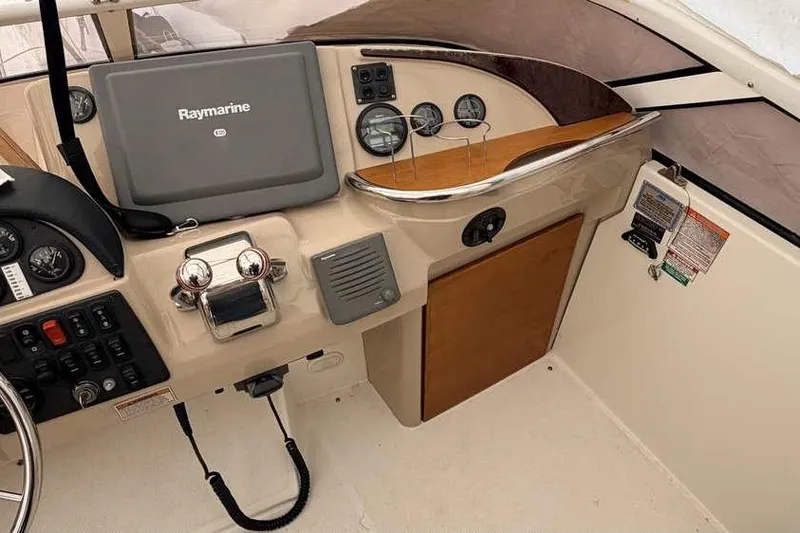

Raymarine HSB2 Integrated Electronics (Circa 2006)

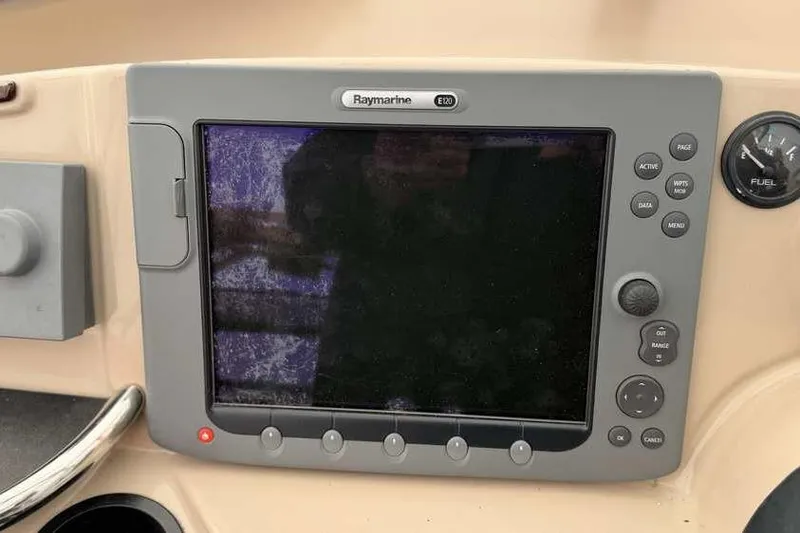

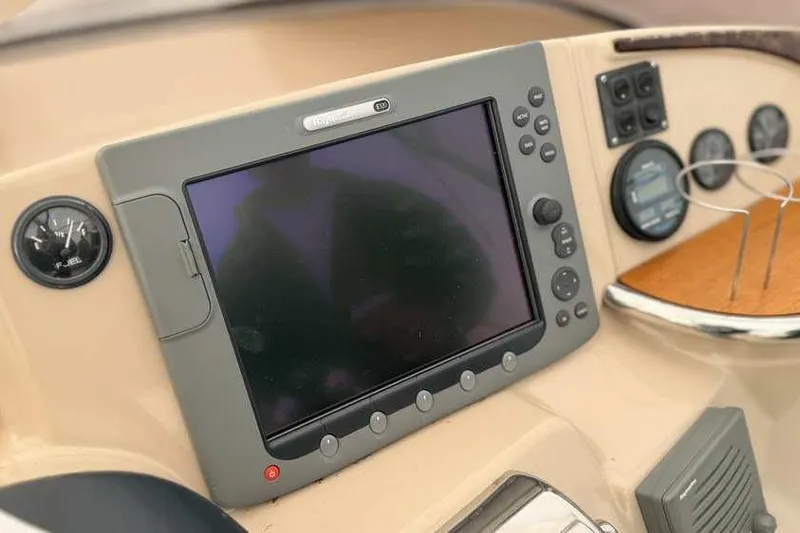

Dual Raymarine E-Series MFD Displays With 2019 Updated Great Lakes Charts
GPS
Open Array Radar

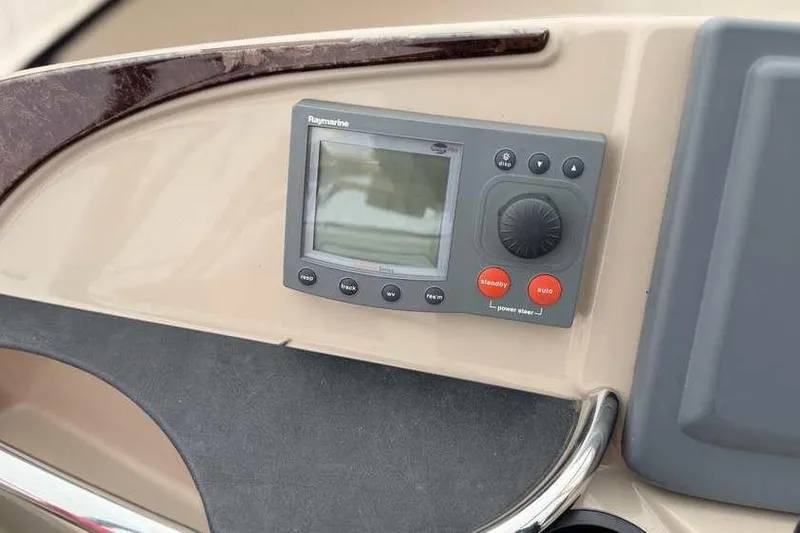

Autopilot With Dual Control Heads, Dash Mount And Remote Handheld
Depth / Fish Finder
VHF Radio With Bridge And Salon Stations And Hailer
Floscan Integrated Fuel Monitoring System

Exterior & Canvas

Prestige Full Canvas Package
Bridge Canvas And Curtains (New In 2018)

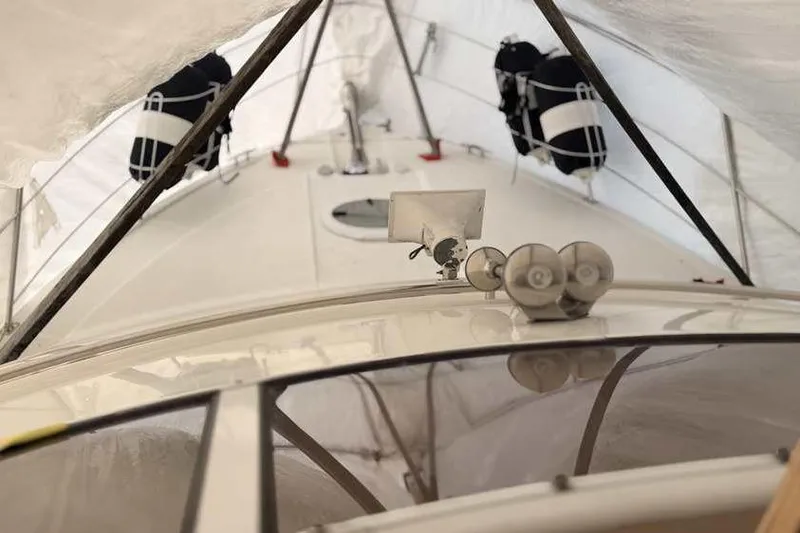

Maxwell Anchor Windlass
20kg Chrome-Plated Claw Anchor Upgrade
Bridge, Middle Deck, Cockpit And Swim Platform Layout

Cockpit & Bridge

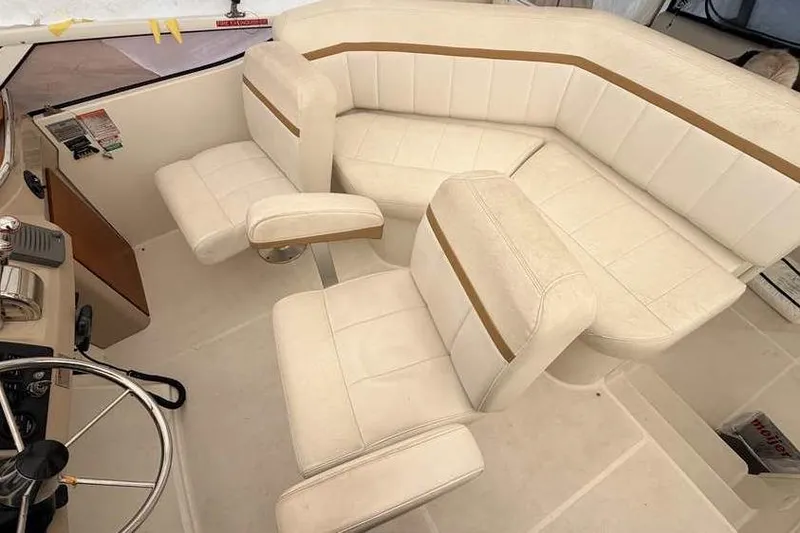

Three Pedestal Bridge Seats
Central Vacuum System
Standard 6-Disc Remote Mount CD Player
Standard AM/FM Stereo With Single CD

Interior & Accommodations

Buff Ultraleather Seating
Cherry Wood Interior
Zinfandel Carpet

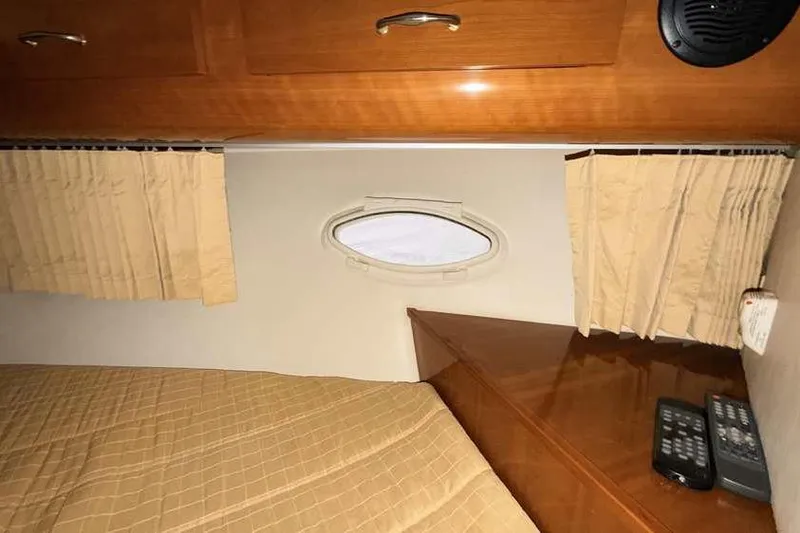

Vee Berth

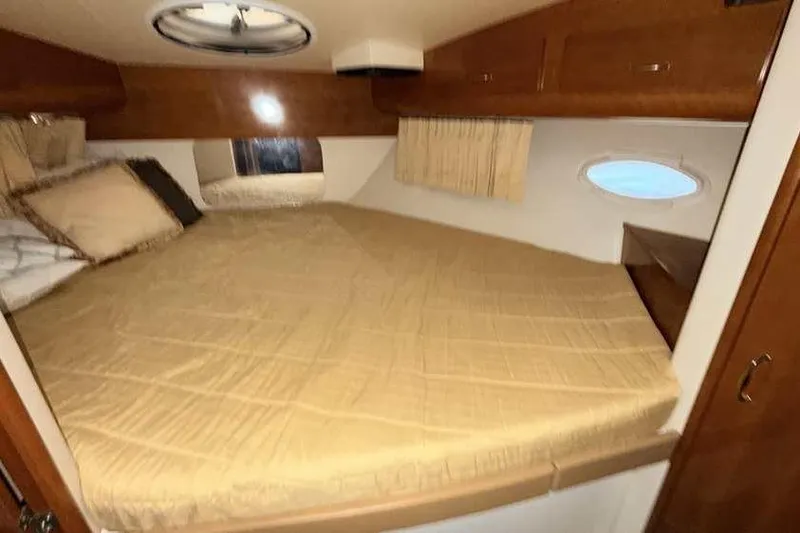

Master Stateroom

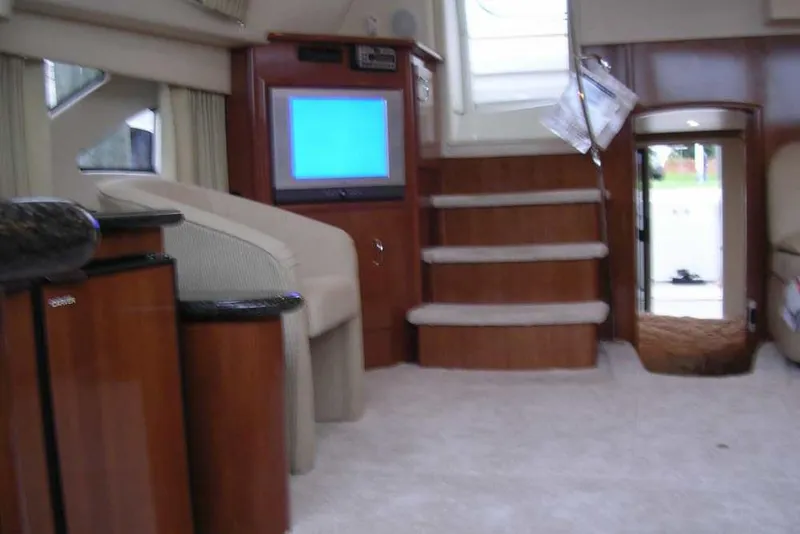

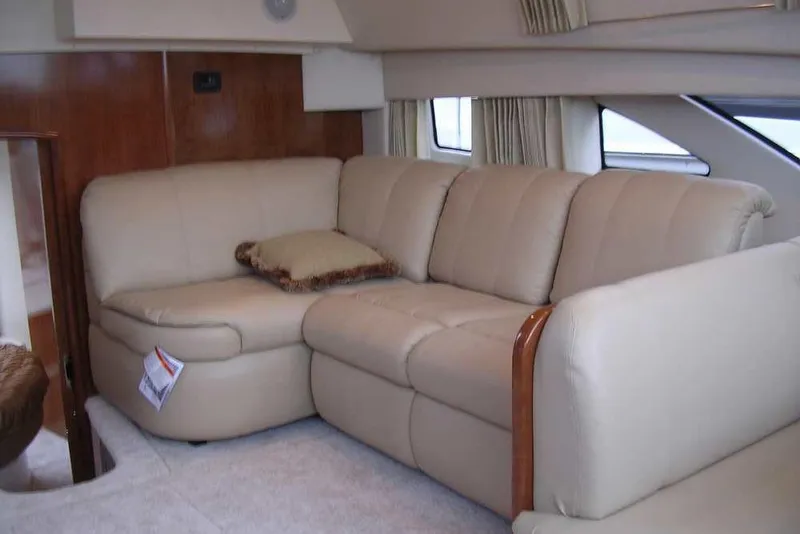

Salon Seating Area
Galley

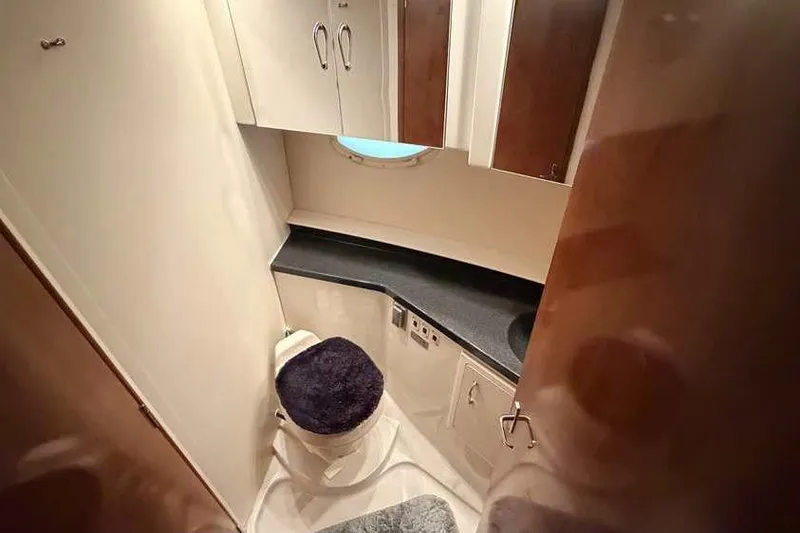

Two Heads With Dual Vacu-Flush Systems
Two Holding Tanks
Two Showers
Three Air Conditioning / Heating Units
Microwave / Convection Oven
Two Burner Electric Ceran Cooktop
Refrigerator & Freezer
Coffee Maker
Decorator Pillows

Entertainment

20" LCD TV & DVD – Entertainment System
15" LCD TV & DVD In Master Stateroom
10" LCD TV & DVD In Salon
Digital Signal Converter For Salon TV
Three TVs & DVD Players Total

Lighting & Electrical

LED Lighting In High-Use Areas
Four LED Reading Lights
LED Galley Fixture

Manufacturer Specifications

• Waste System: 50 U.S. gals / 189 liters
• Water System: 81 U.S. gals / 307 liters
• Weight (w/fuel & water): 26,000 lbs / 11793 kg
• Beam: 13'5" / 4,09 m
• Bridge Clearance w/arch: 15'1" / 4,59 m
• Cabin Headroom: .6'5" / 1,96 m
• Draft: 31" / 0,79 m
• Fuel System: 360 U.S. gals / 1363 liters
• LOA (w/platform): 42'11" / 13,08 m

Propulsion

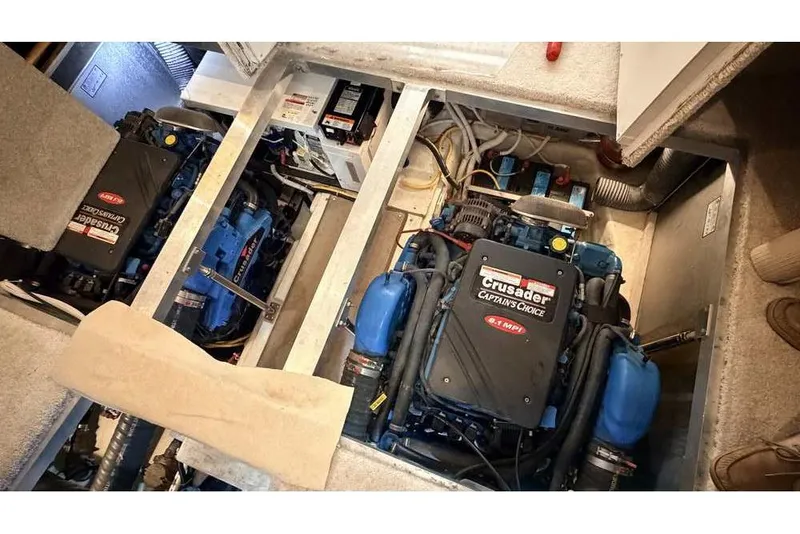

• Crusader 8.1 MPI
  (includes fresh water cooling)

Construction

• Solid fiberglass hull bottoms with Knytex substrates and Vinylester barrier coat
• Structural engine mountings reinforced stringer mountings with double-gusseted, angle steel plates
• Tinted, tempered safety glass frameless window systems
• Unitized deck, cockpit, & cabintop construction with integral aluminum truss reinforcement in cabintop structure
• Cherry wood bulkheads, cabinetry, & trim throughout cabin with high-gloss finish
• Fabricated aluminum floor frames
  with stainless steel stanchions
• Hand-laid, molded fiberglass components featuring composite laminate hullsides, decks, & cabintops
• Molded fiberglass stringer system

Mechanical

• Rudders 421 manganese bronze
• Struts 421 manganese bronze
• Trim tabs stainless steel, hydraulic
• Air conditioning 3-zone, 33,000 BTU; with reverse cycle heat; dedicated shore power connector
• Cutlass bearings
  synthetic rubber composite
• Dripless shaft logs
• Exhaust mufflers
  engines, generator
• Fuel tanks welded, baffled 5052 aluminum
• Hydraulic steering
• Propeller shafts aquamet
• Propellers manufacturer-certified

Mechanical Options

• Bow thruster
• Engine oil change system
• Internal seawater strainers

Electrical Options

• Generator Kohler 8.0 kW, diesel

Electrical

• Shore power connectors (2) 30 amp
• Shore power cords (2) 50'
• Wiring system tinned copper strand wire, harnessed, colorcoded, labeled, meets or exceeds ABYC standards
• AC/DC distribution panels with magnetic circuit breakers and integral generator and bilge blower controls; AC voltmeters; AC ammeters
• Batteries (4)
  deep cycle, marine (12V)
• Battery chargers (2)
  electronic, AC-DC converter
• External connectors
  CATV, telephone
• Generator 7.3 kW, gasoline
• Ground Fault Circuit Interrupt (GFCI) protection all 110V outlets

Water & Waste Systems

• Shore water connection with pressure-reduction valve
• Shower sump pumps (2)
  automatic operation
• Waste holding tanks (2) with filtered vents and dockside pumpouts
• Waste tank level monitors (2)
• Water and waste lines constructed of molecularly cross-linked polyethylene
• Water heater 11 gallons (110V)
• Fresh water storage tank polyethylene
• Fresh water system pressurized (12V), with large-capacity filter
• Fresh water tank level monitor

Water & Waste Systems Options

• Transom and Bow Washdowns Both fresh and seawater
• Transom and Bow Washdowns Fresh water
• Transom and Bow Washdowns Seawater only
• Grey water holding system
• Hot & cold transom handshower
• Overboard discharge system

Safety & Navigation Options

• Spare Propellers and Shaft for diesel engines
• Spare Propellers and Shaft for gasoline engines
• Electronics package
• Fender racks

Safety & Navigation

• Spotlight
• Windlass package with 35 lb. anchor and 125' of 5/16" chain
• Anodes zinc, sacrificial
• Battery master disconnect switches
• Battery restraint boxes & straps
• Bilge alarm high water
• Bilge blowers (12V)
• Bilge pumps (3) 1500 gph, automatic/manual operation
• Brass valves for all underwater thru-hulls
• CO detectors in salon and staterooms
• Compass illuminated, dual-read
• Engine alarms
  temperature and oil pressure
• Fire suppression system
  automatic, FE241, FM200
• Galvanic isolator/zinc saver
• Horn air/electric (12V), trumpet
• Internal bonding system
• Molded nonskid surfaces on all walk decks - diamond pattern
• Navigation lights (COLREGS)

Bridge - Command Bridge

• Self-draining walk surface
• Wet bar molded fiberglass, integral self-draining sink, cold water tap, wraparound stainless steel grab bar, storage cabinet beneath
• Light courtesy, recessed
• Lounge with storage beneath, accommodates 3 adults

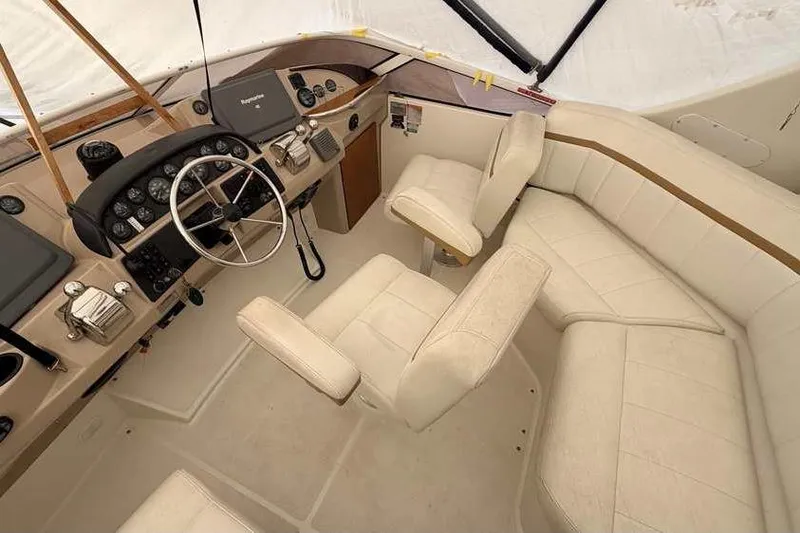

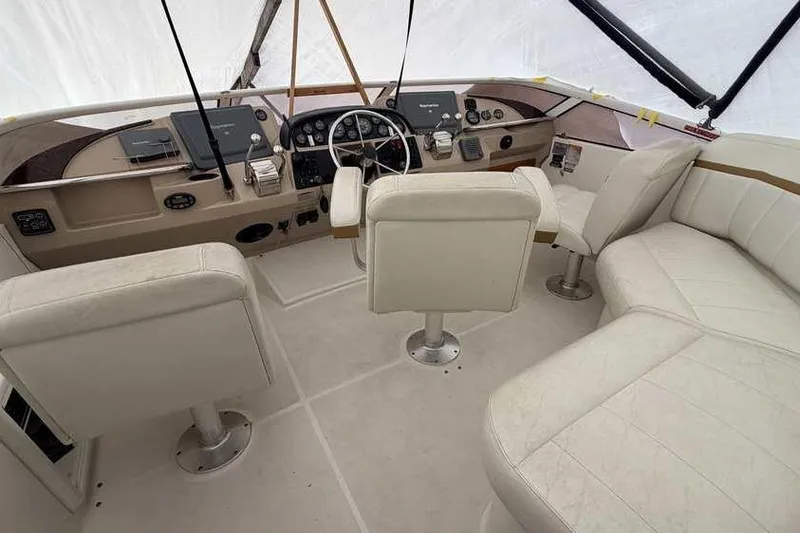

Bridge - Helm

• Stereo speakers (2) pre-wired
• Storage locker
• Tilt steering wheel
• Windshield wraparound, tinted glass, painted stainless steel frame
• 12V Adapter
• Access panel provides access to wiring in helm console
• Accessory space for installing navigation equipment
• Beverage holder
  recessed, self-draining

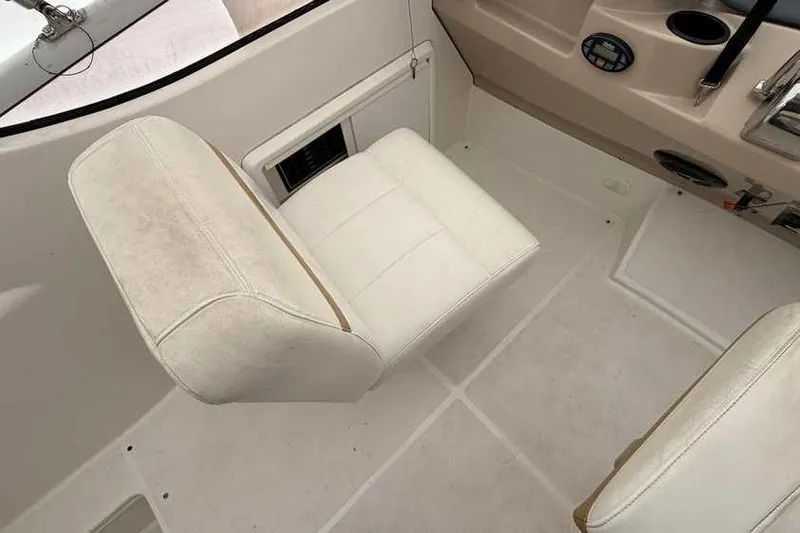

• Companion seat adjustable, pedestal base, high-quality marine-grade upholstery, embroidery stitching
• Dash fiberglass with faux burled walnut and black leather accents
• DC distribution panel
  bridge 12V systems
• Grab rails (2) stainless steel, on either end of helm
• Helm seat adjustable, pedestal base, high-quality marine-grade upholstery, embroidery stitching
• Lights (2) courtesy, recessed

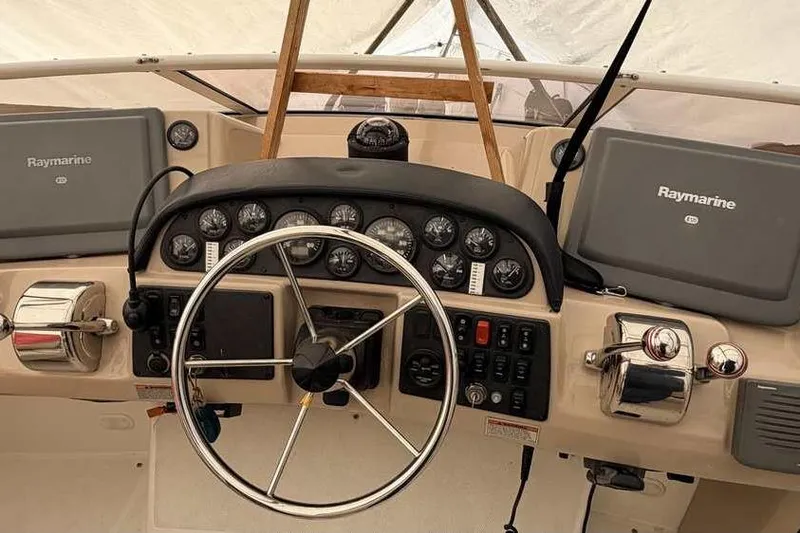

Bridge - Instrumentation

• Rocker switch controls
• Engine hourmeter
  digital, LCD (1 per engine)
• Gauges analog; synchronizer; rudder angle; tachometer, oil pressure, engine temperature, fuel level, engine battery voltage (1 per engine)

Deck - Side Decks

• Rub rail molding heavy-duty, stainless steel insert
• Spring cleats (4) 10" spring, stainless steel, bolted through aluminum backing plate
• Bow rail 1.0" O.D., lineal-buffed, welded stainless steel, with additional intermediate rails
• Deck toe rail
• Grab rail stainless steel, over cabin windows, running length of cabin and above windshields

Deck - Aft Deck

• Storage locker
• Transom door polymer panel in tubular stainless steel tabbed frame, secures closed
• Wing doors (2) clear acrylic in aluminum frame, secure open and closed, stainless steel hardware, provide access to the side decks
• 110V outlet GFCI protected
• 60 sq. ft. (approx.), integral to deck, self-draining
• Command bridge stairway integral to deck with courtesy light and stainless steel hand rail on each side
• Electronics arch access plates (8) corrosion-resistant polymer attached with noncorroding screws and waterproof sealant
• Electronics arch custom aluminum with acrylic polyurethane surface coating and UV protection
• Hand rail 1.0" O.D., stainless steel, welded to stainless steel-topped side weather boards.
• Hand rail stainless steel, on salon entrance door
• Hardtop over entire aft deck
• Lights (2) courtesy, recessed
• Lights (2) halogen, overhead, recessed, with exterior-mounted switch
• Lounge with storage beneath, accommodates 6 adults

Deck - Fore Deck

• Cleat 10" stainless steel for anchor line, bolted through aluminum backing plate
• Cleats (2) 10" stainless steel, bolted through aluminum backing plate
• Over-the-stem anchor roller

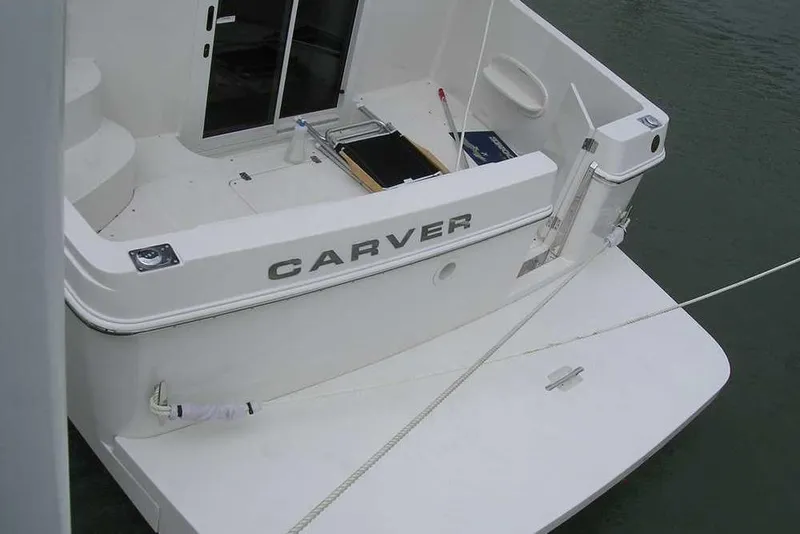

Cockpit

• Shore service locker recessed in transom; contains power, water, TV, telephone connections
• Transom door fiberglass, secures open and closed, stainless steel hardware
• Water systems locker recessed in transom; contains optional handshower, washdowns
• 57 sq. ft. (approx.), integral to hull and deck, self-draining

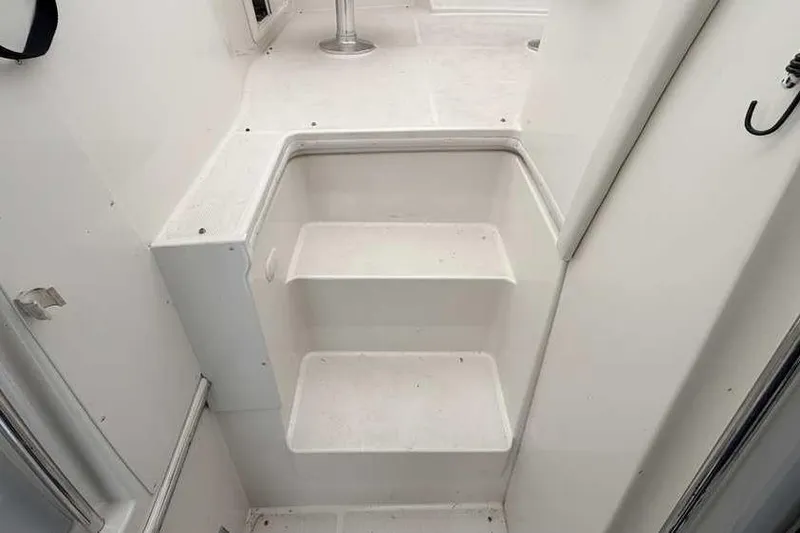

• Aft deck stairway integral to deck, with courtesy light and stainless steel hand rail on each side
• Boarding access from port or starboard dock
• Direct access to master stateroom
• Hatch guttered, watertight, provides access to aft bilge
• Lights (4) courtesy, recessed, with exterior-mounted switch

Engine Room

• Bilges coated with white, low-VOC gelcoat
• Boarding ladder telescoping, concealed in boarding platform
• Boarding Platform 35 sq. ft. (approx.)
• Bulkheads laminated to hull sides and stringers
• Carpeted catwalk
• Cleats (2) 10" stainless steel, bolted through aluminum backing plate
• Insulation acoustical and thermal, vinyl vapor barrier
• Lights (3) incandescent, on forward and aft bulkheads

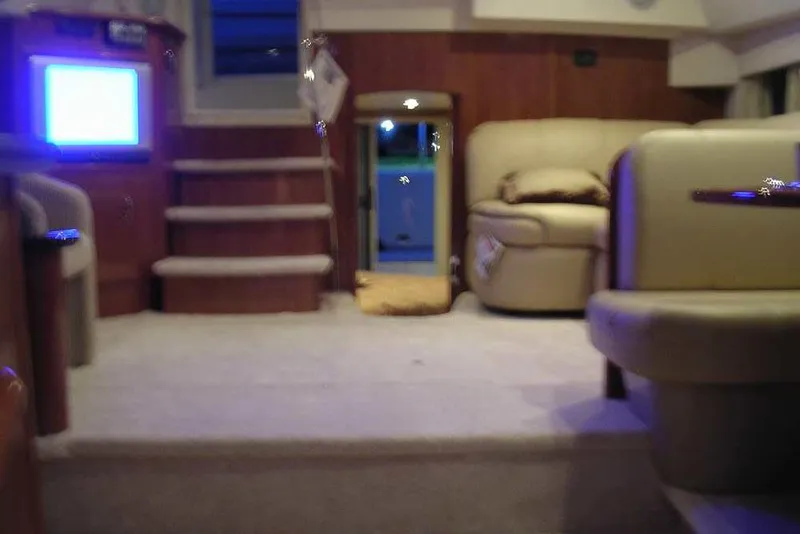

Salon

• Storage cabinet with 2 doors
• Telephone connector
• AC & DC distribution panels
• Access hatches (5) engine room
• Carpet tufted cut pile, 65 oz., crush-resistant, 100% nylon
• Chair Flexsteel
• Countertops cherry wood and solid surface
• Curtains decor-matched
• Decor package
  10-piece decorator pillow set
• Designer decor
• Entertainment group 20" LCD TV and DVD, AM/FM/CD stereo, satellite radio system
• Entrance door tinted acrylic, sliding, lockable
• Entrance stairway cherry wood risers, carpeted treads, with stainless steel handra
• Fresh air system passive, with controllable overhead vents
• Lights (4) halogen, overhead, recessed
• Lounge Flexsteel, with stowaway bed and extension
• Master stateroom stairway cherry wood risers, carpeted treads
• Rocker light switch

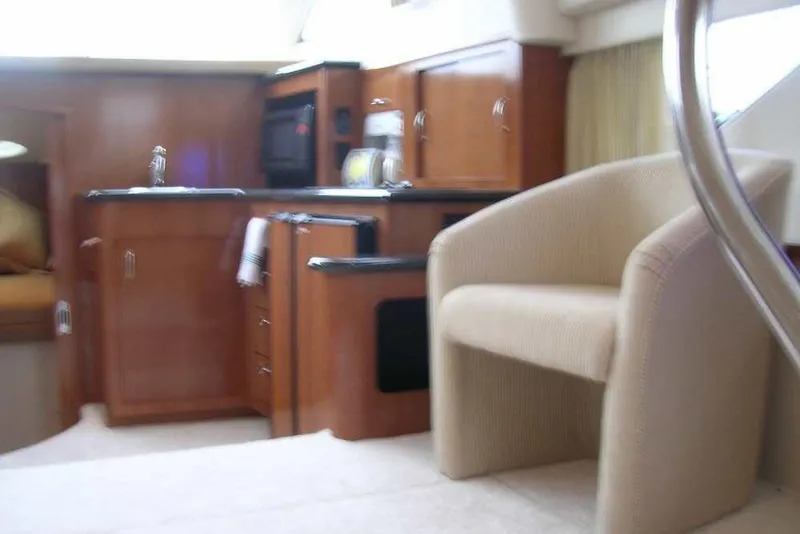

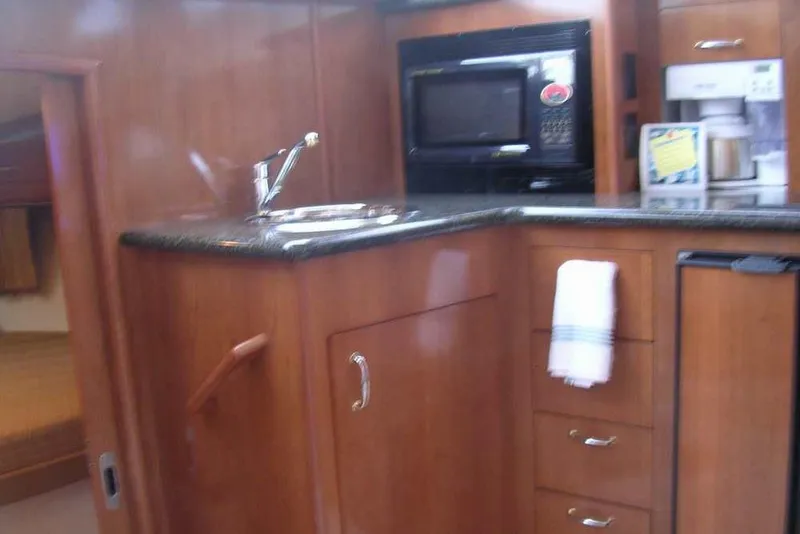

Galley

• Sink stainless steel, with solid surface cover
• Storage cabinets (2)
• Storage drawers (4)
• Storage under sink with 2 rotating, slide-out, coated wire racks
• 110V outlet GFCI protected
• Carpet tufted cut pile, 65 oz., crush-resistant, 100% nylon
• Coffeemaker recessed
• Countertops solid surface
• Curtain decor-matched
• Designer decor
• Lights (2) halogen, overhead, recessed
• Oven convection / microwave / grill, built-in
• Range electric, 2-burner, smooth top
• Refrigerator/freezer side-by-side, under counter
• Rocker light switch

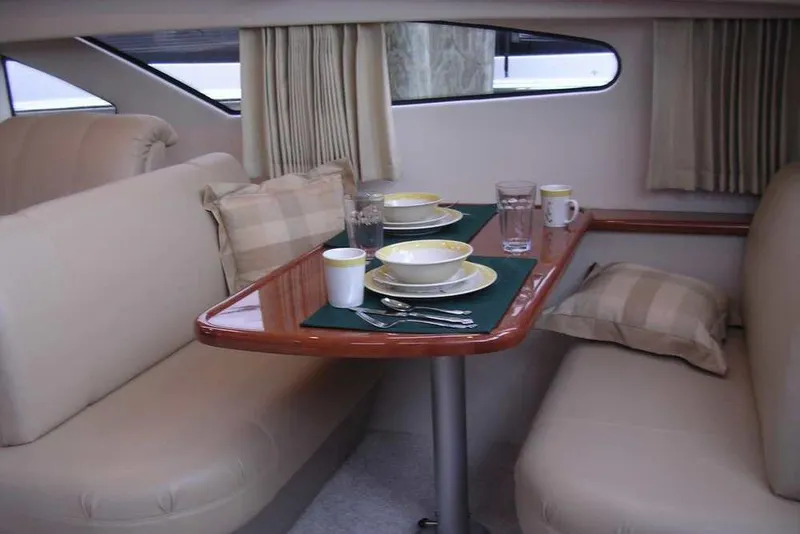

Dinette

• Table cherry wood top; brushed aluminum, adjustable height leg
• Bench seats (2)
  with storage beneath
• Carpet tufted cut pile, 65 oz., crush-resistant, 100% nylon
• Curtains decor-matched

Exterior Amenities Options

• Third pedestal seat on bridge
  (in lieu of bridge wet bar)
• Bridge cover
• Canvas "Prestige" bimini top
• Canvas "Prestige" full canvas with carpet
• Canvas Color Black Sunbrella
• Canvas Color Captain's Navy
• Canvas Color Toast
• Canvas Color White Sunbrella
• Carpet
• Helm & seat covers
• Icemaker
  (in lieu of aft deck storage locker)
• Refrigerator
  (in lieu of bridge storage locker)

Cabin Amenities - Forward & Aft Options

• TV & DVD 15" LCD, in guest stateroom
• TV and DVD
  15" LCD, in master stateroom
• TV and DVD 10" LCD, in guest stateroom
• Upper bunk in guest stateroom
• Washer/dryer combo unit

Décor Options

• Carpet Winter Wind - brown
• Carpet Zinfandel - beige
• Coordinated Countertops Black magic (black)
• Coordinated Countertops Harvest moon (tan)
• Coordinated Countertops Savannah (neutral)
• Ensemble Bimini (blue tones)
• Ensemble Cozumel (neutral tones)
• Interior Seating Material/Color Ultraleather buff
• Interior Seating Material/Color Ultraleather pecan

Master Stateroom

• Rocker light switches
• Sheet set embroidered, fitted sheet, flat sheet, two pillow cases
• Shelves (2) with bolster sea rail
• Stereo speakers (2)
  with volume control
• Storage cabinets (3)
• Storage drawers (2)
• 110V outlet GFCI protected
• Berth double, offset island
• Berth nightstands (2) cherry wood
• Carpet tufted cut pile, 65 oz., crush-resistant, 100% nylon
• Curtains decor-matched
• Designer decor
• Entrance door (to cabin) solid cherry wood, sliding, secures open and closed, stainless steel hardware
• Entrance door (to cockpit) tinted glass in aluminum frame, sliding, locking latch, inside deadbolt with flush-mounted handle, interior screen
• Hanging lockers (2)
  automatic light
• Lights (3)
  halogen, overhead, recessed
• Portlight with screen

Guest Stateroom

• Storage cabinets (3)
• Storage drawer
• Berth double, offset, with berth cover
• Berth step-up carpeted
• Carpet tufted cut pile, 65 oz., crush-resistant, 100% nylon
• Countertop cherry wood
• Curtains decor-matched
• Designer decor
• Entrance door solid cherry wood, sliding, secures open and closed, stainless steel hardware
• Hanging locker
  automatic light, with shelf
• Lights (2) halogen, overhead, recessed
• Lights (2) halogen, sconces, directable for reading
• Mirror on forward bulkhead, conceals anchor chain locker access
• Overhead hatch
  tinted, lockable, inside screen
• Portlights (2) with screen
• Private forward head access
• Rocker light switch

Cabin Amenities - Salon Options

• Stereo addition
  remote-mounted 6-disc CD player
• Central vacuum system
• Pillow set decorator, 6-piece

Forward Head

• Shower curtain decor-matched
• Toilet paper holder
  in vanity cabinet
• Toilet vacuum flush, pedestal
• Towel ring
• Towel set bath towel, hand towel, washcloth
• Vanity granite-style countertop and backsplash with integral sink, cabinet beneath with 2 doors, sink spigot removable for use as hand-shower
• 110V outlet GFCI protected
• Entrance doors (2) one to guest stateroom and one to galley, solid cherry wood, secure closed, stainless steel hardware
• Head fan
• Lights (4) halogen, overhead, recessed
• Medicine cabinets (2)
  mirrored doors, 2 shelves inside
• Nonskid sole
• Portlight privacy glass, with screen
• Robe hooks (2)
• Rocker light switch

Master Head - Shower Stall

• Shower head wall-mounted holding bracket, removable for use as a hand-shower
• Storage cabinet with mirrored door
• Bench seat integral
• Countertop molded granite-style, with backsplash, integral recessed self-draining soap dish
• Entrance door acrylic in aluminum frame, bi-fold, secures open and closed, with matching sidelight
• Light halogen, overhead, recessed
• Nonskid sole

Master Head

• Shelf with brass/chrome finish sea rail
• Storage cabinet
• Toilet vacuum flush, pedestal
• Towel bar
• Towel set bath towel, hand towel, washcloth
• Vanity molded granite-style countertop and backsplash with integral sink, 2 shelves beneath with door
• 110V outlet GFCI protected
• Curtains decor-matched
• Entrance door solid cherry wood, sliding, secures open and closed, stainless steel hardware
• Head fan
• Light halogen, overhead, recessed
• Medicine cabinets (2)
  with mirrored doors
• Nonskid sole
• Portlight with screen

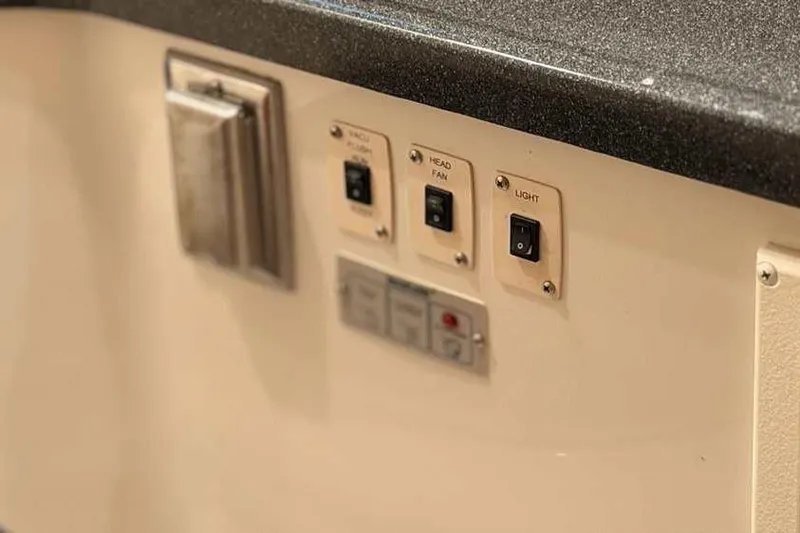

• Rocker light switch

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
