2005 Cabo Rico 42 Pilothouse
Boat in Tracy's Landing, MD
Videos from Integrity Yacht Sales on this 2005 Cabo Rico 42 Pilothouse
2005 Cabo Rico 42 Pilothouse
Built in 2005
42 Pilothouse
Yanmar
feet
Diesel
Fiberglass/ReinforcedMarine Source: Answer Hub for the 2005 Cabo Rico 42 Pilothouse
Ask or choose any question.
2005 Cabo Rico 42 Pilothouse Full Details
Vessel Walkthrough
H2O has a large T-shaped cockpit with all control lines leading aft. Over a bridge deck through double doors is the spacious pilothouse with helm forward to starboard and a settee and dinette to port. There is access under the settee to a functional workshop. From the pilothouse aft to starboard is a roomy aft double cabin. Forward to port is an over/under cabin. Just forward of that cabin to port is the dual access head with stall shower and further forward is the centerline double master stateroom.

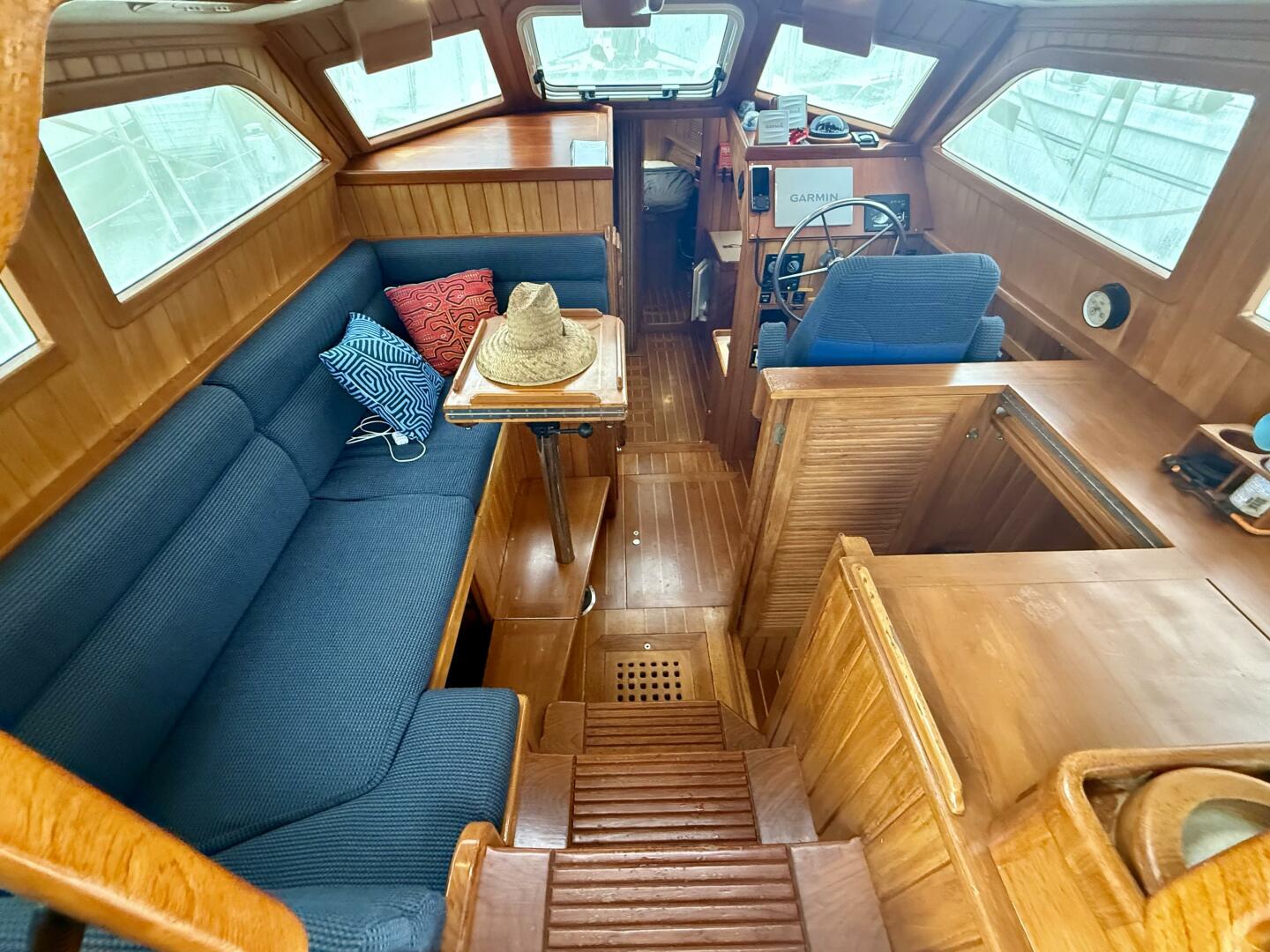

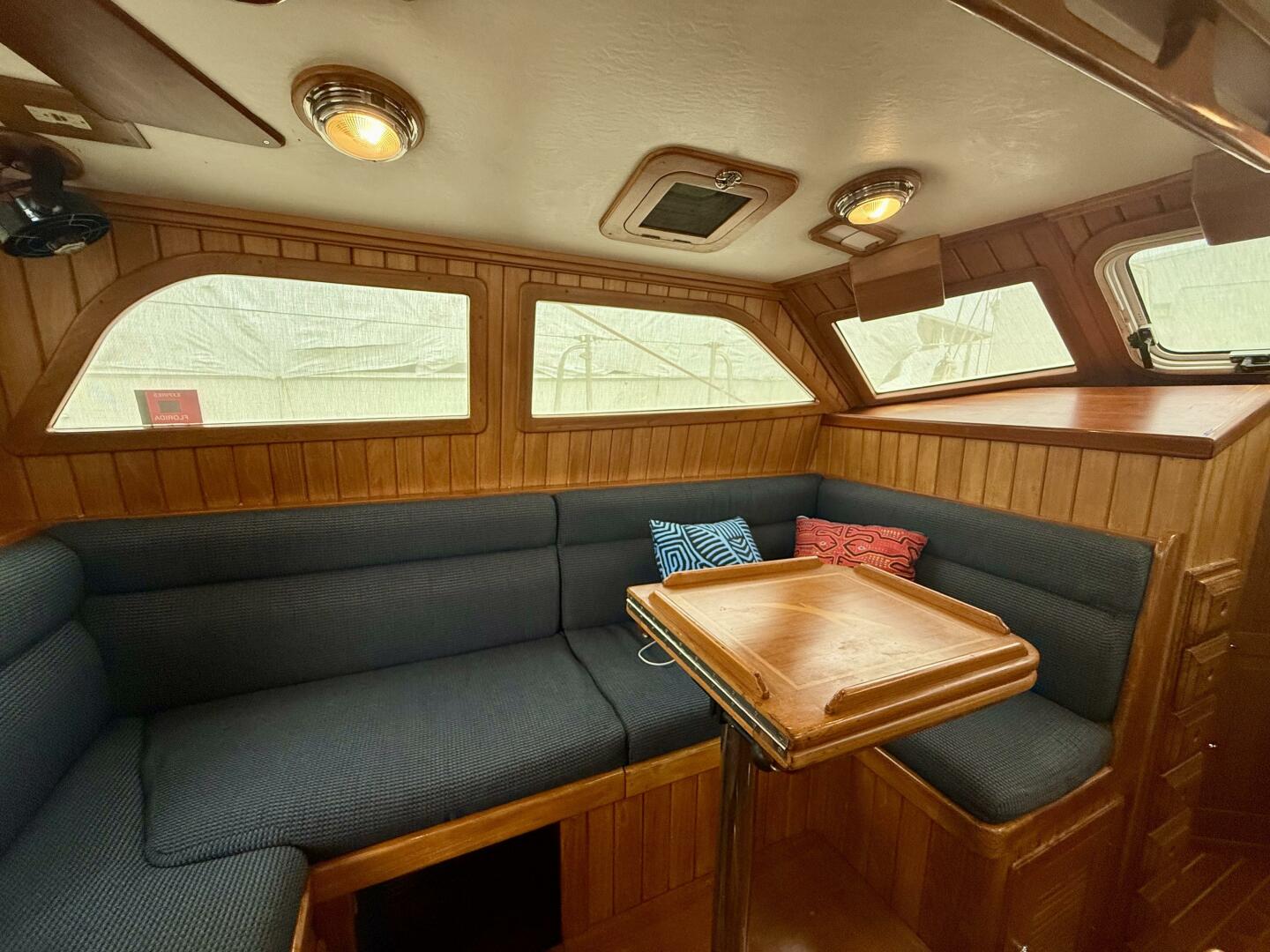

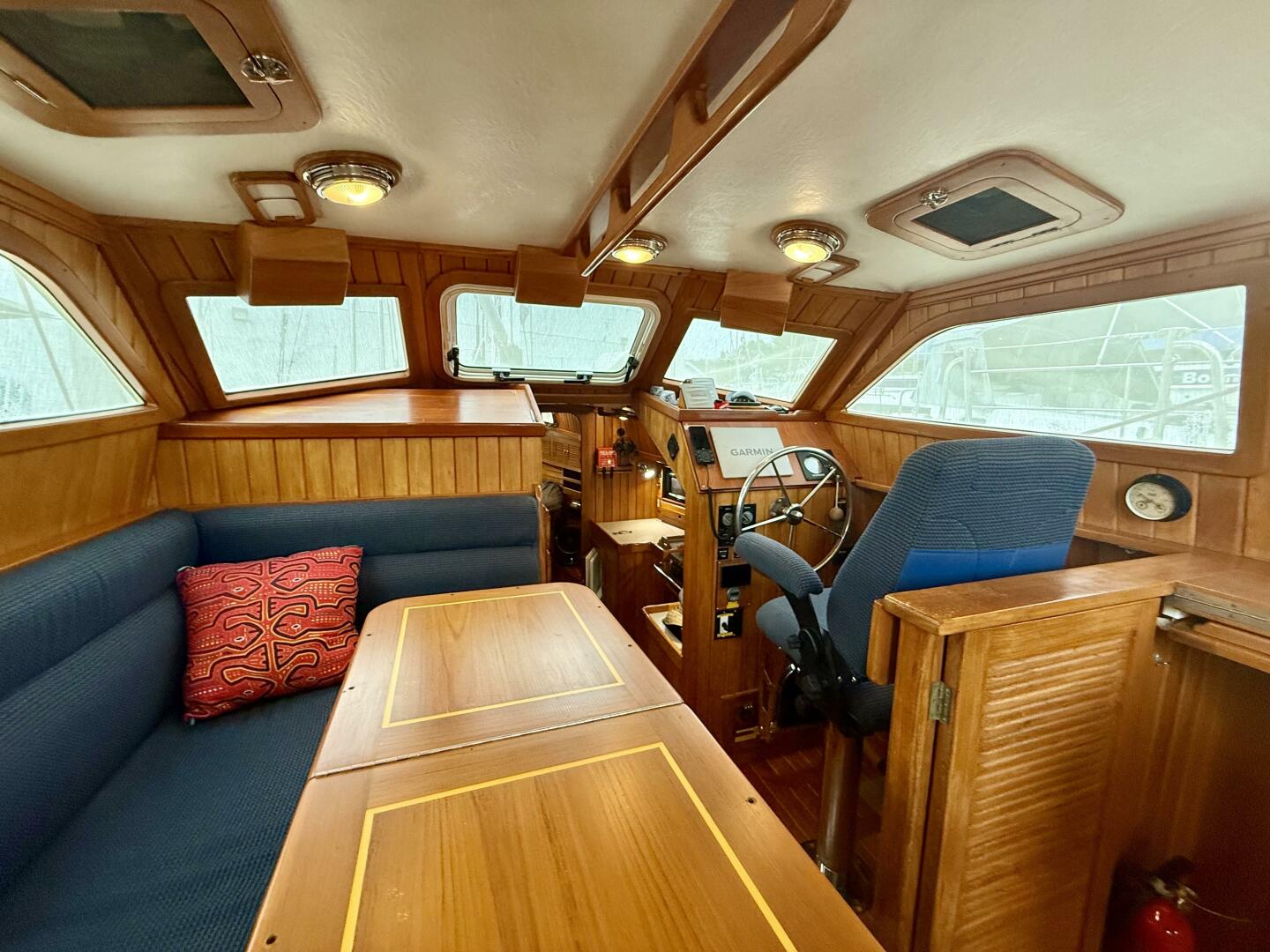

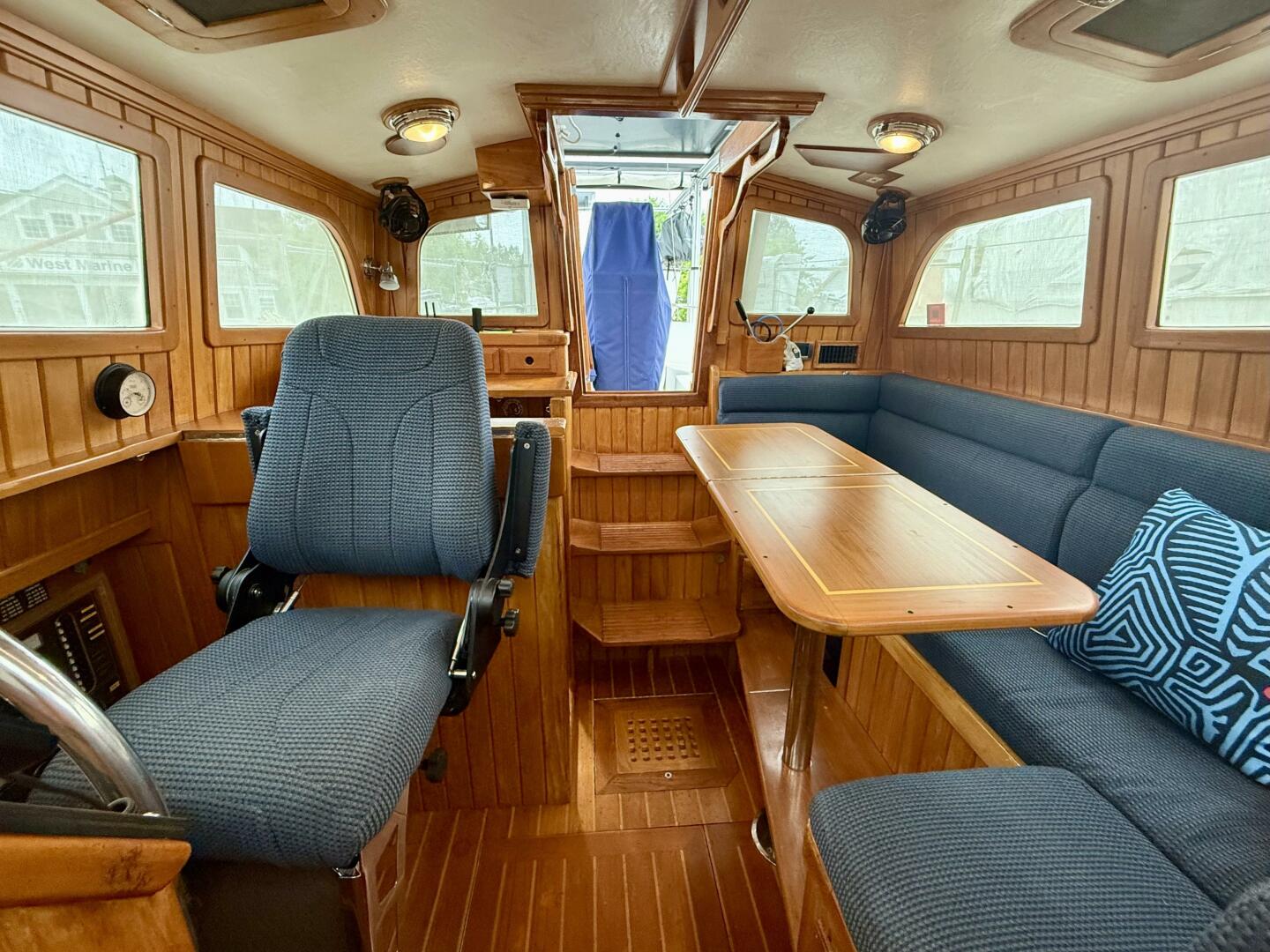

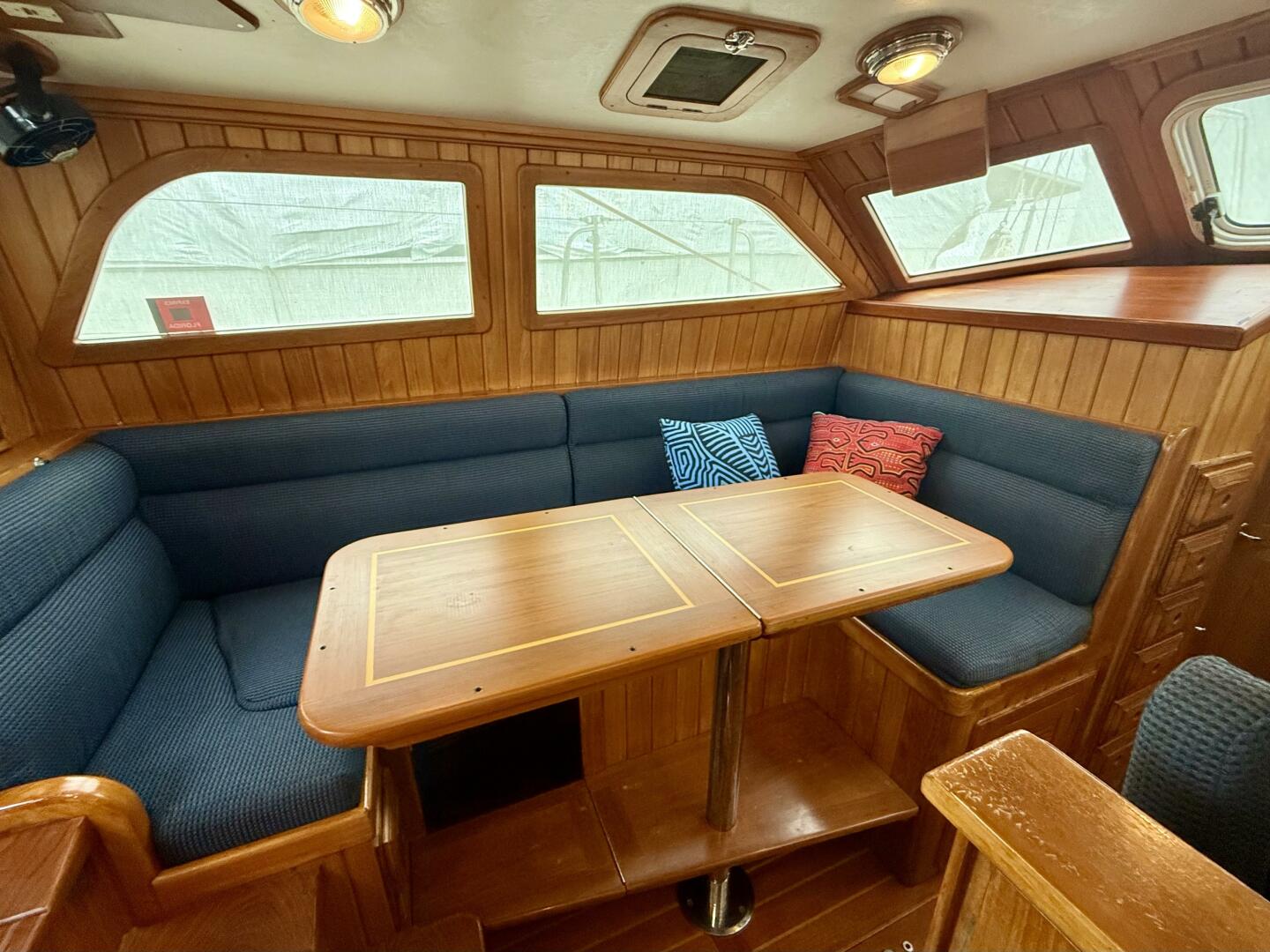

Pilothouse/Main Salon
The spacious pilothouse is four steps down from the cockpit and is beautifully appointed in Costa Rican teak with 360 degree visibility from the helm and all seating positions. To starboard is the fully equipped helm station with S.S. Edson distroyer wheel, full array of electronics and a large chart table just behind. The dinette is to port with a custom teak table and a U-shaped designer fabric settee that can convert to a single berth. The settee is designed to fold up and allow access to a cleverly located workshop with storage for tools, and workbench with vise. Additional freezer located in work space.
- Overhead teak handrail throughout
- (2) small Bomar overhead hatches allowing visibility to main sail and wind sensors
- (5) white/amber 12v. lights
- (1) 12v. reading light at chart table
- (3) Hella turbo fans
- (2) overhead vents (deck dorades)
- 9 windows provide great visibility in all directions

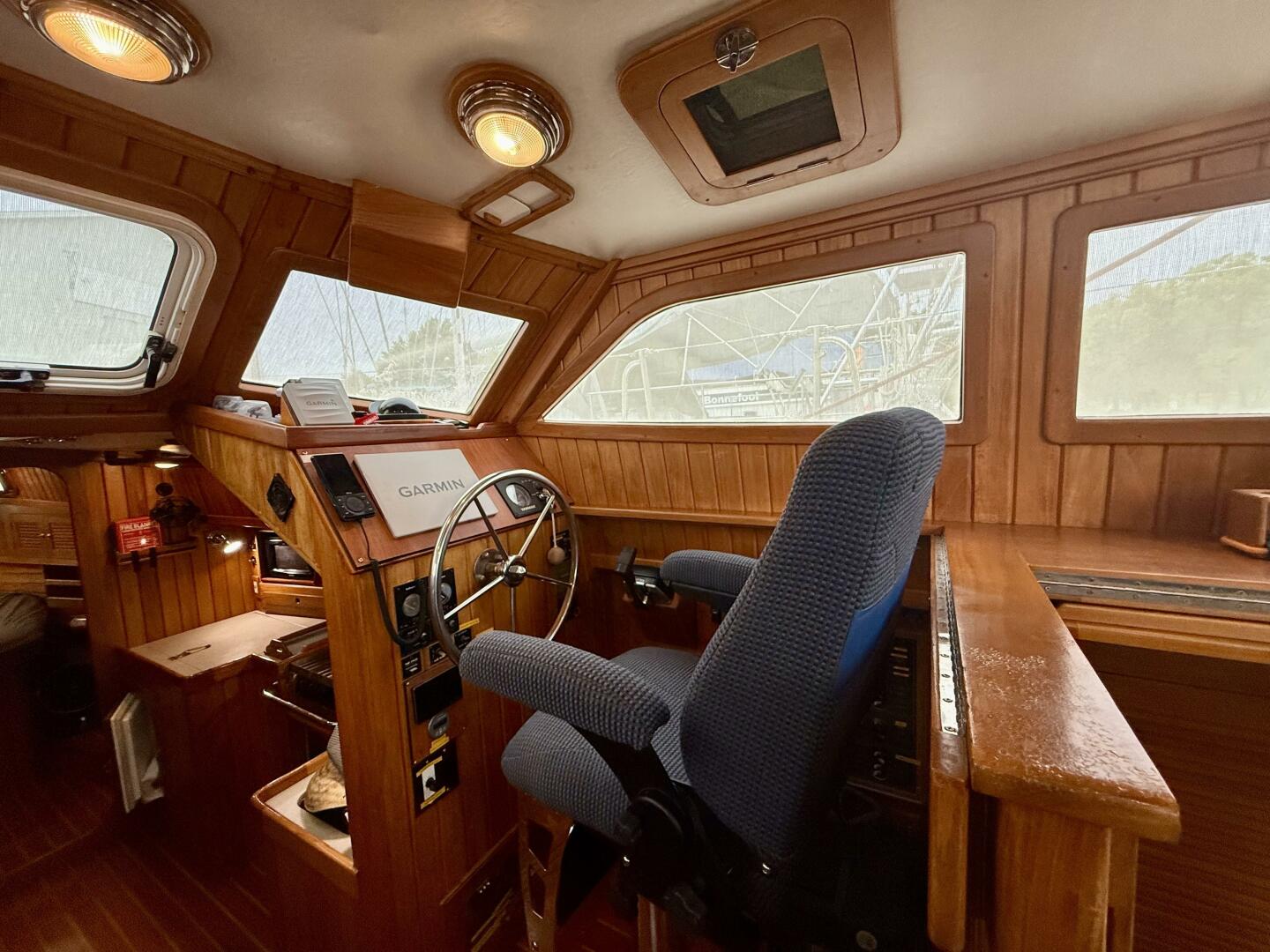

Helm station
- S.S. distroyer wheel
- Stidd adjustable helm chair (currently removed)
- Single lever Vetus shift/throttle control
- Yanmar engine start panel with tachometer
- Fuel gauges
- Bow thruster control
- Full electronics (see electronics section)

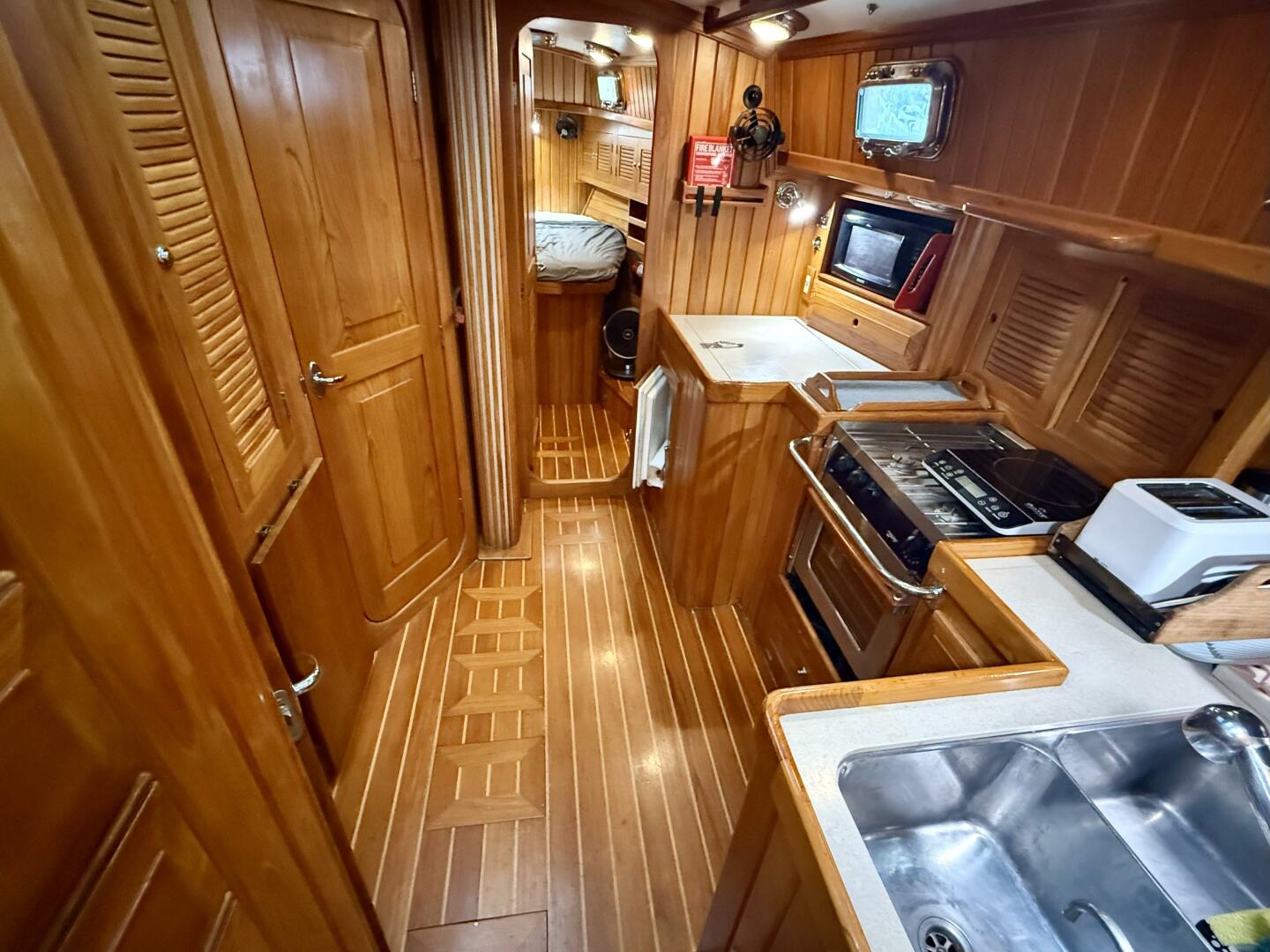

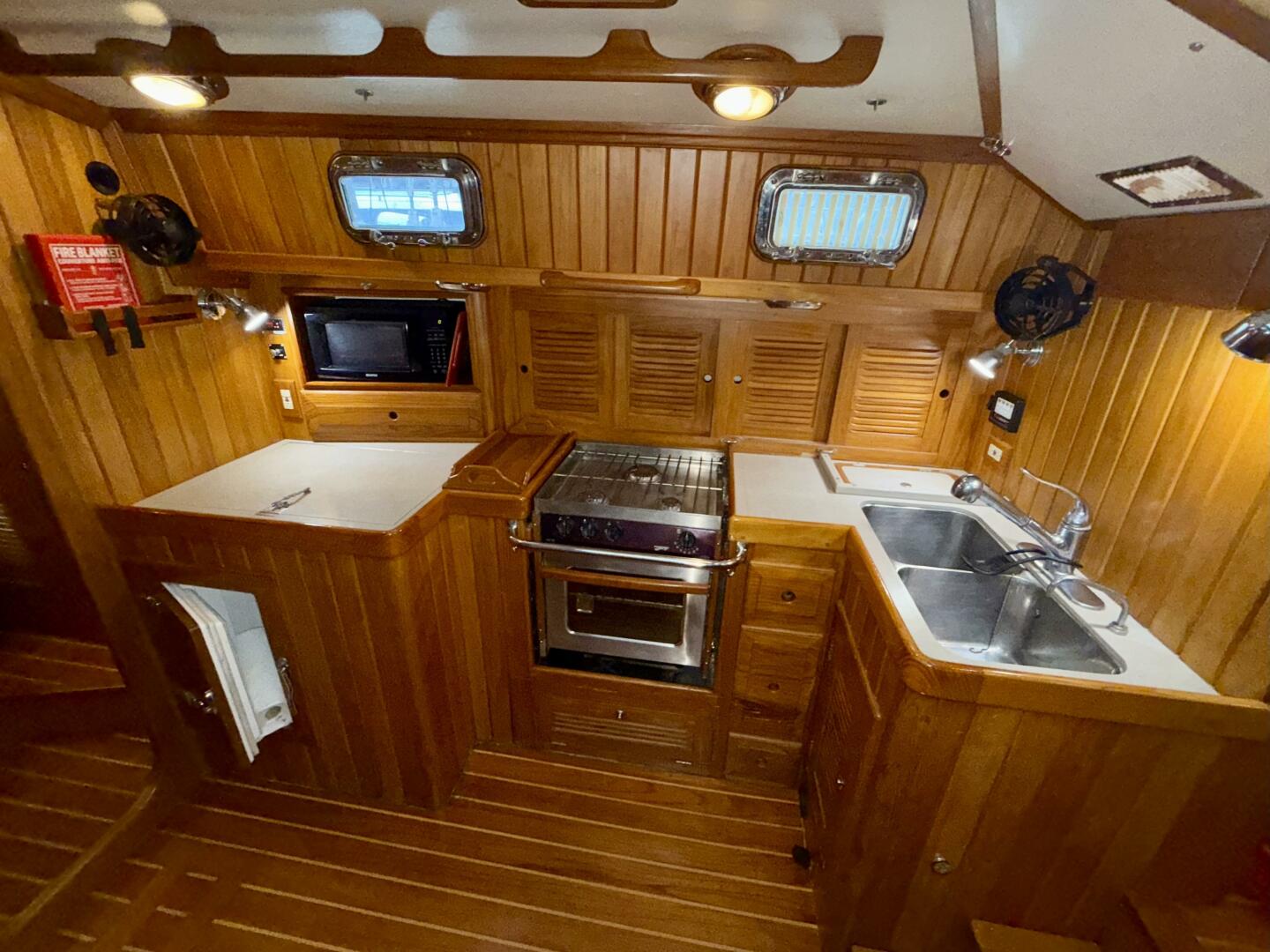

Galley
The full service galley is opposite the mid cabin to starboard and two steps down from the pilothouse. It is appointed with beautiful Costa Rican honey colored teak joinery work, louvered cabinetry, and Corian countertops. Storage is exceptional, with a double cabinet for dishes, two large pantries with double sliding doors, an additional pantry to port, under sink cabinet, and storage bins under the steps. In addition there are also ten drawers.
- Force 10 gimbaled three burner propane stove and oven

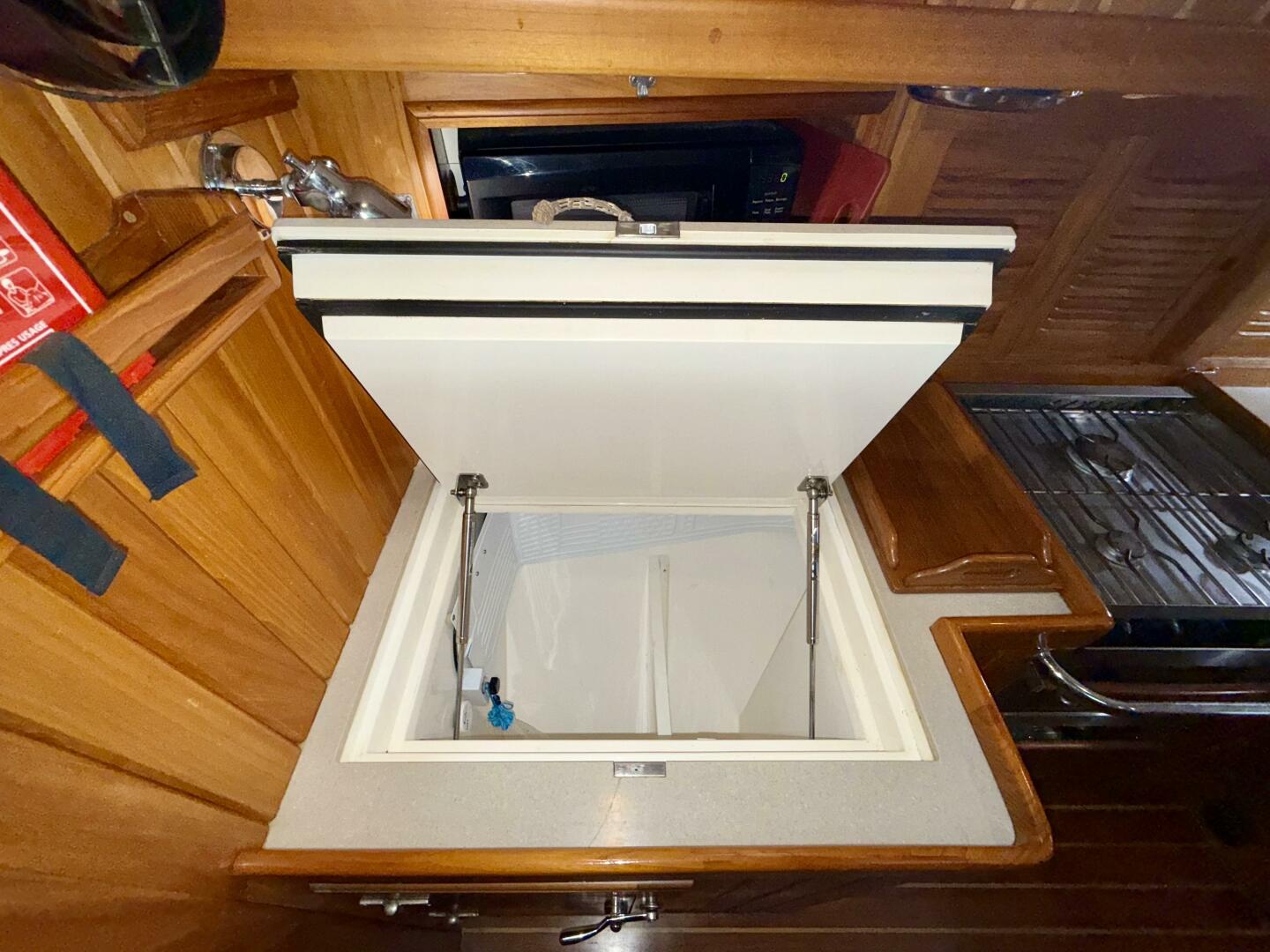

- Nova Kool large 12v. top loading refrigerator with front access door to lower compartment

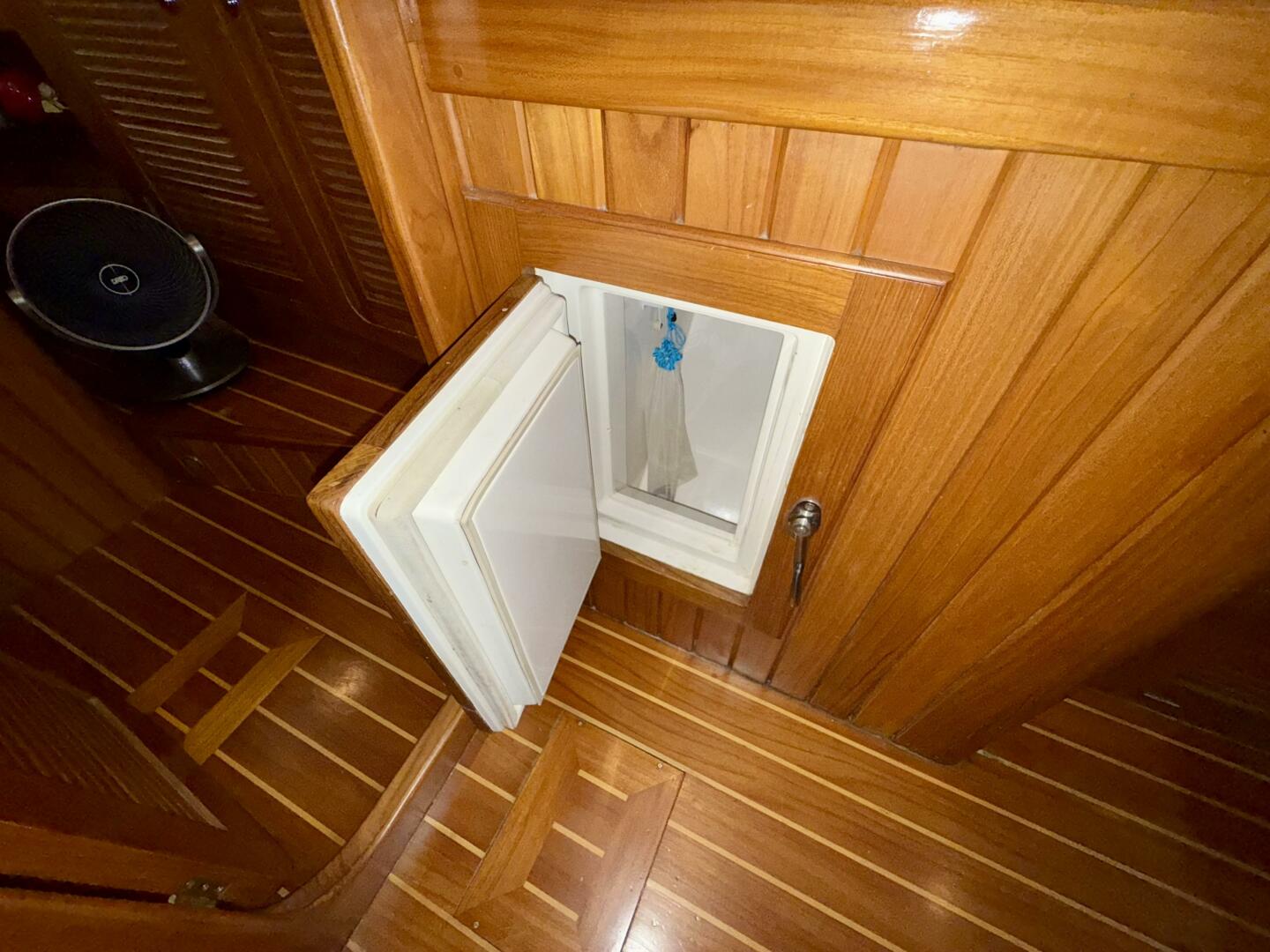

- Nova Kool 12v. freezer (in workshop)
- Kenmore carousel microwave
- Large double S.S. sink
- Hot and cold pressure water
- Optional manual foot pump
- Fireboy Xintex propane solenoid control and detector
- Large Bomar overhead hatch
- (2) S.S. opening ports with screens
- (4) 12v. white/amber lights
- (3) 12v. directional lamps
- (2) overhead vents (deck dorades)
- Overhead teak handrail
- Pantry with shelves
- Numerous drawers and cabinet storage lockers
Master Stateroom
The master stateroom is forward with beautiful teak joinery work with louvered teak doors on all cabinets. It features a queen centerline berth with gas-prop assisted lift feature to access storage, tankage, bow thruster, safe deposit box, and numerous seacocks. There is private access to the head on the port side.
- Queen centerline berth with Tempurpedic mattress
- (4) large storage cabinets with bookshelves below
- Large storage cabinet (aft to port) with removable shelves that converts to hanging locker
- (2) Large storage cabinet (aft to starboard) with removable shelves that converts to hanging locker
- (2) Hella turbo fans
- (2) 12v. reading lights
- (4) overhead 12v. white/amber lights
- Large Bomar overhead hatch with hinged teak framed screen
- Overhead vent (deck dorade)
- (3) S.S. opening ports with screens

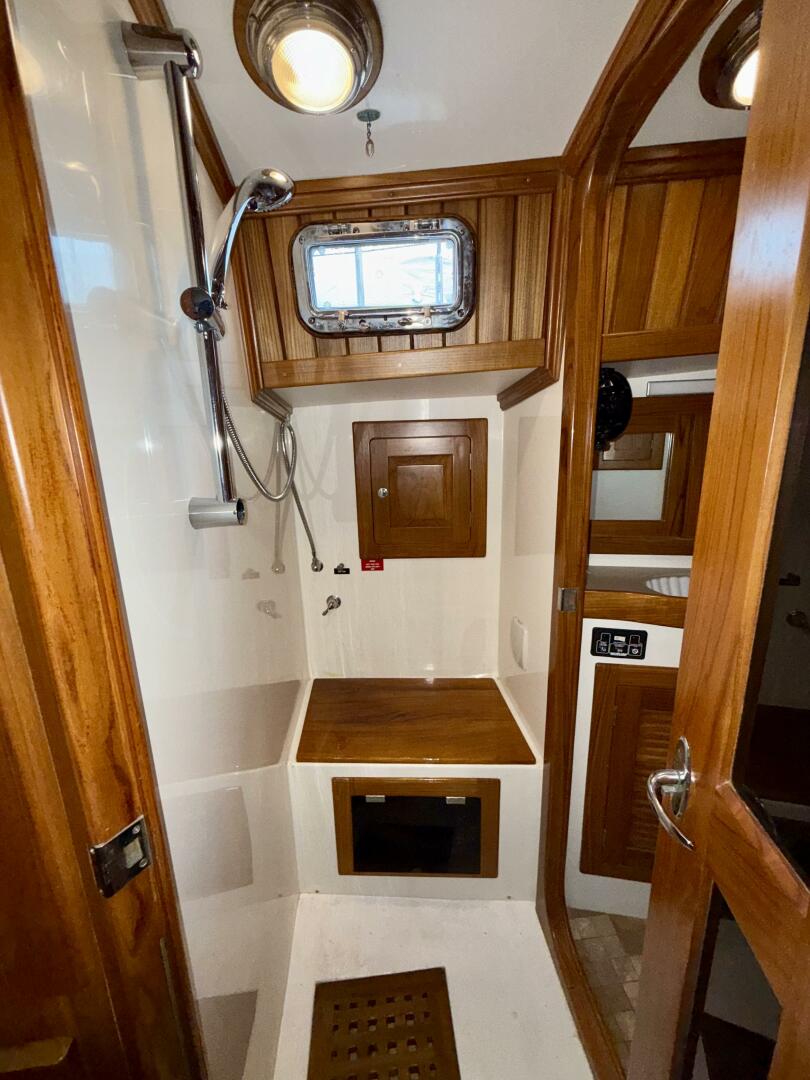

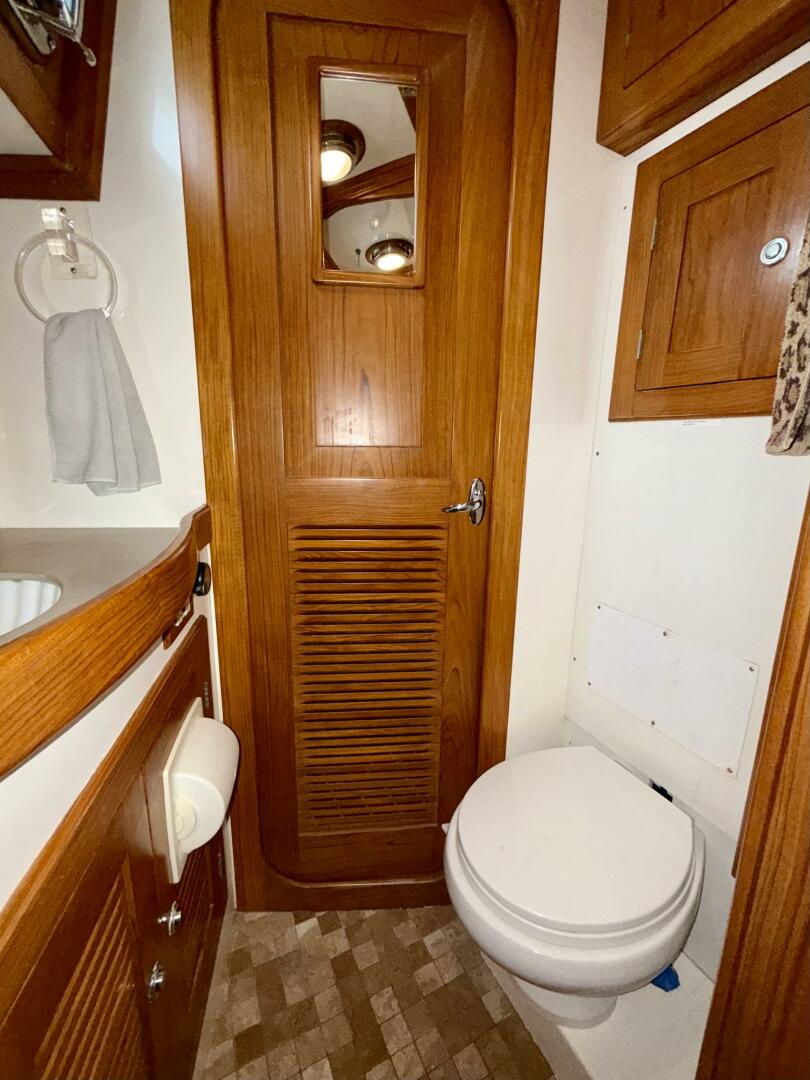

Head
The head is dual access and functions as the ensuite head for the master, but with additional access for the other cabins and as a day head. It's spacious with a separate stall shower.
- Vanity with ceramic sink and Corian countertop
- Raritan vacuflush marine toilet
- Tile flooring
- (2) solid teak privacy doors
- Fully enclosed stall shower with sump and teak grate
- Hella turbo fan
- 120v. outet
- 12v. white/amber overhead light
- (2) S.S. opening ports with screens (head and shower)
- Bomar overhead hatch with hinged teak framed screen
Mid Cabin
The mid-cabin is to port aft of the head and feature single over/under berths with Tempurpedic mattresses. There is a built-in night stand forward with threee drawers and a book case above. Aft is a hanging locker and storage bin.
(2) Hella turbo fans (each berth)
(2) 12v. reading light (each berth)
(1) S.S. opening port with screen
(1) 12v. white/amber overhead light
120v. outlet

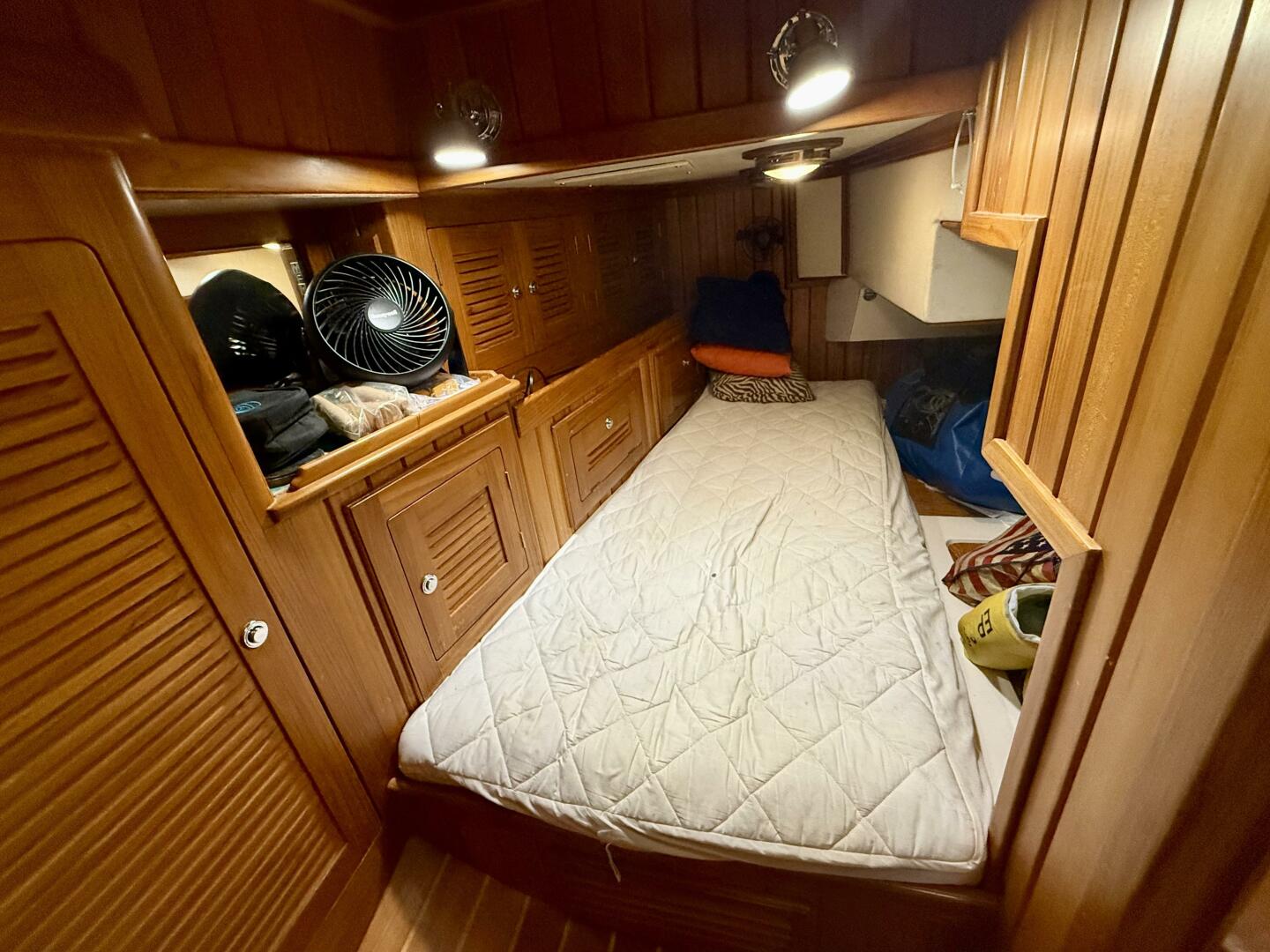

Aft Cabin
The aft cabin is to starboard and a step down from the pilothouse. It features a double berth with Tempurpedic mattress and a small vanity with mirror.
- Hanging locker
- (2) double door cabinet
- (1) single cabinet
- (2) tip out storage bins
- A small storage compartment beneath the sole
- (2) 12v. white/amber lights overhead lights
- (2) 12v. reading lights
- (2) Hella turbo fans
Sails & Rigging
This vessel is equipped with an aluminum double spreader mast with oversized wire rope rigging. It features a clipper bow with furling headsail, hank on staysail, running backstays, and a boom furling main. All control lines lead aft to the cockpit.
- Charleston Spar aluminum double spreader mast
- Harken Mark IV headsail furling system
- Scheafer Gamma Boom furling boom system
- Solid adjustable boom vang
- Custom heavy duty heavy air hank-on staysail
- Forespar whisker pole
- Harken mast mount track and block for whisker pole
- Harken genoa tracks and blocks
- Harken staysail tracks and blocks
- Sail Technologies 130% genoa
- 2017 Sail Technologies full batten main - Very Good Condition
- 90% working jib
- 130% genoa
- 2019 Custom hank-on heavy weather staysail in very good condition
- Custom heavy duty storm trysail in very good condition
- (2) Lewmar ST54 primary sheet winches
- (1) Lewmar ST40 jib furling winch
- (1) Lewmar ST44 electric halyard winch
- (2) Lewmar ST40 staysail sheet winches
- (2) Lewmar ST40 halyard winches on mast
- Lewmar Ocean 40 winch added starboard side of cockpit
- (11) Rope clutches on cabintop
- (4) Spinlock rope clutches on mast
- Running back stays with vangs
The mast also features (3) deck lights, masthead light, radar dome, VHF wip antenna, lightning arrester, wind sensor, and windex.
Deck Equipment
Side decks provide easy access to the foredeck with plenty of working space. athe high bulwarks and hand rails offer safe movement under any conditions.
- S.S double bow rail
- S.S. double anchor roller
- 77 # S160 model galvanized spade anchor, 2021.
- 400' Domestic ACCO 3/8” G43 galvanized chain, 5,400lb SWL, Titan 5720 SWL anchor shackle, new chain wheel for Muir Cheetah HR2500 electric windlass, 2022.
- Imtra watertight dual solenoid controller behind chain shield, 4/2024. Stocked new spare, R&R foot-switch cabling, new hand controller, painted anchor locker.
- Twin anchor snubber lines with Chafe-Pro guards, also for multiple dock lines, anchor ball, 2022 – 2024.
- Fortress Stern Anchor / Kedge on 30’ chain and 3-strand rode, Existing.
- Double lifelines with midship gates
- (5) Chrome ventilators with dorade boxes
- Varnished teak toerail
Electronics
Garmin NEMA 2000 Instruments, Spring, 2022
- GPSMAP 8616xsv Pilot House, replaced Faroes 6/2024
- GPSMAP 8616 Cockpit
- Reactor 40, ECU 12 Autopilot NAC-3 Corpac
- GHC 20 pilothouse
- and Reactor remote
- GMI 20 multi display at helm and in cockpit.
- Radar: GMR Fantom 24 50W Doppler with MotionScope
- Sonar: Airmar B744V 50/200kHz Triducer: speed, depth, temp to GND10
- Wind gWind wired with GND10 to NEMA 2000
- 3 GPS Antennas including 24XD
Other Instruments & Electronics
- Simrad / BG Ap44 Pilot Control NAC-3 Corpac
- Airmar DST810 Smart Transducer: speed, depth, temp, heel/trim, pitch/roll
- Peplink Max BR1 Pro5G Mobile Router
- provides cellular, integrates Starlink
- Arankis 510 Series Wireless access point
- MokerLink 8-Port Ethernet Switch
- PredictWind Data Hub adds over the horizon AIS, GPS Tracking, Auto Sail Polars
Radios and Antenae
- Starlink Ocean antenna and service.
- Cortex V1 Hub VHF Class B AIS Radio for vessel avoidance and remote vessel monitoring, with separate GPS antenna.
- Shakespeare 5215 VHF/AIS antenna, mounted.
- Morad 159 MHz VHF/AIS long range backup antenna.
- ICOM M94D with GPS, DSC, AIS, Navigation, VHF handheld.
Autopilots
- New 2022: Garmin controller and feedback / BG hydraulic pump, wired into NEMA instrument backbone for route following and wind settings, new hydraulic manifold, handheld remote control. Existing Hynautics linear ram, rebuilt 2023.
- New 9/2023: Octopus hydraulic ram with integrated pump and reservoir for vessels to 33,000 lbs., controlled by separate, stand-alone Simrad AP/BG AP44 control, NAC-3 AP computer system once you have disengaged vessel’s hydraulic system with helm switch. NOT tied into Garmin NEMA, handheld remote control. Low-power usage, extremely dependable for heavy weather and rolling downwind sailing, you NEVER have to hand steer, NEVER overpowered.
Electrical
- Westerbeke 5 KW generator ( very low hours)
- Battery selector switches

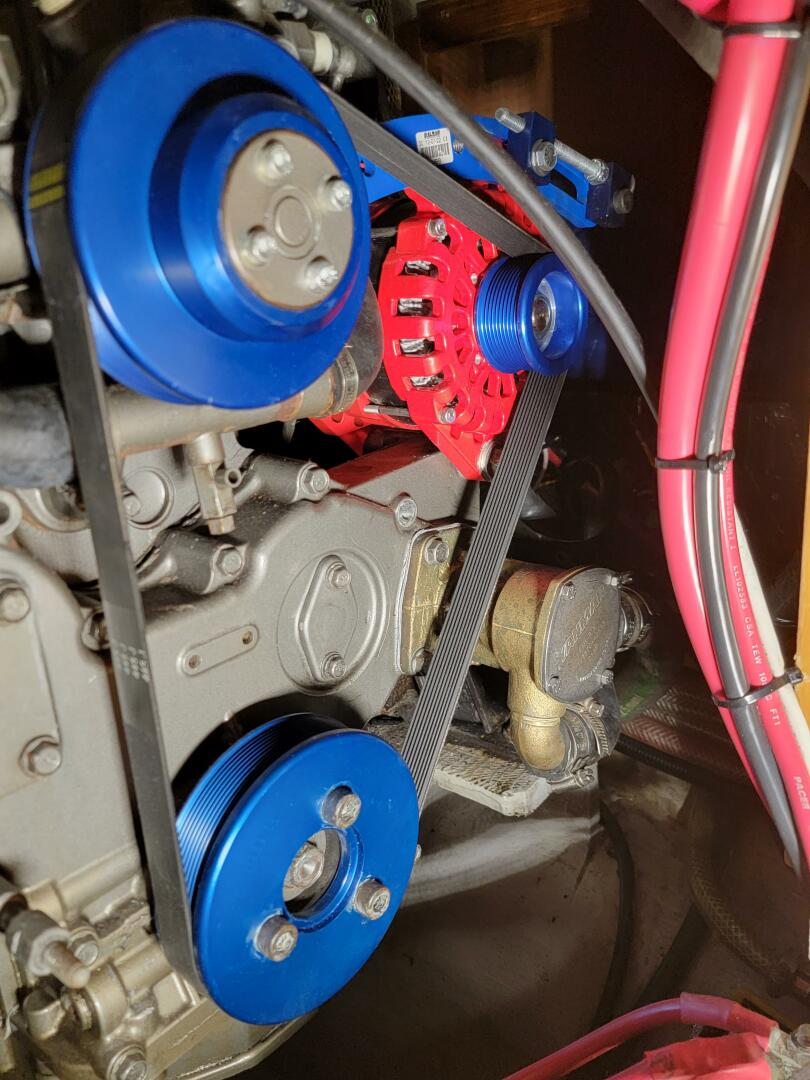

- Balmar high output alternator
- (2) 30 amp shorepower receptacles
- (1) 50 amp shorepower receptacle
- Full 12v. and 120v. electrical breaker panels at pilothouse helm station

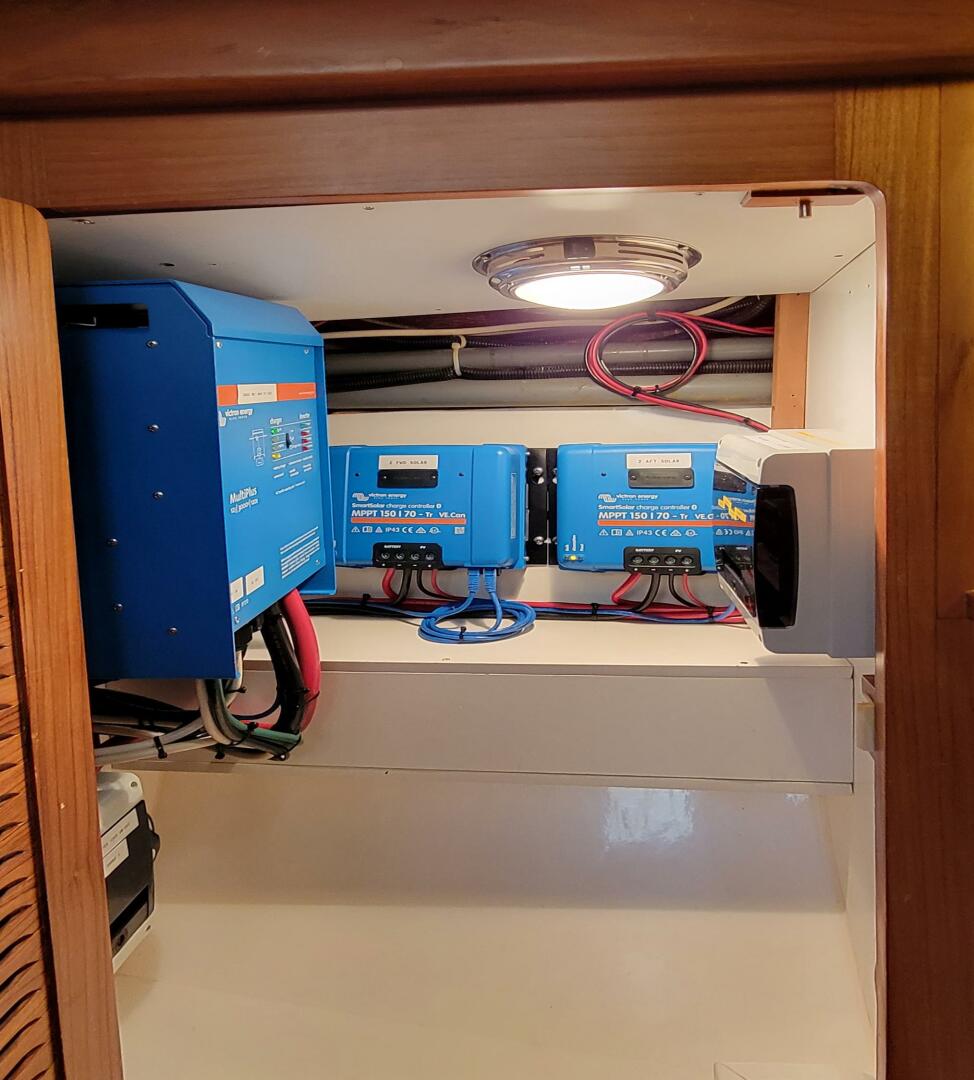

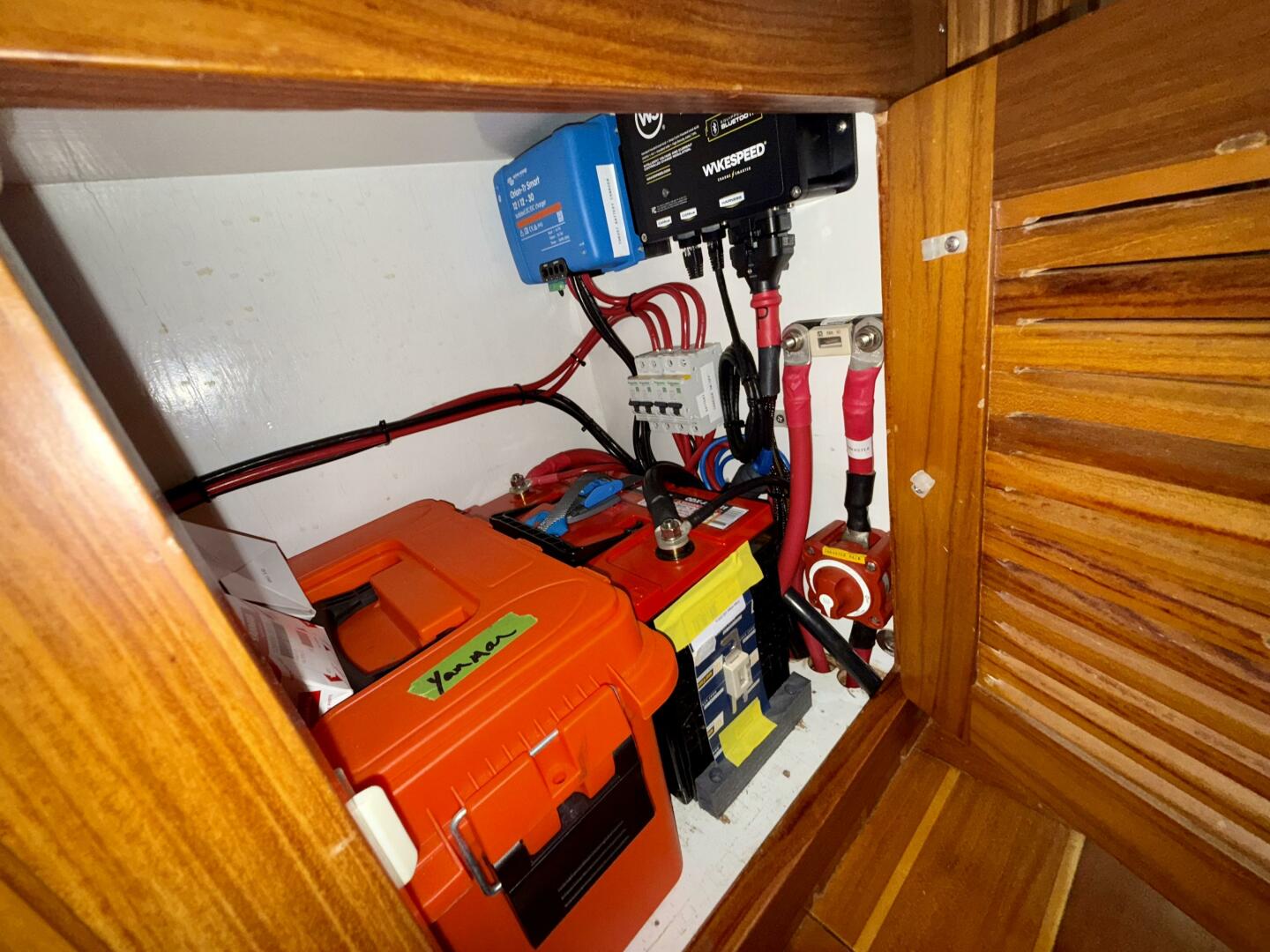

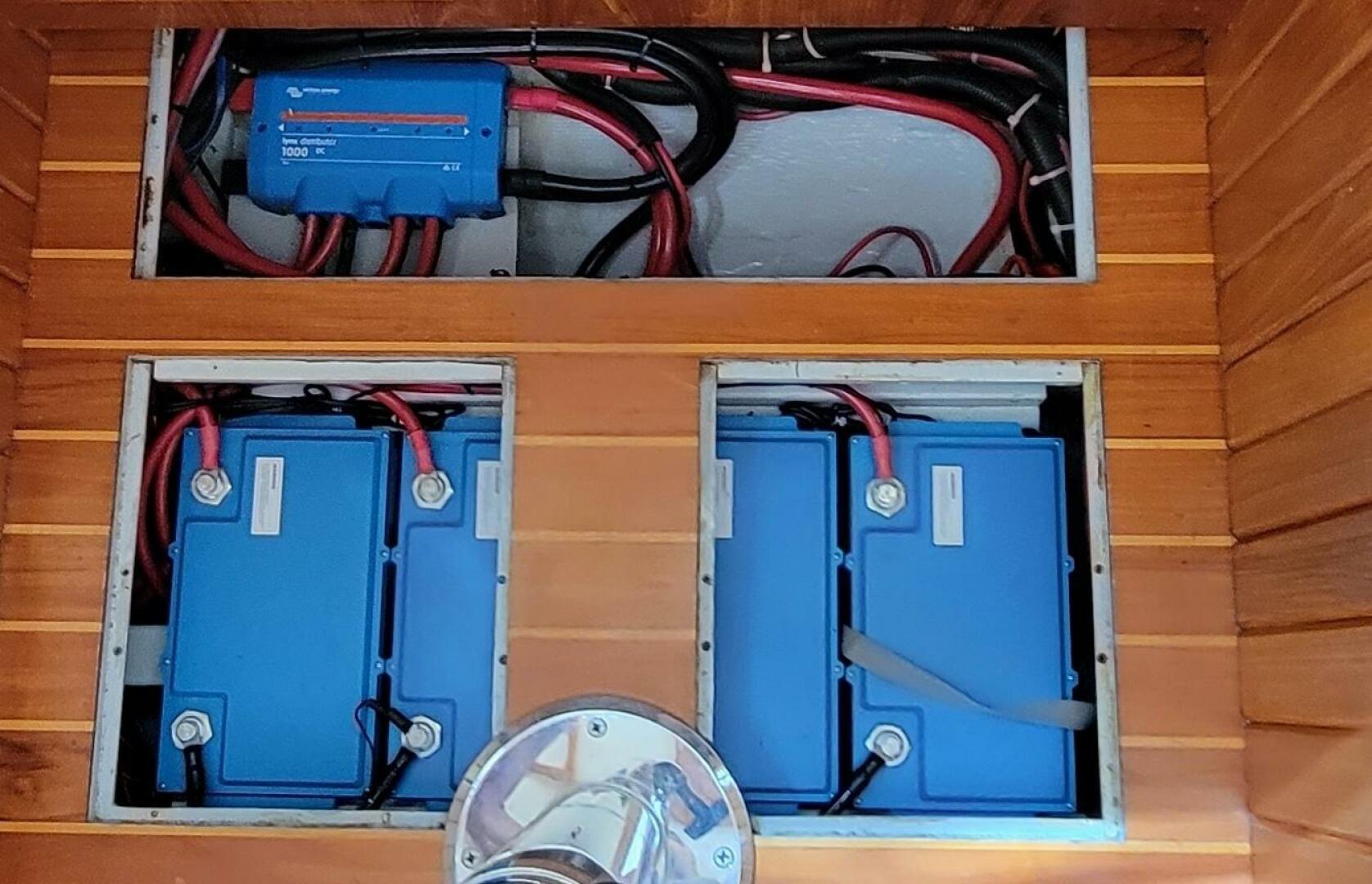

Victron Lithium Electrical System
- Smart Solar Charge Controller MPPT 150/70 X 2
- Charge Controller Breakers
- MultiPlus Inverter Charger
- 3 Lynx 1000 distributors
- Orion Tr Smart 12/12-30 DC to DC chargers with Bluetooth X 2
- Breakers for Starter and Thruster, disconnect switch for Thruster battery
- Battery X 4: BAT512132410 330Ahy 1.8VDC Smart LiFePO4
- Battery Thruster 100AH 1370CCA 11/23
- Cerbo GX
- GX Touch 50 color control
- BMV-712 Battery Monitor
- BMS VE. Bus BMS
- Lynx Shunts
- Galvanic Isolator VDI-64 64A
- ELCI Shore Power 100A breaker
- Schneider Multi9 circuit breaker
- Merlin Gerlin 125A circuit breaker

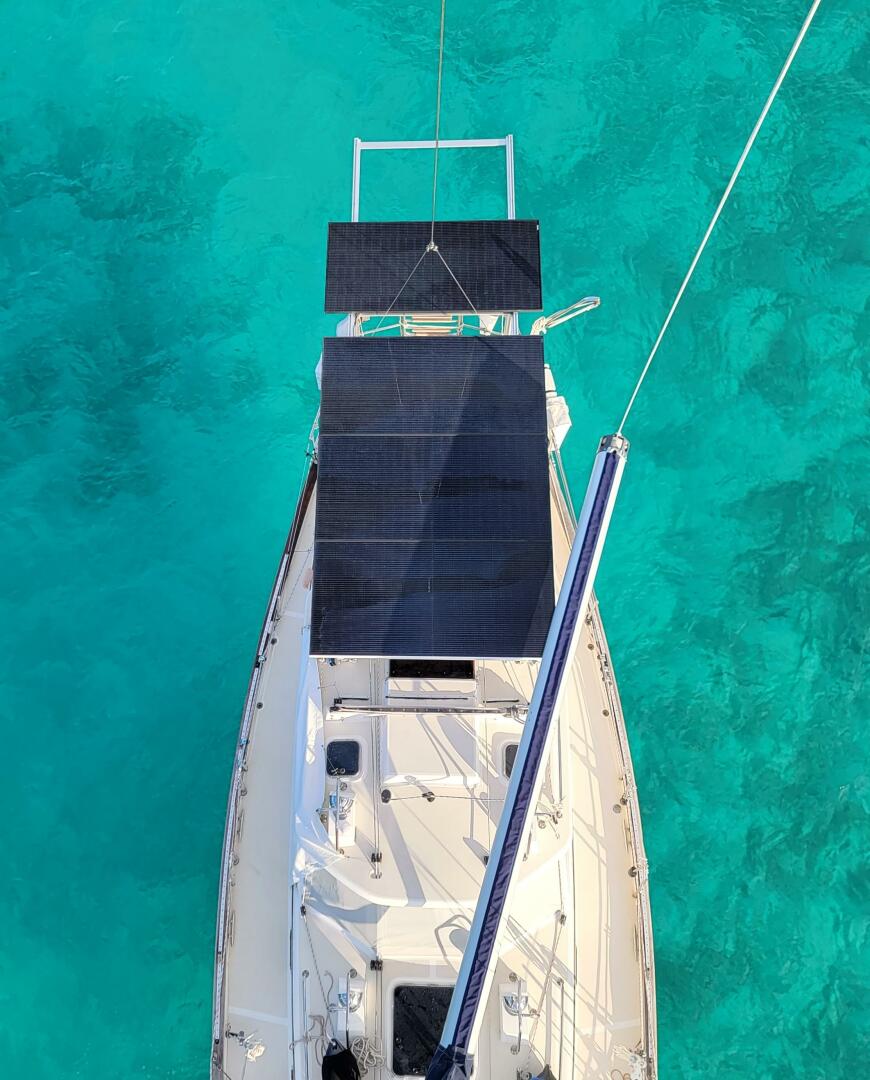

Solar Panels: 4 X Aptos DNA-144-MF26-440W-35 commercial Miami-Dade Wind Code approved for 180 MPH wired in 2 banks.
Engine & Mechanical

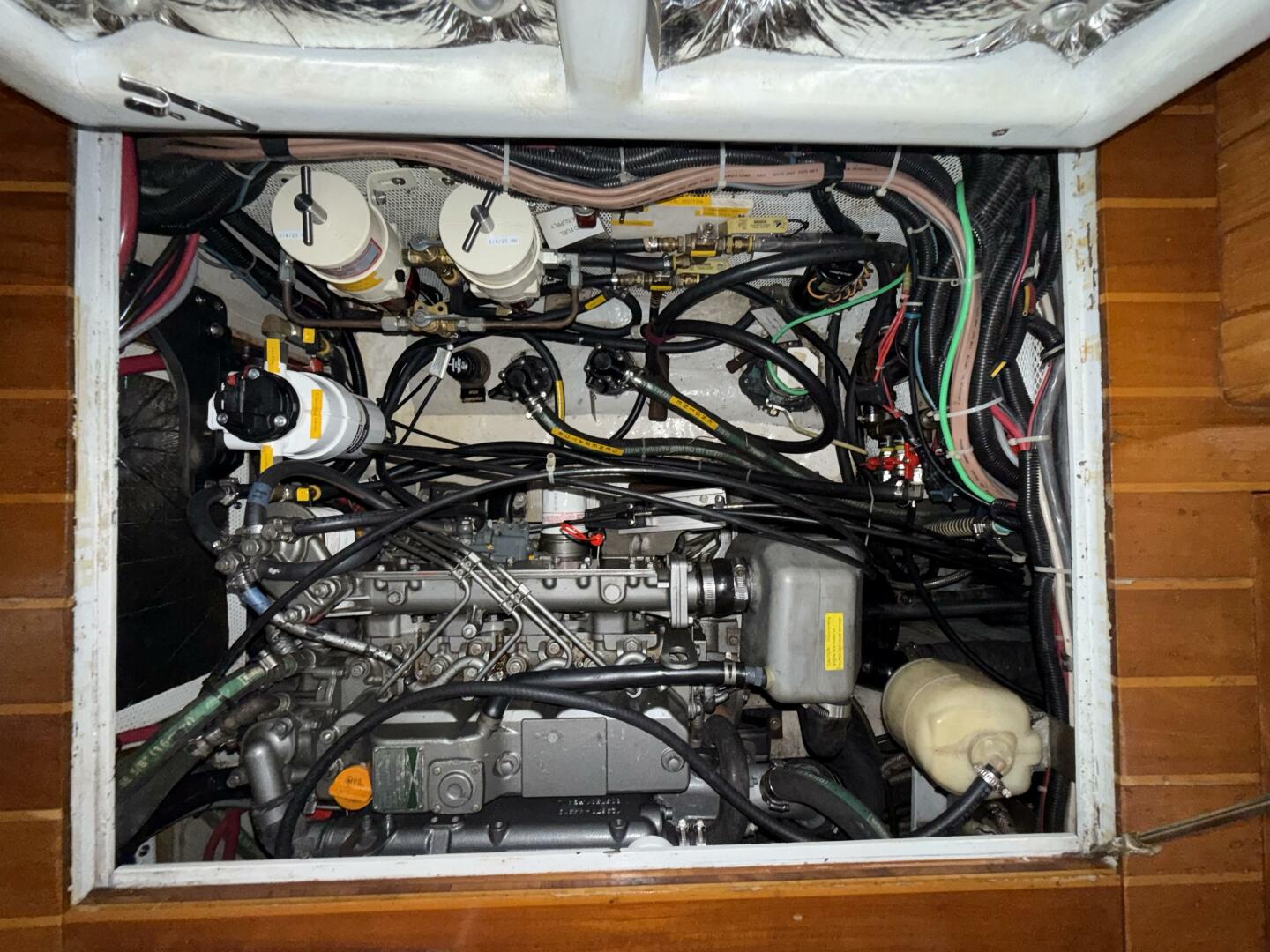

- Yanmar 4JHJE 56 hp diesel
- Vetus bow thruster with cockpit and pilothouse control
- New ZF fixed pitch propeller with Propspeed 9/2024, stern tube inspected, shaft alignment verified.
- Racor fuel filters (single for genset and dual for main engine)
- Racor P510MAM fuel polishing system
- 17000BTU Mabru reverse cycle ac/heat system for main salon & pilothouse
- 7000 BTU Mabru reverse cycle ac/heat system for forward stateroom
- Espar electric/diesel cabin heater
- Hynautic 1200 hydraulic steering system
- (3) Imtra marine windshield wipers (pilothouse)
- Seaward electric /heat exchanger water heater
Water maker: Spectra Cape Horn Extreme, 11/8/2023, 2-year warranty $13,577
Airtronic Eberspacher heater: 4KW 40 W 12V, removed and rebuilt by experts in Iceland, 6/2024.
Cockpit/Aft Cockpit
Willow has a large user-friendly T-shaped cockpit with port and starboard seating and a built in helm seat. There is a large sail locker to port that afords access to the genset. The aft deck has port and starboard propane lockers and a large lazarette.
- Edson binacle and S.S. guard with instrument pod
- Edson custom distroyer wheel with S.S. spokes and varnished teak rim
- Yanmar engine panel with tach, oil pressure, temp. gauges
- Engine controls and bow thruster control
- DIY Solar Bimini (Original Bimini with S.S. frame available)
- Teak floor grate at helm
- Teak folding cockpit table and drink holder
- Double S.S. stern rail with port and starboard seats
- S.S. center swim ladder with teak steps
- Kato S.S. outboard motor davit
- Edson outboard motor rail mount
Additional Features & Safety Equipment
- Bottom Painted June 2025
- Liferaft (uncertified)
- Swittik MOM8A man overboard module
- Lifesling 2 throwable device
- Masthead lightning arrester with thick cable to copper grounding plates. Vessel has never reported a lightning strike.
- EPIRB Vessel: Renewed registration of in-date, inspected Global FX 406 EPIRB, good until 10/2025.
- PLB: Qty 2 - ACR ResQlink AIS lifejacket 406 EPIRB AIS and 121.5 with NFC PLB450, 5-year warranty and battery, 11/2023.
- PLB: Qty 2 - Ocean Signal MOB1 406 EPIRB AIS DSC, 5-year warranty, 7-year battery, 10/2021.
- Fire Extinguishers / Blanket: Qty 3 new CO2 and 1 halotron class BC, 2022.
- Drogue: GaleRider 30 with harness, ¾” X 300’ double-braid main tow line, sinker shackles, 350” 3/8” Amsteel Blue retrieval line, 10/2021.
- Liferaft: New Revere Offshore Regatta 4-man valise life raft, 12-year warranty, 3-year service interval, kept in shade of cockpit in additional cover, 4/2024.
- MOB Recovery Module: Jonbouy, serviced 2024, Inflatable Services Ft. Lauderdale.
- Lifesling 2, 2/2024.
- Jack Lines, 3/2024.
- Smoke / CO2 detector alarm.
- Temperature Sensors: Ruuvi Bluetooth temp / humidity / motion sensors on Victron Lithium battery compartment, battery compartment, starter battery, thruster battery, engine compartment, generator compartment, cockpit freezer, reefer. Alarm on phone app.
- Thermal Imaging Monocular: FLIR Ocean Scout lll - 640
- Sonar hand held: Vexilar
- Underwater Flashlight: Light in Motion Sola Dive 2500
- Waterproof GoPro with Shurehold pole to camera adapter
- Flares / Bungs: Restocked with new 3/2024.
- Emergency Pump: 4400GPH up to 30’ vertical, Superior ½-hp, 120v SS, continuous duty passing 3/8” solids, 1 ¼” discharge and hose.
- Lifejackets: Spinlock Vito Hammar Ocean Lifejacket / Harness with release 1L 1M
- Large first aid kit.
- Ditch Bag and 5-gallon water jug with spout.
- Emergency Boarding Ladders: Stanchion mounted, removable, port and starboard
- Cockpit Door and Window Covers
- Headsets: Hollyland Solidcom C1
- Backup Running Lights: Navisafe battery-powered.
- Survival Suit: Mustang
- USCG Rules of the Road, Chart 1
