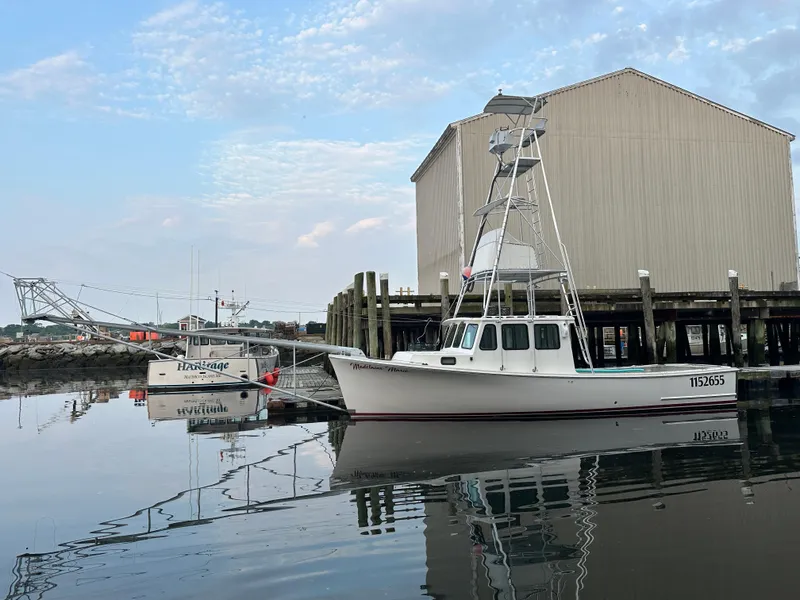

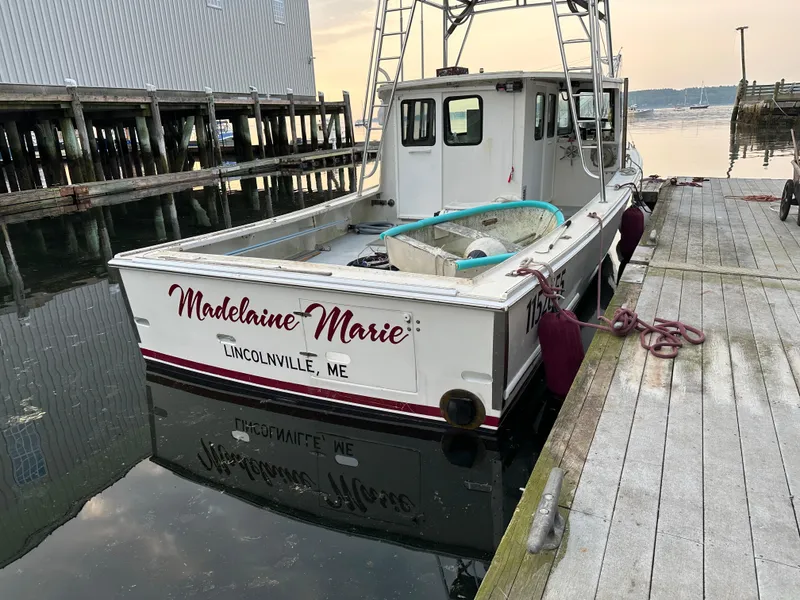

2003 BHM Sport Fish

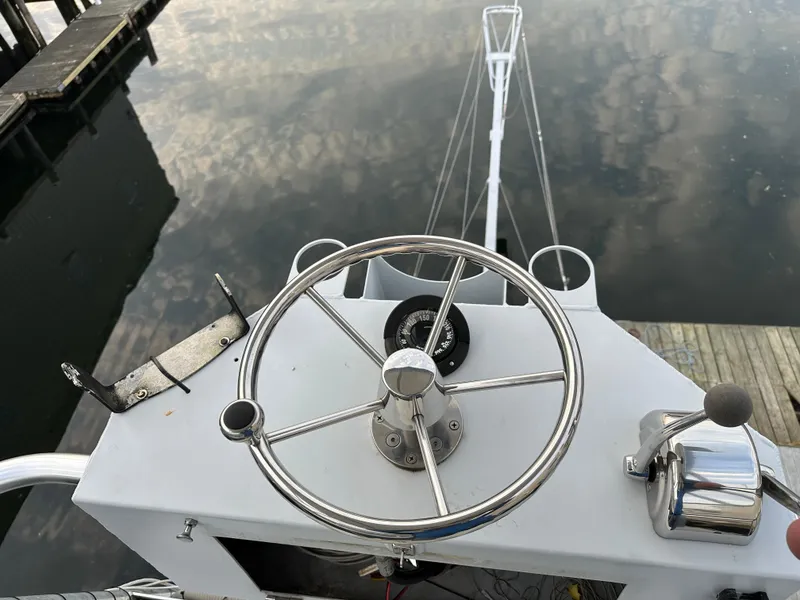

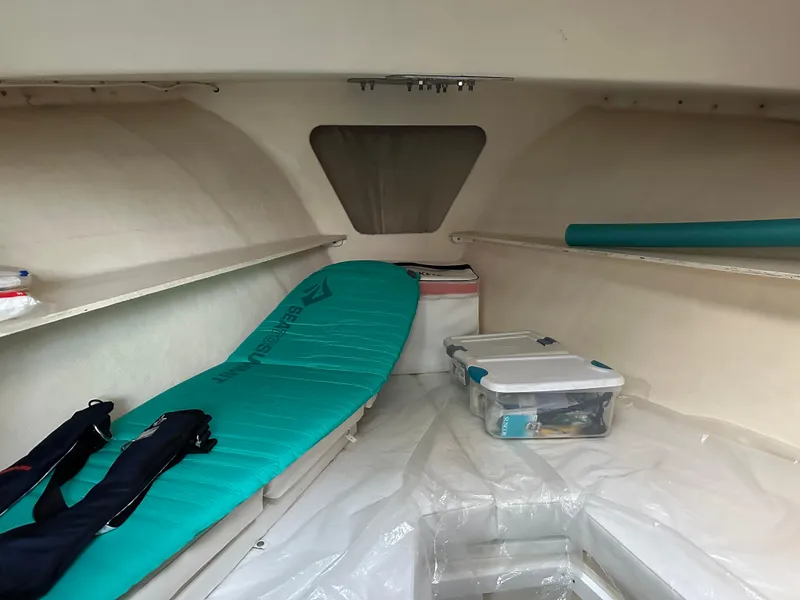

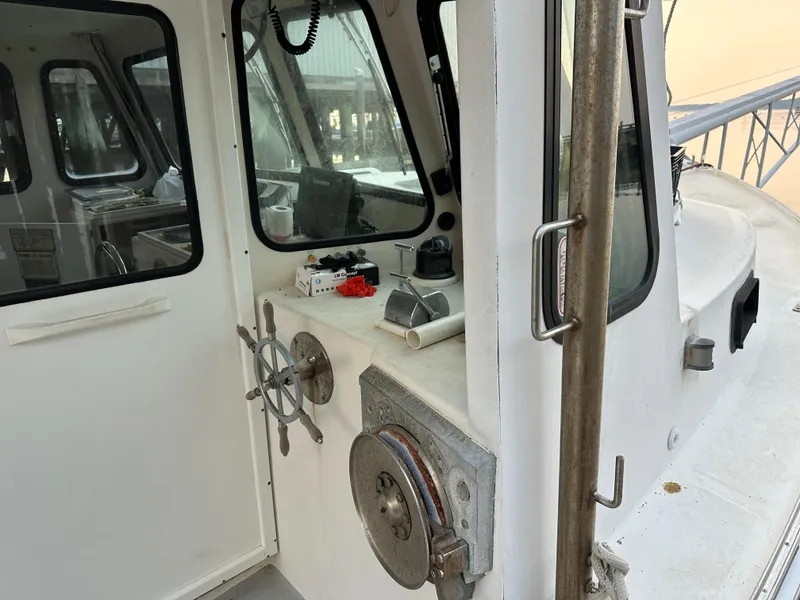

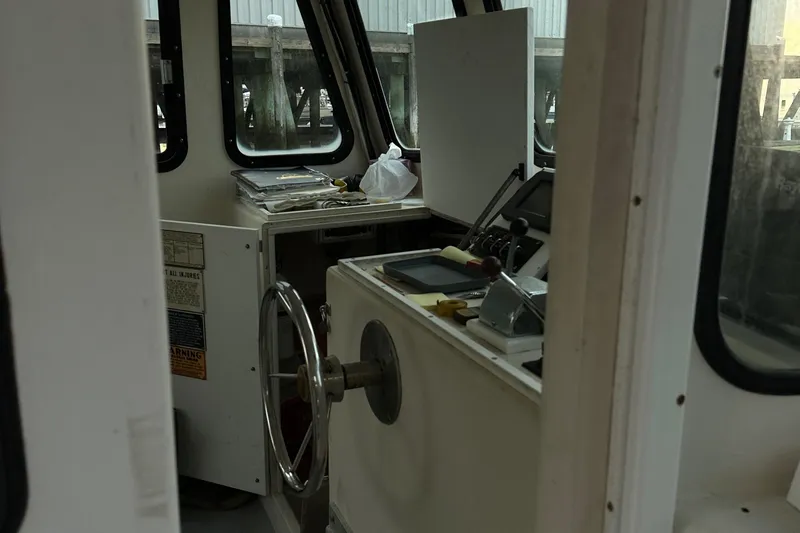

The house and deck are white. The work deck is gray. The vessel has a starboard side hauling/steering station and a fully enclosed (split) wheel house to port. The cuddy cabin has a portside entry door, tabbed sole, and a V-berth. The hull is fitted with PVC rub rails, PVC running rails, and a tuna door in the transom.

Construction Details

Hull: Molded, laminated fiberglass with a flared bow, round bilges, and a

full keel. The hull is stiffened with four longitudinal stringers one major

bulkhead, partitions under the work deck, and tabbed components in the

cuddy.

Deck and House: Molded fiberglass top deck with Balsa coring. The deck is

joined to the hull with a shoe-box flange, stainless bolt and a chemical

sealant. The side decks are supported with knees. The wheelhouse has

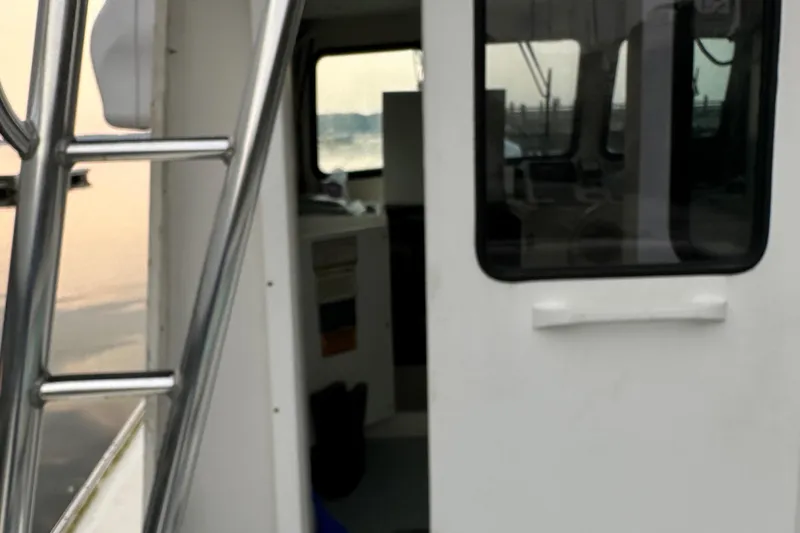

Wynne windows and two sliding doors of King Starboard. There is a WYNNE

tip-out window at outside helm. The cuddy cabin has a BOMAR deck hatch

and (2) plastic BECKSON portholes.

Work Deck: Fiberglass skin over plywood and 2”x 4” pressure treated

beams. The beams are posted to the stringers and bolted to a fiberglass hull

flange. The surface is painted with non-skid and is pitched to the tuna door

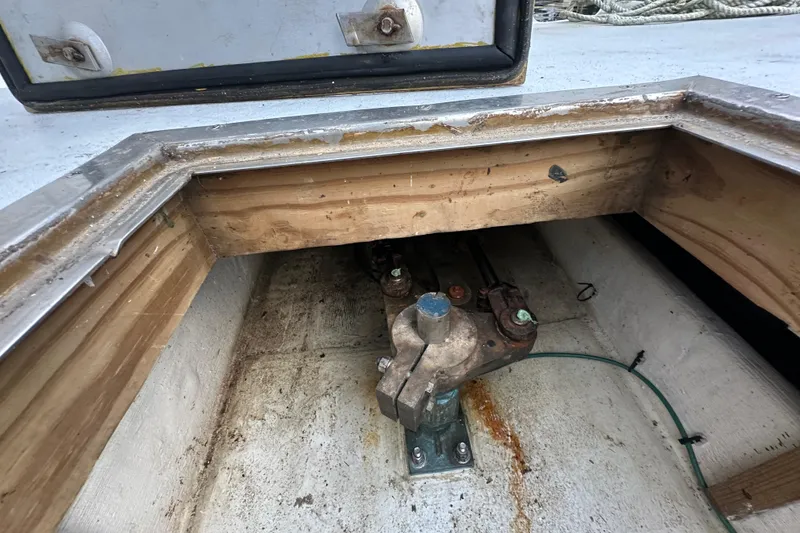

and three additional scuppers. There are (4) ANCHOR MARINE  aluminum

deck hatches with stainless frames and (2) bronze 6” deck plates. One below deck fish hold. There are four large scuppers built under the wash rails.

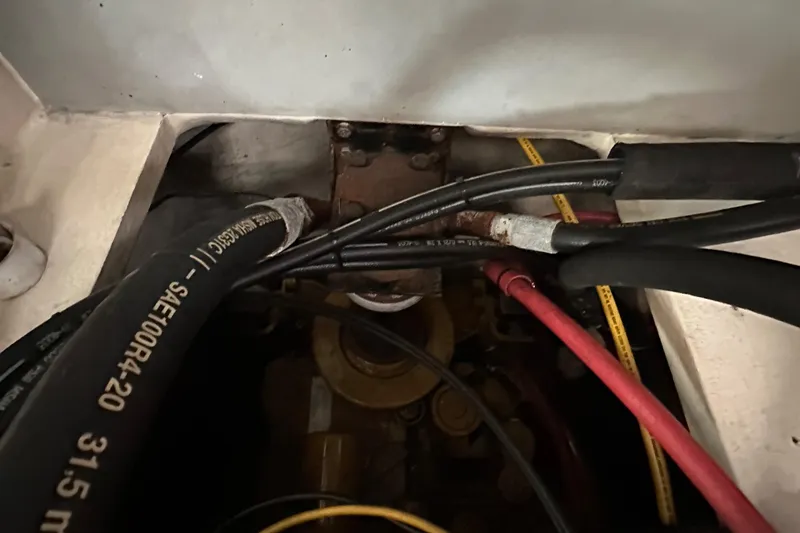

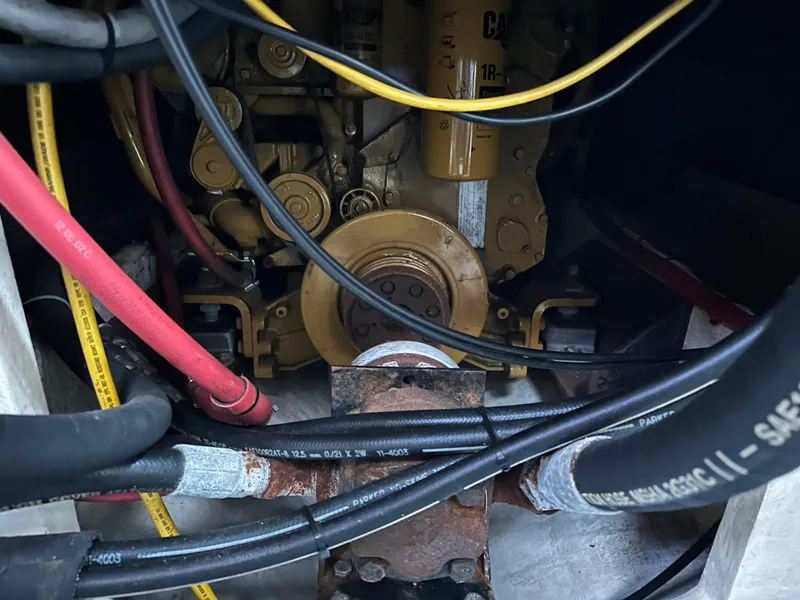

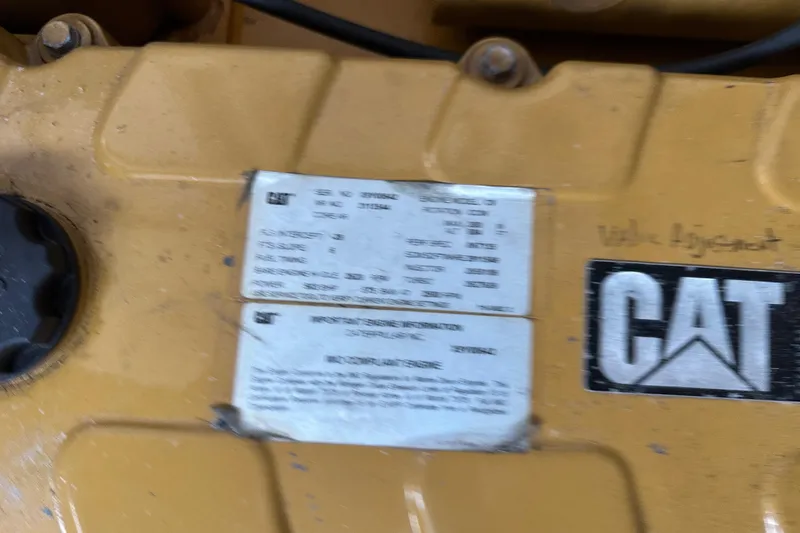

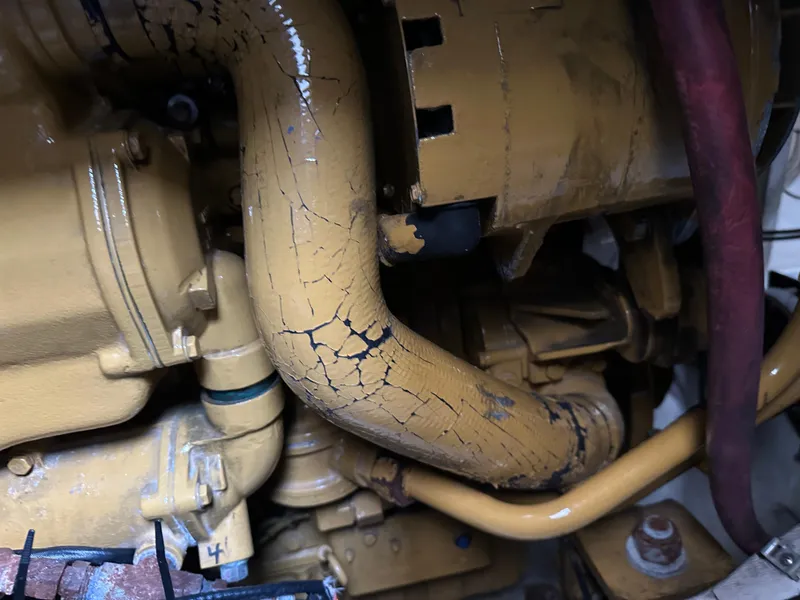

CATERPILLAR C-9 500 horsepower 2400rpm diesel engine with 1938 hours connected to a TWIN DISC MG-507 with a 2:1 ratio.

6" Fiberglass exhaust with a CENTEK muffler

RECENT:  EVOLUTION Drive System oil tube roller bearings CV joint and thrust bearing

2inch stainless steel drive shaft

ZF 30"LH x 35" four blade Propeller

SPURS in-line cutters

CAT ECM panel with alarms and gauges

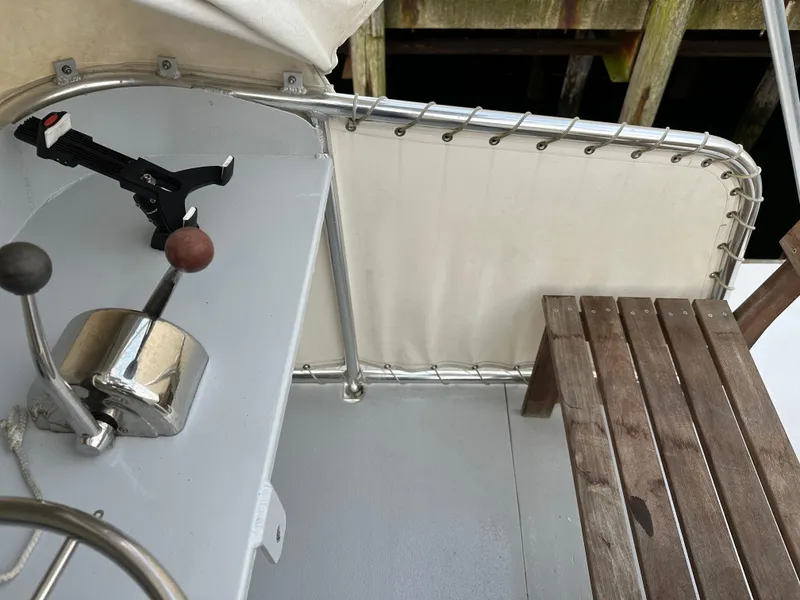

KOBELT twin lever clutches

600 rpms / 1 gal/hr 2000 RPMs streaming and doing 17.5 knots /12 gal/hr 200 gal /12 gal/hr =16.6 hrs. 17.5 x 16.6 = 290 range miles

1950 rpm. 8-10 gal/hr 15-16 kt / currently making 2450rpm

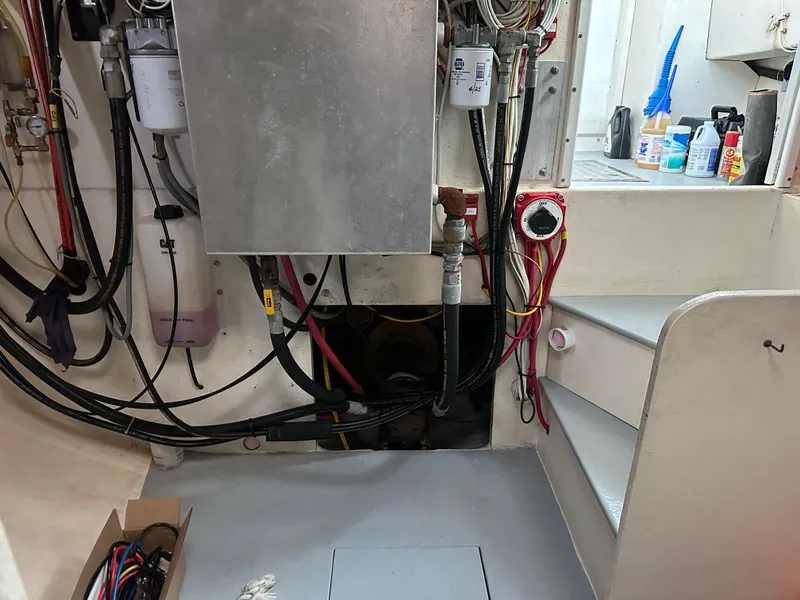

RACOR Primary filters

Starboard side 12' hauler by HYDRO-SLAVE

Shaft driven pump

24 Gallon hydraulic aluminum reservoir tank

RULE 3700 12vdc wash down pump with a 1 ½” bronze seacock

 12vdc oil change pump

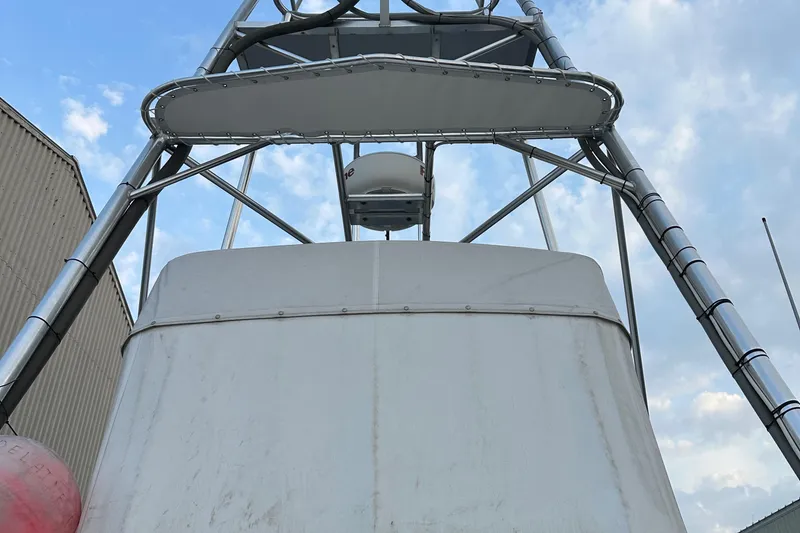

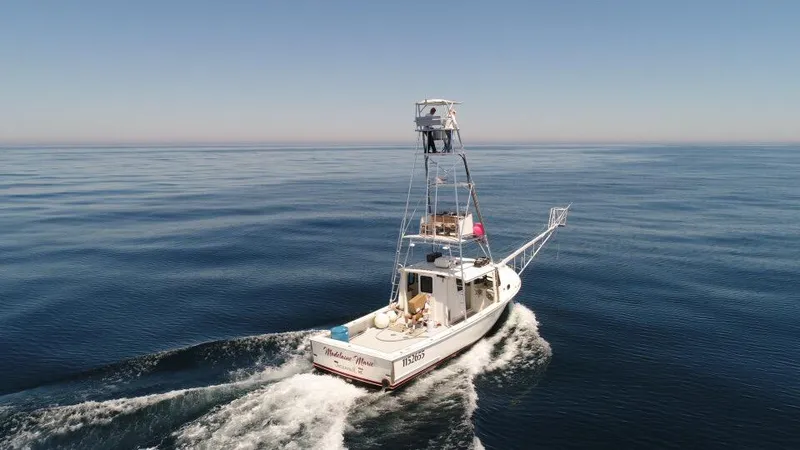

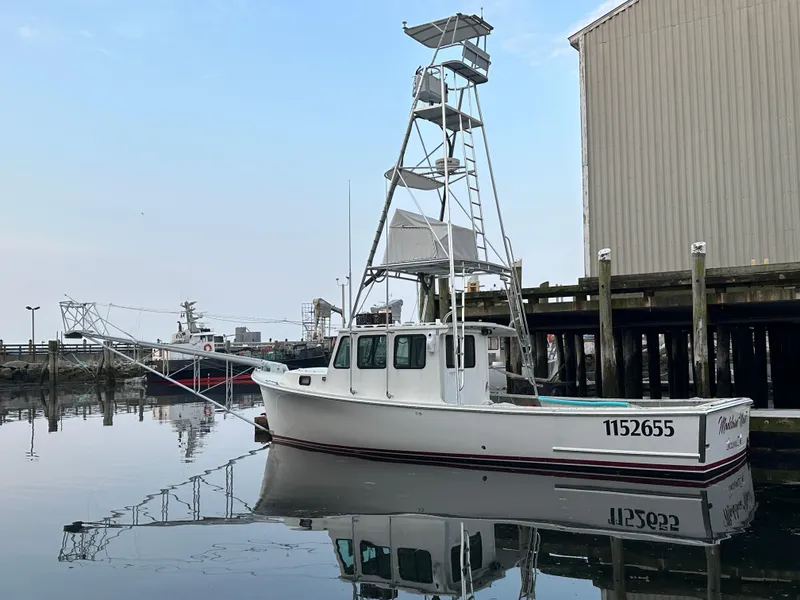

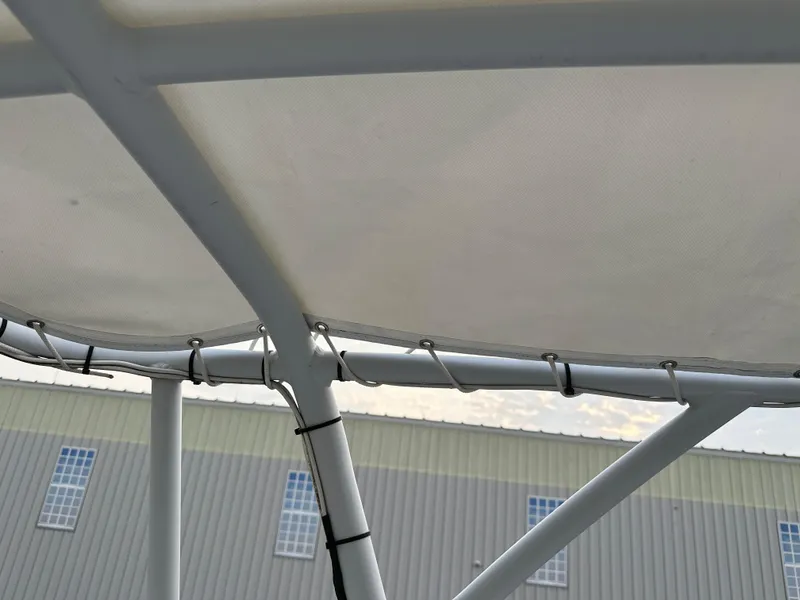

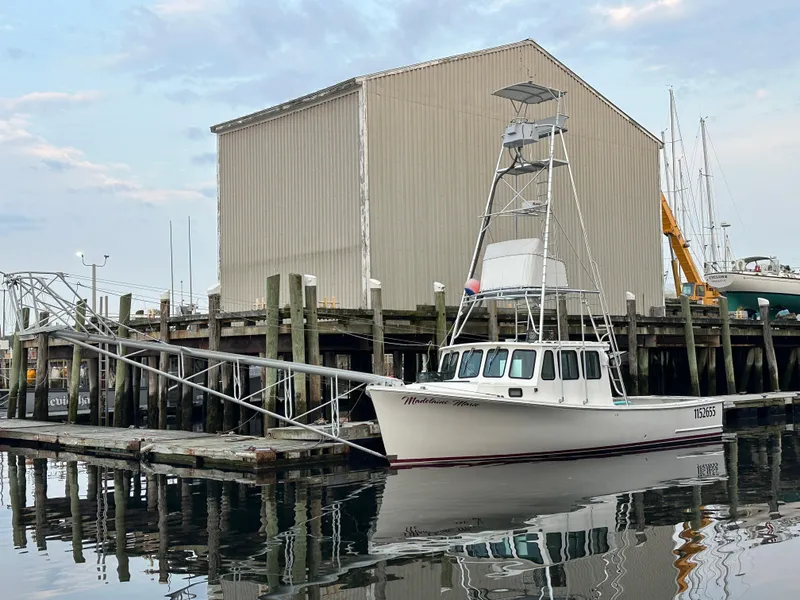

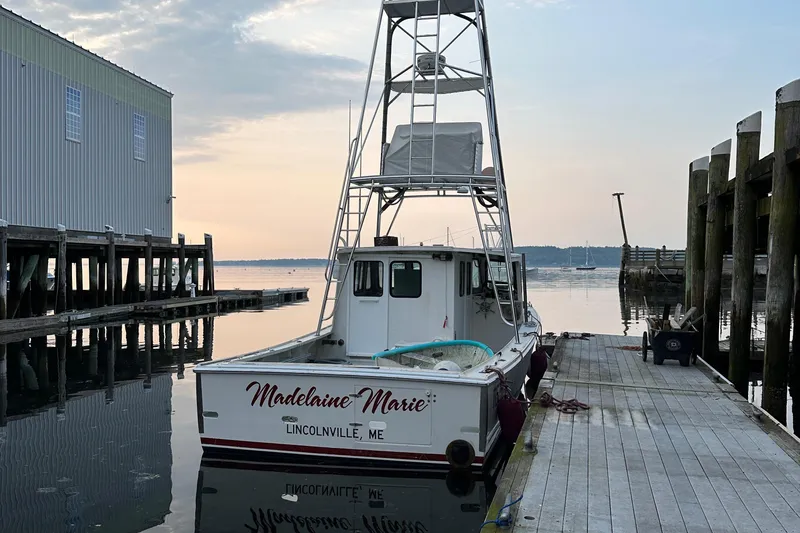

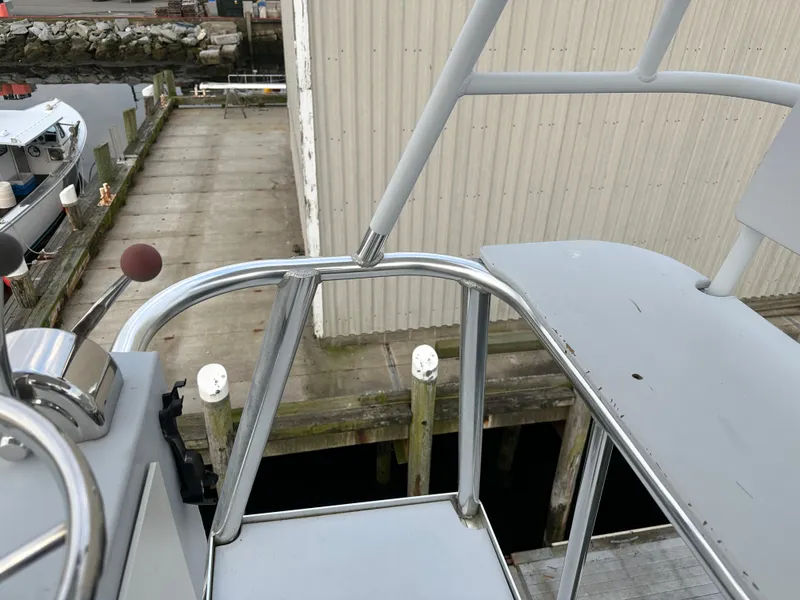

 Welded polished aluminum tuna TOWER (standing 27') is fabricated with 2 ½” tubing

for the main legs to the wheelhouse top and wash rails. There are multiple 2”

braces in all directions plus welded ladder rungs. There are two steering

stations enclosed with welded safety rails.

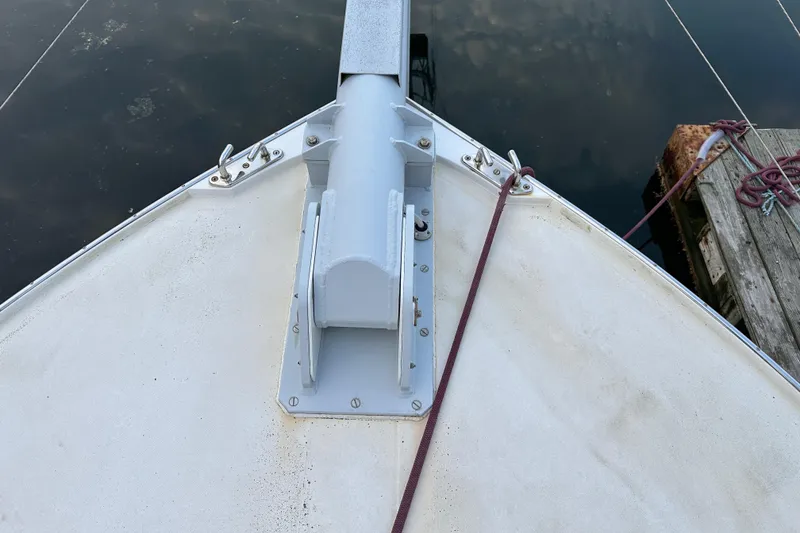

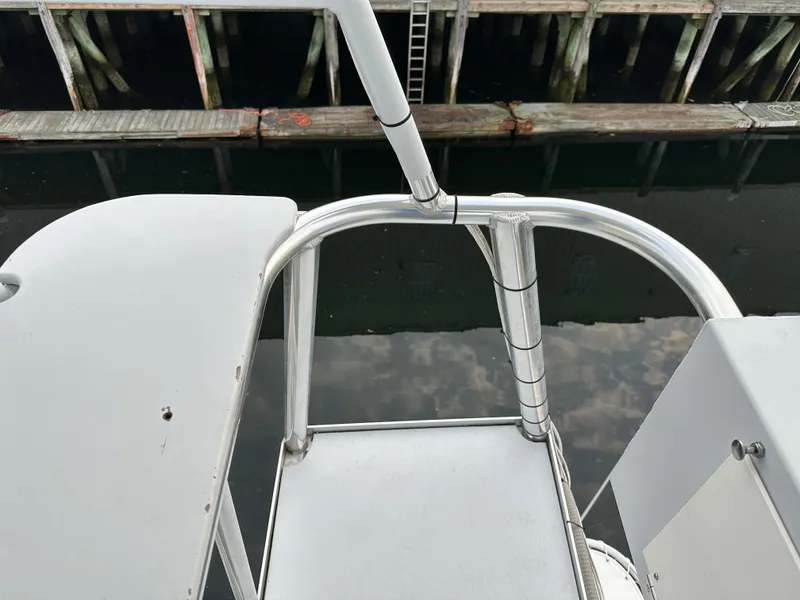

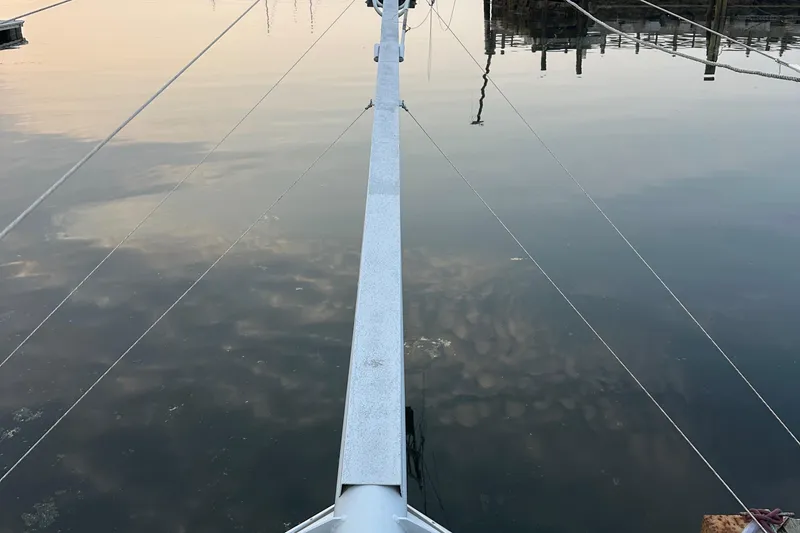

 Welded, painted aluminum pulpit with 4” tube, 2 ½” main brace to the

stem. There is 1” webbing between the two.

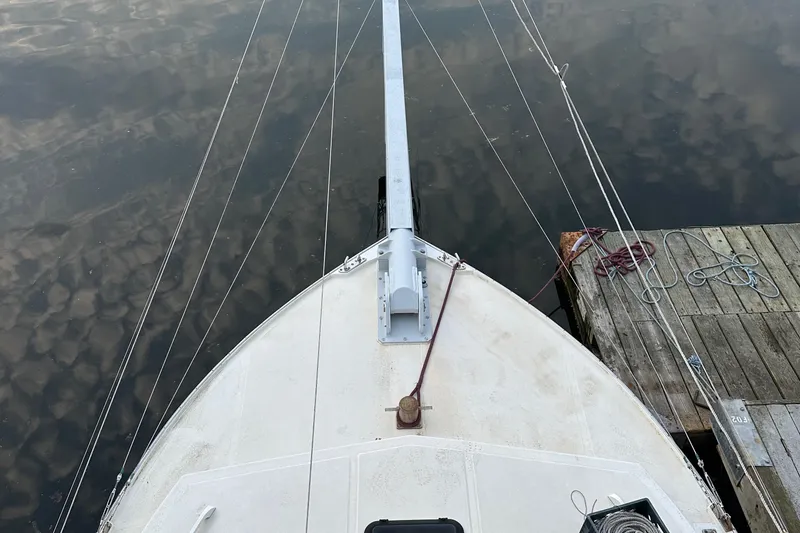

The 25' long PULPIT base is bolted and

backed through the foredeck. There are stainless 7/19 guy wires and life line

to stainless chain plates. The top of the tube has welded channel creating a

foot platform which is painted with non-skid. The custom tower and pulpit were

built by Blue Water Fabrication of West Rockport, ME.

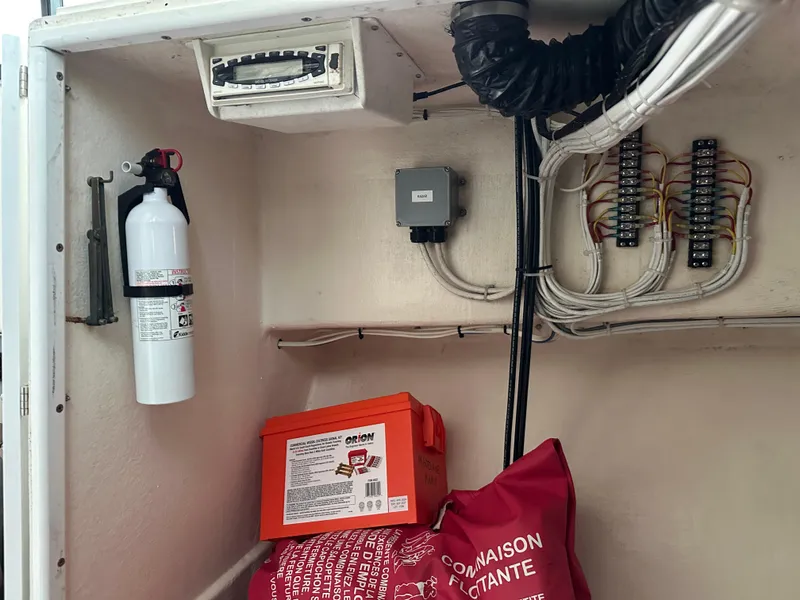

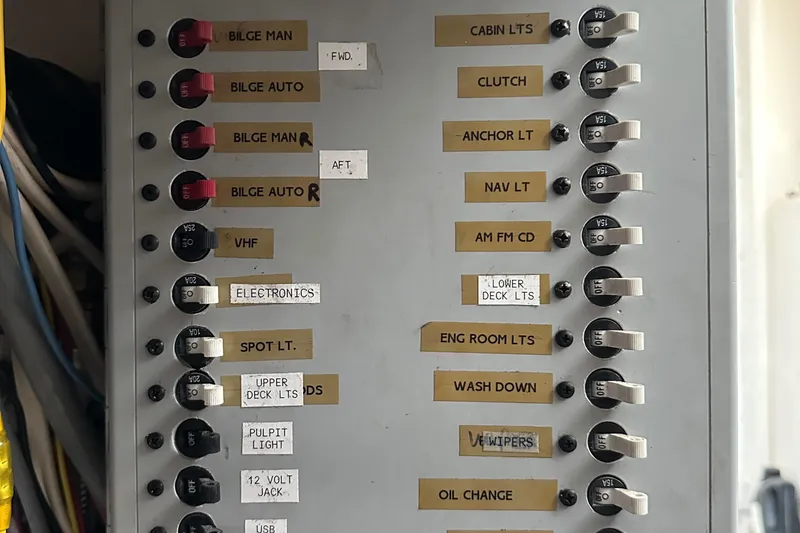

DC systems include running lights, deck lights, flood lights and three

window wipers

12vdc system with (2) 2024 8D batteries

PERKO Battery switching and panel

12vdc cable winch with T-Class fuse

Poly Planer MR45s

(2) Rule 1100 bilge pumps with automatic and manual operation

New 2025 Vevor 4500 lb electric winch mounted on wheelhouse

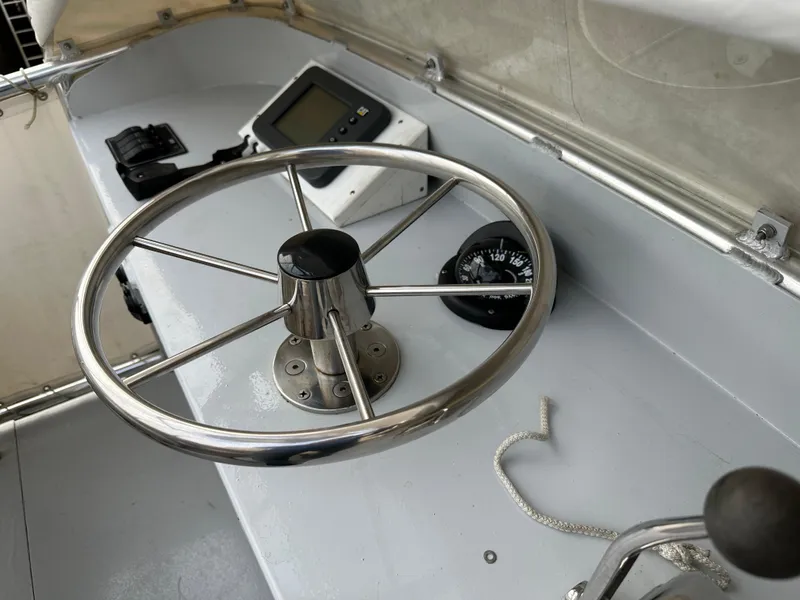

Ritchie compass

VHF Radio: STANDARD HORIZON Eclipse

Radar / Plotter: RAYMARINE ES128 W/12" Display

Chart Plotter: STANDARD HORIZON on tower

Depth: RAYMARINE CHIP SONAR; interface

Life Raft: 4 person liferaft approved by Liferaft Services 2025

PFDs:  6

Survival Suits: 3 Adult survival suits, 2 large, 1 small/medium

Ring Buoy: 30” Type IV

Life Raft:

EPIRB: Class I

Flares: 3-50 mile kit

Fire Ext. #1: in cuddy

Fire Ext. #2: on bridge

First Aid: 1 Kit

Sound Device: Air horn

RECENT 2 Rule high water alarm

35lb Danforth anchor with chain lead and nylon rode

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
