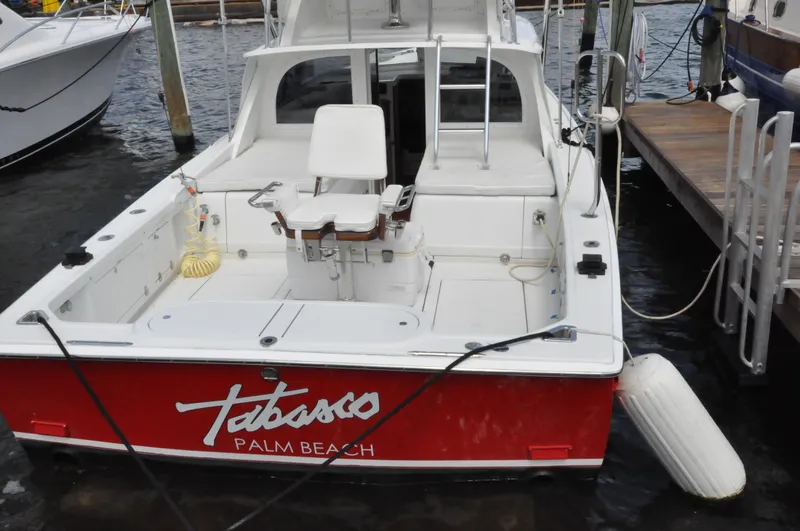

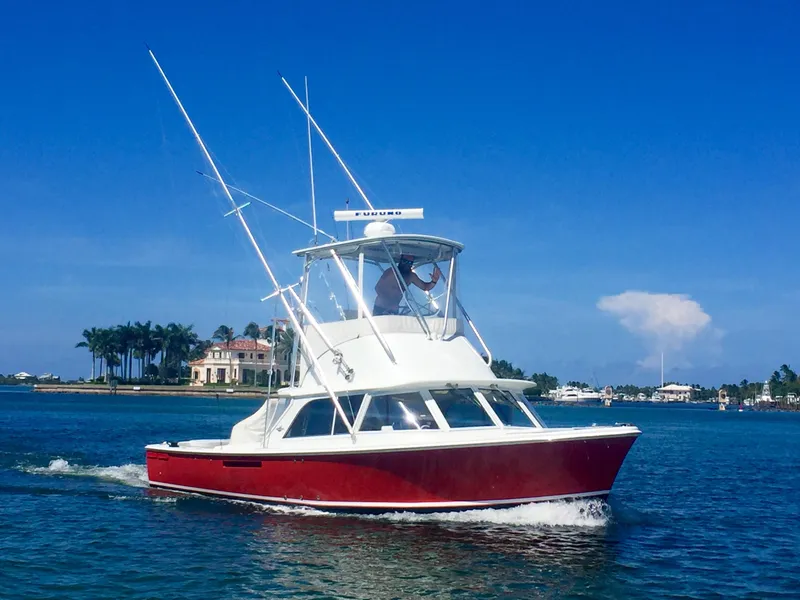

1974 Bertram 31 SportfisherSold

The 1974 BERTRAM 31’ SPORT FISHERMAN TABASCO underwent an extensive refit in 2008. With a Murray Brothers fighting chair and two electric Canon downriggers fishing could not be more enjoyable. This classic, proven fishing machine is timeless.

MECHANICAL

• New Yanmar engines 310 HP at 3300 rpm 1700 hours
• New engine beds and stringers
• New vacuflush head system
• 4 KW Fisher Panda generator
• Custom engine boxes with hydraulic rams
• New fuel system
• Flow scan
• Trim Tabs
• New Exhaust
• New props, struts and shafts
• Murray Brothers upper helm chair

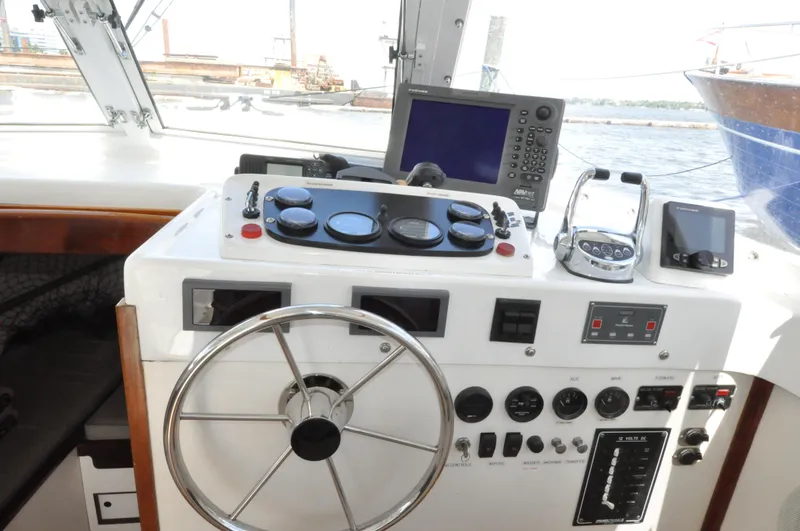

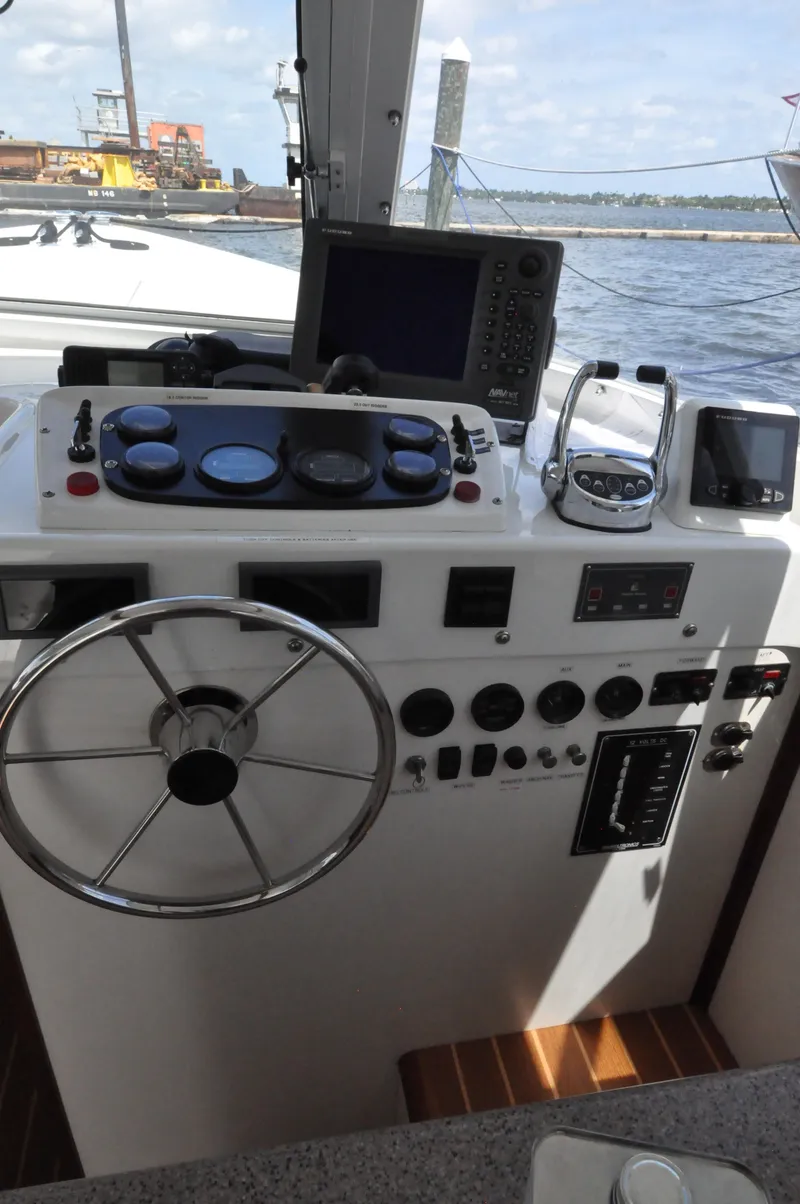

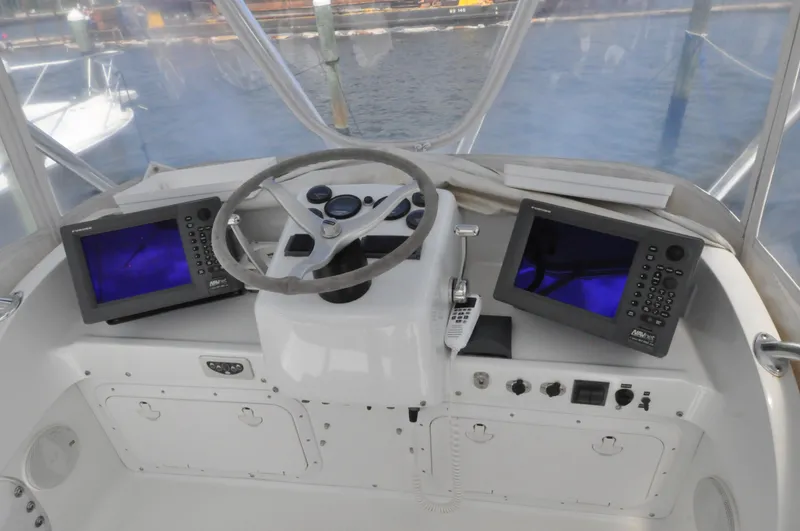

• Upper and lower helm stations have all new equipment
• Custom lower helm seat
• Furuno Navnet VX2 (3 displays)
• New radar and array
• New Furuno autopilot
• upper and lower Icom VHF
• satellite weather
• satellite radio
• New glendenning controls with troll setting
• New ZF gears
• Custom Rudders

EXTERIOR

• All fiberglass restored
• Awlgrip paint
• New through hulls
• Underwater lights

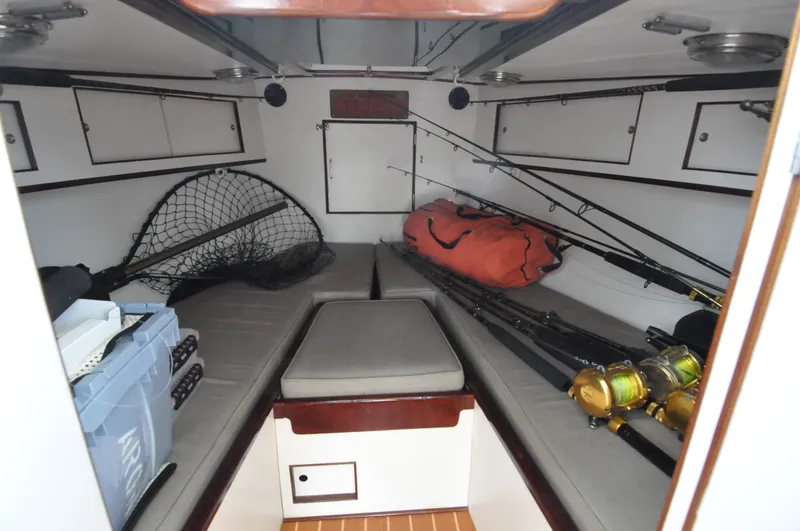

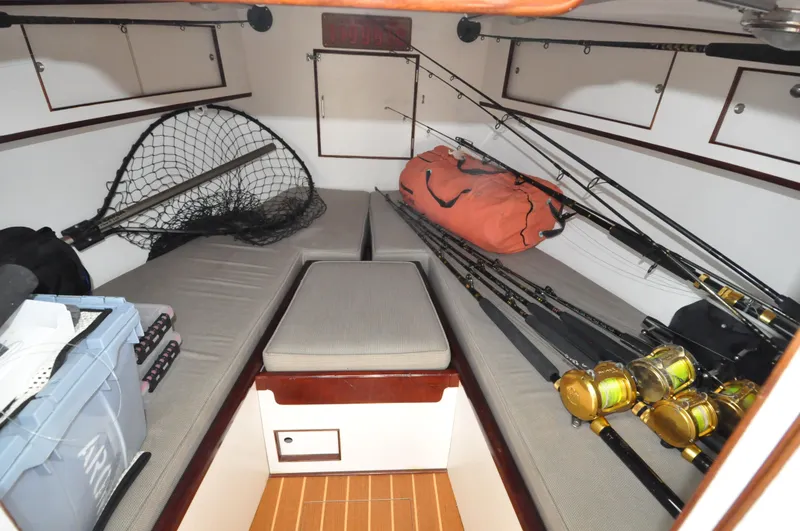

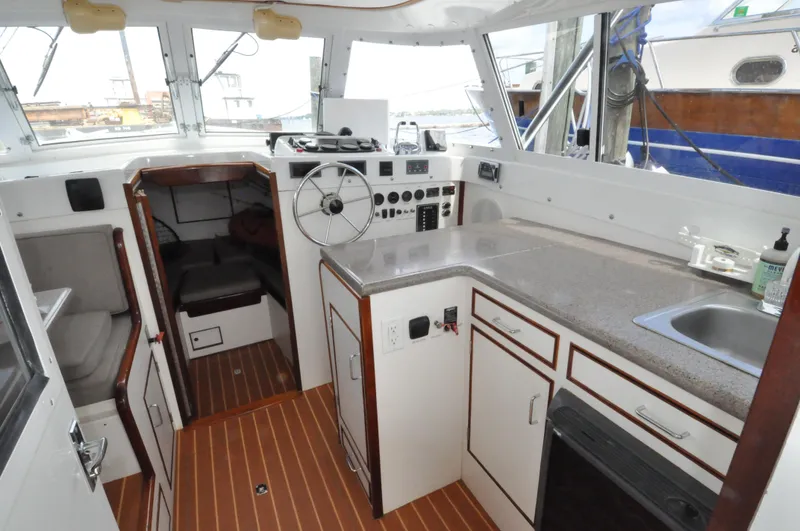

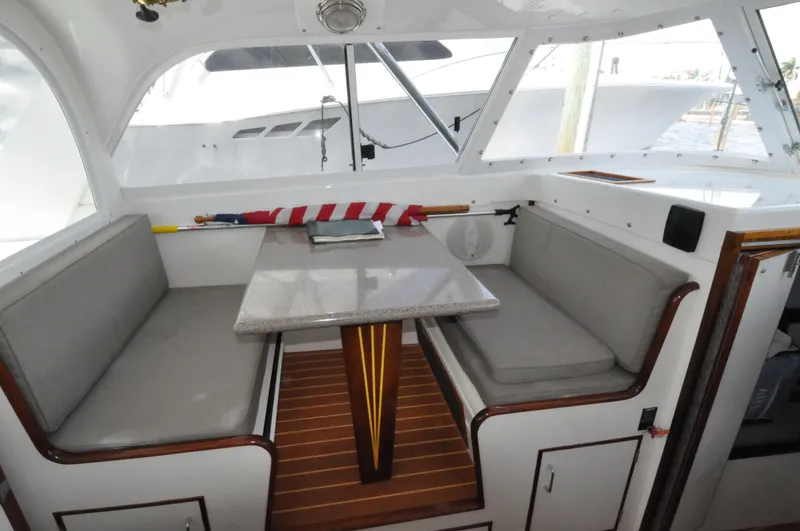

INTERIOR

• Custom aft cabin windows
• New cabin windows
• Lexan corner windows
• Teak and Holly flooring in cabin
• New crusair A/C and heat

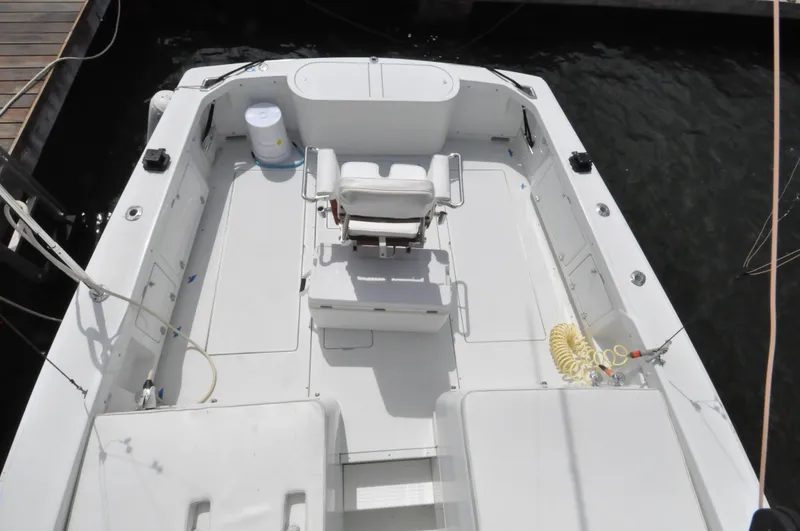

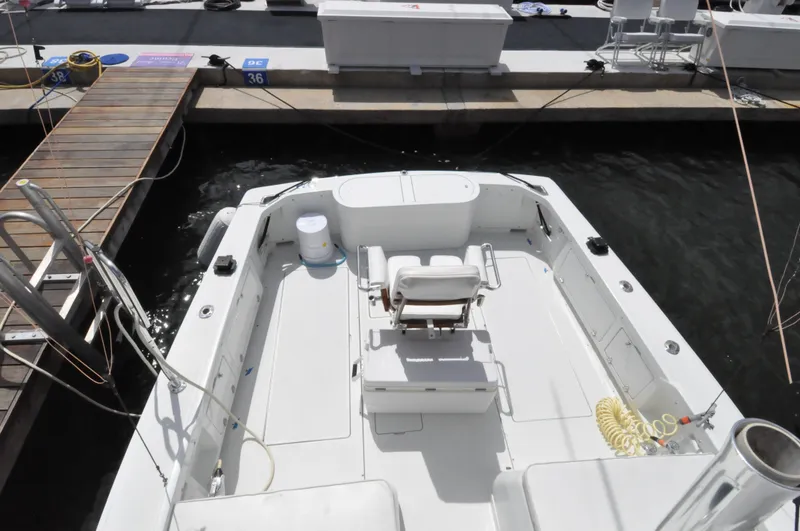

FISHING

• New rupp outriggers and center rigger
• 2 electric Canon downriggers
• Down rigger bases
• Bait well
• Fish boxes

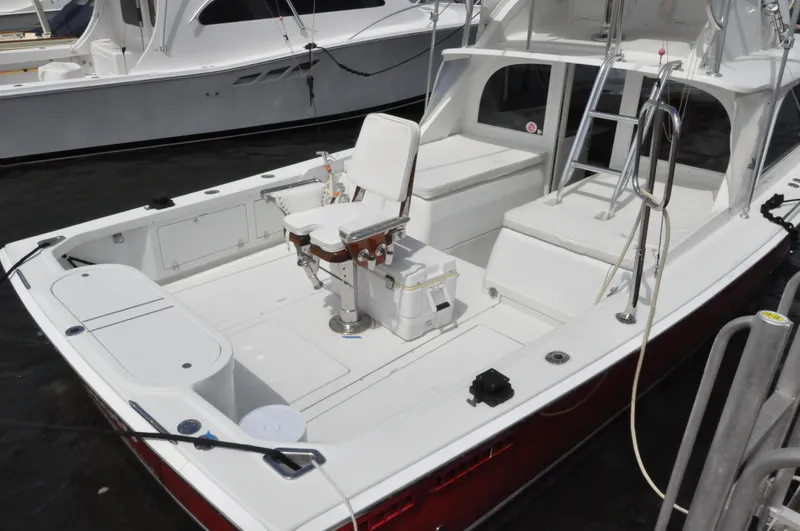

• Murray Brothers teak fighting chair

ADDITIONAL FEATURES

• New flybridge Top
• New enclosure
• New electrical system
• New plumbing
• New cushions
• New refrigerator

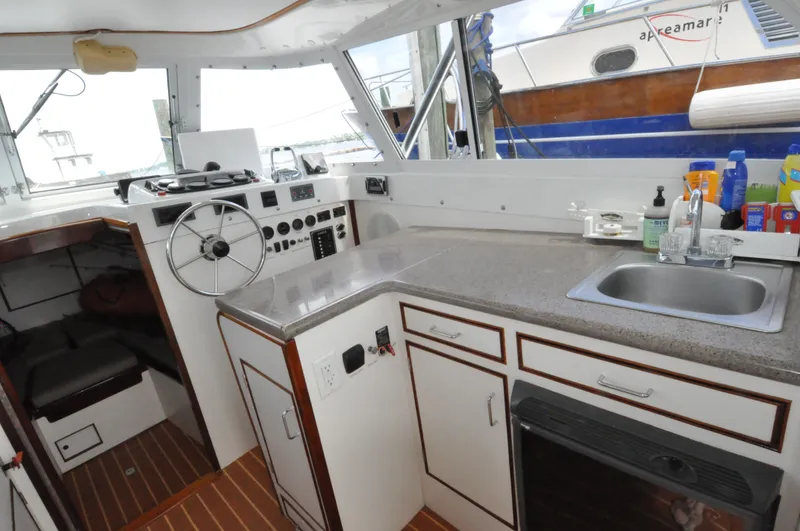

• New sink
• Fresh and salt water washdown
• All new CG safety equipment

The 31 Bertram was the king of the fleet in its day. Tabasco is still being maintained like a king. This is a once in a lifetime opportunity to own a boat that can be bought for half of the recent investment and functions like a new boat. The fish will come to you when they see Tabasco.

RUNNING GEAR – Shafts & Propellers:
Propellers: 2 X 4-blade bronze 20” diameter

Shafts: Seals: Shaft logs: Struts: Bearings: Cutters:
2 X 1.5” diameter stainless steel (non-magnetic) dripless – seawater fed
GRP
“V” through bolted to hull
1 x rubber cutlass in each V strut Spurs
Comments:
• Shaft & propeller in good condition
• Bearings good condition

STEERING:
Sea Star
Two station - manual wheel driven hydraulic pump at each helm One with tie bar
Rudder:
• Stock: 1.25” diameter bronze
• Flat plate bronze – 9.5” x 16”
• Rudder port: bronze with flax packing
• Upper bearing: Steel bushing
Autopilot:
• Autohelm: 12-volt DC***
• Control at both helm station
Emergency Steering: NO Comments:
• Steering could not be tested props were pulled back against rudders
TRIM TABS:
• 2 x Bennet – hydraulic with single rams
• Stainless steel – hinged – 8;5” X 30”
• Controls both stations
TANKS AND SYSTEMS:
• 2 X aluminum on centerline
• Forward 50 gallons & aft 190 gallons; TOTAL: 240 US gallons
• Groco 12-volt DC transfer pump
• Shut valves at tanks
• Deck fills and vents in topsides
• Gauges at helm station
Fresh Water:
• 1 tank - fiberglass approximately 20 gallons
• Fill: Deck plate
• Vents: Hull topsides
• Location: centerline midships
• Pump: 12-volt Par
• Filter: Strainer at pump
• Accumulator: Steel
• Boiler: 6-gallon – 1500 watt 110-volt element
• Plumbing: Flexible hose
Black Water – Waste – Gray Water:
• Plastic tank - located centerline – 36 gallons
• Pump out: flush deck plate
• Vent: to topsides
• Toilet – Vacuflush DC Electric – sea water fed
• Y-Valve fitted to direct toilet overboard or to the tank
• Gray water sump X 2 with submersible pumps
LUBE OIL SYSTEM:
• Electric DC Reverso pump in port Engine compartment
• No clean or waste oil tanks
BILGES and BILGE PUMPS:

 Bilges were accessed where possible and examined. No major issues not but ALL need cleaning and de-greasing,
• 2 X Rule submersible 12-V DC pumps – 2000 GPH – forward bilge & ER
• Both have check valves - auto float switches – manual/auto/off switches
• Forward bilge has a high water alarm

AIR CONDITIONING:
• Combination AC unit – Marine air – port salon
• Capacity: 12000 BTU
• Pump: AC Marche - Sea water
• Control: Digital in salon
VENTILATION:
• No forced air ventilation in the interior
• All ventilation via opening windows and hatches

Yanmar
6LPAH-STP
310 HP at 3600 RPM
1100 hours each
Port: M56729 Stbd: M56728 ZF220A Ratio: 2.04:1
Features
• Flexible engine mounts on aluminum framework
• Engine & transmission – close coupled
• Primary Racor fuel filters
• Controls – Glendenning
• Dual lever clutch & throttle below and single lever flybridge
• Gauges: Tachometer – oil pressure – water temperature – with high alarms
• Flow Scam fuel meters for each engine at both stations
• Both engine hatches have hydraulic rams to lift them – Single power pack
Exhaust:
• Stainless steel sea water injected elbow with raise loop
• Reinforced flexible hose to starboard transom discharge – above waterline
• 2 X inline GRP mufflers
GENERATOR:
Features:
• Sound shield
• Racor filter
• Start panel at helm
• GRP muffler
Comment: Unit is weathered
ELECTRICAL:
Onboard electrical and distribution system:
• Alternating Current System
• Direct Current System
120-Volt 60 Hz 12-volt
Shore Power:
• Single 110-volt, 30-amp inlet – starboard cockpit
• 30-amp cord (30”) with 30-amp end fittings
• Breaker at panel under helm station
• Reverse polarity indication
• 30 Amp Galvanic Isolator
AC Panel: Inboard of helm station with Volt & Amp meters
• Main breaker
• Air Con
• Boiler
• Reefer
• Outlets
Batteries:
• 2 X 12-volt west Marine – 900 Amp-hour sealed
• Isolation switches
• Battery charger & alternator on Mains
DC Panels:
• Main panel to starboard of helm.
• Secondary panel at helm station
• Volt and amp meters – Labelled breakers

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
