CONSTRUCTION

HULL

• Technology: Air Step ®

• Patent: Beneteau

Composition:

• Sandwich (polyester resin - fiberglass - balsa core)

• White hull

• Winching ring on bow

DECK

Composition:

• Sandwich (polyester resin - fiberglass - balsa core)

DECK EQUIPMENT

MOORING - ANCHORING GEAR

• Stainless steel bow fitting with roller

• Self-bailing mooring locker with hatch cover

• Eye bolt to secure mooring

• 2 Forward cleats + 2 Cleats amidships + 2 Aft cleats in aluminum, 250 mm / 10’’

SAFETY ON DECK

See VERSIONS - Stainless steel pulpits version

• Stainless steel forward hand rail

• 2 Catwalks

• Wide sideways around the consol:

- portside: 0,37 m / 1’3’’

- starboard: 0,37 m / 1’3’’

COCKPIT

• Wide and deep self-bailing cockpit (Freeboard: 0,78 m / 2’7’’)

• 3 person cockpit seat with fixed backrest and stainless steel hand rail: 1,60 x 0,44 m / 5’3’’ x 1’5’’ Elegance version: 3 person cockpit seat with black hand rails and backrest that can be converted into a sun deck 1,60 x 0,90 m / 5’3’’ x 2’11’’

• Removable polyester cockpit table

• 1 Large lockable central cockpit locker with gas piston assisted opening

• Stowage under the central cockpit seat (BIB location)

• Stowage under the cockpit seat

• Rotomolded fuel tanks (2 x 200 L / 2 x 53 US Gal) at the bottom of the cockpit compartment, in waterproof and ventilated compartment

• 2 Fuel filler on aft freeboards (port and starboard)

• 2 access points to the bathing platform

• 2 safety gates

• Telescopic swimming ladder beneath port side platform, with hand rail

• Cockpit shower

• All-round light on samson post

• Navigation lights (port and starboard)

• Bench seat in front of console with armrest and 2 hand rails

• Tilting side platform with mechanical mechanism (Length: 1,60 m / 5’3’’ x Height: 0,85 m / 2’9’’)

• 4 Forward cup holders

• 4 Cup holders in cockpit

• 2 Rod holders

• 2 Handrails

STEERING STATION

• Windscreen PMMA light grey tinted

• Handrail around the windscreen

• Center consol

• Dashboard with location for electronics , max. 12’’ screen, rpm and trim

• Fuel gauge

• USB socket

• Steering wheel

• Location for top gas throttle (Throttle and instruments delivered with pre-rigging)

• Fitted footrests

• Hydraulic steering

• leaning post / High comfort pilot and copilot bench seat with built-in function Bolster

• Hatch cover under the leaning post

• Co-pilot hand rail

• Cabin access through sliding door in translucent grey PMMA

OUTSIDE KITCHEN

• Sink with 2 bowls

• Teak counter-top

• Space for gas oven (In Comfort trim level)

INTERIOR

• Woodwork Alpi Mat Walnut

• Brown oak laminated floors

• Interior cushions in Cushy Limestone upholstery (optional extra)

FORWARD CABIN

Headroom = 0,73 - 1,81 m / 2’5’’ - 6’

• Stowage compartments in wood (portside / starboard / forward)

• Access to battery switch/fuse box

• Optional mattress (2,00 - 2,25 m / 6’7’’ x 7’5’’ max)

• Lighting from 2 ceiling lights

• Ventilation provided by one opening porthole

HEAD

Headroom = 1,81 m / 6’

• Space for optional WC

• Sink • Shower (in trim level)

• Access hatch to service compartment under washbasin

• Rail for storage

• Mirror

• Ventilation provided by one opening porthole

• Lighting from 1 ceiling light

• Attachment system for cabin ladder

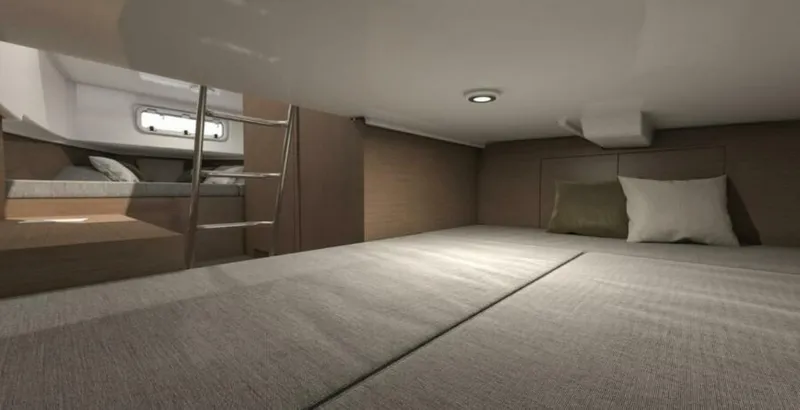

MID-CABIN

Headroom = 0,49 m / 1’7’’

• Mattress 1,84 x 1,40 m / 6’0’’ x 4’7’’ (optional extra)

• Storage cubbyhole

• Technical access

• Lighting from 1 ceiling light

ELECTRICITY

• 12 V electrical panel

• Installation for engine batteries delivered with the pre-rigging or refrigerator (Maximum: 2 batteries not delivered)

PLUMBING

• 1 Manual bilge pump

• 1 Electric bilge pump

• Pressured cold water

• Hot water system on shore supply (Comfort Trim package)

• Water drain plug

MISCELLANEOUS ITEMS

• Eco Cleaning kit

STANDARD UPHOLSTERY VERSION

• PVC Marlin Auster upholstery

- Cockpit bench seat, with seat back convertible to sun recliner (1,60 x 0,90 m / 5’3’’ x 2’11’’)

- Bloster leaning post bench seat for pilot and co-pilot

- Seat in front of the console

ELEGANCE UPHOLSTERY VERSION

• PVC Silvertex Plata + Cognac upholstery

- Cockpit bench seat, with seat back convertible to sun recliner (1,60 x 0,90 m / 5’3’’ x 2’11’’)

- Bolster leaning post bench seat for pilot and co-pilot

- Seat in front of console with armrest

- Face-to-face bench seat with backrest and stowage

- Extension for sun deck (1,80 x 1,25 m / 5’11’’ x 4’1’’)

PILOT EDITION VERSION

• Pearl Grey hull

• Pilot Edition hull graphics

• Black lacquered stainless steel pulpits

• Sports steering wheel

• Black T-Top (white polyester roof and black frame) with decorations + Cockpit sun awning extension

• Blue underwater lights

• Linetex Glacier + Chalk unpholstery

- Cockpit bench seat, with seat back convertible to sun recliner (1,60 x 0,90 m / 5’3’’ x 2’11’’)

- Bolster leaning post bench seat for pilot and co-pilot

- Seat in front of console with armrest

- Face-to-face bench seat with backrest and stowage

- Extension for sun deck (1,80 x 1,25 m / 5’11’’ x 4’1’’)

- Foldaway bench seat, to starboard

- Reclining bench seat behind the leaning post

• Wooden cockpit table with telescopic pedestal, can be converted into sun deck (with sun deck cushoins)

• LED courtesy light in cockpit

STAINLESS STEEL PULPITS VERSION

• Stainless steel pulpits

• Stainless steel handrails

• Stainless steel handrail around windscreen

BLACK PULPITS VERSION

• Black lacquered stainless steel pulpits

• Black lacquered stainless steel handrails

• Black lacquered stainless steel handrail around windscreen

TRIM LEVEL

• Electric windlass

• Extended swim platform

• 49 L refrigerator in the cockpit

• Additional battery pre-wiring for refrigerator

• 25 L water heater

• 115 V electric circuit with shore socket + Battery charger

• External gas cooker

ELECTRONICS PACKS

ELECTRONIC PACK

• Multifunction 9’’ GARMIN ECHOMAP UHD2 92 SV screen (chart not included)

• GARMIN GT23 M-TH Sensor

ELECTRONIC - UPGRADED PACK

• Multifunction 12’’ GARMIN GPSMAP 1223 xsv screen (chart not included)

• GARMIN GT23 M-TH Sensor

SOUND PACK

• Fusion MS-RA210

• 4 Exterior speakers (50 W)

SOUND SIGNATURE PLUS PACK

• Fusion MS-RA210

• Amp (1 600 W)

• Interior:

- 2 Signature sport white speakers (230 W), white LED

• Exterior:

- 4 Signature sport white speakers (230 W), white LED - Subwoofer (450 W)

FISHING PACK

Fishing station (en remplacement de la banquette arrière)

• 5 Rod holders

• 3 Fish tanks, including 1 live storage tank with sea water circuit

• Foldaway bench seat (Upholstery depending on version)

• Stowage compartments beneath the fishing position

INTERIOR ACCOMMODATION / ONBOARD COMFORT

• Mattress (Forward cabin + Portside seating)

• Mattress (Mid-cabin)

• 8 000 BTU air conditioning on shore power socket

• 8 000 BTU air conditioning with battery power supply

• Direct fresh water intake from the shore

• Marine toilet + Sewage tank

• Fresh water electric toilet + Sewage tank

EXTERIOR OPTIONS

• Complete mooring/anchoring kit

• Stainless steel/doussie wood bowsprit without swimming ladder

• Stainless steel/doussie wood bowsprit without swimming ladder (Requires black pulpit version)

• Swimming ladder for bowsprit

• Stainless steel ski mast

• Black ski mast

• Built-in forward bimini

• Stainless steel bimini (Steering station)

• Aft bimini extension for cockpit

• Stainless steel T-Top (white polyester roof and stainless steel frame) + Cockpit sun awning extension

• Black T-Top (white polyester roof and black frame) + Cockpit sun awning extension

• Pilot protection for T-Top

• Rack for T-Top

• Black rod holder on T-Top (x5)

• Deck searchlight for T-Top (LED strip)

• Foldaway bench seat to starboard

• Reclining bench seat behind the leaning post

• Protective cases: Cockpit bench seat + leaning post + console + Seat in front of the console

• Protective cases: Cockpit bench seat + leaning post + console + Seat in front of the console + Front seat

• Grey foam carpet in cockpit bottom

• Polyester cockpit table with telescopic leg, convertible into sundeck (with sundeck upholstery)

• 2 Rod stowage compartments in the freeboards

ELECTRICAL SYSTEM

• LED courtesy light in cockpit

• Underwater lights (x2)

• Horn

ENGINE

• Bow thruster (battery not delivered)

• Fuel tank 2 x 288 L (instead of standard 2 x 200 L)

• Lenco electric trim tabs

• Zipwake automatic trim system

• Bracket mandatory for single engine

• Mercury Digital DTS Throttle Shift pre-rigging (1 x 300-400 CV/HP Verado)

• Mercury Digital DTS Throttle Shift pre-rigging (2 x 175-225 CV/HP Verado)

• Mercury Digital DTS Throttle Shift pre-rigging (2 x 250 CV/HP Verado)

• Mercury electronic Joystick pre-rigging (2 x 250 CV/HP Verado)

NAVIGATION ELECTRONICS

• GARMIN 215 AIS VHF
