Standard Factory Specifications

Hull

• Back Cove white iso-npg gelcoat w/ vinylester backup resin
• VIP Resin Infused Hull w/ PVC foam core hull bottom
• VIP Resin Infused foam core stringer system
• Advanced prop pocket hull design
• Painted boot stripe
• Molded cove stripe depression w/ “gold or silver leaf” style stripe and Back Cove Heron

Deck

• Back Cove white gelcoat w/graystone anti-skid on walking surfaces
• VIP resin infused balsa core sandwich structure
• Mooring cleats forward, aft and mid-ship (aft cleats are pull-up style)
• Stainless steel anchor roller weldment
• Anchor locker w/ ground tackle storage
• 24V electric anchor windlass w/control at helm & foot switches on deck
• Stainless steel flagstaff receiver
• Removable burgee staff
• LED hard top mounted running lights
• LED all-around anchor/ nav light on hard top
• Side deck door at helm
• Teak accent stripe on cabin side
• Custom 1-1/4’’ 316L stainless steel perimeter rail
• SS handrails concealed under hardtop, port, and starboard
• Compressed air horn on hardtop (mast optional)
• (6) opening port lights w/ insect screens and blinds
• Port & starboard molded steps leading to side and fore deck
• Cockpit hatches to lazarette and engine room

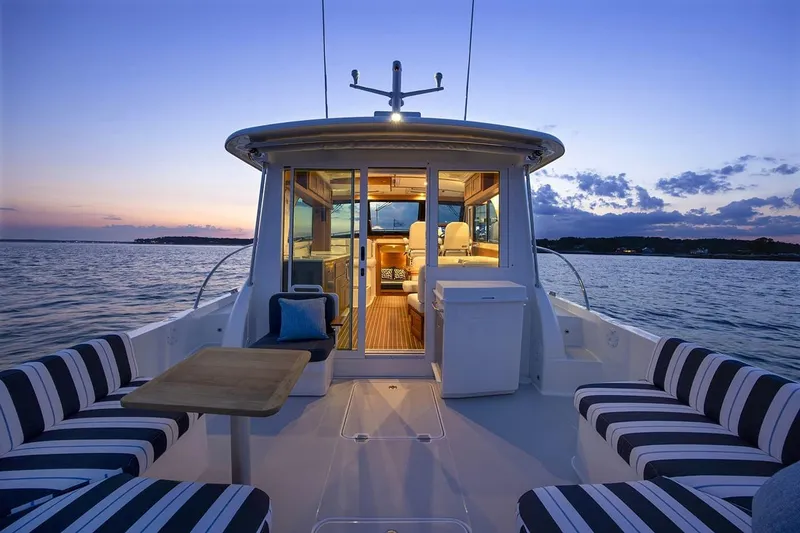

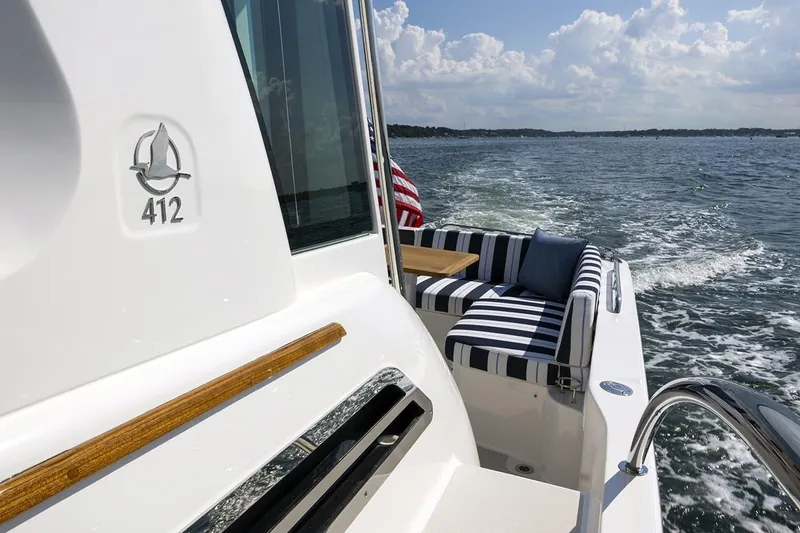

• Molded quarter seating in cockpit w/ storage, port, and starboard
• Transom door on centerline
• Swim platform w/ SS under-mount swim ladder on starboard side
• Hot and cold cockpit shower
• Self draining cockpit
• Pop-up cleats on swim platform (for tender)
• Cockpit grab rails behind cockpit seats on coaming (4)
• 6.5 inch, 200 Watt Fusion speakers (aft of salon door

Fuel System

• 400 US gallon fuel capacity w/ (2) 2” flip-tab deck fill (P&S)
• (2) 200 gallon vented cross-linked polyethylene fuel tanks (P&S) with shut off valves
• Racor fuel/water separators for engine and generator

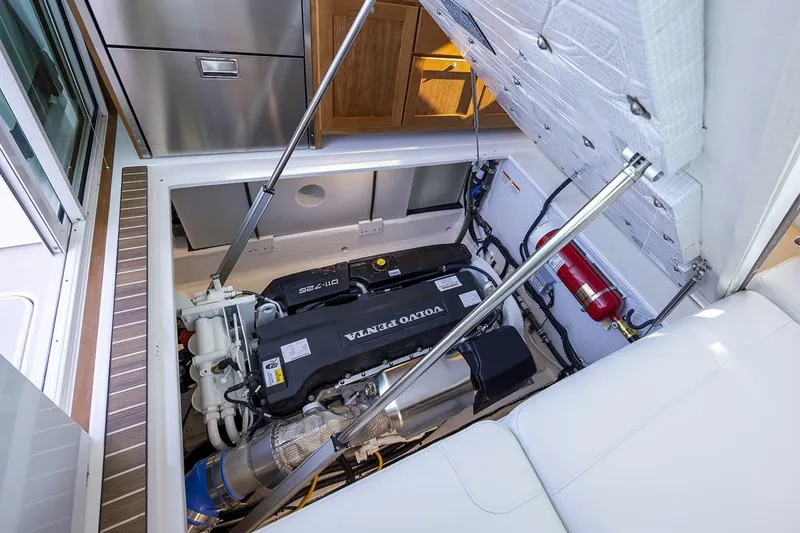

Mechanical Systems

• 2.25’’ Aquamet shaft
• 4 Blade NiBrAl propeller
• PSS Dripless shaft log
• Binnacle mount electronic single lever engine control
• Volvo engine display
• Bronze sea valve on engine intake
• Marelon sea valves on underwater thru hulls
• Bronze raw water strainer on engine, generator and AC intakes
• Bronze external strainer on engine and air conditioner intakes
• 8’’ exhaust with two-stage horizontal muffler
• Electric dual actuator trim tabs w/ helm position indicator
• SeaStar hydraulic steering w/ tilt helm pump
• Sleipner bow thruster w/ joystick control (SE100)
• Sleipner stern thruster w/ joystick control (SE100)
• Hot and cold pressurized water
• 11 gallon water heater w/ heat exchanger, tempering valve and pressure relief valve plumbed to thru-hull
• Xintex-Fireboy automatic, clean agent fire extinguishing system in engine room w/ manual backup
• Air conditioning w/ reverse cycle heat 38kBTU (combined salon and cabin)
• Portable fire extinguishers in all accommodation spaces

Electronical Systems

• AC/DC control panels with polarity indicator
• 24Vdc system battery management switching
• 24Vdc 110 amp engine alternator
• 12Vdc breaker for electronics supplies fuse block behind helm pod
• Emergency battery bank cross-over switch (ACR)
• 240Vac 50 amp shore power inlet w/power 50ft cord reel
• 120/240Vac shore power system ELCI protected
• Galvanic isolator
• 9.0 kW genset with sound shield and water/exhaust separator
• GFI protected 120Vac outlets
• 60 Amp battery charger
• House bank = (2) 4D AGM house batteries wired in series – 24Vdc
• Engine bank = (4) Group 31 AGM batteries wired in series then parallel – 24Vdc
• (4) 24Vdc automatic bilge pumps and (2) bilge high water alarms
• Bonding system w/ zinc transom anode
• Mechanical/utility space LED lighting
• Cockpit courtesy lights switched at transom door and helm
• Guest cabin courtesy lights switched at guest berth and helm
• Owner cabin courtesy lights switched at helm and island berth
• Overhead LED lights w/ dimmer control in cabins, salon and cockpit
• Overhead bi-color LED light at helm station
• 12Vdc outlets at helm, guest cabin, and master stateroom
• Battery powered salon and cabin smoke detectors
• Hard-wired CO detectors in cabin and salon

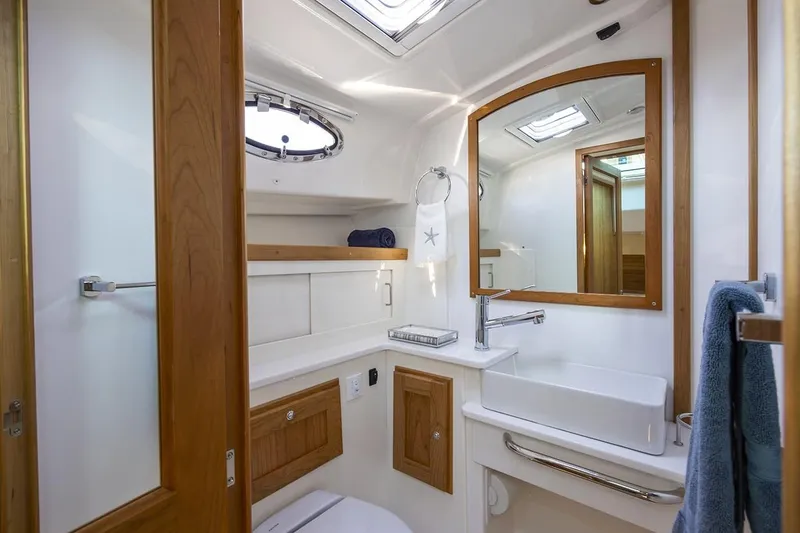

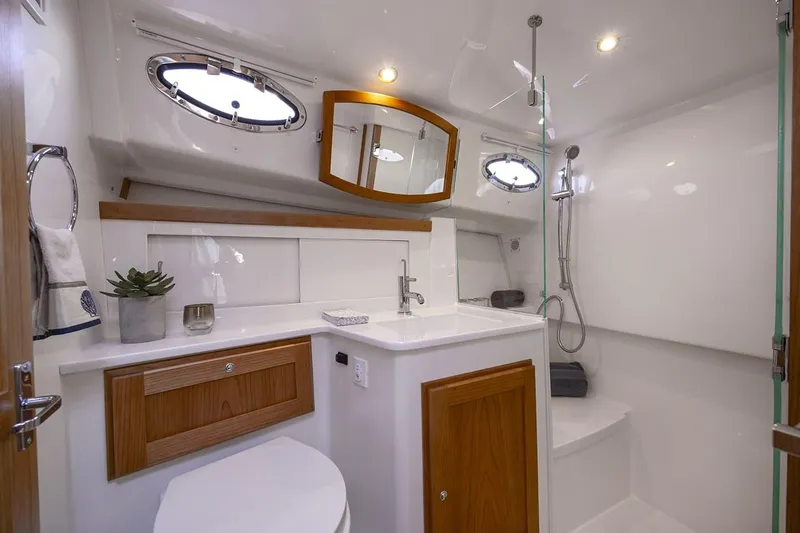

Owner’s Head / Sanitary System

• Head to starboard w/ separate shower stall
• Molded seat in shower stall w/ wet storage beneath
• Built-in vanity w/ sink and storage
• Lewmar hatch w/ OCEANair Skyscreen
• (2) Stainless steel opening ports w/ insect screens and shades
• Cherry framed mirror
• Solid surface countertop
• Single lever faucet
• Shower-drain sump pump system
• Full size fresh water electric MSD
• Waste and fresh water level gauge
• Macerator for holding tank overboard discharge (as permitted)
• Holding tank pump out fitting on deck
• Sealed overhead LED lighting (w/ dimmer control)
• Powered exhaust fan

Day Head

• Built-in vanity w/ sink and storage
• Lewmar hatch w/ OCEANair Skyscreen
• Stainless steel opening port w/ insect screen and shade
• Cherry framed mirror
• Full length mirror on door
• Solid surface countertop
• Single lever pull-out faucet (doubles as shower wand)
• Shower-drain sump pump system
• Full size fresh water electric MSD
• Sealed overhead LED lighting (w/ dimmer control)
• Powered exhaust fan

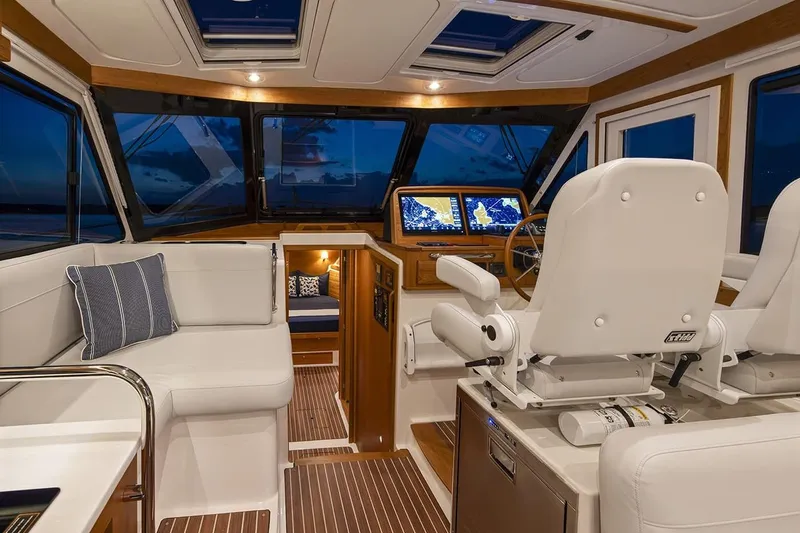

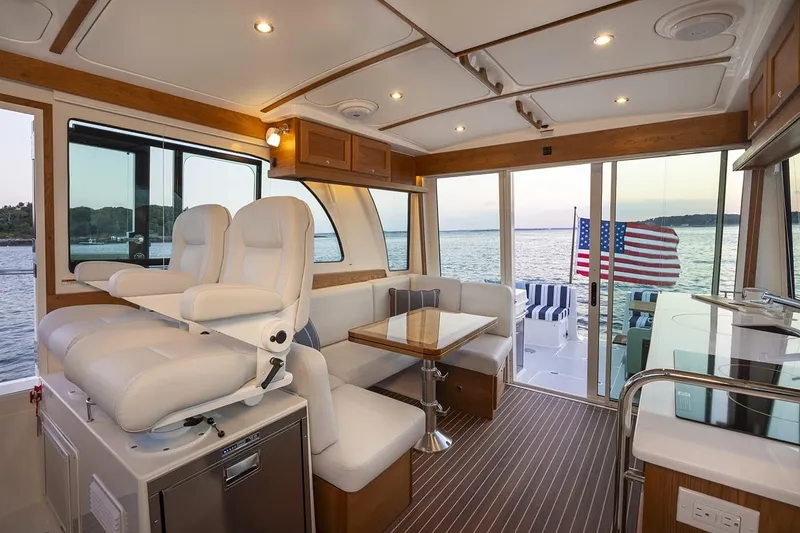

Helm Deck / Salon Area

• Frameless glass direct bond windows w/opening side windows
• Opening, framed center window
• Locking salon door w/ powered window to starboard
• (3) windshield wipers w/fresh water wash and intermittent control
• (2) Lewmar sliding hatch w/ OCEANair Skyscreen
• Compass, illuminated
• 20” wood grain steering wheel
• (2) Llebroc helm and mate’s seats
• Adjustable, sloping footrests at both helm seats
• Cherry dash and upholstered helm pod
• Mates lounge to port
• Large bilge storage below helm sole, access by gas strut assisted hatch
• Large engine room hatch opens by electric linear actuator

Helm Deck Galley

• Electric, induction two burner cook-top
• Galley, two-drawer style AC/DC SS “All-in-One” fridge-freezer
• Under helm seat, single drawer style AC/DC SS fridge designed to hold tall or short beverages
• Large SS galley sink w/ single lever faucet & drop in cover
• Solid surface countertop
• Under-counter convection microwave
• Drawer and door storage below counter
• Utensil drawer
• Trash and recycling container pull out drawer
• Overhead storage lockers
• “Teak and Holly” style high pressure laminate sole w/ surface texture
• Towel ring above sink

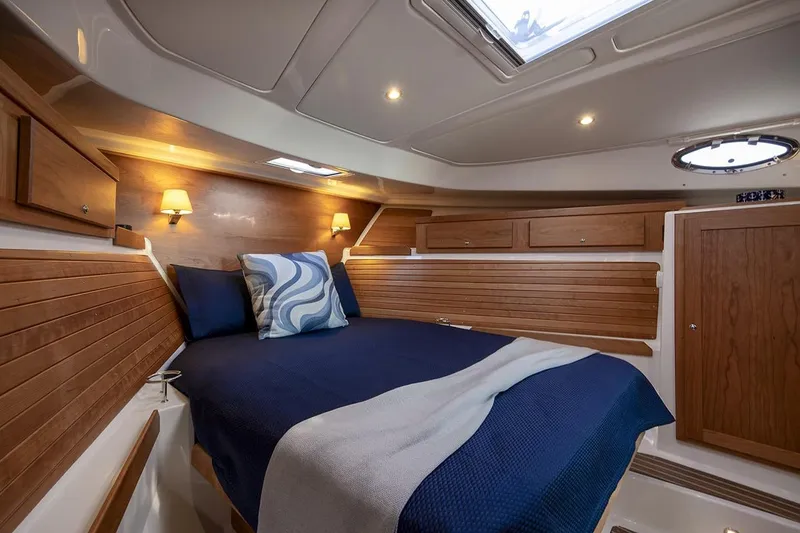

Owner’s Stateroom

• Cherry interior on molded composite hull liner
• (2) Lewmar hatches w/ OCEANair Skyscreen
• (2) Stainless steel opening ports w/ insect screens
• “Teak and Holly” high pressure laminate sole w/ surface texture
• Molded headliner with padded panel inserts
• Island queen berth w/ drawers and storage below
