2026 Aron M 80

Powerplant & Propulsion System – M-80 Flying Ship

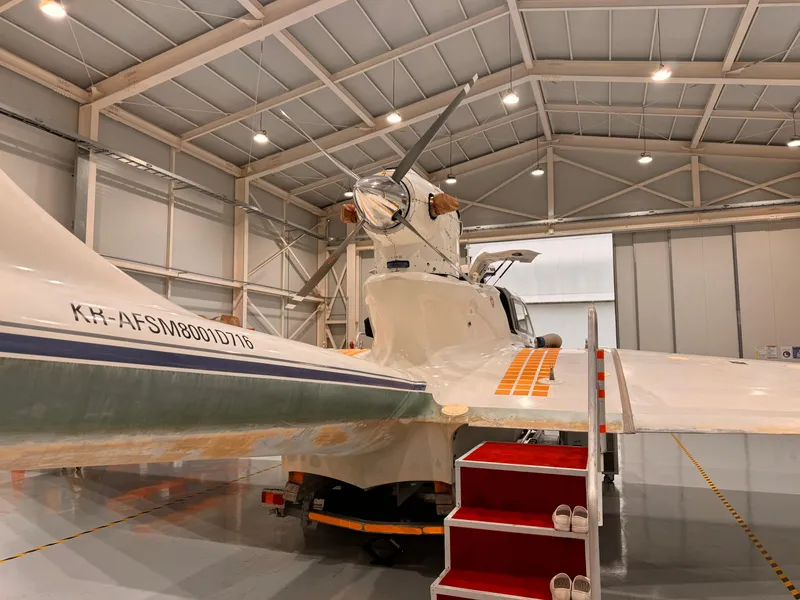

The M-80 is powered by the trusted Pratt & Whitney Canada PT6A-34, one of the most dependable turboprop engines in aviation history, with over 50 years of proven service and a global support network.

• Fuel Type: Jet-A

• Propeller: Four-blade Hartzell composite propeller

  • Saltwater-rated

  • Tungsten-coated leading edge for extended life

  • Designed specifically for Wing-In-Ground (WIG) craft operations

  • Constant-speed, low-RPM (2,200) performance for enhanced longevity and reliability

Performance & Range

• Standard Range: ~350 nautical miles

• Optional Range Extender: +200 nautical miles (with auxiliary tank)

• Fuel Monitoring & Data Suite:

  • EMS LCD Display

  • Monitors:

    • RPM

    • Oil Temp (OT)

    • Oil Pressure (OP)

    • Outside Air Temp (OAT)

    • Inter-Turbine Temp (ITT)

    • Fuel Level, Flow, and Pressure

    • Voltage & Ammeter

    • Hour Meter

• Optional Telemetry:

  • Remote monitoring for engine and craft systems

  • Ideal for fleet managers and high-uptime operators

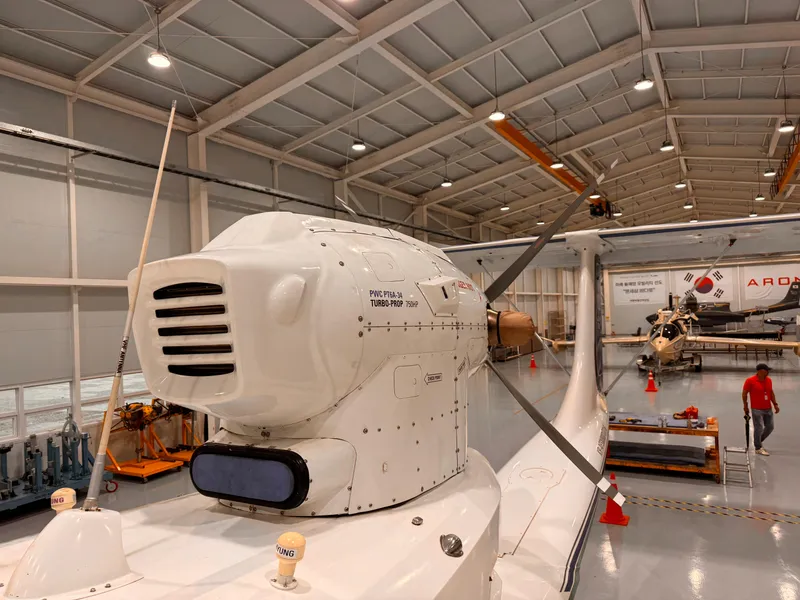

Powerplant Specifications

Manufacturer: Pratt & Whitney Canada (P&WC)
P&WC provides best-in-class worldwide service and training support.

Engine Model: PT6A-34
In continuous service since 1964, with over 51,000 engines delivered and ongoing performance updates.

• Horsepower: 750 HP

• Maximum RPM: 2,200

• Fuel Type: Jet-A

Propeller:
4-blade Hartzell D4N-3YLX

• Tungsten-coated

• Constant speed

• Feathering

• Reversible

Telemetry:
Optional remote monitoring command center available for charter and commercial operations.

Service Intervals:
600-hour inspection intervals
Time Between Overhaul (TBO): 5,000 hours

Dimensions & Capacities – M-80 WIG Craft

Length Overall (LOA): 41.6 ft
Waterline Length (WL): 32.2 ft
Height: 12.7 ft
Draft: 1.8 ft
Beam (Overall Width): 47.6 ft

Weight

Empty Weight: 6,923 lbs
Maximum Takeoff Weight: 9,480 lbs

Tanks & Storage

Fuel Tank (Standard): 158 gallons
Fuel Tank (Optional): Additional 100 gallons (extended)
Fresh Water Tank: 5 gallons (optional)
Head (Toilet): Portable, located in aft storage section (optional)

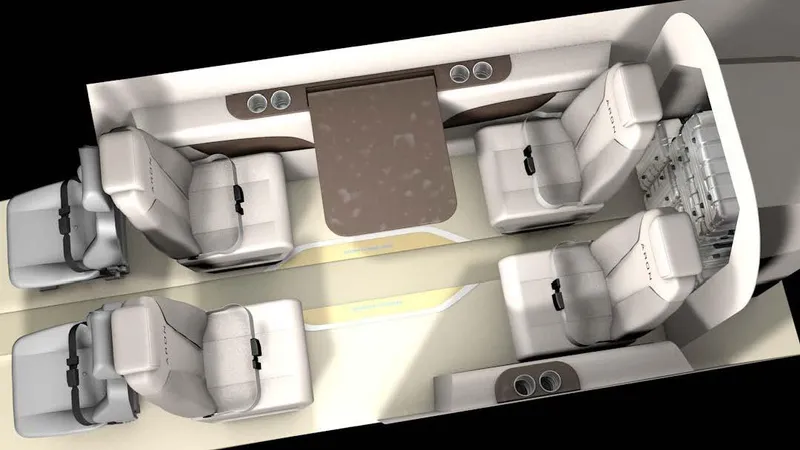

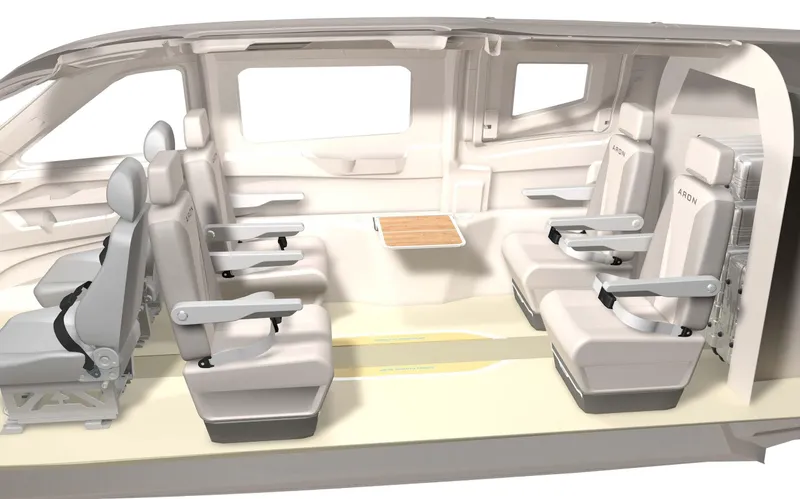

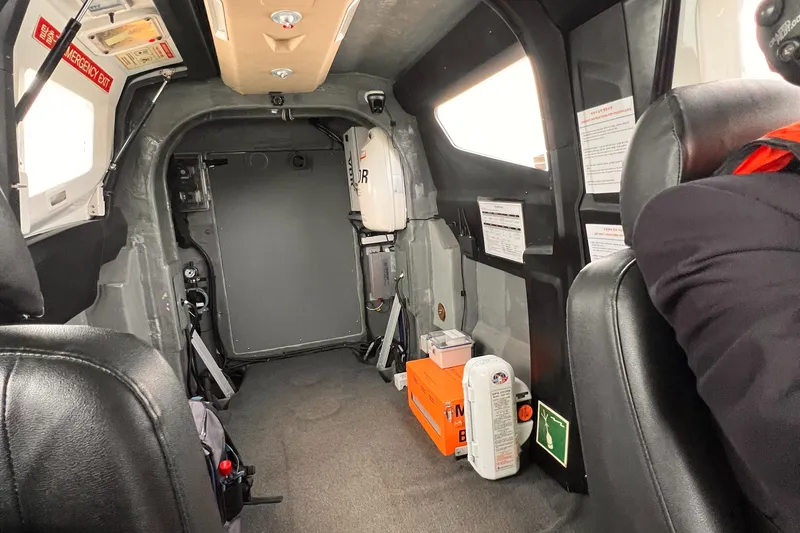

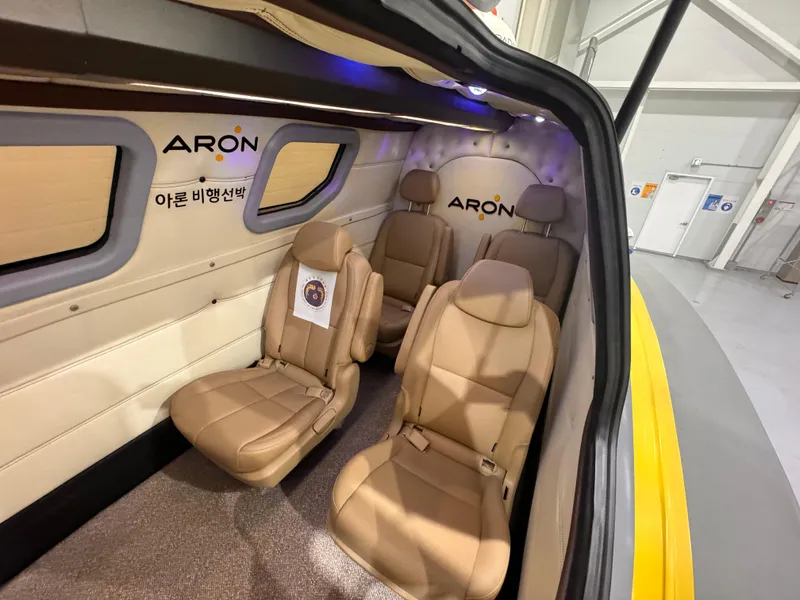

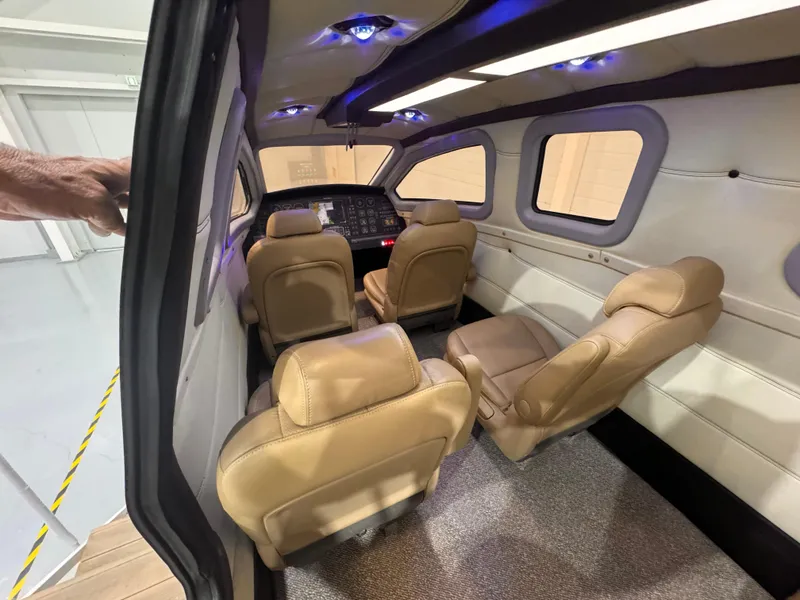

Cabin & Interior Configuration

Standard Configuration

• Seating for 6 passengers with open cargo storage area

• Captain + Mate seating (x2): Suspension-type seats for enhanced comfort and stability

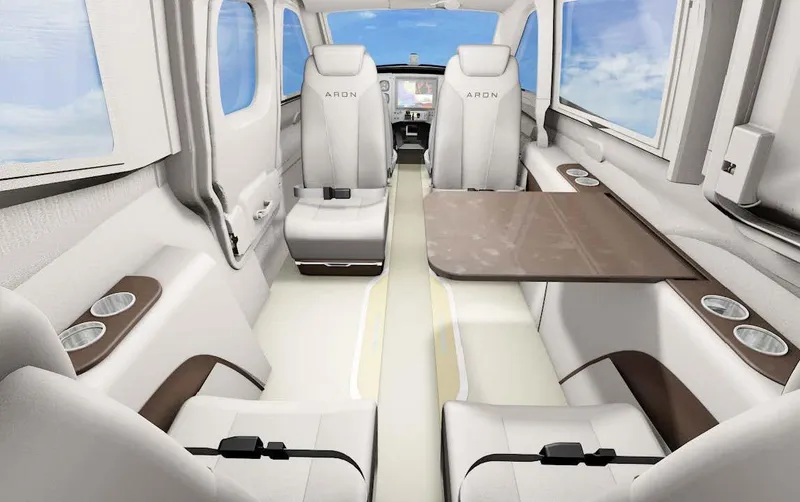

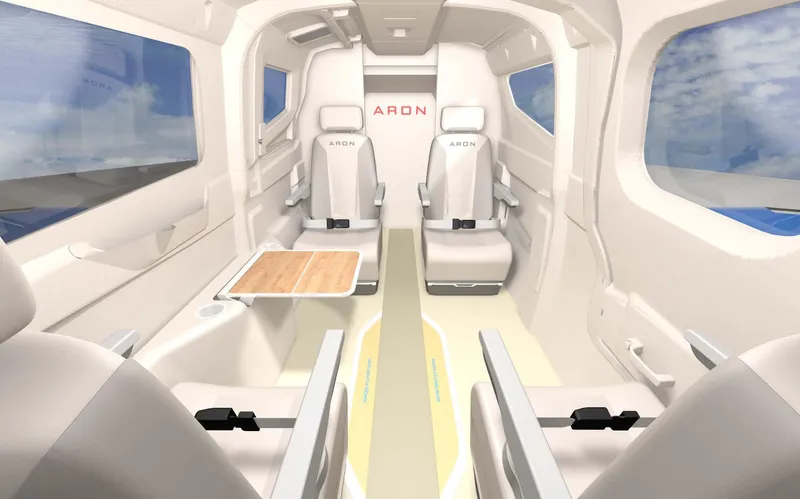

Club Seating Option

• Club-style configuration for 4 passengers

• Shock-mitigating mounted seats

• Premium carpet and leather trim

• Air conditioning system with four directional vents

Extended Model

• Up to 8 passenger seats

• Additional cargo space included for light logistics or baggage

Custom Configurations Available

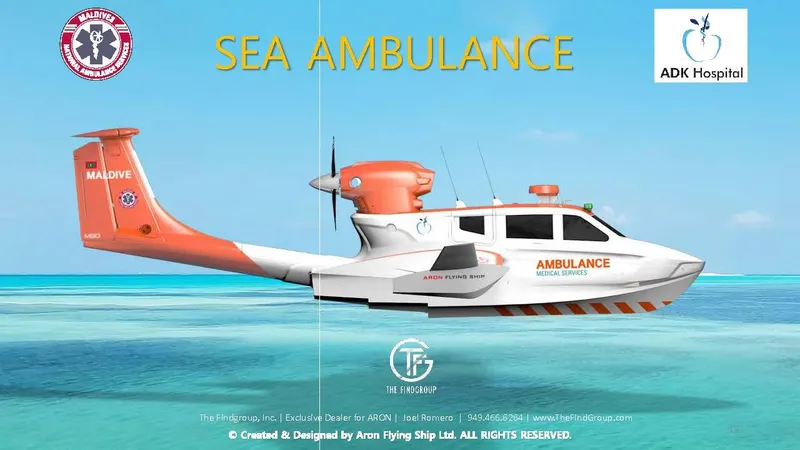

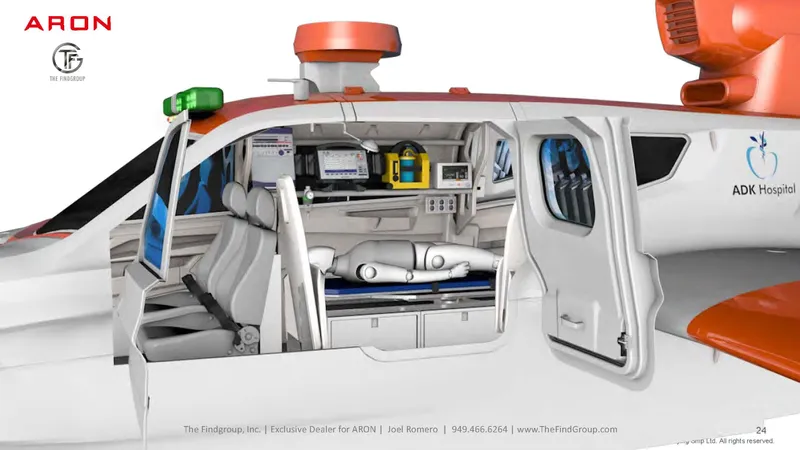

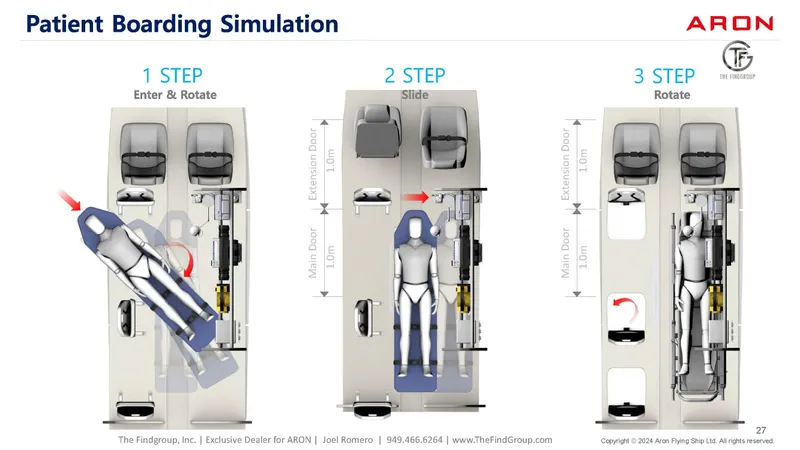

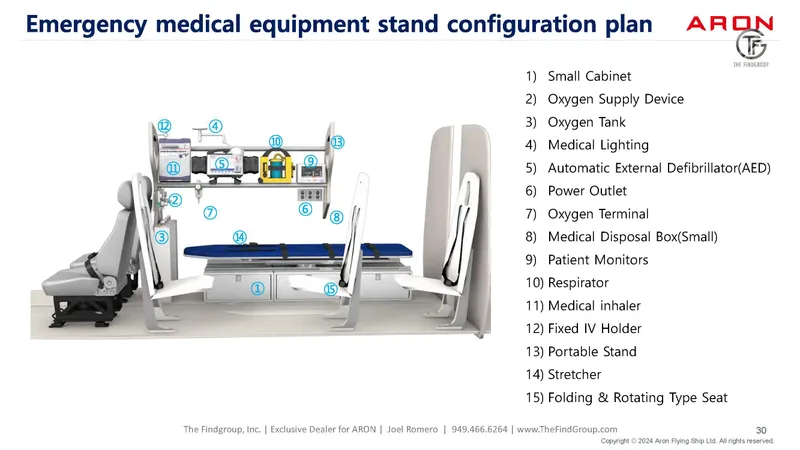

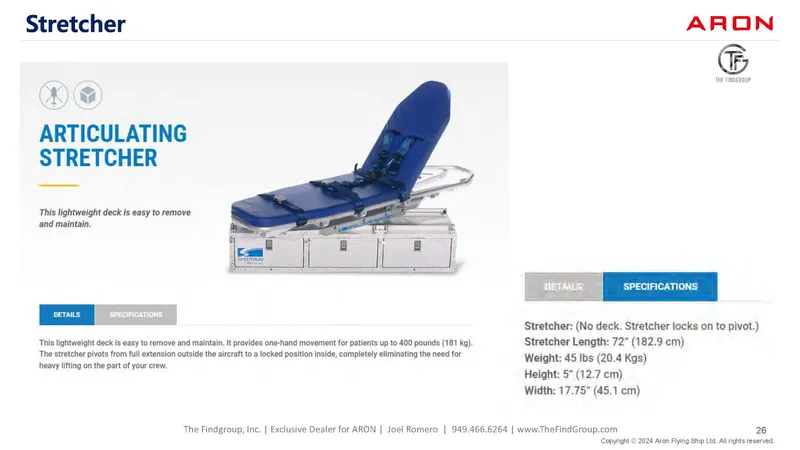

• Cargo / Logistics / Ambulance models are custom-built to owner specifications

• Includes large cargo-style access doors

Optional Features

• Portable head (toilet) available in aft cargo section

• In-cabin entertainment upgrades: Screens, speakers, and cameras available upon request

• Premium interior finishes: Optional carpet and leather seating & trim

• Additional cargo door available as a custom option

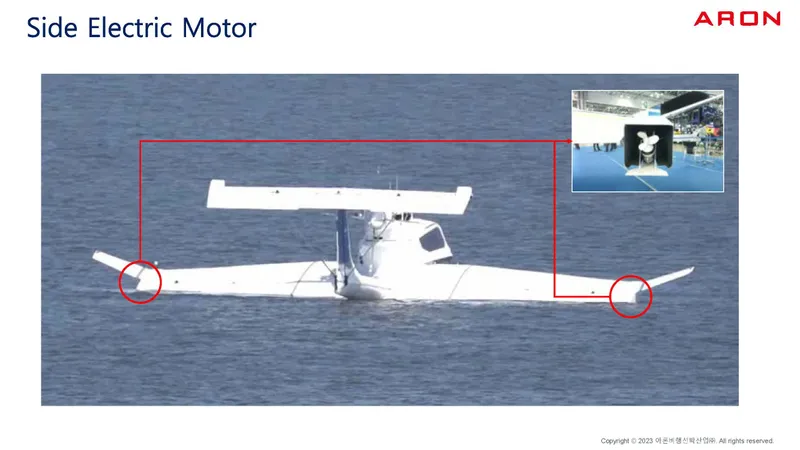

• Winglet thrusters can be integrated as an optional performance enhancement

Standard Safety & Surveillance Equipment

• Life Jackets: x8 (Standard)

• EPIRB (Emergency Position Indicating Radio Beacon)

• Handheld VHF Radio: ICOM

• AIS (Automatic Identification System)

• Spotlight: LED, mounted

• STARLINK: Satellite communications system

• Anchor & Rode: 100 ft

• Offshore Flare Kit

Advanced Vision & Detection Systems

• LOOKOUT AI Camera System:

  • 360° + forward-looking

  • Night & Day vision capable

• FLIR Infrared Camera (Optional)

  • Optimized for low-visibility and nighttime search operations

• LED Spotlight (Bow Mounted)

• Wingtip Lights: Port / Starboard

• Navigation Lights:

  • Anchor & Mast light

Emergency & Utility Options

• PA / Hailer System (Optional)

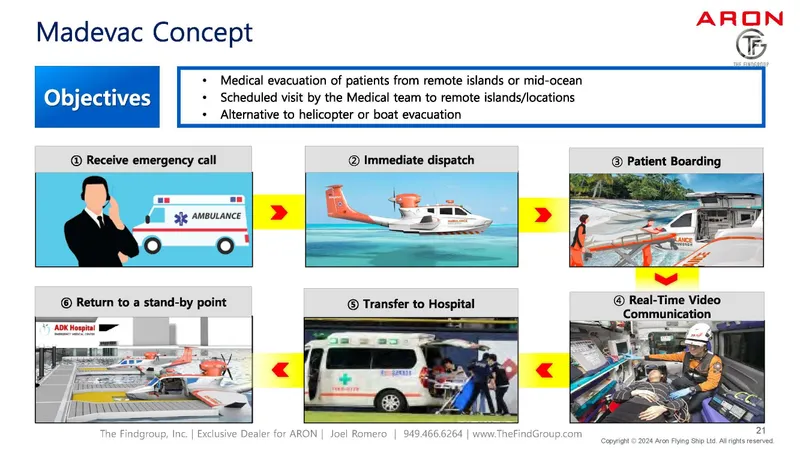

  • Suitable for Search & Rescue, Patrol, or Ambulance configurations

  • Includes sirens and lights, available by client request

• Custom Paintwork & Branding (Optional)

  • Logos and livery available per client specifications

Telemetry & Monitoring

• Telemetry Monitoring System (Optional)

  • Real-time remote access for rescue, commercial, or private use

  • Enables full diagnostics and asset management

Training & Simulation

• Training Simulator:

  • Available for shipment or custom reproduction based on client’s training needs

• Mandatory In-House Simulator Training:

  • Conducted pre-delivery by a seasoned former Navy jet pilot and certified WIG commander

WIG Craft Classification Standards

The M-80 WIG Craft is certified under international WIG (Wing-in-Ground Effect) Category Standards and sets a new benchmark for versatility and operational safety in its class.

Category Type Ratings – M-80 Certification

• Type A
  Designed strictly for in-ground-effect operation

  • Operational altitude: Up to 25 ft (7.6 m) above the water surface

  • Ideal for high-efficiency, low-altitude maritime transit

• Type B
  Certified for limited out-of-ground-effect operation

  • Operational ceiling: Up to 150 meters (500 ft)

  • Used for emergency maneuvers, obstacle avoidance, and controlled elevation when required

• Type C (for reference)
  Allows continuous operation above 150 meters

  • Not currently applicable to the M-80, which is optimized for Type A & B operations

The M-80’s dual Type A & B certification enables enhanced flexibility and increased operational safety, particularly for rescue missions, obstacle clearance, and commercial transport in varying marine environments.

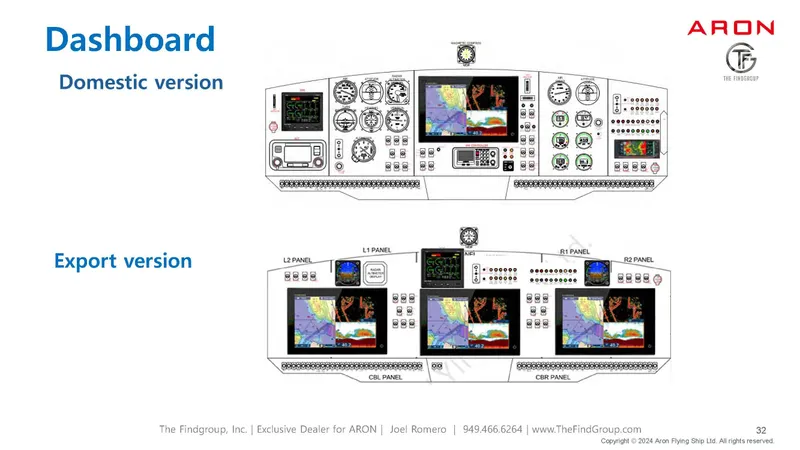

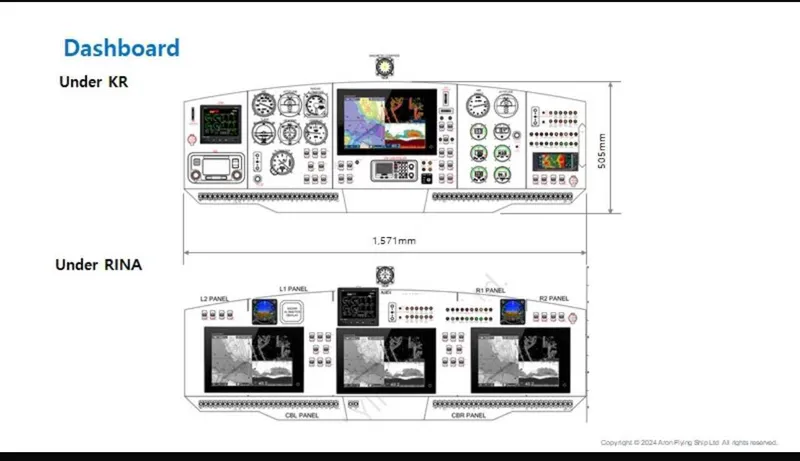

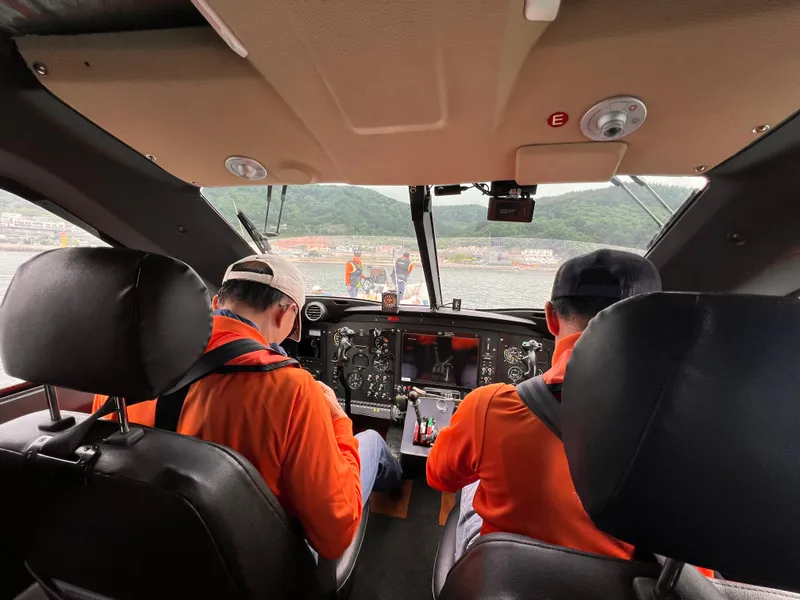

Helm & Avionics Specifications

Helm Configuration:

• Built to INA, MCA, and USCG standards

• Alternative helm layouts available upon request (optional)

Navigation & Instrumentation

• GPS Chart Plotters (x3):

  • 12-inch MFD (Multi-Function Display) screens

  • Client’s choice of chart plotter brand

• Radar:

  • High-speed X-Band

  • 24-nautical mile range

• AIS (Automatic Identification System):

  • Fully integrated into chart plotters

• Depth Sounder:

  • Integrated for real-time depth readings

• VHF Radio:

  • ICOM marine-grade system

• Hailer (Optional)

• Sirens & Emergency Lights (Optional)

Communication & Audio Systems

• Passenger Intercom:

  • Bose (x4) cabin speakers/intercom system

• Captain & Mate Headsets:

  • Bose A20 aviation headsets with noise cancellation

Flight & Marine Instrumentation

• Altimeter:

  • Range-certified, TSO compliant

• Turn & Slip Indicator:

  • TSO certified

• GPS Heading / Compass Indicator:

  • TSO certified

• Altitude Indicator:

  • Digital precision display

• Airspeed Indicator:

  • Range: 0–170 knots

• Magnetic Compass:

  • Traditional analog backup

• Pitot-Static System:

  • Heated for anti-icing functionality

• Night Operation Lighting:

  • Red helm lighting for enhanced visibility and night ops

Performance & Technical Specifications

Cruise Speed: 75 – 135 knots (Max)
Takeoff Speed: 70 knots
Takeoff Distance: 0.4 nautical miles
Standard Range: 325 nautical miles
Rate of Climb: 12 ft/sec
Operational Altitude (Ground Effect WIG): 25 ft

Design & Construction

• Hull & Wings: Vacuum-bagged structured composite

• No through-hulls below the waterline for added safety and structural integrity

• Wave Handling:

  • Max takeoff wave height: 5.9 ft

  • Optimal passenger comfort: 4 ft wave height

• Turning Radius:

  • 5° turn: 1.6 nautical miles

  • 10° turn: 0.5 nautical miles

Capacity & Load

• Useful Load / Cargo Capacity: 2,557 lbs

• Passenger Seating (Standard): 6

  • Shock-mitigation seating available as an upgrade

• Captain & Co-Captain Seats: 2

  • High-back, shock-mounted with ergonomic adjustments

Systems & Features

• Humphree Active Trim System for optimized performance

• 2 x Marine-grade Windshield Wipers & Motors

• Engine Warranty: Backed by Pratt & Whitney

• Aron Warranty:

  • Coverage for both private and commercial use

  • Certification packages available based on operational category

\

Sales, Testing & Delivery Overview

The FindGroup (TFG), represented by Joel Romero, serves as the exclusive global sales representative for the Aron Flying Ship and its manufacturer. We facilitate both commercial and private acquisitions worldwide.

Test Flights & Factory Visits

• Sea trials and factory visits are available by appointment only

• All clients must be pre-vetted prior to scheduling

• Factory tours and demonstrations can be arranged for verified commercial or private buyers

Specifications, Pricing & Contracts

• Standard specifications available upon request

• Pricing: POA / FOB Factory

• All contracts are managed in partnership with a maritime law firm

• Current lead time for new orders is approximately 14 months (as of May 2025)

Training Requirements & Options

• Simulator training available at the factory (25-hour program)

• Operating captains must hold a minimum 200-ton license and demonstrate knowledge of local waters where the Aron will operate

Advanced Telemetry & Monitoring (Optional)

• Full telemetry systems available for commercial operations

• Remote monitoring and command systems available for:

  • Rescue and emergency services

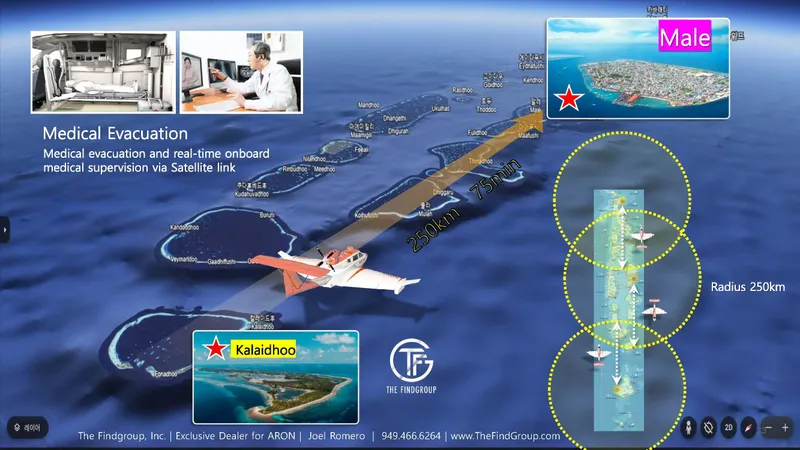

  • Ambulance applications

  • Fleet management

• Remote training simulator available for specialized mission prep and team readiness

We’re expanding and actively seeking qualified dealers to join our growing global network.

If you're passionate about offering cutting-edge marine and aviation solutions, the ARON Flying Ship is a game-changing addition to your portfolio—blending speed, safety, and innovation unlike anything else on the market.

✅ Full dealer support includes:

• Comprehensive product training

• Sales and technical support

• Marketing materials and media assets

• Lead-sharing and launch support

If you're ready to represent the next evolution in marine mobility, we’d love to connect.

Contact us today to explore dealer opportunities.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
