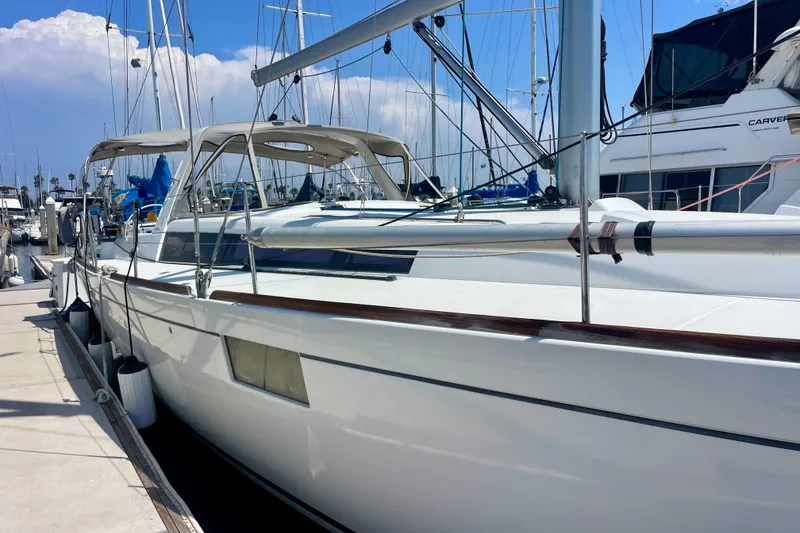

2018 Beneteau Oceanis 48

• Design in accordance with European Directive requirements and according to CE certification
• Monolithic hull design in polyester
• Monolithic structural inner moulding bonded to the hull
• Injection moulded deck in glass fibre/balsa sandwich, covered with «diamond-point» non-slip coating
• Deck hull joint screwed, bonded and banded with 1 solid wood bulwark
• Cast iron keel fixed with bolts and stainless steel backing plates
• Rudder hung with glass composite stock
• White coloured hull - Grey metal hull graphics

RIGGING

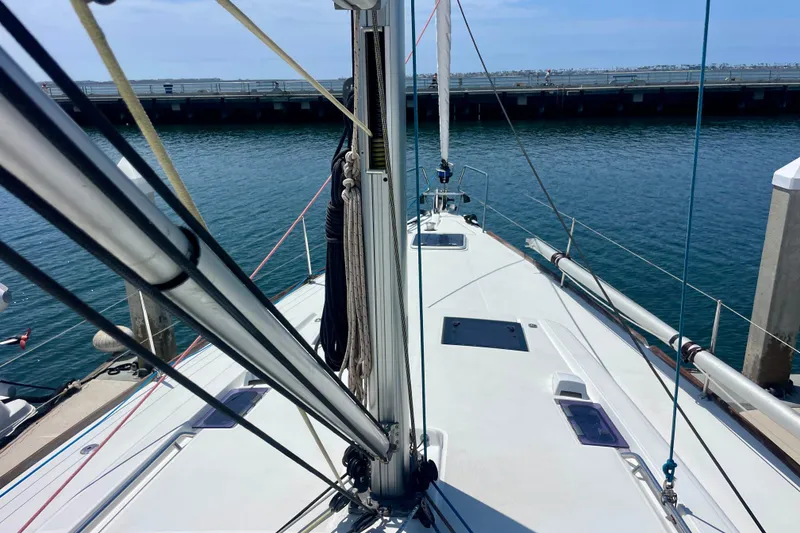

• Standard mast 9/10 anodized aluminium installed on the deck, 2 aft-swept spreaders
• Anodised aluminium boom

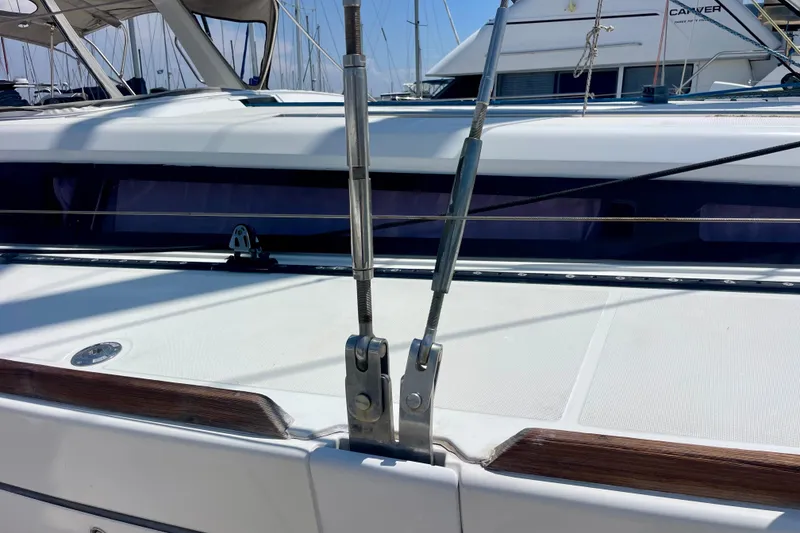

• Discontinuous stainless steel standing rigging
• 2 Backstays with bottlescrews
• Rigid boom vang with tackle
• Genoa furling system with drum on the deck
• 2 Stand Up blocks for mainsail on fixed composite arch
• 2 Genoa tracks with piston adjusted traveller cars
• 2 Genoa sheet turning blocks
• Rigging run back to cockpit (except boom topping lift)
• Complete running rigging: Main halyard, genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Genoa sheets 2 rapid reefing lines, 1 manual reef
• 8 Jammers
• 2 halyard bags

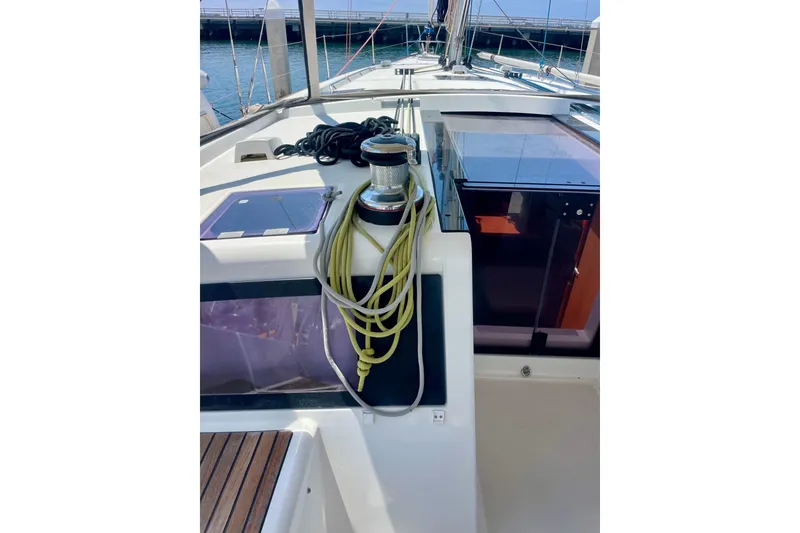

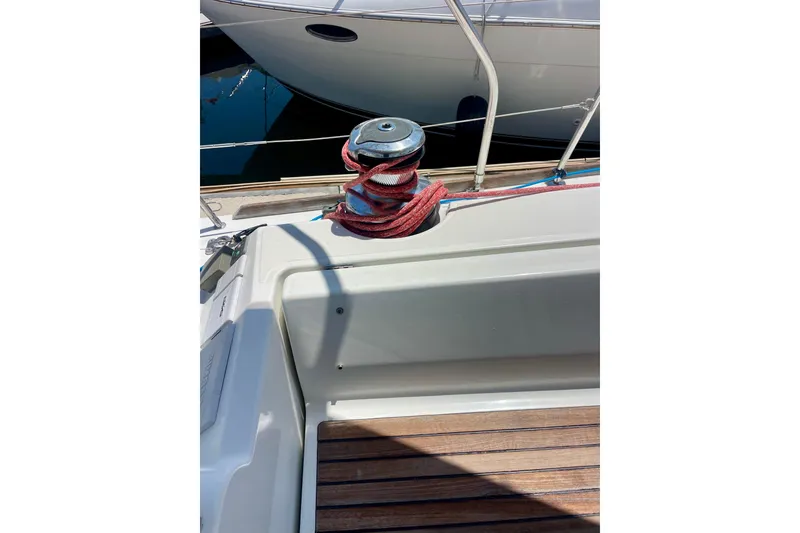

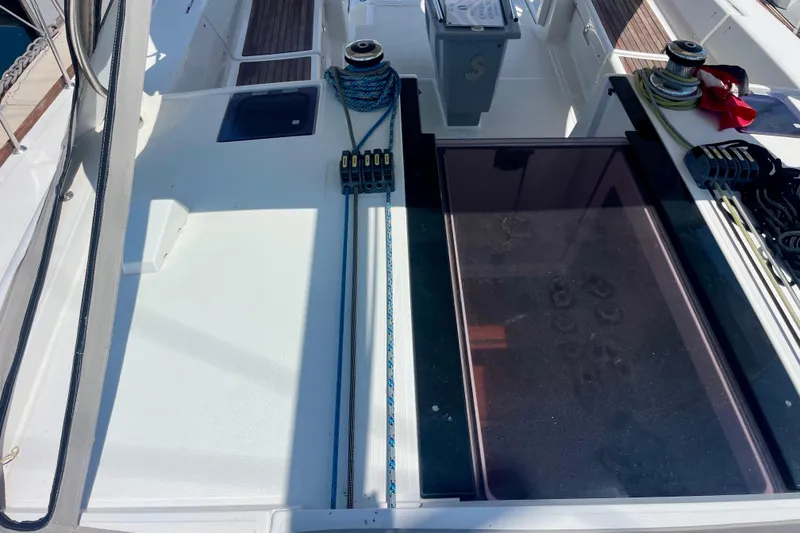

WINCHES
• 2 Self-tailing genoa sheet winches (H60.2 STC)

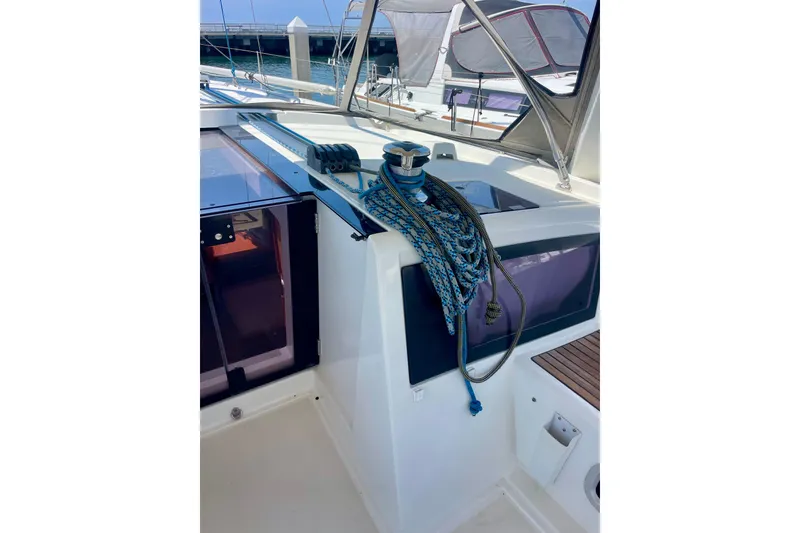

• 2 Self tailing coachroof winches (H46.2 STC)
• 2 Aluminium winch handles Speed Grip
• 2 Winch handle boxes

SAILS
• Furling genoa with UV protective strip
• FURLING MAIN

MOORING LINES - MOORING
• Self-bailing chain locker - Clench bolt - Hatch cover

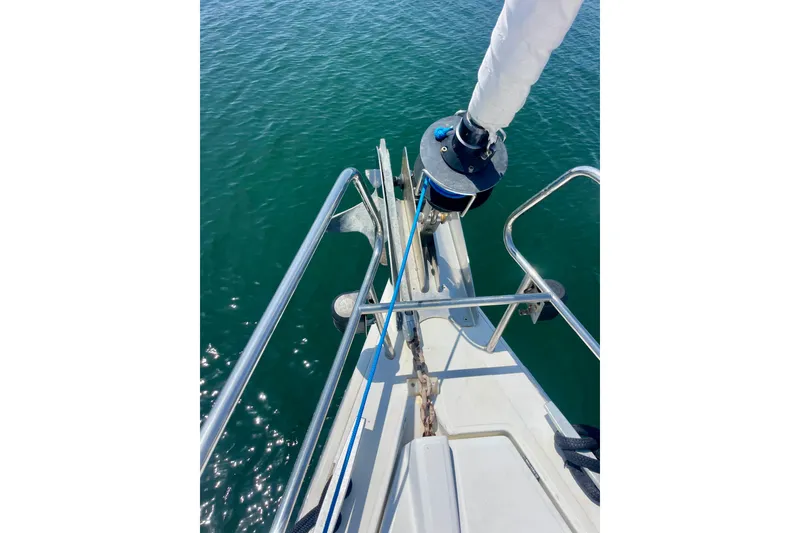

• Stainless steel bow fitting 2 rollers

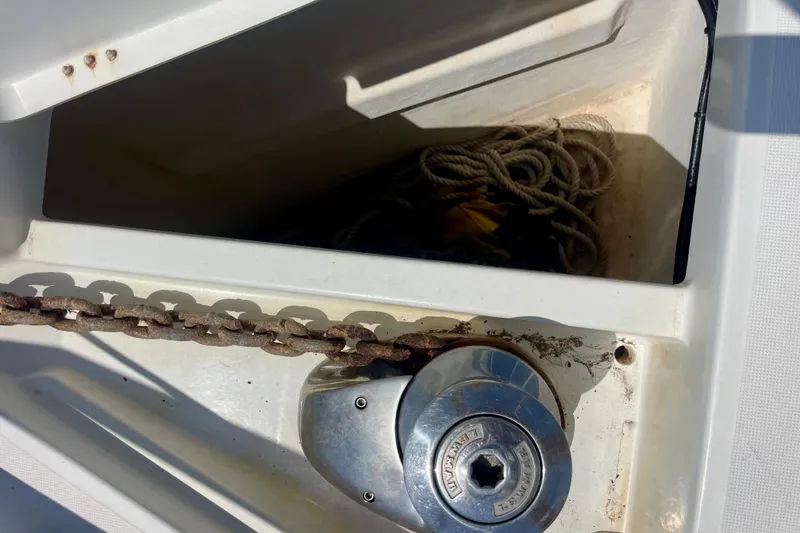

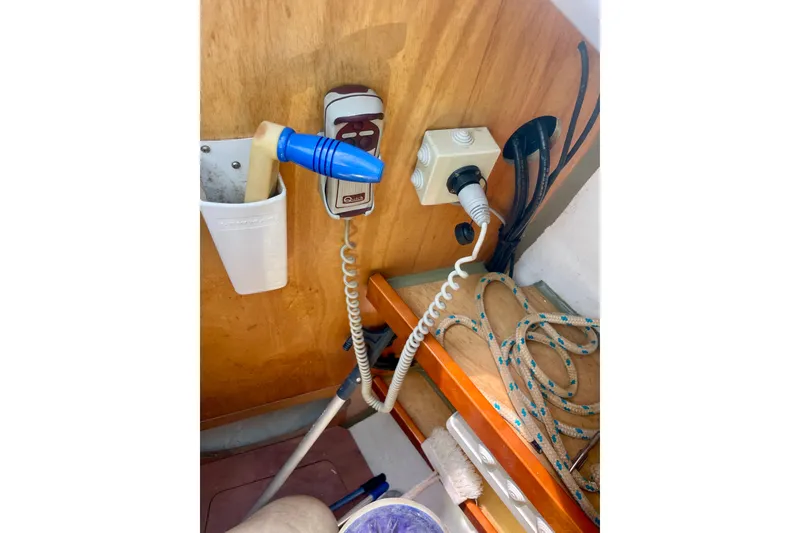

• 12 V - 1500 W vertical electrical windlass - Remote control
• 6 Aluminium mooring cleats - Stainless steel deck line protection

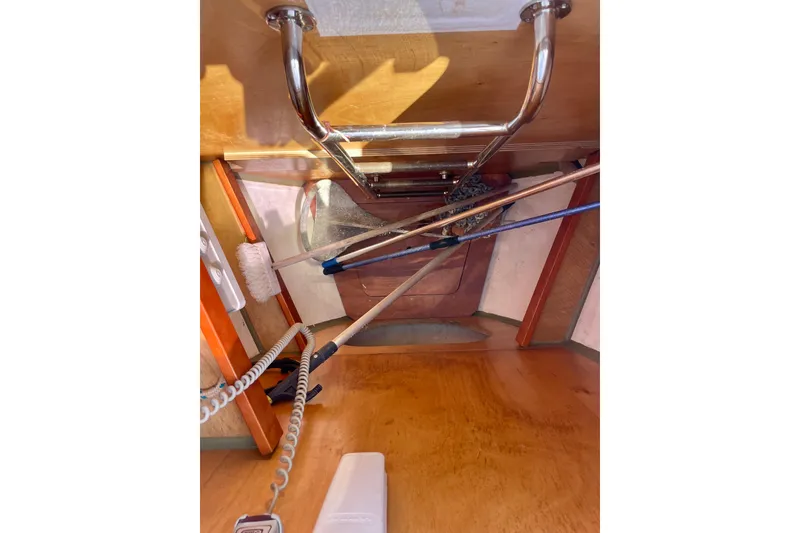

SAIL LOCKER
• Access through deck hatch T60
• Stainless steel ladder
• Shelving

SAFETY ON DECK
• 1 Open stainless steel forward pulpit
• 2 Stainless steel pushpits
• 1 Lifebuoys support bracket
• 1 Outboard engine bracket
• Ring for flag welded on pushpit

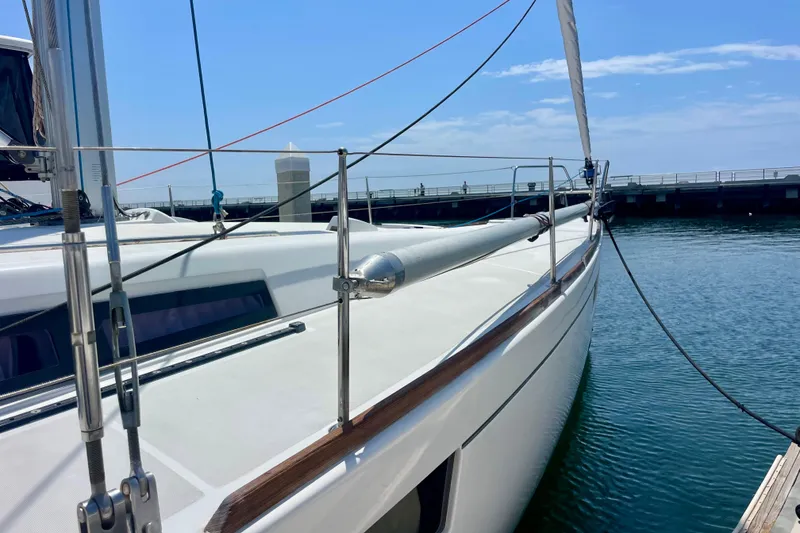

• Double guardrail and stainless steel stanchions - Openings in guardrail to port and starboard

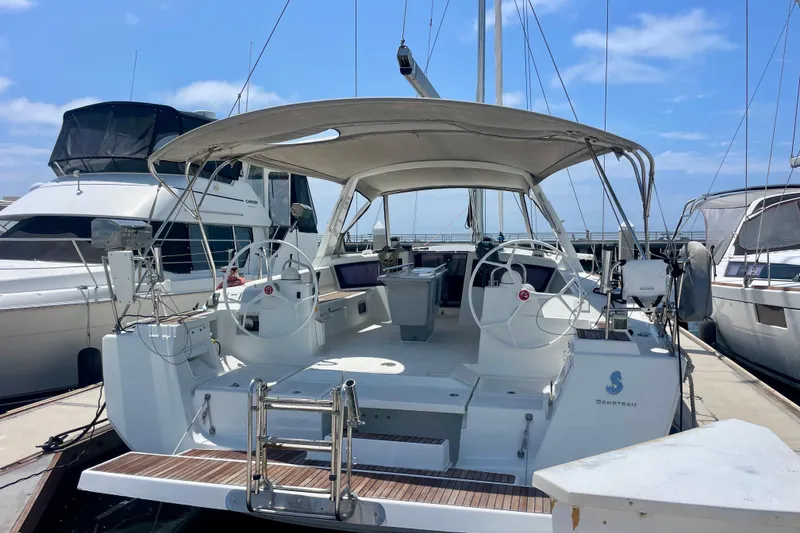

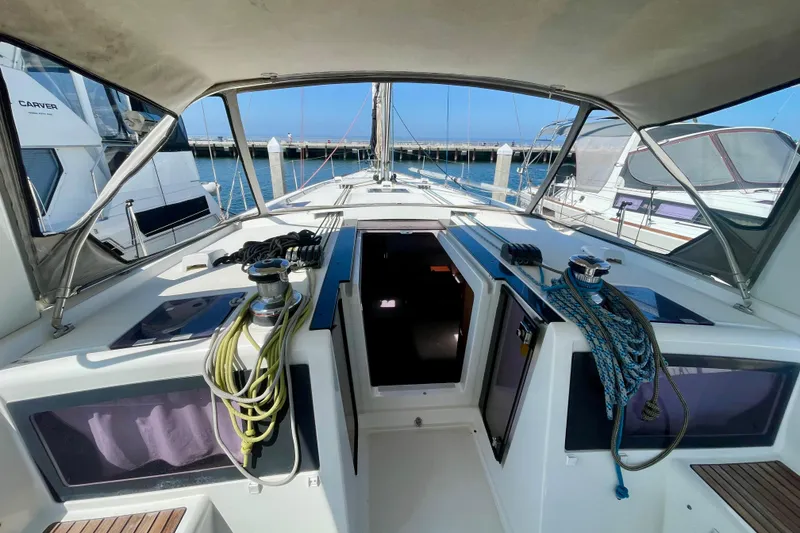

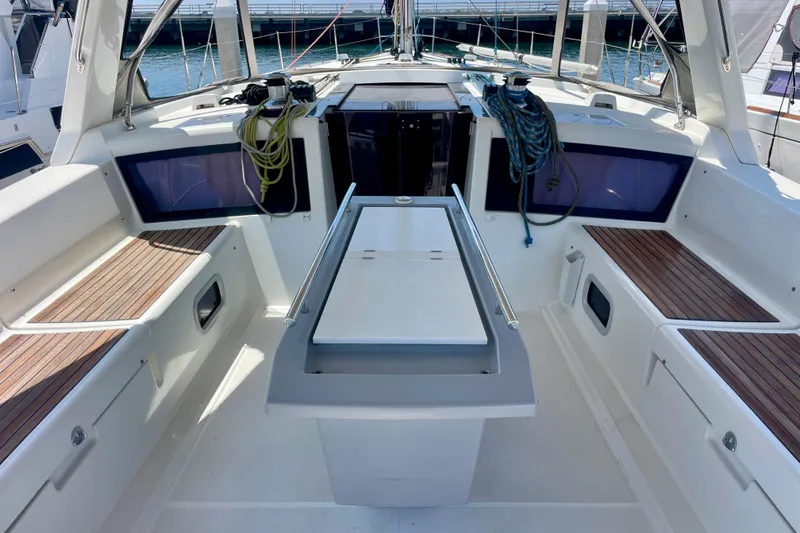

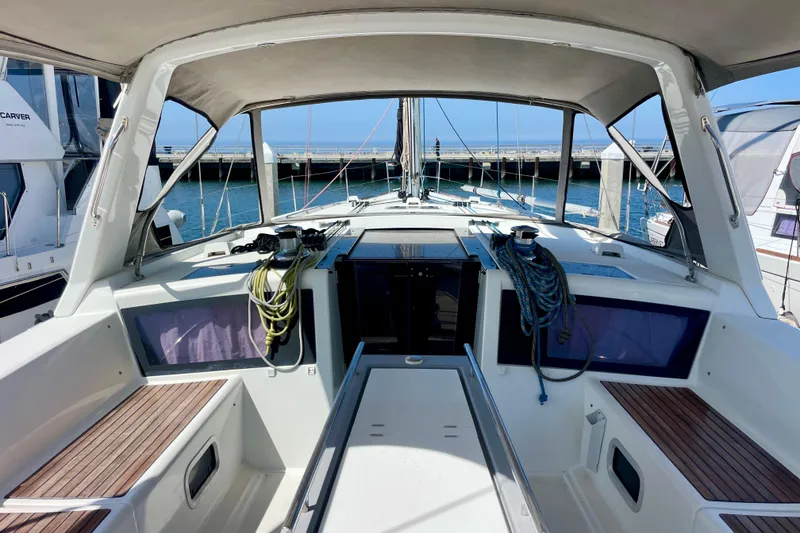

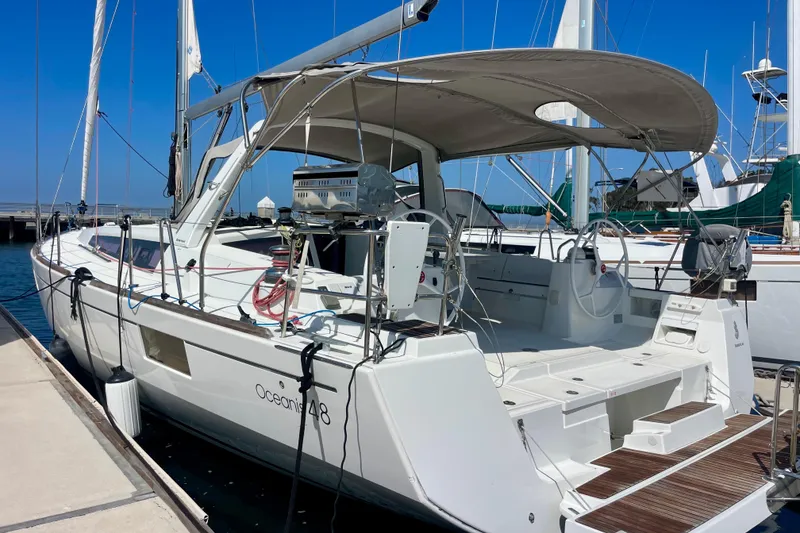

COCKPIT
• Self-draining cockpit

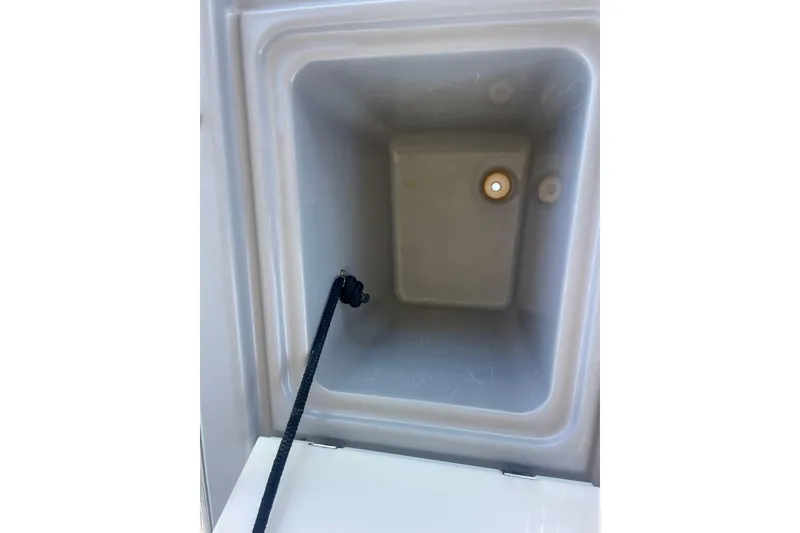

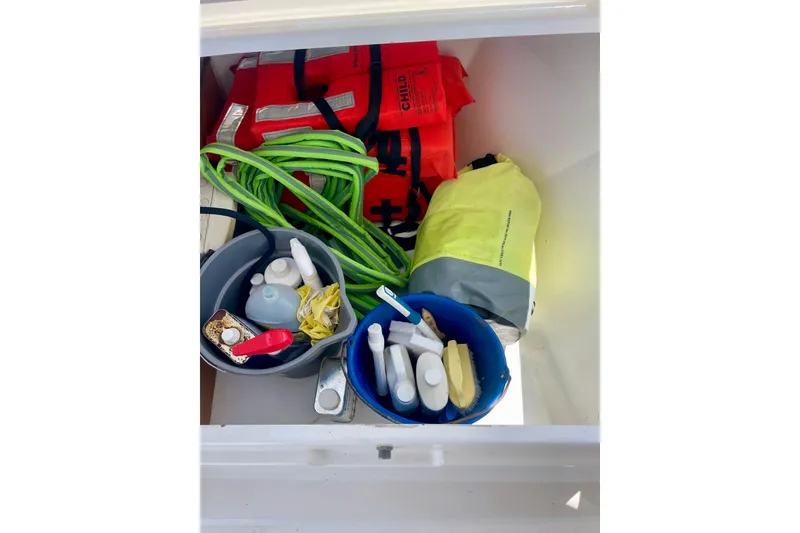

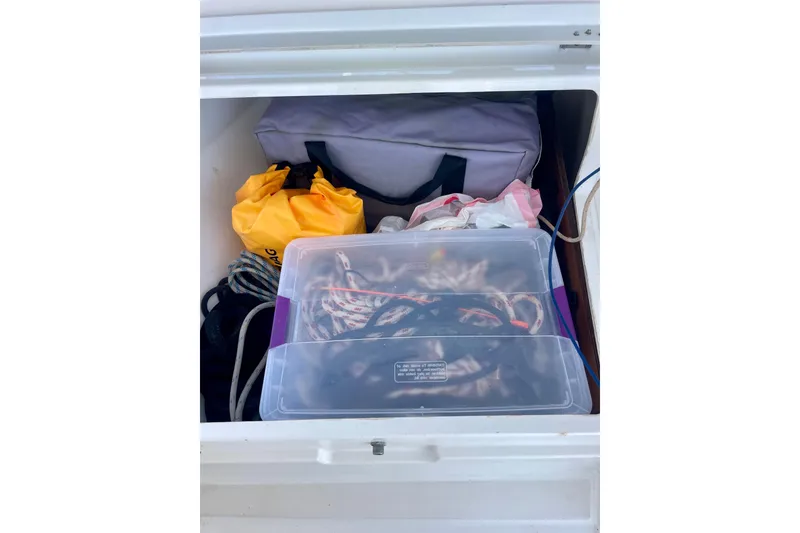

• 2 Cockpit locker
• 2 Lockers in cockpit sole beneath helm's feet
• 1 Liferaft locker under helm seat (0,80 m x 0,40 m x 0,58 m /2’7’’ x 1’4’’ x 1’4’’)
• 1 Gas locker for bottle(s) under the port helm seat
• Natural solid wood slatted cockpit benches

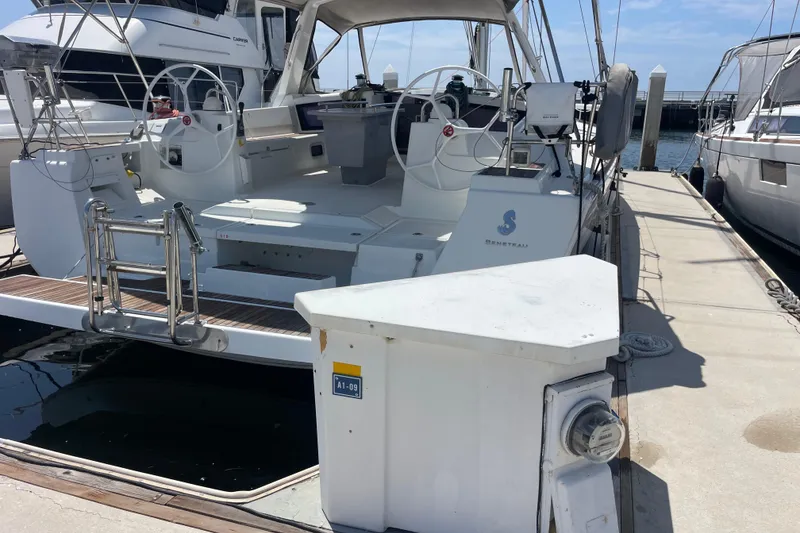

• 2 Steering wheel consoles: Stainless steel steering wheels - 900 mm diameter - Leather covered - Steering gear at the helm station - metal cable transmission system - Stainless steel handrail - navigation instrument support (optional instruments) - Cup holder
• 1 Deck filler for access to tiller system + Power supply access hatch
• 1 Tiller
• 2 Steering compass on binaccle
• Portside engine control and control panel
• Polyester cockpit table - 2 Leaves - miscellaneous locker - 2 Large storage space - Stainless steel handrail - 12 V socket - lamp with shade
• Cold water cockpit shower hose

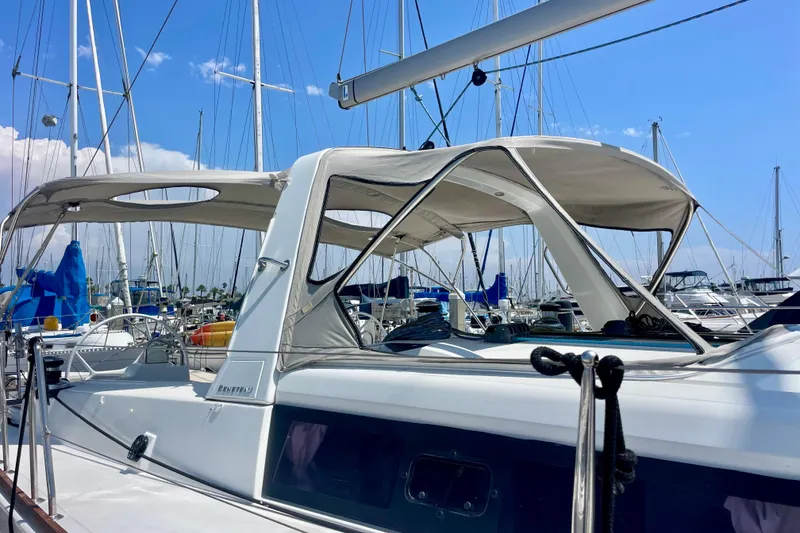

• 1 Fixed composite arch - Integrated lights
• 1 Shore power socket to port
• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA

SWIM DECK / STERN DECK
• Fully opening transom, convertible to bathing platform (2,85 m x 0,77 m/ 9’4’’ x 2’6’’)
• Electrically controlled opening
• Natural solid wood decking on swim platform
• 1 Stainless steel swim/boarding ladder - solid wood steps - folding

• Woodwork Alpi Mahogany
• Parquet type laminated floors
• Fabric hull linings in saloon and cabins (White)
• Fabric upholstery
• Marine mattresses in the cabins

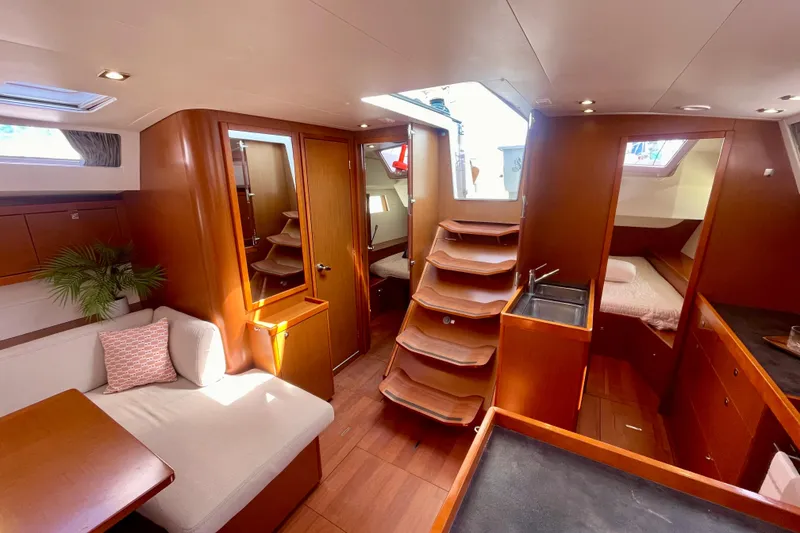

COMPANIONWAY
• Headroom: 1,98 m / 6’6’’
• Wooden saloon companionway with moulded wood suspended steps with non-slip surface
• 2 Leather covered stainless steel handrails

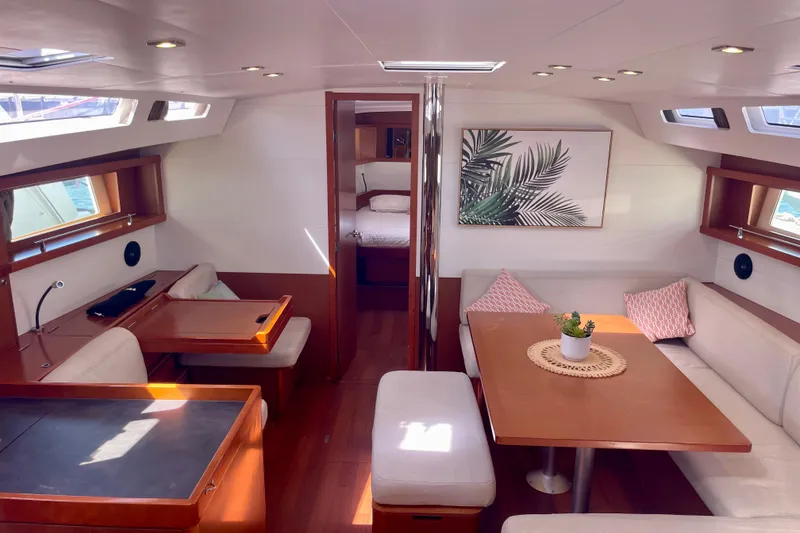

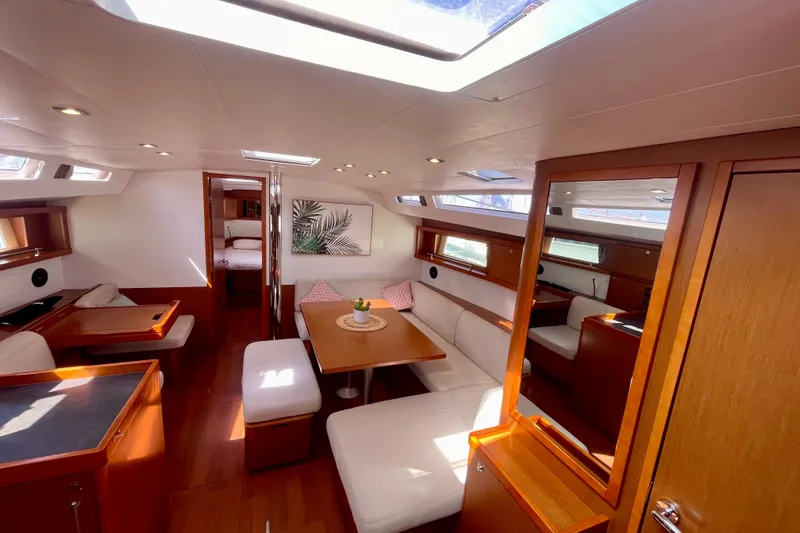

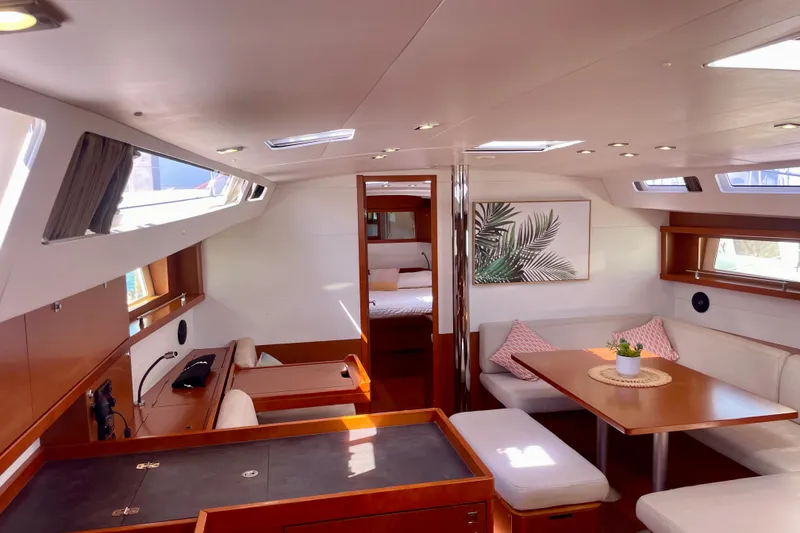

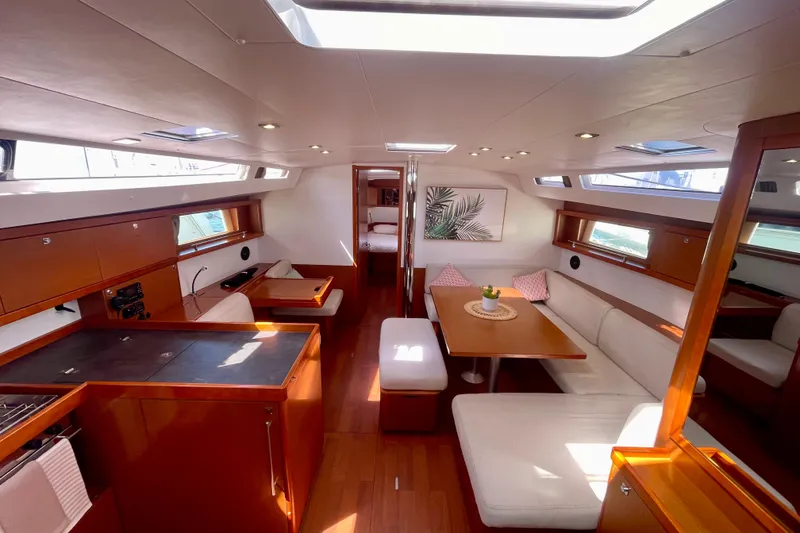

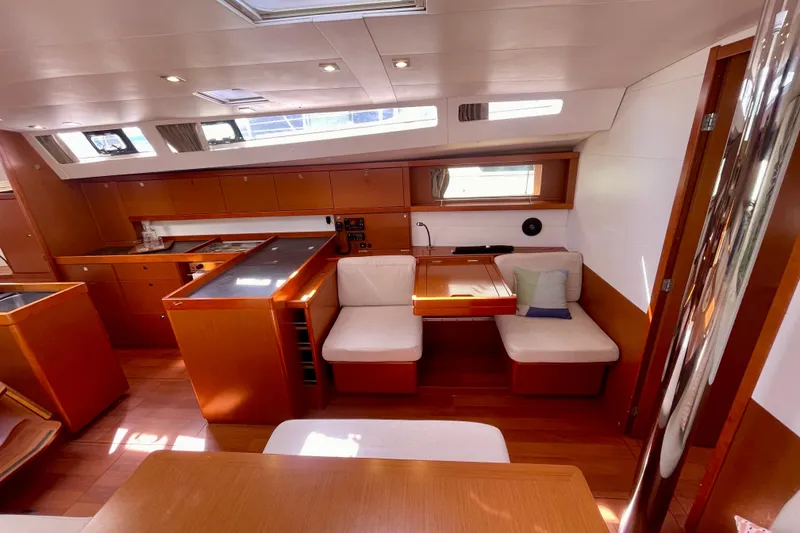

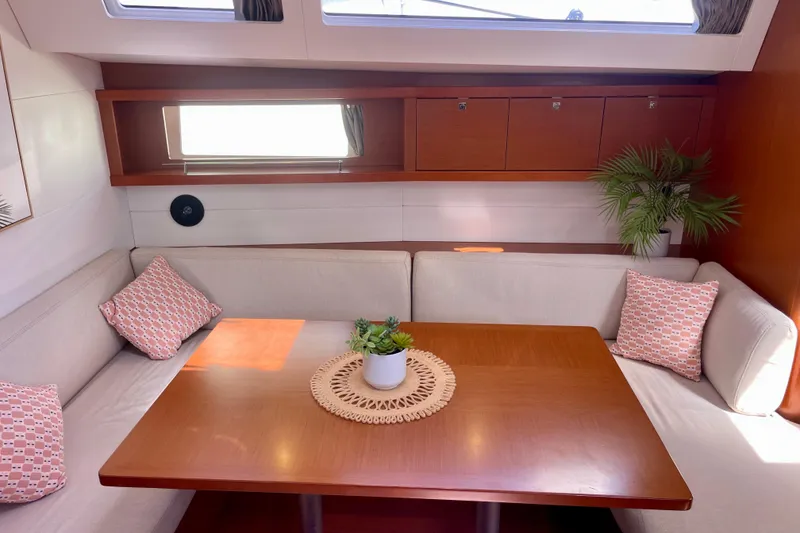

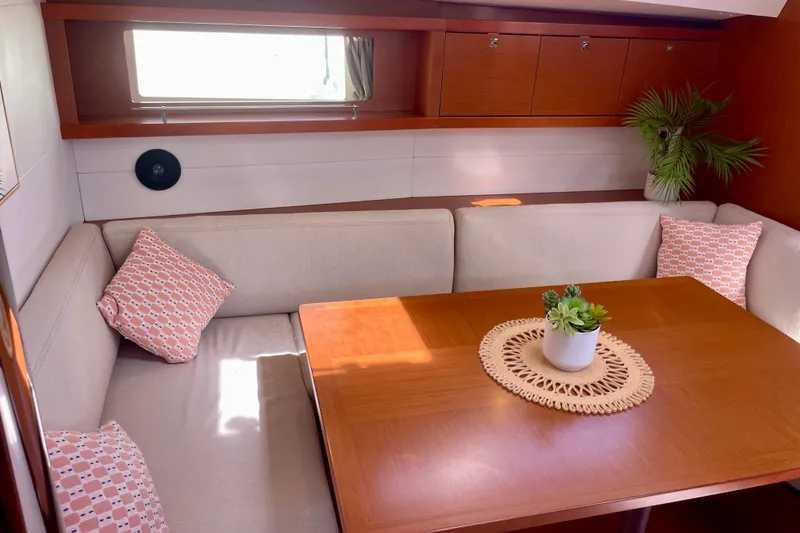

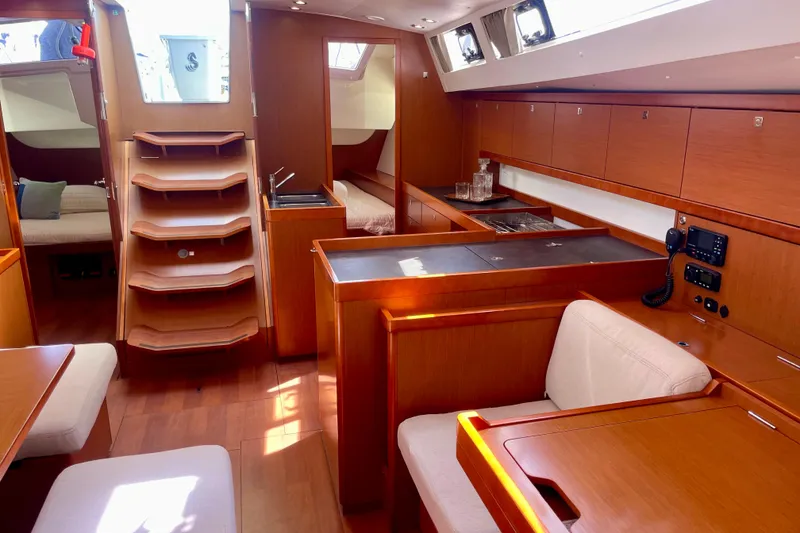

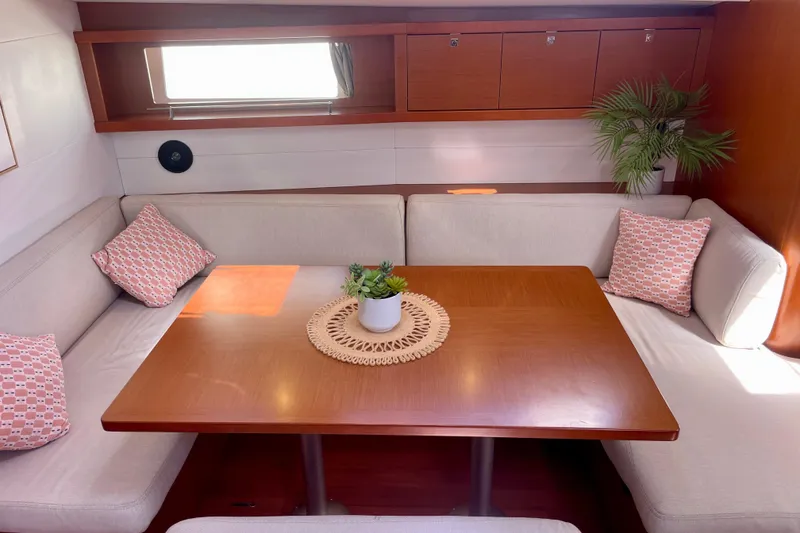

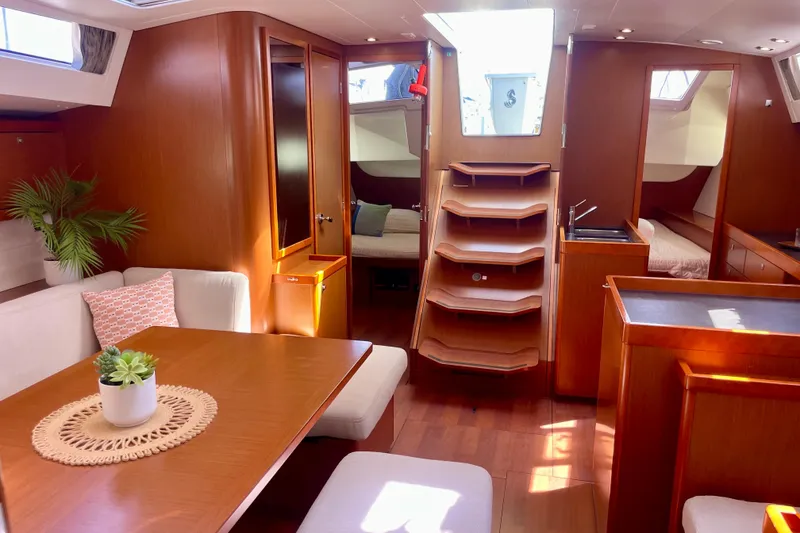

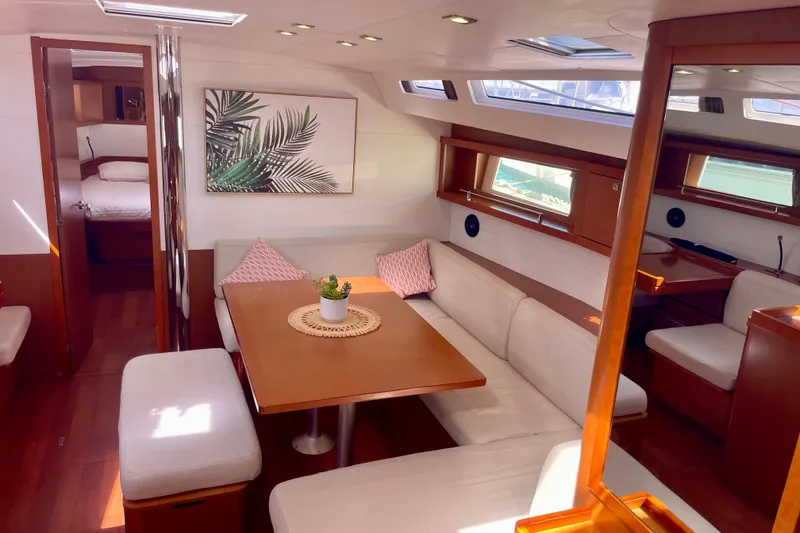

SALOON
• Headroom: 1,98 m / 6’6’’

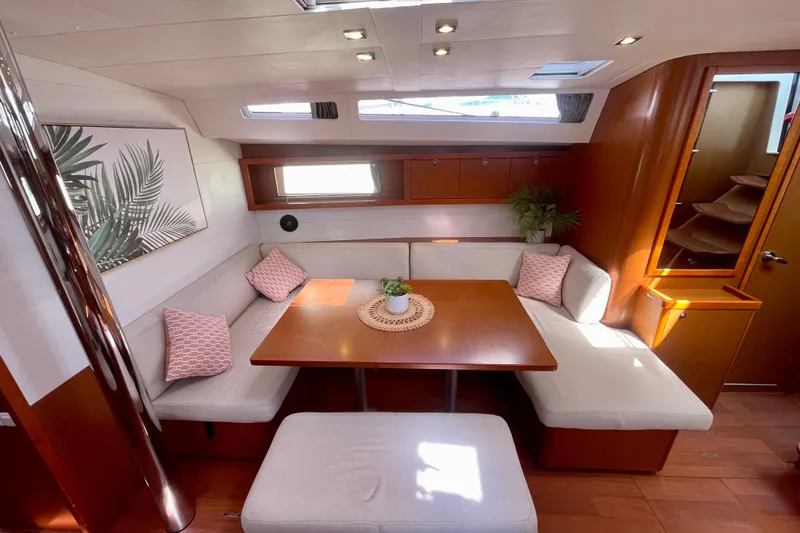

• U shaped saloon bench - double density foam
• Seating on pantograph
• Saloon table in 1 piece - Varnished wood top with inlay - Aluminium legs
• Mirror on bulkhead
• Cupboards - Shelves and stowage along the hull - Storage under bench seats
• Shelves with stainless steel fiddles
• 2 Panoramic deck house windows with concertina blinds
• 2 Hull portholes with curtain
• 2 Opening portholes on coaming in side windows
• 1 Opening deck hatch with mosquito blind

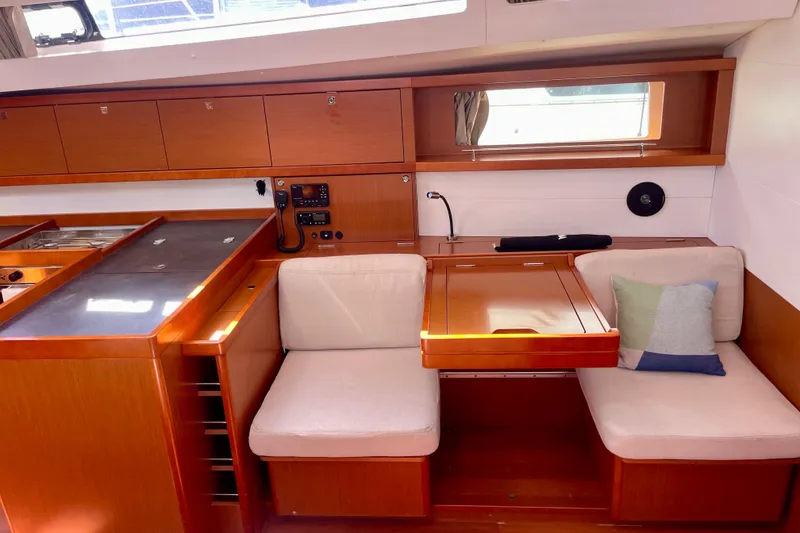

CHART TABLE - PORT SIDE
• Sliding, can be configured with the armchairs - Placed against the forward bulkhead , against the galley or between the 2 mobile seats
• Table with flap - Moulded wood fiddle
• Switch panel on bulkhead for access to electrical functions
• Navigation instrument panel (without instruments)
• 1 Reading light

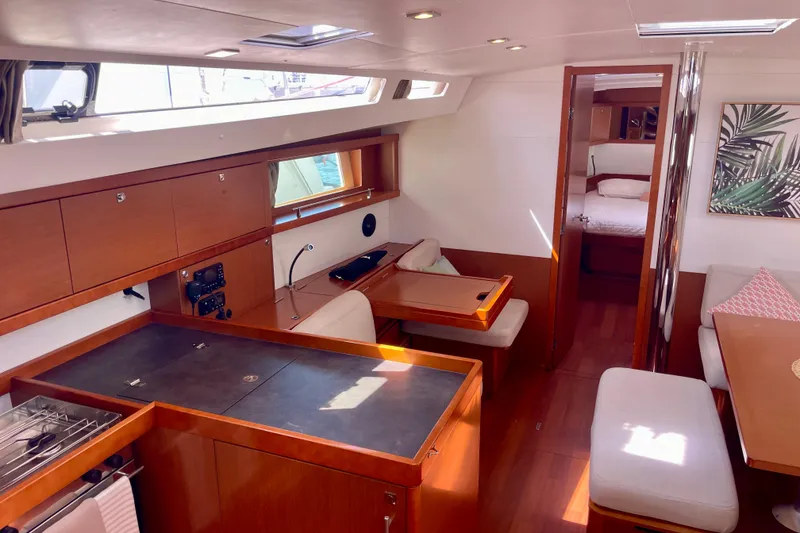

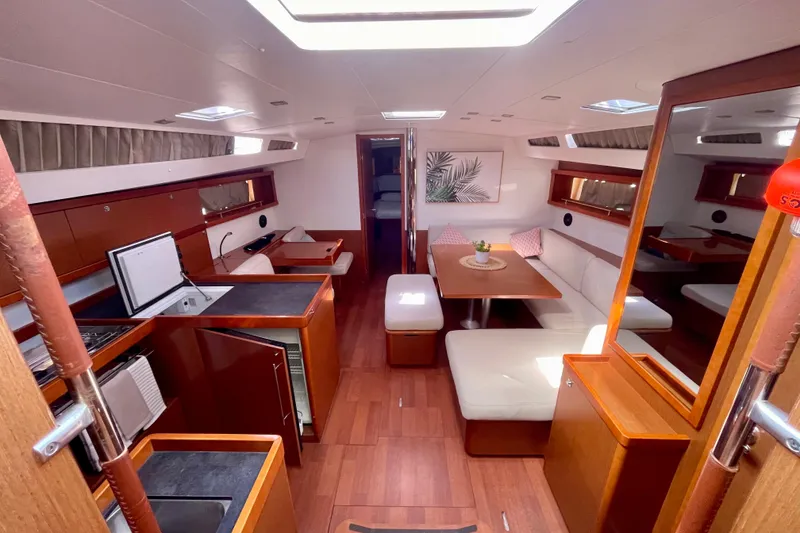

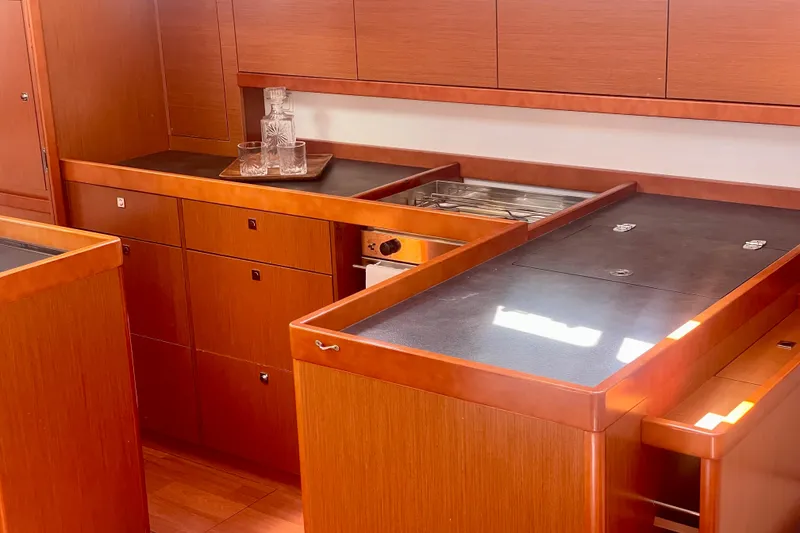

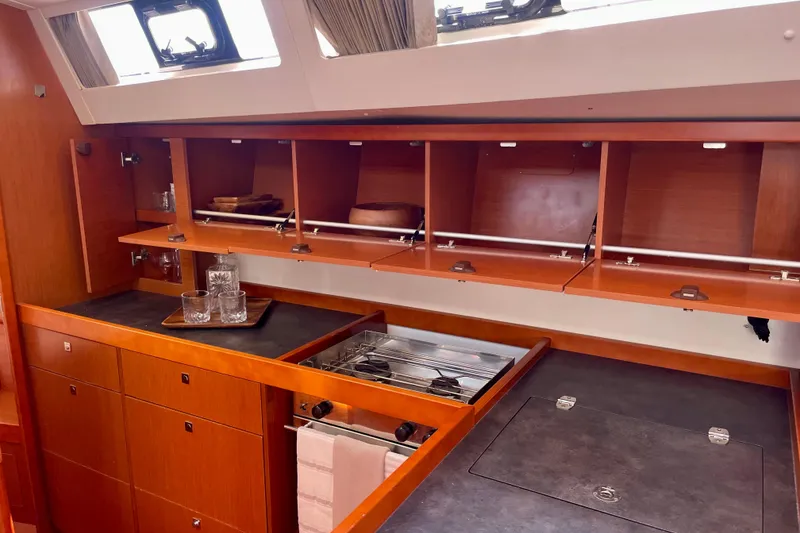

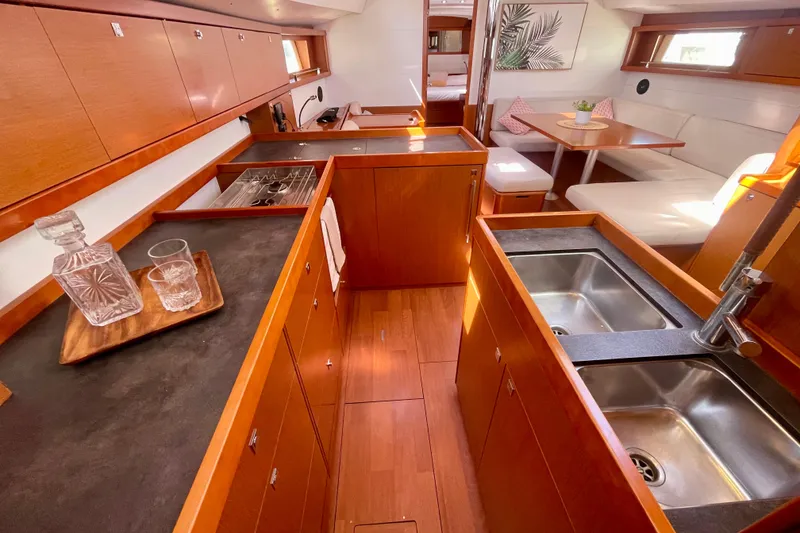

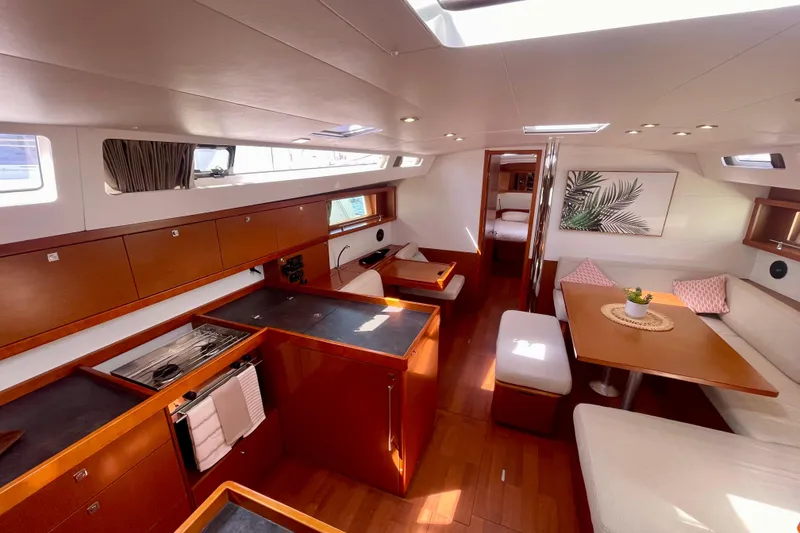

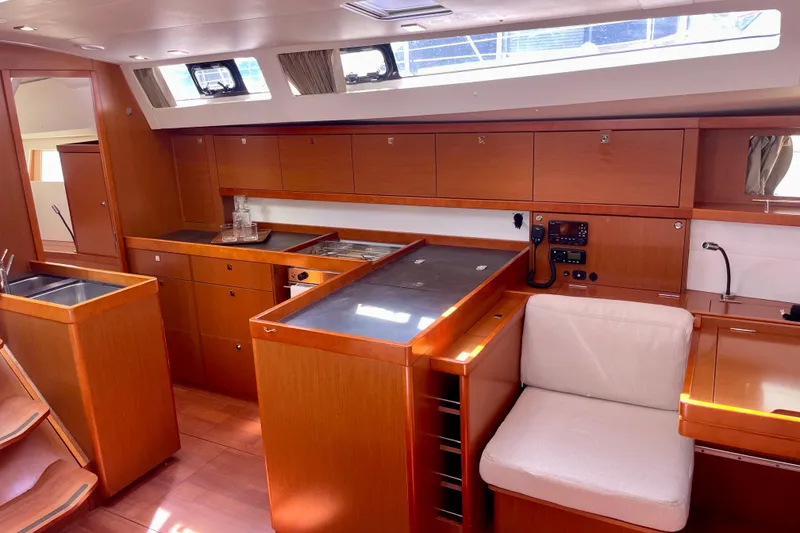

GALLEY - PORT SIDE
• Headroom: 1,90 m / 6’3’’
• L-shaped galley with separate sink located below companionway
• Compact grey laminated worktop

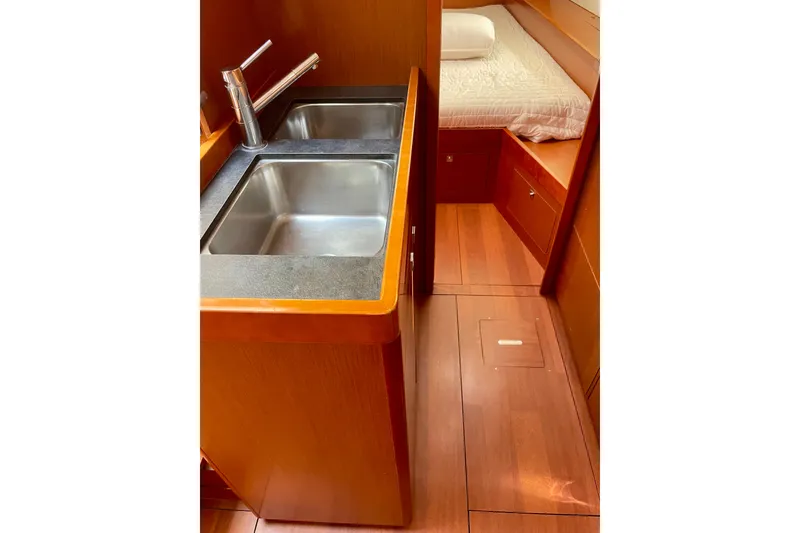

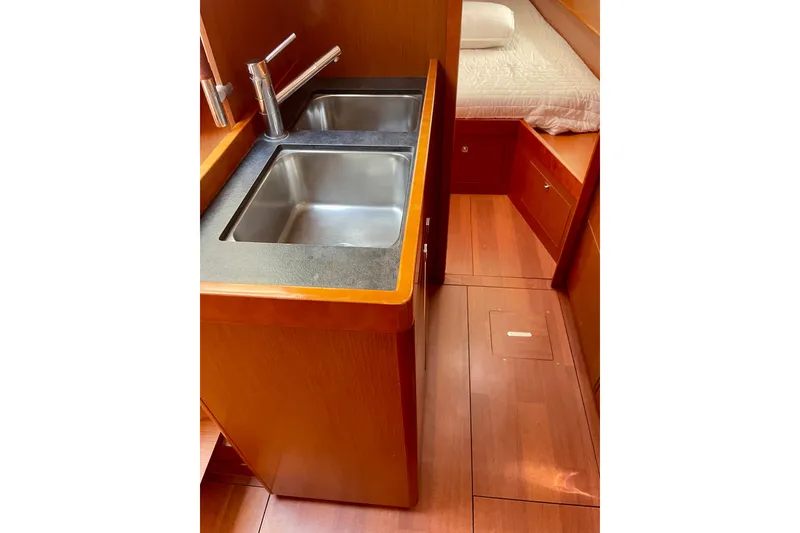

• 1 Stainless steel sink 2 rectangular basins - 1 Mixer tap with hot/cold water under pressure
• 1 Gas cooker 2 burners - Stainless steel oven on mountings - Stainless steel protection handrail
• 1 100L / 26 US Gal icebox (12V), top opening
• 1 130 L / 34 US Gal refrigerator (12V), front opening
• Fitted lockers and closed shelving (Shelving, Bin)
• 1 Base cabinet: 1 Drawer - 2 shelves
• Storage space along the hull
• 2 Opening ports on coaming with curtains on side windows

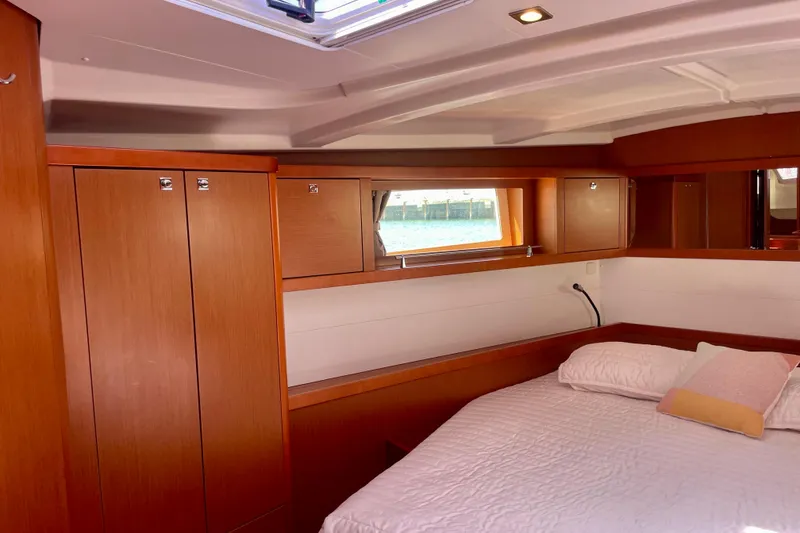

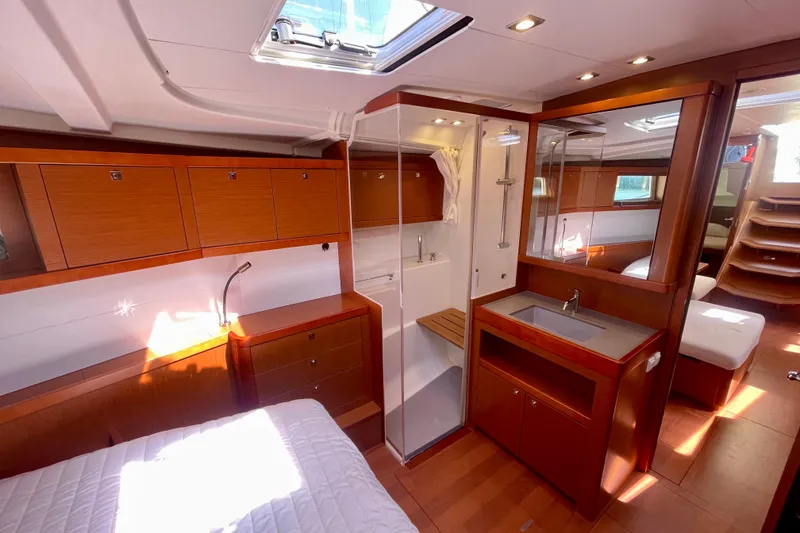

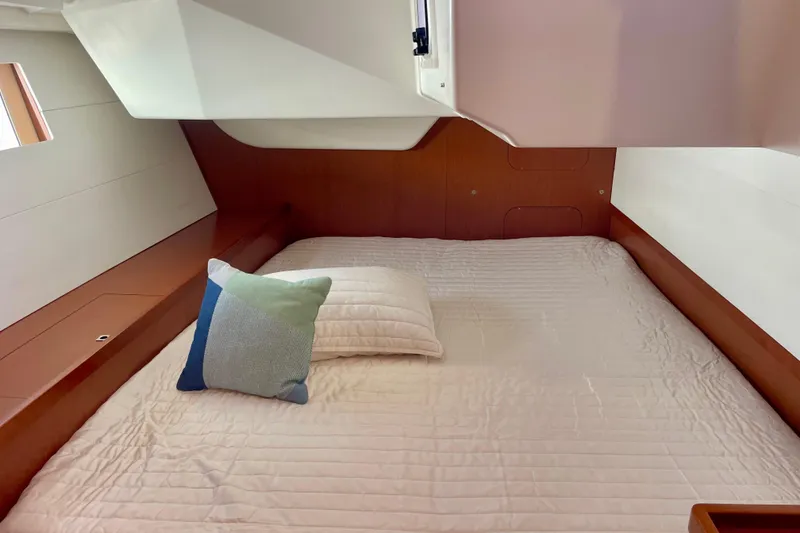

FORWARD CABIN
• Headroom: 1,92 m / 6’4’’
• Central double bed (2,09 m x 1,55 m x 1,18 m / 6’10’’ x 5’1’’ x 3’10’’)
• Hanger closets - Valet tray - Cubby hole locker - Base cabinet - Storage space under bed
• 2 Flush deck hatches with mosquito blind
• 2 Hull portholes with curtain

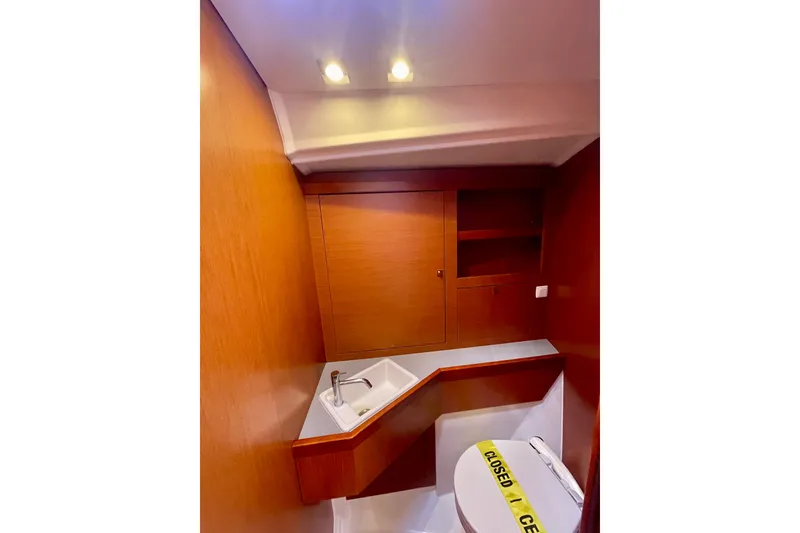

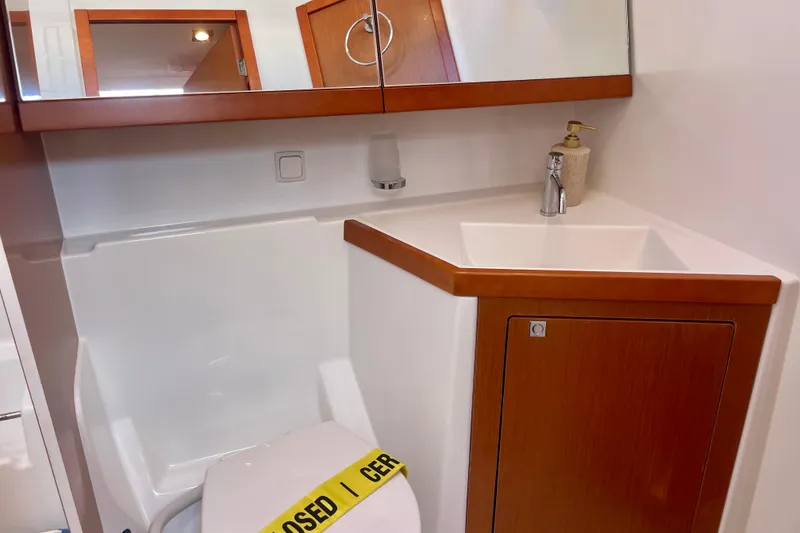

FORE HEAD
Completely built in to the cabin with:
TO STARBOARD
• Moulded basin in grey work surface, Hot/cold water mixer tap
• 1 Bathroom storage cabinet
• 1 Mirror
• 1 Glass shower cabin with flush access and stowage on the bulkhead
• 1 Flush deck hatch with mosquito blind
TO PORT
• Separate WC
• 1 64 L / 17 US Gal rigid holding tank
• Hand basin
• Storage space along the hull
• 1 Flush deck hatch with mosquito blind

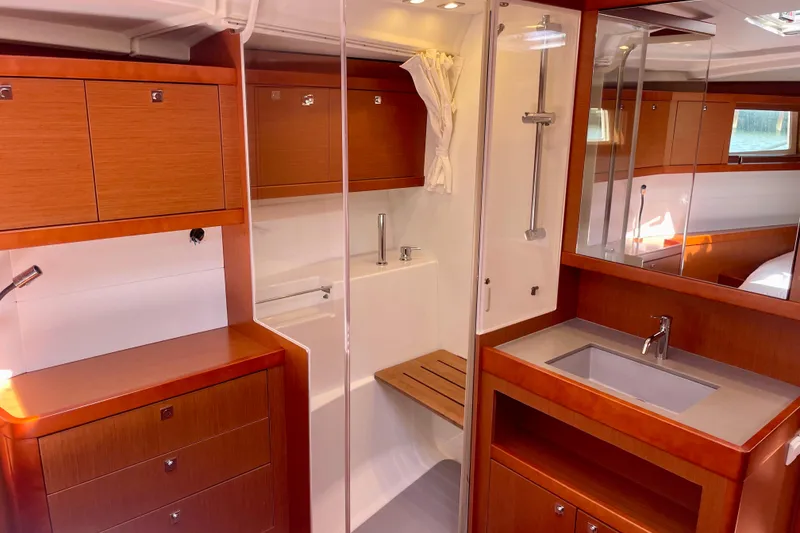

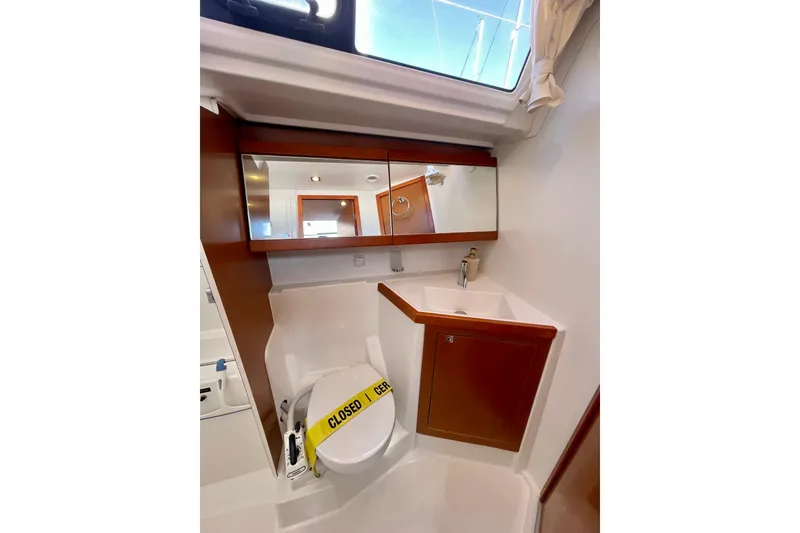

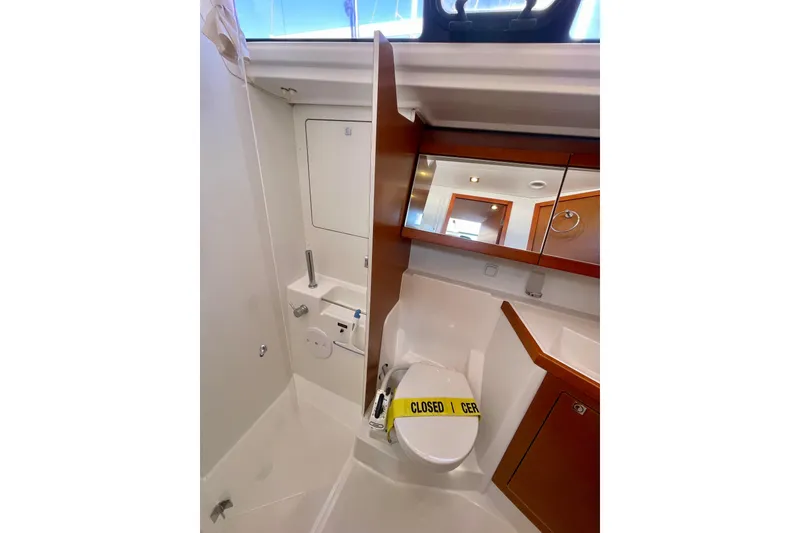

STARBOARD AFT HEAD COMPARTMENT
• Headroom: 1,92 m / 6’4’’
• Access through saloon and the starboard aft cabin
• Separate shower - 1 Hot/cold water mixer tap - Stowage on bulkhead
• 1 Manual toilet
• 1 64 L / 17 US Gal rigid holding tank
• Basin - 1 Hot/cold water mixer tap
• 2 Mirrors
• Toilet accessories
• 1 Opening portlight with curtains in side windows in the coaming

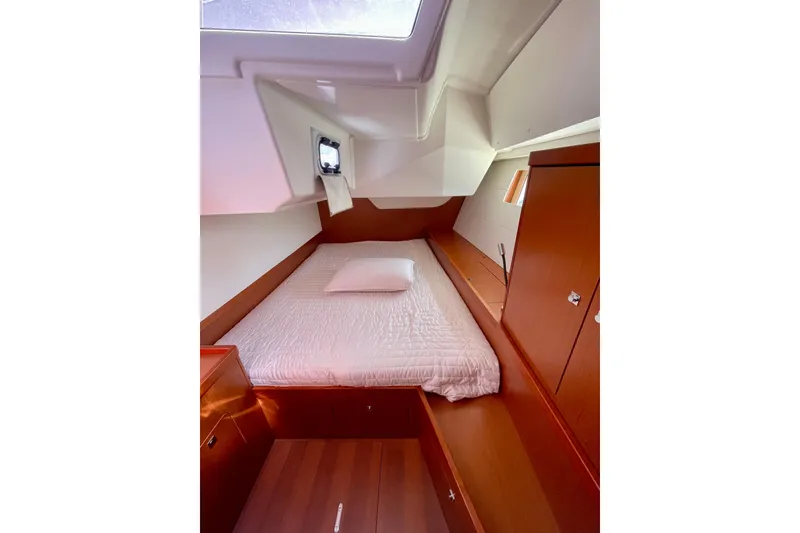

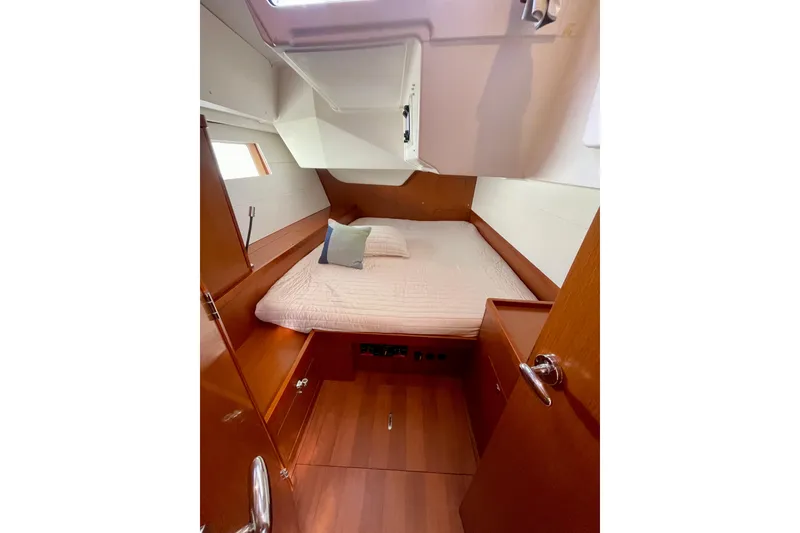

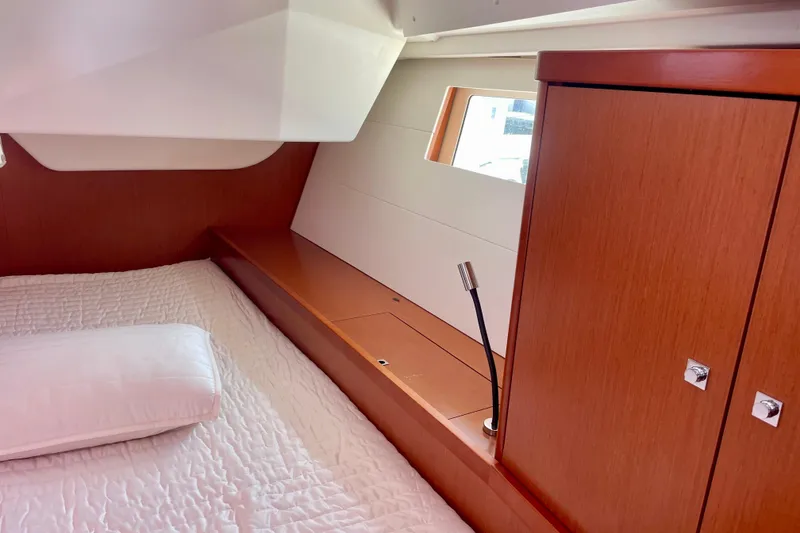

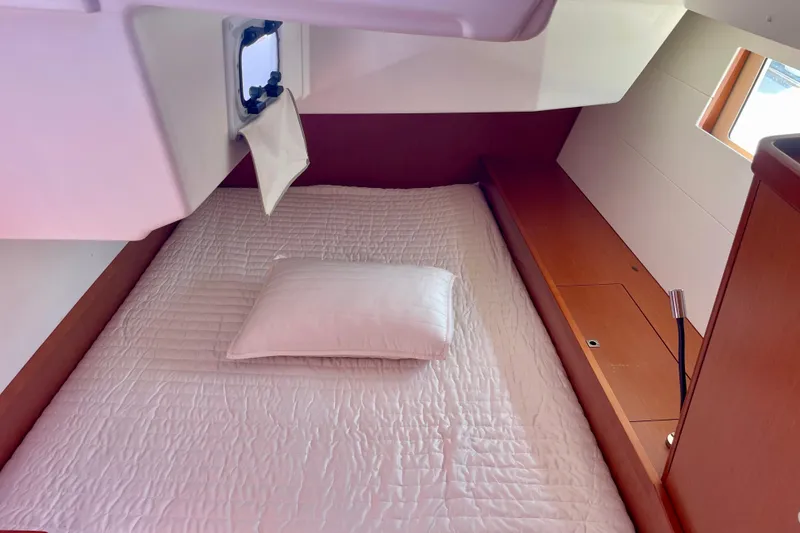

STARBOARD AFT CABIN
• Headroom: 1,86 m / 6’1’’
• 1 Double bed (2,09 m x 1,18 m x 1,55 m / 6’10’’ x 3’10’’ x 5’1’’)
• Access door to starboard aft head
• Cupboards, Hanging locker, Closed shelving, Stowage on both sides of berth
• 1 Large size hull port with curtain
• 1 Opening deck hatch with mosquito blind
• 1 Opening cockpit port with curtain
• 1 Glazing on companionway bulkhead

2 cabins layout, 2 heads

AFT-GALLEY - PORT SIDE
• Headroom: 1,90 m / 6’3’’
• Closed galley aft, accessible through galley
• Cupboards, shelves
• Dedicated position for a 5 kg washer drier (option)
• 1 Opening deck hatch with mosquito blind
• Direct access to cockpit locker (Port side)

3 cabins layout, 2 heads

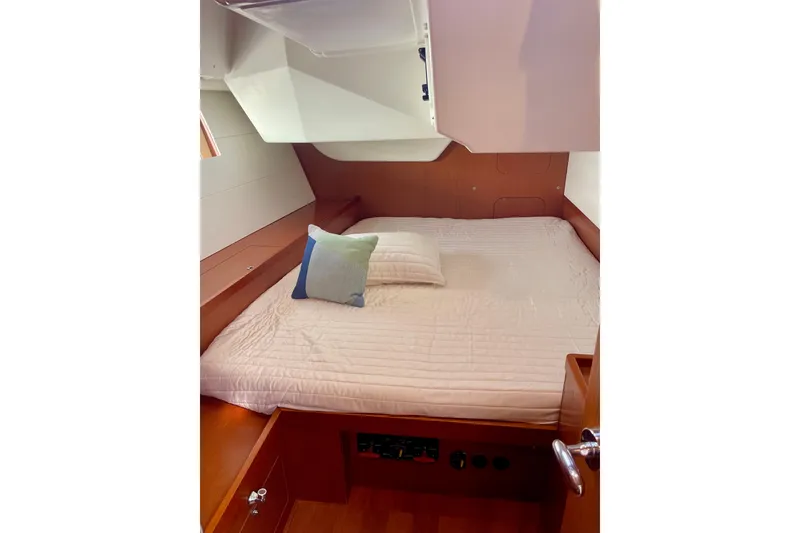

PORT AFT CABIN
• Headroom: 1,86 m / 6’1’’
• 1 Double bed (2,05 m x 1,35 m x 1,55 m / 6’9’’ x 4’5’’ x 5’1’’)
• Cupboards, Hanging locker, Closed shelving
• 1 Large size hull port with curtain
• 1 Opening deck hatch with mosquito blind
• 1 Opening cockpit port with curtain
• 1 Glazing on companionway bulkhead

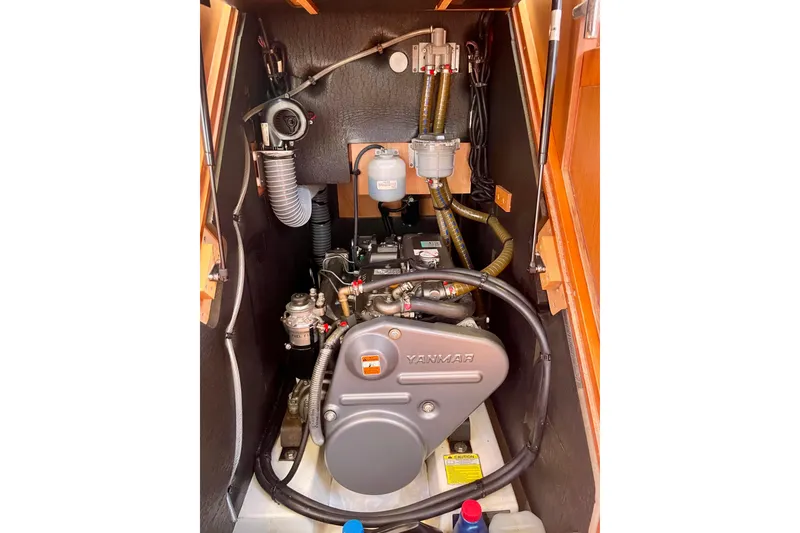

• Engine Yanmar Diesel 80 hp/80 HP, Common Rail, Sail Drive

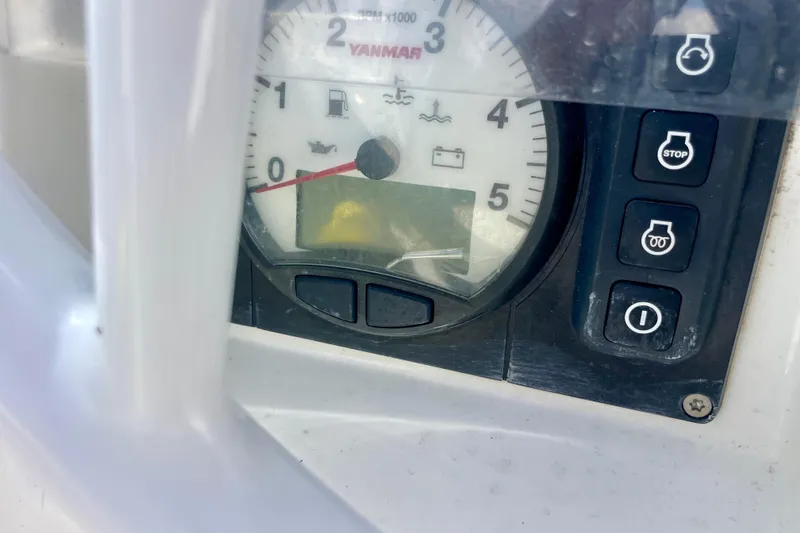

• Engine control - Control panel in the port cockpit
• Engine compartment: Soundproofing foam - Ventilation: 1 air intake and 1 pressured air outlet
• 1 Alternator 12 V / 125 Ah
• 1 Rotomoulded diesel tank 200 L / 53 US Gal (under port aft berth) - Electronic gauge - Low level alarm - 1 Deck filler
• Filters: Sea water - Diesel - Water separator
• Fixed three blades propeller
• 1 Engine access through companionway (opening with 2 gas struts) - 2 Engine access through aft cabins

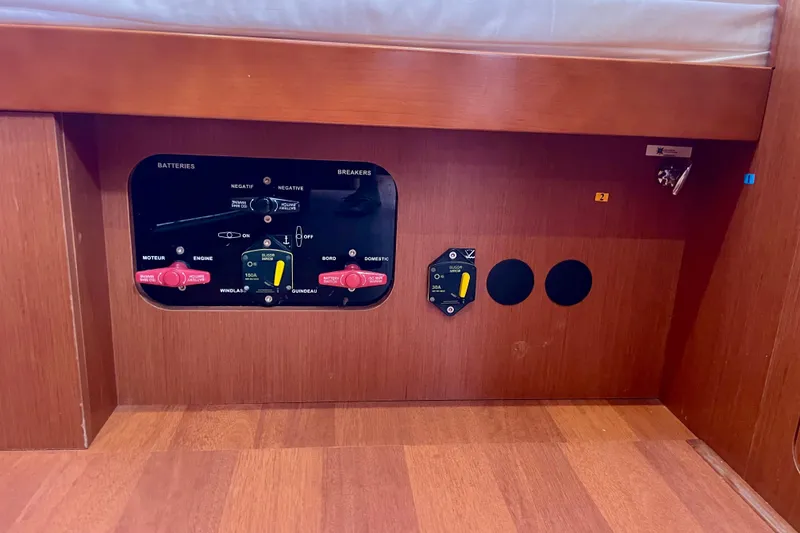

• 12 V circuit
• 2 service batteries (140 Ah) - 1 Engine battery (110 Ah)
• 1 Power distributor
• 12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)
• 1 12 V Sockets
• Lighting: Overhead lights - Reading lights - White striplighting
• Navigation lights: 1 Forward and aft navigation lights - 1 Engine navigation light / Spreader light forward of mast - 1 Anchor light on masthead
• Full 220 V system (Interior sockets 220 V, 40 Amperes battery charger, Shore power socket)

• 1 Rotomoulded freshwater tank 330 L / 87 US Gal (Forward cabin) - 2 Deck fillers - Separate tank filling - Tank selection with "¼ turn" by-pass valves
• Pressurised electric water pump - Expansion tank - Inline filter
• 40 L / 11 US Gal Electric calorifier (engine start)
• 1 Rigid 64 L / 17 US Gal black water holding tank for each WC
• Delayed shower draining and electric shower drain pumps
• 1 Electric bilge pump - 1 Manual bilge pump
• 1 Electric ice box drain pump

• 1 Gas bottle box in the cockpit (Diameter 0,34 m x 0,53 m / 1’1’’ x 1’9’’)
• Regulator and safety tap
