2023 Riviera 5400 Sport Yacht

These are upgrades found on the 2023 Riviera 5400 Sport Yacht Platinum Edition "MISS SIP" - some of these upgrades will supersede the standard features. For any questions please feel free to contact the central agent for clarification - this is A LOT OF UPGRADES - BE SURE TO REVIEW THE WHOLE LIST

UPGRADES

•


  Volvo Penta Full Warranty Until 11/28/2027! Engines, Transmissions, Pods- ALL VOLVO COMPONENTS





•

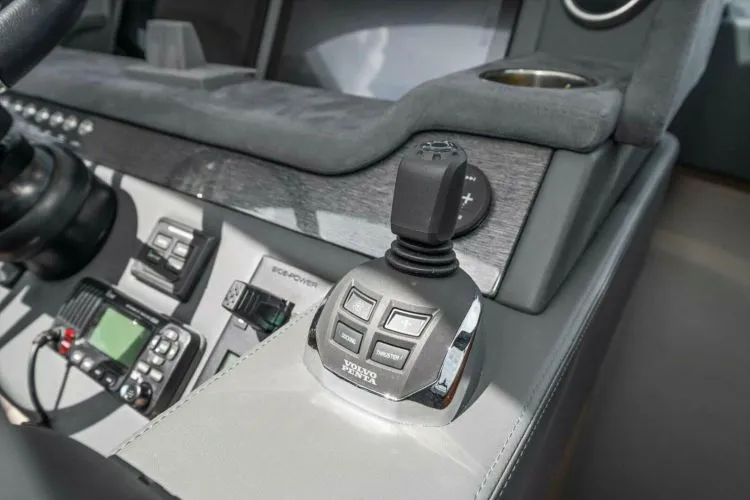

  Joystick, cockpit (x1) with station select/start/stop control





•

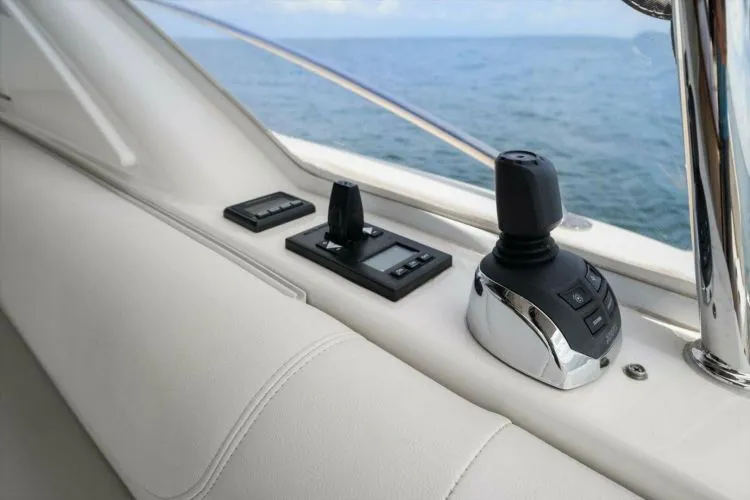

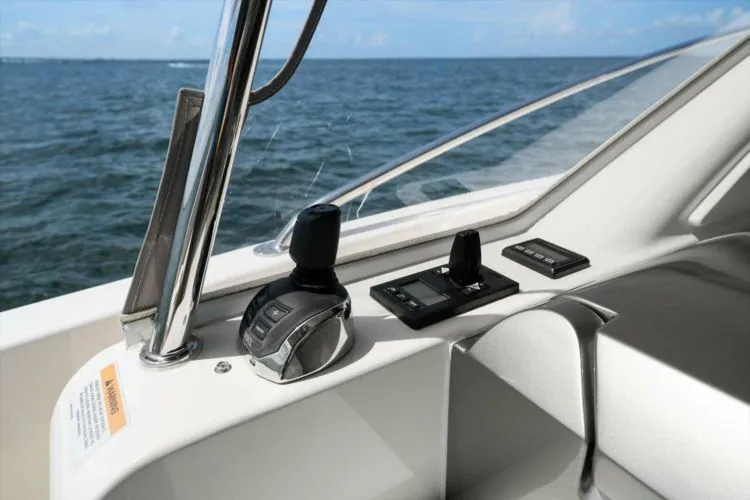

  Cockpit Joystick - Additional joystick station mounted to cockpit (so 2 cockpit joystick stations, one port and one starboard)





•

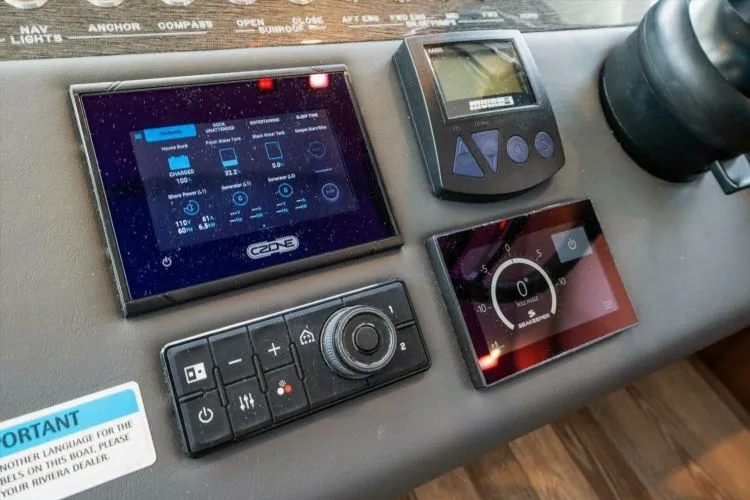

  Czone- Configuration for ipad connectivity, includes programming and Wi-Fi interface





•


  Tropical Air Conditioning Package- salon upgrade to 48,000 BTU and includes heat reflective film to windows, front and sides as well as sunroof glass





•


  High Pressure Water Cleaner plumbed to outlets at bow and cockpit (supplied with 1x 10 metre (32'10") hose and spray wand)





•

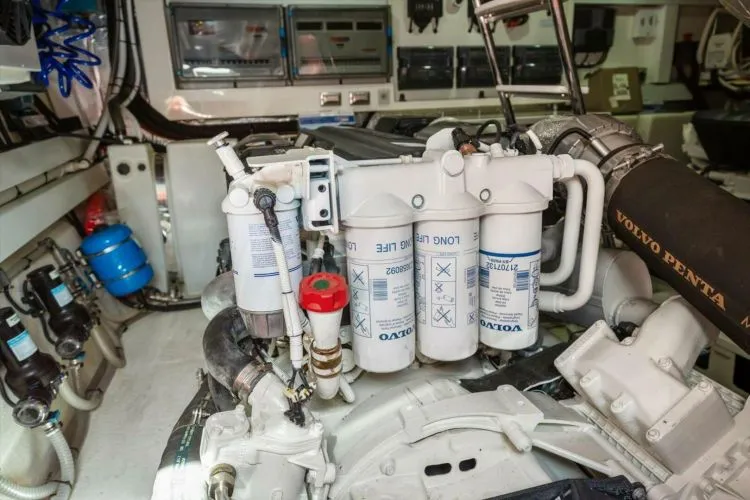

  Fuel filters/ water separator for engines & generator, DUAL to main engines





•


  Upgrade house battery bank to include additional Lithium-ion battery (total x4) (400AHr Total/280AHr Usable Capacity)





•


  Wireless remote for Glendinning Cablemaster





•


  Hand held corded remote for swim platform, mounted in tender garage to allow operation of up down mechanism from the swim platform





•


  Port stateroom (or lounge area) - 24” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus, 2 x Fusion Speakers)





•


  Cockpit Speaker Upgrade - includes 4 x 7.7" and 2 x 8.8" JL Audio M6 Blue backlit speakers powered by JL Audio 6 channel amp.





•


  Additional transom fixed cleats mounted to lower transom style line





•


  Dyson cordless rechargeable vacuum cleaner with detachable long reach wand with charging station





•


  Drinking water purifier with outlet in galley





•

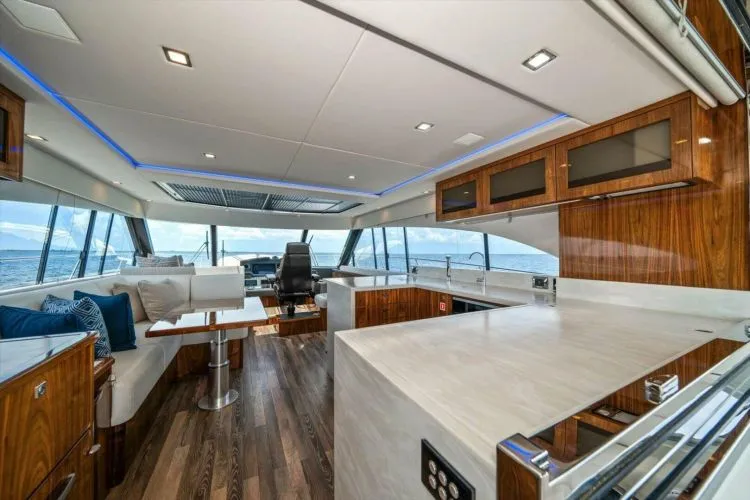

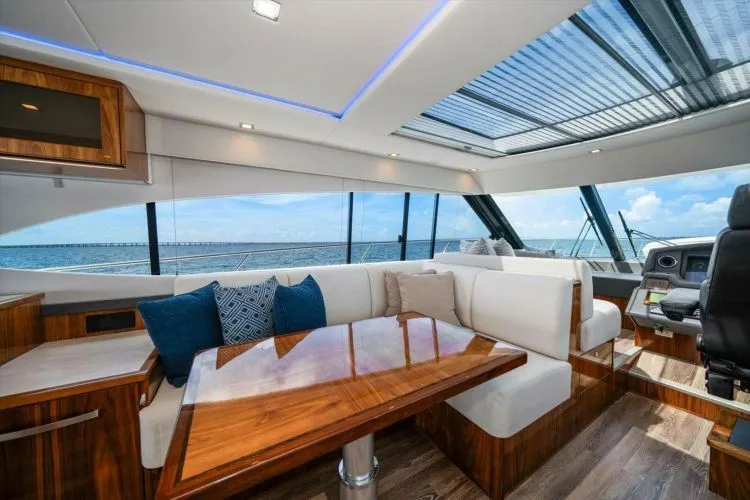

  Salon table upgrade to electric hi/lo with infill cushion allows conversion of dinette into daybed





•


  Painted hull topsides in metallic colour (Gunwhale to pin stripe, following the chine line up at the bow, swim platform not included)





•


  Cockpit awning - Yacht acrylic - Fixed forward section only with integrated 1/4 panel strata-glass clears to port and stbd





•


  Master cabin to include a small safe, mounted into hanging locker





•


  Saloon side window covers





•


  Triangular Quarter glass clears to cockpit port and stbd with additional grab rails





•

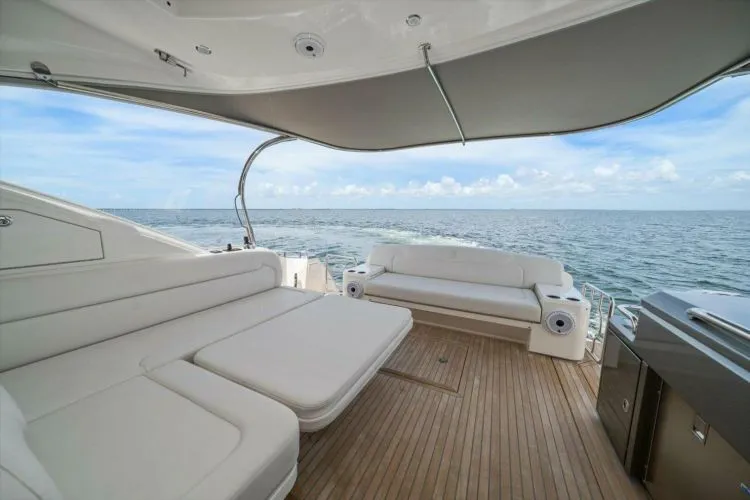

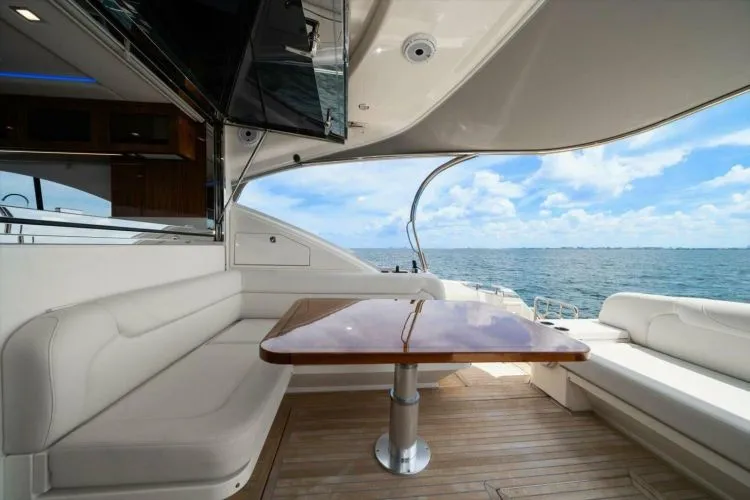

  Upholstery to cockpit lounge and foredeck sun pad - Dove Vinyl





•

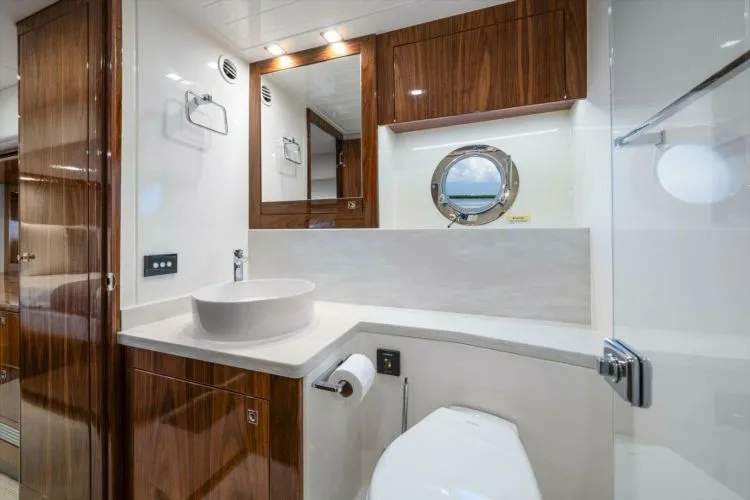

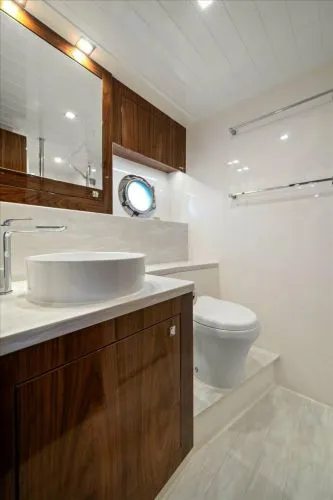

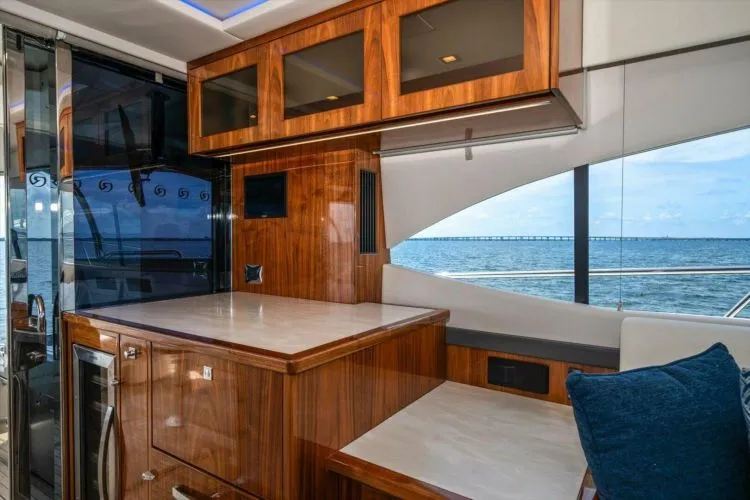

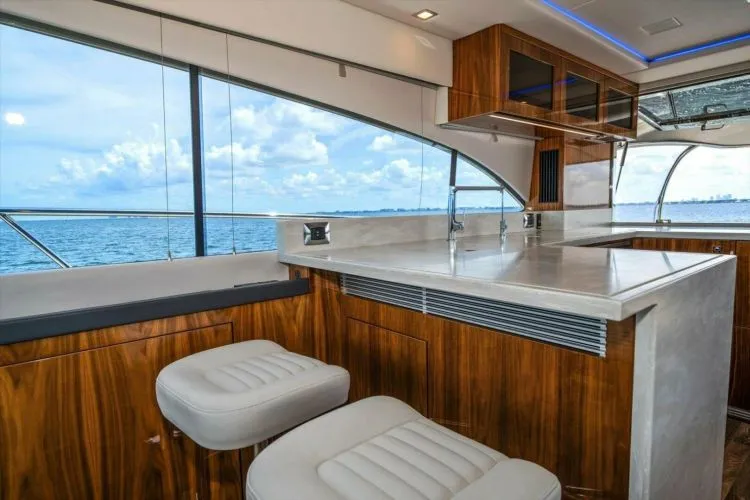

  Solid Surface benchtop colour - As fitted to Galley, Cockpit and Heads (Including heads floor) Corian - PEARL





•


  Upholstery - Bedhead & Bed surrounds - Bedside Inlays to compliment- LOVELY MARBLE





•

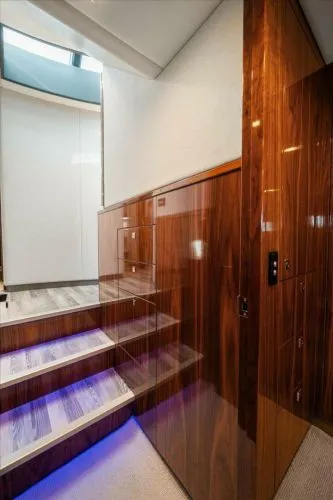

  Saloon, Galley, Stairs & Companionway Flooring in commercial grade vinyl UPGRADE- LIMED LINEN OAK





•


  Staterooms Fitted with 100% Wool Carpet- TROIKA MOSCOW





•


  GALLEYWARE PACKAGE (32pce Cutlery set, 32pce Dinner set, 2 x Kitchen towels, Tumblers - 8 x Medium & 8 x Large, 8 x Wine Glasses, 8 x Champagne Flutes, Salad Bowl & Salad Servers)





•

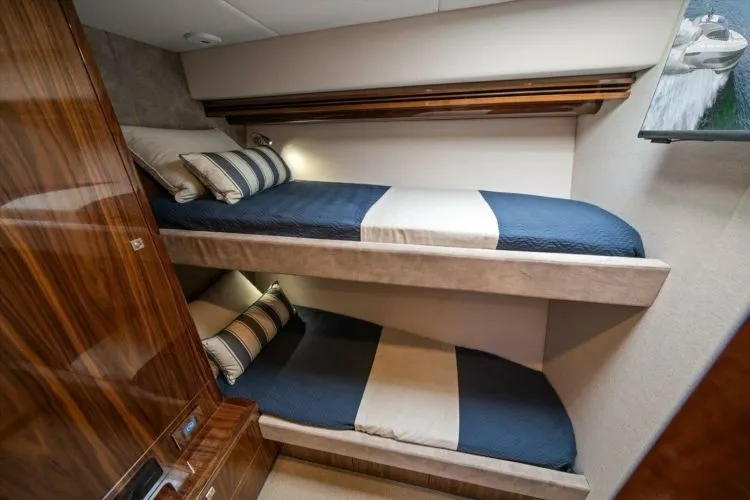

  Mattress Protectors - for 3 cabin layout (1 x King, 1 x Queen, 2 x Singles)





•


  Additional Fitted Sheet Sets - for 3 cabin layout (1 x King, 1 x Queen, 2 x Singles)





•


  Timber - Walnut interior including high gloss Finish varnish throughout





•


  Saloon roller blinds to sides and rear bulkhead (manual)





•

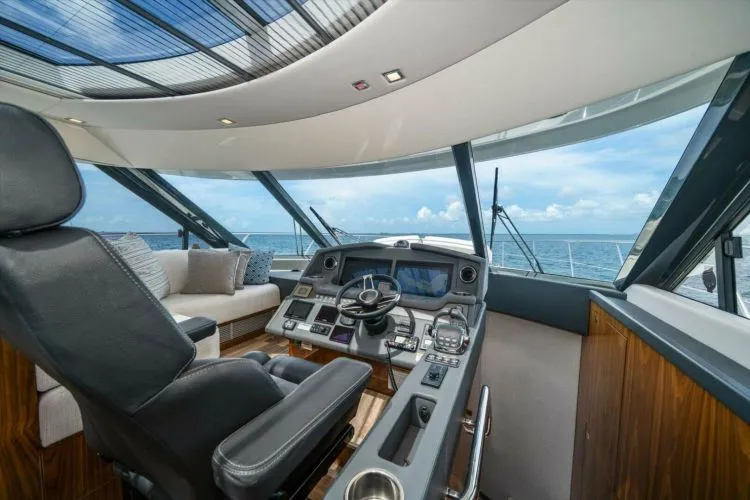

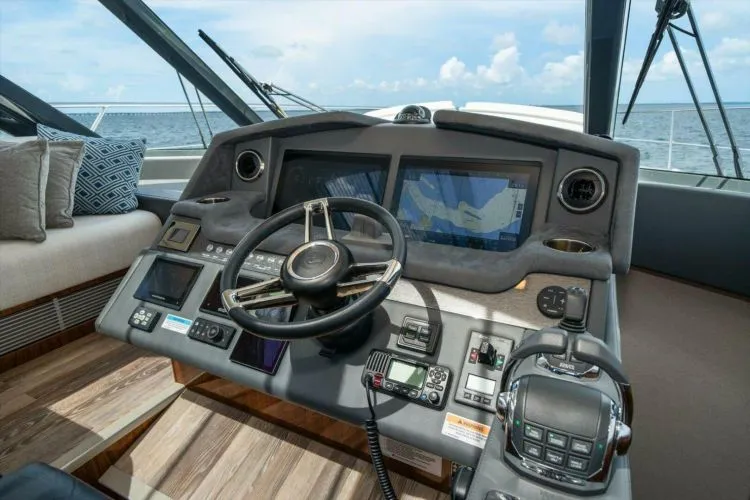

  2 x 17" Volvo Glass Bridge 8617 inc GPS and GRID Controller





•


  Sounder/Transducer CHIRP Garmin GSD 26 CHIRP Sounder with 1kw B275LHW depth/temp transducer





•


  Sounder/Transducer Panoptix Livescope FrontVu forward looking transducer





•


  Garmin GFR Fantom CHIRP Closed Array Radar 48NM





•


  Garmin Autopilot integrated into Glass Bridge





•


  Garmin AIS 800 Transciever with VHF radio integration





•


  Aft Awning Flood Lighting (2 lights) Lumitec Caprera LT





•


  Foredeck Lighting (6 each side) Hella Easy Fit Blue





•

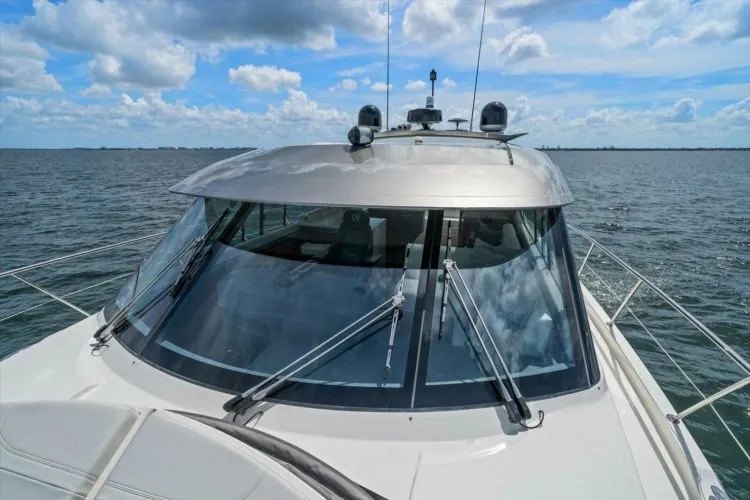

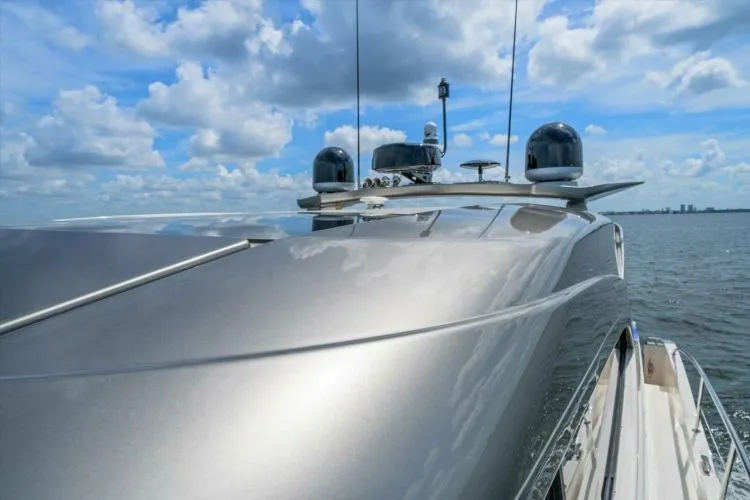

  Targa Uplighting Lumitec Echo White x 6 to light Sat Domes and Radar





•


  Engine Room Camera Garmin GC 200 IP Dome Camera (infra red)





•


  Cockpit Camera Gamin GC 200 IP Dome Camera (infra red)





•


  Awning Camera, mounted to stainless rail





•


  Thermal FLIR M232 Camera with tilt/pan and JCU controller





•


  Siren Marine Remote Monitoring System





•


  Navigation display connected to Salon TV





•


  HRO Seafari Watermaker 900GPD, with control panel in salon





•


  KVH TV5 Tri-Americas SAT TV Dome





•


  Lumitec SeaBlaze X2 Full-Spectrum Underwater Lights, 4 across transom and 1 on each side, 6 in total





•


  Garmin GXM54 weather module for chartplotters





•


  Seakeeper 9 Gyro Stabilizer





•

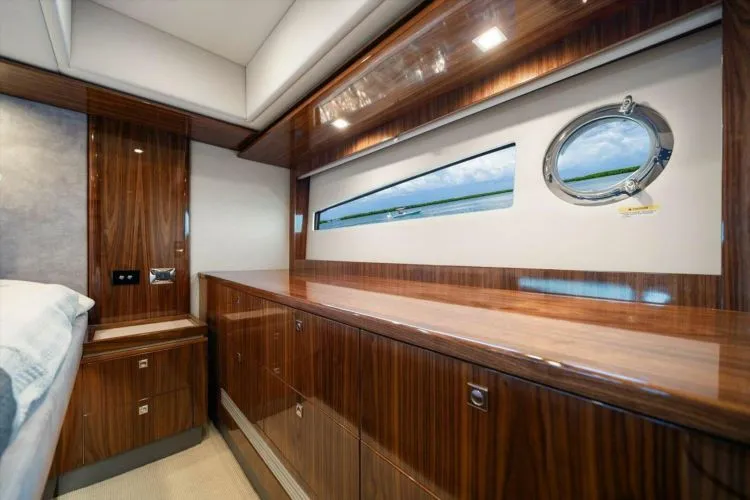

  Master Cabin Chaise Lounge to be removed and a drawer unit same as port side to be installed to maximize storage





•


  Additional power sockets with USB ports in cabinets by helm





•


  SAT TV to be connected to all TV's on board





•

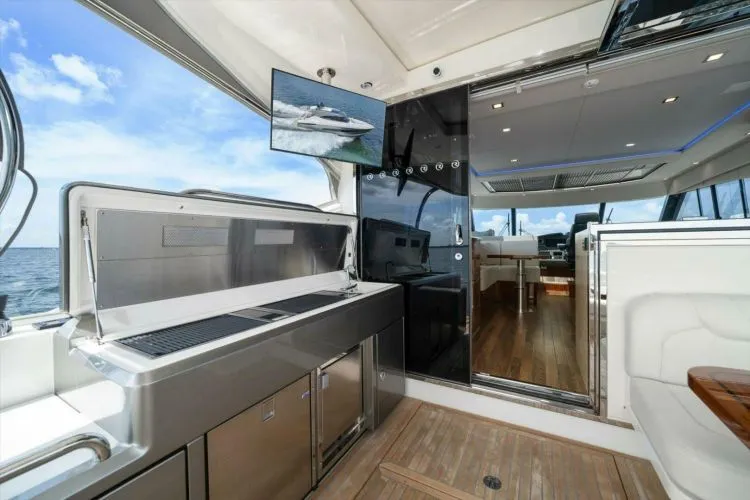

  32" Samsung TV on Custom stainless steel bracket on port side of aft deck area





•


  Volvo Penta Assisted Docking System with proportional bow thruster (new for 2023). Big game changer for joystick docking. The boat will maintain its fixed position but actively let you move it with the joystick all while counteracting wind and current.





•


  Tracfone LTE-1 data dome




CONSTRUCTION
Hand laid, moulded fibreglass hull, deck (with core), cabin top & enclosed hardtop
Independent compartments throughout hull
Isophthalic gelcoat exterior (white)
Solid reinforced GRP keel, chines and hull bottom
Vinylester resin in first outer layer of hull
Watertight collision bulkhead forward

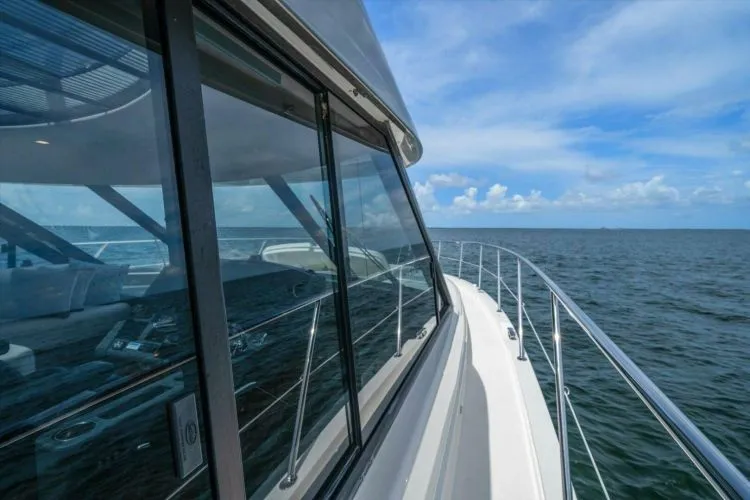

Hull windows are glass full length port and starboard

ENGINES

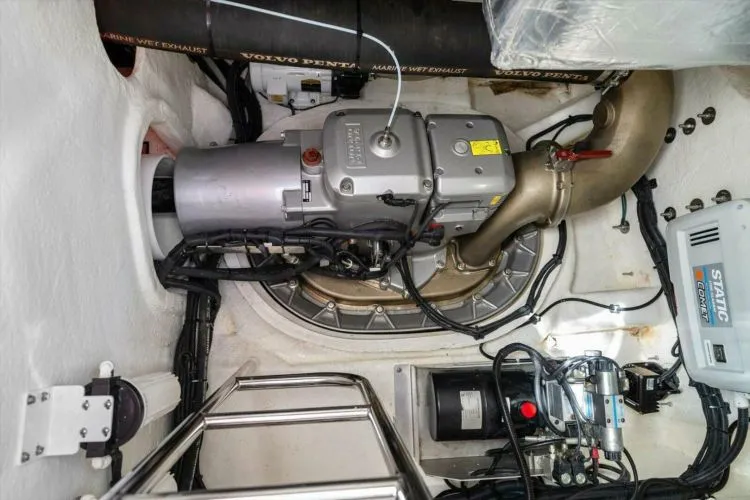

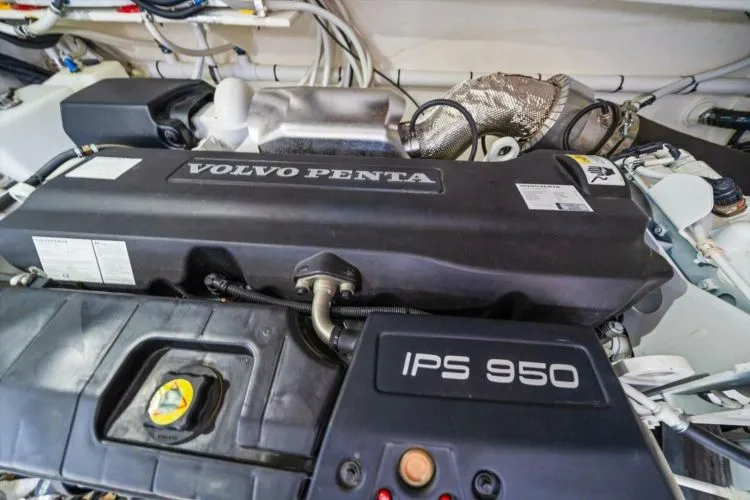

Twin Volvo IPS 950 D11 Diesel- 725hp each
Low speed mode
Dynamic Positioning System
Line cutters
Twin lever electronic controls
2x17" Garmin Glass Bridge Screens
Volvo Penta easy connect for remote app based monitoring

GENERAL SPECIFICATIONS
All exterior stainless mirror finish with ground polished welds, 316 marine grade
Antifouling: 2 coats epoxy undercoat, 2 coats antifoul with Propspeed coating to propellers & Pod Drive gear
Fenders x 4, dock lines x 4 and boat hook
Fire extinguishers, portable x 4
Owners manual - high quality and comprehensive
Safety labels - English language

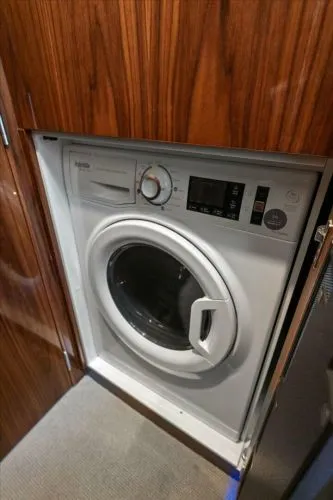

Washer/Dryer combination machine (Premium Brand) located in companionway

MECHANICAL
Acoustic & thermal insulation to Engine room
Air conditioning condenser units - (BTU's) 36,000, 16,000, 12,000 & 6,000
All through hull fittings on or below the water line fitted with ball valves, all hoses double clamped
Bilge pumps, auto & manual override x 4
Engine hatches insulated & removable
Engine monitoring display (Volvo) - 7'' Glass Bridge MFD
Engine mounts - anti vibration
Engine room lighting, LED (DC)
External & internal seawater strainers for main water intakes - engines, generator &air conditioning
Fire suppression system for engine room with automatic/manual controls
Fresh water heater (AC)
Fresh water pump, Secondary backup pump (switched independently)
Fresh water system (pressurised) 2 x 400 litre tanks, total capacity 800 litres (211 USgallons)* (approx.) displayed in Czone
Fuel lines all swaged
Fuel shut-off valves
Fuel tank, GRP coated in fire retardant resin, 3000 litres (792 US Gallons)*approx. displayed within Volvo Engine monitoring & visual site gauge on tank
Holding tank capacity 400 litres (105 Gallons)*Approx.
Sanitation system with overboard pump out switch & deck fitting for dock side pump out
Tender winch, electric for tender retrieval
Trim Tabs - Volvo trim assist system
Venting dorade system for engine and air intakes & fans (DC)

SUPERSTRUCTURE
Enclosed hardtop - GRP double moulded, 4 sides toughened glass, with sliding sidewindows, opening rear bulkhead to connect indoor/outdoor areas
Sunroof, GRP electric open/close sliding over forward cockpit

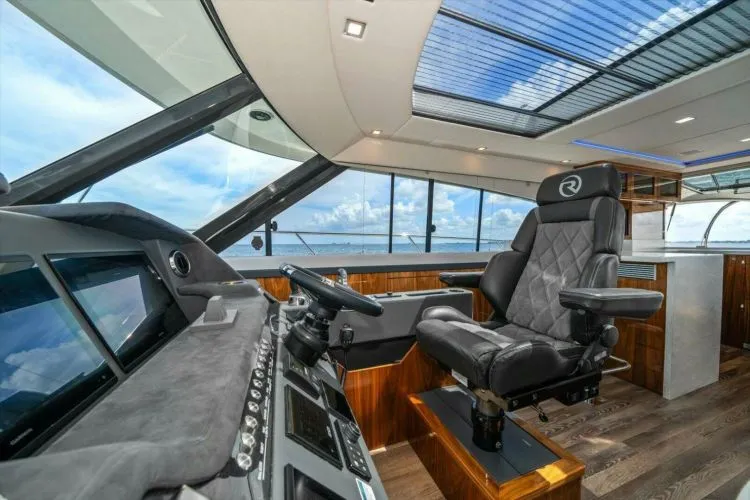

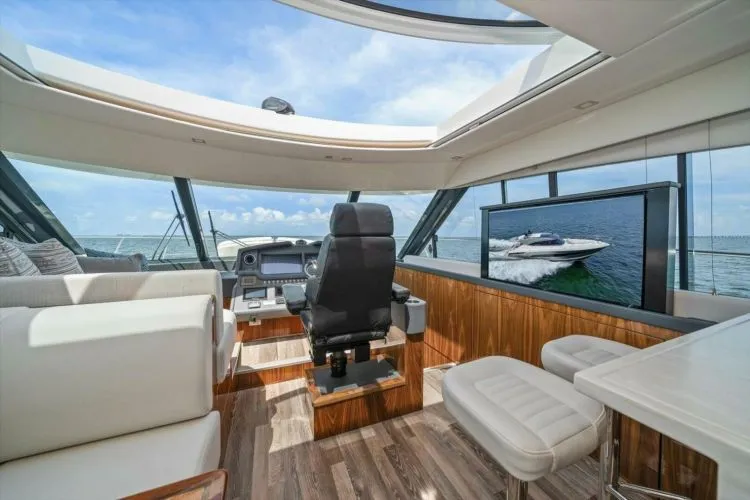

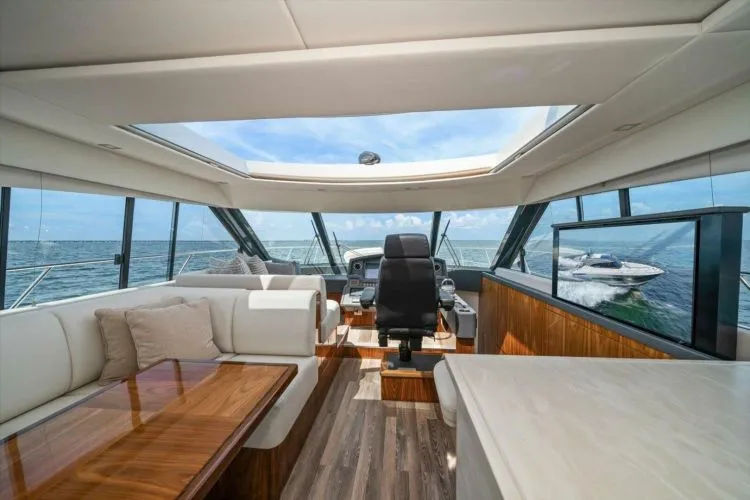

Sunroof, Tinted glass electric open/close sliding over helm/dinette area. Includes manual sliding screen & blind
Targa on hardtop painted Riviera Platinum with all electronics to be black where applicable
Hardtop painted Riviera Platinum

ELECTRICAL
Alternators - Independent start bank and independent house bank (total x 4)
Alternators - Port alternator charges start bank, secondary port alternator charges auxiliary bank. Starboard alternator charges starboard start bank & secondary starboard alternator charges house bank.
Batteries (Maintenance free) - Independent port & stbd start (total x 4), Auxiliary (x2)& house 24V x 3 (300AHr Total/210AHr Usable Li-Ion bank)
Battery banks individually isolated
Battery charger (24V/100A) for house bank
Battery paralleling system for emergency engine starting
Bonding system, to all metallic hull fittings under the water line with zinc anode including galvanic isolator

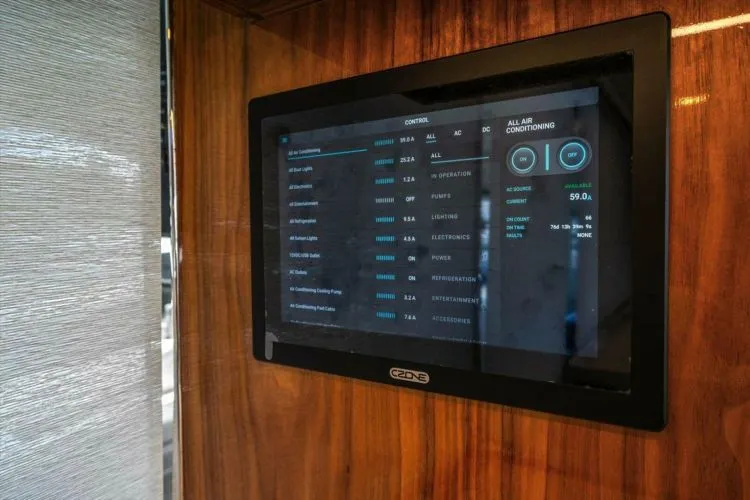

Digital monitoring system including AC& DC power metering, fluid tank level monitoring & DC circuit status via 10'' colour LCD touch screen mounted at aft saloon and 5'' Touch control screen at helm
Inverter 2.5kW to operate entertainment, 1 x Galley GPO and ice machine in the absence of generator or shore power
Navigation lights (international standard)
Wiring coded, numbered & assembled in looms where possible

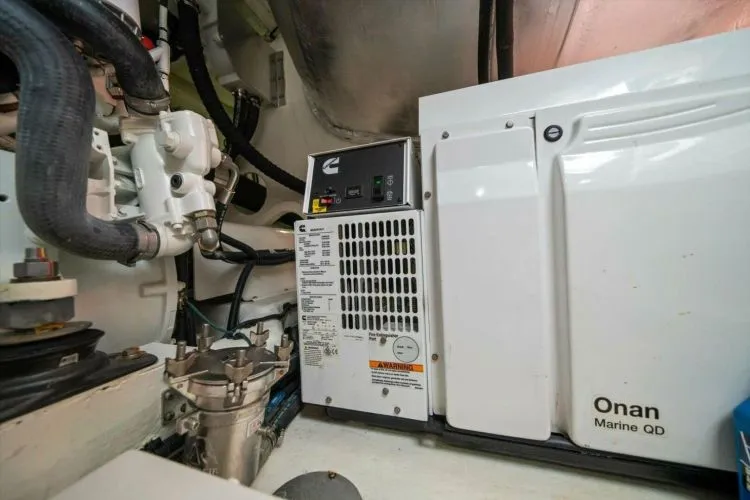

Generator - Onan EQD 21.5kW/60Hz with muffler, fresh water-cooled including sound shield, remove stop/start electronic & hour meter

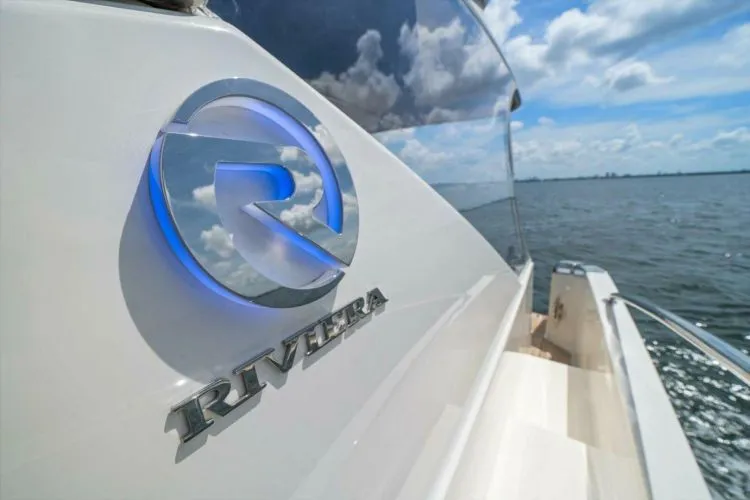

Backlit R Logos x2 fitted to deck sides
