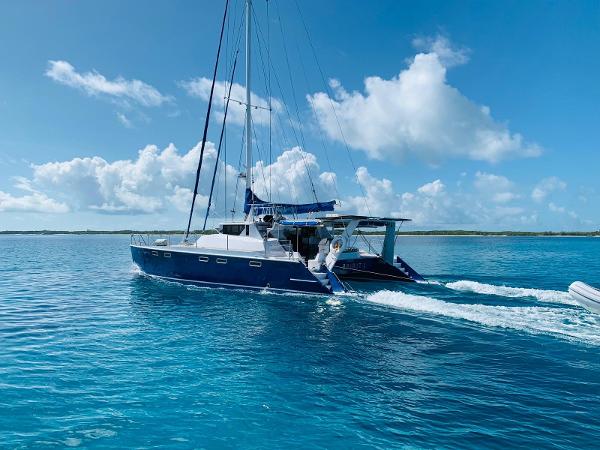

Designed by the internationally acclaimed Australian Lock Crowther and built by professional boat builder South Pacific Marine, Queensland, Australia. Spirit 1 has proven herself a thoroughbred among blue water cruisers.
Constructed to withstand the demands of Ocean crossings, a pre-purchase survey by Oceanic Yacht Design described her as follows: Ã¢â?¬Å?Designed for extended voyages where conditions may exceed wind force 8 (Beaufort Scale) and significant wave heights of 4 meters and above...Ã¢â?¬ï¿½
During the years spent cruising US East coast, Bahamas and Caribbean waters she has exhibited good seakeeping thus providing a very safe and comfortable cruising platform.
Spirit 1 is not a run of the mill production catamaran.
Professionally built using 5083-H321 sheet/6061-T6 extrusion to provide high longitudinal strength while allowing for the ship's natural flex in high seas operations. Her structure was designed and built to meet the requirements for commercial survey for Offshore Operations which require increased material thickness, scantling, a full length keel providing a double bottom to each hull and sealed crash bulkheads both forward and aft.Ã?Â
Electrical fitout is to commercial survey with all circuits individually protected.
Machinery fitout to commercial survey with 75Hp primary propulsion in each pontoon providing the required thrust requirements to maintain speed over ground in head seas whilst allowing engines to operate at nominal rpmÃ¢â?¬â?¢s to meet commercial standards of time between overhauls.Ã?Â
Bilge monitoring and pumping to commercial survey with 5 x 2000gl/hr pumps along the length of each hull.
Vessel went through major refit May 2015 through November 2016 at St Johns Shipbuilding Inc., Palatka. Scope of works included, but not limited to, complete sandblast of hull, topsides and superstructure to parent material and recoating, upgrade replacement of machinery, electrical, navionics, toilets, HVAC, interior linings, portlights.
The cockpit is very spacious and comfortable with wrap-around seating. Both rollup Isonglass and Sunbrella shade blinds allow for the area to be closed off in adverse weather or opened up in good conditions. A full fiberglass roof extending well aft over the dinghy arch provides good insulation and protection from harsh sun.
The main salon/galley is spacious with an uncluttered design and wrap around windows. Port pontoon features two cabins with queen beds, shower, vanity and toilet facilities. Starboard pontoon features king bed, shower, vanity, toilet and laundry facilities. Interior HVAC provides both heating and cooling as required. Commercial watermaker capacity of 600gls/day.Ã?Â
Entire electrical design allows for permanent off-grid operations with Lithium batteries and over 2000 watts of solar array, P&S main engine high capacity charging and backup generator.Ã?Â
All essential DC equipment is duplicated to allow for operational redundancy. Even down to two independent autopilots.
The above all combined with a sail plan allowing for single handed operations.
Repair and maintenance is critical on any blue water cruising vessel and Spirit 1 has been maintained to the highest level. A large inventory of tools and spares exists and is carried on board.
Large sail inventory of boom stack Main, 135% furling Genoa, Midstay furling jib, Storm jib, Gennaker and Code Zero.
350 feetÃ?Â x 3/8Ã¢â?¬ï¿½ stainless steel anchor chain.
Duel anchors located in roller leads for easy and fast deployment.
Flybridge provides for all sail and power operations.
Flybridge roof of fiberglass and fitted with both rollup Isonglass and sunbrella blinds.
Large cockpit covered BBQ for operations in all weather conditions.
2 x 100 gallon diesel fuel tankage
2 x 100 gallon fresh water tankage.
1 x 25gl black water holding tank
12VDC 3000w 120VAC 60Hz 160amp Inverter/Charger
12VDC 3000w 220VAC 50Hz 150amp Inverter/Charger
12VDC 50 Amp charger
600gl/day water maker
- Mastervolt 3000w 220vac 50hz 1ph pure sine wave inverter/150amp charger
- Mastervolt 3000w 110vac 60hz 1ph pure sine wave inverter/160amp charger
- Mastervolt 110-220vac input, 12vdc 50amp charger
- 2 x 300amh ReLion lithium house batteries
- 2 x Odyssey 31M start batteries
- 2000w solar panels
- Outback 1000 charge controller
- Outback 750 charge controller
- Induction cooktop
- Electric oven
- 1 x 16000btu AC
- 1 x 12000btu AC
- 1 x 6000btu AC
- 2 x Isotherm 6cu.ft. freezers
- 2 x Nova Kool 6cu.ft. fridges
- 12vdc cabin fans
- LED lighting throughout
- All feeders and circuits with individual breakers
- 5 x 2200gph bilge pumps each pontoon. Bilge monitoring system
- VHF with wired remote in flybridge
- 6man inflatable liferaft
- 8 x coastal life jackets
- Handheld fire extinguishers
- Fire blanket
- 2500 12vdc anchor winch
- 60lb CQR anchor
- 45lb CQR reserve anchor
- 350' x 3/8" stainless steel anchor chain
- Sea anchor
- 130% furling Genoa
- Inner furling storm jib
- Top-down furling Code Zero
- Gennaker in sock
- Spare clip-on storm jibÃ?Â
- Sail plan allows full operation from flybridge
- 14" Simrad chartplotter
- 32nm dome radar
- Simrad autopilot
- Wind & Depth instruments
- Remote controlled searchlight
- Navigation lights and monitoring panel
- 2 x 100gl fresh water tanks with individual pressure pumps, cross fed to manifold with feeders to all outlets
- 2 x 100gl diesel oil tanks. Deck fill pipes. Consumer supply through dual racor filters
- 1 x 25gl holding tank. At sea discharge or shoreside self pump out
- Salt water deck hose
- Fresh water deck hose
- Anchor washdown hose
- Dometic 600gl/day watermaker
- Propane cockpit BBQ
- Underwater lights
- Spreader lights
- Aft flood lights
- Full inventory of sea going spares
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
